Isuzu WW
▶
TRUCKS
▶
NPR
▶
50980 - NPR(IRAN)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-66 - HEAD LINING AND TRIM
▶

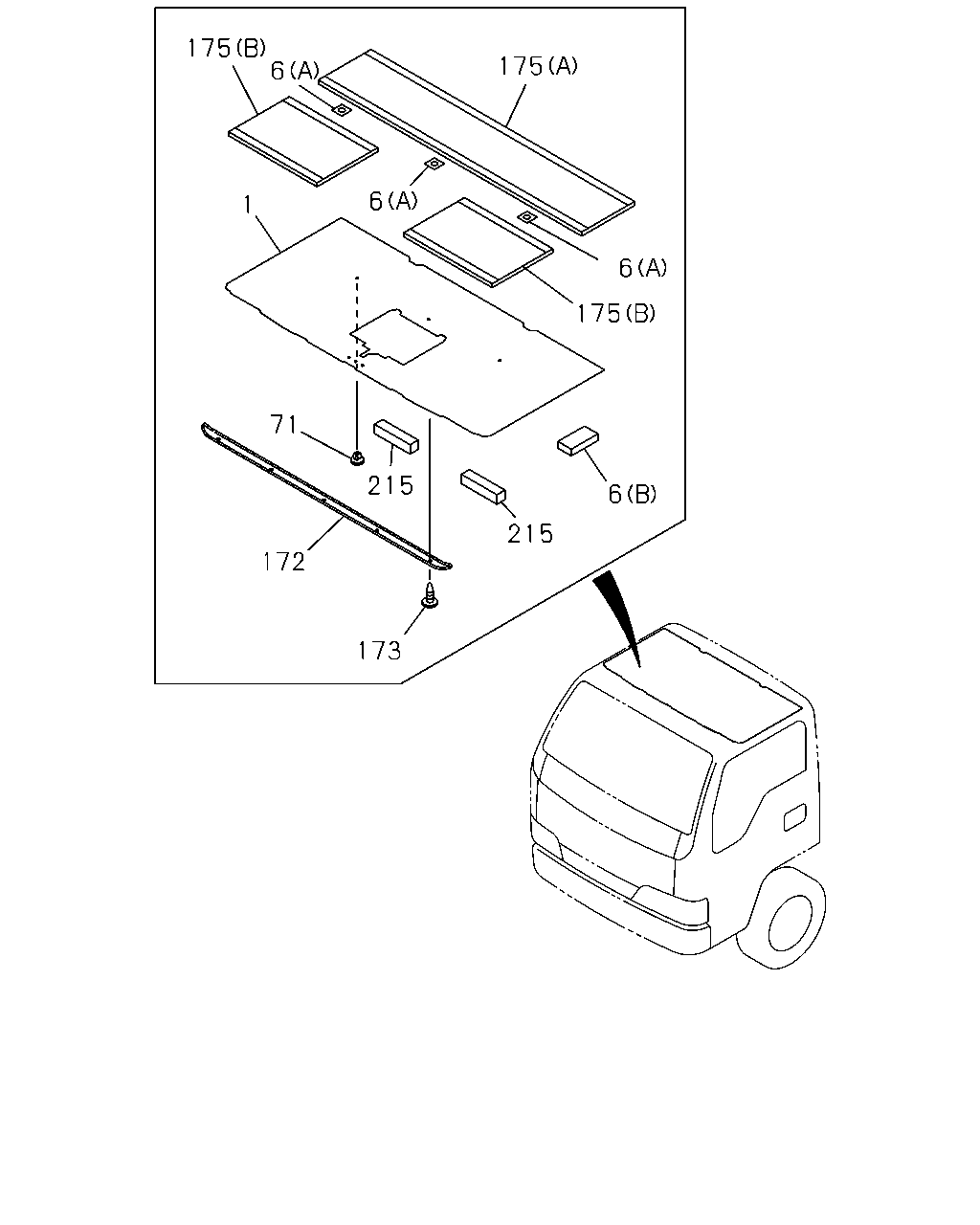

6-66 — HEAD LINING AND TRIM
(#48216) — 15 parça
175
6
175
6
1
6
175
71
215
6
215
172
173
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LINING; HD
ROOF VENTILATOR<C55> TRAY ROOF HEAD<7EJ> LIGHT GRAY
8-97868-426-2
01
1
0401-
1
LINING; HD
ROOF VENTILATOR<C55> EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY
8-97868-224-2
01
1
0401-
1
LINING; HD
EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> LIGHT GRAY
8-97868-427-2
01
1
0401-
1
LINING; HD
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> LIGHT GRAY
8-97867-608-3
01
1
0401-
6
SPACER; HD LINING
(A)
8-94353-014-0
03
1
0401-
6
SPACER; HD LINING
(B) H=10 L=55
8-97857-444-0
02
1
0401-0410
6
SPACER; HD LINING
(B) H=10 L=55
8-97410-832-0
02
1
0411-
71
FASTENER; HD LINING
LIGHT GRAY
8-97867-230-2
03
1
0401-0610
71
FASTENER; HD LINING
DARK GRAY
8-97405-301-2
03
1
0611-
172
RETAINER; HEAD LINING
LIGHT GRAY
8-97867-611-4
01
1
0401-
173
CLIP; RETAINER,HEAD LINING
LIGHT GRAY, D6.8X11 PUSH RIVET
8-97867-240-0
05
1
0401-0708
173
CLIP; RETAINER,HEAD LINING
DARK GRAY
8-97406-299-0
05
1
0709-
175
CUSHION; HEAD LINING
(B)
8-97856-524-5
02
1
0401-
175
CUSHION; HEAD LINING
(A)
8-97859-105-3
01
1
0401-
215
CUSHION; TRAY BACK PANEL
ROOF VENTILATOR<C55> L=100
8-97866-625-0
02
1
0401-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
