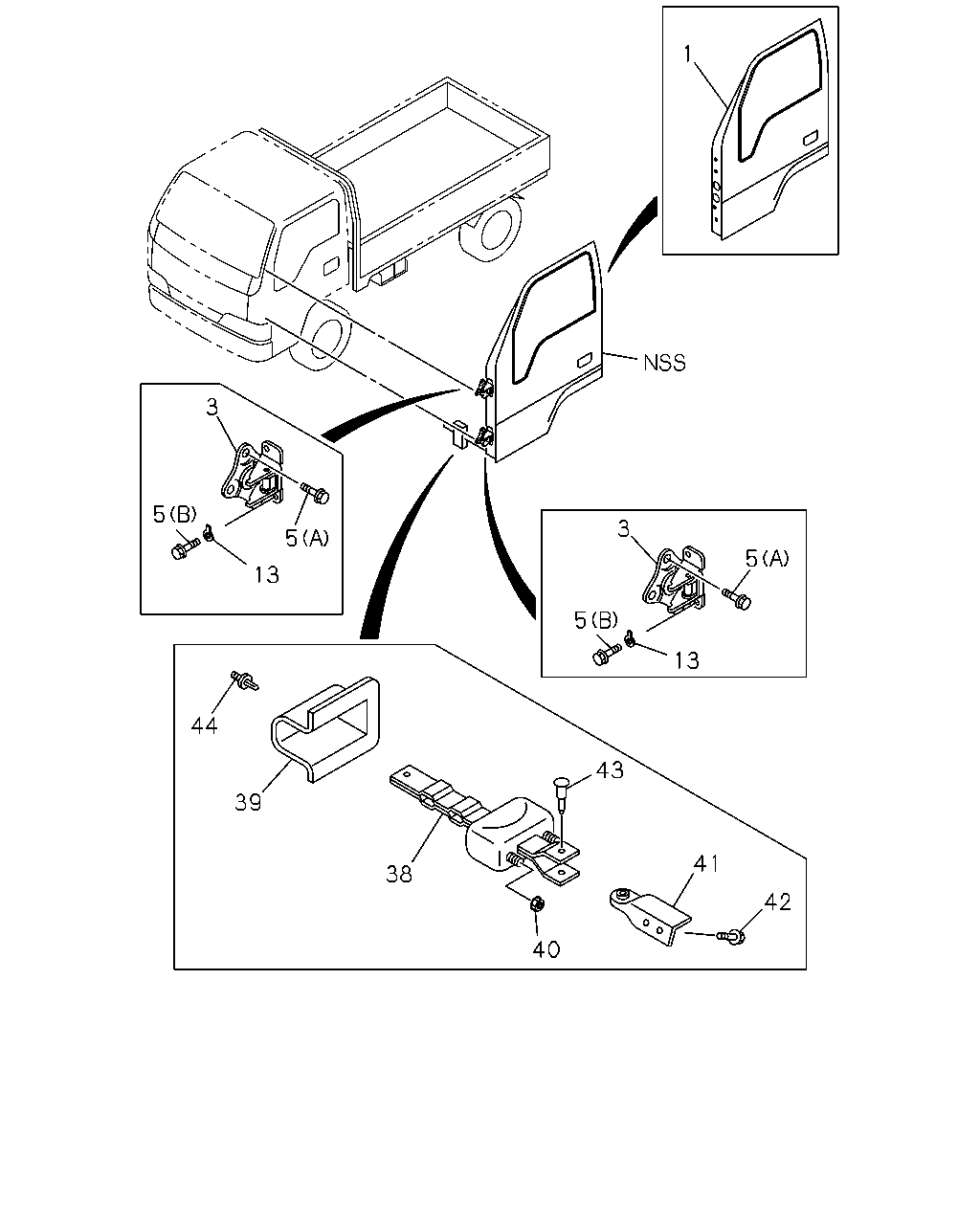

6-30 — FRONT DOOR AND HINGE
(#48209) — 17 parça
1
3
5
3
5
5
13
5
13
44
43
39
41
38
42
40
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DOOR ASM; FRT,WO/TRIM
8-97581-448-2
01
1
0401-
1
DOOR ASM; FRT,WO/TRIM
8-97581-447-1
01
1
0401-
3
HINGE; DOOR FRT
8-97852-007-5
04
1
0401-
5
BOLT; HINGE
(B) M8X22 FLANGE
8-94279-098-1
08
1
0401-
5
BOLT; HINGE
(A) M8X18 W/LK&PL WASHER
8-94279-232-0
12
1
0401-
13
WASHER; HINGE
ID=8.1 W/SEAL
8-97890-584-1
04
1
0401-
38
CHECKER ASM; DOOR
8-97581-681-4
02
1
0401-
39
COVER; CHECKER
8-97852-365-5
02
1
0401-
40
NUT; CHECKER
M8 FLANGE
0-91150-108-0
04
1
0401-0602
40
NUT; CHECKER
M8 FLANGE
0-91180-108-0
04
1
0603-
41
BRACKET; CHECKER
8-97852-403-1
01
1
0401-
41
BRACKET; CHECKER
8-97852-402-1
01
1
0401-
42
BOLT; BRKT
M8X24.5 W/LK&PL WASHER
8-94279-208-0
04
1
0401-0808
42
BOLT; BRKT
M8X24.5 W/LK&PL WASHER
8-98051-939-0
04
1
0809-1201
42
BOLT; BRKT
M8X20 FLANGE
0-28650-820-0
04
1
1202-
43
PIN
8-97852-057-1
02
1
0401-
44
FASTENER; COVER
OD=8.3
8-97997-832-0
02
1
0401-
