◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50980 - NPR(IRAN) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#48208) — 87 parça

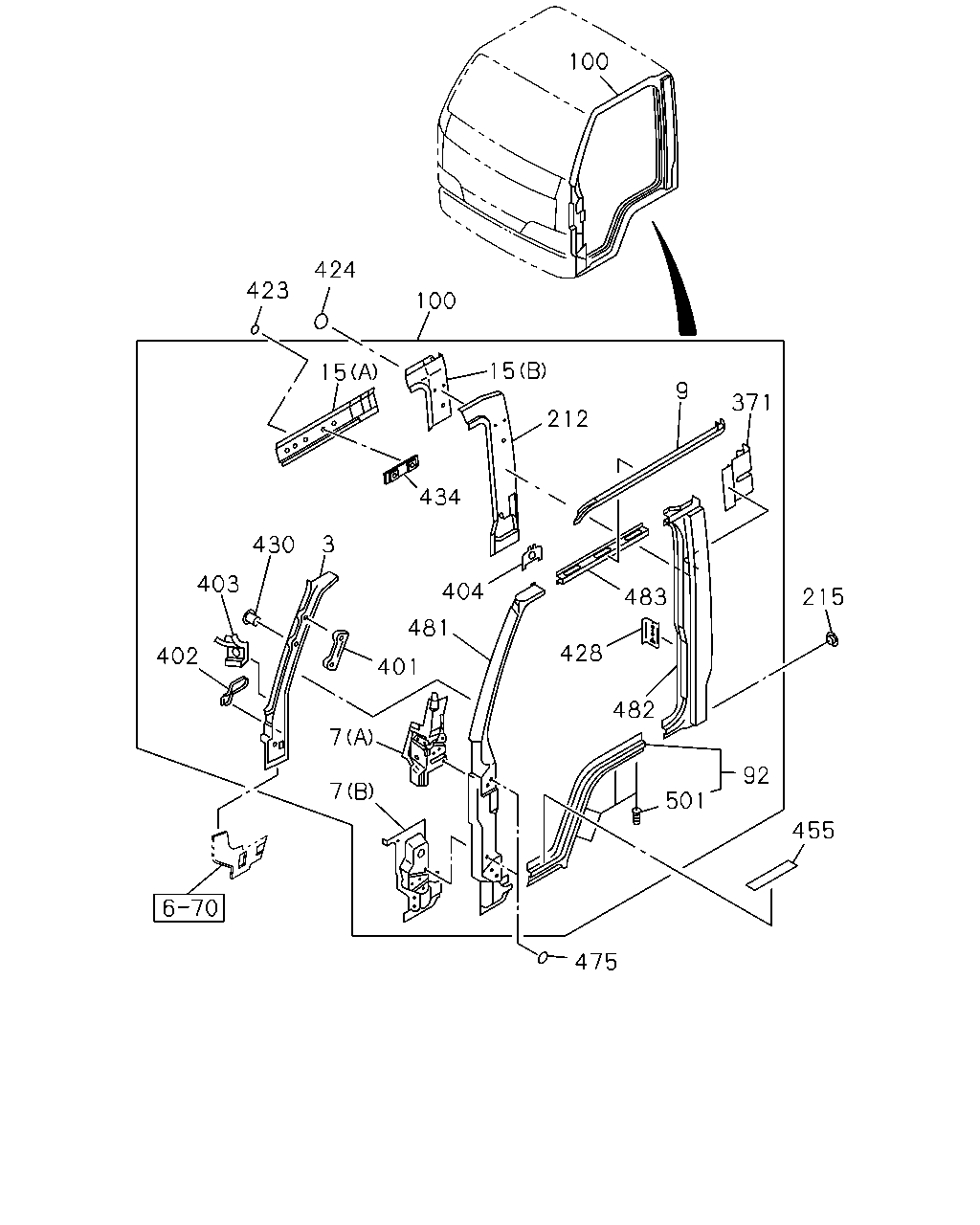

çizim 54531
100 424 423 100 15 15 9 371 212 434 3 430 403 404 215 483 481 428 402 401 482 7 92 7 501 455 475
BalonParca AdiParca NoAdetTipApplied Date
3 PANEL; CLOSING,FRT PILLAR 8-97851-358-4 01 1 0401-
3 PANEL; CLOSING,FRT PILLAR 8-97851-357-4 01 1 0401-
7 REINFORCEMENT; HINGE
(B) LOWER 		8-97851-074-5 01 1 0401-
7 REINFORCEMENT; HINGE
(A) UPPER 		8-97851-354-2 01 1 0401-
7 REINFORCEMENT; HINGE
(B) LOWER 		8-97851-073-5 01 1 0401-
7 REINFORCEMENT; HINGE
(A) UPPER 		8-97851-353-2 01 1 0401-
9 MOLDING; DRIP,CAB SIDE 8-97851-020-9 01 1 0401-1106
9 MOLDING; DRIP,CAB SIDE 8-98177-624-0 01 1 1107-
9 MOLDING; DRIP,CAB SIDE 8-97851-019-9 01 1 0401-1106
9 MOLDING; DRIP,CAB SIDE 8-98177-623-0 01 1 1107-
15 PANEL; CANT RAIL SIDE
(A) 		8-97851-335-5 01 1 0401-
15 PANEL; CANT RAIL SIDE
(B) 		8-97851-337-6 01 1 0401-
15 PANEL; CANT RAIL SIDE
(A) 		8-97851-334-5 01 1 0401-
15 PANEL; CANT RAIL SIDE
(B) 		8-97851-336-6 01 1 0401-
92 PANEL; SIDE SILL,CAB 8-97851-531-0 01 1 0401-
92 PANEL; SIDE SILL,CAB 8-97851-530-0 01 1 0401-
100 PANEL ASM; BODY SIDE 8-97890-396-1 01 1 0401-
100 PANEL ASM; BODY SIDE 8-97890-395-1 01 1 0401-
212 CLOSING; PILLAR 8-97890-453-4 01 1 0401-
212 CLOSING; PILLAR 8-97890-452-4 01 1 0401-
215 GROMMET; RR PILLAR
OD=35 		8-94122-971-0 01 1 0401-
371 PATCH; SEAT BELT 8-97851-049-1 01 1 0401-
371 PATCH; SEAT BELT 8-97851-048-1 01 1 0401-
401 PATCH; CLOSING,FRT PILLAR
4HE1 ENG(RLY) 		8-97851-301-1 01 1 0401-0607
401 PATCH; CLOSING,FRT PILLAR
4HE1 ENG(RLY) 		8-97851-301-1 01 1 0401-0607
401 PATCH; CLOSING,FRT PILLAR
4HE1-TCN ENG(RDR) 		8-97851-301-1 01 1 0608-
401 PATCH; CLOSING,FRT PILLAR
4HE1-TCN ENG(RDR) 		8-97851-301-1 01 1 0608-
402 BRACKET; SUPPORT 8-97851-086-1 01 1 0401-
402 BRACKET; SUPPORT 8-97851-085-1 01 1 0401-
403 BRACKET; REINFORCEMENT,FRT PANEL 8-97851-070-0 01 1 0401-
403 BRACKET; REINFORCEMENT,FRT PANEL 8-97851-069-0 01 1 0401-
404 BRACKET 8-97890-317-1 01 1 0401-
404 BRACKET 8-97890-318-1 01 1 0401-
423 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-97856-832-2 06 1 0401-0610
423 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-98059-421-0 06 1 0611-
423 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) EXC. ASSIST GRIP PASSENGER<EG5> OD=20 T=0.05 WHITE 		8-97856-832-2 02 1 0401-0610
423 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) EXC. ASSIST GRIP PASSENGER<EG5> OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 0611-
423 SEAL; CANTRAIL SIDE
BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) EXC. ASSIST GRIP PASSENGER<EG5> OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0401-
423 SEAL; CANTRAIL SIDE
BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 0401-
424 SEAL; CLOSING
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-97856-832-2 04 1 0401-0610
424 SEAL; CLOSING
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0611-
424 SEAL; CLOSING
BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0401-
428 REINFORCEMENT; DOOR STRIKER 8-97851-446-1 01 1 0401-
428 REINFORCEMENT; DOOR STRIKER 8-97851-445-1 01 1 0401-
430 NUT; PANEL
M6 POP NUT 		8-94279-537-0 01 1 0401-0805
430 NUT; PANEL
M6 POP NUT 		8-98013-752-0 01 1 0806-
434 PATCH; ASSIST GRIP 8-94267-191-1 01 1 0401-
455 PROTECTOR; STEP 8-97852-863-0 02 1 0401-0511
455 PROTECTOR; STEP 8-98027-816-0 02 1 0512-
475 GROMMET; CTR PILLAR
OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0401-0607
481 PANEL; SIDE FRT PILLAR 8-98268-138-0 01 1 0401-
481 PANEL; SIDE FRT PILLAR 8-98268-139-0 01 1 0401-
482 PANEL; SIDE RR PILLAR 8-97859-052-2 01 1 0401-
482 PANEL; SIDE RR PILLAR 8-97851-521-4 01 1 0401-
483 PANEL; SIDE CANTRAIL 8-97851-525-2 01 1 0401-
483 PANEL; SIDE CANTRAIL 8-97851-524-2 01 1 0401-
501 PIN; STUD
4HE1 ENG(RLY) M8X15 SPECIAL STUD 		8-94279-167-0 04 1 0401-0607
501 PIN; STUD
4HE1 ENG(RLY) M8X15 SPECIAL STUD 		8-94279-167-0 04 1 0401-0607
501 PIN; STUD
4HE1-TCN ENG(RDR) M8X15 SPECIAL STUD 		8-94279-167-0 04 1 0608-
501 PIN; STUD
4HE1-TCN ENG(RDR) M8X15 SPECIAL STUD 		8-94279-167-0 04 1 0608-

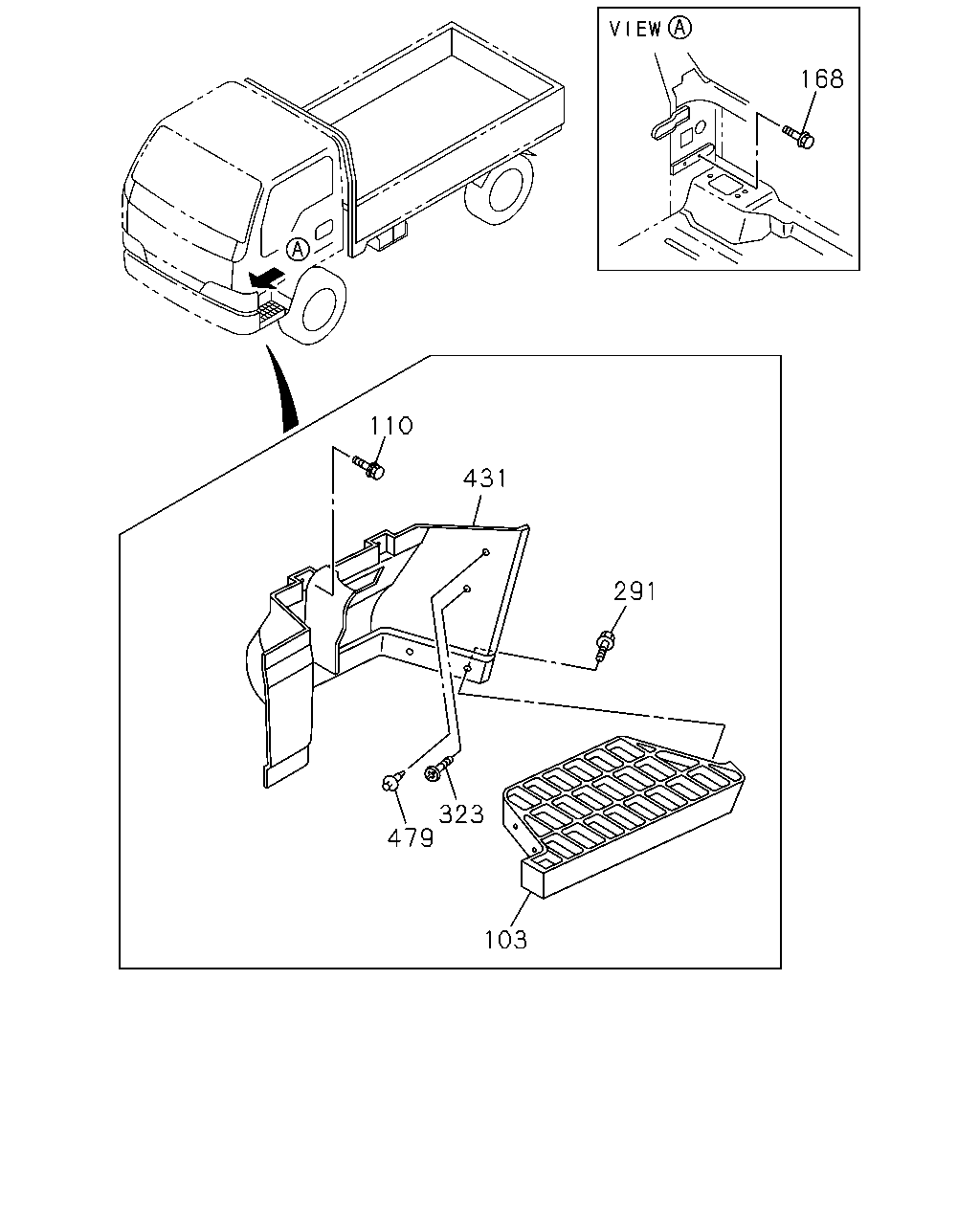

çizim 54561
168 110 431 291 323 479 103
BalonParca AdiParca NoAdetTipApplied Date
103 PLATE; STEP 8-97867-969-1 01 1 0401-0607
103 PLATE; STEP 8-97997-854-0 01 1 0608-1505
103 PLATE; STEP 8-98242-608-0 01 1 1506-
103 PLATE; STEP 8-97867-968-1 01 1 0401-0607
103 PLATE; STEP 8-97997-853-0 01 1 0608-
110 BOLT; 1ST STEP PLATE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0401-0908
110 BOLT; 1ST STEP PLATE
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 0909-
168 BOLT; BODY SIDE PANEL
M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 0401-
291 BOLT; STEP PLATE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 0401-0607
323 SCREW; SET
M8X14 		8-94279-386-1 04 1 0401-0607
323 SCREW; SET
M8X14 		8-94279-386-1 04 1 0608-
431 SUPPORT ASM; STEP 8-97892-966-1 01 1 0401-0607
431 SUPPORT ASM; STEP 8-97892-965-1 01 1 0401-0607
479 RIVET; STEP PLATE
OD=8 		1-09983-125-0 02 1 0401-

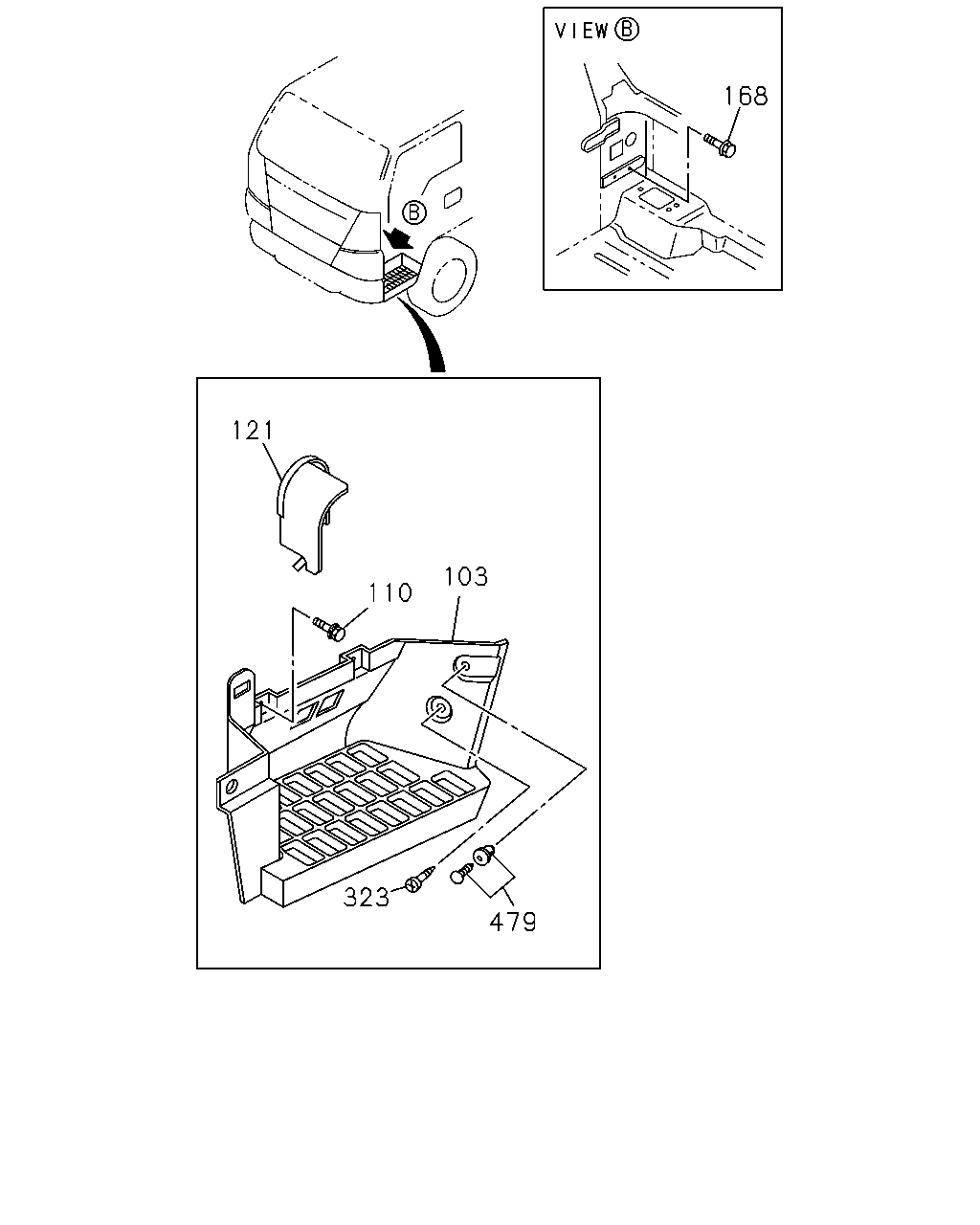

çizim 100692
168 121 103 110 323 479
BalonParca AdiParca NoAdetTipApplied Date
103 PLATE; STEP 8-97867-969-1 01 1 0401-0607
103 PLATE; STEP 8-97997-854-0 01 1 0608-1505
103 PLATE; STEP 8-98242-608-0 01 1 1506-
103 PLATE; STEP 8-97867-968-1 01 1 0401-0607
103 PLATE; STEP 8-97997-853-0 01 1 0608-
110 BOLT; 1ST STEP PLATE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0401-0908
110 BOLT; 1ST STEP PLATE
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 0909-
121 COVER; STEP PLATE 8-97997-856-0 01 1 0608-
121 COVER; STEP PLATE 8-97997-855-0 01 1 0608-
168 BOLT; BODY SIDE PANEL
M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 0401-
323 SCREW; SET
M8X14 		8-94279-386-1 04 1 0401-0607
323 SCREW; SET
M8X14 		8-94279-386-1 04 1 0608-
479 RIVET; STEP PLATE
OD=8 		1-09983-125-0 02 1 0401-
