◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50980 - NPR(IRAN) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#48206) — 76 parça

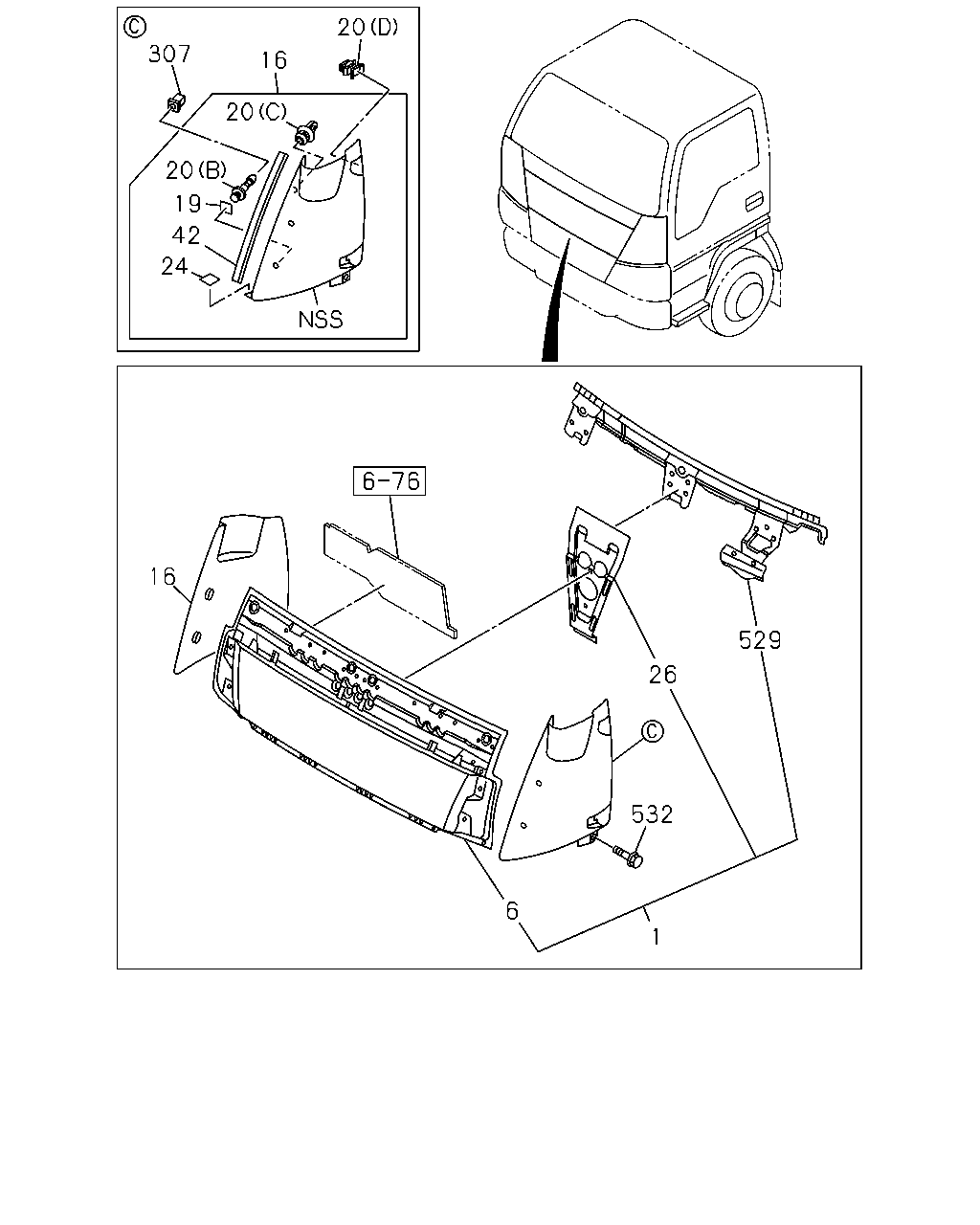

çizim 54498
20 307 16 20 20 19 42 24 16 529 26 532 6 1
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT 8-97859-255-1 01 1 0401-0607
1 PANEL ASM; FRT 8-97583-956-0 01 1 0608-
6 PANEL; FRONT 8-97859-256-3 01 1 0401-0607
6 PANEL; FRONT 8-97583-957-1 01 1 0608-
16 PANEL; FRONT,SIDE
BODY COLOR POLAR SILVER MET(845) SILVER 		8-97582-451-5 01 1 0608-
16 PANEL; FRONT,SIDE
BODY COLOR POLAR SILVER MET(845) SILVER 		8-97582-467-5 01 1 0608-
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97582-455-5 01 1 0608-
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97582-471-5 01 1 0608-
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97582-459-5 01 1 0608-
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97582-475-5 01 1 0608-
16 PANEL; FRONT,SIDE
PLEASE PAINT TO MATCH BODY COLOR 		8-97896-654-0 01 1 0401-0607
16 PANEL; FRONT,SIDE
PLEASE PAINT TO MATCH BODY COLOR 		8-97896-653-0 01 1 0401-0607
19 SEAL; FRT SIDE PANEL 8-97581-676-0 04 1 0608-1008
20 CLIP; FRT PANEL SIDE
(A) 		8-94279-814-0 04 1 0401-0607
20 CLIP; FRT PANEL SIDE
(D) 		8-97581-632-1 04 1 0608-
20 CLIP; FRT PANEL SIDE
(B) D4.2X13 		1-09983-161-0 04 1 0608-
20 CLIP; FRT PANEL SIDE
(C) H=11.6 		8-98013-823-0 02 1 0608-
24 SEAL; FRT PANEL LWR 8-97583-672-0 02 1 0608-0807
24 SEAL; FRT PANEL LWR
IDENTIFICATION LABEL FOR KD<6UT> 		8-97583-672-0 02 1 0808-0809
24 SEAL; FRT PANEL LWR
KD PREPARATORY PACK VAR.4<7TV> 		8-97583-672-0 02 1 0810-
26 PANEL; REINF,FRT PANEL CENTER,INNER 8-97851-275-0 01 1 0401-
42 FINISHER; FRT PANEL,SIDE 8-97581-613-3 01 1 0608-0807
42 FINISHER; FRT PANEL,SIDE
IDENTIFICATION LABEL FOR KD<6UT> 		8-97581-613-3 01 1 0808-0809
42 FINISHER; FRT PANEL,SIDE
KD PREPARATORY PACK VAR.4<7TV> 		8-97581-613-3 01 1 0810-
42 FINISHER; FRT PANEL,SIDE 8-97581-614-3 01 1 0608-0807
42 FINISHER; FRT PANEL,SIDE
IDENTIFICATION LABEL FOR KD<6UT> 		8-97581-614-3 01 1 0808-0809
42 FINISHER; FRT PANEL,SIDE
KD PREPARATORY PACK VAR.4<7TV> 		8-97581-614-3 01 1 0810-
42 FINISHER; FRT PANEL,SIDE 8-97857-413-0 02 1 0401-0607
307 GROMMET; FRT PANEL 8-97583-397-0 04 1 0608-
529 REINFORCEMENT; PANEL 8-97851-407-2 01 1 0401-
532 BOLT; FRT PANEL
M6X16 W/PL WASHER 		8-97803-781-0 02 1 0608-
çizim 54556
525 16 21
BalonParca AdiParca NoAdetTipApplied Date
16 PANEL; FRONT,SIDE
BODY COLOR POLAR SILVER MET(845) SILVER 		8-97582-451-5 01 1 0608-
16 PANEL; FRONT,SIDE
BODY COLOR POLAR SILVER MET(845) SILVER 		8-97582-467-5 01 1 0608-
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97582-455-5 01 1 0608-
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97582-471-5 01 1 0608-
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97582-459-5 01 1 0608-
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97582-475-5 01 1 0608-
16 PANEL; FRONT,SIDE
PLEASE PAINT TO MATCH BODY COLOR 		8-97896-654-0 01 1 0401-0607
16 PANEL; FRONT,SIDE
PLEASE PAINT TO MATCH BODY COLOR 		8-97896-653-0 01 1 0401-0607
21 GROMMET; SCREW,FRT SIDE PANEL
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 06 1 0401-0607
21 GROMMET; SCREW,FRT SIDE PANEL
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 06 1 0608-
525 SEAL; FENDER
MANUAL TILT CAB<RWZ> OD=25 BLACK 		1-76798-019-0 03 1 0401-
525 SEAL; FENDER
EXC. MANUAL TILT CAB<RWZ> OD=25 BLACK 		1-76798-019-0 06 1 0401-

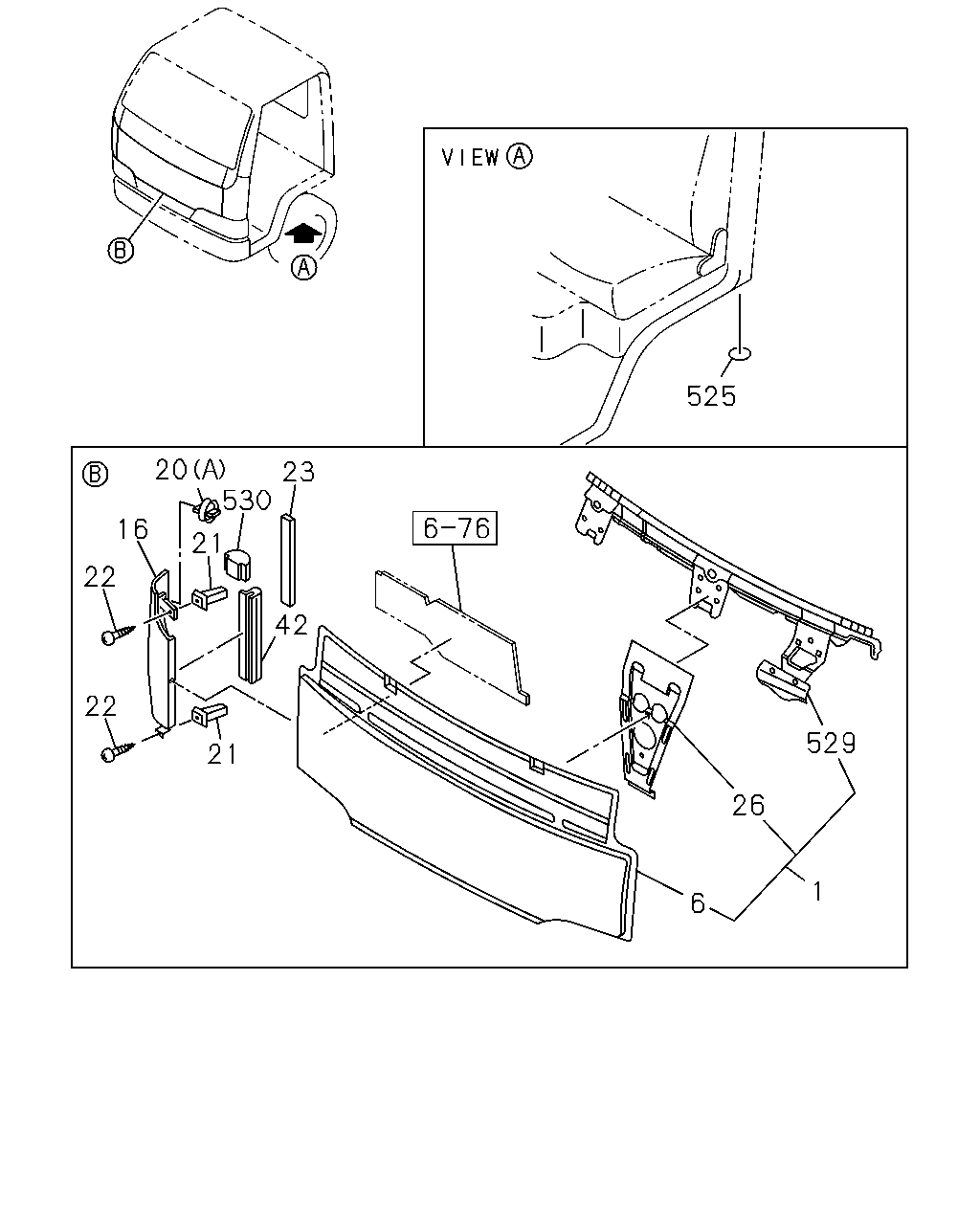

çizim 54590
525 20 23 530 16 21 22 42 22 529 21 26 1 6
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT 8-97859-255-1 01 1 0401-0607
1 PANEL ASM; FRT 8-97583-956-0 01 1 0608-
6 PANEL; FRONT 8-97859-256-3 01 1 0401-0607
6 PANEL; FRONT 8-97583-957-1 01 1 0608-
16 PANEL; FRONT,SIDE
BODY COLOR POLAR SILVER MET(845) SILVER 		8-97582-451-5 01 1 0608-
16 PANEL; FRONT,SIDE
BODY COLOR POLAR SILVER MET(845) SILVER 		8-97582-467-5 01 1 0608-
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97582-455-5 01 1 0608-
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97582-471-5 01 1 0608-
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97582-459-5 01 1 0608-
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97582-475-5 01 1 0608-
16 PANEL; FRONT,SIDE
PLEASE PAINT TO MATCH BODY COLOR 		8-97896-654-0 01 1 0401-0607
16 PANEL; FRONT,SIDE
PLEASE PAINT TO MATCH BODY COLOR 		8-97896-653-0 01 1 0401-0607
20 CLIP; FRT PANEL SIDE
(A) 		8-94279-814-0 04 1 0401-0607
20 CLIP; FRT PANEL SIDE
(D) 		8-97581-632-1 04 1 0608-
20 CLIP; FRT PANEL SIDE
(B) D4.2X13 		1-09983-161-0 04 1 0608-
20 CLIP; FRT PANEL SIDE
(C) H=11.6 		8-98013-823-0 02 1 0608-
21 GROMMET; SCREW,FRT SIDE PANEL
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 06 1 0401-0607
21 GROMMET; SCREW,FRT SIDE PANEL
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 06 1 0608-
22 SCREW; FRT PANEL SIDE
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 06 1 0401-0607
23 PIECE; DIST,FRT PANEL SIDE
H=10 L=55 		8-97857-444-0 02 1 0401-0410
23 PIECE; DIST,FRT PANEL SIDE
H=10 L=55 		8-97410-832-0 02 1 0411-0607
26 PANEL; REINF,FRT PANEL CENTER,INNER 8-97851-275-0 01 1 0401-
42 FINISHER; FRT PANEL,SIDE 8-97581-613-3 01 1 0608-0807
42 FINISHER; FRT PANEL,SIDE
IDENTIFICATION LABEL FOR KD<6UT> 		8-97581-613-3 01 1 0808-0809
42 FINISHER; FRT PANEL,SIDE
KD PREPARATORY PACK VAR.4<7TV> 		8-97581-613-3 01 1 0810-
42 FINISHER; FRT PANEL,SIDE 8-97581-614-3 01 1 0608-0807
42 FINISHER; FRT PANEL,SIDE
IDENTIFICATION LABEL FOR KD<6UT> 		8-97581-614-3 01 1 0808-0809
42 FINISHER; FRT PANEL,SIDE
KD PREPARATORY PACK VAR.4<7TV> 		8-97581-614-3 01 1 0810-
42 FINISHER; FRT PANEL,SIDE 8-97857-413-0 02 1 0401-0607
525 SEAL; FENDER
MANUAL TILT CAB<RWZ> OD=25 BLACK 		1-76798-019-0 03 1 0401-
525 SEAL; FENDER
EXC. MANUAL TILT CAB<RWZ> OD=25 BLACK 		1-76798-019-0 06 1 0401-
529 REINFORCEMENT; PANEL 8-97851-407-2 01 1 0401-
530 STOPPER; FRT PANEL,SIDE 8-97856-589-0 02 1 0401-0607
