6-03 — RADIATOR GRILLE (#48205) — 58 parça

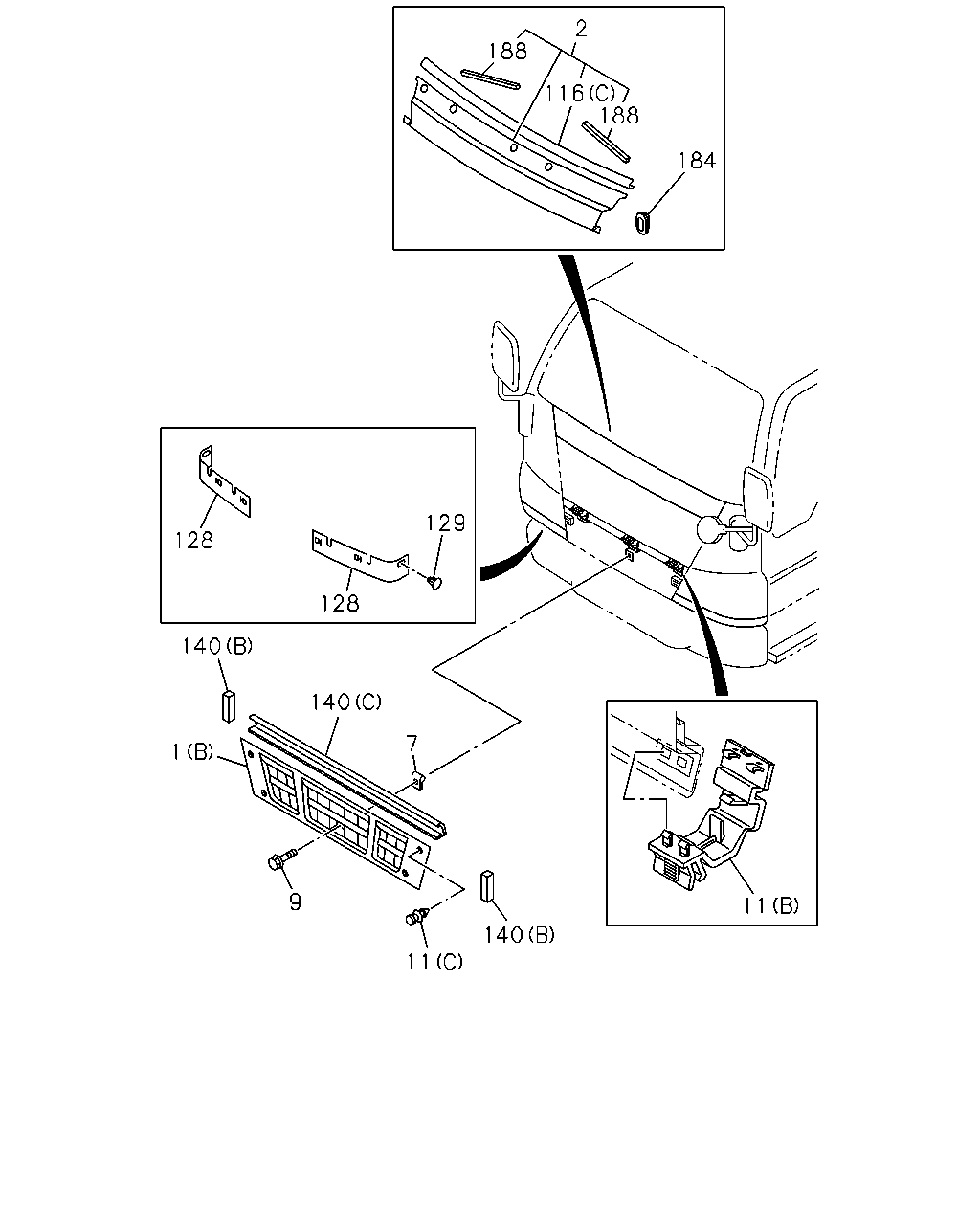

2 188 116 188 184 129 128 128 140 140 7 1 9 11 140 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GRILLE; RAD (A) PLEASE PAINT TO MATCH BODY COLOR	8-97891-681-1	01	1	0401-0607
1	GRILLE; RAD RADIATOR GRILLE NON PAINT<7LB> (B) PLEASE PAINT TO MATCH BODY COLOR	8-97581-826-2	01	1	0608-
1	GRILLE; RAD BODY COLOR ARC WHITE(729) EXC. RADIATOR GRILLE NON PAINT<7LB> (B) WHITE	8-97583-047-4	01	1	0608-
1	GRILLE; RAD BODY COLOR POLAR SILVER MET(845) EXC. RADIATOR GRILLE NON PAINT<7LB> (B) SILVER	8-97583-050-4	01	1	0608-
1	GRILLE; RAD BODY COLOR MARINE BLUE(890) EXC. RADIATOR GRILLE NON PAINT<7LB> (B) BLUE	8-97583-048-4	01	1	0608-
2	GRILLE; ORNAMENT WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97868-326-3	01	1	0401-0607
2	GRILLE; ORNAMENT WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97583-954-2	01	1	0608-
2	GRILLE; ORNAMENT EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97857-017-6	01	1	0401-0607
2	GRILLE; ORNAMENT EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97583-953-3	01	1	0608-
7	NUT; SPIRE,RAD GRILLE	8-97805-829-0	01	1	0401-0505
7	NUT; SPIRE,RAD GRILLE	8-98014-760-0	01	1	0506-
9	SCREW; RAD GRILLE M6X20 W/PL WASHER TAPPING	8-94321-767-1	01	1	0401-0805
9	SCREW; RAD GRILLE M6X20 W/PL WASHER	8-98059-504-0	01	1	0806-
11	CLIP; RAD GRILLE (B) WHITE	8-97102-415-0	04	1	0401-
11	CLIP; RAD GRILLE EXC. RADIATOR GRILLE NON PAINT<7LB> (A) WHITE	8-97892-730-0	02	1	0401-0607
11	CLIP; RAD GRILLE (C)	8-97581-651-2	04	1	0608-
116	MOLDING; ORNAMENT GRILLE (B)	8-97853-098-5	01	1	0401-0607
116	MOLDING; ORNAMENT GRILLE EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (A)	8-97853-096-3	01	1	0401-0607
116	MOLDING; ORNAMENT GRILLE EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (C)	8-97581-656-1	01	1	0608-
128	COVER; HEADLAMP GRILLE 4HE1-TCN ENG(RDR)	8-97581-653-3	02	1	0608-
129	CLIP; COVER HEADLAMP GRILLE D=6.5	8-97855-279-0	02	1	0608-
140	SEAL; RAD GRILLE (B)	8-97583-411-1	02	1	0608-
140	SEAL; RAD GRILLE EXC. RADIATOR GRILLE NON PAINT<7LB> (A)	8-97088-561-3	01	1	0401-0607
140	SEAL; RAD GRILLE (C)	8-97581-665-0	01	1	0608-
184	GROMMET; ORNAMENT	8-97581-668-0	02	1	0608-
188	SEAL; ORNAMENT	8-97584-800-0	02	1	0608-

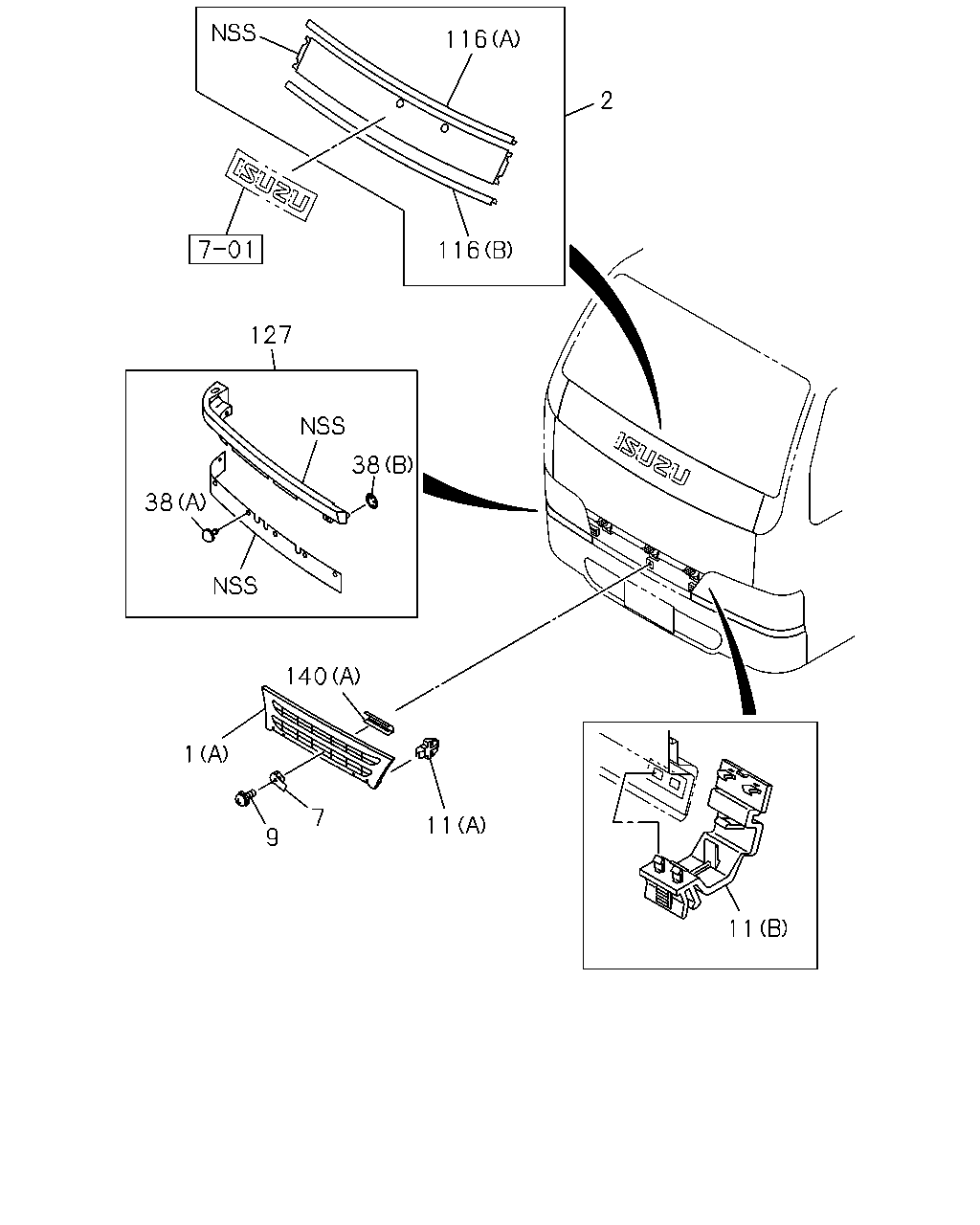

116 2 116 127 38 38 140 1 7 11 9 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GRILLE; RAD (A) PLEASE PAINT TO MATCH BODY COLOR	8-97891-681-1	01	1	0401-0607
1	GRILLE; RAD RADIATOR GRILLE NON PAINT<7LB> (B) PLEASE PAINT TO MATCH BODY COLOR	8-97581-826-2	01	1	0608-
1	GRILLE; RAD BODY COLOR ARC WHITE(729) EXC. RADIATOR GRILLE NON PAINT<7LB> (B) WHITE	8-97583-047-4	01	1	0608-
1	GRILLE; RAD BODY COLOR POLAR SILVER MET(845) EXC. RADIATOR GRILLE NON PAINT<7LB> (B) SILVER	8-97583-050-4	01	1	0608-
1	GRILLE; RAD BODY COLOR MARINE BLUE(890) EXC. RADIATOR GRILLE NON PAINT<7LB> (B) BLUE	8-97583-048-4	01	1	0608-
2	GRILLE; ORNAMENT WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97868-326-3	01	1	0401-0607
2	GRILLE; ORNAMENT WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97583-954-2	01	1	0608-
2	GRILLE; ORNAMENT EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97857-017-6	01	1	0401-0607
2	GRILLE; ORNAMENT EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97583-953-3	01	1	0608-
7	NUT; SPIRE,RAD GRILLE	8-97805-829-0	01	1	0401-0505
7	NUT; SPIRE,RAD GRILLE	8-98014-760-0	01	1	0506-
9	SCREW; RAD GRILLE M6X20 W/PL WASHER TAPPING	8-94321-767-1	01	1	0401-0805
9	SCREW; RAD GRILLE M6X20 W/PL WASHER	8-98059-504-0	01	1	0806-
11	CLIP; RAD GRILLE (B) WHITE	8-97102-415-0	04	1	0401-
11	CLIP; RAD GRILLE EXC. RADIATOR GRILLE NON PAINT<7LB> (A) WHITE	8-97892-730-0	02	1	0401-0607
11	CLIP; RAD GRILLE (C)	8-97581-651-2	04	1	0608-
38	CLIP; GRILLE EXC. RADIATOR GRILLE NON PAINT<7LB> (A) D=6.5	8-97855-279-0	09	1	0401-0607
38	CLIP; GRILLE EXC. RADIATOR GRILLE NON PAINT<7LB> (B)	1-09987-180-0	01	1	0401-0607
116	MOLDING; ORNAMENT GRILLE (B)	8-97853-098-5	01	1	0401-0607
116	MOLDING; ORNAMENT GRILLE EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (A)	8-97853-096-3	01	1	0401-0607
116	MOLDING; ORNAMENT GRILLE EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (C)	8-97581-656-1	01	1	0608-
127	GRILLE; HEADLAMP,LWR BODY COLOR ARC WHITE(729) EXC. RADIATOR GRILLE NON PAINT<7LB> WHITE	8-97898-387-1	01	1	0401-0607
127	GRILLE; HEADLAMP,LWR BODY COLOR ARC WHITE(729) EXC. RADIATOR GRILLE NON PAINT<7LB> WHITE	8-97898-366-1	01	1	0401-0607
127	GRILLE; HEADLAMP,LWR BODY COLOR MARINE BLUE(890) EXC. RADIATOR GRILLE NON PAINT<7LB> BLUE	8-97898-391-1	01	1	0401-0607
127	GRILLE; HEADLAMP,LWR BODY COLOR MARINE BLUE(890) EXC. RADIATOR GRILLE NON PAINT<7LB> BLUE	8-97898-370-1	01	1	0401-0607
127	GRILLE; HEADLAMP,LWR BODY COLOR POLAR SILVER MET(845) EXC. RADIATOR GRILLE NON PAINT<7LB> SILVER	8-97898-383-1	01	1	0401-0607
127	GRILLE; HEADLAMP,LWR BODY COLOR POLAR SILVER MET(845) EXC. RADIATOR GRILLE NON PAINT<7LB> SILVER	8-97898-362-1	01	1	0401-0607
127	GRILLE; HEADLAMP,LWR RADIATOR GRILLE NON PAINT<7LB> PLEASE PAINT TO MATCH BODY COLOR	8-97898-455-0	01	1	0401-0607
127	GRILLE; HEADLAMP,LWR RADIATOR GRILLE NON PAINT<7LB> PLEASE PAINT TO MATCH BODY COLOR	8-97898-454-0	01	1	0401-0607
140	SEAL; RAD GRILLE (B)	8-97583-411-1	02	1	0608-
140	SEAL; RAD GRILLE EXC. RADIATOR GRILLE NON PAINT<7LB> (A)	8-97088-561-3	01	1	0401-0607
140	SEAL; RAD GRILLE (C)	8-97581-665-0	01	1	0608-
