◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50980 - NPR(IRAN) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-01 - FRONT BUMPER ▶
6-01 — FRONT BUMPER (#48204) — 51 parça

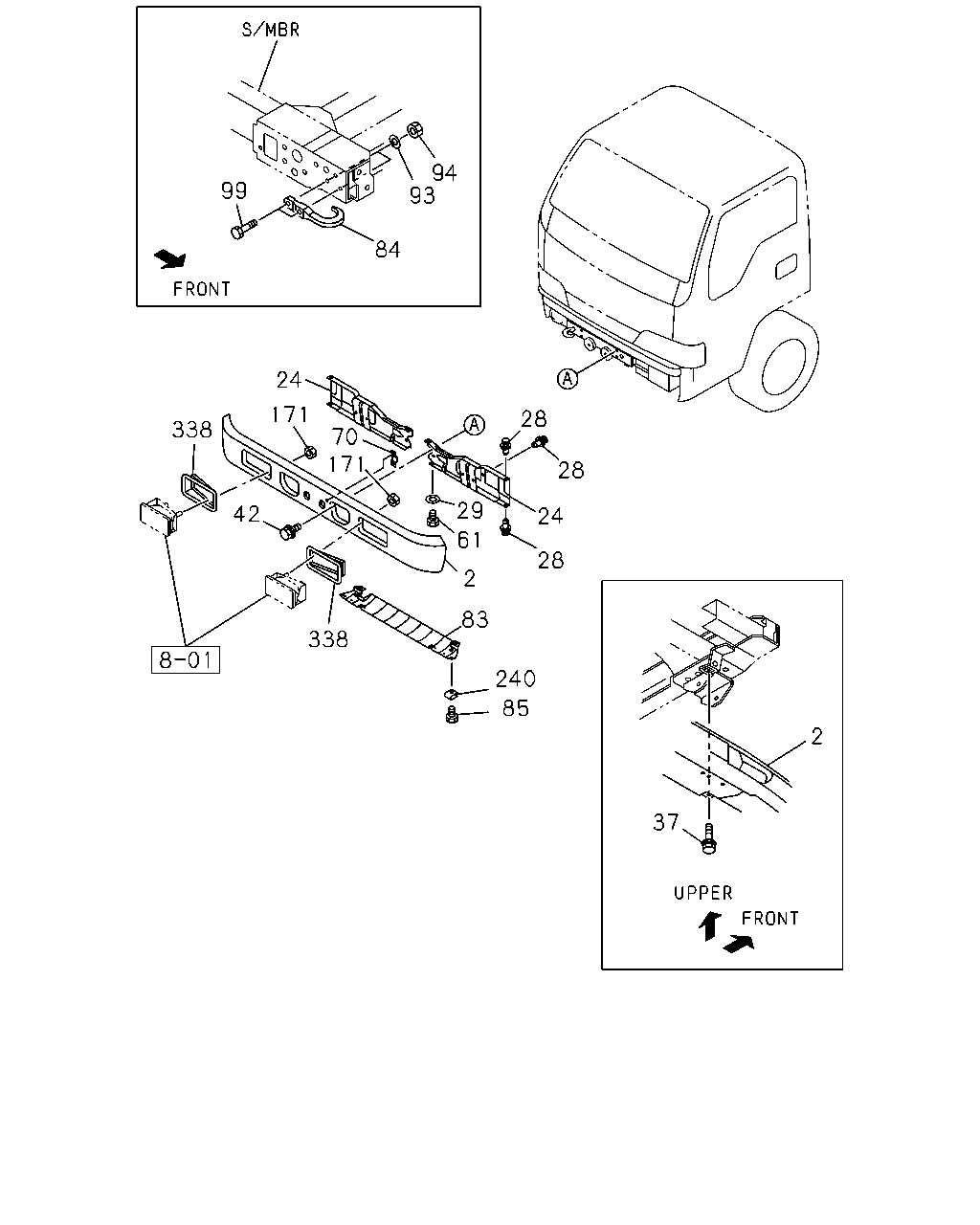

çizim 54492
94 93 99 84 24 171 28 70 171 338 28 29 42 24 61 28 2 83 338 240 85 2 37
BalonParca AdiParca NoAdetTipApplied Date
2 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) COLOR KEYED BUMPER<S4H> FOG LAMP<T96> WHITE 		8-97581-578-0 01 1 0401-0607
2 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> WHITE 		8-97581-578-0 01 1 0608-
2 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) COLOR KEYED BUMPER<S4H> EXC. FOG LAMP<T96> WHITE 		8-97999-014-0 01 1 0401-0607
2 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) EXC. FRT BUMPER DARK GRAY<EQ9>,FOG LAMP<T96> WHITE 		8-97999-014-0 01 1 0608-
2 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) COLOR KEYED BUMPER<S4H> FOG LAMP<T96> BLUE 		8-97581-579-0 01 1 0401-0607
2 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> BLUE 		8-97581-579-0 01 1 0608-
2 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) COLOR KEYED BUMPER<S4H> EXC. FOG LAMP<T96> BLUE 		8-97998-075-0 01 1 0401-0607
2 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) EXC. FRT BUMPER DARK GRAY<EQ9>,FOG LAMP<T96> BLUE 		8-97998-075-0 01 1 0608-
2 BUMPER; FRT,CENTER
EXC. COLOR KEYED BUMPER<S4H>,FOG LAMP<T96> DARK GRAY 		8-97999-013-0 01 1 0401-0607
2 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FRT BUMPER DARK GRAY<EQ9> EXC. FOG LAMP<T96> DARK GRAY 		8-97583-043-0 01 1 0608-
2 BUMPER; FRT,CENTER
BODY COLOR POLAR SILVER MET(845) EXC. FOG LAMP<T96> DARK GRAY 		8-97583-043-0 01 1 0608-
2 BUMPER; FRT,CENTER
FOG LAMP<T96> EXC. COLOR KEYED BUMPER<S4H> DARK GRAY 		8-97999-025-0 01 1 0401-0607
2 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FRT BUMPER DARK GRAY<EQ9> FOG LAMP<T96> DARK GRAY 		8-97589-231-0 01 1 0608-
2 BUMPER; FRT,CENTER
BODY COLOR POLAR SILVER MET(845) FOG LAMP<T96> DARK GRAY 		8-97589-231-0 01 1 0608-
24 BAR; FRT BUMPER
FOG LAMP<T96> 		8-97073-672-4 01 1 0401-
24 BAR; FRT BUMPER
FOG LAMP<T96> 		8-97073-671-4 01 1 0401-
24 BAR; FRT BUMPER
EXC. FOG LAMP<T96> 		8-97039-797-5 01 1 0401-
24 BAR; FRT BUMPER
EXC. FOG LAMP<T96> 		8-97039-796-5 01 1 0401-
28 FASTENER; BACK BAR
D=5.8 SCREW & GROMMET NYLON 		8-94242-150-0 08 1 0401-
29 WASHER; FRT BUMPER
ID=8.5 		8-94167-476-0 02 1 0401-
37 BOLT; BRKT TO BUMPER LWR
M8X22 W/LK&PL WASHER 		8-94279-148-1 02 1 0401-
42 BOLT; BUMPER
M10X35 W/LK&PL WASHER 		8-97101-865-0 04 1 0401-
61 BOLT; BACK BAR
M8X18 W/LK WASHER 		0-50040-818-0 02 1 0401-0909
61 BOLT; BACK BAR
M8X18 W/LK WASHER 		0-50540-818-0 02 1 0910-
70 BRACKET; LICENSE PLATE,FRT 8-94151-164-1 02 1 0401-
83 GUIDE; AIR,FRT BUMPER 8-97076-719-2 01 1 0401-
84 HOOK 8-97122-535-0 01 1 0401-
85 BOLT; AIR GUIDE,FRT BUMPER
M6X22 W/PL WASHER 		8-97012-072-0 04 1 0401-
93 WASHER; LK,HOOK
ID=14.2 		9-09150-814-0 02 1 0401-0603
93 WASHER; LK,HOOK
ID=14.2 		0-91510-814-0 02 1 0604-
94 NUT; HOOK
M14 		9-99110-514-0 02 1 0401-0512
94 NUT; HOOK
M14 		0-91110-514-0 02 1 0601-
99 BOLT; HOOK
M14X50 		0-10806-450-0 02 1 0401-0512
99 BOLT; HOOK
M14X50 		0-10856-450-0 02 1 0601-
171 NUT; BACK BAR
FOG LAMP<T96> M8 FLANGE 		1-09464-018-1 06 1 0401-
171 NUT; BACK BAR
EXC. FOG LAMP<T96> M8 FLANGE 		1-09464-018-1 02 1 0401-
240 NUT; AIR GUIDE,FRT BUMPER
M6 SPIRE NUT 		8-97210-973-1 04 1 0401-
338 BEZEL; FOG LAMP
BODY COLOR ARC WHITE(729) COLOR KEYED BUMPER<S4H> FOG LAMP<T96> WHITE 		8-97097-873-0 01 1 0401-0607
338 BEZEL; FOG LAMP
BODY COLOR ARC WHITE(729) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> WHITE 		8-97097-873-0 01 1 0608-
338 BEZEL; FOG LAMP
BODY COLOR ARC WHITE(729) COLOR KEYED BUMPER<S4H> FOG LAMP<T96> WHITE 		8-97097-869-0 01 1 0401-0607
338 BEZEL; FOG LAMP
BODY COLOR ARC WHITE(729) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> WHITE 		8-97097-869-0 01 1 0608-
338 BEZEL; FOG LAMP
BODY COLOR MARINE BLUE(890) COLOR KEYED BUMPER<S4H> FOG LAMP<T96> BLUE 		8-97097-871-0 01 1 0401-0607
338 BEZEL; FOG LAMP
BODY COLOR MARINE BLUE(890) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> BLUE 		8-97097-871-0 01 1 0608-
338 BEZEL; FOG LAMP
BODY COLOR MARINE BLUE(890) COLOR KEYED BUMPER<S4H> FOG LAMP<T96> BLUE 		8-97097-867-0 01 1 0401-0607
338 BEZEL; FOG LAMP
BODY COLOR MARINE BLUE(890) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> BLUE 		8-97097-867-0 01 1 0608-
338 BEZEL; FOG LAMP
FOG LAMP<T96> EXC. COLOR KEYED BUMPER<S4H> DARK GRAY 		8-97866-838-0 01 1 0401-0607
338 BEZEL; FOG LAMP
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FRT BUMPER DARK GRAY<EQ9> FOG LAMP<T96> DARK GRAY 		8-97589-233-0 01 1 0608-
338 BEZEL; FOG LAMP
BODY COLOR POLAR SILVER MET(845) FOG LAMP<T96> DARK GRAY 		8-97589-233-0 01 1 0608-
338 BEZEL; FOG LAMP
FOG LAMP<T96> EXC. COLOR KEYED BUMPER<S4H> DARK GRAY 		8-97866-837-0 01 1 0401-0607
338 BEZEL; FOG LAMP
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FRT BUMPER DARK GRAY<EQ9> FOG LAMP<T96> DARK GRAY 		8-97589-232-0 01 1 0608-
338 BEZEL; FOG LAMP
BODY COLOR POLAR SILVER MET(845) FOG LAMP<T96> DARK GRAY 		8-97589-232-0 01 1 0608-
