5-10 — CAB MOUNTING; FRAME SIDE (#48200) — 117 parça

159 159 199 199 300 300 168 168 149 149 191 191 192 192 199 199 151 151 18 18 156 156

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
18	PLATE; MTG BRKT FIX (A)	8-97034-139-2	02	1	0401-
18	PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (A)	8-97034-139-2	02	1	0401-
18	PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (A)	8-97034-139-2	01	1	0401-
18	PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (B)	8-97034-140-2	01	1	0401-
18	PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (C)	8-97076-469-2	01	1	0401-0607
18	PLATE; MTG BRKT FIX 4HE1-TCN ENG(RDR) MANUAL TILT CAB<RWZ> (C)	8-97076-469-2	01	1	0608-
18	PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (D)	8-97130-348-1	01	1	0401-
18	PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (B)	8-97034-140-2	02	1	0401-
149	RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> (A)	8-97095-149-3	02	1	0401-0804
149	RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> (A)	8-98021-561-1	02	1	0805-
149	RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> (B)	8-97086-440-3	02	1	0401-0612
149	RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> (B)	8-98038-868-0	02	1	0701-
151	WASHER; CAB MTG,RR UPR MANUAL TILT CAB<RWZ> (B) ID=16.4 OD=62	8-97034-382-0	02	1	0401-0611
151	WASHER; CAB MTG,RR UPR MANUAL TILT CAB<RWZ> (B) ID=17 OD=62	8-97359-042-1	02	1	0612-
151	WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> (A) ID=16.5 OD=58	8-97034-383-1	02	1	0401-
156	NUT; CAB MTG RR MANUAL TILT CAB<RWZ> (A) M16	9-99111-416-0	02	1	0401-0512
156	NUT; CAB MTG RR MANUAL TILT CAB<RWZ> (A) M16	0-91111-516-0	02	1	0601-
156	NUT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> (B) M14 FLANGE	0-91150-114-0	02	1	0401-0610
156	NUT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> (B) M14 FLANGE	0-91180-114-0	02	1	0611-
159	RUBBER; CUSHION,CAB MTG MANUAL TILT CAB<RWZ>	8-97113-340-0	04	1	0401-
168	NUT; CUSHION RUBBER,BODY MTG MANUAL TILT CAB<RWZ> M8 FLANGE	0-91150-108-0	04	1	0401-0602
168	NUT; CUSHION RUBBER,BODY MTG MANUAL TILT CAB<RWZ> M8 FLANGE	0-91180-108-0	04	1	0603-
191	BOLT; BRKT FIX M12X40 FLANGE	0-28681-240-0	08	1	0401-0512
191	BOLT; BRKT FIX M12X40 FLANGE	0-28651-240-0	08	1	0601-
192	NUT; BRKT FIX M12 FLANGE	0-91150-112-0	08	1	0401-0602
192	NUT; BRKT FIX M12 FLANGE	0-91180-112-0	08	1	0603-
199	BRACKET; CAB RR MTG (A)	8-97326-510-1	01	1	0401-0607
199	BRACKET; CAB RR MTG 4HE1-TCN ENG(RDR) (A)	8-97326-510-1	01	1	0608-
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (C)	8-97035-310-4	02	1	0401-
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (B)	8-97326-507-0	01	1	0401-0607
199	BRACKET; CAB RR MTG 4HE1-TCN ENG(RDR) MANUAL TILT CAB<RWZ> (B)	8-97326-507-0	01	1	0608-
199	BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (B)	8-97326-509-0	01	1	0401-0607
199	BRACKET; CAB RR MTG 4HE1-TCN ENG(RDR) EXC. MANUAL TILT CAB<RWZ> (B)	8-97326-509-0	01	1	0608-
300	BOLT; MTG RUBBER M10X20 FLANGE	0-28681-020-0	08	1	0401-0512
300	BOLT; MTG RUBBER M10X20 FLANGE	0-28651-020-0	08	1	0601-

1 7 20 2 1 2 20 7 18 18 18 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97095-147-1	01	1	0401-0607
1	BRACKET; CAB MTG 4HE1-TCN ENG(RDR) MANUAL TILT CAB<RWZ>	8-97095-147-1	01	1	0608-
1	BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97095-146-0	01	1	0401-0607
1	BRACKET; CAB MTG 4HE1-TCN ENG(RDR) MANUAL TILT CAB<RWZ>	8-97095-146-0	01	1	0608-
1	BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ>	8-97033-350-3	01	1	0401-0607
1	BRACKET; CAB MTG 4HE1-TCN ENG(RDR) EXC. MANUAL TILT CAB<RWZ>	8-97033-350-3	01	1	0608-
1	BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ>	8-97033-348-5	01	1	0401-0607
1	BRACKET; CAB MTG 4HE1-TCN ENG(RDR) EXC. MANUAL TILT CAB<RWZ>	8-97033-348-5	01	1	0608-
2	BUSHING; TORSION BAR EXC. MANUAL TILT CAB<RWZ>	8-97061-514-0	02	1	0401-
7	BOLT; BRKT,CAB TILT M12X40 FLANGE	0-28681-240-0	08	1	0401-0512
7	BOLT; BRKT,CAB TILT M12X40 FLANGE	0-28651-240-0	08	1	0601-
18	PLATE; MTG BRKT FIX (A)	8-97034-139-2	02	1	0401-
18	PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (A)	8-97034-139-2	02	1	0401-
18	PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (A)	8-97034-139-2	01	1	0401-
18	PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (B)	8-97034-140-2	01	1	0401-
18	PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (C)	8-97076-469-2	01	1	0401-0607
18	PLATE; MTG BRKT FIX 4HE1-TCN ENG(RDR) MANUAL TILT CAB<RWZ> (C)	8-97076-469-2	01	1	0608-
18	PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (D)	8-97130-348-1	01	1	0401-
18	PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (B)	8-97034-140-2	02	1	0401-
20	RUBBER; MTG,CAB BRKT MANUAL TILT CAB<RWZ>	8-97095-148-1	02	1	0401-0607
20	RUBBER; MTG,CAB BRKT 4HE1-TCN ENG(RDR) MANUAL TILT CAB<RWZ>	8-97095-148-1	02	1	0608-
20	RUBBER; MTG,CAB BRKT EXC. MANUAL TILT CAB<RWZ>	8-97033-368-3	02	1	0401-0607
20	RUBBER; MTG,CAB BRKT 4HE1-TCN ENG(RDR) EXC. MANUAL TILT CAB<RWZ>	8-97033-368-3	02	1	0608-

156 156 151 151 300 149 149 300 191 191 192 192 199 199 18 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
18	PLATE; MTG BRKT FIX (A)	8-97034-139-2	02	1	0401-
18	PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (A)	8-97034-139-2	02	1	0401-
18	PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (A)	8-97034-139-2	01	1	0401-
18	PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (B)	8-97034-140-2	01	1	0401-
18	PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (C)	8-97076-469-2	01	1	0401-0607
18	PLATE; MTG BRKT FIX 4HE1-TCN ENG(RDR) MANUAL TILT CAB<RWZ> (C)	8-97076-469-2	01	1	0608-
18	PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (D)	8-97130-348-1	01	1	0401-
18	PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (B)	8-97034-140-2	02	1	0401-
149	RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> (A)	8-97095-149-3	02	1	0401-0804
149	RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> (A)	8-98021-561-1	02	1	0805-
149	RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> (B)	8-97086-440-3	02	1	0401-0612
149	RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> (B)	8-98038-868-0	02	1	0701-
151	WASHER; CAB MTG,RR UPR MANUAL TILT CAB<RWZ> (B) ID=16.4 OD=62	8-97034-382-0	02	1	0401-0611
151	WASHER; CAB MTG,RR UPR MANUAL TILT CAB<RWZ> (B) ID=17 OD=62	8-97359-042-1	02	1	0612-
151	WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> (A) ID=16.5 OD=58	8-97034-383-1	02	1	0401-
156	NUT; CAB MTG RR MANUAL TILT CAB<RWZ> (A) M16	9-99111-416-0	02	1	0401-0512
156	NUT; CAB MTG RR MANUAL TILT CAB<RWZ> (A) M16	0-91111-516-0	02	1	0601-
156	NUT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> (B) M14 FLANGE	0-91150-114-0	02	1	0401-0610
156	NUT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> (B) M14 FLANGE	0-91180-114-0	02	1	0611-
191	BOLT; BRKT FIX M12X40 FLANGE	0-28681-240-0	08	1	0401-0512
191	BOLT; BRKT FIX M12X40 FLANGE	0-28651-240-0	08	1	0601-
192	NUT; BRKT FIX M12 FLANGE	0-91150-112-0	08	1	0401-0602
192	NUT; BRKT FIX M12 FLANGE	0-91180-112-0	08	1	0603-
199	BRACKET; CAB RR MTG (A)	8-97326-510-1	01	1	0401-0607
199	BRACKET; CAB RR MTG 4HE1-TCN ENG(RDR) (A)	8-97326-510-1	01	1	0608-
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (C)	8-97035-310-4	02	1	0401-
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (B)	8-97326-507-0	01	1	0401-0607
199	BRACKET; CAB RR MTG 4HE1-TCN ENG(RDR) MANUAL TILT CAB<RWZ> (B)	8-97326-507-0	01	1	0608-
199	BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (B)	8-97326-509-0	01	1	0401-0607
199	BRACKET; CAB RR MTG 4HE1-TCN ENG(RDR) EXC. MANUAL TILT CAB<RWZ> (B)	8-97326-509-0	01	1	0608-
300	BOLT; MTG RUBBER M10X20 FLANGE	0-28681-020-0	08	1	0401-0512
300	BOLT; MTG RUBBER M10X20 FLANGE	0-28651-020-0	08	1	0601-

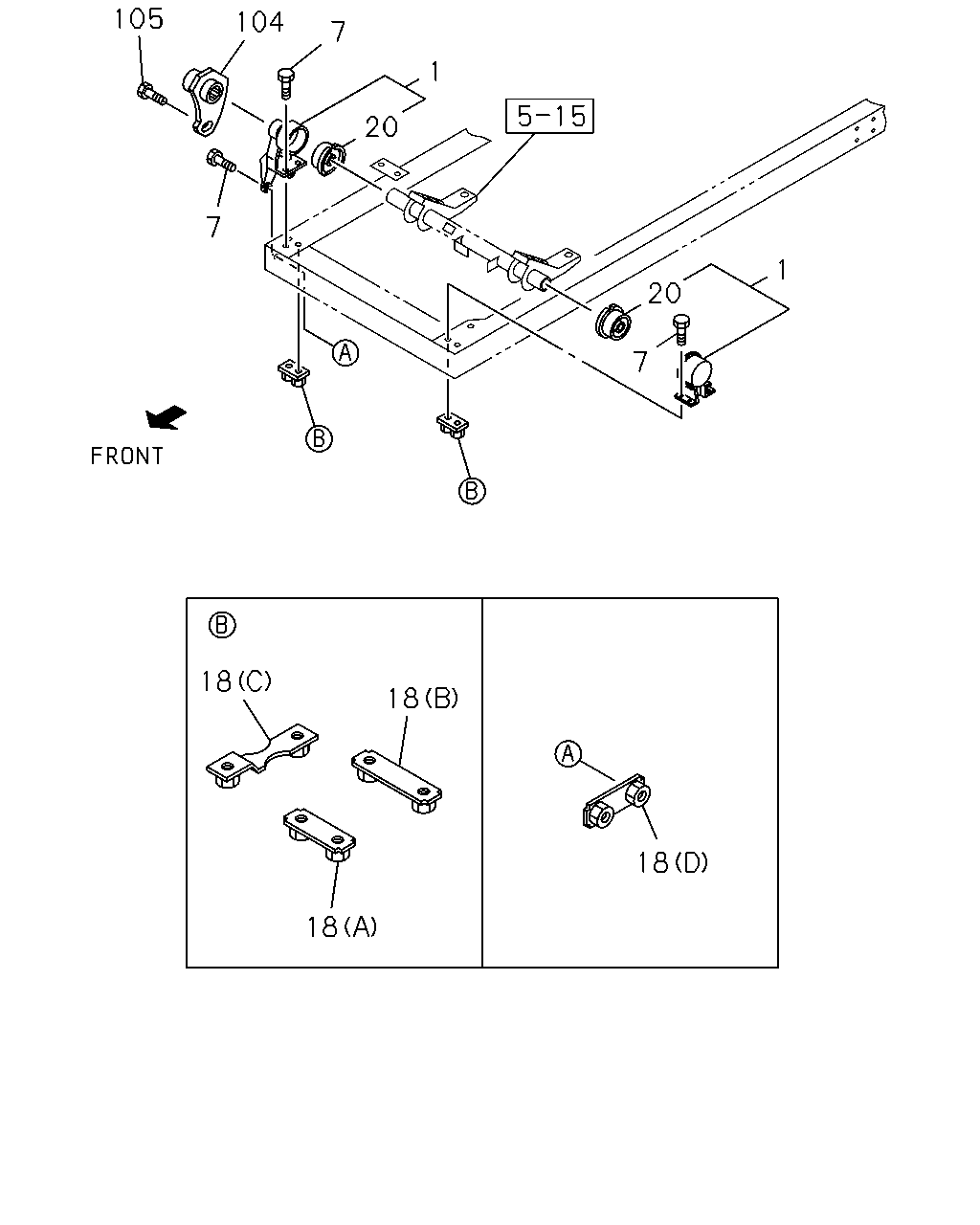

105 104 7 1 20 7 1 20 7 18 18 18 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97095-147-1	01	1	0401-0607
1	BRACKET; CAB MTG 4HE1-TCN ENG(RDR) MANUAL TILT CAB<RWZ>	8-97095-147-1	01	1	0608-
1	BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97095-146-0	01	1	0401-0607
1	BRACKET; CAB MTG 4HE1-TCN ENG(RDR) MANUAL TILT CAB<RWZ>	8-97095-146-0	01	1	0608-
1	BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ>	8-97033-350-3	01	1	0401-0607
1	BRACKET; CAB MTG 4HE1-TCN ENG(RDR) EXC. MANUAL TILT CAB<RWZ>	8-97033-350-3	01	1	0608-
1	BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ>	8-97033-348-5	01	1	0401-0607
1	BRACKET; CAB MTG 4HE1-TCN ENG(RDR) EXC. MANUAL TILT CAB<RWZ>	8-97033-348-5	01	1	0608-
7	BOLT; BRKT,CAB TILT M12X40 FLANGE	0-28681-240-0	08	1	0401-0512
7	BOLT; BRKT,CAB TILT M12X40 FLANGE	0-28651-240-0	08	1	0601-
18	PLATE; MTG BRKT FIX (A)	8-97034-139-2	02	1	0401-
18	PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (A)	8-97034-139-2	02	1	0401-
18	PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (A)	8-97034-139-2	01	1	0401-
18	PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (B)	8-97034-140-2	01	1	0401-
18	PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (C)	8-97076-469-2	01	1	0401-0607
18	PLATE; MTG BRKT FIX 4HE1-TCN ENG(RDR) MANUAL TILT CAB<RWZ> (C)	8-97076-469-2	01	1	0608-
18	PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (D)	8-97130-348-1	01	1	0401-
18	PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (B)	8-97034-140-2	02	1	0401-
20	RUBBER; MTG,CAB BRKT MANUAL TILT CAB<RWZ>	8-97095-148-1	02	1	0401-0607
20	RUBBER; MTG,CAB BRKT 4HE1-TCN ENG(RDR) MANUAL TILT CAB<RWZ>	8-97095-148-1	02	1	0608-
20	RUBBER; MTG,CAB BRKT EXC. MANUAL TILT CAB<RWZ>	8-97033-368-3	02	1	0401-0607
20	RUBBER; MTG,CAB BRKT 4HE1-TCN ENG(RDR) EXC. MANUAL TILT CAB<RWZ>	8-97033-368-3	02	1	0608-
104	BRACKET; CAB FRAME,CAB FRT MTG MANUAL TILT CAB<RWZ>	8-97033-625-4	01	1	0401-0607
104	BRACKET; CAB FRAME,CAB FRT MTG 4HE1-TCN ENG(RDR) MANUAL TILT CAB<RWZ>	8-97033-625-4	01	1	0608-
105	BOLT; BRKT TO CAB FRAME MANUAL TILT CAB<RWZ> M16X35 FLANGE	0-28881-635-0	01	1	0401-0512
105	BOLT; BRKT TO CAB FRAME MANUAL TILT CAB<RWZ> M16X35 FLANGE	0-28851-635-0	01	1	0601-0607
105	BOLT; BRKT TO CAB FRAME 4HE1-TCN ENG(RDR) MANUAL TILT CAB<RWZ> M16X35 FLANGE	0-28851-635-0	01	1	0608-
