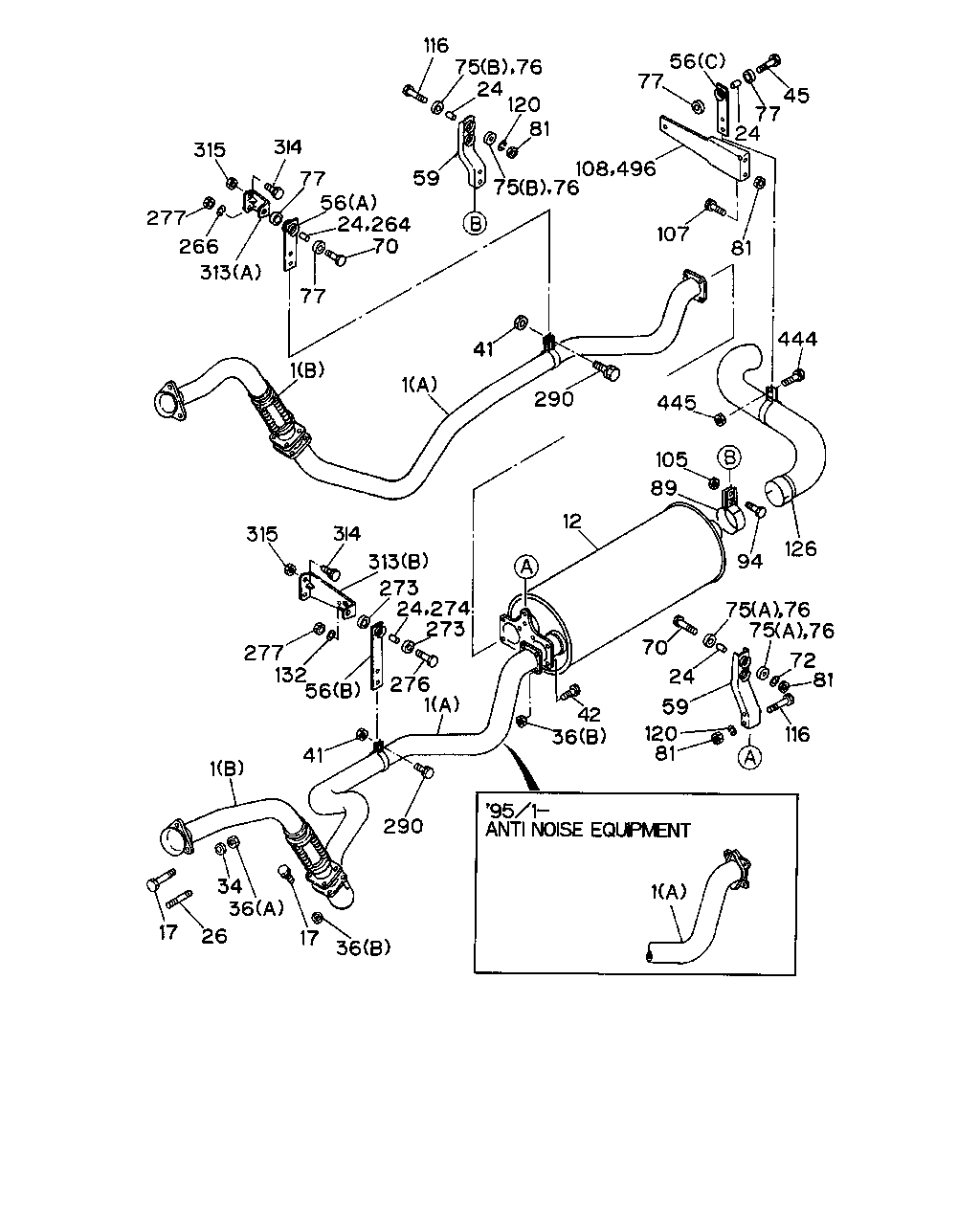

1-50B — EXHAUST PIPE AND SILENCER (#482) — 114 parça

56 45 77 24 77 108 496 107 81 444 445 105 89 126 94 75 76 76 75 72 81 116 70 24 59 120 81 36 42 290 1 36 17 36 34 26 17 1 41 1 276 56 132 277 315 314 313 273 24 274 273 12 290 41 1 1 313 266 277 77 315 314 77 56 24 264 70 59 116 75 76 24 120 81 75 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH (A)	1-22121-819-0	01	1	8712-9412	●	●
1	PIPE; EXH EXC. ANTI NOISE EQUIPMENT<SV9>,EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (A)	1-22121-819-0	01	1	9501-		●
1	PIPE; EXH (B)	1-22121-821-0	01	1	8712-9110	●	●
1	PIPE; EXH (A)	1-22121-818-2	01	1	8712-9412	●	●
1	PIPE; EXH EXC. ANTI NOISE EQUIPMENT<SV9>,EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (A)	1-22121-818-2	01	1	9501-		●
1	PIPE; EXH (B)	1-22121-820-0	01	1	8712-9110	●	●
1	PIPE; EXH (B)	1-22122-287-0	01	1	9111-9412		●
1	PIPE; EXH EXC. ANTI NOISE EQUIPMENT<SV9>,EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (B)	1-22122-287-0	01	1	9501-		●
1	PIPE; EXH (B)	1-22122-288-0	01	1	9111-9412		●
1	PIPE; EXH EXC. ANTI NOISE EQUIPMENT<SV9>,EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (B)	1-22122-288-0	01	1	9501-		●
1	PIPE; EXH ANTI NOISE EQUIPMENT<SV9> EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (B)	1-22122-668-0	01	1	9501-		●
1	PIPE; EXH ANTI NOISE EQUIPMENT<SV9> EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (A)	1-22122-669-0	01	1	9501-		●
1	PIPE; EXH ANTI NOISE EQUIPMENT<SV9> EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (B)	1-22122-661-0	01	1	9501-		●
1	PIPE; EXH ANTI NOISE EQUIPMENT<SV9> EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (A)	1-22122-663-0	01	1	9501-		●
12	SILENCER ASM; EXH	1-22140-596-1	01	1	8712-9412	●	●
12	SILENCER ASM; EXH EXC. ANTI NOISE EQUIPMENT<SV9>,EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-22140-596-1	01	1	9501-		●
12	SILENCER ASM; EXH ANTI NOISE EQUIPMENT<SV9> EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-22140-681-0	01	1	9501-		●
17	BOLT; EXH PIPE M12X120	1-09000-293-0	02	1	8712-	●	●
17	BOLT; EXH PIPE M12X30 W/LK WASHER	9-01911-230-0	16	1	8712-9005	●	●
17	BOLT; EXH PIPE M12X30 W/LK WASHER	0-50041-230-0	16	1	9006-		●
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	06	1	8712-9001	●
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	04	1	9002-		●
26	STUD; EXH MANIF M12X90 L=110	1-09302-035-0	04	1	8712-	●	●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	06	1	8712-	●	●
36	NUT; EXH PIPE (A) M12	1-09400-010-0	06	1	8712-	●	●
36	NUT; EXH PIPE (B) M12	9-99110-412-0	16	1	8712-9304	●	●
36	NUT; EXH PIPE (B) M12	9-99110-512-0	16	1	9305-		●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-412-0	08	1	8712-9304	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	08	1	9305-		●
42	BOLT; EXH PIPE TO EXH SILENCER M12X30 W/LK WASHER	9-01911-230-0	08	1	8712-9005	●	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X30 W/LK WASHER	0-50041-230-0	08	1	9006-		●
45	BOLT; BRKT M10X50	9-01046-050-0	01	1	8712-9204	●	●
45	BOLT; BRKT M10X50	0-10806-050-0	01	1	9205-		●
56	BRACKET; CLAMP,EXH PIPE (A)	1-22131-361-0	01	1	8712-8801	●
56	BRACKET; CLAMP,EXH PIPE (A)	1-22131-346-2	01	1	8802-9412	●	●
56	BRACKET; CLAMP,EXH PIPE EXC. ANTI NOISE EQUIPMENT<SV9>,EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (A)	1-22131-346-2	01	1	9501-		●
56	BRACKET; CLAMP,EXH PIPE (C) L=217	1-22131-126-2	01	1	8712-9412	●	●
56	BRACKET; CLAMP,EXH PIPE EXC. ANTI NOISE EQUIPMENT<SV9>,EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (C) L=217	1-22131-126-2	01	1	9501-		●
56	BRACKET; CLAMP,EXH PIPE (B)	1-22131-350-1	01	1	8712-	●	●
56	BRACKET; CLAMP,EXH PIPE ANTI NOISE EQUIPMENT<SV9> EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (C)	1-22131-164-2	01	1	9501-		●
56	BRACKET; CLAMP,EXH PIPE ANTI NOISE EQUIPMENT<SV9> EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (A)	1-22131-357-1	01	1	9501-		●
59	BRACKET; EXH SILENCER,FRT FRONT	1-22151-335-2	01	1	8712-9412	●	●
59	BRACKET; EXH SILENCER,FRT EXC. ANTI NOISE EQUIPMENT<SV9>,EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> FRONT	1-22151-335-2	01	1	9501-		●
59	BRACKET; EXH SILENCER,FRT REAR	1-22151-336-1	01	1	8712-9412	●	●
59	BRACKET; EXH SILENCER,FRT EXC. ANTI NOISE EQUIPMENT<SV9>,EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> REAR	1-22151-336-1	01	1	9501-		●
59	BRACKET; EXH SILENCER,FRT ANTI NOISE EQUIPMENT<SV9> EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> FRONT	1-22151-616-0	01	1	9501-		●
59	BRACKET; EXH SILENCER,FRT ANTI NOISE EQUIPMENT<SV9> EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> REAR	1-22151-703-0	01	1	9501-		●
70	BOLT; BRKT M10X50	9-01046-050-0	01	1	8712-9204	●	●
70	BOLT; BRKT M10X50	0-10806-050-0	01	1	9205-		●
70	BOLT; BRKT M10X55	9-01056-055-0	02	1	8712-9004	●	●
70	BOLT; BRKT M10X55	0-10806-055-0	02	1	9005-		●
72	WASHER; LK,BRKT ID=10.2	9-09150-510-0	02	1	8712-9001	●
75	RUBBER; SUPPORT,BRKT (B)	1-22159-065-0	04	1	9002-9306		●
75	RUBBER; SUPPORT,BRKT (A),(B) OD=40	1-22159-094-0	08	1	9307-		●
75	RUBBER; SUPPORT,BRKT (B)	1-22159-065-0	08	1	8712-9001	●
76	SUPPORT; BRKT	1-22159-065-0	02	1	8712-9001	●
76	SUPPORT; BRKT	1-22159-065-0	04	1	9002-9306		●
77	RUBBER; CUSHION,BRKT	1-22159-065-0	02	1	8712-9306	●	●
77	RUBBER; CUSHION,BRKT OD=40	1-22159-094-0	04	1	9307-		●
81	NUT; BRKT M10	9-09110-410-0	06	1	8712-9001	●
81	NUT; BRKT M10	9-09110-410-0	11	1	8712-9001	●
81	NUT; BRKT M10	9-09110-510-0	02	1	9002-		●
81	NUT; BRKT M10	9-09110-510-0	07	1	9002-		●
89	CLAMP; EXH SILENCER,RR	1-22133-161-0	01	1	8712-9001	●
89	CLAMP; EXH SILENCER,RR D=79	1-22133-218-0	01	1	9002-9412		●
89	CLAMP; EXH SILENCER,RR EXC. ANTI NOISE EQUIPMENT<SV9>,EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> D=79	1-22133-218-0	01	1	9501-9605		●
89	CLAMP; EXH SILENCER,RR EXC. ANTI NOISE EQUIPMENT<SV9>,EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-22133-256-0	01	1	9606-		●
89	CLAMP; EXH SILENCER,RR ANTI NOISE EQUIPMENT<SV9> EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-22133-172-2	01	1	9501-		●
94	BOLT; CLAMP M8X40 W/LK WASHER	9-01910-840-0	02	1	8712-9001	●
94	BOLT; CLAMP M8X40 FLANGE	0-28080-840-0	02	1	9002-9304		●
94	BOLT; CLAMP M8X40 W/LK WASHER	0-50040-840-0	02	1	9305-		●
105	NUT; CLAMP M8	9-09110-408-0	06	1	8712-	●	●
107	BOLT; BRKT M10X35 W/LK WASHER	0-50041-035-0	02	1	9002-		●
107	BOLT; BRKT M10X35 W/LK WASHER	9-01911-035-0	02	1	8712-9001	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR	1-22131-363-0	01	1	9002-		●
116	BOLT; BRKT M10X55	9-01056-055-0	02	1	8712-9004	●	●
116	BOLT; BRKT M10X55	0-10806-055-0	02	1	9005-		●
116	BOLT; BRKT M10X75	9-01056-075-0	02	1	8712-9004	●	●
116	BOLT; BRKT M10X75	0-10806-075-0	02	1	9005-		●
120	WASHER; LK,BRKT ID=10.2	9-09150-510-0	02	1	8712-	●	●
126	PIPE; EXH,RR	1-22112-554-4	01	1	8712-9001	●
126	PIPE; EXH,RR	1-22122-102-0	01	1	9002-9008		●
126	PIPE; EXH,RR	1-22122-102-0	01	1	9009-9412		●
126	PIPE; EXH,RR EXC. ANTI NOISE EQUIPMENT<SV9>,EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-22122-102-0	01	1	9501-		●
126	PIPE; EXH,RR ANTI NOISE EQUIPMENT<SV9> EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-22126-157-0	01	1	9501-		●
132	WASHER; LK,BRKT ID=10.2	9-09150-510-0	01	1	8712-	●	●
264	TUBE; DIST,SUPPORT RUBBER L=22	9-22159-024-0	01	1	9002-		●
266	WASHER; LK,BRKT ID=10.2	9-09150-510-0	01	1	8712-	●	●
273	SUPPORT; BRKT,EXH PIPE	1-22159-065-0	04	1	8712-9001	●
273	SUPPORT; BRKT,EXH PIPE	1-22159-065-0	02	1	9002-9306		●
273	SUPPORT; BRKT,EXH PIPE OD=40	1-22159-094-0	02	1	9307-		●
274	COLLAR; DIST,SUPPORT BRKT L=22	9-22159-024-0	01	1	9002-		●
276	BOLT; BRKT M10X50	9-01046-050-0	01	1	8712-9204	●	●
276	BOLT; BRKT M10X50	0-10806-050-0	01	1	9205-		●
277	NUT; BRKT M10	9-09110-510-0	01	1	8712-	●	●
290	BOLT; CLAMP M8X40 W/LK WASHER	9-01910-840-0	04	1	8712-9005	●	●
290	BOLT; CLAMP M8X40 FLANGE	0-28080-840-0	04	1	9006-9304		●
290	BOLT; CLAMP M8X40 W/LK WASHER	0-50040-840-0	04	1	9305-		●
313	BRACKET; BRKT TO FRAME,EXH PIPE,FRT (A)	1-22131-339-3	01	1	8712-9406	●	●
313	BRACKET; BRKT TO FRAME,EXH PIPE,FRT (A)	1-22131-647-0	01	1	9407-		●
313	BRACKET; BRKT TO FRAME,EXH PIPE,FRT (B)	1-22131-344-3	01	1	8712-9406	●	●
313	BRACKET; BRKT TO FRAME,EXH PIPE,FRT (B)	1-22131-648-0	01	1	9407-		●
314	BOLT; BRKT M8X30 W/LK WASHER	9-01910-830-0	04	1	8712-9005	●	●
314	BOLT; BRKT M8X30 W/LK WASHER	0-50040-830-0	04	1	9006-9302		●
314	BOLT; BRKT M8X30 FLANGE	0-28080-830-0	04	1	9303-9306		●
314	BOLT; BRKT M8X30 FLANGE	0-28080-830-0	02	1	9307-		●
314	BOLT; BRKT M8X50 FLANGE	0-28080-850-0	02	1	9307-		●
315	NUT; BRKT M8	9-09110-408-0	04	1	8712-	●	●
444	BOLT; PIPE CLAMP M8X35 W/LK WASHER	0-50040-835-0	02	1	9006-9302		●
444	BOLT; PIPE CLAMP M8X40 W/LK WASHER	9-01910-840-0	02	1	8712-9005	●	●
444	BOLT; PIPE CLAMP M8X40 FLANGE	0-28080-840-0	02	1	9303-9304		●
444	BOLT; PIPE CLAMP M8X40 W/LK WASHER	0-50040-840-0	02	1	9305-		●
445	NUT; PIPE CLAMP M8	9-09110-408-0	02	1	8712-9001	●
496	BRACKET; BRKT TO FRAME,EXH SILENCER,RR	1-22131-363-0	01	1	8712-9001	●
