5-01 — FRAME AND OTHER PARTS (#48199) — 138 parça

376 376 376 376 376 376 376 376 376 376 376 176 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
118	NUT; STOPPER 4HE1 ENG(RLY) M8 LOCK NUT	9-09131-508-0	02	1	0401-0603
118	NUT; STOPPER 4HE1 ENG(RLY) M8 LOCK NUT	0-91370-008-0	02	1	0604-0607
118	NUT; STOPPER 4HE1-TCN ENG(RDR) M8 LOCK NUT	0-91370-008-0	02	1	0608-1007
118	NUT; STOPPER 4HE1-TCN ENG(RDR) EXC. FRAME PRESS KOUGYOU<7RZ> M8 LOCK NUT	0-91370-008-0	02	1	1008-
118	NUT; STOPPER 4HE1-TCN ENG(RDR) FRAME PRESS KOUGYOU<7RZ> EXC. MINI BUS CHASSIS VAR.2(6GQ) M8 LOCK NUT	0-91370-008-0	02	1	1008-
176	BOLT; C/MBR,ENG MTG 4HE1 ENG(RLY) M10X25 FLANGE	0-28081-025-0	08	1	0401-0512
176	BOLT; C/MBR,ENG MTG 4HE1 ENG(RLY) M10X25 FLANGE	0-28051-025-0	08	1	0601-0607
176	BOLT; C/MBR,ENG MTG 4HE1-TCN ENG(RDR) M10X25 FLANGE	0-28051-025-0	08	1	0608-
196	BRACKET; STAB TO FRAME 4HE1-TCN ENG(RDR) STABILIZER REAR<GN1>	8-97118-620-2	02	1	1003-1007
196	BRACKET; STAB TO FRAME 4HE1-TCN ENG(RDR) STABILIZER REAR<GN1> EXC. FRAME PRESS KOUGYOU<7RZ>	8-97118-620-2	02	1	1008-
196	BRACKET; STAB TO FRAME 4HE1-TCN ENG(RDR) MINI BUS CHASSIS VAR.2(6GQ) FRAME PRESS KOUGYOU<7RZ>	8-97118-620-2	02	1	1008-
196	BRACKET; STAB TO FRAME 4HE1-TCN ENG(RDR) STABILIZER REAR<GN1> FRAME PRESS KOUGYOU<7RZ> EXC. MINI BUS CHASSIS VAR.2(6GQ)	8-97118-620-2	02	1	1008-
376	RIVET; FRAME (A) D8X26 TAPER END	9-06750-826-0	AR	1	0401-
376	RIVET; FRAME (B) D10X24 TAPER END	9-06751-024-0	AR	1	0401-
376	RIVET; FRAME (C) D10X26 TAPER END	9-06751-026-0	AR	1	0401-
376	RIVET; FRAME (D) D10X28 TAPER END	9-06751-028-0	AR	1	0401-
376	RIVET; FRAME (E) D10X32 TAPER END	9-06751-032-0	AR	1	0401-
376	RIVET; FRAME (F) D10X36 TAPER END	9-06751-036-0	AR	1	0401-
376	RIVET; FRAME (G) D11X26 TAPER END	9-06751-126-0	AR	1	0401-
376	RIVET; FRAME (H) D11X30 TAPER END	9-06751-130-0	AR	1	0401-
376	RIVET; FRAME (I) D12X30 TAPER END	9-06751-230-0	AR	1	0401-
376	RIVET; FRAME (J) D12X36 TAPER END	9-06751-236-0	AR	1	0401-
376	RIVET; FRAME (K) D12X40 TAPER END	9-06751-240-0	AR	1	0401-

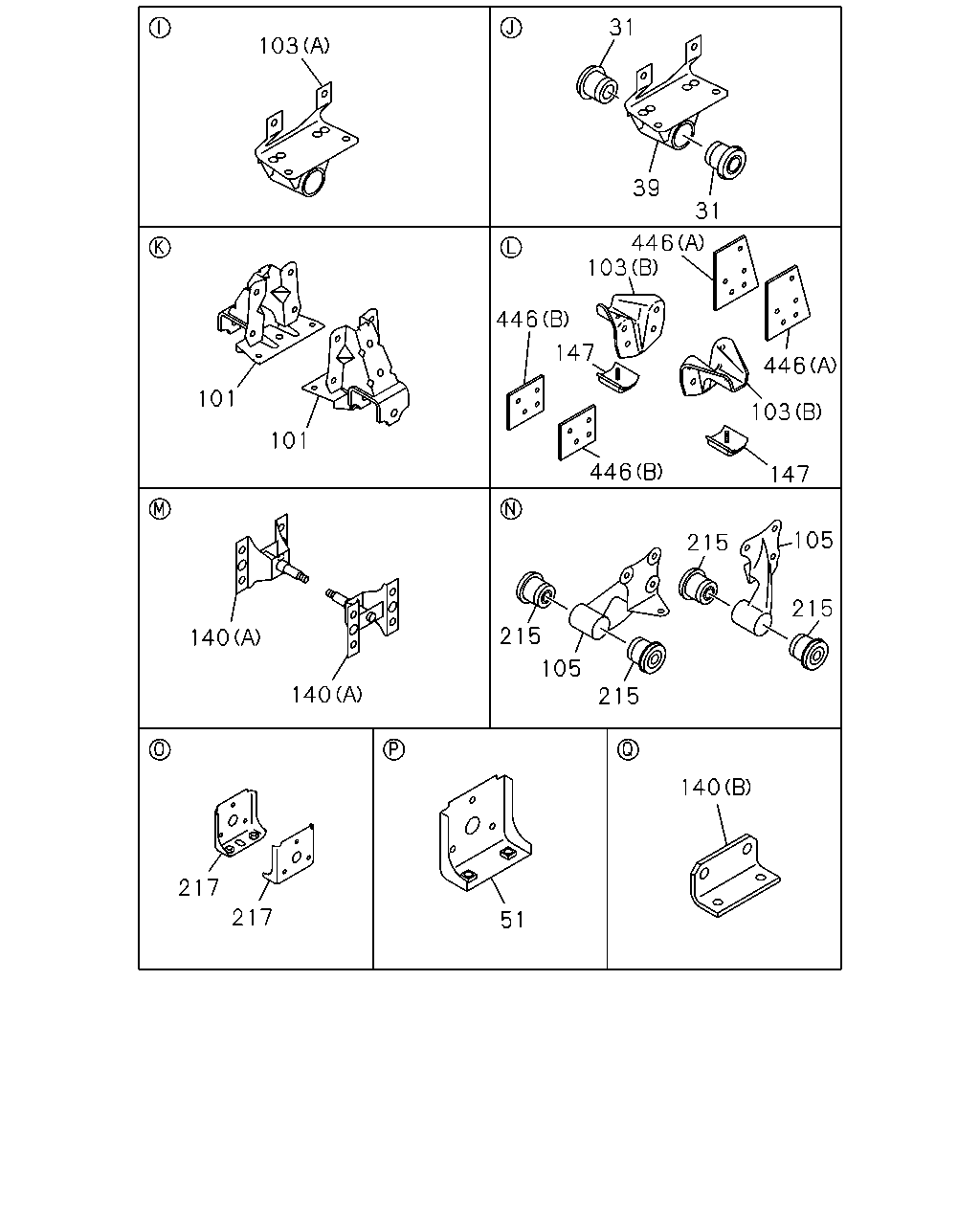

31 103 39 31 446 103 446 147 446 101 103 101 446 147 105 215 215 215 140 105 140 215 140 217 217 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	BUSHING; FRT SPR,RR 4HE1 ENG(RLY)	8-97184-699-1	04	1	0401-0607
31	BUSHING; FRT SPR,RR 4HE1-TCN ENG(RDR)	8-97184-699-1	04	1	0608-
39	BRACKET; FRT SPR,RR 4HE1 ENG(RLY)	8-97079-495-1	02	1	0401-0607
39	BRACKET; FRT SPR,RR 4HE1-TCN ENG(RDR)	8-97079-495-1	02	1	0608-
51	BRACKET; ENG SUPPORT,OUTER 4HE1 ENG(RLY) FRAME PRESS KOUGYOU<7RZ>	8-97046-284-1	02	1	0401-0607
51	BRACKET; ENG SUPPORT,OUTER 4HE1-TCN ENG(RDR) FRAME PRESS KOUGYOU<7RZ>	8-97046-284-1	02	1	0608-1007
51	BRACKET; ENG SUPPORT,OUTER 4HE1-TCN ENG(RDR) FRAME PRESS KOUGYOU<7RZ> EXC. MINI BUS CHASSIS VAR.2(6GQ)	8-97046-284-1	02	1	1008-
51	BRACKET; ENG SUPPORT,OUTER 4HE1 ENG(RLY) EXC. FRAME PRESS KOUGYOU<7RZ>	8-97202-415-1	02	1	0401-0607
51	BRACKET; ENG SUPPORT,OUTER 4HE1-TCN ENG(RDR) EXC. FRAME PRESS KOUGYOU<7RZ>	8-97202-415-1	02	1	0608-1007
51	BRACKET; ENG SUPPORT,OUTER 4HE1-TCN ENG(RDR) MINI BUS CHASSIS VAR.2(6GQ) FRAME PRESS KOUGYOU<7RZ>	8-97202-415-1	02	1	1008-
51	BRACKET; ENG SUPPORT,OUTER 4HE1-TCN ENG(RDR) EXC. FRAME PRESS KOUGYOU<7RZ>	8-97202-415-1	02	1	1008-
101	BRACKET; RR SPR,FRT 4HE1 ENG(RLY)	8-97042-245-1	02	1	0401-0607
101	BRACKET; RR SPR,FRT 4HE1-TCN ENG(RDR)	8-97042-245-1	02	1	0608-
103	STOPPER; SUB SPR 4HE1 ENG(RLY) (A)	8-97079-659-1	02	1	0401-0607
103	STOPPER; SUB SPR 4HE1-TCN ENG(RDR) (A)	8-97079-659-1	02	1	0608-
103	STOPPER; SUB SPR 4HE1 ENG(RLY) (B)	8-97223-748-0	04	1	0401-0607
103	STOPPER; SUB SPR 4HE1-TCN ENG(RDR) (B)	8-97223-748-0	04	1	0608-1007
103	STOPPER; SUB SPR 4HE1-TCN ENG(RDR) EXC. FRAME PRESS KOUGYOU<7RZ> (B)	8-97223-748-0	04	1	1008-
103	STOPPER; SUB SPR 4HE1-TCN ENG(RDR) FRAME PRESS KOUGYOU<7RZ> EXC. MINI BUS CHASSIS VAR.2(6GQ) (B)	8-97223-748-0	04	1	1008-
105	BRACKET; RR SPR,RR 4HE1 ENG(RLY)	8-94459-512-1	01	1	0401-0607
105	BRACKET; RR SPR,RR 4HE1-TCN ENG(RDR)	8-94459-512-1	01	1	0608-
105	BRACKET; RR SPR,RR 4HE1 ENG(RLY)	8-94459-511-1	01	1	0401-0607
105	BRACKET; RR SPR,RR 4HE1-TCN ENG(RDR)	8-94459-511-1	01	1	0608-
140	BRACKET; S/ABS,RR 4HE1 ENG(RLY) (B)	8-97302-511-0	02	1	0401-0607
140	BRACKET; S/ABS,RR 4HE1-TCN ENG(RDR) (B)	8-97302-511-0	02	1	0608-
140	BRACKET; S/ABS,RR 4HE1 ENG(RLY) (A)	8-97080-884-0	02	1	0401-0607
140	BRACKET; S/ABS,RR 4HE1-TCN ENG(RDR) (A)	8-97080-884-1	02	1	0608-
147	RUBBER; SUB SPRING 4HE1 ENG(RLY)	8-97254-387-0	04	1	0401-0607
147	RUBBER; SUB SPRING 4HE1-TCN ENG(RDR)	8-97254-387-0	04	1	0608-1007
147	RUBBER; SUB SPRING 4HE1-TCN ENG(RDR) EXC. FRAME PRESS KOUGYOU<7RZ>	8-97254-387-0	04	1	1008-
147	RUBBER; SUB SPRING 4HE1-TCN ENG(RDR) FRAME PRESS KOUGYOU<7RZ> EXC. MINI BUS CHASSIS VAR.2(6GQ)	8-97254-387-0	04	1	1008-
196	BRACKET; STAB TO FRAME 4HE1-TCN ENG(RDR) STABILIZER REAR<GN1>	8-97118-620-2	02	1	1003-1007
196	BRACKET; STAB TO FRAME 4HE1-TCN ENG(RDR) STABILIZER REAR<GN1> EXC. FRAME PRESS KOUGYOU<7RZ>	8-97118-620-2	02	1	1008-
196	BRACKET; STAB TO FRAME 4HE1-TCN ENG(RDR) MINI BUS CHASSIS VAR.2(6GQ) FRAME PRESS KOUGYOU<7RZ>	8-97118-620-2	02	1	1008-
196	BRACKET; STAB TO FRAME 4HE1-TCN ENG(RDR) STABILIZER REAR<GN1> FRAME PRESS KOUGYOU<7RZ> EXC. MINI BUS CHASSIS VAR.2(6GQ)	8-97118-620-2	02	1	1008-
215	BUSHING; BRKT,RR SPRING 4HE1 ENG(RLY)	8-97184-699-1	04	1	0401-0607
215	BUSHING; BRKT,RR SPRING 4HE1-TCN ENG(RDR)	8-97184-699-1	04	1	0608-
217	BRACKET; HELPER RUBBER,RR SPRING 4HE1 ENG(RLY) FRAME PRESS KOUGYOU<7RZ>	8-94258-963-0	02	1	0401-0607
217	BRACKET; HELPER RUBBER,RR SPRING 4HE1-TCN ENG(RDR) FRAME PRESS KOUGYOU<7RZ>	8-94258-963-0	02	1	0608-1007
217	BRACKET; HELPER RUBBER,RR SPRING 4HE1-TCN ENG(RDR) FRAME PRESS KOUGYOU<7RZ> EXC. MINI BUS CHASSIS VAR.2(6GQ)	8-94258-963-0	02	1	1008-
217	BRACKET; HELPER RUBBER,RR SPRING 4HE1 ENG(RLY) EXC. FRAME PRESS KOUGYOU<7RZ>	8-97202-417-0	02	1	0401-0607
217	BRACKET; HELPER RUBBER,RR SPRING 4HE1-TCN ENG(RDR) EXC. FRAME PRESS KOUGYOU<7RZ>	8-97202-417-0	02	1	0608-1007
217	BRACKET; HELPER RUBBER,RR SPRING 4HE1-TCN ENG(RDR) MINI BUS CHASSIS VAR.2(6GQ) FRAME PRESS KOUGYOU<7RZ>	8-97202-417-0	02	1	1008-
217	BRACKET; HELPER RUBBER,RR SPRING 4HE1-TCN ENG(RDR) EXC. FRAME PRESS KOUGYOU<7RZ>	8-97202-417-0	02	1	1008-
446	STIFFENER; SPRING STOPPER 4HE1 ENG(RLY) (B) REAR	8-97170-790-0	02	1	0401-0607
446	STIFFENER; SPRING STOPPER 4HE1-TCN ENG(RDR) (B) REAR	8-97170-790-0	02	1	0608-1007
446	STIFFENER; SPRING STOPPER 4HE1-TCN ENG(RDR) EXC. FRAME PRESS KOUGYOU<7RZ> (B) REAR	8-97170-790-0	02	1	1008-
446	STIFFENER; SPRING STOPPER 4HE1-TCN ENG(RDR) FRAME PRESS KOUGYOU<7RZ> EXC. MINI BUS CHASSIS VAR.2(6GQ) (B) REAR	8-97170-790-0	02	1	1008-
446	STIFFENER; SPRING STOPPER 4HE1 ENG(RLY) (A) FRONT	8-97180-433-0	02	1	0401-0607
446	STIFFENER; SPRING STOPPER 4HE1-TCN ENG(RDR) (A) FRONT	8-97180-433-0	02	1	0608-1007
446	STIFFENER; SPRING STOPPER 4HE1-TCN ENG(RDR) EXC. FRAME PRESS KOUGYOU<7RZ> (A) FRONT	8-97180-433-0	02	1	1008-
446	STIFFENER; SPRING STOPPER 4HE1-TCN ENG(RDR) FRAME PRESS KOUGYOU<7RZ> EXC. MINI BUS CHASSIS VAR.2(6GQ) (A) FRONT	8-97180-433-0	02	1	1008-

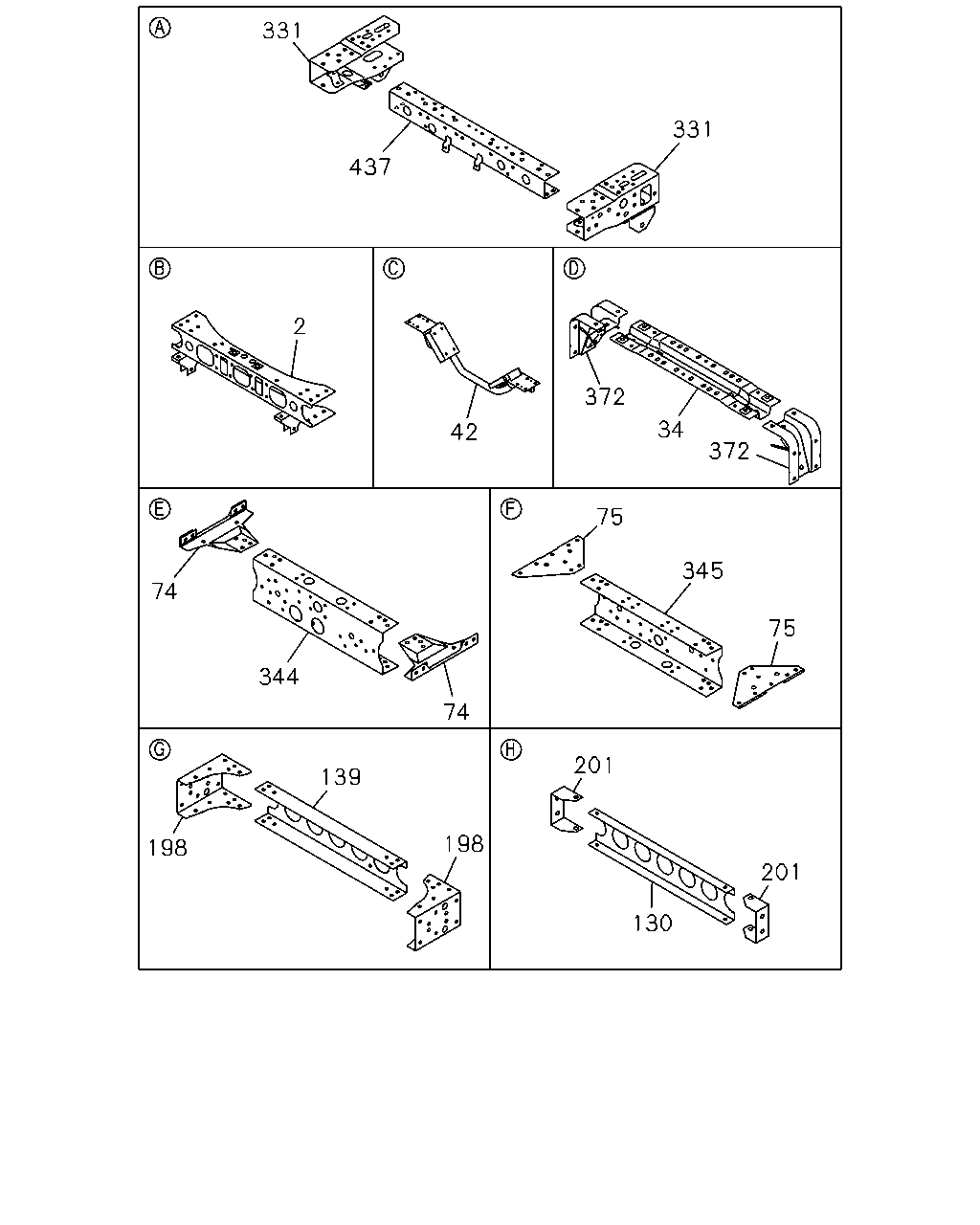

331 331 437 2 372 34 42 372 75 345 74 75 344 74 201 139 198 198 201 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	MEMBER; CROSS,1ST 4HE1 ENG(RLY)	8-97080-862-4	01	1	0401-0607
2	MEMBER; CROSS,1ST 4HE1-TCN ENG(RDR)	8-97080-862-4	01	1	0608-
34	MEMBER; CROSS,3RD 4HE1 ENG(RLY)	8-97096-875-2	01	1	0401-0607
34	MEMBER; CROSS,3RD 4HE1-TCN ENG(RDR)	8-97096-875-2	01	1	0608-
42	MEMBER; CROSS,ENG MTG 4HE1 ENG(RLY)	8-97080-868-0	01	1	0401-0607
42	MEMBER; CROSS,ENG MTG 4HE1-TCN ENG(RDR)	8-97080-868-0	01	1	0608-
74	GUSSET; 4TH C/MBR 4HE1 ENG(RLY) UPPER	8-97080-878-0	01	1	0401-0607
74	GUSSET; 4TH C/MBR 4HE1-TCN ENG(RDR) UPPER	8-97080-878-0	01	1	0608-
74	GUSSET; 4TH C/MBR 4HE1 ENG(RLY) LOWER	8-97118-876-1	01	1	0401-0607
74	GUSSET; 4TH C/MBR 4HE1-TCN ENG(RDR) LOWER	8-97118-876-1	01	1	0608-
74	GUSSET; 4TH C/MBR 4HE1 ENG(RLY) UPPER	8-97109-777-0	01	1	0401-0607
74	GUSSET; 4TH C/MBR 4HE1-TCN ENG(RDR) UPPER	8-97109-777-0	01	1	0608-
74	GUSSET; 4TH C/MBR 4HE1 ENG(RLY) LOWER	8-97118-875-1	01	1	0401-0607
74	GUSSET; 4TH C/MBR 4HE1-TCN ENG(RDR) LOWER	8-97118-875-1	01	1	0608-
75	GUSSET; 5TH C/MBR 4HE1 ENG(RLY) LOWER	8-97080-878-0	01	1	0401-0607
75	GUSSET; 5TH C/MBR 4HE1-TCN ENG(RDR) LOWER	8-97080-878-0	01	1	0608-
75	GUSSET; 5TH C/MBR 4HE1 ENG(RLY) UPPER	8-97118-876-1	01	1	0401-0607
75	GUSSET; 5TH C/MBR 4HE1-TCN ENG(RDR) UPPER	8-97118-876-1	01	1	0608-
75	GUSSET; 5TH C/MBR 4HE1 ENG(RLY) LOWER	8-97109-777-0	01	1	0401-0607
75	GUSSET; 5TH C/MBR 4HE1-TCN ENG(RDR) LOWER	8-97109-777-0	01	1	0608-
75	GUSSET; 5TH C/MBR 4HE1 ENG(RLY) UPPER	8-97118-875-1	01	1	0401-0607
75	GUSSET; 5TH C/MBR 4HE1-TCN ENG(RDR) UPPER	8-97118-875-1	01	1	0608-
130	MEMBER; CROSS,END 4HE1 ENG(RLY)	8-97080-872-0	01	1	0401-0607
130	MEMBER; CROSS,END 4HE1-TCN ENG(RDR)	8-97080-872-0	01	1	0608-
139	MEMBER; CROSS,6TH 4HE1 ENG(RLY)	8-97107-384-0	01	1	0401-0607
139	MEMBER; CROSS,6TH 4HE1-TCN ENG(RDR)	8-97107-384-0	01	1	0608-
196	BRACKET; STAB TO FRAME 4HE1-TCN ENG(RDR) STABILIZER REAR<GN1>	8-97118-620-2	02	1	1003-1007
196	BRACKET; STAB TO FRAME 4HE1-TCN ENG(RDR) STABILIZER REAR<GN1> EXC. FRAME PRESS KOUGYOU<7RZ>	8-97118-620-2	02	1	1008-
196	BRACKET; STAB TO FRAME 4HE1-TCN ENG(RDR) MINI BUS CHASSIS VAR.2(6GQ) FRAME PRESS KOUGYOU<7RZ>	8-97118-620-2	02	1	1008-
196	BRACKET; STAB TO FRAME 4HE1-TCN ENG(RDR) STABILIZER REAR<GN1> FRAME PRESS KOUGYOU<7RZ> EXC. MINI BUS CHASSIS VAR.2(6GQ)	8-97118-620-2	02	1	1008-
198	GUSSET; 6TH C/MBR 4HE1 ENG(RLY)	8-97080-882-1	02	1	0401-0607
198	GUSSET; 6TH C/MBR 4HE1-TCN ENG(RDR)	8-97080-882-1	02	1	0608-
201	GUSSET; C/MBR 4HE1 ENG(RLY)	8-97096-871-0	02	1	0401-0607
201	GUSSET; C/MBR 4HE1-TCN ENG(RDR)	8-97096-871-0	02	1	0608-
331	BRACKET; STRG UNIT 4HE1 ENG(RLY)	8-97096-865-1	01	1	0401-0607
331	BRACKET; STRG UNIT 4HE1-TCN ENG(RDR)	8-97096-865-1	01	1	0608-
331	BRACKET; STRG UNIT 4HE1 ENG(RLY)	8-97096-864-0	01	1	0401-0607
331	BRACKET; STRG UNIT 4HE1-TCN ENG(RDR)	8-97096-864-0	01	1	0608-
344	MEMBER; CROSS,4TH 4HE1 ENG(RLY)	8-97175-993-3	01	1	0401-0607
344	MEMBER; CROSS,4TH 4HE1-TCN ENG(RDR)	8-97175-993-3	01	1	0608-
345	MEMBER; CROSS,5TH 4HE1 ENG(RLY)	8-97175-993-3	01	1	0401-0607
345	MEMBER; CROSS,5TH 4HE1-TCN ENG(RDR)	8-97175-993-3	01	1	0608-
372	BRACKET 4HE1 ENG(RLY)	8-97139-128-0	02	1	0401-0607
372	BRACKET 4HE1-TCN ENG(RDR)	8-97139-128-0	02	1	0608-
437	MEMBER; CROSS,BUMPER 4HE1 ENG(RLY)	8-97100-041-1	01	1	0401-0607
437	MEMBER; CROSS,BUMPER 4HE1-TCN ENG(RDR)	8-97100-041-1	01	1	0608-

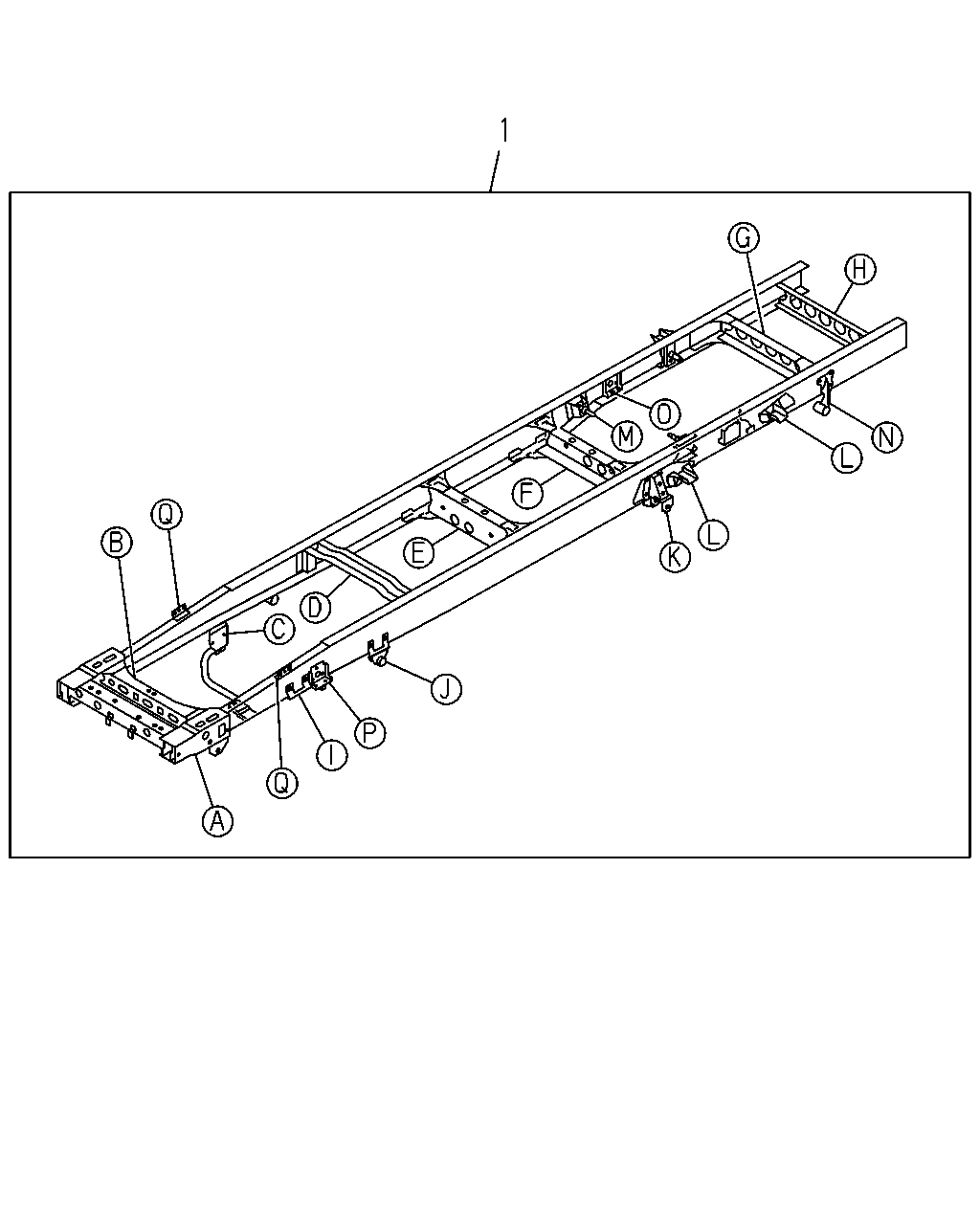

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	FRAME ASM 4HE1-TCN ENG(RDR) MINI BUS CHASSIS VAR.2(6GQ) FRAME PRESS KOUGYOU<7RZ> (B)	8-98073-758-0	01	1	1008-
1	FRAME ASM 4HE1-TCN ENG(RDR) STABILIZER REAR<GN1> FRAME PRESS KOUGYOU<7RZ> (B)	8-98003-507-2	01	1	1003-1007
1	FRAME ASM 4HE1-TCN ENG(RDR) STABILIZER REAR<GN1> FRAME PRESS KOUGYOU<7RZ> EXC. MINI BUS CHASSIS VAR.2(6GQ) (B)	8-98003-507-2	01	1	1008-
1	FRAME ASM 4HE1-TCN ENG(RDR) STABILIZER REAR<GN1> EXC. FRAME PRESS KOUGYOU<7RZ> (B)	8-98003-464-0	01	1	1003-
1	FRAME ASM 4HE1 ENG(RLY) FRAME PRESS KOUGYOU<7RZ> (A)	8-97217-890-2	01	1	0401-0501
1	FRAME ASM 4HE1 ENG(RLY) FRAME PRESS KOUGYOU<7RZ> (A)	8-98003-506-2	01	1	0502-0607
1	FRAME ASM 4HE1-TCN ENG(RDR) FRAME PRESS KOUGYOU<7RZ> (A)	8-98003-506-2	01	1	0608-1002
1	FRAME ASM 4HE1-TCN ENG(RDR) FRAME PRESS KOUGYOU<7RZ> EXC. STABILIZER REAR<GN1> (A)	8-98003-506-2	01	1	1003-1007
1	FRAME ASM 4HE1-TCN ENG(RDR) FRAME PRESS KOUGYOU<7RZ> EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS VAR.2(6GQ) (A)	8-98003-506-2	01	1	1008-
1	FRAME ASM 4HE1 ENG(RLY) EXC. FRAME PRESS KOUGYOU<7RZ> (A)	8-97205-691-0	01	1	0401-0501
1	FRAME ASM 4HE1 ENG(RLY) EXC. FRAME PRESS KOUGYOU<7RZ> (A)	8-98003-463-0	01	1	0502-0607
1	FRAME ASM 4HE1-TCN ENG(RDR) EXC. FRAME PRESS KOUGYOU<7RZ> (A)	8-98003-463-0	01	1	0608-1002
1	FRAME ASM 4HE1-TCN ENG(RDR) EXC. STABILIZER REAR<GN1>,FRAME PRESS KOUGYOU<7RZ> (A)	8-98003-463-0	01	1	1003-
196	BRACKET; STAB TO FRAME 4HE1-TCN ENG(RDR) STABILIZER REAR<GN1>	8-97118-620-2	02	1	1003-1007
196	BRACKET; STAB TO FRAME 4HE1-TCN ENG(RDR) STABILIZER REAR<GN1> EXC. FRAME PRESS KOUGYOU<7RZ>	8-97118-620-2	02	1	1008-
196	BRACKET; STAB TO FRAME 4HE1-TCN ENG(RDR) MINI BUS CHASSIS VAR.2(6GQ) FRAME PRESS KOUGYOU<7RZ>	8-97118-620-2	02	1	1008-
196	BRACKET; STAB TO FRAME 4HE1-TCN ENG(RDR) STABILIZER REAR<GN1> FRAME PRESS KOUGYOU<7RZ> EXC. MINI BUS CHASSIS VAR.2(6GQ)	8-97118-620-2	02	1	1008-
