4-65B — REAR LEAF SPRING (#48197) — 36 parça

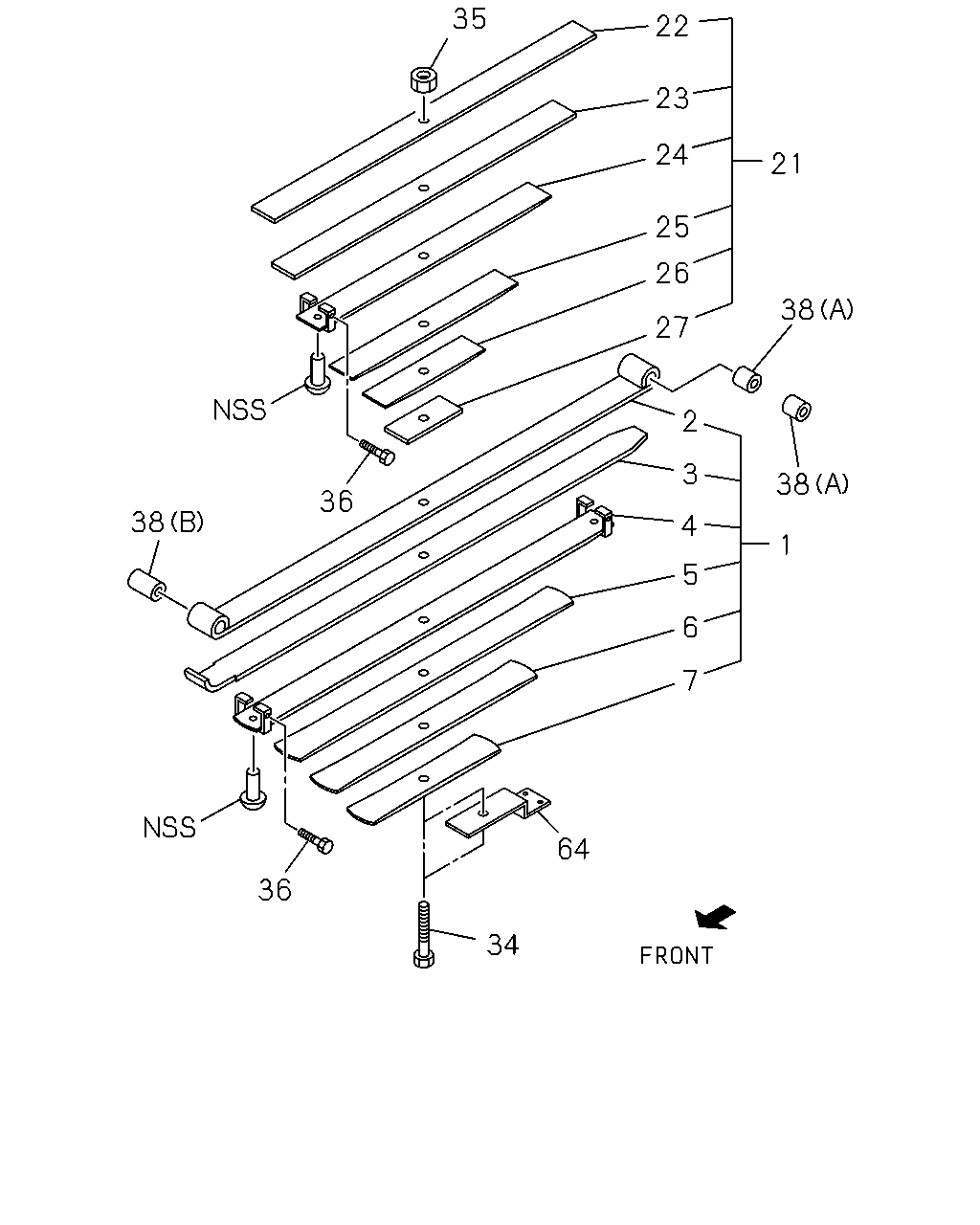

çizim 55190
35 22 23 24 21 25 26 38 27 2 3 38 36 38 4 1 5 6 7 64 36 34
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING ASM; LEAF,RR MAIN
ASM PART: A = 8-97122-382-0 		8-97135-077-0 01 1 -
1 SPRING ASM; LEAF,RR MAIN
ASM PART: B = 8-97225-581-0 		8-97238-329-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
ASM PART: A = 8-97122-382-0 		8-97130-493-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
ASM PART: B = 8-97225-581-0 		8-97238-330-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
ASM PART: A = 8-97122-382-0 		8-97130-494-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
ASM PART: B = 8-97225-581-0 		8-97238-331-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
ASM PART: A = 8-97122-382-0 		8-97130-495-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
ASM PART: B = 8-97225-581-0 		8-97238-332-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
ASM PART: A = 8-97122-382-0 		8-97130-496-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
ASM PART: B = 8-97225-581-0 		8-97238-333-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
ASM PART: A = 8-97122-382-0 		8-97130-497-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
ASM PART: B = 8-97225-581-0 		8-97238-334-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
ASM PART: A = 8-97122-382-0 		8-97130-498-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
ASM PART: B = 8-97225-581-0 		8-97238-335-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
ASM PART: A = 8-97122-382-0 		8-97135-078-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
ASM PART: B = 8-97225-581-0 		8-97238-336-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
ASM PART: A = 8-97122-382-0 		8-97130-499-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
ASM PART: B = 8-97225-581-0 		8-97238-337-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
ASM PART: A = 8-97122-382-0 		8-97130-500-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
ASM PART: B = 8-97225-581-0 		8-97238-338-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
ASM PART: A = 8-97122-382-0 		8-97130-501-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
ASM PART: B = 8-97225-581-0 		8-97238-339-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
ASM PART: A = 8-97122-382-0 		8-97130-502-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
ASM PART: B = 8-97225-581-0 		8-97238-340-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
ASM PART: A = 8-97122-382-0 		8-97130-503-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
ASM PART: B = 8-97225-581-0 		8-97238-341-0 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
ASM PART: A = 8-97122-382-0 		8-97130-504-0 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
ASM PART: B = 8-97225-581-0 		8-97238-342-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=150 ASM PART: A = 8-97122-382-0 		8-94165-316-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=155 ASM PART: B = 8-97225-581-0 		8-94165-317-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M12 ASM PART: A = 8-97122-382-0, B = 8-97225-581-0 		9-99110-512-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
M8X90.5 ASM PART: A = 8-97122-382-0, B = 8-97225-581-0 		8-94407-133-0 03 1 -
38 BUSHING; LEAF SPR,RR
(B), BEST VALUE PARTS ASM PART: A = 8-97122-382-0, B = 8-97225-581-0 		5-87610-163-0 01 1 -
38 BUSHING; LEAF SPR,RR
(A), OD=40 L=43.7 ASM PART: A = 8-97122-382-0, B = 8-97225-581-0 		8-94118-588-1 02 1 -
38 BUSHING; LEAF SPR,RR
(B), OD=42 L=81 ASM PART: A = 8-97122-382-0, B = 8-97225-581-0 		8-97074-826-0 01 1 -
64 SUPPORT; RR SPR
ASM PART: B = 8-97225-581-0 		8-97225-579-1 01 1 -
