◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50980 - NPR(IRAN) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#48190) — 25 parça

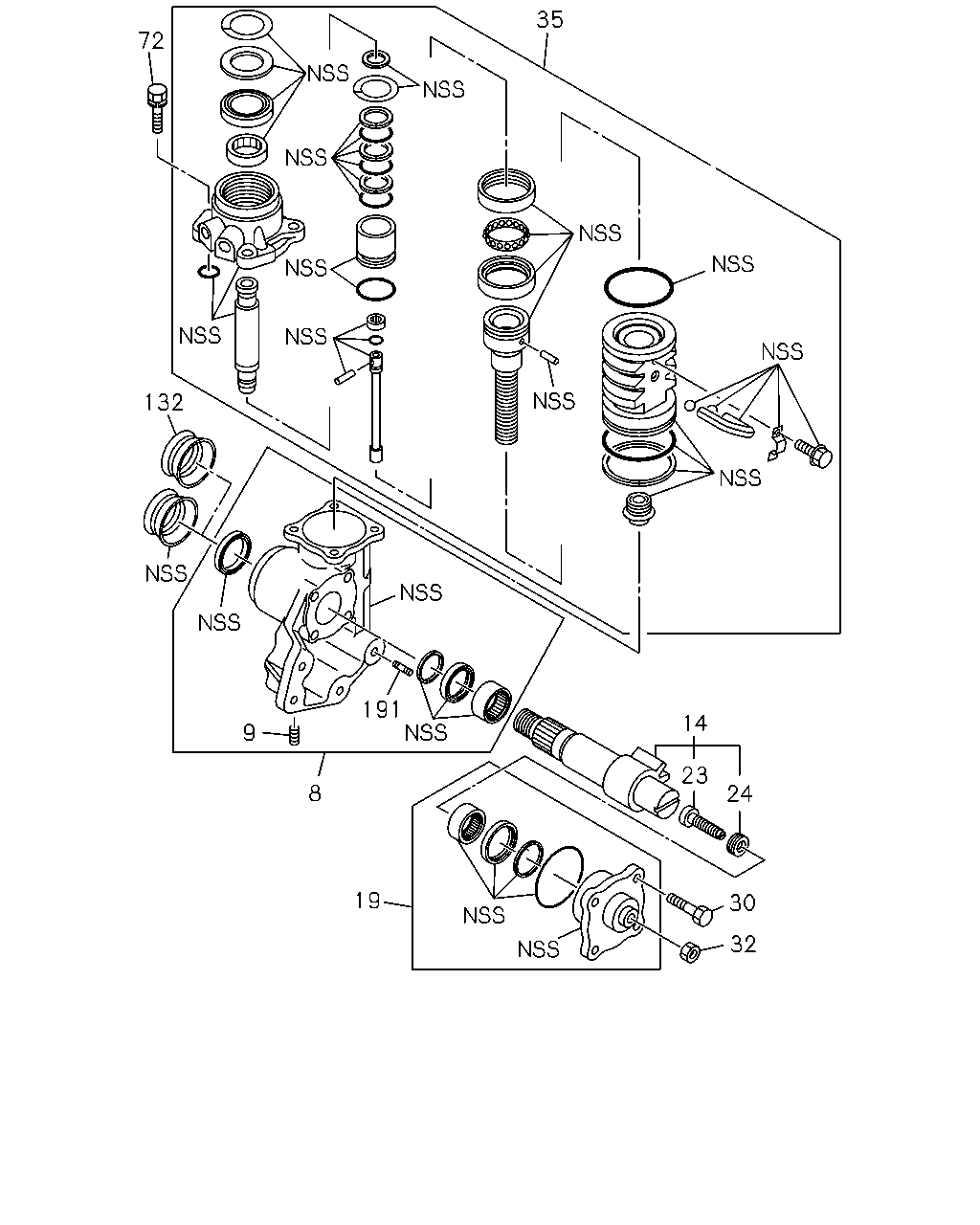

çizim 54973
35 132 9 8 191 14 23 24 30 32 19 72
BalonParca AdiParca NoAdetTipApplied Date
8 BOX ASM; STRG UNIT
ASM PART: A = 8-97305-047-8, B = 8-98251-948-0 		8-97173-514-2 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 8-97305-047-8, B = 8-98251-948-0 		8-97014-820-0 02 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-97305-047-8, B = 8-98251-948-0 		8-97287-203-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 8-97305-047-8 		8-97014-933-1 01 1 -0607
19 COVER; SIDE STRG UNIT
ASM PART: A = 8-97305-047-8 		8-98036-333-0 01 1 0608-
19 COVER; SIDE STRG UNIT
ASM PART: B = 8-98251-948-0 		8-98036-333-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 8-97305-047-8, B = 8-98251-948-0 		8-97014-842-0 01 1 -
24 RETAINER; STRG UNIT
ASM PART: A = 8-97305-047-8, B = 8-98251-948-0 		8-97014-841-0 01 1 -
30 BOLT; COVER STRG UNIT
ASM PART: A = 8-97305-047-8 		8-97014-836-0 04 1 -0607
30 BOLT; COVER STRG UNIT
ASM PART: A = 8-97305-047-8 		8-98036-336-0 04 1 0608-
30 BOLT; COVER STRG UNIT
ASM PART: B = 8-98251-948-0 		8-98036-336-0 04 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 8-97305-047-8 		8-97014-834-0 01 1 -0607
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 8-97305-047-8 		8-98036-337-0 01 1 0608-
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: B = 8-98251-948-0 		8-98036-337-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 8-97305-047-8 		8-97287-201-1 01 1 -0607
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: B = 8-98251-948-0 		8-98112-934-4 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 8-97305-047-8 		8-98112-934-4 01 1 0608-
72 BOLT; HSG FIX STRG UNIT
ASM PART: A = 8-97305-047-8 		1-44519-110-0 04 1 -0607
72 BOLT; HSG FIX STRG UNIT
ASM PART: A = 8-97305-047-8 		8-98036-335-0 04 1 0608-
72 BOLT; HSG FIX STRG UNIT
ASM PART: B = 8-98251-948-0 		8-98036-335-0 04 1 -
132 COVER; DUST,STRG UNIT
ASM PART: B = 8-98251-948-0 		8-97078-179-0 01 1 -
191 STUD; STRG UNIT
ASM PART: A = 8-97305-047-8, B = 8-98251-948-0 		8-97078-173-0 01 1 -

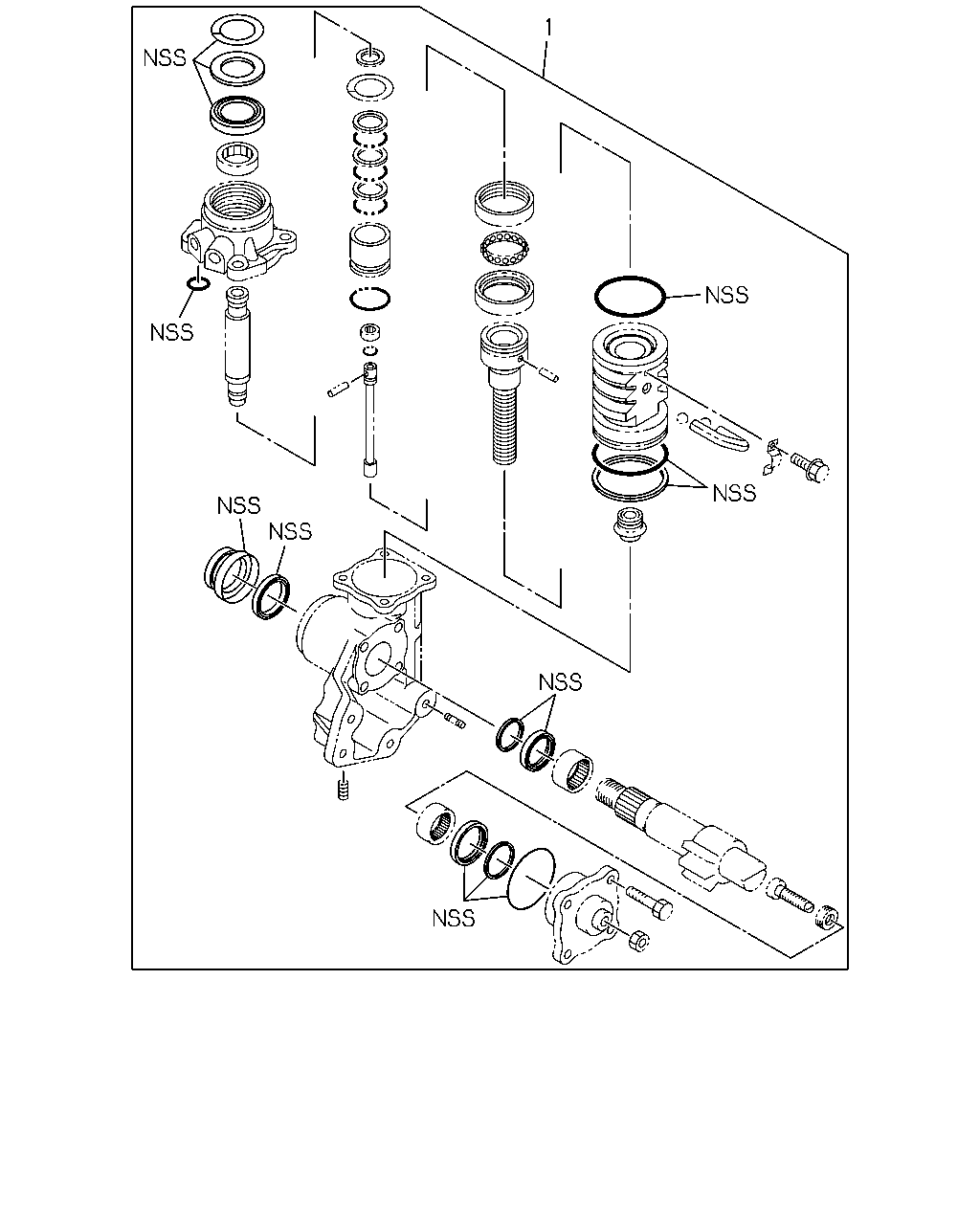

çizim 100667
1
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: A = 8-97305-047-8 		8-97264-442-0 01 1 -0607
1 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: A = 8-97305-047-8 		8-98172-286-0 01 1 0608-
1 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: B = 8-98251-948-0 		8-98172-286-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
