Isuzu WW
▶
TRUCKS
▶
EXR
▶
10724 - EXR RHD
▶
2 - Clutch, Transmission, Trans Axle
▶
2-20C - MANUAL TRANSMISSION ASM AND CASE
▶
2-20C — MANUAL TRANSMISSION ASM AND CASE
(#4819) — 54 parça
Tümü
A - TRANSMISSION-FULLER RTL0147 13 OD
B - TRANSMISSION-FULLER RTLO149 13 OD
◀

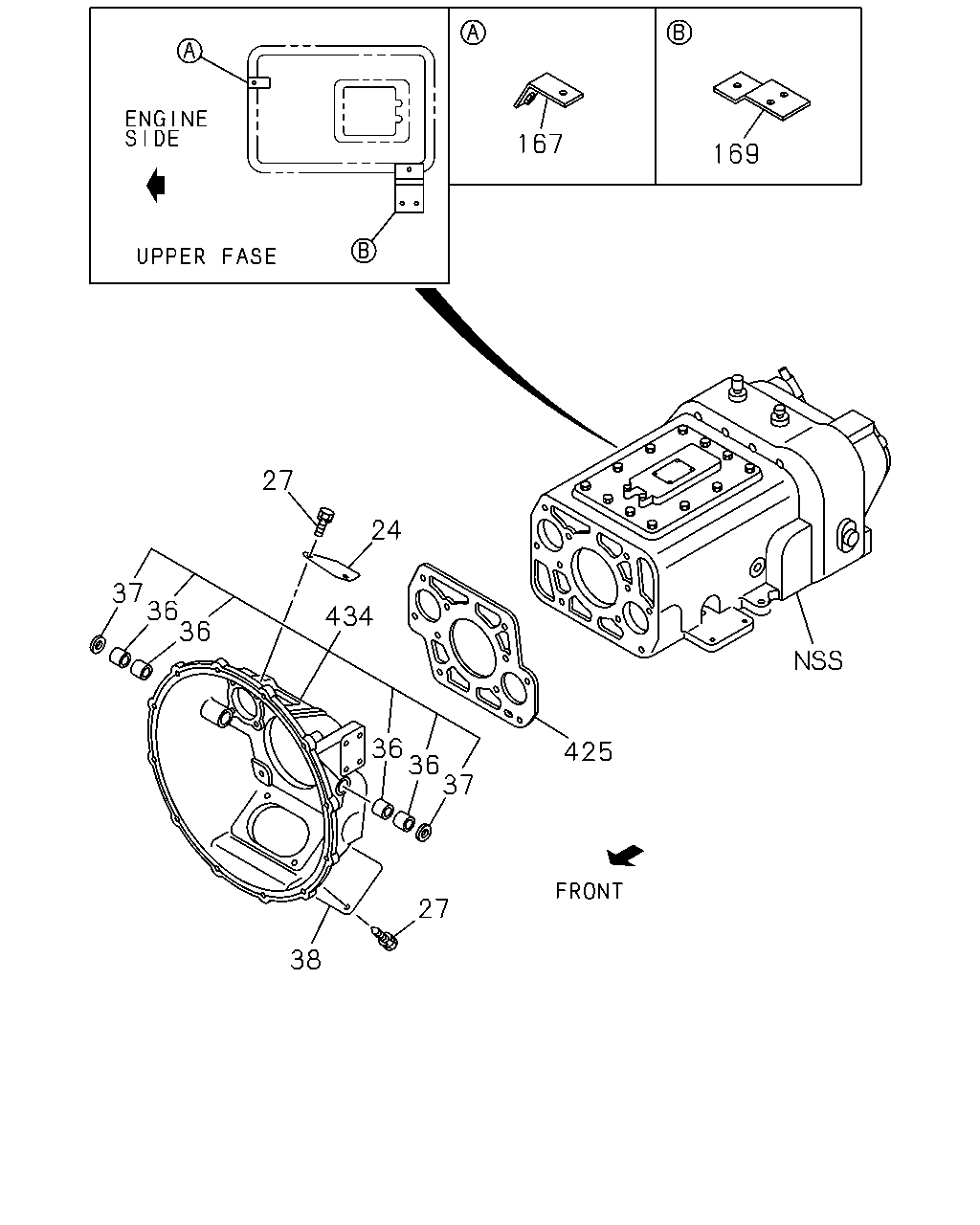

[220C] NO.1 (20 parça)
[220C] NO.3 (4 parça)

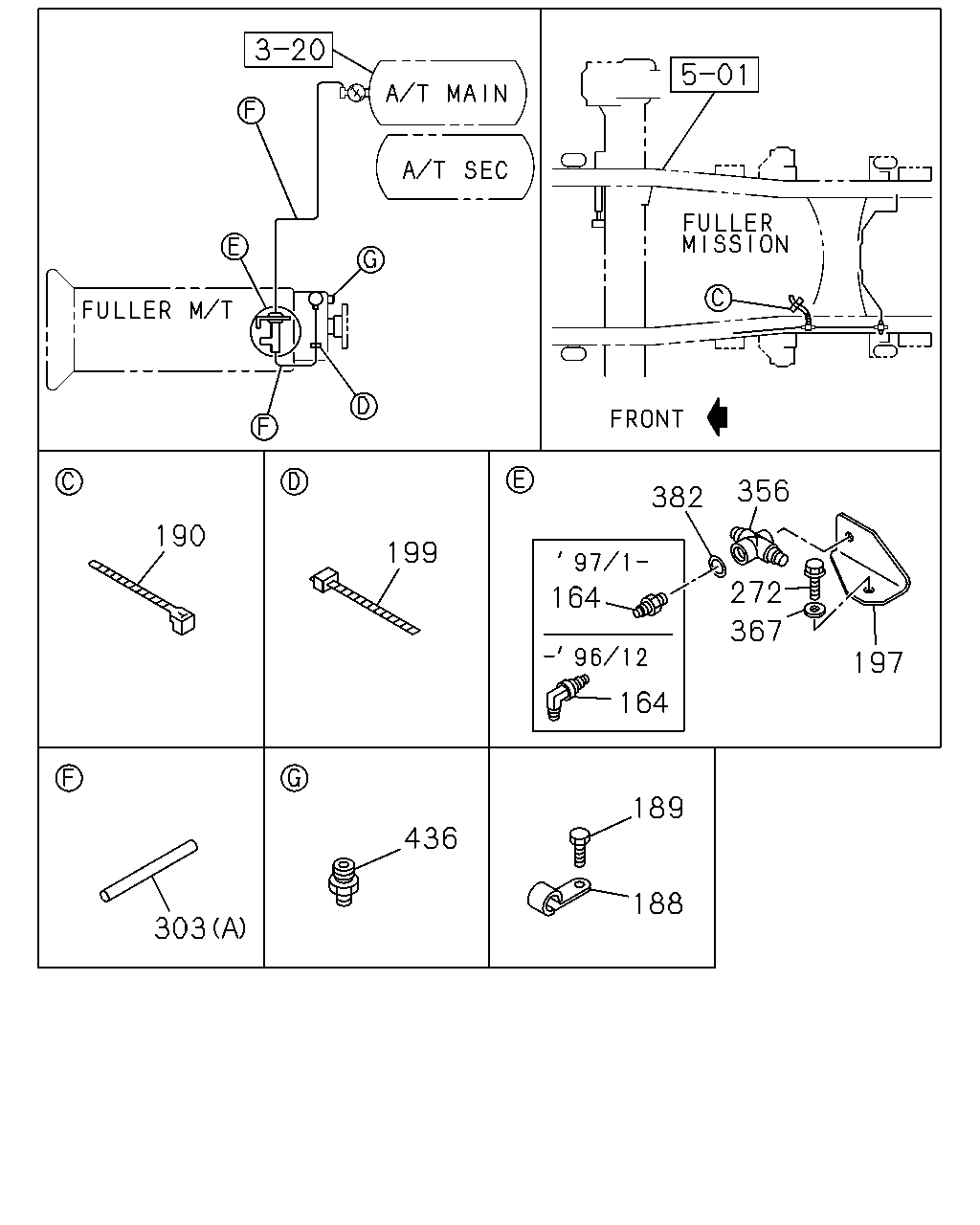

[220C] NO.2 (30 parça)
▶
167
169
27
24
37
36
36
434
36
36
37
425
27
38
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
24
COVER; CHECK HOLE,DUST
1-31131-003-0
01
1
9611-9904
●
24
COVER; CHECK HOLE,DUST
1-31131-003-0
01
1
9905-
●
27
BOLT; COVER TO CLU HSG
M8X16 FLANGE
0-28080-816-0
04
1
0105-
●
27
BOLT; COVER TO CLU HSG
M8X16 W/LK WASHER
0-50040-816-0
04
1
9611-9904
●
27
BOLT; COVER TO CLU HSG
M8X16 W/LK WASHER
0-50040-816-0
04
1
9905-0104
●
36
BEARING; NEEDLE,CLU HSG
NTN
1-09811-181-0
04
1
9611-9904
●
36
BEARING; NEEDLE,CLU HSG
NTN
1-09811-181-0
04
1
9905-
●
37
SEAL; DUST,CLU HSG
ALSO INCLUDED IN GASKET SET(M/T).
1-09625-215-0
02
1
9611-9904
●
37
SEAL; DUST,CLU HSG
ALSO INCLUDED IN GASKET SET(M/T).
1-09625-215-0
02
1
9905-
●
38
COVER; CHECK HOLE,LWR
1-31131-014-0
01
1
9611-9904
●
38
COVER; CHECK HOLE,LWR
1-31131-014-0
01
1
9905-0104
●
38
COVER; CHECK HOLE,LWR
1-31131-044-1
01
1
0105-
●
167
BRACKET; CLIP,AIR TUBE
1-82699-123-1
01
1
9611-9904
●
167
BRACKET; CLIP,AIR TUBE
1-82699-123-1
01
1
9905-
●
169
BRACKET; CLIP,PIPE HOSE
1-47475-633-0
01
1
9611-9904
●
169
BRACKET; CLIP,PIPE HOSE
1-47475-633-0
01
1
9905-
●
425
GASKET; CLU HSG TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T).
1-31121-004-0
01
1
9611-9904
●
425
GASKET; CLU HSG TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T).
1-31121-004-0
01
1
9905-
●
434
HOUSING; CLU
1-31110-103-0
01
1
9611-9904
●
434
HOUSING; CLU
1-31110-103-0
01
1
9905-
●
351
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
351
BRACKET; UNION,FLEX HOSE
1-47477-862-0
01
1
9611-9612
●
351
BRACKET; UNION,FLEX HOSE
1-47477-904-1
01
1
9701-9904
●
351
BRACKET; UNION,FLEX HOSE
1-47477-904-1
01
1
9905-9910
●
351
BRACKET; UNION,FLEX HOSE
1-47478-747-0
01
1
9911-
●
356
382
190
199
272
164
367
197
164
189
436
188
303
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
164
CONNECTOR; ELBOW
ELBOW R1/4 DIN8 & R1/4 ELBOW
1-09660-649-1
01
1
9611-9612
●
164
CONNECTOR; ELBOW
STRAIGHT R1/4 DIN8 R1/4 STRAIGHT
1-09660-647-1
01
1
9701-9904
●
164
CONNECTOR; ELBOW
DIN8 R1/4 STRAIGHT
1-09660-647-1
01
1
9905-9907
●
164
CONNECTOR; ELBOW
DIN8 & R3/8 STRAIGHT
1-09660-964-0
01
1
9908-
●
188
CLIP; PIPE,BRKT
ID=16 L=28
9-09525-556-0
01
1
9611-9904
●
188
CLIP; PIPE,BRKT
ID=16 L=28
9-09525-556-0
01
1
9905-
●
189
BOLT; PIPE CLIP
M8X16 FLANGE
0-28080-816-0
01
1
9611-9904
●
189
BOLT; PIPE CLIP
M8X16 FLANGE
0-28080-816-0
01
1
9905-
●
190
CLIP; BAND,CONT TUBE
L=250
1-09707-126-0
05
1
9611-9904
●
190
CLIP; BAND,CONT TUBE
L=250
1-09707-126-0
05
1
9905-
●
197
BRACKET; UNION
1-47477-605-0
01
1
9611-9901
●
197
BRACKET; UNION
1-47478-395-0
01
1
9902-9904
●
197
BRACKET; UNION
1-47478-395-0
01
1
9905-0003
●
199
CLIP; NYLON TUBE
L=250
1-09707-126-0
01
1
9611-9904
●
199
CLIP; NYLON TUBE
L=250
1-09707-126-0
01
1
9905-
●
272
BOLT
M8X16 FLANGE
0-28080-816-0
01
1
9611-9904
●
272
BOLT
M8X16 FLANGE
0-28080-816-0
01
1
9905-
●
303
TUBE; NYLON
(A) SERVICED BY L=2000 OD=8
1-87410-073-0
01
1
9611-9810
●
303
TUBE; NYLON
(A) SERVICED BY L=2000 OD=8
1-87410-073-0
01
1
9811-9904
●
303
TUBE; NYLON
(A) SERVICED BY L=2000 OD=8
1-87410-073-0
01
1
9905-9910
●
303
TUBE; NYLON
(A) SERVICED BY L=2000 OD=8
1-87410-073-0
01
1
9911-
●
356
UNION
DIN8 RC1/4 & M8
1-09660-735-1
01
1
9611-9904
●
356
UNION
DIN8 RC1/4 & M8
1-09660-735-1
01
1
9905-9907
●
356
UNION
DIN8 & RC3/8 3WAY
1-09661-129-0
01
1
9908-
●
367
WASHER; PL,BRKT
1-53459-587-0
01
1
9611-9904
●
367
WASHER; PL,BRKT
1-53459-587-0
01
1
9905-
●
382
GASKET; ADAPTER
ID=11 OD=18
9-09572-510-0
01
1
9611-9904
●
382
GASKET; ADAPTER
ID=11 OD=18
9-09572-510-0
01
1
9905-
●
436
CONNECTOR; AIR HOSE,SUPPLY
L=35
1-09660-039-0
01
1
9611-9904
●
436
CONNECTOR; AIR HOSE,SUPPLY
L=35
1-09660-039-0
01
1
9905-
●
