Isuzu WW
▶
TRUCKS
▶
NPR
▶
50980 - NPR(IRAN)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶

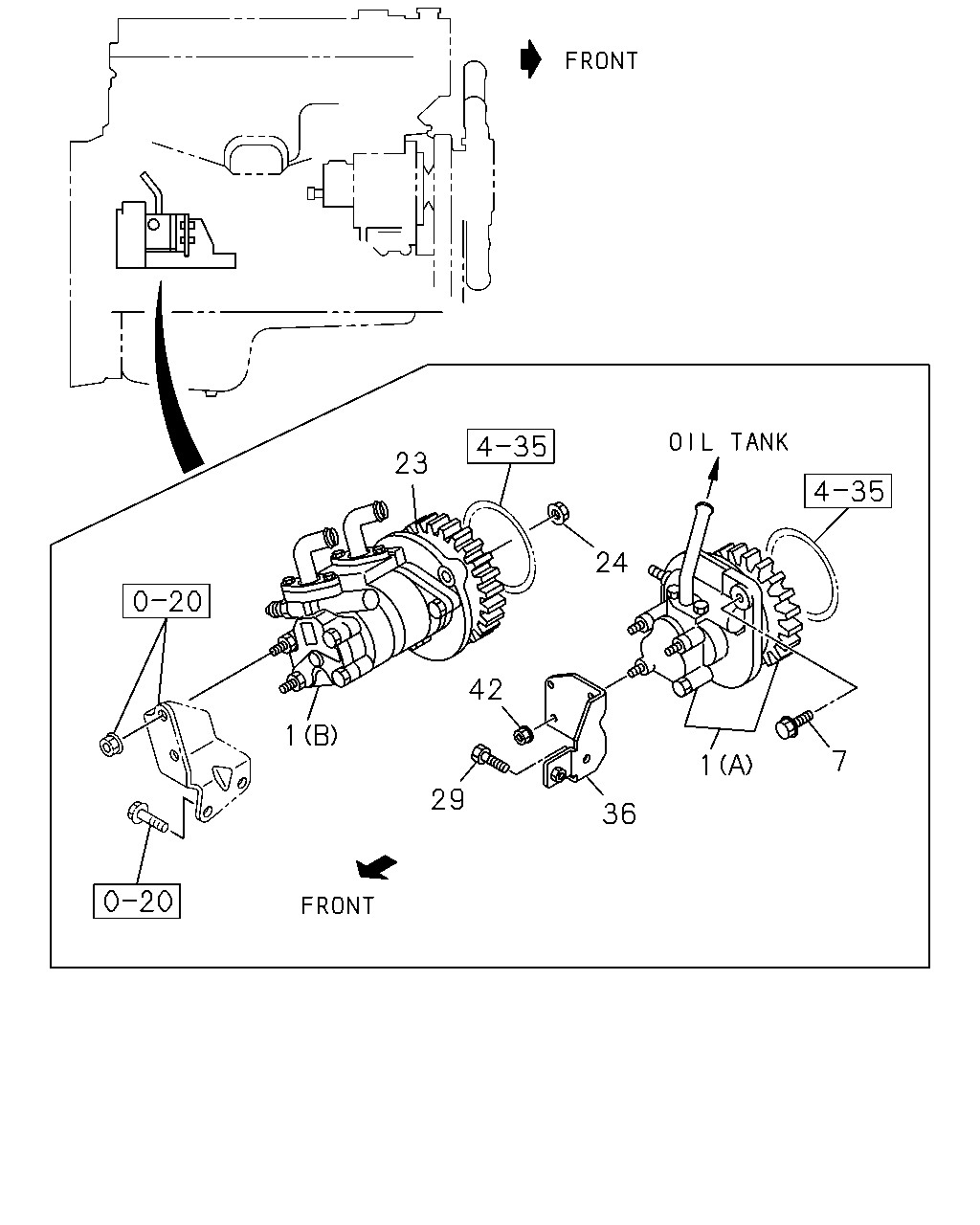

4-36 - POWER STEERING CONTROL; ENGINE SIDE
▶
4-36 — POWER STEERING CONTROL; ENGINE SIDE
(#48189) — 19 parça
23
24
42
1
7
1
29
36
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. HYDRO BRAKE BOOSTER<7QQ> (B)
8-97258-461-3
01
1
0911-
1
PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. (A)
8-97357-213-0
01
1
0401-0409
1
PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. (A)
8-97388-651-1
01
1
0410-0812
1
PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. (A)
8-98138-131-0
01
1
0901-0910
1
PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. EXC. HYDRO BRAKE BOOSTER<7QQ> (A)
8-98138-131-0
01
1
0911-1103
1
PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. EXC. HYDRO BRAKE BOOSTER<7QQ> (A)
8-98138-133-2
01
1
1104-
7
BOLT; OIL PUMP,P/S
M10X28 FLANGE
0-28181-028-0
02
1
0401-0805
7
BOLT; OIL PUMP,P/S
M10X28 FLANGE
8-98044-944-0
02
1
0806-1010
7
BOLT; OIL PUMP,P/S
M10X30 FLANGE
0-28751-030-0
02
1
1011-
23
GEAR; OIL PUMP
HYDRO BRAKE BOOSTER<7QQ>
8-97114-550-1
01
1
0911-
24
NUT; GEAR,P/S PUMP
HYDRO BRAKE BOOSTER<7QQ> M12 FLANGE
0-91180-212-0
01
1
0911-
29
BOLT; BRKT,POWER STRG
M14X20 FLANGE
0-28881-420-0
01
1
0401-0512
29
BOLT; BRKT,POWER STRG
M14X20 FLANGE
0-28851-420-0
01
1
0601-0910
29
BOLT; BRKT,POWER STRG
EXC. HYDRO BRAKE BOOSTER<7QQ> M14X20 FLANGE
0-28851-420-0
01
1
0911-
36
BRACKET; PLATE,P/S PUMP
8-97112-866-0
01
1
0401-0910
36
BRACKET; PLATE,P/S PUMP
EXC. HYDRO BRAKE BOOSTER<7QQ>
8-97112-866-0
01
1
0911-
42
NUT; ADJ PLATE
M8 FLANGE
0-91150-108-0
02
1
0401-0602
42
NUT; ADJ PLATE
M8 FLANGE
0-91180-108-0
02
1
0603-0910
42
NUT; ADJ PLATE
EXC. HYDRO BRAKE BOOSTER<7QQ> M8 FLANGE
0-91180-108-0
02
1
0911-
