4-31 — STEERING COLUMN AND SHAFT (#48186) — 271 parça

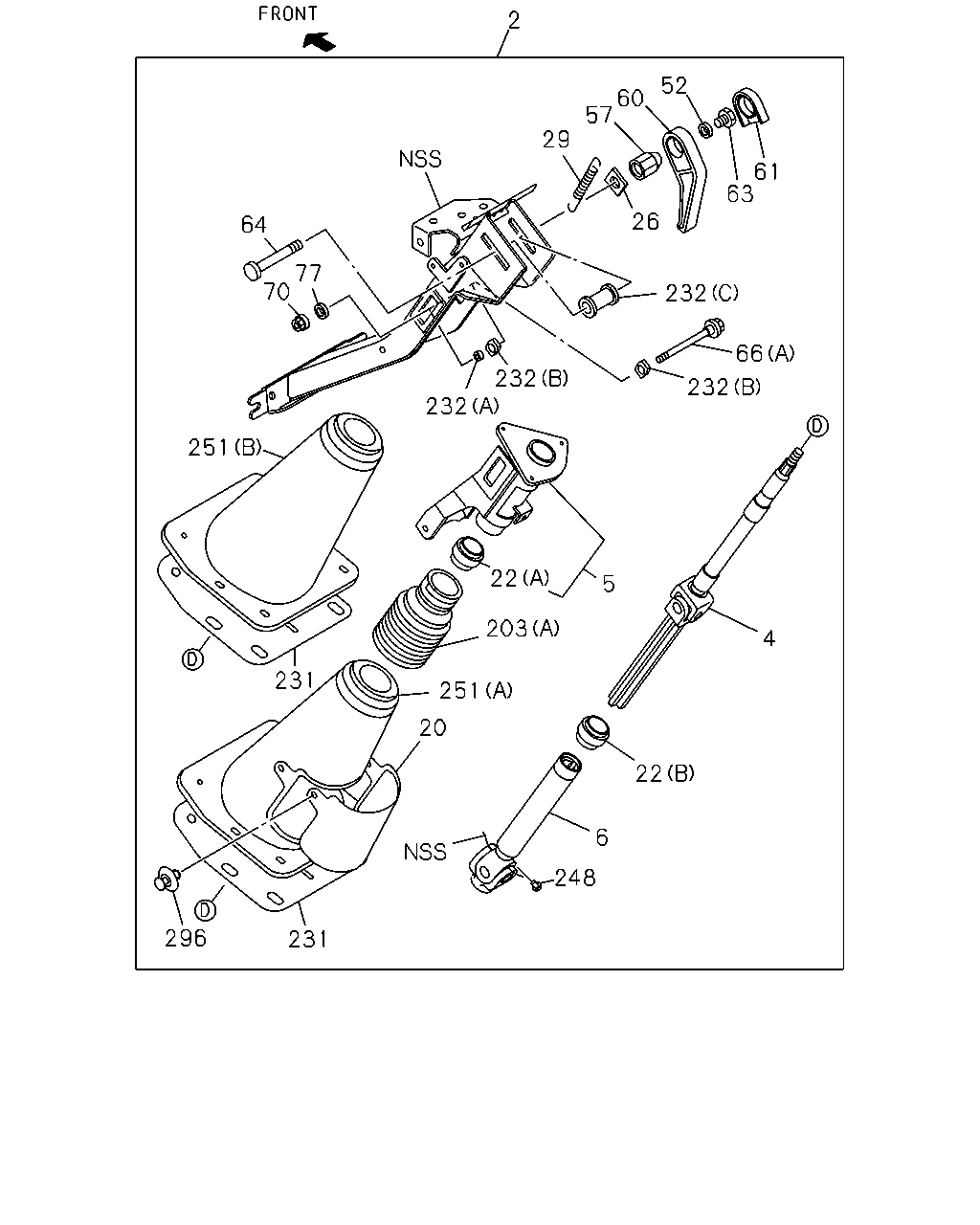

çizim 54522
2 52 60 57 29 61 63 26 64 77 70 232 66 232 232 232 251 22 5 203 4 231 251 20 22 6 248 296 231
BalonParca AdiParca NoAdetTipApplied Date
2 SHAFT ASM; STRG
MANUAL TILT CAB<RWZ> EXC. TILT STEERING<N33> BLACK 		8-97402-345-1 01 1 0412-
2 SHAFT ASM; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97291-633-0 01 1 0401-0404
2 SHAFT ASM; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97400-058-1 01 1 0405-
2 SHAFT ASM; STRG
TILT STEERING<N33> MANUAL TILT CAB<RWZ> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97398-448-0 01 1 0401-0404
2 SHAFT ASM; STRG
TILT STEERING<N33> MANUAL TILT CAB<RWZ> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97400-059-1 01 1 0405-
2 SHAFT ASM; STRG
TILT STEERING<N33> EXC. MANUAL TILT CAB<RWZ>,COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97291-629-0 01 1 0401-0404
2 SHAFT ASM; STRG
TILT STEERING<N33> EXC. MANUAL TILT CAB<RWZ>,COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97400-056-1 01 1 0405-
2 SHAFT ASM; STRG
EXC. TILT STEERING<N33> BLACK 		8-97398-853-0 01 1 0401-0404
2 SHAFT ASM; STRG
EXC. TILT STEERING<N33> BLACK 		8-97400-061-0 01 1 0405-0411
2 SHAFT ASM; STRG
EXC. TILT STEERING<N33>,MANUAL TILT CAB<RWZ> BLACK 		8-97400-061-1 01 1 0412-
4 SHAFT; STRG 8-97201-110-1 01 1 0401-0404
4 SHAFT; STRG 8-97378-634-0 01 1 0405-
5 COLUMN; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> 		8-97096-767-2 01 1 0401-
5 COLUMN; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> 		8-97093-792-2 01 1 0401-
5 COLUMN; STRG
EXC. TILT STEERING<N33> 		8-97146-719-0 01 1 0401-
6 SHAFT; STRG LWR 8-97201-107-0 01 1 0401-0404
6 SHAFT; STRG LWR 8-97378-632-0 01 1 0405-
20 COVER; STRG SHAFT
EXC. MANUAL TILT CAB<RWZ> BLACK 		8-97291-634-1 01 1 0401-0402
20 COVER; STRG SHAFT
EXC. TILT STEERING<N33> BLACK 		8-97291-634-1 01 1 0403-0411
20 COVER; STRG SHAFT
TILT STEERING<N33> EXC. MANUAL TILT CAB<RWZ>,COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97291-634-1 01 1 0403-0411
20 COVER; STRG SHAFT
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97291-634-1 01 1 0403-0411
20 COVER; STRG SHAFT
EXC. TILT STEERING<N33>,MANUAL TILT CAB<RWZ> BLACK 		8-97291-634-1 01 1 0412-
20 COVER; STRG SHAFT
TILT STEERING<N33> EXC. MANUAL TILT CAB<RWZ>,COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97291-634-1 01 1 0412-
20 COVER; STRG SHAFT
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97291-634-1 01 1 0412-
22 BUSHING; STRG COLUMN
(A) 		8-97076-821-0 01 1 0401-
22 BUSHING; STRG COLUMN
(B) 		8-97378-617-0 01 1 0405-
26 PLATE; ADJ
TILT STEERING<N33> 		8-97222-989-0 01 1 0401-
29 SPRING; COLUMN
TILT STEERING<N33> 		8-97076-811-0 01 1 0401-
52 WASHER; PL,ADJ LEVER
TILT STEERING<N33> 		8-97076-813-0 01 1 0401-
57 NUT; ADJ BOLT
TILT STEERING<N33> 		8-97222-988-0 01 1 0401-
60 LEVER; ADJ,STRG COLUMN
TILT STEERING<N33> 		8-97076-830-0 01 1 0401-
61 CAP; ADJ LEVER,TILT STRG
TILT STEERING<N33> 		8-97076-814-0 01 1 0401-
63 BOLT; ADJ LEVER,TILT STRG
TILT STEERING<N33> 		8-97222-986-0 01 1 0401-
64 BOLT; ADJ,PROTECTOR
TILT STEERING<N33> 		8-97222-987-0 01 1 0401-
66 BOLT; STRG COLUMN
TILT STEERING<N33> (A) 		8-97076-831-0 01 1 0401-
66 BOLT; STRG COLUMN
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1201-
66 BOLT; STRG COLUMN
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0401-0611
66 BOLT; STRG COLUMN
(B) M8X24.5 W/LK&PL WASHER 		8-98051-939-0 04 1 0612-1112
66 BOLT; STRG COLUMN
(B) M8X24.5 W/LK&PL WASHER 		8-98051-939-0 02 1 1201-
70 NUT; STRG COLUMN
TILT STEERING<N33> 		8-97076-807-0 01 1 0401-
77 WASHER; PL,COLUMN
TILT STEERING<N33> 		8-97076-804-0 01 1 0401-
203 BOOT; STRG COLUMN LWR
(A) 		8-97076-822-0 01 1 0401-
203 BOOT; STRG COLUMN LWR
(B) 		8-97201-115-0 01 1 0401-0404
231 SEAL; RUBBER,STRG COLUMN 8-97076-808-1 01 1 0401-
232 SPACER; STRG SHAFT
TILT STEERING<N33> (B) 		8-97076-805-0 02 1 0401-
232 SPACER; STRG SHAFT
TILT STEERING<N33> (A) 		8-97076-806-0 01 1 0401-
232 SPACER; STRG SHAFT
TILT STEERING<N33> (C) 		8-97148-277-0 01 1 0401-
248 SCREW; YOKE 8-97222-984-0 01 1 0401-
251 COVER; LWR
TILT STEERING<N33> MANUAL TILT CAB<RWZ> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> (B) BLACK 		8-97398-450-0 01 1 0401-0411
251 COVER; LWR
TILT STEERING<N33> MANUAL TILT CAB<RWZ> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> (B) BLACK 		8-97398-450-1 01 1 0412-
251 COVER; LWR
MANUAL TILT CAB<RWZ> EXC. TILT STEERING<N33> (B) BLACK 		8-97398-450-1 01 1 0412-
251 COVER; LWR
EXC. TILT STEERING<N33> (A) BLACK 		8-97159-168-1 01 1 0401-0411
251 COVER; LWR
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> (A) BLACK 		8-97159-168-1 01 1 0401-0411
251 COVER; LWR
TILT STEERING<N33> EXC. MANUAL TILT CAB<RWZ>,COATING PACK-STEERING COLUMN & SHAFT<6UJ> (A) BLACK 		8-97159-168-1 01 1 0401-0411
251 COVER; LWR
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> (A) BLACK 		8-97159-168-2 01 1 0412-
251 COVER; LWR
TILT STEERING<N33> EXC. MANUAL TILT CAB<RWZ>,COATING PACK-STEERING COLUMN & SHAFT<6UJ> (A) BLACK 		8-97159-168-2 01 1 0412-
251 COVER; LWR
EXC. TILT STEERING<N33>,MANUAL TILT CAB<RWZ> (A) BLACK 		8-97159-168-2 01 1 0412-
296 CLIP; COVER
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97868-409-0 01 1 0401-0402
296 CLIP; COVER
TILT STEERING<N33> EXC. MANUAL TILT CAB<RWZ>,COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97868-409-0 01 1 0401-0402
296 CLIP; COVER
EXC. MANUAL TILT CAB<RWZ> BLACK 		8-97868-409-0 01 1 0401-0402
296 CLIP; COVER
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97868-409-0 01 1 0403-0411
296 CLIP; COVER
TILT STEERING<N33> EXC. MANUAL TILT CAB<RWZ>,COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97868-409-0 01 1 0403-0411
296 CLIP; COVER
EXC. TILT STEERING<N33> BLACK 		8-97868-409-0 01 1 0403-0411
296 CLIP; COVER
TILT STEERING<N33> EXC. MANUAL TILT CAB<RWZ>,COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97868-409-0 01 1 0403-0411
296 CLIP; COVER
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97868-409-0 01 1 0403-0411
296 CLIP; COVER
EXC. TILT STEERING<N33>,MANUAL TILT CAB<RWZ> BLACK 		8-97868-409-0 01 1 0412-
296 CLIP; COVER
TILT STEERING<N33> EXC. MANUAL TILT CAB<RWZ>,COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97868-409-0 01 1 0412-
296 CLIP; COVER
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97868-409-0 01 1 0412-
296 CLIP; COVER
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97868-409-0 01 1 0412-
296 CLIP; COVER
TILT STEERING<N33> EXC. MANUAL TILT CAB<RWZ>,COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97868-409-0 01 1 0412-

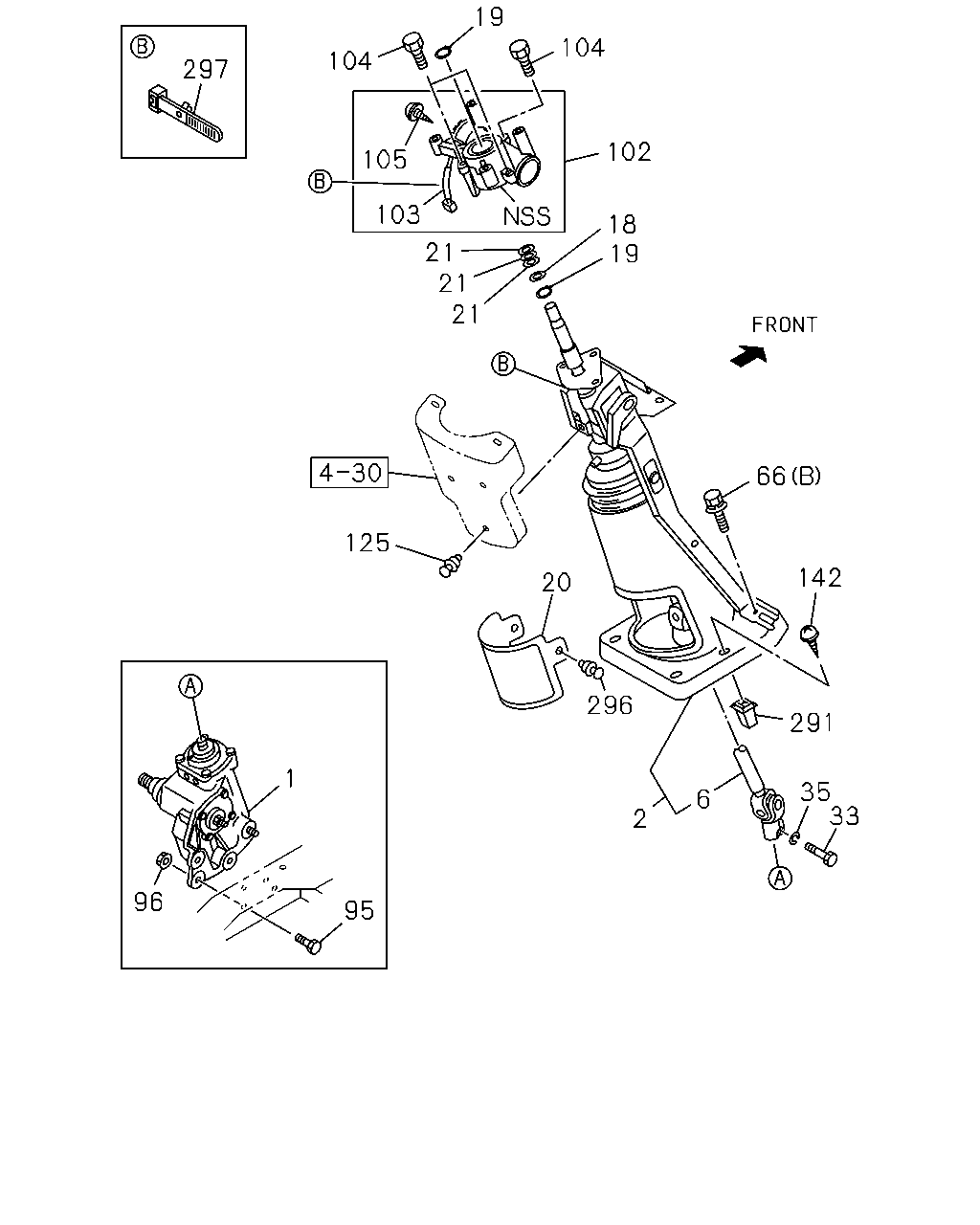

çizim 54941
19 104 104 297 102 105 103 18 19 21 21 21 66 125 142 20 296 291 1 35 33 6 2 96 95
BalonParca AdiParca NoAdetTipApplied Date
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		8-97305-047-8 01 1 0401-1308
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		8-98251-948-0 01 1 1309-
2 SHAFT ASM; STRG
MANUAL TILT CAB<RWZ> EXC. TILT STEERING<N33> BLACK 		8-97402-345-1 01 1 0412-
2 SHAFT ASM; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97291-633-0 01 1 0401-0404
2 SHAFT ASM; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97400-058-1 01 1 0405-
2 SHAFT ASM; STRG
TILT STEERING<N33> MANUAL TILT CAB<RWZ> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97398-448-0 01 1 0401-0404
2 SHAFT ASM; STRG
TILT STEERING<N33> MANUAL TILT CAB<RWZ> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97400-059-1 01 1 0405-
2 SHAFT ASM; STRG
TILT STEERING<N33> EXC. MANUAL TILT CAB<RWZ>,COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97291-629-0 01 1 0401-0404
2 SHAFT ASM; STRG
TILT STEERING<N33> EXC. MANUAL TILT CAB<RWZ>,COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97400-056-1 01 1 0405-
2 SHAFT ASM; STRG
EXC. TILT STEERING<N33> BLACK 		8-97398-853-0 01 1 0401-0404
2 SHAFT ASM; STRG
EXC. TILT STEERING<N33> BLACK 		8-97400-061-0 01 1 0405-0411
2 SHAFT ASM; STRG
EXC. TILT STEERING<N33>,MANUAL TILT CAB<RWZ> BLACK 		8-97400-061-1 01 1 0412-
6 SHAFT; STRG LWR 8-97201-107-0 01 1 0401-0404
6 SHAFT; STRG LWR 8-97378-632-0 01 1 0405-
18 WASHER; STEERING SHAFT
ID=19 		8-94146-919-0 01 1 0401-
19 RING; SNAP,STRG SHAFT
ID=17.5 		9-09180-019-0 02 1 0401-
20 COVER; STRG SHAFT
EXC. MANUAL TILT CAB<RWZ> BLACK 		8-97291-634-1 01 1 0401-0402
20 COVER; STRG SHAFT
EXC. TILT STEERING<N33> BLACK 		8-97291-634-1 01 1 0403-0411
20 COVER; STRG SHAFT
TILT STEERING<N33> EXC. MANUAL TILT CAB<RWZ>,COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97291-634-1 01 1 0403-0411
20 COVER; STRG SHAFT
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97291-634-1 01 1 0403-0411
20 COVER; STRG SHAFT
EXC. TILT STEERING<N33>,MANUAL TILT CAB<RWZ> BLACK 		8-97291-634-1 01 1 0412-
20 COVER; STRG SHAFT
TILT STEERING<N33> EXC. MANUAL TILT CAB<RWZ>,COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97291-634-1 01 1 0412-
20 COVER; STRG SHAFT
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97291-634-1 01 1 0412-
21 WASHER; WAVE,STRG LOCK TO SHAFT 8-94174-865-0 03 1 0401-
33 BOLT; STRG SHAFT TO UNIT
M8X30 		8-94247-692-0 01 1 0401-0610
33 BOLT; STRG SHAFT TO UNIT
M8X30 		8-97359-615-0 01 1 0611-
35 WASHER; LK,STRG SHAFT
ID=8.2 		9-09150-508-0 01 1 0401-0603
35 WASHER; LK,STRG SHAFT
ID=8.2 		0-91510-508-0 01 1 0604-0610
35 WASHER; LK,STRG SHAFT
ID=8.2 		0-91510-808-0 01 1 0611-
66 BOLT; STRG COLUMN
TILT STEERING<N33> (A) 		8-97076-831-0 01 1 0401-
66 BOLT; STRG COLUMN
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1201-
66 BOLT; STRG COLUMN
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0401-0611
66 BOLT; STRG COLUMN
(B) M8X24.5 W/LK&PL WASHER 		8-98051-939-0 04 1 0612-1112
66 BOLT; STRG COLUMN
(B) M8X24.5 W/LK&PL WASHER 		8-98051-939-0 02 1 1201-
95 BOLT; STRG UNIT
M12X45 		8-97212-810-1 03 1 0401-
96 NUT; STRG UNIT
M12 FLANGE 		8-94436-194-0 04 1 0401-0610
96 NUT; STRG UNIT
M12 FLANGE 		8-97359-618-0 04 1 0611-
102 LOCK ASM; STRG
4HE1 ENG(RLY) 		8-97170-364-0 01 1 0401-0607
102 LOCK ASM; STRG 8-97170-364-0 01 1 0608-
103 SWITCH; IGNITION
4HE1 ENG(RLY) 		8-97088-268-0 01 1 0401-0607
103 SWITCH; IGNITION 8-97088-268-0 01 1 0608-
104 BOLT; STRG LOCK TO COLUMN
M6X30 W/LK&PL WASHER 		8-97189-885-0 01 1 0401-
104 BOLT; STRG LOCK TO COLUMN
M6X30 W/LK&PL WASHER 		8-97189-885-0 02 1 0401-
105 SCREW; IGN SW
4HE1 ENG(RLY) M4X12 W/LK WASHER 		9-03910-412-0 01 1 0401-0607
105 SCREW; IGN SW
M4X12 W/LK WASHER 		9-03910-412-0 01 1 0608-
125 CLIP; STRG SHAFT
BLACK 		8-97868-409-0 01 1 0401-0607
125 CLIP; STRG SHAFT
DARK GRAY 		8-97582-246-0 01 1 0608-
142 SCREW; BRKT COWL
M5X20 TAPPING W/PL WASHER 		0-74305-520-0 06 1 0401-0604
142 SCREW; BRKT COWL
M5X20 TAPPING W/PL WASHER 		0-74365-520-0 06 1 0605-0612
142 SCREW; BRKT COWL
M5X18 TAPPING 		0-72180-518-0 06 1 0701-
291 GROMMET; STRG SHAFT COVER
H=15 		8-94463-268-1 06 1 0401-
296 CLIP; COVER
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97868-409-0 01 1 0401-0402
296 CLIP; COVER
TILT STEERING<N33> EXC. MANUAL TILT CAB<RWZ>,COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97868-409-0 01 1 0401-0402
296 CLIP; COVER
EXC. MANUAL TILT CAB<RWZ> BLACK 		8-97868-409-0 01 1 0401-0402
296 CLIP; COVER
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97868-409-0 01 1 0403-0411
296 CLIP; COVER
TILT STEERING<N33> EXC. MANUAL TILT CAB<RWZ>,COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97868-409-0 01 1 0403-0411
296 CLIP; COVER
EXC. TILT STEERING<N33> BLACK 		8-97868-409-0 01 1 0403-0411
296 CLIP; COVER
TILT STEERING<N33> EXC. MANUAL TILT CAB<RWZ>,COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97868-409-0 01 1 0403-0411
296 CLIP; COVER
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97868-409-0 01 1 0403-0411
296 CLIP; COVER
EXC. TILT STEERING<N33>,MANUAL TILT CAB<RWZ> BLACK 		8-97868-409-0 01 1 0412-
296 CLIP; COVER
TILT STEERING<N33> EXC. MANUAL TILT CAB<RWZ>,COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97868-409-0 01 1 0412-
296 CLIP; COVER
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97868-409-0 01 1 0412-
296 CLIP; COVER
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97868-409-0 01 1 0412-
296 CLIP; COVER
TILT STEERING<N33> EXC. MANUAL TILT CAB<RWZ>,COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97868-409-0 01 1 0412-
297 CLIP; BAND
L=145 		8-94257-575-1 03 1 0401-

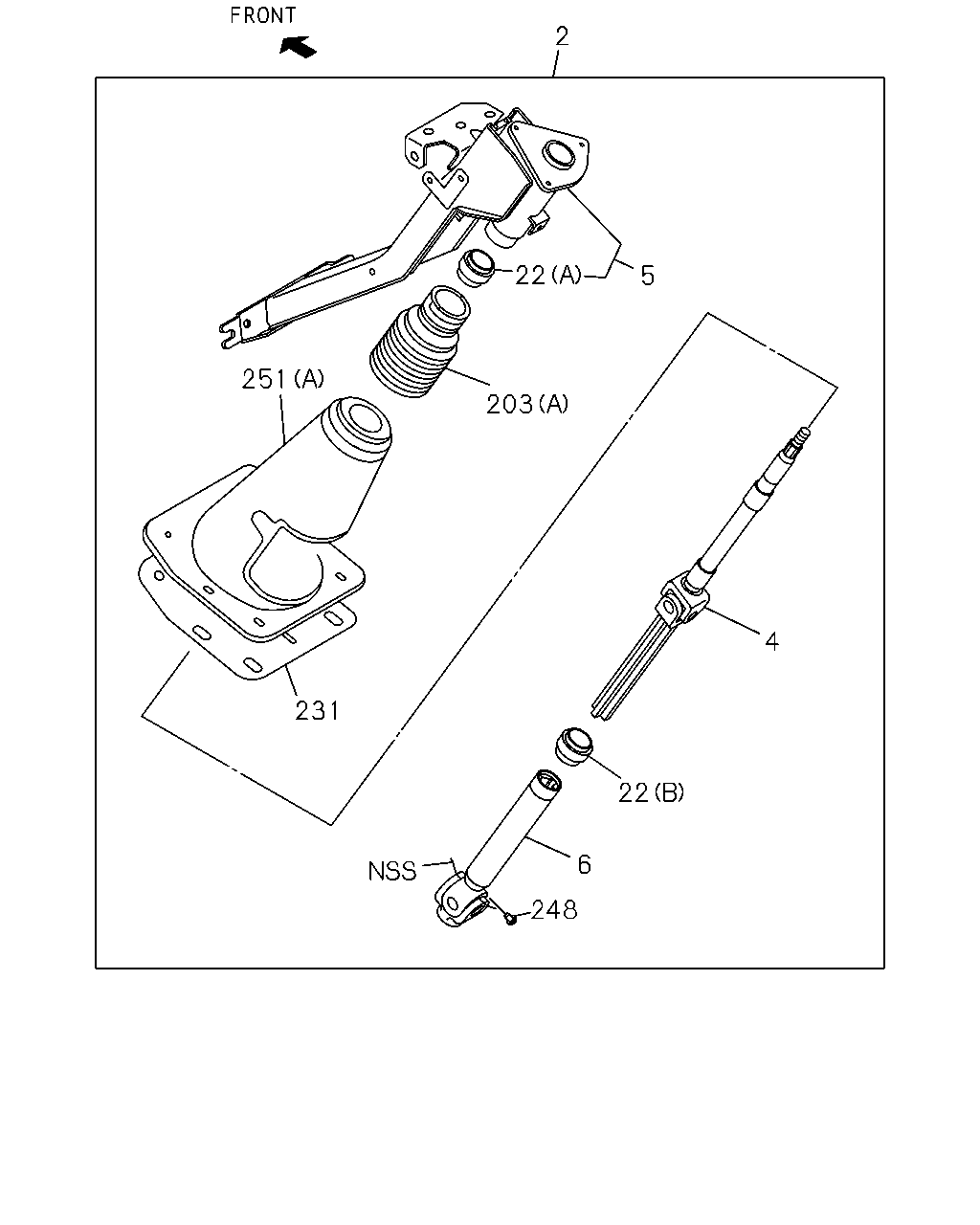

çizim 54942
2 22 5 251 203 4 231 22 6 248
BalonParca AdiParca NoAdetTipApplied Date
2 SHAFT ASM; STRG
MANUAL TILT CAB<RWZ> EXC. TILT STEERING<N33> BLACK 		8-97402-345-1 01 1 0412-
2 SHAFT ASM; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97291-633-0 01 1 0401-0404
2 SHAFT ASM; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97400-058-1 01 1 0405-
2 SHAFT ASM; STRG
TILT STEERING<N33> MANUAL TILT CAB<RWZ> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97398-448-0 01 1 0401-0404
2 SHAFT ASM; STRG
TILT STEERING<N33> MANUAL TILT CAB<RWZ> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97400-059-1 01 1 0405-
2 SHAFT ASM; STRG
TILT STEERING<N33> EXC. MANUAL TILT CAB<RWZ>,COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97291-629-0 01 1 0401-0404
2 SHAFT ASM; STRG
TILT STEERING<N33> EXC. MANUAL TILT CAB<RWZ>,COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97400-056-1 01 1 0405-
2 SHAFT ASM; STRG
EXC. TILT STEERING<N33> BLACK 		8-97398-853-0 01 1 0401-0404
2 SHAFT ASM; STRG
EXC. TILT STEERING<N33> BLACK 		8-97400-061-0 01 1 0405-0411
2 SHAFT ASM; STRG
EXC. TILT STEERING<N33>,MANUAL TILT CAB<RWZ> BLACK 		8-97400-061-1 01 1 0412-
4 SHAFT; STRG 8-97201-110-1 01 1 0401-0404
4 SHAFT; STRG 8-97378-634-0 01 1 0405-
5 COLUMN; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> 		8-97096-767-2 01 1 0401-
5 COLUMN; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> 		8-97093-792-2 01 1 0401-
5 COLUMN; STRG
EXC. TILT STEERING<N33> 		8-97146-719-0 01 1 0401-
6 SHAFT; STRG LWR 8-97201-107-0 01 1 0401-0404
6 SHAFT; STRG LWR 8-97378-632-0 01 1 0405-
22 BUSHING; STRG COLUMN
(A) 		8-97076-821-0 01 1 0401-
22 BUSHING; STRG COLUMN
(B) 		8-97378-617-0 01 1 0405-
203 BOOT; STRG COLUMN LWR
(A) 		8-97076-822-0 01 1 0401-
203 BOOT; STRG COLUMN LWR
(B) 		8-97201-115-0 01 1 0401-0404
231 SEAL; RUBBER,STRG COLUMN 8-97076-808-1 01 1 0401-
248 SCREW; YOKE 8-97222-984-0 01 1 0401-
251 COVER; LWR
TILT STEERING<N33> MANUAL TILT CAB<RWZ> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> (B) BLACK 		8-97398-450-0 01 1 0401-0411
251 COVER; LWR
TILT STEERING<N33> MANUAL TILT CAB<RWZ> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> (B) BLACK 		8-97398-450-1 01 1 0412-
251 COVER; LWR
MANUAL TILT CAB<RWZ> EXC. TILT STEERING<N33> (B) BLACK 		8-97398-450-1 01 1 0412-
251 COVER; LWR
EXC. TILT STEERING<N33> (A) BLACK 		8-97159-168-1 01 1 0401-0411
251 COVER; LWR
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> (A) BLACK 		8-97159-168-1 01 1 0401-0411
251 COVER; LWR
TILT STEERING<N33> EXC. MANUAL TILT CAB<RWZ>,COATING PACK-STEERING COLUMN & SHAFT<6UJ> (A) BLACK 		8-97159-168-1 01 1 0401-0411
251 COVER; LWR
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> (A) BLACK 		8-97159-168-2 01 1 0412-
251 COVER; LWR
TILT STEERING<N33> EXC. MANUAL TILT CAB<RWZ>,COATING PACK-STEERING COLUMN & SHAFT<6UJ> (A) BLACK 		8-97159-168-2 01 1 0412-
251 COVER; LWR
EXC. TILT STEERING<N33>,MANUAL TILT CAB<RWZ> (A) BLACK 		8-97159-168-2 01 1 0412-

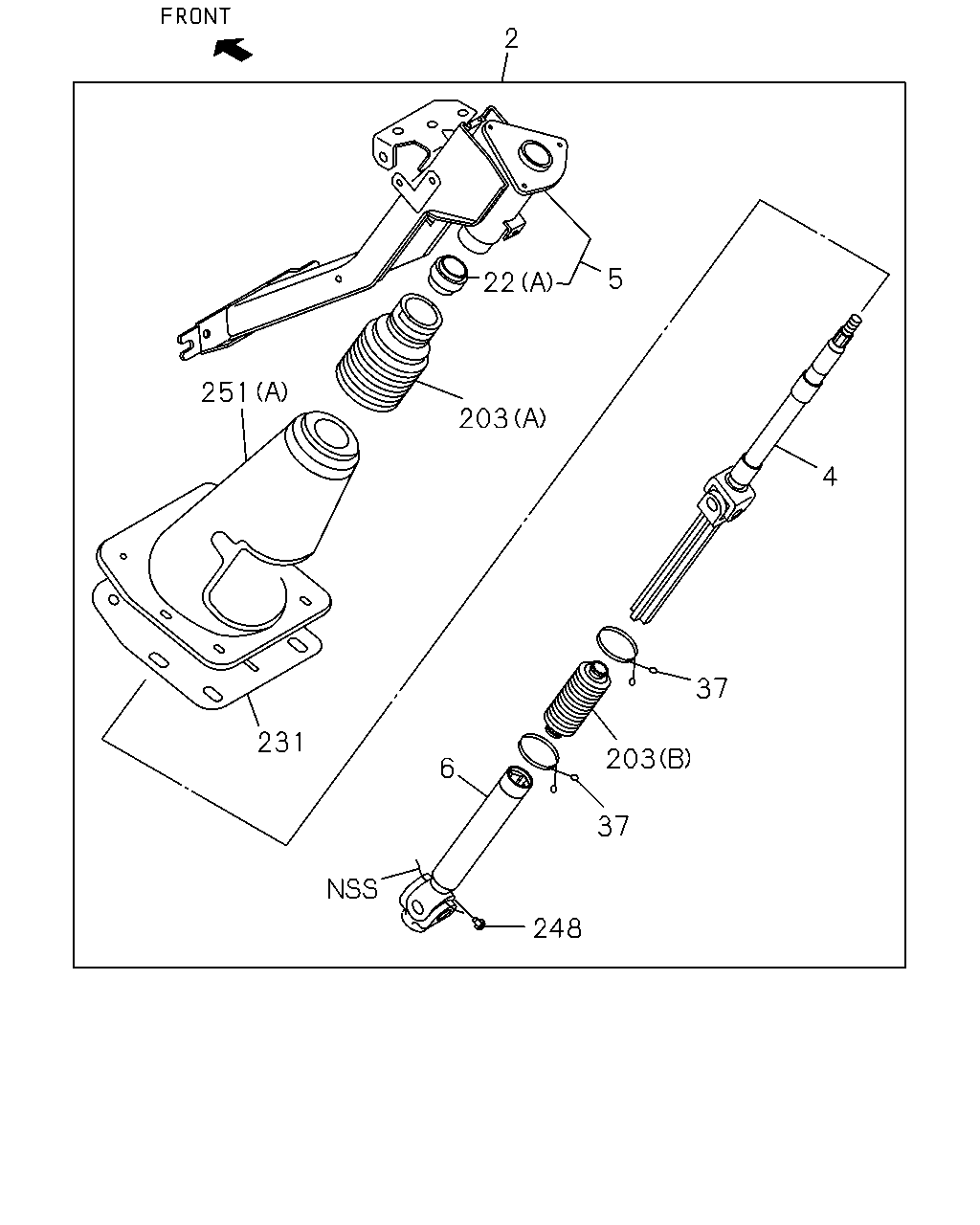

çizim 54943
2 5 22 251 203 4 37 231 203 6 37 248
BalonParca AdiParca NoAdetTipApplied Date
2 SHAFT ASM; STRG
MANUAL TILT CAB<RWZ> EXC. TILT STEERING<N33> BLACK 		8-97402-345-1 01 1 0412-
2 SHAFT ASM; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97291-633-0 01 1 0401-0404
2 SHAFT ASM; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97400-058-1 01 1 0405-
2 SHAFT ASM; STRG
TILT STEERING<N33> MANUAL TILT CAB<RWZ> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97398-448-0 01 1 0401-0404
2 SHAFT ASM; STRG
TILT STEERING<N33> MANUAL TILT CAB<RWZ> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97400-059-1 01 1 0405-
2 SHAFT ASM; STRG
TILT STEERING<N33> EXC. MANUAL TILT CAB<RWZ>,COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97291-629-0 01 1 0401-0404
2 SHAFT ASM; STRG
TILT STEERING<N33> EXC. MANUAL TILT CAB<RWZ>,COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97400-056-1 01 1 0405-
2 SHAFT ASM; STRG
EXC. TILT STEERING<N33> BLACK 		8-97398-853-0 01 1 0401-0404
2 SHAFT ASM; STRG
EXC. TILT STEERING<N33> BLACK 		8-97400-061-0 01 1 0405-0411
2 SHAFT ASM; STRG
EXC. TILT STEERING<N33>,MANUAL TILT CAB<RWZ> BLACK 		8-97400-061-1 01 1 0412-
4 SHAFT; STRG 8-97201-110-1 01 1 0401-0404
4 SHAFT; STRG 8-97378-634-0 01 1 0405-
5 COLUMN; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> 		8-97096-767-2 01 1 0401-
5 COLUMN; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> 		8-97093-792-2 01 1 0401-
5 COLUMN; STRG
EXC. TILT STEERING<N33> 		8-97146-719-0 01 1 0401-
6 SHAFT; STRG LWR 8-97201-107-0 01 1 0401-0404
6 SHAFT; STRG LWR 8-97378-632-0 01 1 0405-
22 BUSHING; STRG COLUMN
(A) 		8-97076-821-0 01 1 0401-
22 BUSHING; STRG COLUMN
(B) 		8-97378-617-0 01 1 0405-
37 CLAMP; BOOT TO SHAFT 8-97173-630-0 02 1 0401-0404
203 BOOT; STRG COLUMN LWR
(A) 		8-97076-822-0 01 1 0401-
203 BOOT; STRG COLUMN LWR
(B) 		8-97201-115-0 01 1 0401-0404
231 SEAL; RUBBER,STRG COLUMN 8-97076-808-1 01 1 0401-
248 SCREW; YOKE 8-97222-984-0 01 1 0401-
251 COVER; LWR
TILT STEERING<N33> MANUAL TILT CAB<RWZ> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> (B) BLACK 		8-97398-450-0 01 1 0401-0411
251 COVER; LWR
TILT STEERING<N33> MANUAL TILT CAB<RWZ> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> (B) BLACK 		8-97398-450-1 01 1 0412-
251 COVER; LWR
MANUAL TILT CAB<RWZ> EXC. TILT STEERING<N33> (B) BLACK 		8-97398-450-1 01 1 0412-
251 COVER; LWR
EXC. TILT STEERING<N33> (A) BLACK 		8-97159-168-1 01 1 0401-0411
251 COVER; LWR
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> (A) BLACK 		8-97159-168-1 01 1 0401-0411
251 COVER; LWR
TILT STEERING<N33> EXC. MANUAL TILT CAB<RWZ>,COATING PACK-STEERING COLUMN & SHAFT<6UJ> (A) BLACK 		8-97159-168-1 01 1 0401-0411
251 COVER; LWR
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> (A) BLACK 		8-97159-168-2 01 1 0412-
251 COVER; LWR
TILT STEERING<N33> EXC. MANUAL TILT CAB<RWZ>,COATING PACK-STEERING COLUMN & SHAFT<6UJ> (A) BLACK 		8-97159-168-2 01 1 0412-
251 COVER; LWR
EXC. TILT STEERING<N33>,MANUAL TILT CAB<RWZ> (A) BLACK 		8-97159-168-2 01 1 0412-

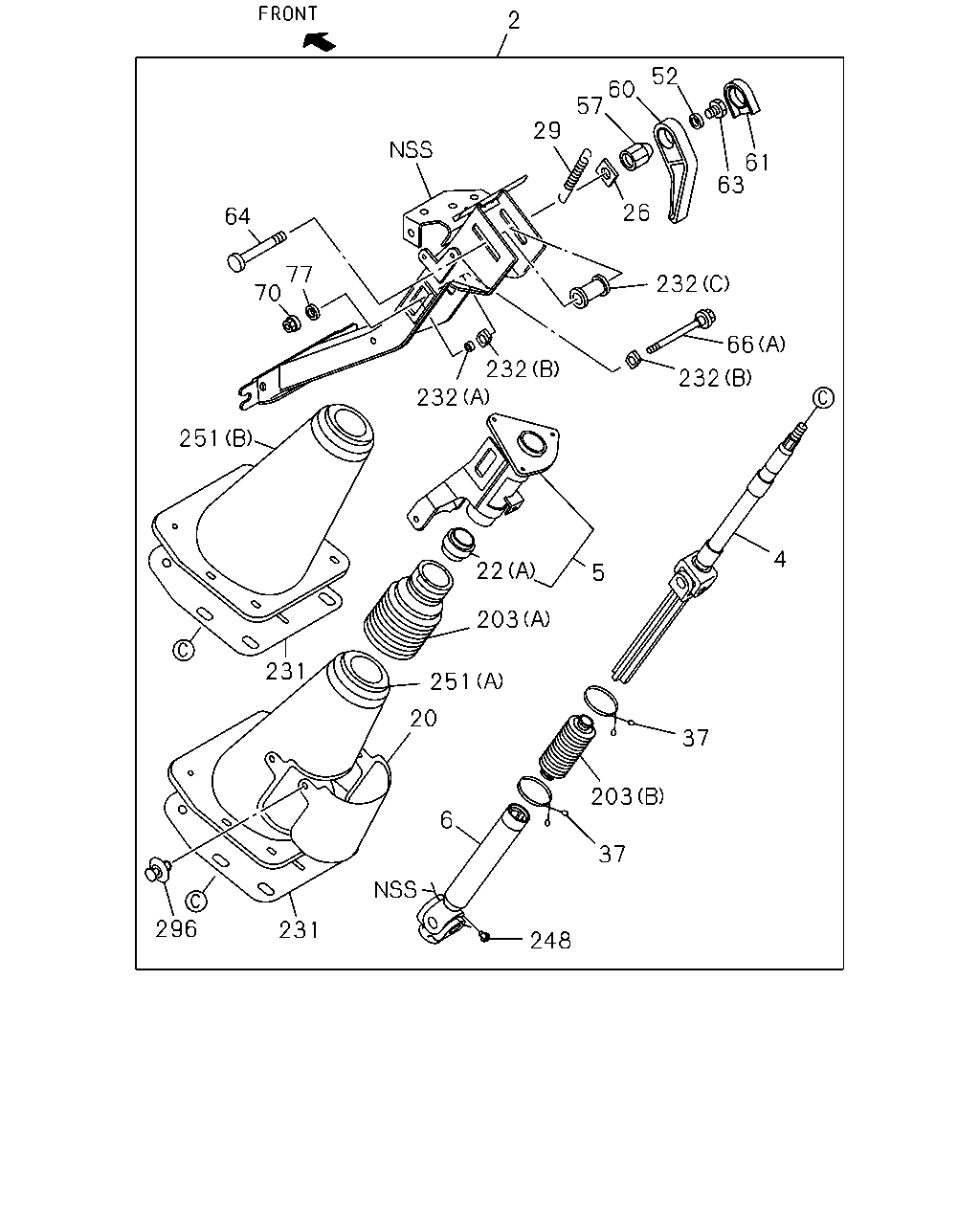

çizim 55007
2 52 60 57 29 61 63 26 64 77 70 232 66 232 232 232 251 4 22 5 203 231 251 20 37 203 6 37 296 231 248
BalonParca AdiParca NoAdetTipApplied Date
2 SHAFT ASM; STRG
MANUAL TILT CAB<RWZ> EXC. TILT STEERING<N33> BLACK 		8-97402-345-1 01 1 0412-
2 SHAFT ASM; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97291-633-0 01 1 0401-0404
2 SHAFT ASM; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97400-058-1 01 1 0405-
2 SHAFT ASM; STRG
TILT STEERING<N33> MANUAL TILT CAB<RWZ> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97398-448-0 01 1 0401-0404
2 SHAFT ASM; STRG
TILT STEERING<N33> MANUAL TILT CAB<RWZ> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97400-059-1 01 1 0405-
2 SHAFT ASM; STRG
TILT STEERING<N33> EXC. MANUAL TILT CAB<RWZ>,COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97291-629-0 01 1 0401-0404
2 SHAFT ASM; STRG
TILT STEERING<N33> EXC. MANUAL TILT CAB<RWZ>,COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97400-056-1 01 1 0405-
2 SHAFT ASM; STRG
EXC. TILT STEERING<N33> BLACK 		8-97398-853-0 01 1 0401-0404
2 SHAFT ASM; STRG
EXC. TILT STEERING<N33> BLACK 		8-97400-061-0 01 1 0405-0411
2 SHAFT ASM; STRG
EXC. TILT STEERING<N33>,MANUAL TILT CAB<RWZ> BLACK 		8-97400-061-1 01 1 0412-
4 SHAFT; STRG 8-97201-110-1 01 1 0401-0404
4 SHAFT; STRG 8-97378-634-0 01 1 0405-
5 COLUMN; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> 		8-97096-767-2 01 1 0401-
5 COLUMN; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> 		8-97093-792-2 01 1 0401-
5 COLUMN; STRG
EXC. TILT STEERING<N33> 		8-97146-719-0 01 1 0401-
6 SHAFT; STRG LWR 8-97201-107-0 01 1 0401-0404
6 SHAFT; STRG LWR 8-97378-632-0 01 1 0405-
20 COVER; STRG SHAFT
EXC. MANUAL TILT CAB<RWZ> BLACK 		8-97291-634-1 01 1 0401-0402
20 COVER; STRG SHAFT
EXC. TILT STEERING<N33> BLACK 		8-97291-634-1 01 1 0403-0411
20 COVER; STRG SHAFT
TILT STEERING<N33> EXC. MANUAL TILT CAB<RWZ>,COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97291-634-1 01 1 0403-0411
20 COVER; STRG SHAFT
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97291-634-1 01 1 0403-0411
20 COVER; STRG SHAFT
EXC. TILT STEERING<N33>,MANUAL TILT CAB<RWZ> BLACK 		8-97291-634-1 01 1 0412-
20 COVER; STRG SHAFT
TILT STEERING<N33> EXC. MANUAL TILT CAB<RWZ>,COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97291-634-1 01 1 0412-
20 COVER; STRG SHAFT
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97291-634-1 01 1 0412-
22 BUSHING; STRG COLUMN
(A) 		8-97076-821-0 01 1 0401-
22 BUSHING; STRG COLUMN
(B) 		8-97378-617-0 01 1 0405-
26 PLATE; ADJ
TILT STEERING<N33> 		8-97222-989-0 01 1 0401-
29 SPRING; COLUMN
TILT STEERING<N33> 		8-97076-811-0 01 1 0401-
37 CLAMP; BOOT TO SHAFT 8-97173-630-0 02 1 0401-0404
52 WASHER; PL,ADJ LEVER
TILT STEERING<N33> 		8-97076-813-0 01 1 0401-
57 NUT; ADJ BOLT
TILT STEERING<N33> 		8-97222-988-0 01 1 0401-
60 LEVER; ADJ,STRG COLUMN
TILT STEERING<N33> 		8-97076-830-0 01 1 0401-
61 CAP; ADJ LEVER,TILT STRG
TILT STEERING<N33> 		8-97076-814-0 01 1 0401-
63 BOLT; ADJ LEVER,TILT STRG
TILT STEERING<N33> 		8-97222-986-0 01 1 0401-
64 BOLT; ADJ,PROTECTOR
TILT STEERING<N33> 		8-97222-987-0 01 1 0401-
66 BOLT; STRG COLUMN
TILT STEERING<N33> (A) 		8-97076-831-0 01 1 0401-
66 BOLT; STRG COLUMN
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1201-
66 BOLT; STRG COLUMN
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0401-0611
66 BOLT; STRG COLUMN
(B) M8X24.5 W/LK&PL WASHER 		8-98051-939-0 04 1 0612-1112
66 BOLT; STRG COLUMN
(B) M8X24.5 W/LK&PL WASHER 		8-98051-939-0 02 1 1201-
70 NUT; STRG COLUMN
TILT STEERING<N33> 		8-97076-807-0 01 1 0401-
77 WASHER; PL,COLUMN
TILT STEERING<N33> 		8-97076-804-0 01 1 0401-
203 BOOT; STRG COLUMN LWR
(A) 		8-97076-822-0 01 1 0401-
203 BOOT; STRG COLUMN LWR
(B) 		8-97201-115-0 01 1 0401-0404
231 SEAL; RUBBER,STRG COLUMN 8-97076-808-1 01 1 0401-
232 SPACER; STRG SHAFT
TILT STEERING<N33> (B) 		8-97076-805-0 02 1 0401-
232 SPACER; STRG SHAFT
TILT STEERING<N33> (A) 		8-97076-806-0 01 1 0401-
232 SPACER; STRG SHAFT
TILT STEERING<N33> (C) 		8-97148-277-0 01 1 0401-
248 SCREW; YOKE 8-97222-984-0 01 1 0401-
251 COVER; LWR
TILT STEERING<N33> MANUAL TILT CAB<RWZ> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> (B) BLACK 		8-97398-450-0 01 1 0401-0411
251 COVER; LWR
TILT STEERING<N33> MANUAL TILT CAB<RWZ> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> (B) BLACK 		8-97398-450-1 01 1 0412-
251 COVER; LWR
MANUAL TILT CAB<RWZ> EXC. TILT STEERING<N33> (B) BLACK 		8-97398-450-1 01 1 0412-
251 COVER; LWR
EXC. TILT STEERING<N33> (A) BLACK 		8-97159-168-1 01 1 0401-0411
251 COVER; LWR
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> (A) BLACK 		8-97159-168-1 01 1 0401-0411
251 COVER; LWR
TILT STEERING<N33> EXC. MANUAL TILT CAB<RWZ>,COATING PACK-STEERING COLUMN & SHAFT<6UJ> (A) BLACK 		8-97159-168-1 01 1 0401-0411
251 COVER; LWR
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> (A) BLACK 		8-97159-168-2 01 1 0412-
251 COVER; LWR
TILT STEERING<N33> EXC. MANUAL TILT CAB<RWZ>,COATING PACK-STEERING COLUMN & SHAFT<6UJ> (A) BLACK 		8-97159-168-2 01 1 0412-
251 COVER; LWR
EXC. TILT STEERING<N33>,MANUAL TILT CAB<RWZ> (A) BLACK 		8-97159-168-2 01 1 0412-
296 CLIP; COVER
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97868-409-0 01 1 0401-0402
296 CLIP; COVER
TILT STEERING<N33> EXC. MANUAL TILT CAB<RWZ>,COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97868-409-0 01 1 0401-0402
296 CLIP; COVER
EXC. MANUAL TILT CAB<RWZ> BLACK 		8-97868-409-0 01 1 0401-0402
296 CLIP; COVER
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97868-409-0 01 1 0403-0411
296 CLIP; COVER
TILT STEERING<N33> EXC. MANUAL TILT CAB<RWZ>,COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97868-409-0 01 1 0403-0411
296 CLIP; COVER
EXC. TILT STEERING<N33> BLACK 		8-97868-409-0 01 1 0403-0411
296 CLIP; COVER
TILT STEERING<N33> EXC. MANUAL TILT CAB<RWZ>,COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97868-409-0 01 1 0403-0411
296 CLIP; COVER
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97868-409-0 01 1 0403-0411
296 CLIP; COVER
EXC. TILT STEERING<N33>,MANUAL TILT CAB<RWZ> BLACK 		8-97868-409-0 01 1 0412-
296 CLIP; COVER
TILT STEERING<N33> EXC. MANUAL TILT CAB<RWZ>,COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97868-409-0 01 1 0412-
296 CLIP; COVER
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97868-409-0 01 1 0412-
296 CLIP; COVER
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97868-409-0 01 1 0412-
296 CLIP; COVER
TILT STEERING<N33> EXC. MANUAL TILT CAB<RWZ>,COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97868-409-0 01 1 0412-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
