Isuzu WW
▶
TRUCKS
▶
NPR
▶
50980 - NPR(IRAN)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶

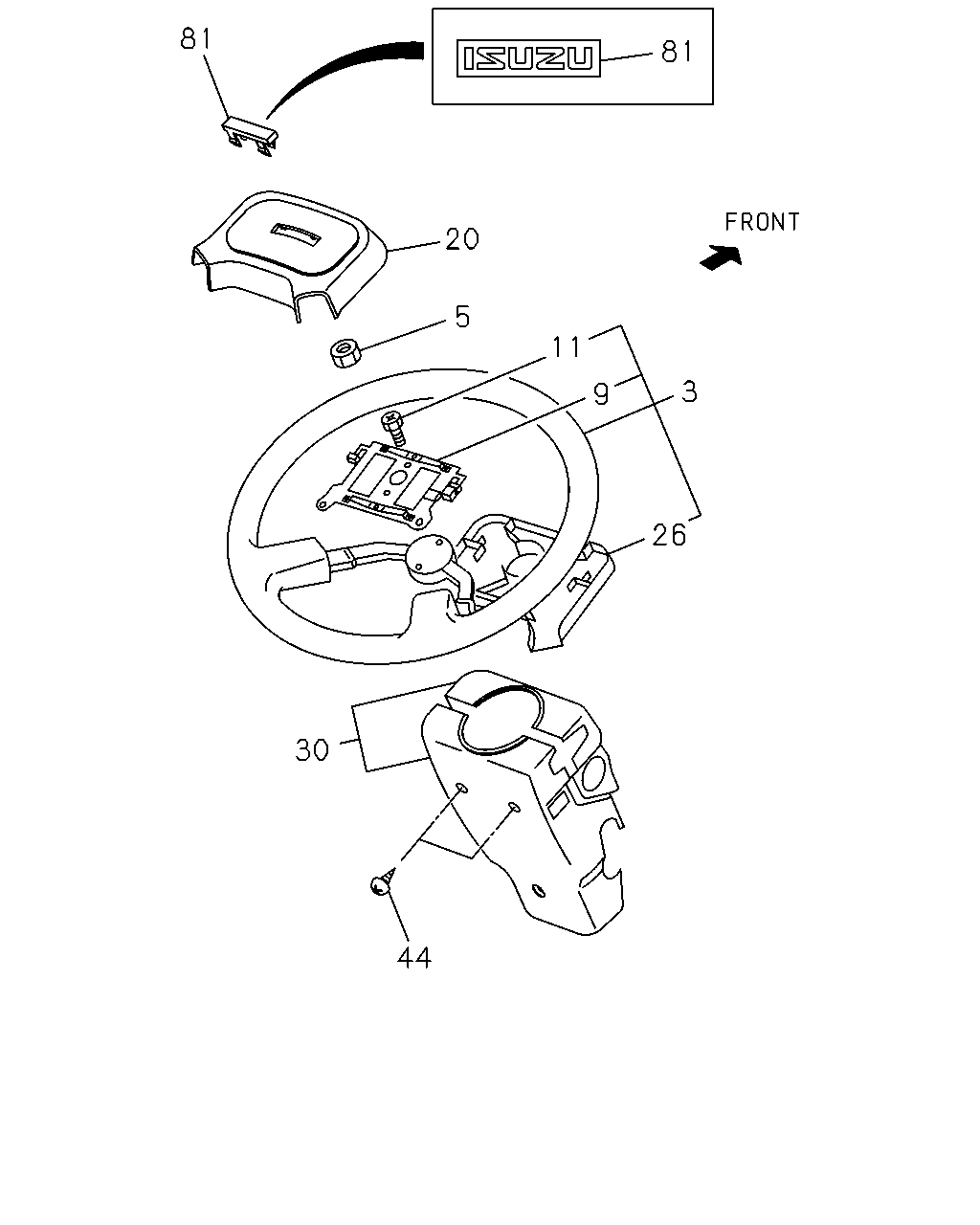

4-30 - STEERING WHEEL AND COWL
▶
4-30 — STEERING WHEEL AND COWL
(#48185) — 18 parça
81
81
20
5
11
3
9
26
30
44
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
WHEEL; STRG
DARK GRAY
8-97098-531-2
01
1
0401-0607
3
WHEEL; STRG
DARK GRAY
8-97400-081-2
01
1
0608-
5
NUT; STRG WHEEL TO SHAFT
M14
9-99111-414-0
01
1
0401-0512
5
NUT; STRG WHEEL TO SHAFT
M14
0-91111-514-0
01
1
0601-
9
PLATE; HORN CONTACT
8-97076-688-1
01
1
0401-
11
SCREW; PLATE TO BUTTON
8-97076-690-1
01
1
0401-
20
SHROUD; PAD,STRG WHEEL
DARK GRAY
8-97098-526-0
01
1
0401-0607
20
SHROUD; PAD,STRG WHEEL
DARK GRAY
8-97400-049-0
01
1
0608-
26
COVER; STRG WHEEL,LWR
DARK GRAY
8-97098-534-1
01
1
0401-0607
26
COVER; STRG WHEEL,LWR
DARK GRAY
8-97400-089-1
01
1
0608-
30
COWL; STEERING
TILT STEERING<N33> BLACK
8-97197-936-8
01
1
0401-0607
30
COWL; STEERING
TILT STEERING<N33> DARK GRAY
8-97582-824-8
01
1
0608-
30
COWL; STEERING
EXC. TILT STEERING<N33> BLACK
8-97997-903-7
01
1
0401-0607
30
COWL; STEERING
EXC. TILT STEERING<N33> DARK GRAY
8-97587-492-7
01
1
0608-
44
SCREW; STRG COWL
M5X16 W/LK&PL WASHER
8-94279-400-0
02
1
0401-0612
44
SCREW; STRG COWL
M5X12
0-38050-512-0
02
1
0701-
81
EMBLEM; STRG WHEEL
DARK GRAY
8-97098-527-0
01
1
0401-0607
81
EMBLEM; STRG WHEEL
DARK GRAY
8-97400-060-0
01
1
0608-
