2-20B — MANUAL TRANSMISSION ASM AND CASE (#4818) — 339 parça

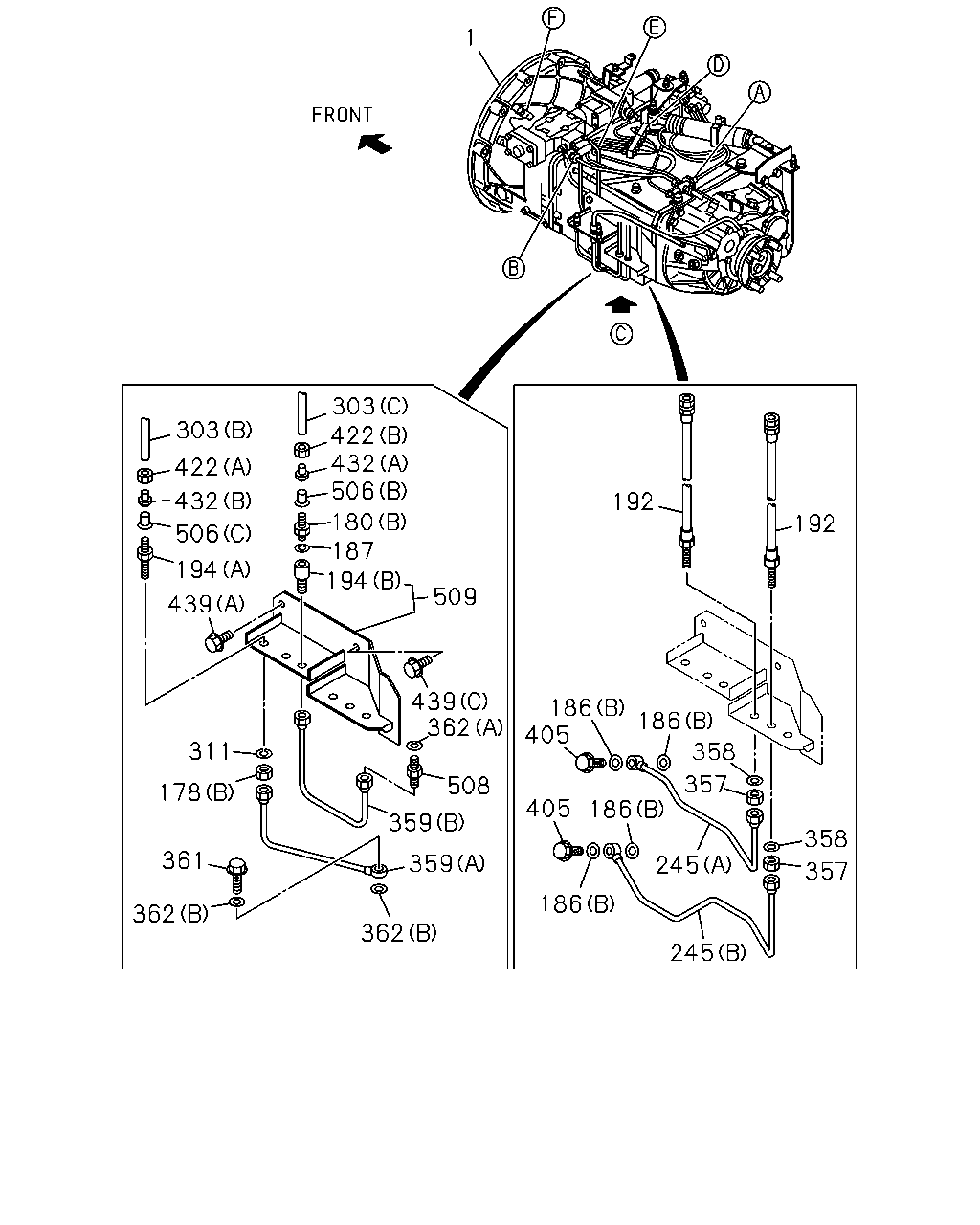

çizim 7765
1 303 422 432 506 303 422 432 192 180 187 194 192 506 194 509 439 439 362 186 405 186 358 311 357 508 178 405 186 359 358 361 359 245 357 186 362 362 245
BalonParca AdiParca NoAdetTipApplied Date A B
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) 		1-33040-359-2 01 1 9601-9707 ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) 		1-33041-633-0 01 1 9708-9904 ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) 		1-33042-011-0 01 1 9905- ●
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM) 		1-33040-584-2 01 1 9601-9707 ●
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM) 		1-33041-634-0 01 1 9708-9904 ●
1 TRANSMISSION ASM; MANUAL
TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM) 		1-33042-166-0 01 1 9905- ●
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU> 		1-33042-012-0 01 1 9905- ●
1 TRANSMISSION ASM; MANUAL
TRANS SELECT DETENT HEAVY<BFU> PTO ZF TRANS RR(BDM) 		1-33042-165-0 01 1 9905- ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> 		1-33042-163-0 01 1 9905- ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) EXC. TRANS SELECT DETENT HEAVY<BFU> 		1-33042-019-0 01 1 9905- ●
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU> 		1-33042-020-0 01 1 9905- ●
1 TRANSMISSION ASM; MANUAL
TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM) 		1-33042-164-0 01 1 9905- ●
178 NUT; UNION
(A) M14 		9-99110-414-0 01 1 9601-9904 ●
178 NUT; UNION
(B) M14 		9-99111-414-0 01 1 9601- ●
180 CONNECTOR; NYLON TUBE
(A) 		1-09660-239-0 01 1 9601-9906 ●
180 CONNECTOR; NYLON TUBE
(A) 		1-09660-239-0 01 1 9907- ● ●
180 CONNECTOR; NYLON TUBE
(B) 		1-09660-466-0 01 1 9601-9904 ●
186 RING; SEAL
(B) ID=22 		1-32568-001-0 04 1 9601-9906 ●
186 RING; SEAL
(B) ID=22 		1-32568-001-0 04 1 9907- ● ●
186 RING; SEAL
(A) ID=22 		1-32568-002-0 02 1 9601-9906 ●
186 RING; SEAL
(A) ID=22 		1-32568-002-0 02 1 9907- ● ●
187 GASKET; CONNECTOR
ID=10.2 OD=15.2 		1-09630-083-0 01 1 9601-9904 ●
192 HOSE; FLEX,TRANS
OUTLET L=400 		1-09364-913-0 01 1 9601-9603 ●
192 HOSE; FLEX,TRANS
6WA1 TC-C(55L),6WA1 TC-S(56L) OUTLET L=400 		1-09364-913-0 01 1 9604-9609 ●
192 HOSE; FLEX,TRANS
OUTLET L=400 		1-09364-913-0 01 1 9610-9701 ●
192 HOSE; FLEX,TRANS
INLET L=500 		1-09364-914-0 01 1 9601-9603 ●
192 HOSE; FLEX,TRANS
6WA1 TC-C(55L),6WA1 TC-S(56L) INLET L=500 		1-09364-914-0 01 1 9604-9701 ●
192 HOSE; FLEX,TRANS
OUTLET L=400 		1-09364-913-0 01 1 9702-9804 ●
192 HOSE; FLEX,TRANS
OUTLET L=311 		1-09364-921-0 01 1 9805-9904 ●
192 HOSE; FLEX,TRANS
INLET L=535 		1-09364-936-0 01 1 9604-9609 ●
192 HOSE; FLEX,TRANS
INLET L=406 		1-09364-961-0 01 1 9610-9904 ●
192 HOSE; FLEX,TRANS
10PE1S(60L) OUTLET L=410 		1-09364-935-0 01 1 9604-9609 ●
192 HOSE; FLEX,TRANS
V TYPE ENG<91L> OUTLET L=400 		1-09364-913-0 01 1 9905- ● ●
192 HOSE; FLEX,TRANS
V TYPE ENG<91L> INLET L=500 		1-09364-914-0 01 1 9905- ● ●
192 HOSE; FLEX,TRANS
L TYPE ENG<90L> OUTLET L=535 		1-09364-936-0 01 1 9905- ● ●
192 HOSE; FLEX,TRANS
L TYPE ENG<90L> INLET L=406 		1-09364-961-0 01 1 9905- ● ●
194 UNION; NYLON TUBE
(A) M14 		1-09664-230-0 01 1 9601- ●
194 UNION; NYLON TUBE
(B) 		1-09664-234-0 01 1 9601-9904 ●
245 PIPE; OIL
(A) 		1-47428-569-0 01 1 9601-9608 ●
245 PIPE; OIL
(A) 		1-49161-057-0 01 1 9609-9904 ●
245 PIPE; OIL
(A) 		1-49119-467-1 01 1 9905-9906 ●
245 PIPE; OIL
(A) 		1-49122-031-0 01 1 9907- ● ●
245 PIPE; OIL
(B) 		1-47428-570-0 01 1 9601-9608 ●
245 PIPE; OIL
(B) 		1-49161-058-0 01 1 9609-9904 ●
245 PIPE; OIL
(B) 		1-49119-468-1 01 1 9905-9906 ●
245 PIPE; OIL
(B) 		1-49119-468-1 01 1 9907- ● ●
303 TUBE; NYLON
(B) L=3000 		1-09369-578-0 01 1 9601-9904 ●
303 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9601-9610 ●
303 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9611-9810 ● ●
303 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9811-9904 ●
303 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9905-9910 ● ●
303 TUBE; NYLON
(C) SERVICED BY L=2000 OD=4 		1-87410-077-0 01 1 9601-9904 ●
303 TUBE; NYLON
V TYPE ENG<91L> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 0003- ●
311 WASHER; LK
ID=14.2 		9-09150-514-0 01 1 9601- ●
357 NUT; UNION,FLEX HOSE
M22 		9-09111-522-0 02 1 9601-9906 ●
357 NUT; UNION,FLEX HOSE
M22 		9-09111-522-0 02 1 9907- ● ●
358 WASHER; LK,UNION
ID=22.5 		9-09150-522-0 02 1 9601-9906 ●
358 WASHER; LK,UNION
ID=22.5 		9-09150-522-0 02 1 9907- ● ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49115-055-0 01 1 9601-9608 ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49117-645-0 01 1 9609-9710 ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49118-936-0 01 1 9711-9904 ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49119-463-1 01 1 9905- ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49115-949-0 01 1 9601-9608 ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49117-647-0 01 1 9609-9710 ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49118-938-0 01 1 9711-9904 ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49119-464-1 01 1 9905- ●
359 PIPE; AIR,TRANS TO UNION
(C) 		1-33119-395-0 01 1 9708- ●
361 BOLT; EYE,AIR PIPE
M12X24 EYE-BOLT 		1-09675-082-0 01 1 9601-9611 ●
361 BOLT; EYE,AIR PIPE
M12X24 EYE-BOLT 		1-09675-229-0 01 1 9612- ●
362 GASKET; AIR PIPE
(A) ID=10.2 OD=15.2 		1-09630-083-0 01 1 9601- ●
362 GASKET; AIR PIPE
(B) ID=12.2 		1-09630-084-0 02 1 9601- ●
405 BOLT; EYE,OIL PIPE
M22X37 		1-09675-060-0 02 1 9601-9906 ●
405 BOLT; EYE,OIL PIPE
M22X37 		1-09675-060-0 02 1 9907- ● ●
422 NUT; SLEEVE
(B) M14 		1-09660-212-0 04 1 9601-9904 ●
422 NUT; SLEEVE
(B) M14 		1-09660-212-0 01 1 9905-9906 ●
422 NUT; SLEEVE
(B) M14 		1-09660-212-0 01 1 9907- ● ●
422 NUT; SLEEVE
(A) M14 		1-09660-767-0 01 1 9601- ●
432 SLEEVE; TUBE
(B) ID=8.15 OD=11 L=9.5 		1-09666-042-0 04 1 9601-9904 ●
432 SLEEVE; TUBE
(B) ID=8.15 OD=11 L=9.5 		1-09666-042-0 01 1 9905-9906 ●
432 SLEEVE; TUBE
(B) ID=8.15 OD=11 L=9.5 		1-09666-042-0 01 1 9907- ● ●
432 SLEEVE; TUBE
(A) ID=8.2 L=9.5 		1-09666-067-0 01 1 9601- ●
439 BOLT; BRKT
(A) M10X20 FLANGE 		0-28781-020-0 01 1 9601-9904 ●
439 BOLT; BRKT
(A) M16X35 FLANGE 		0-28881-635-0 04 1 9905-9906 ●
439 BOLT; BRKT
(A) M16X35 FLANGE 		0-28881-635-0 04 1 9907- ● ●
439 BOLT; BRKT
(B) M10X40 FLANGE 		0-28781-040-0 04 1 9601-9906 ●
439 BOLT; BRKT
(B) M10X40 FLANGE 		0-28781-040-0 04 1 9907- ● ●
439 BOLT; BRKT
(C) M16X25 FLANGE 		0-28881-625-0 02 1 9601-9904 ●
506 INSERT
(A) ID=4.5 OD=5.8 L=18 		1-09669-054-0 01 1 9601-9906 ●
506 INSERT
(A) ID=4.5 OD=5.8 L=18 		1-09669-054-0 01 1 9907- ● ●
506 INSERT
(B) ID=1.4 OD=2.0 L=18 		1-09669-100-0 01 1 9601-9904 ●
506 INSERT
(C) ID=5 OD=5.9 L=16 		1-09669-122-0 01 1 9601- ●
508 UNION; AIR
M10 & M12 STRAIGHT 		1-09664-235-0 01 1 9601- ●
509 BRACKET; PIPE 1-47477-551-0 01 1 9601-9904 ●
509 BRACKET; PIPE 1-47478-215-2 01 1 9905-9906 ●
509 BRACKET; PIPE 1-47478-215-2 01 1 9907- ● ●

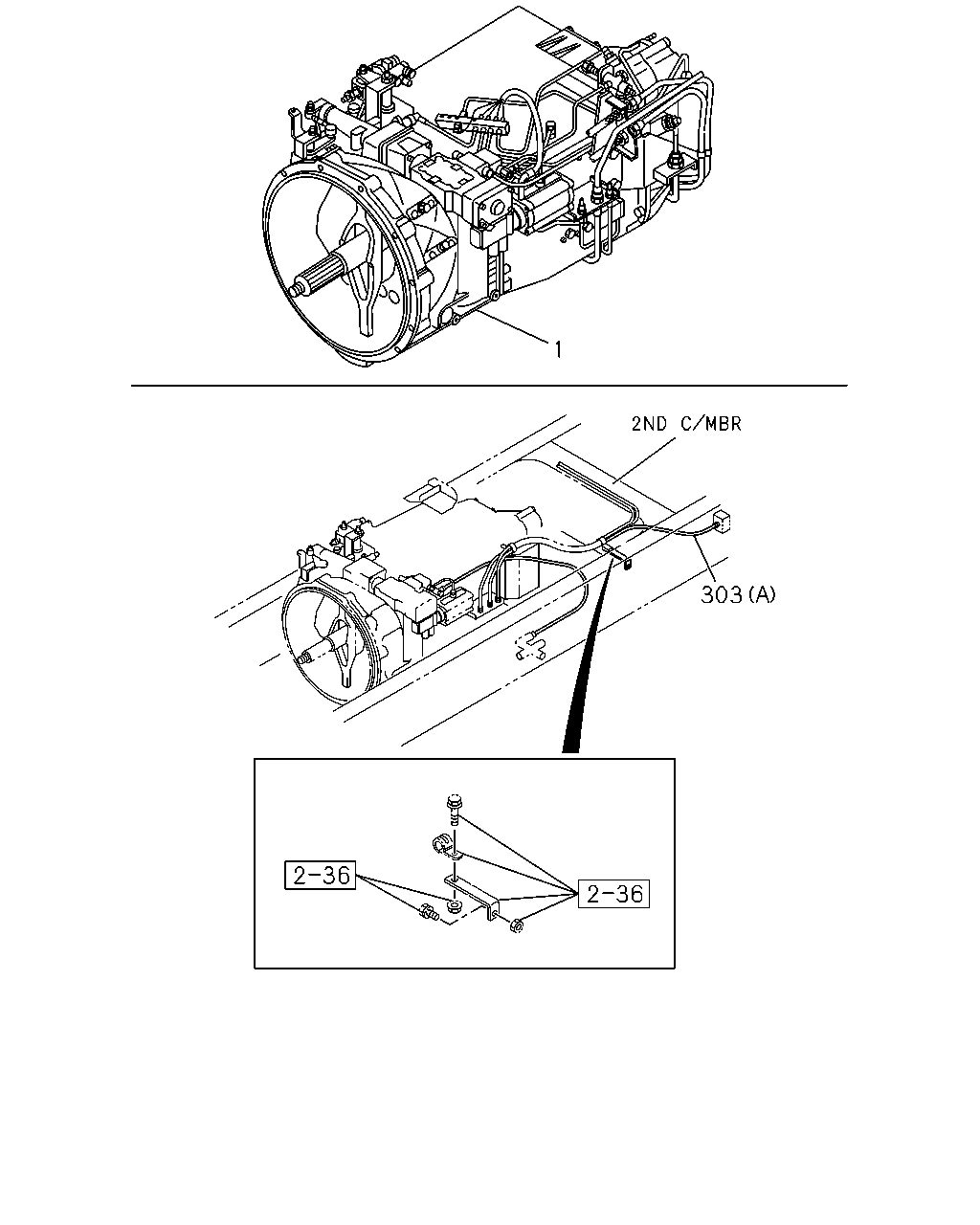

çizim 7832
1 303
BalonParca AdiParca NoAdetTipApplied Date A B
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) 		1-33040-359-2 01 1 9601-9707 ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) 		1-33041-633-0 01 1 9708-9904 ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) 		1-33042-011-0 01 1 9905- ●
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM) 		1-33040-584-2 01 1 9601-9707 ●
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM) 		1-33041-634-0 01 1 9708-9904 ●
1 TRANSMISSION ASM; MANUAL
TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM) 		1-33042-166-0 01 1 9905- ●
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU> 		1-33042-012-0 01 1 9905- ●
1 TRANSMISSION ASM; MANUAL
TRANS SELECT DETENT HEAVY<BFU> PTO ZF TRANS RR(BDM) 		1-33042-165-0 01 1 9905- ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> 		1-33042-163-0 01 1 9905- ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) EXC. TRANS SELECT DETENT HEAVY<BFU> 		1-33042-019-0 01 1 9905- ●
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU> 		1-33042-020-0 01 1 9905- ●
1 TRANSMISSION ASM; MANUAL
TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM) 		1-33042-164-0 01 1 9905- ●
303 TUBE; NYLON
(B) L=3000 		1-09369-578-0 01 1 9601-9904 ●
303 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9601-9610 ●
303 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9611-9810 ● ●
303 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9811-9904 ●
303 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9905-9910 ● ●
303 TUBE; NYLON
(C) SERVICED BY L=2000 OD=4 		1-87410-077-0 01 1 9601-9904 ●
303 TUBE; NYLON
V TYPE ENG<91L> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 0003- ●

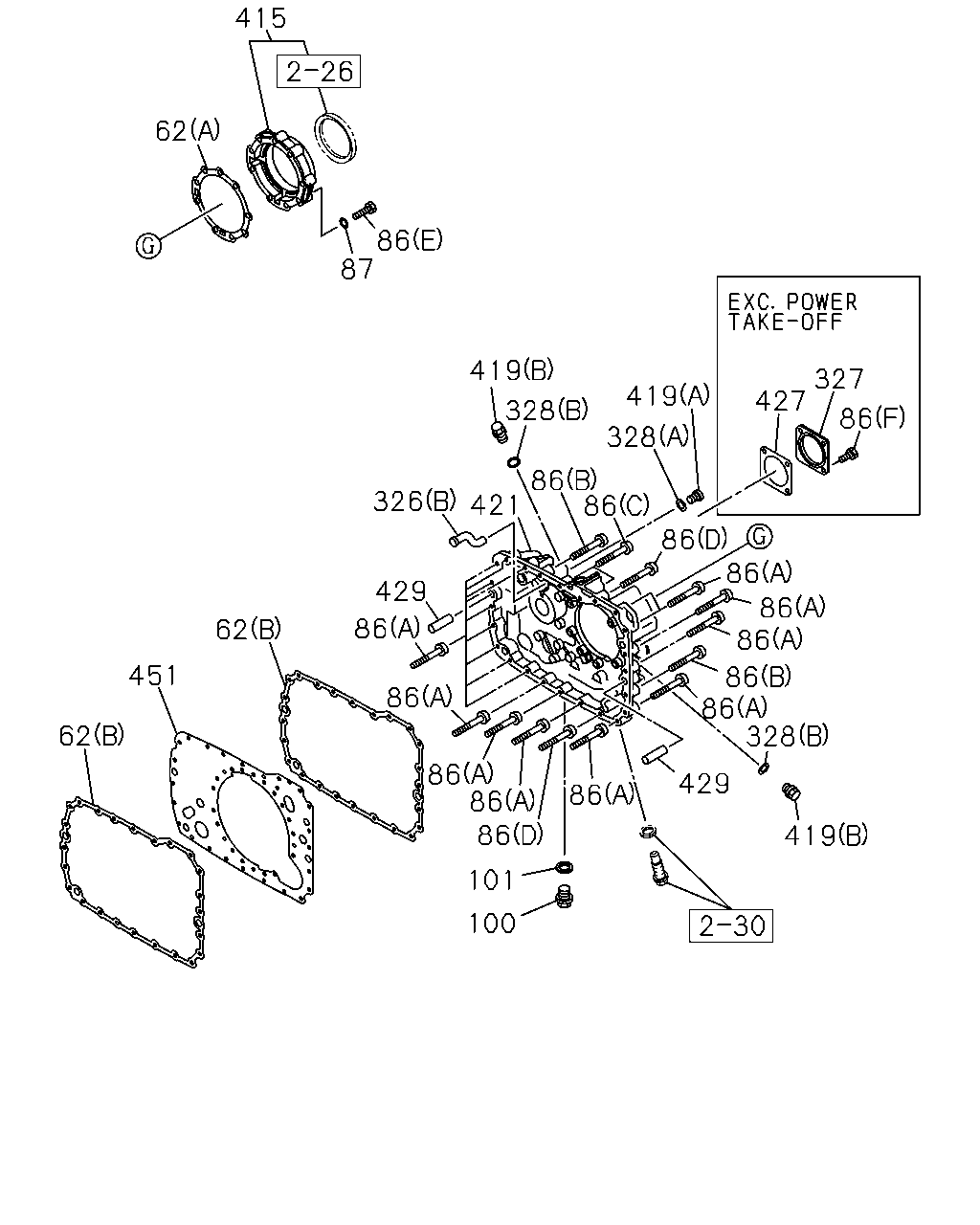

çizim 8542
415 62 86 87 419 327 427 419 328 86 328 86 86 86 86 326 421 429 86 86 86 62 451 86 86 328 86 62 86 86 86 429 86 419 101 100
BalonParca AdiParca NoAdetTipApplied Date A B
62 GASKET; RR COVER
ALSO INCLUDED IN GASKET SET(M/T). (B) 		1-33132-065-0 02 1 9601-9707 ●
62 GASKET; RR COVER
ALSO INCLUDED IN GASKET SET(M/T). EXC. PTO ZF TRANS RR(BDM) (B) 		1-33132-065-0 02 1 9708-9904 ●
62 GASKET; RR COVER
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-33139-053-0 01 1 9601- ●
62 GASKET; RR COVER
ALSO INCLUDED IN GASKET SET(M/T). PTO ZF TRANS RR(BDM) (B) 		1-33119-399-0 02 1 9708-9904 ●
62 GASKET; RR COVER
ALSO INCLUDED IN GASKET SET(M/T). (B) 		1-33119-399-0 02 1 9905- ●
86 BOLT; RR COVER
(A) 		1-33119-266-0 18 1 9601- ●
86 BOLT; RR COVER
(E) 		1-33139-054-0 09 1 9601- ●
86 BOLT; RR COVER
(B) 		1-33139-056-0 02 1 9601- ●
86 BOLT; RR COVER
(C) M10X110 		1-33139-057-0 02 1 9601- ●
86 BOLT; RR COVER
(D) M10X50 		1-33139-058-0 02 1 9601- ●
86 BOLT; RR COVER
EXC. PTO ZF TRANS RR(BDM) (F) M12X28 		1-33139-051-0 04 1 9601-9707 ●
86 BOLT; RR COVER
EXC. PTO ZF TRANS RR(BDM) (F) M12X25 		1-33119-400-0 04 1 9708- ●
87 WASHER; LK,RR COVER 1-09469-010-0 09 1 9601- ●
100 PLUG; DRAIN RR COVER 1-33119-268-0 01 1 9601- ●
101 GASKET; DRAIN RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-264-0 01 1 9601- ●
326 NOZZLE; OIL,OUTLET
(A) 		1-33119-282-0 01 1 9601- ●
326 NOZZLE; OIL,OUTLET
(B) 		1-33139-021-0 01 1 9601- ●
327 COVER; RR,COUNTER
EXC. PTO ZF TRANS RR(BDM) 		1-33131-165-0 01 1 9601-9904 ●
327 COVER; RR,COUNTER
TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM) 		1-33131-165-0 01 1 9905-9906 ●
327 COVER; RR,COUNTER
EXC. PTO ZF TRANS RR(BDM) 		1-33131-165-0 01 1 9907- ●
328 GASKET; PLUG
(B) 		1-33119-249-0 02 1 9601- ●
328 GASKET; PLUG
(C) 		1-33119-264-0 03 1 9601-9707 ●
328 GASKET; PLUG
PTO ZF TRANS RR(BDM) (C) 		1-33119-264-0 02 1 9708-9904 ●
328 GASKET; PLUG
(C) 		1-33119-264-0 02 1 9905-9906 ●
328 GASKET; PLUG
(C) 		1-33119-264-0 01 1 9907- ●
328 GASKET; PLUG
(A) 		1-33139-023-0 01 1 9601- ●
328 GASKET; PLUG
EXC. PTO ZF TRANS RR(BDM) (C) 		1-33119-264-0 03 1 9708-9904 ●
415 COVER; BRG 1-33159-039-0 01 1 9601- ●
419 PLUG; RR COVER
(B) 		1-33119-171-0 02 1 9601- ●
419 PLUG; RR COVER
(A) 		1-34119-008-0 01 1 9601- ●
421 COVER; RR,TRANS 1-33131-219-0 01 1 9601-9904 ●
421 COVER; RR,TRANS 1-33131-244-0 01 1 9905- ●
427 GASKET; RR COVER
EXC. PTO ZF TRANS RR(BDM) 		1-33132-054-0 01 1 9601-9904 ●
427 GASKET; RR COVER
TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM) 		1-33132-054-0 01 1 9905-9906 ●
427 GASKET; RR COVER
EXC. PTO ZF TRANS RR(BDM) 		1-33132-054-0 01 1 9907- ●
429 PIN; STRAIGHT 1-33119-265-0 07 1 9601- ●
451 PLATE; RR COVER 1-33139-055-0 01 1 9601- ●

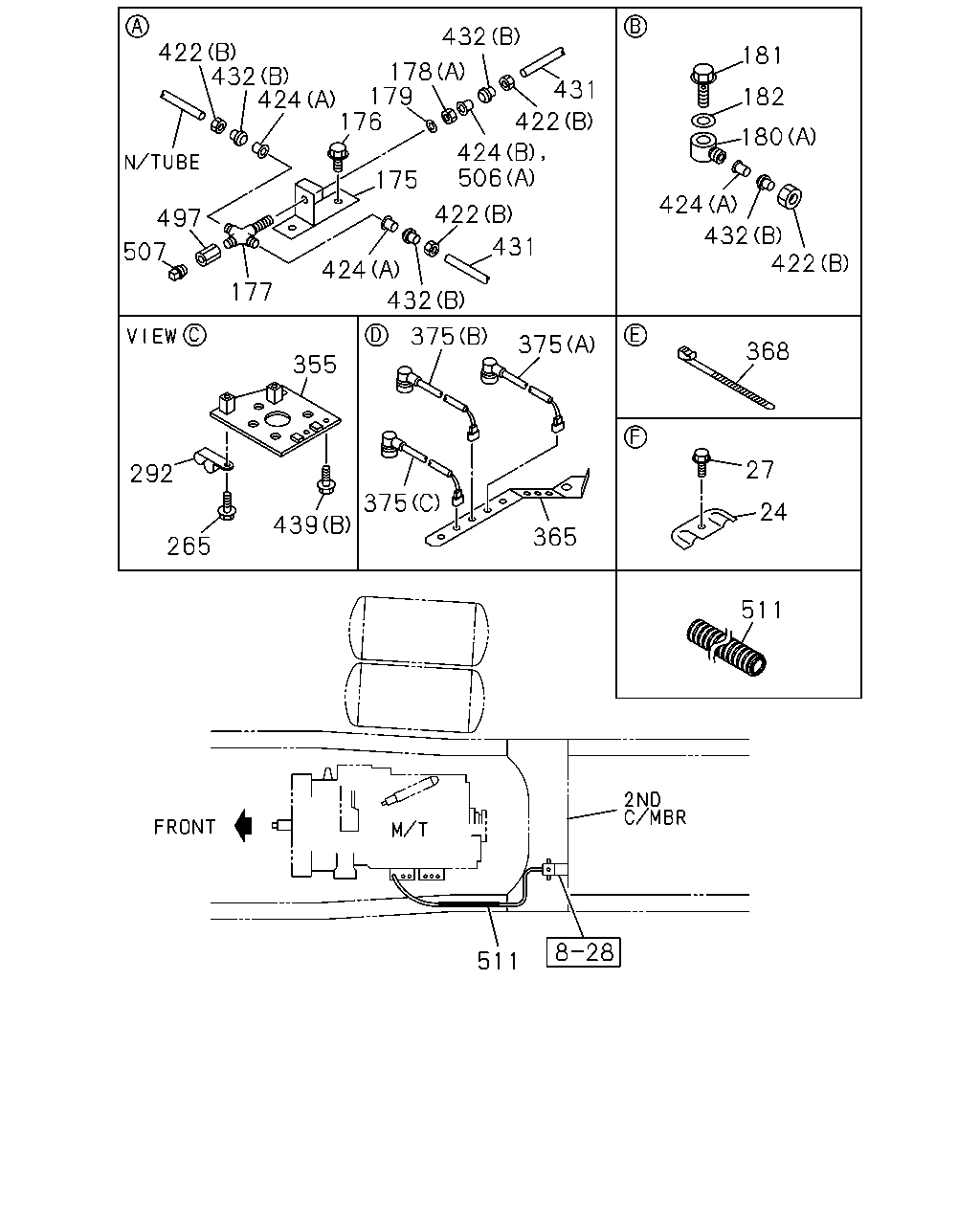

çizim 8991
432 422 432 424 181 178 179 176 431 182 422 180 424 506 175 424 422 497 432 422 431 507 424 177 432 375 375 368 355 27 292 375 24 439 365 265 511 511
BalonParca AdiParca NoAdetTipApplied Date A B
24 COVER; CHECK HOLE,DUST 1-31131-038-0 02 1 9601-9704 ●
24 COVER; CHECK HOLE,DUST 1-31131-038-0 03 1 9705-9906 ●
24 COVER; CHECK HOLE,DUST 1-31131-038-0 03 1 9907- ● ●
27 BOLT; COVER TO CLU HSG
M16X25 FLANGE 		0-28881-625-0 02 1 9601-9906 ●
27 BOLT; COVER TO CLU HSG
M16X25 FLANGE 		0-28881-625-0 02 1 9907- ● ●
175 BRACKET; UNION 1-47477-545-0 01 1 9601-9906 ●
175 BRACKET; UNION 1-47477-545-0 01 1 9907- ● ●
176 BOLT; UNION BRKT
M16X25 FLANGE 		0-28881-625-0 02 1 9601-9906 ●
176 BOLT; UNION BRKT
M16X25 FLANGE 		0-28881-625-0 02 1 9907- ● ●
177 UNION; NYLON TUBE 1-09664-070-0 01 1 9601-9904 ●
178 NUT; UNION
(A) M14 		9-99110-414-0 01 1 9601-9904 ●
178 NUT; UNION
(B) M14 		9-99111-414-0 01 1 9601- ●
179 WASHER; LK,UNION
ID=14.2 		9-09150-514-0 01 1 9601-9904 ●
180 CONNECTOR; NYLON TUBE
(A) 		1-09660-239-0 01 1 9601-9906 ●
180 CONNECTOR; NYLON TUBE
(A) 		1-09660-239-0 01 1 9907- ● ●
180 CONNECTOR; NYLON TUBE
(B) 		1-09660-466-0 01 1 9601-9904 ●
181 BOLT; EYE,NYLON TUBE
M12 L=35.5 		1-09675-169-0 01 1 9601-9906 ●
181 BOLT; EYE,NYLON TUBE
M12 L=35.5 		1-09675-169-0 01 1 9907- ● ●
182 GASKET; EYE BOLT,NYLON TUBE
ID=12.2 		9-09571-412-0 01 1 9601-9906 ●
182 GASKET; EYE BOLT,NYLON TUBE
ID=12.2 		9-09571-412-0 01 1 9907- ● ●
265 BOLT; CLIP
M8X40 FLANGE 		0-28680-840-0 01 1 9601-9906 ●
265 BOLT; CLIP
M8X40 FLANGE 		0-28680-840-0 01 1 9907- ● ●
292 CLIP; OIL PIPE
ID=16 & 16 L=28 		1-09701-219-0 01 1 9601-9906 ●
292 CLIP; OIL PIPE
ID=16 & 16 L=28 		1-09701-219-0 01 1 9907- ● ●
355 BRACKET; OIL PIPE 1-47477-465-1 01 1 9601-9904 ●
355 BRACKET; OIL PIPE 1-47478-217-1 01 1 9905-9906 ●
355 BRACKET; OIL PIPE 1-47478-217-1 01 1 9907- ● ●
365 BRACKET; HARNESS 1-82699-490-2 01 1 9601-9906 ●
365 BRACKET; HARNESS 1-82699-490-2 01 1 9907- ● ●
368 CLIP; BAND,CABLE
L=140 		5-09707-031-1 02 1 9601-9906 ●
368 CLIP; BAND,CABLE
L=140 		5-09707-031-1 02 1 9907- ● ●
375 CABLE; TRANS
(A) L=250 		1-82659-134-1 01 1 9601-9906 ●
375 CABLE; TRANS
(A) L=250 		1-82659-134-1 01 1 9907- ● ●
375 CABLE; TRANS
(B) L=580 		1-82659-135-1 01 1 9601-9906 ●
375 CABLE; TRANS
(B) L=580 		1-82659-135-1 01 1 9907- ● ●
375 CABLE; TRANS
(C) L=880 		1-82659-137-1 01 1 9601- ●
422 NUT; SLEEVE
(B) M14 		1-09660-212-0 04 1 9601-9904 ●
422 NUT; SLEEVE
(B) M14 		1-09660-212-0 01 1 9905-9906 ●
422 NUT; SLEEVE
(B) M14 		1-09660-212-0 01 1 9907- ● ●
422 NUT; SLEEVE
(A) M14 		1-09660-767-0 01 1 9601- ●
424 RING; INSERT
(A) ID=4.5 OD=5.8 L=18 		1-09669-054-0 02 1 9601-9904 ●
424 RING; INSERT
(B) ID=4.2 OD=5 L=18 		1-09669-089-0 01 1 9601-9904 ●
431 TUBE; NYLON
6WA1 TC-S(56L) L=730 		1-87410-073-0 01 1 9601-9601 ●
431 TUBE; NYLON
10PE1S(60L) L=1300 		1-87410-073-0 01 1 9602-9904 ●
432 SLEEVE; TUBE
(B) ID=8.15 OD=11 L=9.5 		1-09666-042-0 04 1 9601-9904 ●
432 SLEEVE; TUBE
(B) ID=8.15 OD=11 L=9.5 		1-09666-042-0 01 1 9905-9906 ●
432 SLEEVE; TUBE
(B) ID=8.15 OD=11 L=9.5 		1-09666-042-0 01 1 9907- ● ●
432 SLEEVE; TUBE
(A) ID=8.2 L=9.5 		1-09666-067-0 01 1 9601- ●
439 BOLT; BRKT
(A) M10X20 FLANGE 		0-28781-020-0 01 1 9601-9904 ●
439 BOLT; BRKT
(A) M16X35 FLANGE 		0-28881-635-0 04 1 9905-9906 ●
439 BOLT; BRKT
(A) M16X35 FLANGE 		0-28881-635-0 04 1 9907- ● ●
439 BOLT; BRKT
(B) M10X40 FLANGE 		0-28781-040-0 04 1 9601-9906 ●
439 BOLT; BRKT
(B) M10X40 FLANGE 		0-28781-040-0 04 1 9907- ● ●
439 BOLT; BRKT
(C) M16X25 FLANGE 		0-28881-625-0 02 1 9601-9904 ●
497 ADAPTER; PLUG 1-09660-880-0 01 1 9601-9904 ●
506 INSERT
(A) ID=4.5 OD=5.8 L=18 		1-09669-054-0 01 1 9601-9906 ●
506 INSERT
(A) ID=4.5 OD=5.8 L=18 		1-09669-054-0 01 1 9907- ● ●
506 INSERT
(B) ID=1.4 OD=2.0 L=18 		1-09669-100-0 01 1 9601-9904 ●
506 INSERT
(C) ID=5 OD=5.9 L=16 		1-09669-122-0 01 1 9601- ●
507 PLUG; UNION
PT1/4 		9-99204-513-0 01 1 9601-9904 ●
511 TUBE; CORRUGATE
L=400 SERVICED BY L=800 		1-83129-031-1 01 1 9601-9706 ●
511 TUBE; CORRUGATE
L=620 SERVICED BY L=800 		1-83129-031-1 01 1 9707-9904 ●
511 TUBE; CORRUGATE
L=700 SERVICED BY L=800 		1-83129-031-1 01 1 9601-9904 ●
511 TUBE; CORRUGATE
SERVICED BY L=800 ID=7 SERVICED BY L=2000 ID=7 		1-83129-335-0 01 1 9601-9904 ●
511 TUBE; CORRUGATE
SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 9905-9906 ●
511 TUBE; CORRUGATE
SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 9907- ● ●
511 TUBE; CORRUGATE
L=2000 ID=7 		1-87410-085-0 01 1 9601-9904 ●
511 TUBE; CORRUGATE
L=350 SERVICED BY L=2000 ID=10 		1-87410-088-0 03 1 9601-9904 ●
511 TUBE; CORRUGATE
L=350 SERVICED BY L=2000 ID=10 		1-87411-019-0 03 1 9905-9906 ●
511 TUBE; CORRUGATE
L=350 SERVICED BY L=2000 ID=10 		1-87411-019-0 03 1 9907- ● ●
511 TUBE; CORRUGATE
L=2000 ID=10 		1-87410-088-0 01 1 9601- ●
511 TUBE; CORRUGATE
L=400 SERVICED BY L=800 		1-83129-031-1 01 1 9708-9904 ●

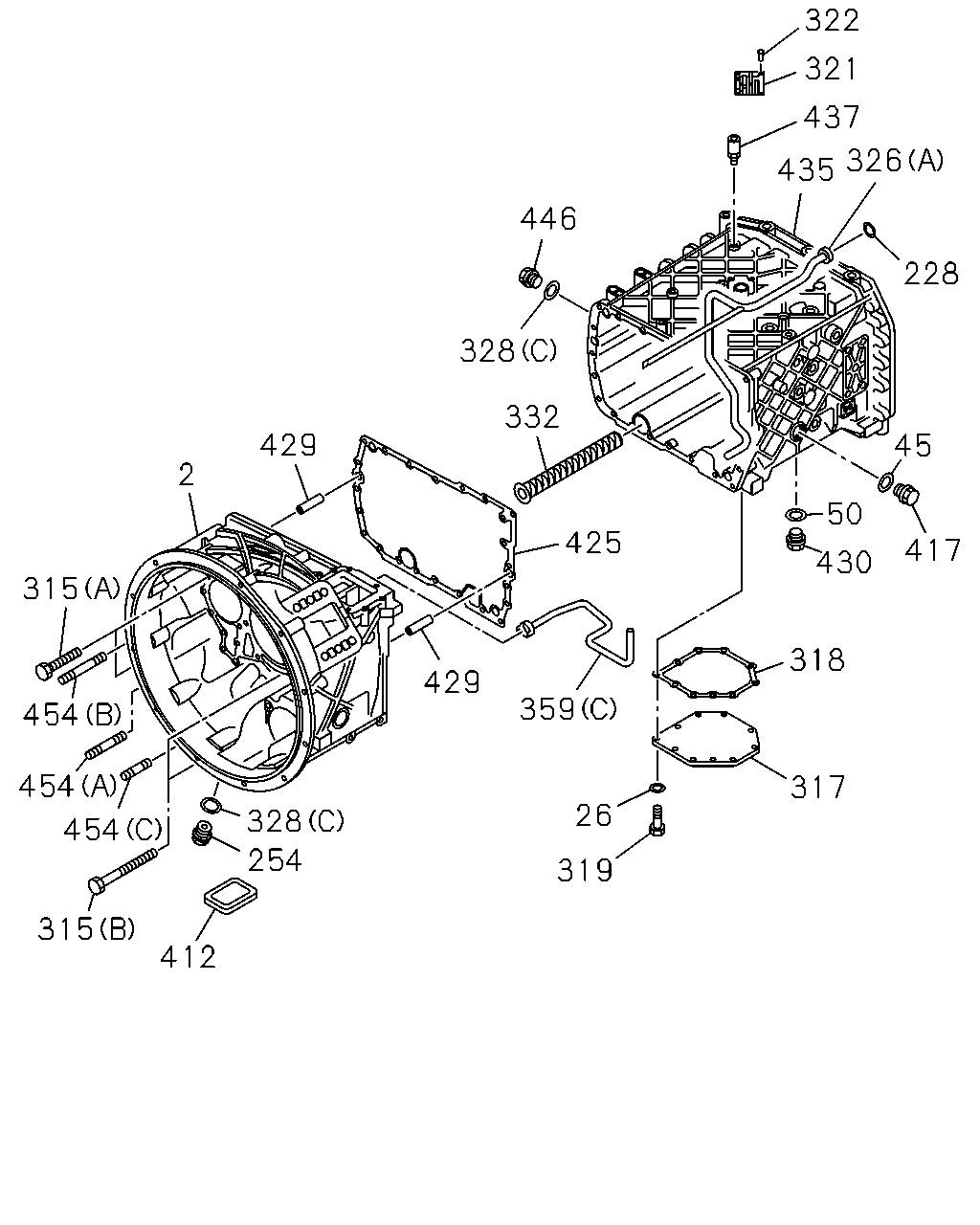

çizim 41333
322 321 437 326 435 446 228 328 332 429 45 2 50 425 417 430 315 318 429 454 359 454 317 26 328 454 254 319 315 412
BalonParca AdiParca NoAdetTipApplied Date A B
2 HOUSING; CLU 1-31111-189-0 01 1 9601-9707 ●
2 HOUSING; CLU
EXC. PTO ZF TRANS RR(BDM) 		1-31111-189-0 01 1 9708-9904 ●
2 HOUSING; CLU
PTO ZF TRANS RR(BDM) 		1-31111-194-0 01 1 9708-9904 ●
2 HOUSING; CLU 1-31111-194-0 01 1 9905- ●
26 WASHER; PL,COVER 1-09469-010-0 10 1 9601- ●
45 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). PTO ZF TRANS RR(BDM) 		1-33119-264-0 01 1 9708-9904 ●
45 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-264-0 02 1 9905- ●
50 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-264-0 01 1 9601- ●
228 GASKET; NOZZLE 1-33119-273-0 01 1 9601- ●
254 PLUG; DRAIN,OIL 1-33119-263-0 01 1 9601-9707 ●
254 PLUG; DRAIN,OIL 1-33119-376-0 01 1 9708- ●
315 BOLT; CASE
(A) 		1-33119-266-0 15 1 9601- ●
315 BOLT; CASE
(B) 		1-33119-267-0 07 1 9601- ●
317 COVER; CASE 1-33119-274-0 01 1 9601- ●
318 GASKET; COVER 1-33119-275-0 01 1 9601-9904 ●
318 GASKET; COVER 1-33119-409-0 01 1 9905- ●
319 BOLT; COVER 1-33119-276-0 10 1 9601- ●
321 PLATE; NAME 1-33119-277-0 01 1 9601- ●
322 RIVET; NAME PLATE 1-36119-006-0 04 1 9601-9707 ●
322 RIVET; NAME PLATE 1-33119-398-0 04 1 9708- ●
326 NOZZLE; OIL,OUTLET
(A) 		1-33119-282-0 01 1 9601- ●
326 NOZZLE; OIL,OUTLET
(B) 		1-33139-021-0 01 1 9601- ●
328 GASKET; PLUG
(B) 		1-33119-249-0 02 1 9601- ●
328 GASKET; PLUG
(C) 		1-33119-264-0 03 1 9601-9707 ●
328 GASKET; PLUG
PTO ZF TRANS RR(BDM) (C) 		1-33119-264-0 02 1 9708-9904 ●
328 GASKET; PLUG
(C) 		1-33119-264-0 02 1 9905-9906 ●
328 GASKET; PLUG
(C) 		1-33119-264-0 01 1 9907- ●
328 GASKET; PLUG
(A) 		1-33139-023-0 01 1 9601- ●
328 GASKET; PLUG
EXC. PTO ZF TRANS RR(BDM) (C) 		1-33119-264-0 03 1 9708-9904 ●
332 FILTER; OIL 1-33119-157-0 01 1 9601-9707 ●
332 FILTER; OIL 1-33119-370-0 01 1 9708- ●
332 FILTER; OIL
EXC. PTO ZF TRANS RR(BDM) 		1-33119-157-0 01 1 9708-9904 ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49115-055-0 01 1 9601-9608 ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49117-645-0 01 1 9609-9710 ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49118-936-0 01 1 9711-9904 ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49119-463-1 01 1 9905- ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49115-949-0 01 1 9601-9608 ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49117-647-0 01 1 9609-9710 ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49118-938-0 01 1 9711-9904 ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49119-464-1 01 1 9905- ●
359 PIPE; AIR,TRANS TO UNION
(C) 		1-33119-395-0 01 1 9708- ●
412 CAP; CLU HSG 1-31119-022-0 01 1 9601- ●
417 PLUG; OIL FILLER,TRANS 1-33119-268-0 01 1 9708-9904 ●
417 PLUG; OIL FILLER,TRANS 1-33119-268-0 02 1 9905- ●
425 GASKET; CLU HSG TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-262-0 01 1 9601- ●
429 PIN; STRAIGHT 1-33119-265-0 07 1 9601- ●
430 PLUG; OIL DRAIN 1-33119-268-0 01 1 9601- ●
435 CASE; TRANS 1-33111-275-0 01 1 9601-9904 ●
435 CASE; TRANS 1-33111-286-0 01 1 9905- ●
437 BREATHER; TRANS 1-36122-004-0 01 1 9601- ●
446 PLUG; CASE,TRANS 1-33119-268-0 02 1 9601-9707 ●
446 PLUG; CASE,TRANS
PTO ZF TRANS RR(BDM) 		1-33119-268-0 01 1 9708-9904 ●
446 PLUG; CASE,TRANS
EXC. PTO ZF TRANS RR(BDM) 		1-33119-268-0 02 1 9708-9904 ●
454 STUD; CLU HSG
PTO ZF TRANS RR(BDM) (A) M10 L=50 		1-33119-381-0 04 1 9708-9904 ●
454 STUD; CLU HSG
(A) M10 L=50 		1-33119-381-0 04 1 9905- ●
454 STUD; CLU HSG
PTO ZF TRANS RR(BDM) (B) M10 L=80 		1-33119-393-0 08 1 9708-9904 ●
454 STUD; CLU HSG
(B) M10 L=80 		1-33119-393-0 08 1 9905- ●
454 STUD; CLU HSG
PTO ZF TRANS RR(BDM) (C) M10 L=25 		1-33119-394-0 11 1 9708-9904 ●
454 STUD; CLU HSG
(C) M10 L=25 		1-33119-394-0 11 1 9905- ●

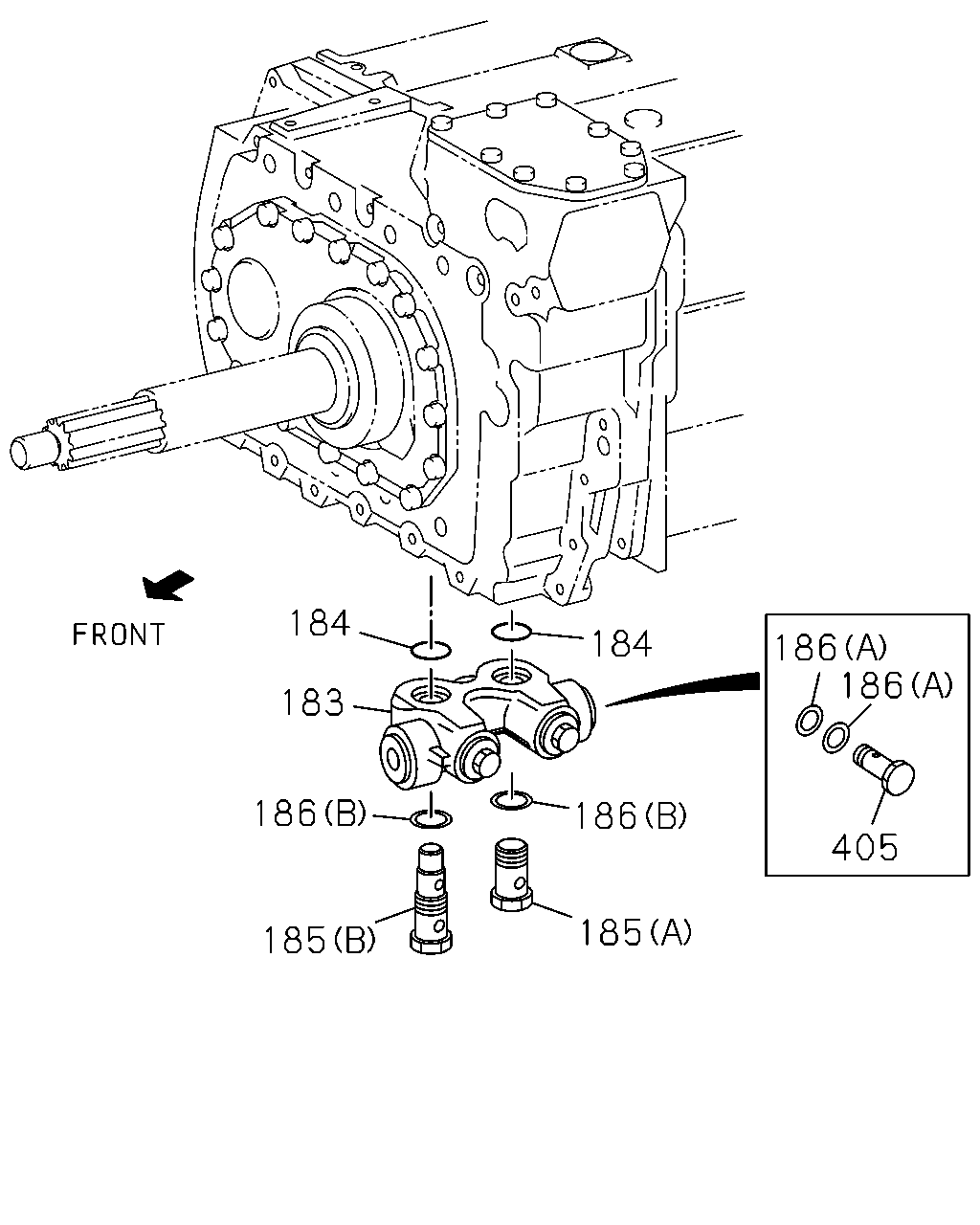

çizim 41612
184 184 186 186 183 186 186 405 185 185
BalonParca AdiParca NoAdetTipApplied Date A B
183 VALVE; BYPASS,TRANS 1-32569-046-0 01 1 9601-9906 ●
183 VALVE; BYPASS,TRANS 1-32569-046-0 01 1 9907- ● ●
184 GASKET; BYPASS VLV 1-32568-003-0 02 1 9601-9906 ●
184 GASKET; BYPASS VLV 1-32568-003-0 02 1 9907- ● ●
185 UNION; SCREW,BYPASS VLV
(A) M22 		1-32567-011-0 01 1 9601-9906 ●
185 UNION; SCREW,BYPASS VLV
(A) M22 		1-32567-011-0 01 1 9907- ● ●
185 UNION; SCREW,BYPASS VLV
(B) L=67 		1-32567-014-0 01 1 9601-9701 ●
185 UNION; SCREW,BYPASS VLV
(B) 		1-32567-016-0 01 1 9702-9906 ●
185 UNION; SCREW,BYPASS VLV
(B) 		1-32567-016-0 01 1 9907- ● ●
186 RING; SEAL
(B) ID=22 		1-32568-001-0 04 1 9601-9906 ●
186 RING; SEAL
(B) ID=22 		1-32568-001-0 04 1 9907- ● ●
186 RING; SEAL
(A) ID=22 		1-32568-002-0 02 1 9601-9906 ●
186 RING; SEAL
(A) ID=22 		1-32568-002-0 02 1 9907- ● ●
405 BOLT; EYE,OIL PIPE
M22X37 		1-09675-060-0 02 1 9601-9906 ●
405 BOLT; EYE,OIL PIPE
M22X37 		1-09675-060-0 02 1 9907- ● ●

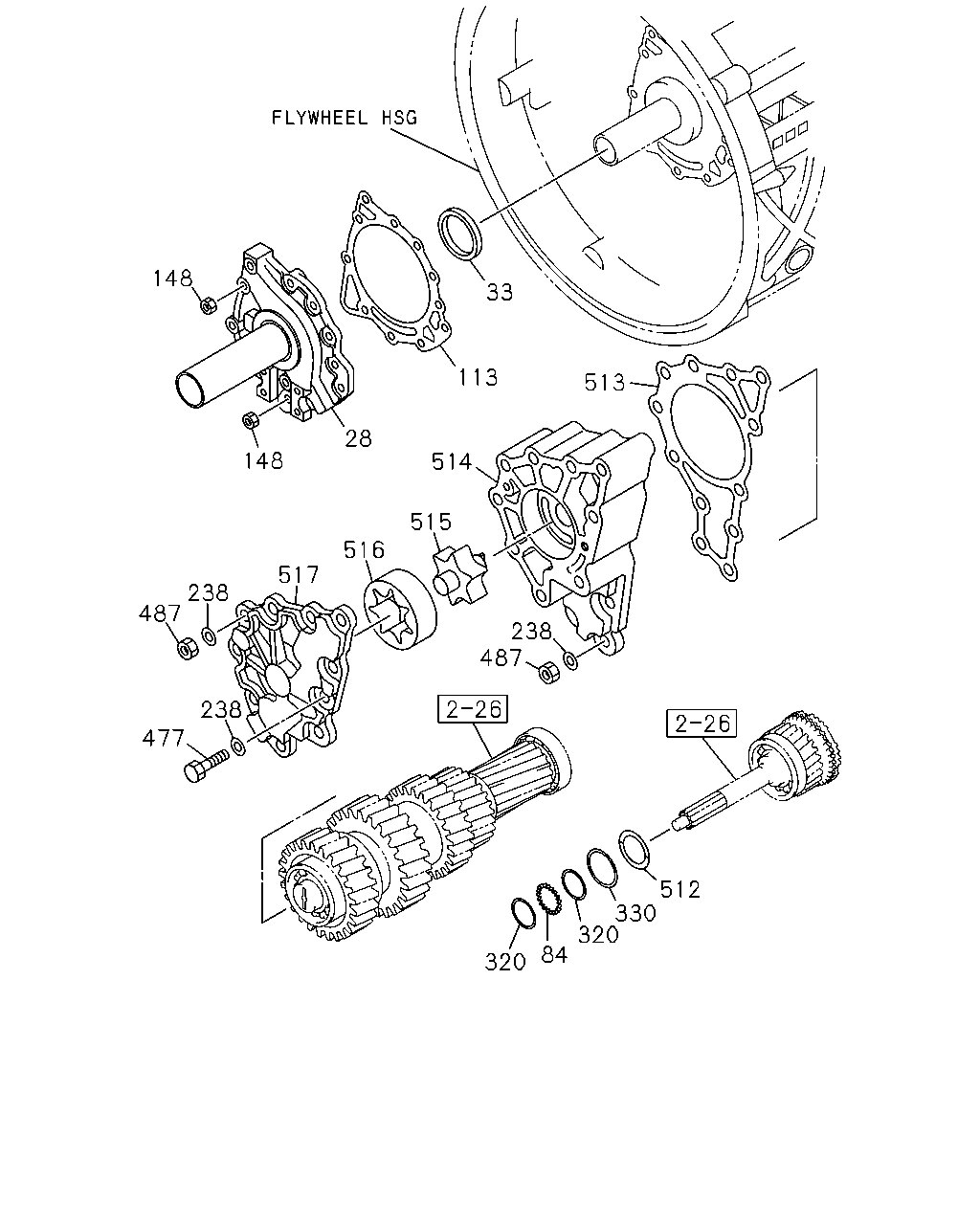

çizim 42467
148 33 113 513 28 148 514 515 516 517 238 487 238 487 238 477 512 330 320 84 320
BalonParca AdiParca NoAdetTipApplied Date A B
28 COVER; FRT,TRANS CASE 1-33121-149-0 01 1 9601-9707 ●
28 COVER; FRT,TRANS CASE
PTO ZF TRANS RR(BDM) 		1-33121-149-0 01 1 9708-9904 ●
28 COVER; FRT,TRANS CASE 1-33121-149-0 01 1 9905- ●
28 COVER; FRT,TRANS CASE
EXC. PTO ZF TRANS RR(BDM) 		1-33121-132-0 01 1 9708-9904 ●
33 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). 		1-33219-058-0 01 1 9601-9805 ●
33 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). 		1-33219-248-0 01 1 9806- ●
84 SPACER; COVER,TRANS 1-33129-006-0 01 1 9601- ●
113 GASKET; FRT COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-33122-018-0 01 1 9601- ●
148 NUT 1-33529-056-0 11 1 9601- ●
238 WASHER; PL 1-09469-010-0 14 1 9601- ●
320 WASHER; COVER 1-33129-007-0 02 1 9601- ●
330 RING; RET 1-33219-030-0 01 1 9601-9810 ●
330 RING; RET
EXC. PTO ZF TRANS RR(BDM) 		1-33219-030-0 01 1 9811-9904 ●
477 BOLT; OIL PUMP 1-33529-055-0 02 1 9601- ●
487 NUT; COVER,OIL PUMP 1-33529-056-0 12 1 9601- ●
512 WASHER; THRUST
T=4.20 		1-33219-144-0 AR 1 9601-9707 ●
512 WASHER; THRUST
EXC. PTO ZF TRANS RR(BDM) T=4.20 		1-33219-144-0 AR 1 9708-9904 ●
512 WASHER; THRUST
T=4.15 		1-33219-145-0 AR 1 9601-9707 ●
512 WASHER; THRUST
EXC. PTO ZF TRANS RR(BDM) T=4.15 		1-33219-145-0 AR 1 9708-9904 ●
512 WASHER; THRUST
T=4.10 		1-33219-146-0 AR 1 9601-9707 ●
512 WASHER; THRUST
EXC. PTO ZF TRANS RR(BDM) T=4.10 		1-33219-146-0 AR 1 9708-9904 ●
512 WASHER; THRUST
T=4.05 		1-33219-147-0 AR 1 9601-9707 ●
512 WASHER; THRUST
EXC. PTO ZF TRANS RR(BDM) T=4.05 		1-33219-147-0 AR 1 9708-9904 ●
512 WASHER; THRUST
T=4.00 		1-33219-148-0 AR 1 9601-9707 ●
512 WASHER; THRUST
EXC. PTO ZF TRANS RR(BDM) T=4.00 		1-33219-148-0 AR 1 9708-9904 ●
512 WASHER; THRUST
T=3.95 		1-33219-149-0 AR 1 9601-9707 ●
512 WASHER; THRUST
EXC. PTO ZF TRANS RR(BDM) T=3.95 		1-33219-149-0 AR 1 9708-9904 ●
512 WASHER; THRUST
T=3.90 		1-33219-150-0 AR 1 9601-9707 ●
512 WASHER; THRUST
EXC. PTO ZF TRANS RR(BDM) T=3.90 		1-33219-150-0 AR 1 9708-9904 ●
512 WASHER; THRUST
T=3.85 		1-33219-151-0 AR 1 9601-9707 ●
512 WASHER; THRUST
EXC. PTO ZF TRANS RR(BDM) T=3.85 		1-33219-151-0 AR 1 9708-9904 ●
512 WASHER; THRUST
T=3.80 		1-33219-152-0 AR 1 9601-9707 ●
512 WASHER; THRUST
EXC. PTO ZF TRANS RR(BDM) T=3.80 		1-33219-152-0 AR 1 9708-9904 ●
512 WASHER; THRUST
T=3.75 		1-33219-153-0 AR 1 9601-9707 ●
512 WASHER; THRUST
EXC. PTO ZF TRANS RR(BDM) T=3.75 		1-33219-153-0 AR 1 9708-9904 ●
512 WASHER; THRUST
T=3.70 		1-33219-154-0 AR 1 9601-9707 ●
512 WASHER; THRUST
EXC. PTO ZF TRANS RR(BDM) T=3.70 		1-33219-154-0 AR 1 9708-9904 ●
513 GASKET; HOUSING 1-34159-058-0 01 1 9601- ●
514 HOUSING; OIL PUMP 1-34155-027-0 01 1 9601- ●
515 SHAFT; OIL PUMP 1-34159-070-0 01 1 9601- ●
516 ROTOR; OIL PUMP 1-34159-060-0 01 1 9601- ●
517 COVER; OIL PUMP 1-34159-071-0 01 1 9601- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
