3-55 — BRAKE PIPING; OIL,REAR (#48177) — 54 parça

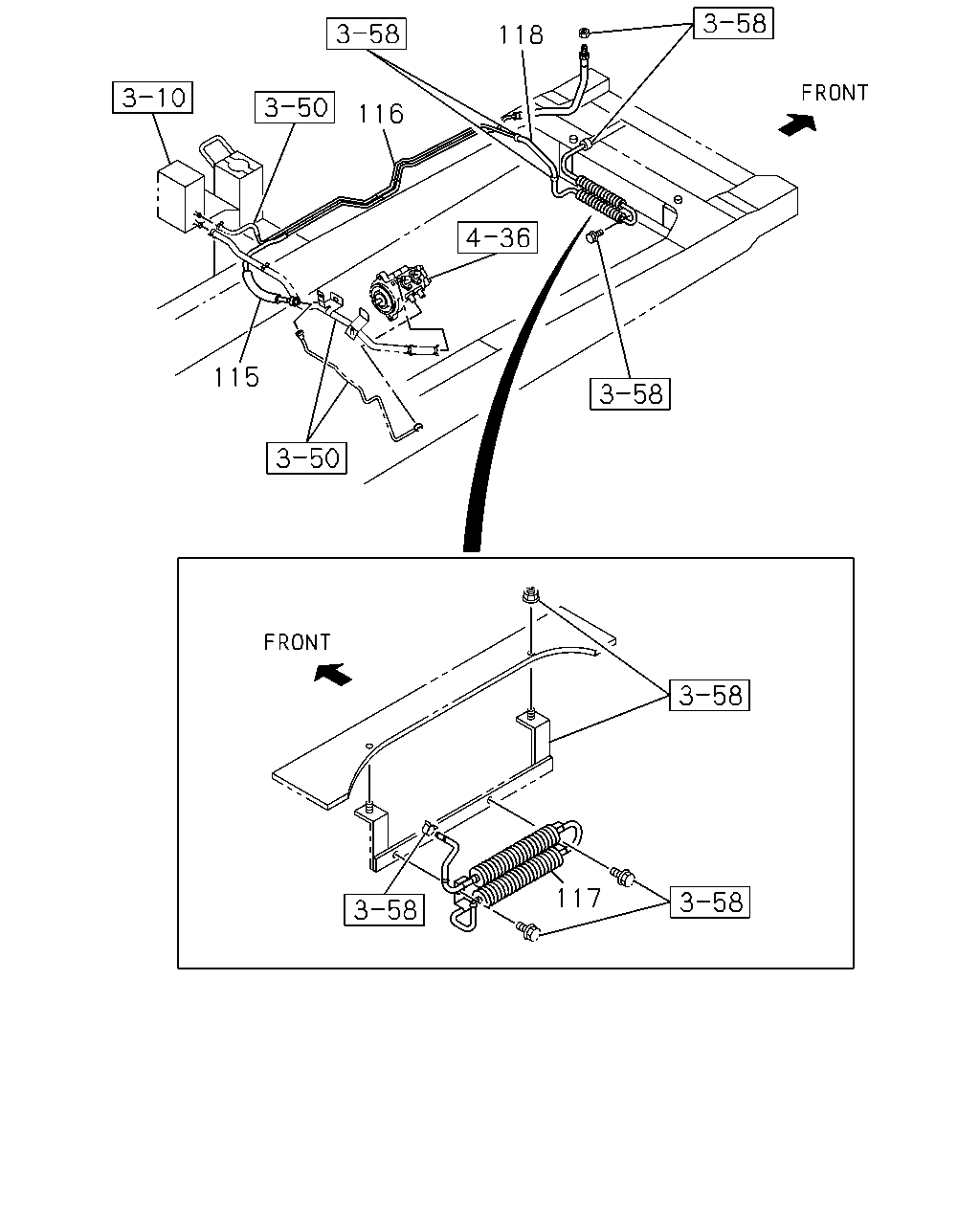

118 116 115 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
115	PIPE; PRESS,HYDRAULIC BRK BOOSTER HYDRO BRAKE BOOSTER<7QQ>	8-97378-146-0	01	1	0911-
116	PIPE; BRK,PIPE TO TANK HYDRO BRAKE BOOSTER<7QQ>	8-97330-452-3	01	1	0911-
117	PIPE; BRK,RETURN HYDRO BRAKE BOOSTER<7QQ>	8-97180-991-2	01	1	0911-
118	HOSE; PIPE TO PIPE HYDRO BRAKE BOOSTER<7QQ>	8-97181-217-2	01	1	0911-

135 1 5 8 135 8 4 3 4 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97253-569-0	01	1	0911-
1	HOSE; FLEX,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97253-570-0	01	1	0911-
1	HOSE; FLEX,RR BRK (A) L=405	8-97089-061-0	01	1	0401-0910
1	HOSE; FLEX,RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) L=405	8-97089-061-0	01	1	0911-
3	BRACKET; FLEX HOSE,RR BRK	8-97205-714-1	01	1	0401-0910
3	BRACKET; FLEX HOSE,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97205-714-1	01	1	0911-
3	BRACKET; FLEX HOSE,RR BRK	8-97205-714-1	01	1	0911-
4	NUT; BRKT,FLEX HOSE,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> M8 FLANGE	0-91180-108-0	03	1	0911-
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91150-108-0	01	1	0401-0602
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91180-108-0	01	1	0603-
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X25 FLANGE	0-28680-825-0	01	1	0401-0512
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X25 FLANGE	0-28650-825-0	01	1	0601-0910
5	BOLT; BRKT,FLEX HOSE,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> M8X25 FLANGE	0-28650-825-0	01	1	0911-
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X25 FLANGE	0-28650-825-0	01	1	0911-
8	CLIP; RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97360-054-0	04	1	0911-
8	CLIP; RR BRK	8-94137-662-0	02	1	0401-0610
8	CLIP; RR BRK	8-97360-054-0	02	1	0611-0910
8	CLIP; RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97360-054-0	02	1	0911-
14	PIPE; BRK,FLEX HOSE TO WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97359-748-0	01	1	0911-
14	PIPE; BRK,FLEX HOSE TO WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97359-749-0	01	1	0911-
14	PIPE; BRK,FLEX HOSE TO WHEEL CYL	8-97206-086-1	01	1	0401-0701
14	PIPE; BRK,FLEX HOSE TO WHEEL CYL	8-97359-746-0	01	1	0702-0910
14	PIPE; BRK,FLEX HOSE TO WHEEL CYL EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97359-746-0	01	1	0911-
135	CLIP; FLEX HOSE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97207-699-0	04	1	0911-

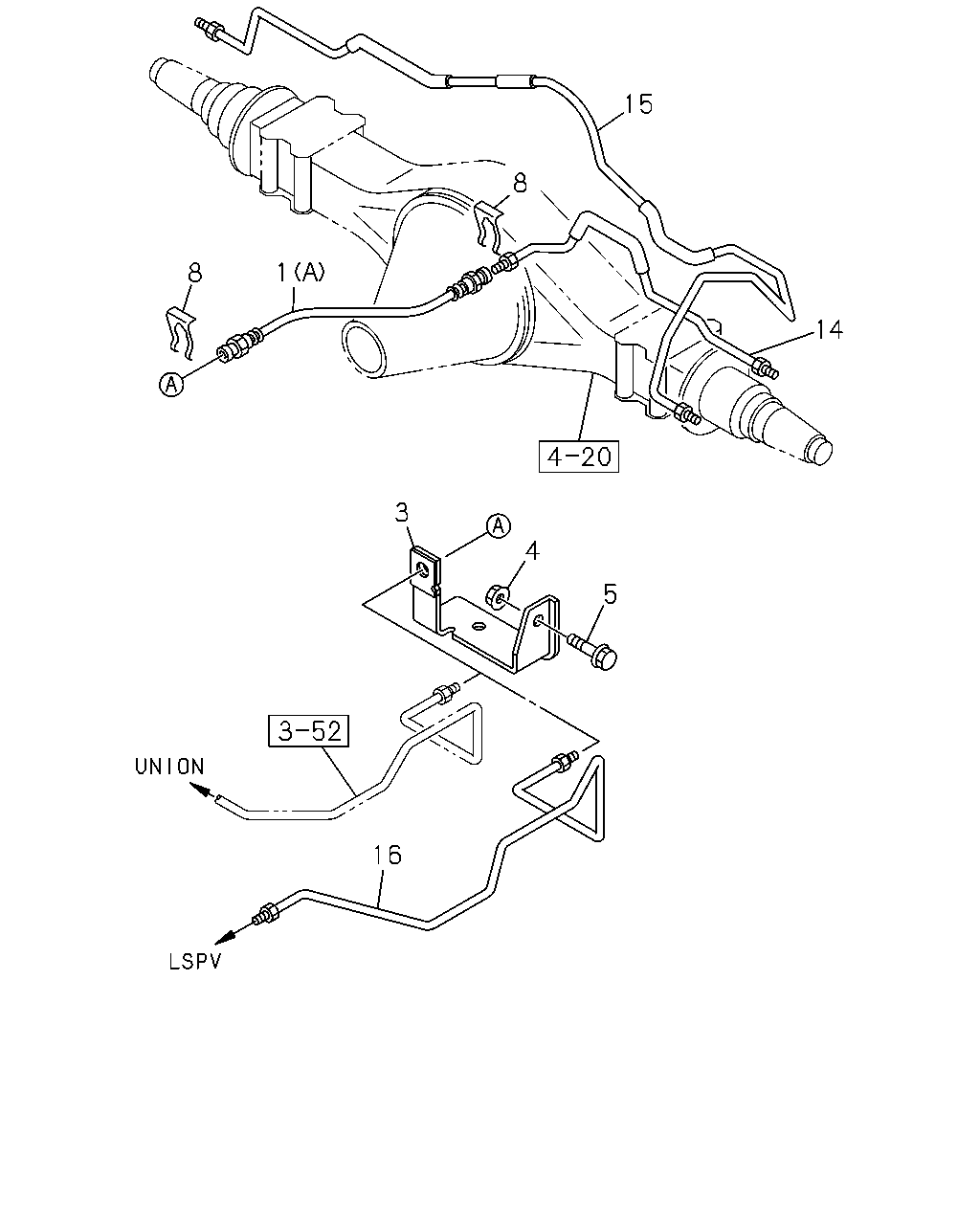

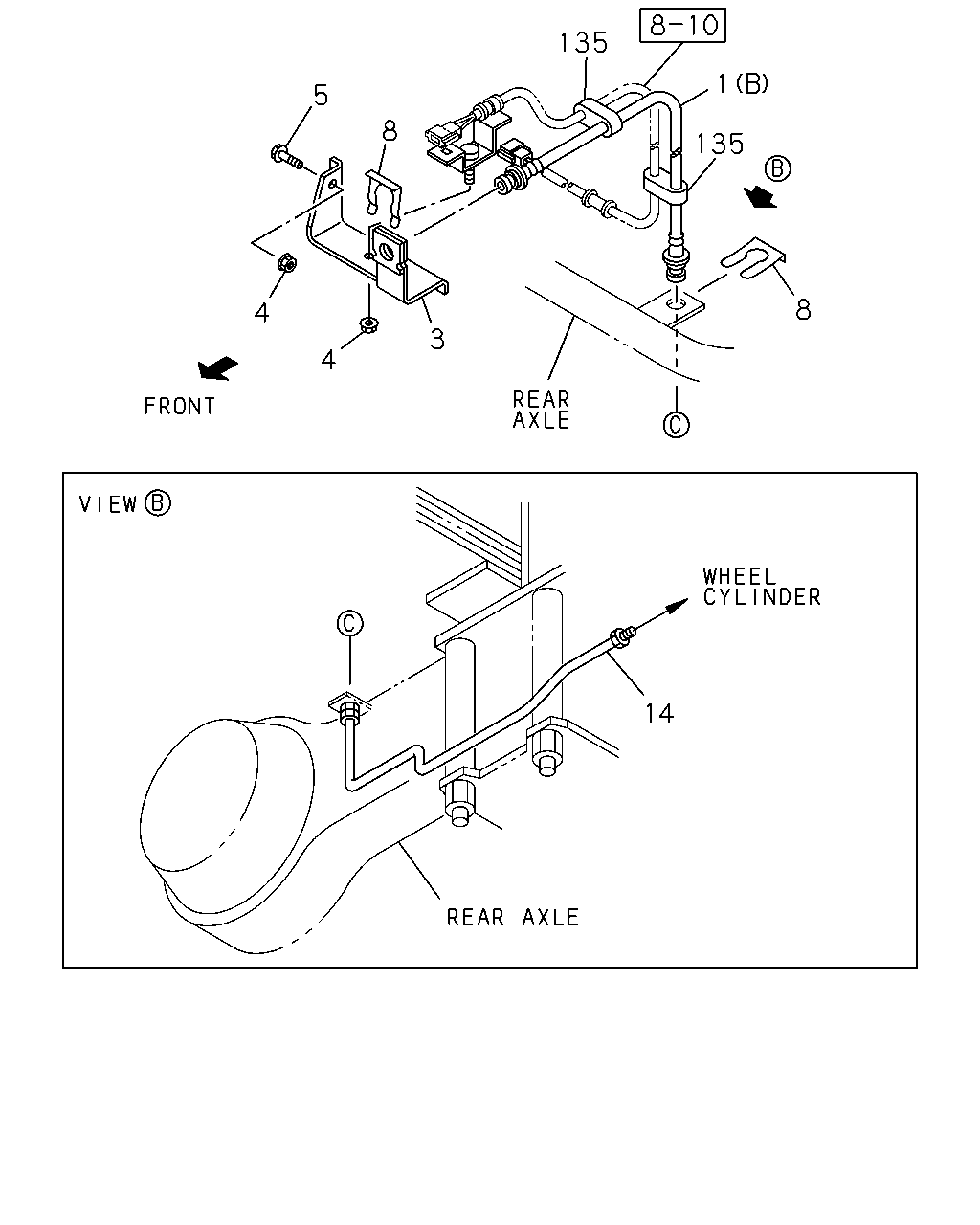

15 8 1 8 14 3 4 5 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97253-569-0	01	1	0911-
1	HOSE; FLEX,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97253-570-0	01	1	0911-
1	HOSE; FLEX,RR BRK (A) L=405	8-97089-061-0	01	1	0401-0910
1	HOSE; FLEX,RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) L=405	8-97089-061-0	01	1	0911-
3	BRACKET; FLEX HOSE,RR BRK	8-97205-714-1	01	1	0401-0910
3	BRACKET; FLEX HOSE,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97205-714-1	01	1	0911-
3	BRACKET; FLEX HOSE,RR BRK	8-97205-714-1	01	1	0911-
4	NUT; BRKT,FLEX HOSE,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> M8 FLANGE	0-91180-108-0	03	1	0911-
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91150-108-0	01	1	0401-0602
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91180-108-0	01	1	0603-
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X25 FLANGE	0-28680-825-0	01	1	0401-0512
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X25 FLANGE	0-28650-825-0	01	1	0601-0910
5	BOLT; BRKT,FLEX HOSE,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> M8X25 FLANGE	0-28650-825-0	01	1	0911-
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X25 FLANGE	0-28650-825-0	01	1	0911-
8	CLIP; RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97360-054-0	04	1	0911-
8	CLIP; RR BRK	8-94137-662-0	02	1	0401-0610
8	CLIP; RR BRK	8-97360-054-0	02	1	0611-0910
8	CLIP; RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97360-054-0	02	1	0911-
14	PIPE; BRK,FLEX HOSE TO WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97359-748-0	01	1	0911-
14	PIPE; BRK,FLEX HOSE TO WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97359-749-0	01	1	0911-
14	PIPE; BRK,FLEX HOSE TO WHEEL CYL	8-97206-086-1	01	1	0401-0701
14	PIPE; BRK,FLEX HOSE TO WHEEL CYL	8-97359-746-0	01	1	0702-0910
14	PIPE; BRK,FLEX HOSE TO WHEEL CYL EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97359-746-0	01	1	0911-
15	PIPE; BRK,WHEEL CYL TO WHEEL CYL	8-97129-745-1	01	1	0401-0910
15	PIPE; BRK,WHEEL CYL TO WHEEL CYL EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97129-745-1	01	1	0911-
16	PIPE; OIL,VLV TO RR FLEX HOSE BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97183-535-1	01	1	0911-
