Isuzu WW
▶
TRUCKS
▶
NPR
▶
50980 - NPR(IRAN)
▶
3 - Brakes, Brake System
▶
3-52 - BRAKE PIPING; OIL,FRONT
▶
3-52 — BRAKE PIPING; OIL,FRONT
(#48176) — 86 parça
◀
[352A] FLEX HOSE AND GROMMET (14 parça)
[352A] 4 WHEEL ANTI LOCK BRAKE(NO.2) (21 parça)
[352A] EXC.4 WHEEL ANTI LOCK BRAKE(NO.2) (15 parça)
[352A] EXC.4 WHEEL ANTI LOCK BRAKE(NO.1) (14 parça)
[352A] CAB SIDE (3 parça)
[352A] 4 WHEEL ANTI LOCK BRAKE(NO.1) (19 parça)
▶
1
9
9
26
96
71
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,FRT BRK
8-97039-543-1
02
1
0401-
9
CLIP; FLEX HOSE,FRT BRK
8-94137-662-0
02
1
0401-0610
9
CLIP; FLEX HOSE,FRT BRK
8-94137-662-0
02
1
0401-0610
9
CLIP; FLEX HOSE,FRT BRK
8-97360-054-0
02
1
0611-
9
CLIP; FLEX HOSE,FRT BRK
8-97360-054-0
02
1
0611-
26
PIPE; BRK,JOINT TO 2 WAY
4 WHEEL ANTI LOCK BRAKE<JE5>
8-98009-019-0
01
1
0911-1005
26
PIPE; BRK,JOINT TO 2 WAY
4 WHEEL ANTI LOCK BRAKE<JE5>
8-98171-886-0
01
1
1006-
26
PIPE; BRK,JOINT TO 2 WAY
4 WHEEL ANTI LOCK BRAKE<JE5>
8-98009-017-0
01
1
0911-
71
GROMMET; OIL PIPE
8-97044-742-1
02
1
0401-0910
71
GROMMET; OIL PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
8-97044-742-1
02
1
0911-
96
PIPE ASM; 6 WAY
8-97096-954-1
01
1
0401-0910
96
PIPE ASM; 6 WAY
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
8-97096-954-1
01
1
0911-
96
PIPE ASM; 6 WAY
8-97096-950-0
01
1
0401-0910
96
PIPE ASM; 6 WAY
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
8-97096-950-0
01
1
0911-

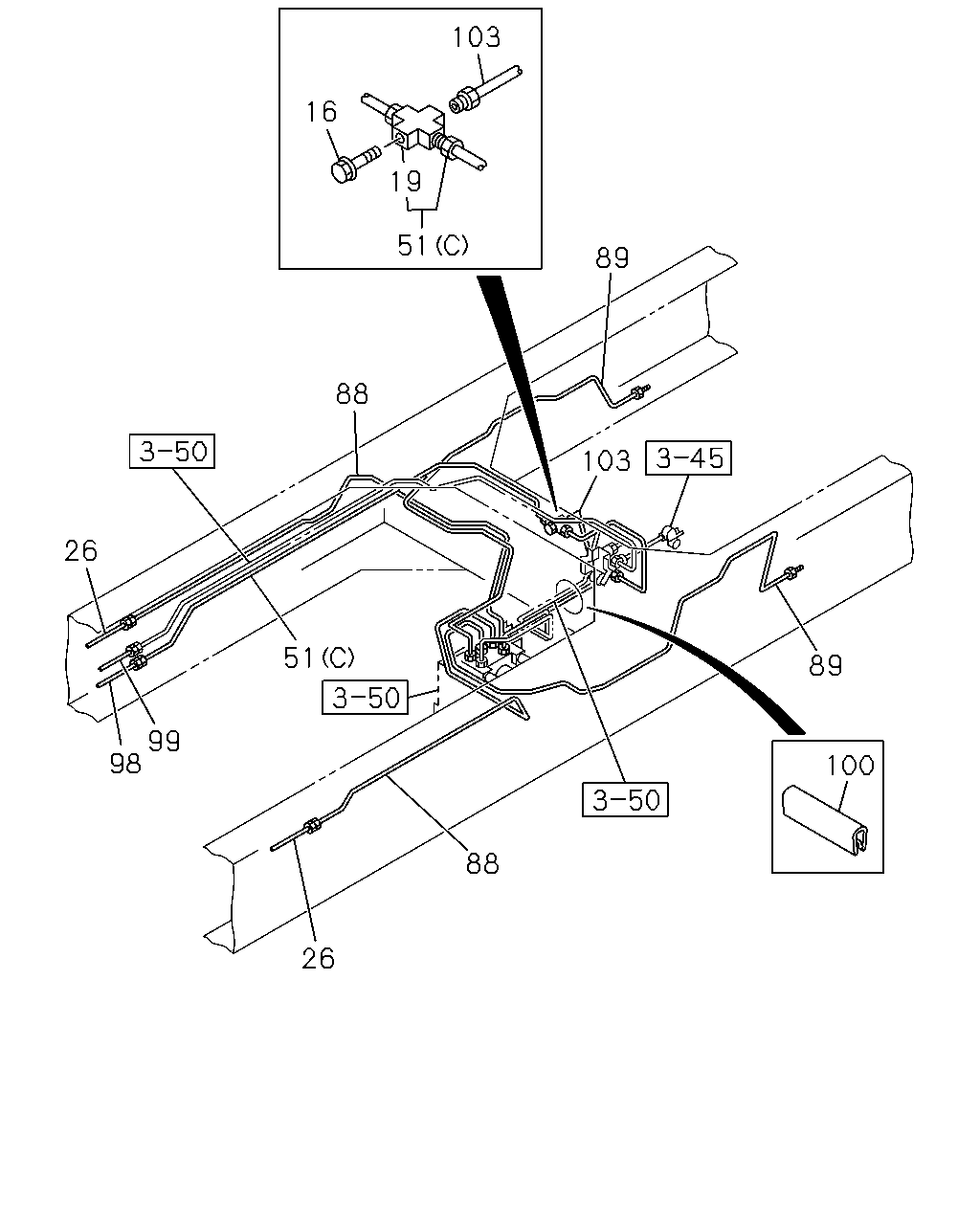

103
16
19
1
89
88
103
26
51
89
99
98
100
88
26
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,FRT BRK
8-97039-543-1
02
1
0401-
16
BOLT; 3 WAY CONNECTOR
4 WHEEL ANTI LOCK BRAKE<JE5> M8X12 FLANGE
0-28050-812-0
01
1
0911-
19
UNION; OIL PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> M10 3WAY
9-09227-325-0
01
1
0911-
26
PIPE; BRK,JOINT TO 2 WAY
4 WHEEL ANTI LOCK BRAKE<JE5>
8-98009-019-0
01
1
0911-1005
26
PIPE; BRK,JOINT TO 2 WAY
4 WHEEL ANTI LOCK BRAKE<JE5>
8-98171-886-0
01
1
1006-
26
PIPE; BRK,JOINT TO 2 WAY
4 WHEEL ANTI LOCK BRAKE<JE5>
8-98009-017-0
01
1
0911-
51
PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (C)
8-97206-804-1
01
1
0911-
51
PIPE; BRK
(A) FRONT
8-97073-076-1
01
1
0401-
51
PIPE; BRK
(B) REAR
8-97073-078-1
01
1
0401-
88
PIPE; BRK,HYDRULIC UNIT TO JOINT
4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH>
8-97247-886-0
01
1
0911-
88
PIPE; BRK,HYDRULIC UNIT TO JOINT
4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH>
8-98010-950-0
01
1
0911-1001
88
PIPE; BRK,HYDRULIC UNIT TO JOINT
4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH>
8-97247-890-0
01
1
1002-
89
PIPE; BRK,HYDRULIC UNIT TO RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5>
8-97247-878-2
01
1
0911-
89
PIPE; BRK,HYDRULIC UNIT TO RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5>
8-97375-586-0
01
1
0911-
98
PIPE ASM; 4/6 WAY
4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH>
8-97185-055-1
01
1
0911-
98
PIPE ASM; 4/6 WAY
BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
8-97142-710-0
01
1
0911-
99
PIPE ASM; 4/5/6 WAY
4 WHEEL ANTI LOCK BRAKE<JE5>
8-97185-056-2
01
1
0911-
99
PIPE ASM; 4/5/6 WAY
8-97142-709-0
01
1
0401-0910
99
PIPE ASM; 4/5/6 WAY
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
8-97142-709-0
01
1
0911-
100
PROTECTOR; EDGE
4 WHEEL ANTI LOCK BRAKE<JE5> L=80
5-22439-006-0
01
1
0911-
103
PIPE; BRK,3 WAY TO HYDRAULIC UNIT
4 WHEEL ANTI LOCK BRAKE<JE5>
8-97247-874-0
01
1
0911-

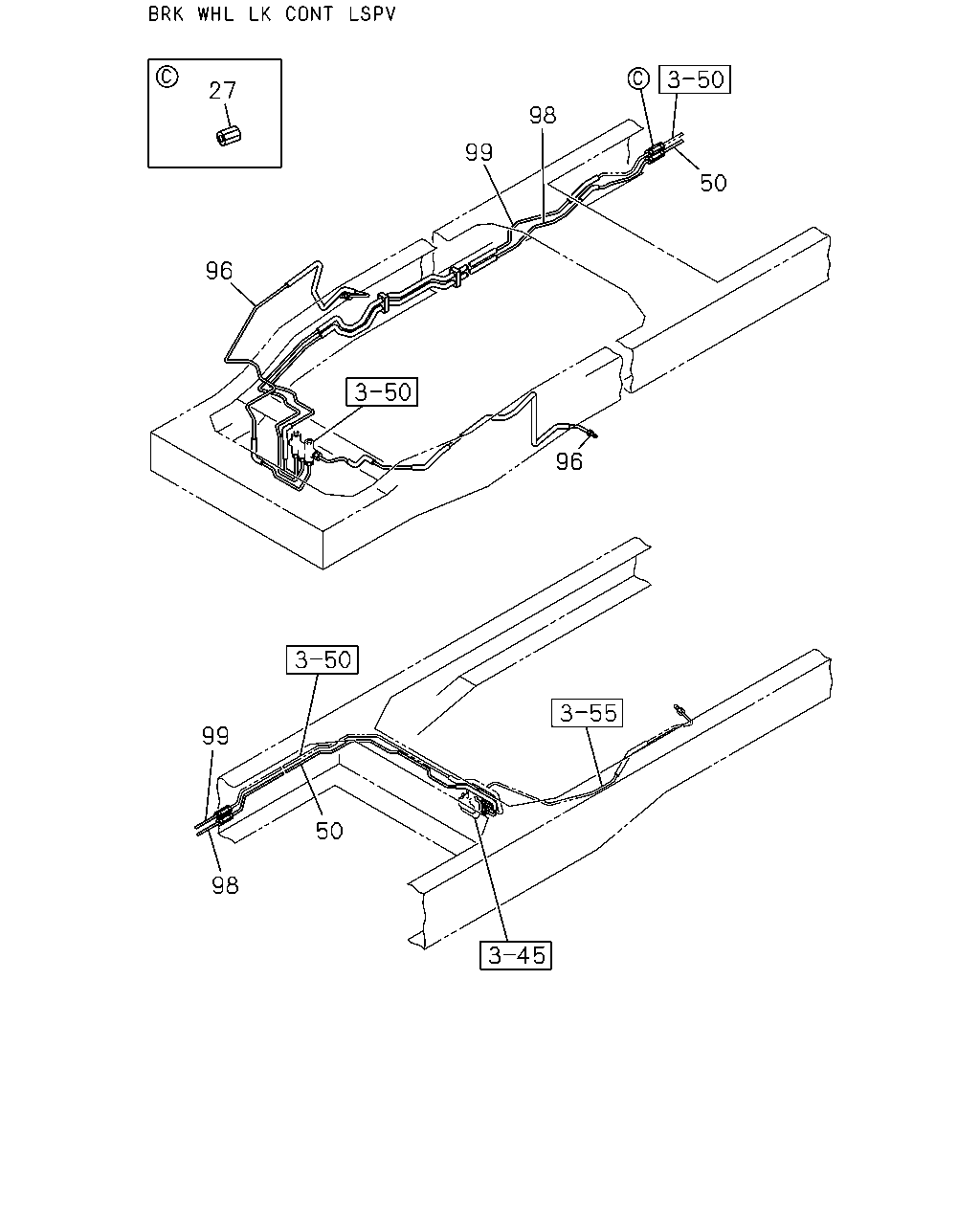

27
98
99
50
96
96
99
50
98
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
27
UNION; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> M10 STRAIGHT
0-92107-005-0
02
1
0911-
27
UNION; BRK PIPE
BRK WHL LK CONT LSPV<6PH> M10 STRAIGHT
0-92107-005-0
02
1
0911-
27
UNION; BRK PIPE
M10 STRAIGHT
9-09227-005-0
01
1
0401-0607
27
UNION; BRK PIPE
M10 STRAIGHT
0-92107-005-0
01
1
0608-0910
27
UNION; BRK PIPE
EXC. BRK WHL LK CONT LSPV<6PH> M10 STRAIGHT
0-92107-005-0
01
1
0911-
50
PIPE; BRK,UNION TO VLV
BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> SERVICED BY L=2720
5-47411-788-0
01
1
0911-
96
PIPE ASM; 6 WAY
8-97096-954-1
01
1
0401-0910
96
PIPE ASM; 6 WAY
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
8-97096-954-1
01
1
0911-
96
PIPE ASM; 6 WAY
8-97096-950-0
01
1
0401-0910
96
PIPE ASM; 6 WAY
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
8-97096-950-0
01
1
0911-
98
PIPE ASM; 4/6 WAY
4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH>
8-97185-055-1
01
1
0911-
98
PIPE ASM; 4/6 WAY
BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
8-97142-710-0
01
1
0911-
99
PIPE ASM; 4/5/6 WAY
4 WHEEL ANTI LOCK BRAKE<JE5>
8-97185-056-2
01
1
0911-
99
PIPE ASM; 4/5/6 WAY
8-97142-709-0
01
1
0401-0910
99
PIPE ASM; 4/5/6 WAY
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
8-97142-709-0
01
1
0911-

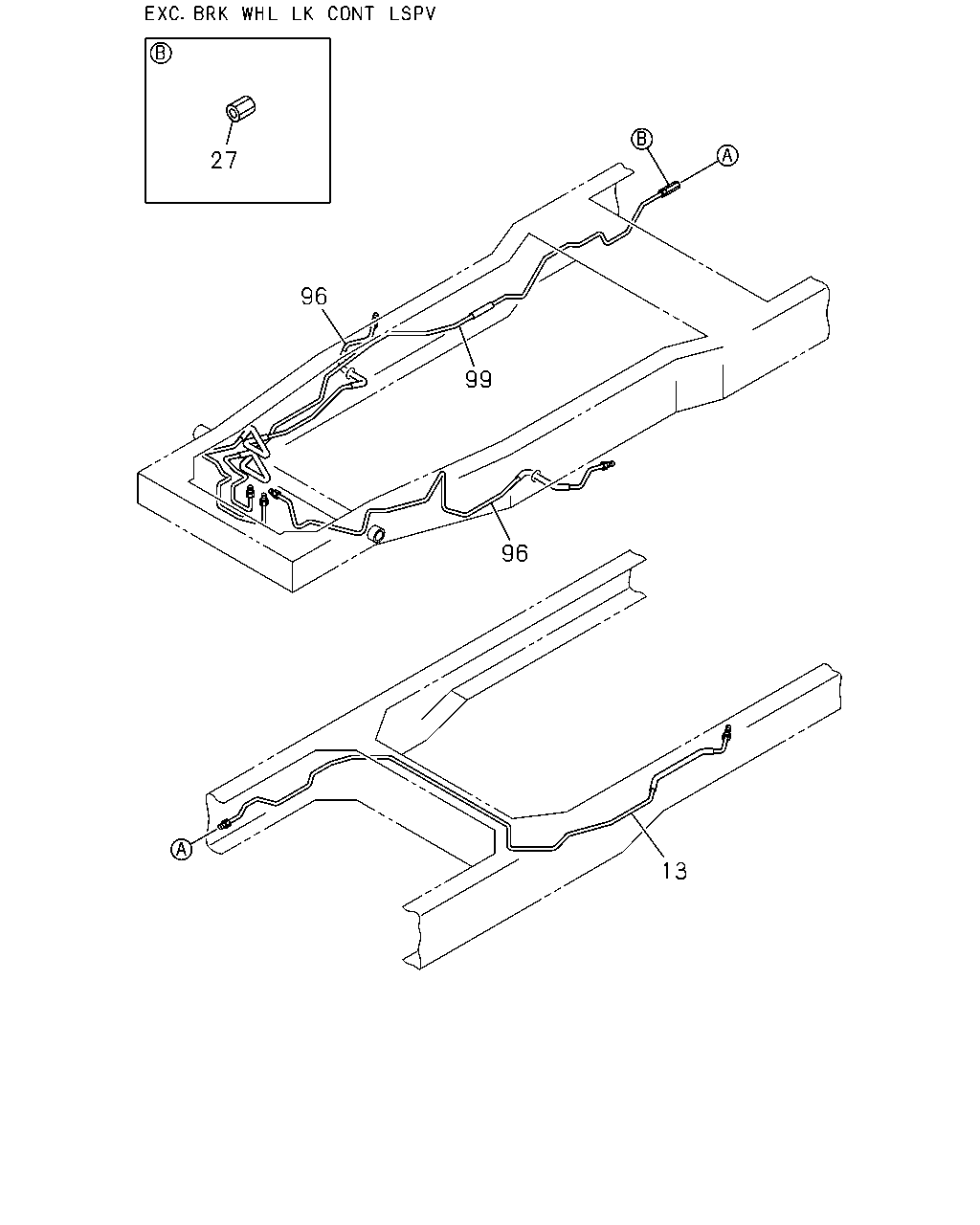

27
96
99
96
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
PIPE; OIL,UNION TO UNION
8-97205-718-0
01
1
0401-0910
13
PIPE; OIL,UNION TO UNION
EXC. BRK WHL LK CONT LSPV<6PH>
8-97205-718-0
01
1
0911-
27
UNION; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> M10 STRAIGHT
0-92107-005-0
02
1
0911-
27
UNION; BRK PIPE
BRK WHL LK CONT LSPV<6PH> M10 STRAIGHT
0-92107-005-0
02
1
0911-
27
UNION; BRK PIPE
M10 STRAIGHT
9-09227-005-0
01
1
0401-0607
27
UNION; BRK PIPE
M10 STRAIGHT
0-92107-005-0
01
1
0608-0910
27
UNION; BRK PIPE
EXC. BRK WHL LK CONT LSPV<6PH> M10 STRAIGHT
0-92107-005-0
01
1
0911-
96
PIPE ASM; 6 WAY
8-97096-954-1
01
1
0401-0910
96
PIPE ASM; 6 WAY
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
8-97096-954-1
01
1
0911-
96
PIPE ASM; 6 WAY
8-97096-950-0
01
1
0401-0910
96
PIPE ASM; 6 WAY
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
8-97096-950-0
01
1
0911-
99
PIPE ASM; 4/5/6 WAY
4 WHEEL ANTI LOCK BRAKE<JE5>
8-97185-056-2
01
1
0911-
99
PIPE ASM; 4/5/6 WAY
8-97142-709-0
01
1
0401-0910
99
PIPE ASM; 4/5/6 WAY
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
8-97142-709-0
01
1
0911-

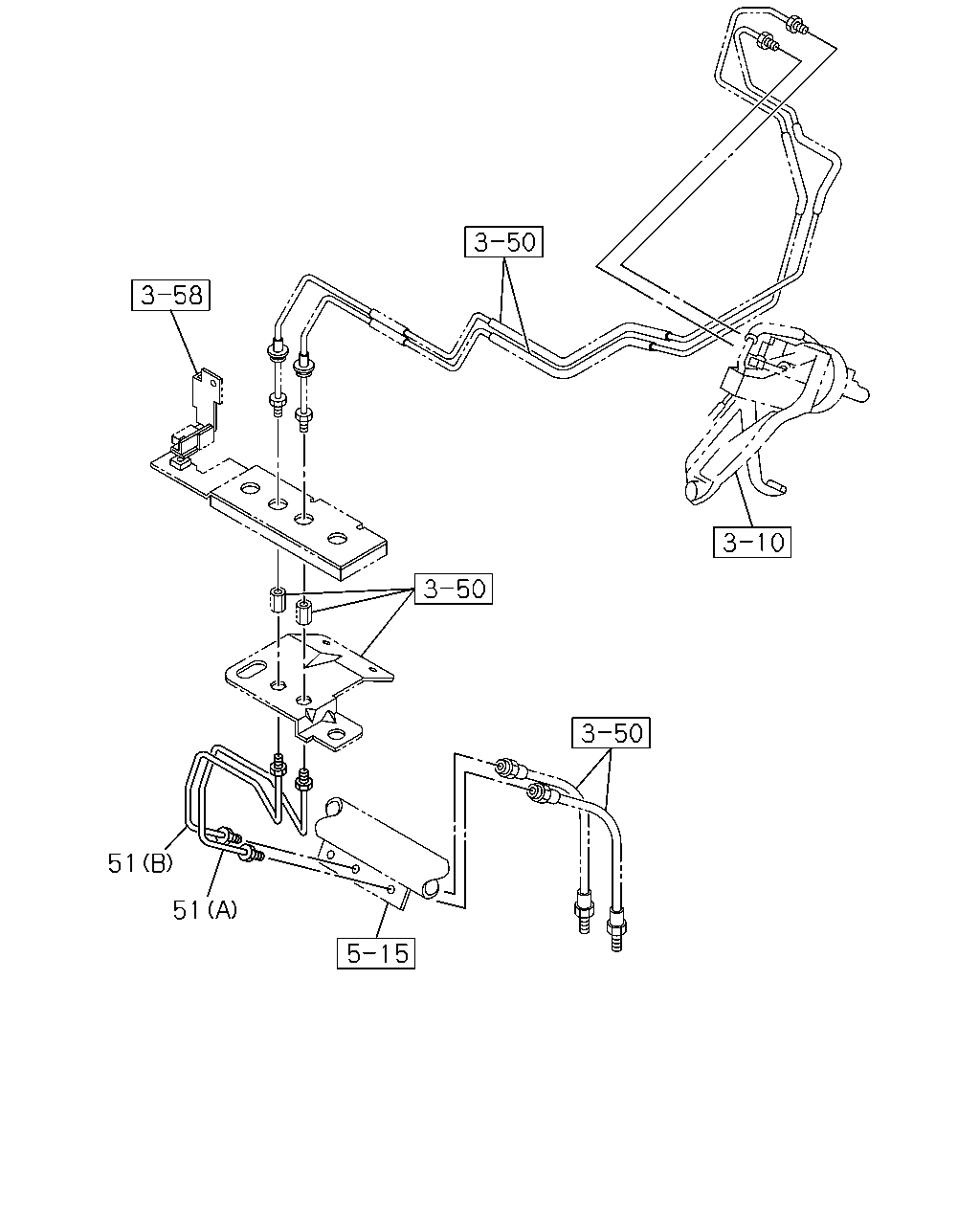

51
51
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
51
PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (C)
8-97206-804-1
01
1
0911-
51
PIPE; BRK
(A) FRONT
8-97073-076-1
01
1
0401-
51
PIPE; BRK
(B) REAR
8-97073-078-1
01
1
0401-

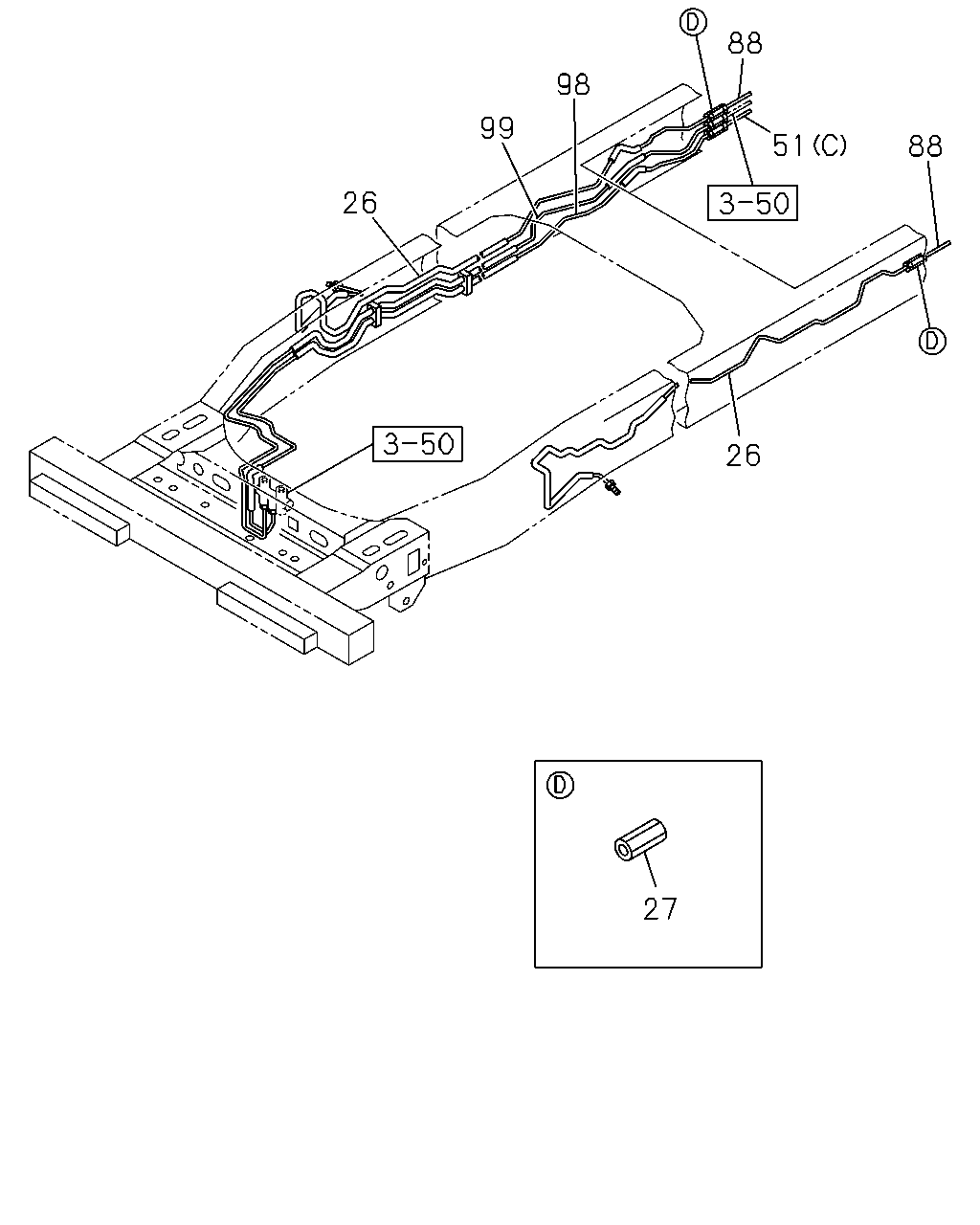

88
98
99
51
88
26
26
27
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
26
PIPE; BRK,JOINT TO 2 WAY
4 WHEEL ANTI LOCK BRAKE<JE5>
8-98009-019-0
01
1
0911-1005
26
PIPE; BRK,JOINT TO 2 WAY
4 WHEEL ANTI LOCK BRAKE<JE5>
8-98171-886-0
01
1
1006-
26
PIPE; BRK,JOINT TO 2 WAY
4 WHEEL ANTI LOCK BRAKE<JE5>
8-98009-017-0
01
1
0911-
27
UNION; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> M10 STRAIGHT
0-92107-005-0
02
1
0911-
27
UNION; BRK PIPE
BRK WHL LK CONT LSPV<6PH> M10 STRAIGHT
0-92107-005-0
02
1
0911-
27
UNION; BRK PIPE
M10 STRAIGHT
9-09227-005-0
01
1
0401-0607
27
UNION; BRK PIPE
M10 STRAIGHT
0-92107-005-0
01
1
0608-0910
27
UNION; BRK PIPE
EXC. BRK WHL LK CONT LSPV<6PH> M10 STRAIGHT
0-92107-005-0
01
1
0911-
51
PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (C)
8-97206-804-1
01
1
0911-
51
PIPE; BRK
(A) FRONT
8-97073-076-1
01
1
0401-
51
PIPE; BRK
(B) REAR
8-97073-078-1
01
1
0401-
88
PIPE; BRK,HYDRULIC UNIT TO JOINT
4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH>
8-97247-886-0
01
1
0911-
88
PIPE; BRK,HYDRULIC UNIT TO JOINT
4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH>
8-98010-950-0
01
1
0911-1001
88
PIPE; BRK,HYDRULIC UNIT TO JOINT
4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH>
8-97247-890-0
01
1
1002-
98
PIPE ASM; 4/6 WAY
4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH>
8-97185-055-1
01
1
0911-
98
PIPE ASM; 4/6 WAY
BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
8-97142-710-0
01
1
0911-
99
PIPE ASM; 4/5/6 WAY
4 WHEEL ANTI LOCK BRAKE<JE5>
8-97185-056-2
01
1
0911-
99
PIPE ASM; 4/5/6 WAY
8-97142-709-0
01
1
0401-0910
99
PIPE ASM; 4/5/6 WAY
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
8-97142-709-0
01
1
0911-
