9-30 — REAR BODY ASM AND MOUNTING (#48172) — 53 parça

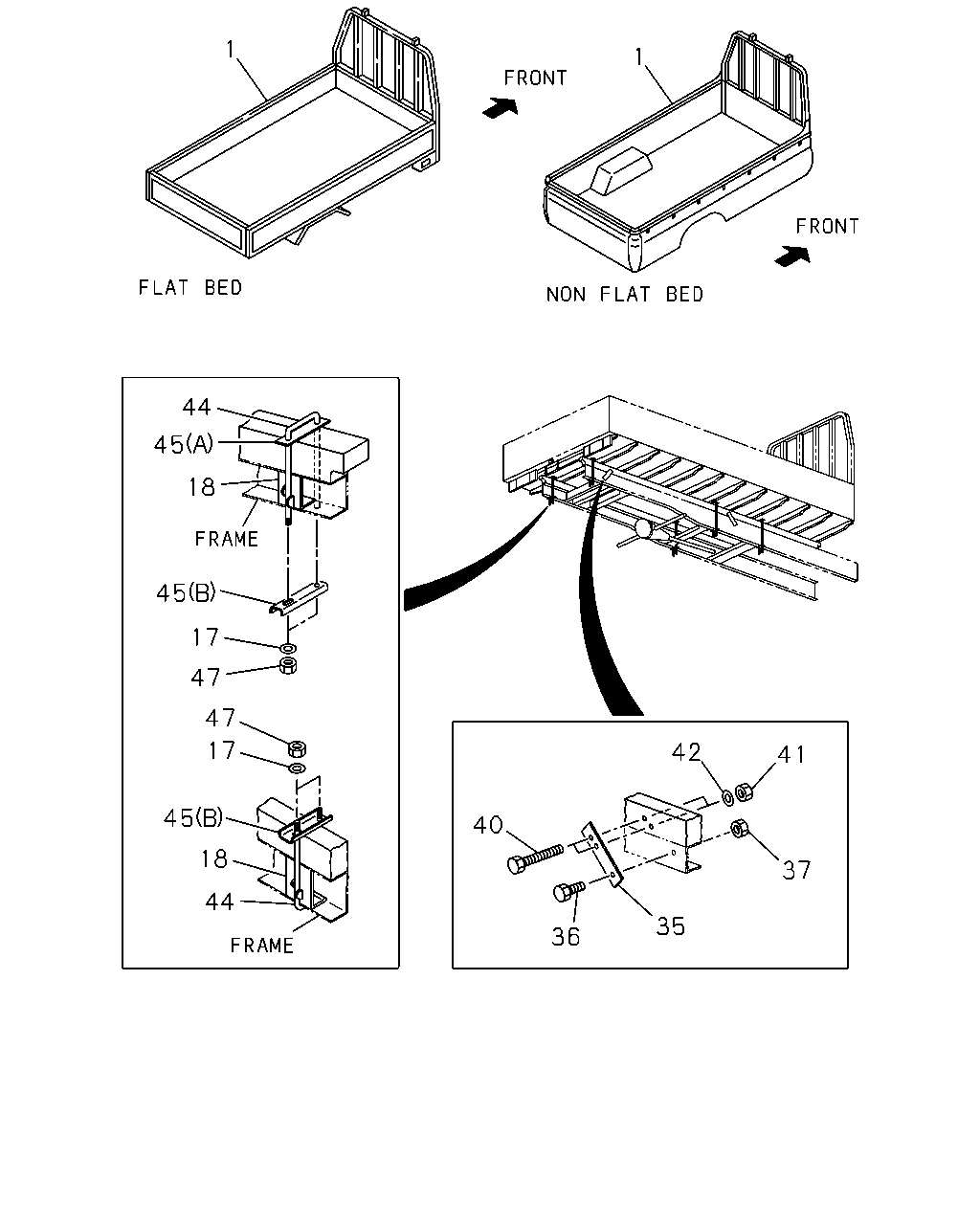

1 1 44 45 18 45 17 47 47 17 42 41 45 40 18 37 44 35 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	17.090 BODY ASM; REAR BODY COLOR ARC WHITE(729) RR BODY FLAT BED(RS6) WHITE	8-97296-844-1	01	1	0211-0501	●
1	17.090 BODY ASM; REAR BODY COLOR MARINE BLUE(890) RR BODY FLAT BED(RS6) BLUE	8-97296-845-1	01	1	0211-0501	●
1	17.090 BODY ASM; REAR BODY COLOR POLAR SILVER MET(845) RR BODY FLAT BED(RS6) SILVER	8-97297-870-1	01	1	0211-0501	●
1	17.090 BODY ASM; REAR BODY COLOR ARC WHITE(729) RR BODY NON FLAT BED(RS5) WHITE	8-97154-216-0	01	1	0211-0501		●
1	17.090 BODY ASM; REAR BODY COLOR MARINE BLUE(890) RR BODY NON FLAT BED(RS5) BLUE	8-97154-219-0	01	1	0211-0501		●
1	17.090 BODY ASM; REAR BODY COLOR FT ORANGE(609),BODY COLOR ARC WHITE(729) RR BODY FLAT BED(RS6) WHITE	8-97296-852-1	01	1	0211-0409			●
1	17.090 BODY ASM; REAR BODY COLOR FT ORANGE(609),BODY COLOR ARC WHITE(729) RR BODY FLAT BED(RS6) WHITE	8-97400-290-0	01	1	0410-0501			●
1	17.090 BODY ASM; REAR BODY COLOR MARINE BLUE(890) RR BODY FLAT BED(RS6) BLUE	8-97296-850-1	01	1	0211-0409			●
1	17.090 BODY ASM; REAR BODY COLOR MARINE BLUE(890) RR BODY FLAT BED(RS6) BLUE	8-97400-304-0	01	1	0410-0501			●
1	17.090 BODY ASM; REAR BODY COLOR POLAR SILVER MET(845) RR BODY FLAT BED(RS6) SILVER	8-97297-872-1	01	1	0211-0409			●
1	17.090 BODY ASM; REAR BODY COLOR POLAR SILVER MET(845) RR BODY FLAT BED(RS6) SILVER	8-97400-291-0	01	1	0410-0501			●
17	17.447 WASHER; PL,U-BOLT RR BODY FLAT BED(RS6) 06.172 ID=12.5	9-09164-512-0	06	1	0211-0501	●
17	17.447 WASHER; PL,U-BOLT RR BODY FLAT BED(RS6) 00.029 ID=15 OD=26	9-09164-514-0	06	1	0211-0501			●
18	17.447 REINFORCEMENT; U-BOLT RR BODY FLAT BED(RS6) H=161 B=50 D=52	5-53119-093-2	04	1	0211-0501	●
18	17.447 REINFORCEMENT; U-BOLT RR BODY FLAT BED(RS6) H=121 B=50 D=47.5	5-53119-094-2	02	1	0211-0501	●
18	17.447 REINFORCEMENT; U-BOLT RR BODY FLAT BED(RS6) H=161 B=50 D=68	5-53119-091-3	04	1	0211-0501			●
18	17.447 REINFORCEMENT; U-BOLT RR BODY FLAT BED(RS6) H=91 B=50 D=68	5-53119-092-3	02	1	0211-0501			●
35	17.447 STOPPER; RR BODY RR BODY FLAT BED(RS6) L=215	8-97100-408-0	02	1	0211-0501	●
35	17.447 STOPPER; RR BODY RR BODY FLAT BED(RS6) L=185	9-53459-602-0	02	1	0211-0501	●
35	17.447 STOPPER; RR BODY RR BODY FLAT BED(RS6) L=185	9-53459-602-0	04	1	0211-0501			●
36	17.447 BOLT; FRAME RR BODY FLAT BED(RS6) 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0211-0501	●		●
37	17.447 NUT; STOPPER TO FRAME RR BODY FLAT BED(RS6) 08.917 M10 FLANGE	0-91150-210-0	04	1	0211-0501	●		●
40	17.447 BOLT; STOPPER TO RR BODY RR BODY FLAT BED(RS6) 01.840 M8X70 FLANGE	0-28080-870-0	08	1	0211-0501	●		●
41	17.447 NUT; STOPPER TO RR BODY RR BODY FLAT BED(RS6) 03.023 M8 FLANGE	9-09130-408-0	08	1	0211-0501	●		●
42	17.447 WASHER; PL,STOPPER TO RR BODY RR BODY FLAT BED(RS6) 07.633 ID=8.4 OD=22	9-09164-708-0	08	1	0211-0501	●		●
44	17.447 U-BOLT; FRAME TO RR BODY RR BODY FLAT BED(RS6) L=326	8-94151-368-0	04	1	0211-0501	●
44	17.447 U-BOLT; FRAME TO RR BODY RR BODY FLAT BED(RS6) L=280	8-94151-372-0	02	1	0211-0501	●
44	17.447 U-BOLT; FRAME TO RR BODY RR BODY FLAT BED(RS6) L=272	5-51171-007-1	02	1	0211-0501			●
44	17.447 U-BOLT; FRAME TO RR BODY RR BODY FLAT BED(RS6) L=345	8-94317-633-0	04	1	0211-0501			●
45	17.447 PLATE; U-BOLT RR BODY FLAT BED(RS6) (B) L=115 B=40	9-61200-629-2	06	1	0211-0501	●
45	17.447 PLATE; U-BOLT 4JH1 ENG(RJX),4JB1 ENG(RLF) RR BODY FLAT BED(RS6) (A) L=100 B=30	8-94148-715-0	05	1	0211-0501	●
45	17.447 PLATE; U-BOLT RR BODY FLAT BED(RS6) (A) L=116 B=35	5-66900-203-0	06	1	0211-0501			●
45	17.447 PLATE; U-BOLT RR BODY FLAT BED(RS6) (B) L=120 B=45	5-66900-204-3	06	1	0211-0501			●
47	17.447 NUT; U-BOLT RR BODY FLAT BED(RS6) M12	9-09130-412-0	12	1	0211-0501	●
47	17.447 NUT; U-BOLT RR BODY FLAT BED(RS6) 06.008 M14	9-09130-414-0	12	1	0211-0501			●

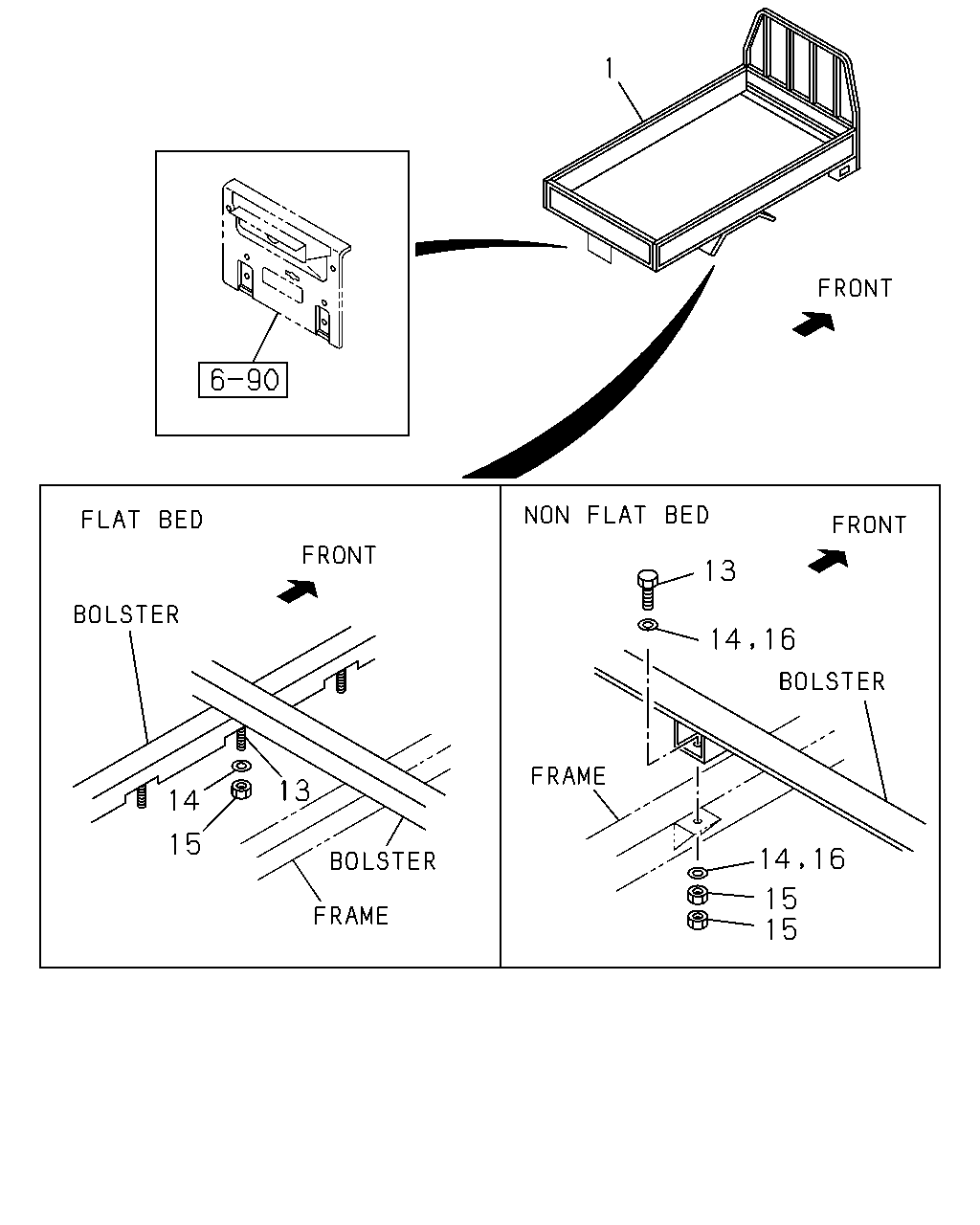

1 13 13 14 15 15 15 14 16 14 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	17.090 BODY ASM; REAR BODY COLOR ARC WHITE(729) RR BODY FLAT BED(RS6) WHITE	8-97296-844-1	01	1	0211-0501	●
1	17.090 BODY ASM; REAR BODY COLOR MARINE BLUE(890) RR BODY FLAT BED(RS6) BLUE	8-97296-845-1	01	1	0211-0501	●
1	17.090 BODY ASM; REAR BODY COLOR POLAR SILVER MET(845) RR BODY FLAT BED(RS6) SILVER	8-97297-870-1	01	1	0211-0501	●
1	17.090 BODY ASM; REAR BODY COLOR ARC WHITE(729) RR BODY NON FLAT BED(RS5) WHITE	8-97154-216-0	01	1	0211-0501		●
1	17.090 BODY ASM; REAR BODY COLOR MARINE BLUE(890) RR BODY NON FLAT BED(RS5) BLUE	8-97154-219-0	01	1	0211-0501		●
1	17.090 BODY ASM; REAR BODY COLOR FT ORANGE(609),BODY COLOR ARC WHITE(729) RR BODY FLAT BED(RS6) WHITE	8-97296-852-1	01	1	0211-0409			●
1	17.090 BODY ASM; REAR BODY COLOR FT ORANGE(609),BODY COLOR ARC WHITE(729) RR BODY FLAT BED(RS6) WHITE	8-97400-290-0	01	1	0410-0501			●
1	17.090 BODY ASM; REAR BODY COLOR MARINE BLUE(890) RR BODY FLAT BED(RS6) BLUE	8-97296-850-1	01	1	0211-0409			●
1	17.090 BODY ASM; REAR BODY COLOR MARINE BLUE(890) RR BODY FLAT BED(RS6) BLUE	8-97400-304-0	01	1	0410-0501			●
1	17.090 BODY ASM; REAR BODY COLOR POLAR SILVER MET(845) RR BODY FLAT BED(RS6) SILVER	8-97297-872-1	01	1	0211-0409			●
1	17.090 BODY ASM; REAR BODY COLOR POLAR SILVER MET(845) RR BODY FLAT BED(RS6) SILVER	8-97400-291-0	01	1	0410-0501			●
13	09.008 BOLT; RR BODY MTG RR BODY NON FLAT BED(RS5) 09.003 M12X40 FLANGE	0-28681-240-0	08	1	0211-0501		●
13	09.008 BOLT; RR BODY MTG RR BODY FLAT BED(RS6) M8X100	8-97090-620-0	02	1	0211-0501			●
14	09.011 WASHER; PL,RR BODY MTG RR BODY NON FLAT BED(RS5) 07.633 ID=12.5 OD=32	9-09164-712-0	14	1	0211-0501		●
14	09.011 WASHER; PL,RR BODY MTG RR BODY FLAT BED(RS6) 06.760 ID=8.4 OD=22	9-09160-708-0	02	1	0211-0501			●
15	09.011 NUT; RR BODY MTG RR BODY NON FLAT BED(RS5) 05.816 M12	9-99110-412-0	16	1	0211-0501		●
15	09.011 NUT; RR BODY MTG RR BODY FLAT BED(RS6) M8 W/LK WASHER	8-97065-435-0	02	1	0211-0501			●
16	09.011 WASHER; FRAME END,RR BODY RR BODY NON FLAT BED(RS5) ID=12.5 OD=26	9-09164-612-0	02	1	0211-0501		●
