Sayfa 8-90 - Isuzu EPC

8-90 — RADIO AND TV (#48170) — 206 parça

1 1 1 6 7 7 7 6 7 1 1 1 7 7 6 226 6 4 226 2 1 2 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	09.650 RADIO RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> (B) SANYO AM	8-97241-543-0	01	1	0211-0307	●	●	●	●	●
1	09.650 RADIO RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> 09.645 (B) SANYO AM	8-97241-357-0	01	1	0308-0312	●	●	●	●	●
1	09.650 RADIO RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> (C) CLARION AM-RADIO W/SPEAKER	8-97316-996-0	01	1	0401-0501	●	●	●	●	●
1	09.650 RADIO RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> (C) CLARION AM-RADIO W/SPEAKER	8-97316-996-0	01	1	0502-	●		●	●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND LATIN AMERICA<7DM> (A) CLARION AM/FM	8-97120-647-0	01	1	0211-0501	●		●	●		●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ) VOLTAGE 24V<7AE> (D) CLARION AM/FM	8-97376-745-0	01	1	0502-1201	●		●	●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ) (D) CLARION AM/FM	8-97376-745-0	01	1	0502-1201						●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ) VOLTAGE 24V<7AE> (D) CLARION AM/FM	8-98029-605-0	01	1	1202-	●		●	●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ) (D) CLARION AM/FM	8-98029-605-0	01	1	1202-						●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND ASIA<7DN> (A) CLARION AM/FM	8-97241-542-0	01	1	0211-0501	●		●	●		●
2	09.645 RADIO & CASSETTE DECK ASM RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> CLARION	1-84122-032-3	01	1	0502-	●		●	●
2	09.645 RADIO & CASSETTE DECK ASM RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) CLARION	1-84122-032-3	01	1	0502-						●
4	09.650 CASSETTE DECK; AUDIO RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> CLARION	8-97088-291-0	01	1	0211-0501	●		●	●
4	09.650 CASSETTE DECK; AUDIO RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) CLARION	8-97088-291-0	01	1	0211-0501						●
6	09.645 BRACKET; RADIO TO PANEL RADIO AM W/AMPLIFIER(RS2),RADIO AM/FMSTEREO 2 SPEAKERS(6GZ) (A)	8-97853-615-2	01	1	0211-0501	●		●	●
6	09.645 BRACKET; RADIO TO PANEL RADIO AM W/AMPLIFIER(RS2) (A)	8-97853-615-2	01	1	0211-0501		●			●
6	09.645 BRACKET; RADIO TO PANEL RADIO AM/FM STEREO 2 SPEAKERS(6GZ) (A)	8-97853-615-2	01	1	0211-0501						●
6	09.645 BRACKET; RADIO TO PANEL RADIO AM W/AMPLIFIER(RS2),RADIO AM/FMSTEREO 2 SPEAKERS(6GZ),RADIO AM/FM W /CASSETTE 2 SPEAKERS(6VL) (A)	8-97853-615-2	01	1	0502-	●		●	●
6	09.645 BRACKET; RADIO TO PANEL RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A)	8-97853-615-2	01	1	0502-						●
6	09.645 BRACKET; RADIO TO PANEL RADIO AM W/AMPLIFIER(RS2),RADIO AM/FMSTEREO 2 SPEAKERS(6GZ) (A)	8-97853-614-2	01	1	0211-0501	●		●	●
6	09.645 BRACKET; RADIO TO PANEL RADIO AM W/AMPLIFIER(RS2) (A)	8-97853-614-2	01	1	0211-0501		●			●
6	09.645 BRACKET; RADIO TO PANEL RADIO AM/FM STEREO 2 SPEAKERS(6GZ) (A)	8-97853-614-2	01	1	0211-0501						●
6	09.645 BRACKET; RADIO TO PANEL RADIO AM W/AMPLIFIER(RS2),RADIO AM/FMSTEREO 2 SPEAKERS(6GZ),RADIO AM/FM W /CASSETTE 2 SPEAKERS(6VL) (A)	8-97853-614-2	01	1	0502-	●		●	●
6	09.645 BRACKET; RADIO TO PANEL RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A)	8-97853-614-2	01	1	0502-						●
6	09.645 BRACKET; RADIO TO PANEL RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (B)	8-97859-104-1	01	1	0211-0501	●		●	●		●
6	09.645 BRACKET; RADIO TO PANEL RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (B)	8-97859-103-1	01	1	0211-0501	●		●	●		●
7	09.650 SCREW; RADIO RADIO AM W/AMPLIFIER(RS2),RADIO AM/FMSTEREO 2 SPEAKERS(6GZ) 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	0211-0501	●		●	●
7	09.650 SCREW; RADIO RADIO AM W/AMPLIFIER(RS2) 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	0211-0501		●			●
7	09.650 SCREW; RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ) 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	0211-0501						●
7	09.650 SCREW; RADIO RADIO AM W/AMPLIFIER(RS2),RADIO AM/FMSTEREO 2 SPEAKERS(6GZ),RADIO AM/FM W /CASSETTE 2 SPEAKERS(6VL) 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	0502-0604	●		●	●
7	09.650 SCREW; RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	0502-0604						●
7	09.650 SCREW; RADIO RADIO AM W/AMPLIFIER(RS2),RADIO AM/FMSTEREO 2 SPEAKERS(6GZ),RADIO AM/FM W /CASSETTE 2 SPEAKERS(6VL) 03.680 M5X10 W/LK+PL WASHER	0-36230-510-0	04	1	0605-0612	●		●	●
7	09.650 SCREW; RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 03.680 M5X10 W/LK+PL WASHER	0-36230-510-0	04	1	0605-0612						●
7	09.650 SCREW; RADIO RADIO AM W/AMPLIFIER(RS2),RADIO AM/FMSTEREO 2 SPEAKERS(6GZ),RADIO AM/FM W /CASSETTE 2 SPEAKERS(6VL) M5X7 HEXALOBULAR SOCKET	8-98063-767-0	04	1	0701-	●		●	●
7	09.650 SCREW; RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) M5X7 HEXALOBULAR SOCKET	8-98063-767-0	04	1	0701-						●
7	09.650 SCREW; RADIO RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	08	1	0211-0501	●		●	●		●
226	09.647 BOLT; BRKT RADIO AM W/AMPLIFIER(RS2),RADIO AM/FMSTEREO 2 SPEAKERS(6GZ) 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	02	1	0211-0501	●		●	●
226	09.647 BOLT; BRKT RADIO AM W/AMPLIFIER(RS2) 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	02	1	0211-0501		●			●
226	09.647 BOLT; BRKT RADIO AM/FM STEREO 2 SPEAKERS(6GZ) 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	02	1	0211-0501						●
226	09.647 BOLT; BRKT RADIO AM W/AMPLIFIER(RS2),RADIO AM/FMSTEREO 2 SPEAKERS(6GZ),RADIO AM/FM W /CASSETTE 2 SPEAKERS(6VL) 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	02	1	0502-1210	●		●	●
226	09.647 BOLT; BRKT RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	02	1	0502-1210						●
226	09.647 BOLT; BRKT RADIO AM W/AMPLIFIER(RS2),RADIO AM/FMSTEREO 2 SPEAKERS(6GZ),RADIO AM/FM W /CASSETTE 2 SPEAKERS(6VL) 02.587 M6X19.5 W/LK&PL WASHER	8-97360-226-0	02	1	1211-	●		●	●
226	09.647 BOLT; BRKT RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 02.587 M6X19.5 W/LK&PL WASHER	8-97360-226-0	02	1	1211-						●
226	09.647 BOLT; BRKT RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	04	1	0211-0501	●		●	●		●

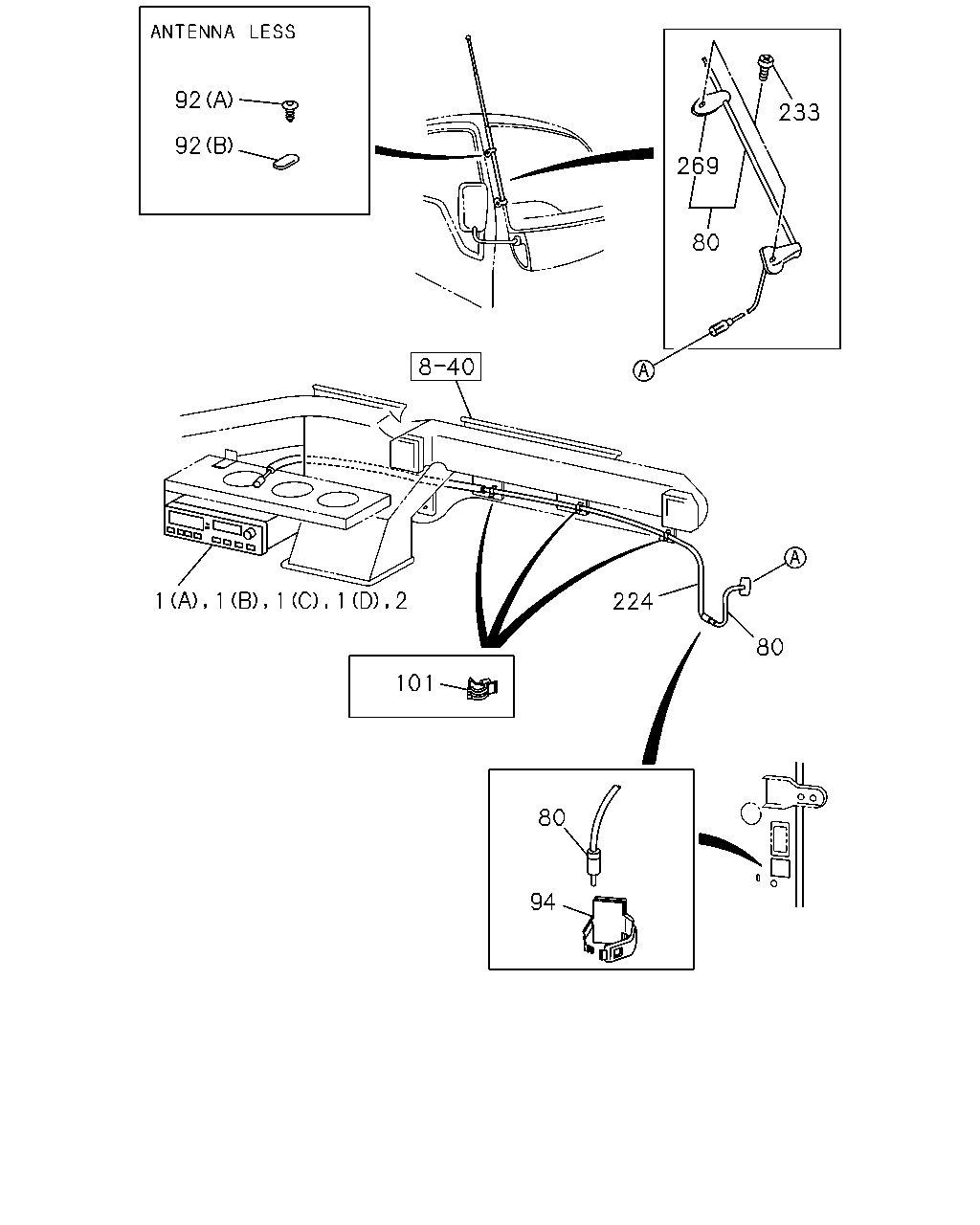

92 233 92 269 80 1 1 1 224 80 101 80 94 1 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	09.650 RADIO RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> (B) SANYO AM	8-97241-543-0	01	1	0211-0307	●	●	●	●	●
1	09.650 RADIO RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> 09.645 (B) SANYO AM	8-97241-357-0	01	1	0308-0312	●	●	●	●	●
1	09.650 RADIO RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> (C) CLARION AM-RADIO W/SPEAKER	8-97316-996-0	01	1	0401-0501	●	●	●	●	●
1	09.650 RADIO RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> (C) CLARION AM-RADIO W/SPEAKER	8-97316-996-0	01	1	0502-	●		●	●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND LATIN AMERICA<7DM> (A) CLARION AM/FM	8-97120-647-0	01	1	0211-0501	●		●	●		●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ) VOLTAGE 24V<7AE> (D) CLARION AM/FM	8-97376-745-0	01	1	0502-1201	●		●	●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ) (D) CLARION AM/FM	8-97376-745-0	01	1	0502-1201						●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ) VOLTAGE 24V<7AE> (D) CLARION AM/FM	8-98029-605-0	01	1	1202-	●		●	●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ) (D) CLARION AM/FM	8-98029-605-0	01	1	1202-						●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND ASIA<7DN> (A) CLARION AM/FM	8-97241-542-0	01	1	0211-0501	●		●	●		●
2	09.645 RADIO & CASSETTE DECK ASM RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> CLARION	1-84122-032-3	01	1	0502-	●		●	●
2	09.645 RADIO & CASSETTE DECK ASM RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) CLARION	1-84122-032-3	01	1	0502-						●
80	09.645 ANTENNA ANTENNA<U73>	8-97211-564-0	01	1	0211-0405	●	●				●
80	09.645 ANTENNA ANTENNA<U73> EXC. AUSTRALIA EQUIPMENT(RR3)	8-97211-564-0	01	1	0211-0405			●	●	●
80	09.645 ANTENNA ANTENNA<U73>	8-97211-564-0	01	1	0406-0501	●	●	●	●	●	●
80	09.645 ANTENNA ANTENNA<U73>	8-97211-564-0	01	1	0502-	●		●	●		●
80	09.645 ANTENNA	8-97211-564-0	01	1	0502-					●
80	09.645 ANTENNA AUSTRALIA EQUIPMENT(RR3) ANTENNA<U73>	8-97210-546-0	01	1	0211-0405			●	●	●
92	09.647 COVER; HOLE,ANTENNA EXC. ANTENNA<U73> 16.069 (A) OD=12 L=14.8	8-94279-921-0	01	1	0211-0501	●	●	●	●	●	●
92	09.647 COVER; HOLE,ANTENNA EXC. ANTENNA<U73> 16.069 (A) OD=12 L=14.8	8-94279-921-0	01	1	0502-	●		●	●		●
92	09.647 COVER; HOLE,ANTENNA EXC. ANTENNA<U73> (B)	8-97088-275-2	01	1	0211-0501	●	●	●	●	●	●
92	09.647 COVER; HOLE,ANTENNA EXC. ANTENNA<U73> (B)	8-97088-275-3	01	1	0502-	●		●	●		●
94	09.656 CLIP; ANTENNA FEEDER ANTENNA<U73>	1-09987-155-1	01	1	0211-0501	●	●	●	●	●	●
94	09.656 CLIP; ANTENNA FEEDER ANTENNA<U73>	1-09987-155-3	01	1	0502-	●		●	●		●
94	09.656 CLIP; ANTENNA FEEDER	1-09987-155-3	01	1	0502-					●
101	09.649 CLIP; FEEDER TO BRKT ANTENNA<U73> 04.342 ID=7	5-09707-053-0	03	1	0211-0501	●	●				●
101	09.649 CLIP; FEEDER TO BRKT ANTENNA<U73> EXC. REMOTE CONT DOOR LOCK<6NF> 04.342 ID=7	5-09707-053-0	03	1	0211-0501			●	●	●
101	09.649 CLIP; FEEDER TO BRKT ANTENNA<U73> 04.342 ID=7	5-09707-053-0	03	1	0502-	●					●
101	09.649 CLIP; FEEDER TO BRKT ANTENNA<U73> EXC. REMOTE CONT DOOR LOCK<6NF> 04.342 ID=7	5-09707-053-0	03	1	0502-			●	●
101	09.649 CLIP; FEEDER TO BRKT ANTENNA<U73> REMOTE CONT DOOR LOCK<6NF> 04.342 ID=7	5-09707-053-0	02	1	0211-0501			●	●	●
101	09.649 CLIP; FEEDER TO BRKT ANTENNA<U73> REMOTE CONT DOOR LOCK<6NF> 04.342 ID=7	5-09707-053-0	02	1	0502-			●	●
101	09.649 CLIP; FEEDER TO BRKT 04.342 ID=7	5-09707-053-0	02	1	0502-					●
224	09.647 CABLE; EXT,FEEDER ANTENNA<U73>	8-97213-766-0	01	1	0211-0501	●	●				●
224	09.647 CABLE; EXT,FEEDER ANTENNA<U73> EXC. REMOTE CONT DOOR LOCK<6NF>	8-97213-766-0	01	1	0211-0501			●	●	●
224	09.647 CABLE; EXT,FEEDER ANTENNA<U73>	8-97213-766-0	01	1	0502-	●					●
224	09.647 CABLE; EXT,FEEDER ANTENNA<U73> EXC. REMOTE CONT DOOR LOCK<6NF>	8-97213-766-0	01	1	0502-			●	●
233	09.647 SCREW ANTENNA<U73> M6X20	8-97120-686-0	01	1	0211-0501	●	●	●	●	●	●
233	09.647 SCREW ANTENNA<U73> M6X20	8-97120-686-0	01	1	0502-	●		●	●		●
233	09.647 SCREW M6X20	8-97120-686-0	01	1	0502-					●
233	09.647 SCREW ANTENNA<U73> M6X16	8-97123-696-0	01	1	0211-0501	●	●	●	●	●	●
233	09.647 SCREW ANTENNA<U73> M6X16	8-97123-696-0	01	1	0502-	●		●	●		●
233	09.647 SCREW M6X16	8-97123-696-0	01	1	0502-					●
269	09.647 SUPPORT KIT; ANTENNA ANTENNA<U73>	8-97219-079-0	01	1	0211-0405	●	●				●
269	09.647 SUPPORT KIT; ANTENNA ANTENNA<U73> EXC. AUSTRALIA EQUIPMENT(RR3)	8-97219-079-0	01	1	0211-0405			●	●	●
269	09.647 SUPPORT KIT; ANTENNA ANTENNA<U73>	8-97219-079-0	01	1	0406-0501	●	●	●	●	●	●
269	09.647 SUPPORT KIT; ANTENNA ANTENNA<U73>	8-97219-079-0	01	1	0502-	●		●	●		●
269	09.647 SUPPORT KIT; ANTENNA	8-97219-079-0	01	1	0502-					●
269	09.647 SUPPORT KIT; ANTENNA AUSTRALIA EQUIPMENT(RR3) ANTENNA<U73>	8-97108-183-0	01	1	0211-0405			●	●	●

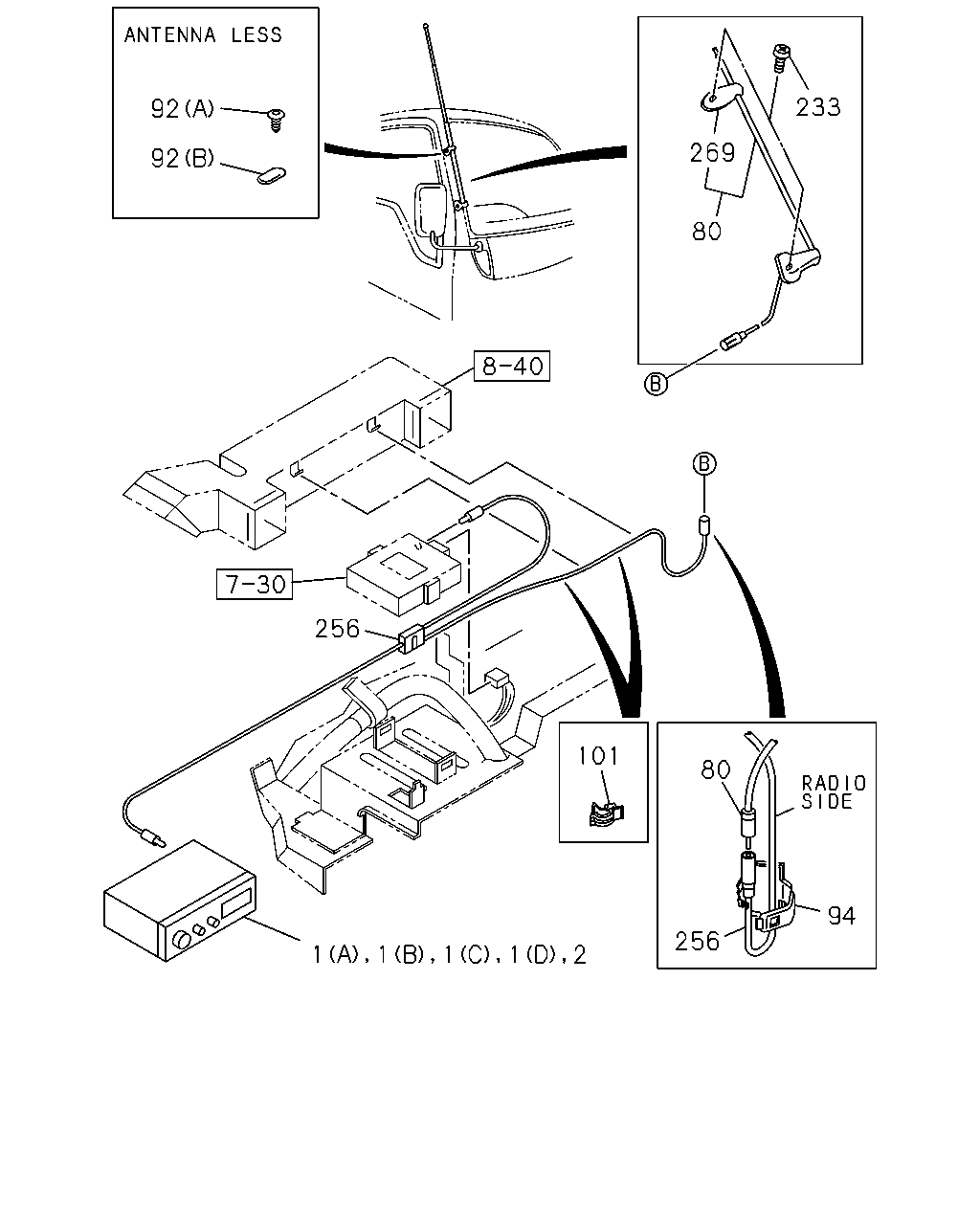

233 92 269 92 80 256 101 80 94 256 1 1 1 1 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	09.650 RADIO RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> (B) SANYO AM	8-97241-543-0	01	1	0211-0307	●	●	●	●	●
1	09.650 RADIO RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> 09.645 (B) SANYO AM	8-97241-357-0	01	1	0308-0312	●	●	●	●	●
1	09.650 RADIO RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> (C) CLARION AM-RADIO W/SPEAKER	8-97316-996-0	01	1	0401-0501	●	●	●	●	●
1	09.650 RADIO RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> (C) CLARION AM-RADIO W/SPEAKER	8-97316-996-0	01	1	0502-	●		●	●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND LATIN AMERICA<7DM> (A) CLARION AM/FM	8-97120-647-0	01	1	0211-0501	●		●	●		●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ) VOLTAGE 24V<7AE> (D) CLARION AM/FM	8-97376-745-0	01	1	0502-1201	●		●	●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ) (D) CLARION AM/FM	8-97376-745-0	01	1	0502-1201						●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ) VOLTAGE 24V<7AE> (D) CLARION AM/FM	8-98029-605-0	01	1	1202-	●		●	●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ) (D) CLARION AM/FM	8-98029-605-0	01	1	1202-						●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND ASIA<7DN> (A) CLARION AM/FM	8-97241-542-0	01	1	0211-0501	●		●	●		●
2	09.645 RADIO & CASSETTE DECK ASM RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> CLARION	1-84122-032-3	01	1	0502-	●		●	●
2	09.645 RADIO & CASSETTE DECK ASM RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) CLARION	1-84122-032-3	01	1	0502-						●
80	09.645 ANTENNA ANTENNA<U73>	8-97211-564-0	01	1	0211-0405	●	●				●
80	09.645 ANTENNA ANTENNA<U73> EXC. AUSTRALIA EQUIPMENT(RR3)	8-97211-564-0	01	1	0211-0405			●	●	●
80	09.645 ANTENNA ANTENNA<U73>	8-97211-564-0	01	1	0406-0501	●	●	●	●	●	●
80	09.645 ANTENNA ANTENNA<U73>	8-97211-564-0	01	1	0502-	●		●	●		●
80	09.645 ANTENNA	8-97211-564-0	01	1	0502-					●
80	09.645 ANTENNA AUSTRALIA EQUIPMENT(RR3) ANTENNA<U73>	8-97210-546-0	01	1	0211-0405			●	●	●
92	09.647 COVER; HOLE,ANTENNA EXC. ANTENNA<U73> 16.069 (A) OD=12 L=14.8	8-94279-921-0	01	1	0211-0501	●	●	●	●	●	●
92	09.647 COVER; HOLE,ANTENNA EXC. ANTENNA<U73> 16.069 (A) OD=12 L=14.8	8-94279-921-0	01	1	0502-	●		●	●		●
92	09.647 COVER; HOLE,ANTENNA EXC. ANTENNA<U73> (B)	8-97088-275-2	01	1	0211-0501	●	●	●	●	●	●
92	09.647 COVER; HOLE,ANTENNA EXC. ANTENNA<U73> (B)	8-97088-275-3	01	1	0502-	●		●	●		●
94	09.656 CLIP; ANTENNA FEEDER ANTENNA<U73>	1-09987-155-1	01	1	0211-0501	●	●	●	●	●	●
94	09.656 CLIP; ANTENNA FEEDER ANTENNA<U73>	1-09987-155-3	01	1	0502-	●		●	●		●
94	09.656 CLIP; ANTENNA FEEDER	1-09987-155-3	01	1	0502-					●
101	09.649 CLIP; FEEDER TO BRKT ANTENNA<U73> 04.342 ID=7	5-09707-053-0	03	1	0211-0501	●	●				●
101	09.649 CLIP; FEEDER TO BRKT ANTENNA<U73> EXC. REMOTE CONT DOOR LOCK<6NF> 04.342 ID=7	5-09707-053-0	03	1	0211-0501			●	●	●
101	09.649 CLIP; FEEDER TO BRKT ANTENNA<U73> 04.342 ID=7	5-09707-053-0	03	1	0502-	●					●
101	09.649 CLIP; FEEDER TO BRKT ANTENNA<U73> EXC. REMOTE CONT DOOR LOCK<6NF> 04.342 ID=7	5-09707-053-0	03	1	0502-			●	●
101	09.649 CLIP; FEEDER TO BRKT ANTENNA<U73> REMOTE CONT DOOR LOCK<6NF> 04.342 ID=7	5-09707-053-0	02	1	0211-0501			●	●	●
101	09.649 CLIP; FEEDER TO BRKT ANTENNA<U73> REMOTE CONT DOOR LOCK<6NF> 04.342 ID=7	5-09707-053-0	02	1	0502-			●	●
101	09.649 CLIP; FEEDER TO BRKT 04.342 ID=7	5-09707-053-0	02	1	0502-					●
233	09.647 SCREW ANTENNA<U73> M6X20	8-97120-686-0	01	1	0211-0501	●	●	●	●	●	●
233	09.647 SCREW ANTENNA<U73> M6X20	8-97120-686-0	01	1	0502-	●		●	●		●
233	09.647 SCREW M6X20	8-97120-686-0	01	1	0502-					●
233	09.647 SCREW ANTENNA<U73> M6X16	8-97123-696-0	01	1	0211-0501	●	●	●	●	●	●
233	09.647 SCREW ANTENNA<U73> M6X16	8-97123-696-0	01	1	0502-	●		●	●		●
233	09.647 SCREW M6X16	8-97123-696-0	01	1	0502-					●
256	09.647 DISTRIBUTOR UNIT; FEEDER REMOTE CONT DOOR LOCK<6NF>	8-97256-812-0	01	1	0211-0501			●	●	●
256	09.647 DISTRIBUTOR UNIT; FEEDER REMOTE CONT DOOR LOCK<6NF>	8-97256-812-0	01	1	0502-			●	●
256	09.647 DISTRIBUTOR UNIT; FEEDER	8-97256-812-0	01	1	0502-					●
269	09.647 SUPPORT KIT; ANTENNA ANTENNA<U73>	8-97219-079-0	01	1	0211-0405	●	●				●
269	09.647 SUPPORT KIT; ANTENNA ANTENNA<U73> EXC. AUSTRALIA EQUIPMENT(RR3)	8-97219-079-0	01	1	0211-0405			●	●	●
269	09.647 SUPPORT KIT; ANTENNA ANTENNA<U73>	8-97219-079-0	01	1	0406-0501	●	●	●	●	●	●
269	09.647 SUPPORT KIT; ANTENNA ANTENNA<U73>	8-97219-079-0	01	1	0502-	●		●	●		●
269	09.647 SUPPORT KIT; ANTENNA	8-97219-079-0	01	1	0502-					●
269	09.647 SUPPORT KIT; ANTENNA AUSTRALIA EQUIPMENT(RR3) ANTENNA<U73>	8-97108-183-0	01	1	0211-0405			●	●	●

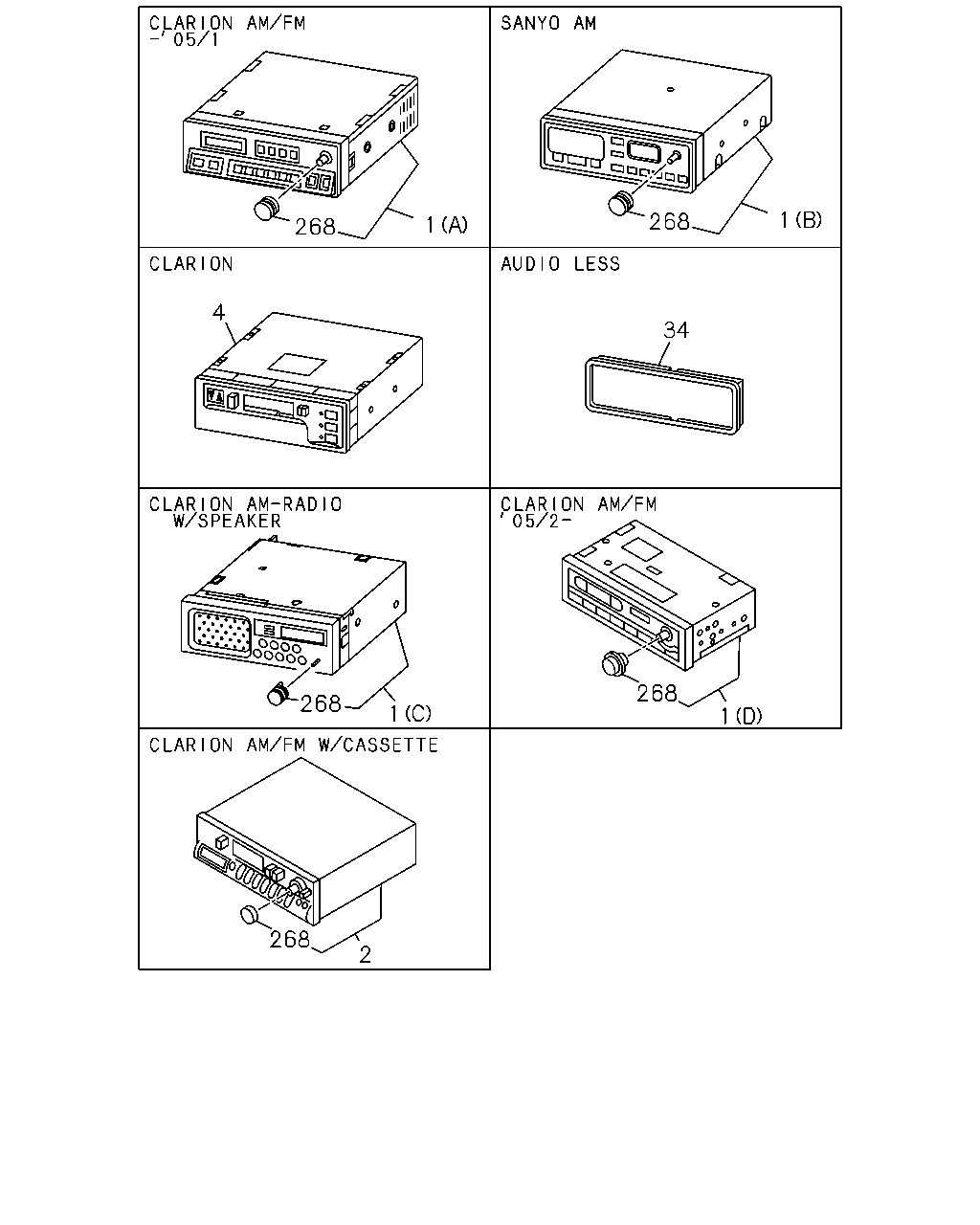

1 268 1 268 4 34 268 268 1 1 268 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	09.650 RADIO RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> (B) SANYO AM	8-97241-543-0	01	1	0211-0307	●	●	●	●	●
1	09.650 RADIO RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> 09.645 (B) SANYO AM	8-97241-357-0	01	1	0308-0312	●	●	●	●	●
1	09.650 RADIO RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> (C) CLARION AM-RADIO W/SPEAKER	8-97316-996-0	01	1	0401-0501	●	●	●	●	●
1	09.650 RADIO RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> (C) CLARION AM-RADIO W/SPEAKER	8-97316-996-0	01	1	0502-	●		●	●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND LATIN AMERICA<7DM> (A) CLARION AM/FM	8-97120-647-0	01	1	0211-0501	●		●	●		●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ) VOLTAGE 24V<7AE> (D) CLARION AM/FM	8-97376-745-0	01	1	0502-1201	●		●	●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ) (D) CLARION AM/FM	8-97376-745-0	01	1	0502-1201						●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ) VOLTAGE 24V<7AE> (D) CLARION AM/FM	8-98029-605-0	01	1	1202-	●		●	●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ) (D) CLARION AM/FM	8-98029-605-0	01	1	1202-						●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND ASIA<7DN> (A) CLARION AM/FM	8-97241-542-0	01	1	0211-0501	●		●	●		●
2	09.645 RADIO & CASSETTE DECK ASM RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> CLARION	1-84122-032-3	01	1	0502-	●		●	●
2	09.645 RADIO & CASSETTE DECK ASM RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) CLARION	1-84122-032-3	01	1	0502-						●
4	09.650 CASSETTE DECK; AUDIO RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> CLARION	8-97088-291-0	01	1	0211-0501	●		●	●
4	09.650 CASSETTE DECK; AUDIO RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) CLARION	8-97088-291-0	01	1	0211-0501						●
34	09.650 COVER; RADIO HOLE EXC. RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL)	8-97856-203-3	01	1	0211-0501	●		●	●
34	09.650 COVER; RADIO HOLE EXC. RADIO AM W/AMPLIFIER(RS2)	8-97856-203-3	01	1	0211-0501		●			●
34	09.650 COVER; RADIO HOLE EXC. RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL)	8-97856-203-3	01	1	0211-0501						●
34	09.650 COVER; RADIO HOLE EXC. RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL)	8-97856-203-3	01	1	0502-	●		●	●
34	09.650 COVER; RADIO HOLE EXC. RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL)	8-97856-203-3	01	1	0502-						●
34	09.650 COVER; RADIO HOLE	8-97856-203-3	01	1	0502-					●
268	09.649 KNOB; VOL RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> SANYO	8-97093-557-0	01	1	0211-0312	●	●	●	●	●
268	09.649 KNOB; VOL RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> CLARION	8-97331-589-0	01	1	0401-0501	●	●	●	●	●
268	09.649 KNOB; VOL RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> CLARION	8-97331-589-0	01	1	0502-	●		●	●
268	09.649 KNOB; VOL RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE>	8-97386-201-0	01	1	0502-	●		●	●
268	09.649 KNOB; VOL RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL)	8-97386-201-0	01	1	0502-						●
268	09.649 KNOB; VOL RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND LATIN AMERICA<7DM>,TUNER BAND ASIA<7DN> CLARION	8-97093-559-0	01	1	0211-0501	●		●	●		●
268	09.649 KNOB; VOL RADIO AM/FM STEREO 2 SPEAKERS(6GZ) VOLTAGE 24V<7AE> CLARION	8-97375-820-0	01	1	0502-	●		●	●
268	09.649 KNOB; VOL RADIO AM/FM STEREO 2 SPEAKERS(6GZ) CLARION	8-97375-820-0	01	1	0502-						●

222 116 222 171 222 5 117 48 221 221 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
5	09.647 HARNESS; EXT ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2)	8-97131-327-0	02	1	0211-0501	●	●	●	●	●
5	09.647 HARNESS; EXT ANTENNA<U73>	8-97131-327-0	02	1	0211-0501						●
5	09.647 HARNESS; EXT ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2)	8-97131-327-0	02	1	0502-	●		●	●	●	●
48	09.650 SPEAKER; AUDIO ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2), VOLTAGE 24V<7AE>	8-97317-000-0	02	1	0211-0501	●		●	●
48	09.650 SPEAKER; AUDIO ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2)	8-97317-000-0	02	1	0211-0501		●			●
48	09.650 SPEAKER; AUDIO ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2), VOLTAGE 24V<7AE>	8-97317-000-0	02	1	0502-0805	●		●	●
48	09.650 SPEAKER; AUDIO	8-97317-000-0	02	1	0502-0805					●
48	09.650 SPEAKER; AUDIO ANTENNA<U73> VOLTAGE 24V<7AE> EXC. RADIO AM W/AMPLIFIER(RS2)	8-97317-001-0	02	1	0211-0805	●		●	●
48	09.650 SPEAKER; AUDIO ANTENNA<U73>	8-97317-001-0	02	1	0211-0805						●
48	09.650 SPEAKER; AUDIO ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2)	8-97317-001-1	02	1	0806-	●		●	●	●	●
49	09.655 SCREW; SPEAKER ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 16.067 M5X14	8-94279-325-0	06	1	0211-0501	●	●	●	●	●
49	09.655 SCREW; SPEAKER ANTENNA<U73> 16.067 M5X14	8-94279-325-0	06	1	0211-0501						●
49	09.655 SCREW; SPEAKER ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 16.067 M5X14	8-94279-325-0	06	1	0502-0612	●		●	●	●	●
49	09.655 SCREW; SPEAKER ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) M5X14 TAPPING W/TORQUES	8-98061-856-0	06	1	0701-	●		●	●	●	●
116	16.165 PANEL; SPEAKER,FRT DOOR ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2)	8-97852-325-3	01	1	0211-0501	●	●	●	●	●
116	16.165 PANEL; SPEAKER,FRT DOOR ANTENNA<U73>	8-97852-325-3	01	1	0211-0501						●
116	16.165 PANEL; SPEAKER,FRT DOOR ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2)	8-97852-325-3	01	1	0502-	●		●	●	●	●
116	16.165 PANEL; SPEAKER,FRT DOOR ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2)	8-97852-324-3	01	1	0211-0501	●	●	●	●	●
116	16.165 PANEL; SPEAKER,FRT DOOR ANTENNA<U73>	8-97852-324-3	01	1	0211-0501						●
116	16.165 PANEL; SPEAKER,FRT DOOR ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2)	8-97852-324-3	01	1	0502-	●		●	●	●	●
117	16.165 SCREW; SPEAKER PANEL ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 16.067 M5X14	8-94279-325-0	06	1	0211-0501	●	●	●	●	●
117	16.165 SCREW; SPEAKER PANEL ANTENNA<U73> 16.067 M5X14	8-94279-325-0	06	1	0211-0501						●
117	16.165 SCREW; SPEAKER PANEL ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 16.067 M5X14	8-94279-325-0	06	1	0502-0612	●		●	●	●	●
117	16.165 SCREW; SPEAKER PANEL ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 16.570 M5X16 TAPPING HEXALOBULAR	0-72380-516-0	06	1	0701-	●		●	●	●	●
171	09.650 COVER; SPEAKER ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2)	8-97852-331-4	02	1	0211-0501	●	●	●	●	●
171	09.650 COVER; SPEAKER ANTENNA<U73>	8-97852-331-4	02	1	0211-0501						●
171	09.650 COVER; SPEAKER ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2)	8-97852-331-4	02	1	0502-	●		●	●	●	●
221	16.165 SEAL; SPEAKER PANEL ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) (A)	8-97852-327-5	02	1	0211-0501	●	●	●	●	●
221	16.165 SEAL; SPEAKER PANEL ANTENNA<U73> (A)	8-97852-327-5	02	1	0211-0501						●
221	16.165 SEAL; SPEAKER PANEL ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) (A)	8-97852-327-5	02	1	0502-	●		●	●	●	●
221	16.165 SEAL; SPEAKER PANEL ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) (B)	8-97852-601-2	02	1	0211-0501	●	●	●	●	●
221	16.165 SEAL; SPEAKER PANEL ANTENNA<U73> (B)	8-97852-601-2	02	1	0211-0501						●
221	16.165 SEAL; SPEAKER PANEL ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) (B)	8-97852-601-2	02	1	0502-	●		●	●	●	●
222	16.165 GROMMET; SCREW,SPEAKER PANEL ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 09.264 (A)	1-09987-144-0	02	1	0211-0501	●	●	●	●	●
222	16.165 GROMMET; SCREW,SPEAKER PANEL ANTENNA<U73> 09.264 (A)	1-09987-144-0	02	1	0211-0501						●
222	16.165 GROMMET; SCREW,SPEAKER PANEL ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 09.264 (A)	1-09987-144-0	02	1	0502-	●		●	●	●	●
222	16.165 GROMMET; SCREW,SPEAKER PANEL ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 01.269 (B) D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0211-0501	●	●	●	●	●
222	16.165 GROMMET; SCREW,SPEAKER PANEL ANTENNA<U73> 01.269 (B) D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0211-0501						●
222	16.165 GROMMET; SCREW,SPEAKER PANEL ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 01.269 (B) D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0502-	●		●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
