Sayfa 2-20A - Isuzu EPC

2-20A — MANUAL TRANSMISSION ASM AND CASE (#4817) — 287 parça

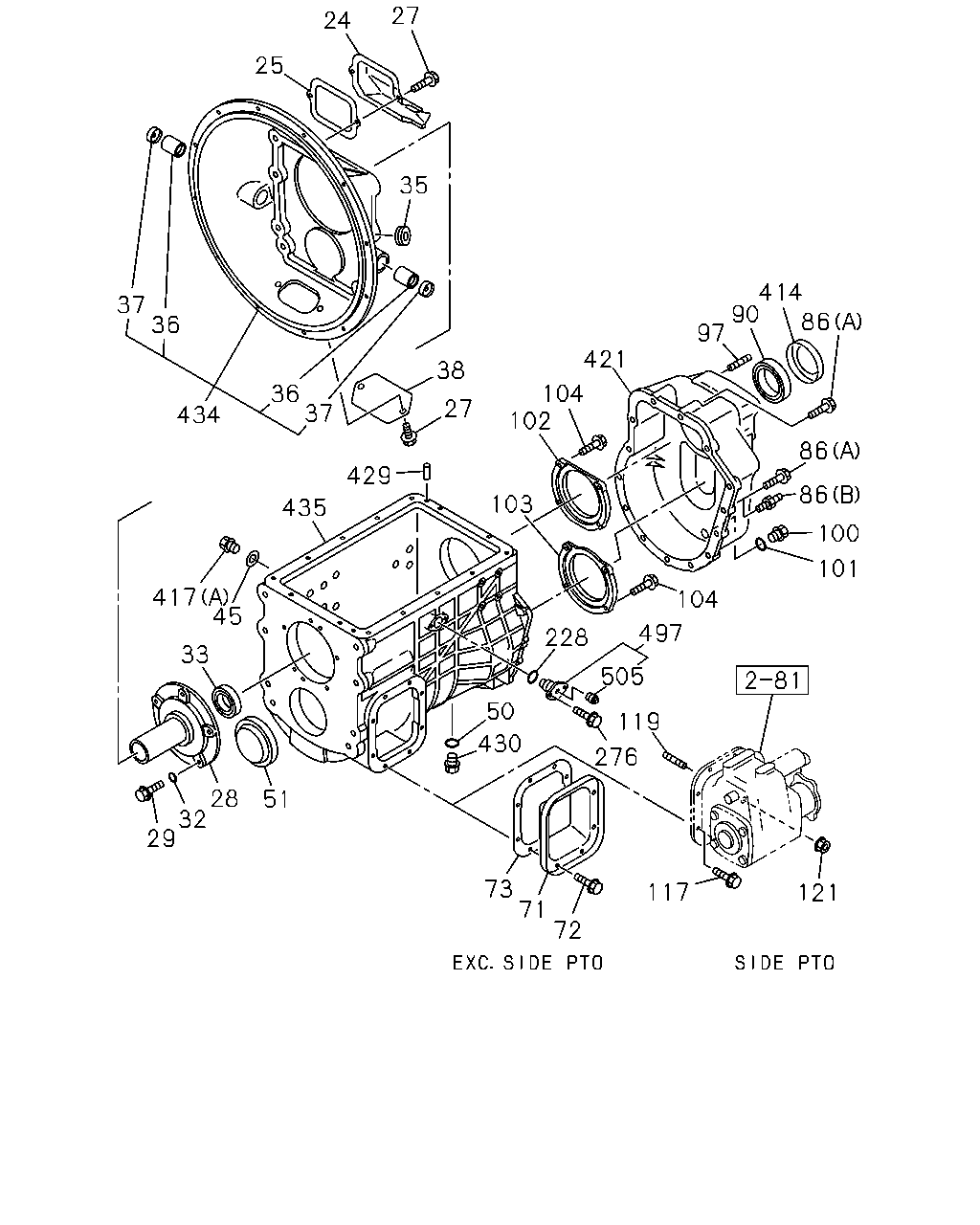

27 24 25 35 414 90 86 97 37 36 421 38 104 102 36 37 27 434 86 429 86 103 435 100 101 417 45 104 497 228 33 505 50 119 430 276 28 32 29 51 73 71 117 121 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	9601-0004	●	●
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	0005-	●	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	9601-0004	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	0005-	●	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	04	1	9601-0004	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	04	1	0005-0104	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	04	1	0105-	●	●	●
28	COVER; FRT,TRANS CASE	1-33121-063-2	01	1	9601-	●	●
28	COVER; FRT,TRANS CASE	1-33121-115-2	01	1	0005-0007			●
28	COVER; FRT,TRANS CASE	1-33121-161-1	01	1	0008-			●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	05	1	9601-	●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	06	1	0005-			●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	05	1	9601-	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	06	1	0005-			●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-562-0	01	1	9601-0004	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-562-0	01	1	0005-	●	●	●
35	GROMMET; CLU HSG	9-09575-796-0	01	1	9601-0004	●	●
35	GROMMET; CLU HSG	9-09575-796-0	01	1	0005-	●	●	●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	9601-0004	●	●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	0005-	●	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	9601-0004	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	0005-	●	●	●
38	COVER; CHECK HOLE,LWR	1-31131-003-0	01	1	9601-	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9601-0004	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0005-	●	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9601-0004	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0005-	●	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-055-1	01	1	9601-9707	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-195-1	01	1	9708-	●	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-030-1	01	1	9601-	●	●
71	COVER; SIDE,TRANS CASE	1-33141-044-1	01	1	0005-			●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28181-016-0	08	1	9601-	●	●
72	BOLT; SIDE COVER M12X20 FLANGE	0-28181-220-0	08	1	0005-			●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-043-0	01	1	9601-	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-041-0	01	1	0005-			●
86	BOLT; RR COVER (A) M17X35	1-09044-076-0	10	1	9601-		●
86	BOLT; RR COVER (A) M17X35	1-09044-076-0	09	1	9601-	●
86	BOLT; RR COVER (A) M12X65	1-09044-077-0	02	1	9601-0011	●
86	BOLT; RR COVER (A) M12X65 FLANGE	1-09044-113-0	02	1	0012-	●
86	BOLT; RR COVER (B) M10X16,M12X30 L=57.7	1-09049-018-0	03	1	9601-	●
86	BOLT; RR COVER (C) M12X30 FLANGE	0-28181-230-0	14	1	0005-			●
86	BOLT; RR COVER (D) M10X16,M12X30 L=57.7	1-09049-018-0	02	1	0005-			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-577-1	01	1	9601-0004	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-577-1	01	1	0005-	●	●	●
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	9601-0004	●	●
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	0005-	●	●	●
100	PLUG; DRAIN RR COVER M24X17 FLANGE	1-09604-023-0	01	1	9601-	●
101	GASKET; DRAIN RR COVER ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9601-	●
102	RETAINER; BRG UPR,MAINSHAFT	1-33151-035-1	01	1	9601-	●
103	RETAINER; BRG	1-33151-035-1	01	1	9601-	●
103	RETAINER; BRG	1-33151-052-0	01	1	0005-0101			●
103	RETAINER; BRG	1-33151-059-0	01	1	0102-			●
104	BOLT; BRG RET M10X25	1-09049-006-1	08	1	9601-	●
104	BOLT; BRG RET M10X30 FLANGE	0-28181-030-0	01	1	0005-			●
104	BOLT; BRG RET M10X38 FLANGE	1-09049-029-1	07	1	0005-			●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X22 FLANGE	0-28181-022-0	04	1	9601-	●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X50 FLANGE	0-28181-050-0	02	1	9601-	●	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	9-04411-025-0	02	1	9601-	●	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91150-210-0	02	1	9601-	●	●
228	GASKET; NOZZLE ID=24.4	1-09623-183-0	01	1	9601-9904	●	●
228	GASKET; NOZZLE ID=24.4	1-09623-057-0	01	1	9905-	●	●
276	BOLT; ADAPTER M14X20	1-09044-078-0	02	1	9601-	●	●
414	COVER; DUST,RR COVER	1-33139-011-1	01	1	9601-	●	●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-022-0	01	1	9601-9802	●	●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-064-1	01	1	9803-0004	●	●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-064-1	01	1	0005-	●	●	●
417	PLUG; OIL FILLER,TRANS (B) M22X12	1-09604-035-0	01	1	0005-			●
421	COVER; RR,TRANS	1-33131-109-1	01	1	9601-9604		●
421	COVER; RR,TRANS	1-33131-196-1	01	1	9605-		●
421	COVER; RR,TRANS	1-33131-138-1	01	1	9601-9604	●
421	COVER; RR,TRANS	1-33131-197-2	01	1	9605-	●
421	COVER; RR,TRANS	1-33131-201-1	01	1	0005-			●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	9601-	●	●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	04	1	0005-			●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9601-0004	●	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0005-	●	●	●
434	HOUSING; CLU	1-31110-171-2	01	1	9601-	●	●
434	HOUSING; CLU	1-31110-178-1	01	1	0005-			●
435	CASE; TRANS	1-33111-223-1	01	1	9601-		●
435	CASE; TRANS	1-33111-195-1	01	1	9601-	●
435	CASE; TRANS	1-33111-314-0	01	1	0005-0007			●
435	CASE; TRANS	1-33111-321-0	01	1	0008-			●
497	ADAPTER; PLUG	1-33119-255-0	01	1	9601-	●	●
505	PLUG; ADAPTER,OIL INLET PT1/4	9-99204-513-0	01	1	9601-9704	●	●
505	PLUG; ADAPTER,OIL INLET PT1/4	9-99204-513-0	01	1	9905-	●	●

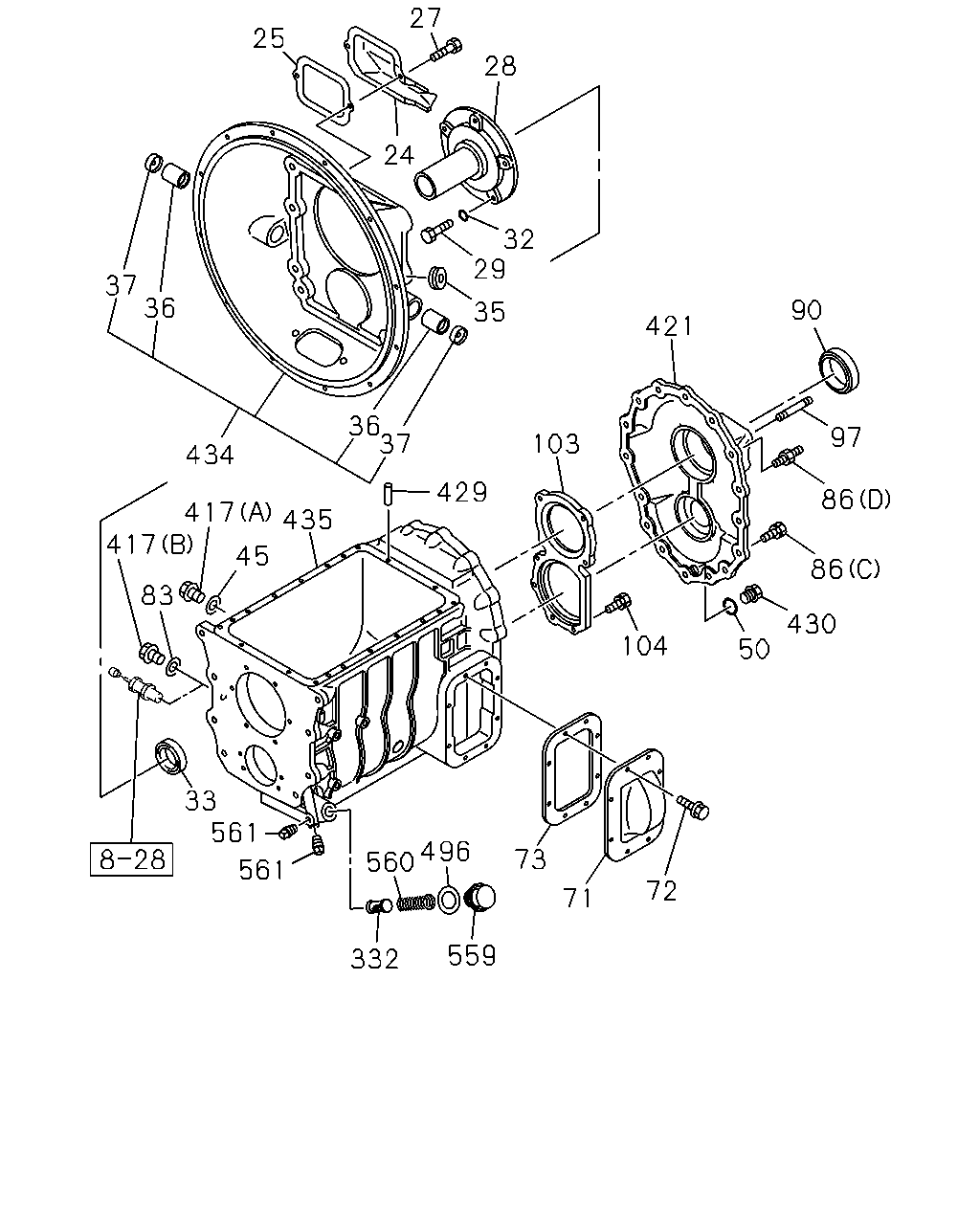

27 25 28 24 32 29 37 36 90 35 421 36 37 97 103 434 429 86 417 417 435 45 86 83 430 104 50 33 561 496 560 73 561 72 71 559 332

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	9601-0004	●	●
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	0005-	●	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	9601-0004	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	0005-	●	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	04	1	9601-0004	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	04	1	0005-0104	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	04	1	0105-	●	●	●
28	COVER; FRT,TRANS CASE	1-33121-063-2	01	1	9601-	●	●
28	COVER; FRT,TRANS CASE	1-33121-115-2	01	1	0005-0007			●
28	COVER; FRT,TRANS CASE	1-33121-161-1	01	1	0008-			●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	05	1	9601-	●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	06	1	0005-			●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	05	1	9601-	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	06	1	0005-			●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-562-0	01	1	9601-0004	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-562-0	01	1	0005-	●	●	●
35	GROMMET; CLU HSG	9-09575-796-0	01	1	9601-0004	●	●
35	GROMMET; CLU HSG	9-09575-796-0	01	1	0005-	●	●	●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	9601-0004	●	●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	0005-	●	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	9601-0004	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	0005-	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9601-0004	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0005-	●	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9601-0004	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0005-	●	●	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-030-1	01	1	9601-	●	●
71	COVER; SIDE,TRANS CASE	1-33141-044-1	01	1	0005-			●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28181-016-0	08	1	9601-	●	●
72	BOLT; SIDE COVER M12X20 FLANGE	0-28181-220-0	08	1	0005-			●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-043-0	01	1	9601-	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-041-0	01	1	0005-			●
83	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=22.5	9-09571-422-0	01	1	0005-			●
86	BOLT; RR COVER (A) M17X35	1-09044-076-0	10	1	9601-		●
86	BOLT; RR COVER (A) M17X35	1-09044-076-0	09	1	9601-	●
86	BOLT; RR COVER (A) M12X65	1-09044-077-0	02	1	9601-0011	●
86	BOLT; RR COVER (A) M12X65 FLANGE	1-09044-113-0	02	1	0012-	●
86	BOLT; RR COVER (B) M10X16,M12X30 L=57.7	1-09049-018-0	03	1	9601-	●
86	BOLT; RR COVER (C) M12X30 FLANGE	0-28181-230-0	14	1	0005-			●
86	BOLT; RR COVER (D) M10X16,M12X30 L=57.7	1-09049-018-0	02	1	0005-			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-577-1	01	1	9601-0004	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-577-1	01	1	0005-	●	●	●
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	9601-0004	●	●
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	0005-	●	●	●
103	RETAINER; BRG	1-33151-035-1	01	1	9601-	●
103	RETAINER; BRG	1-33151-052-0	01	1	0005-0101			●
103	RETAINER; BRG	1-33151-059-0	01	1	0102-			●
104	BOLT; BRG RET M10X25	1-09049-006-1	08	1	9601-	●
104	BOLT; BRG RET M10X30 FLANGE	0-28181-030-0	01	1	0005-			●
104	BOLT; BRG RET M10X38 FLANGE	1-09049-029-1	07	1	0005-			●
332	FILTER; OIL	1-41383-003-0	01	1	0005-			●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-022-0	01	1	9601-9802	●	●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-064-1	01	1	9803-0004	●	●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-064-1	01	1	0005-	●	●	●
417	PLUG; OIL FILLER,TRANS (B) M22X12	1-09604-035-0	01	1	0005-			●
421	COVER; RR,TRANS	1-33131-109-1	01	1	9601-9604		●
421	COVER; RR,TRANS	1-33131-196-1	01	1	9605-		●
421	COVER; RR,TRANS	1-33131-138-1	01	1	9601-9604	●
421	COVER; RR,TRANS	1-33131-197-2	01	1	9605-	●
421	COVER; RR,TRANS	1-33131-201-1	01	1	0005-			●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	9601-	●	●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	04	1	0005-			●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9601-0004	●	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0005-	●	●	●
434	HOUSING; CLU	1-31110-171-2	01	1	9601-	●	●
434	HOUSING; CLU	1-31110-178-1	01	1	0005-			●
435	CASE; TRANS	1-33111-223-1	01	1	9601-		●
435	CASE; TRANS	1-33111-195-1	01	1	9601-	●
435	CASE; TRANS	1-33111-314-0	01	1	0005-0007			●
435	CASE; TRANS	1-33111-321-0	01	1	0008-			●
496	GASKET; OIL FILTER ID=26.8	1-09623-058-0	01	1	0005-			●
559	PLUG; OIL M24X17 FLANGE	1-09604-023-0	01	1	0005-			●
560	SPRING; OIL	1-09580-504-0	01	1	0005-			●
561	PLUG PT1/4	9-99204-513-0	02	1	0005-			●

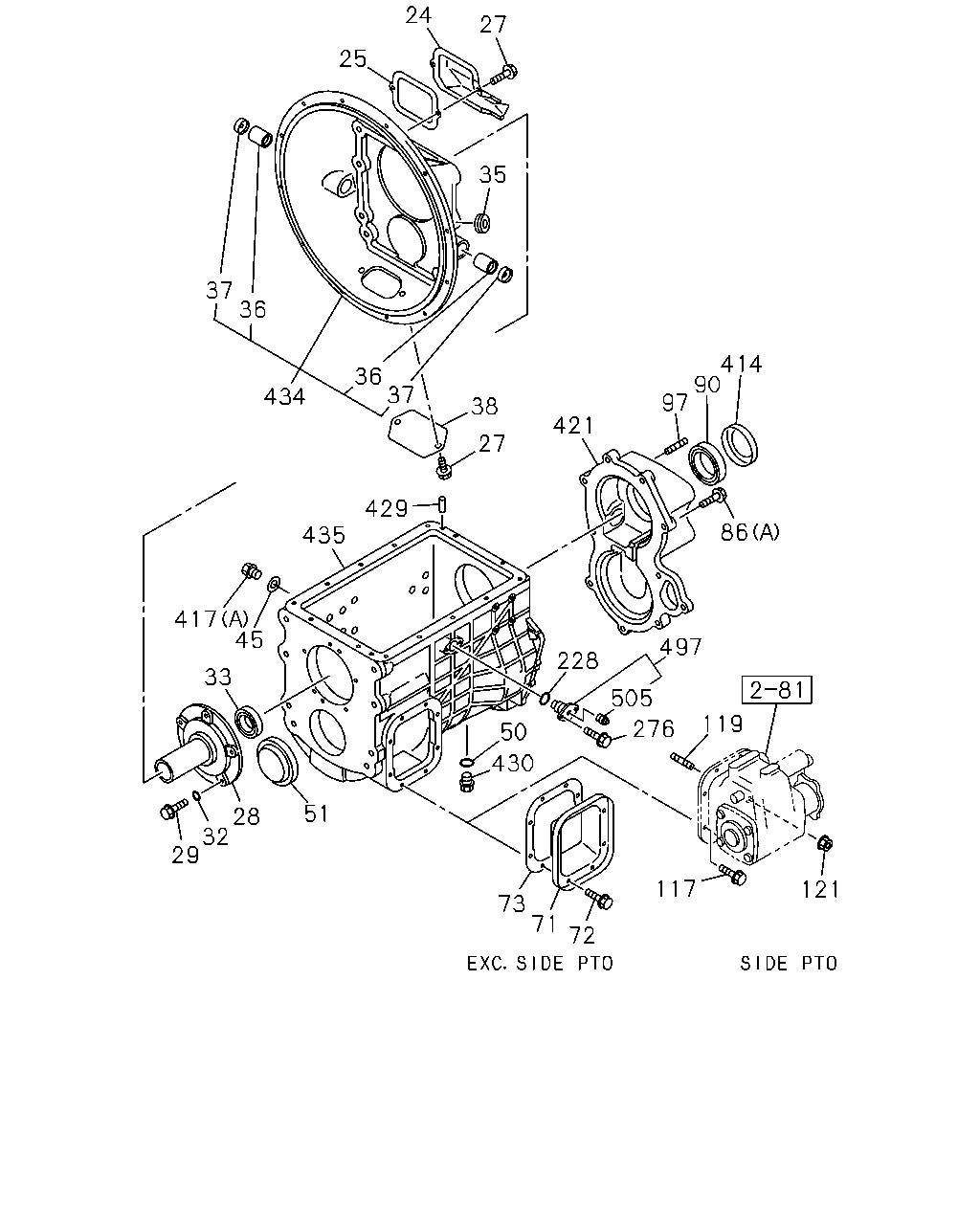

24 27 25 35 37 36 414 90 97 36 37 434 38 421 27 429 86 435 417 45 497 228 33 505 119 276 50 430 51 28 32 29 117 121 73 71 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	9601-0004	●	●
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	0005-	●	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	9601-0004	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	0005-	●	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	04	1	9601-0004	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	04	1	0005-0104	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	04	1	0105-	●	●	●
28	COVER; FRT,TRANS CASE	1-33121-063-2	01	1	9601-	●	●
28	COVER; FRT,TRANS CASE	1-33121-115-2	01	1	0005-0007			●
28	COVER; FRT,TRANS CASE	1-33121-161-1	01	1	0008-			●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	05	1	9601-	●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	06	1	0005-			●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	05	1	9601-	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	06	1	0005-			●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-562-0	01	1	9601-0004	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-562-0	01	1	0005-	●	●	●
35	GROMMET; CLU HSG	9-09575-796-0	01	1	9601-0004	●	●
35	GROMMET; CLU HSG	9-09575-796-0	01	1	0005-	●	●	●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	9601-0004	●	●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	0005-	●	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	9601-0004	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	0005-	●	●	●
38	COVER; CHECK HOLE,LWR	1-31131-003-0	01	1	9601-	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9601-0004	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0005-	●	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9601-0004	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0005-	●	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-055-1	01	1	9601-9707	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-195-1	01	1	9708-	●	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-030-1	01	1	9601-	●	●
71	COVER; SIDE,TRANS CASE	1-33141-044-1	01	1	0005-			●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28181-016-0	08	1	9601-	●	●
72	BOLT; SIDE COVER M12X20 FLANGE	0-28181-220-0	08	1	0005-			●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-043-0	01	1	9601-	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-041-0	01	1	0005-			●
86	BOLT; RR COVER (A) M17X35	1-09044-076-0	10	1	9601-		●
86	BOLT; RR COVER (A) M17X35	1-09044-076-0	09	1	9601-	●
86	BOLT; RR COVER (A) M12X65	1-09044-077-0	02	1	9601-0011	●
86	BOLT; RR COVER (A) M12X65 FLANGE	1-09044-113-0	02	1	0012-	●
86	BOLT; RR COVER (B) M10X16,M12X30 L=57.7	1-09049-018-0	03	1	9601-	●
86	BOLT; RR COVER (C) M12X30 FLANGE	0-28181-230-0	14	1	0005-			●
86	BOLT; RR COVER (D) M10X16,M12X30 L=57.7	1-09049-018-0	02	1	0005-			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-577-1	01	1	9601-0004	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-577-1	01	1	0005-	●	●	●
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	9601-0004	●	●
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	0005-	●	●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X22 FLANGE	0-28181-022-0	04	1	9601-	●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X50 FLANGE	0-28181-050-0	02	1	9601-	●	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	9-04411-025-0	02	1	9601-	●	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91150-210-0	02	1	9601-	●	●
228	GASKET; NOZZLE ID=24.4	1-09623-183-0	01	1	9601-9904	●	●
228	GASKET; NOZZLE ID=24.4	1-09623-057-0	01	1	9905-	●	●
276	BOLT; ADAPTER M14X20	1-09044-078-0	02	1	9601-	●	●
414	COVER; DUST,RR COVER	1-33139-011-1	01	1	9601-	●	●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-022-0	01	1	9601-9802	●	●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-064-1	01	1	9803-0004	●	●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-064-1	01	1	0005-	●	●	●
417	PLUG; OIL FILLER,TRANS (B) M22X12	1-09604-035-0	01	1	0005-			●
421	COVER; RR,TRANS	1-33131-109-1	01	1	9601-9604		●
421	COVER; RR,TRANS	1-33131-196-1	01	1	9605-		●
421	COVER; RR,TRANS	1-33131-138-1	01	1	9601-9604	●
421	COVER; RR,TRANS	1-33131-197-2	01	1	9605-	●
421	COVER; RR,TRANS	1-33131-201-1	01	1	0005-			●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	9601-	●	●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	04	1	0005-			●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9601-0004	●	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0005-	●	●	●
434	HOUSING; CLU	1-31110-171-2	01	1	9601-	●	●
434	HOUSING; CLU	1-31110-178-1	01	1	0005-			●
435	CASE; TRANS	1-33111-223-1	01	1	9601-		●
435	CASE; TRANS	1-33111-195-1	01	1	9601-	●
435	CASE; TRANS	1-33111-314-0	01	1	0005-0007			●
435	CASE; TRANS	1-33111-321-0	01	1	0008-			●
497	ADAPTER; PLUG	1-33119-255-0	01	1	9601-	●	●
505	PLUG; ADAPTER,OIL INLET PT1/4	9-99204-513-0	01	1	9601-9704	●	●
505	PLUG; ADAPTER,OIL INLET PT1/4	9-99204-513-0	01	1	9905-	●	●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

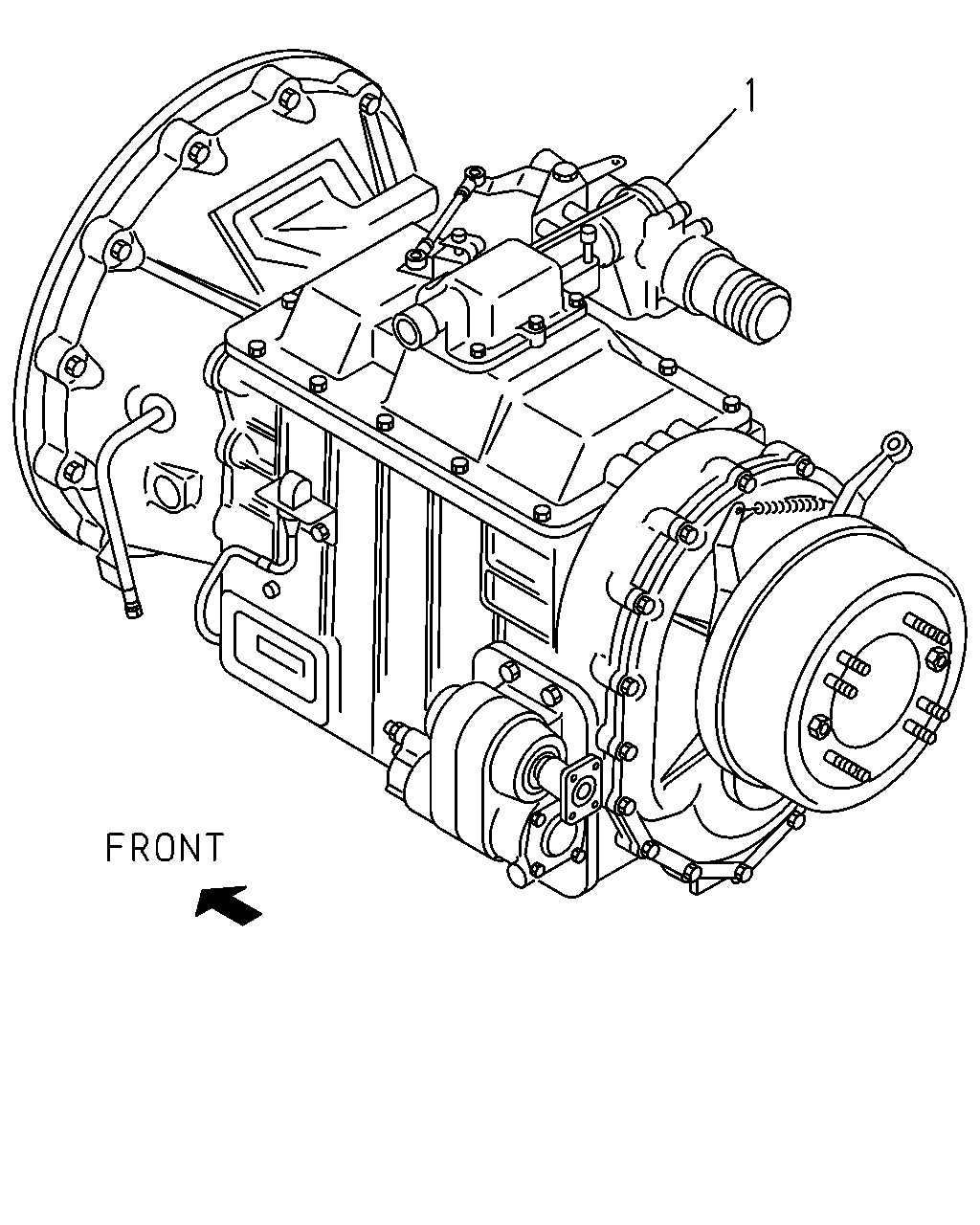

1	TRANSMISSION ASM; MANUAL 10PE1S(60L) ASSISTOR SHIFT CONTROL<WX8>	1-33040-596-0	01	1	9601-9904		●
1	TRANSMISSION ASM; MANUAL P115 PROP SHAFT<C5X> ASSISTOR SHIFT CONTROL<WX8>	1-33042-122-0	01	1	9905-		●
1	TRANSMISSION ASM; MANUAL 10PE1S(60L) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33040-595-0	01	1	9601-9904		●
1	TRANSMISSION ASM; MANUAL P115 PROP SHAFT<C5X> EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33042-121-0	01	1	9905-		●
1	TRANSMISSION ASM; MANUAL P115 PROP SHAFT<C5X> ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33040-603-0	01	1	9601-9904	●
1	TRANSMISSION ASM; MANUAL P115 PROP SHAFT<C5X> ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33042-141-0	01	1	9905-	●
1	TRANSMISSION ASM; MANUAL 10PE1S(60L) ASSISTOR SHIFT CONTROL<WX8>	1-33040-601-0	01	1	9601-9904	●
1	TRANSMISSION ASM; MANUAL P90 PROP SHAFT<C5T> ASSISTOR SHIFT CONTROL<WX8>	1-33042-130-0	01	1	9905-	●
1	TRANSMISSION ASM; MANUAL 10PE1S(60L) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33040-599-0	01	1	9601-9904	●
1	TRANSMISSION ASM; MANUAL P90 PROP SHAFT<C5T> EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33042-129-0	01	1	9905-	●
1	TRANSMISSION ASM; MANUAL 6WA1 TC-S(56L) ASSISTOR SHIFT CONTROL<WX8>	1-33041-407-0	01	1	9702-9702	●
1	TRANSMISSION ASM; MANUAL P115 PROP SHAFT<C5X> ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33041-454-0	01	1	9703-9904	●
1	TRANSMISSION ASM; MANUAL	1-33043-101-0	01	1	0005-			●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

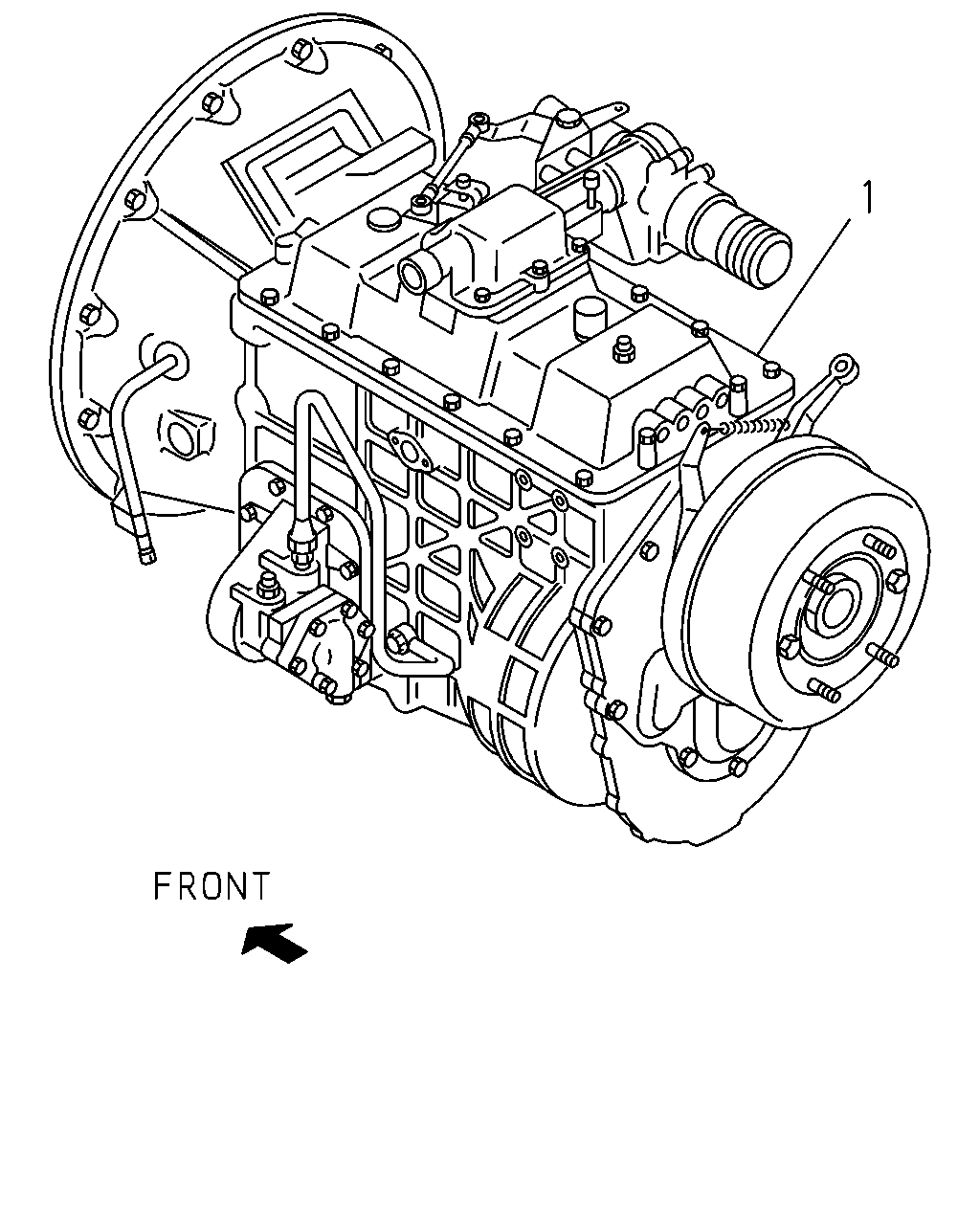

1	TRANSMISSION ASM; MANUAL 10PE1S(60L) ASSISTOR SHIFT CONTROL<WX8>	1-33040-596-0	01	1	9601-9904		●
1	TRANSMISSION ASM; MANUAL P115 PROP SHAFT<C5X> ASSISTOR SHIFT CONTROL<WX8>	1-33042-122-0	01	1	9905-		●
1	TRANSMISSION ASM; MANUAL 10PE1S(60L) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33040-595-0	01	1	9601-9904		●
1	TRANSMISSION ASM; MANUAL P115 PROP SHAFT<C5X> EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33042-121-0	01	1	9905-		●
1	TRANSMISSION ASM; MANUAL P115 PROP SHAFT<C5X> ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33040-603-0	01	1	9601-9904	●
1	TRANSMISSION ASM; MANUAL P115 PROP SHAFT<C5X> ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33042-141-0	01	1	9905-	●
1	TRANSMISSION ASM; MANUAL 10PE1S(60L) ASSISTOR SHIFT CONTROL<WX8>	1-33040-601-0	01	1	9601-9904	●
1	TRANSMISSION ASM; MANUAL P90 PROP SHAFT<C5T> ASSISTOR SHIFT CONTROL<WX8>	1-33042-130-0	01	1	9905-	●
1	TRANSMISSION ASM; MANUAL 10PE1S(60L) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33040-599-0	01	1	9601-9904	●
1	TRANSMISSION ASM; MANUAL P90 PROP SHAFT<C5T> EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33042-129-0	01	1	9905-	●
1	TRANSMISSION ASM; MANUAL 6WA1 TC-S(56L) ASSISTOR SHIFT CONTROL<WX8>	1-33041-407-0	01	1	9702-9702	●
1	TRANSMISSION ASM; MANUAL P115 PROP SHAFT<C5X> ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33041-454-0	01	1	9703-9904	●
1	TRANSMISSION ASM; MANUAL	1-33043-101-0	01	1	0005-			●

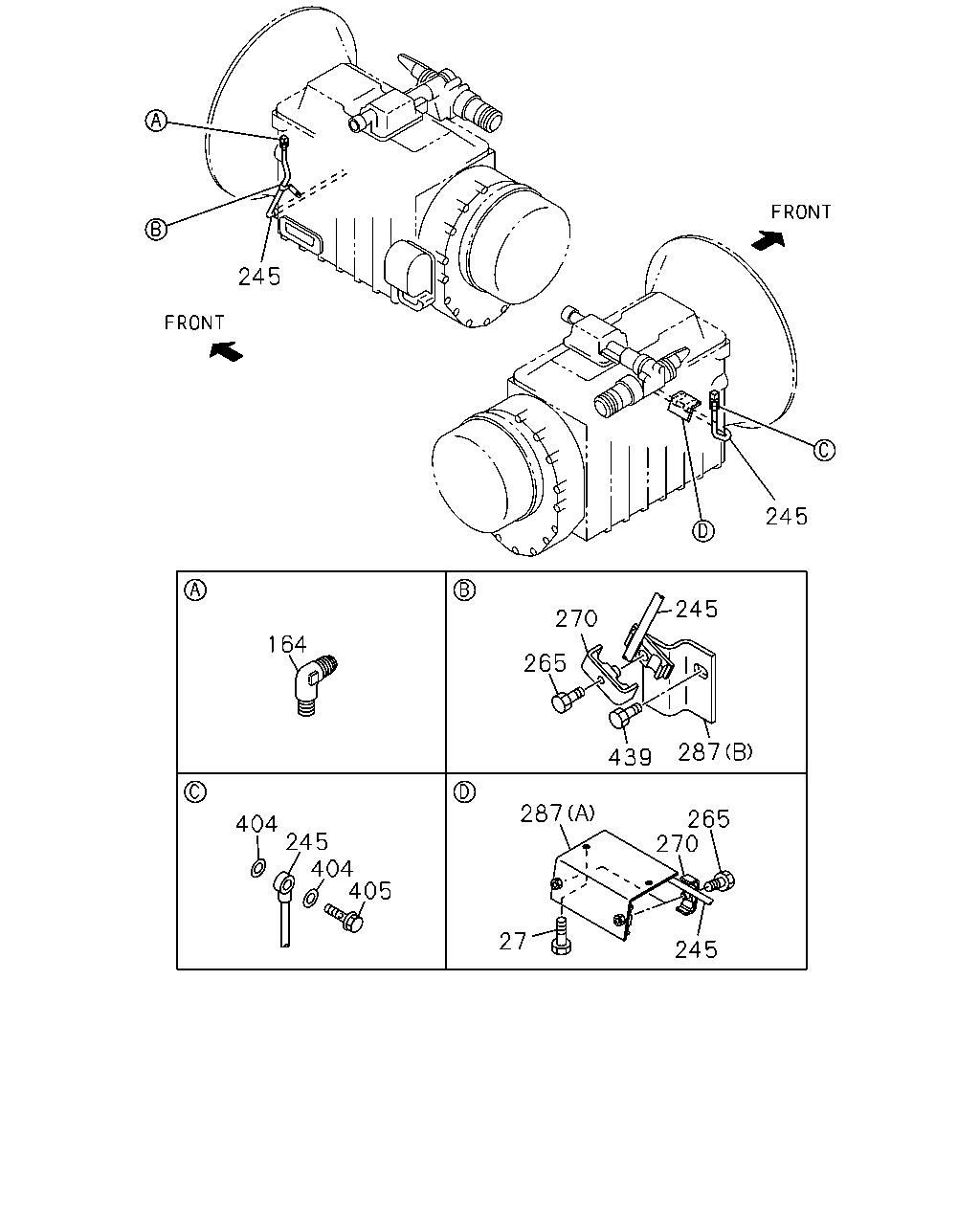

245 245 245 270 164 265 287 439 287 265 270 404 245 404 405 27 245

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	04	1	9601-0004	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	04	1	0005-0104	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	04	1	0105-	●	●	●
164	CONNECTOR; ELBOW M16 & PT1/4 ELBOW	1-09650-434-0	01	1	0005-			●
245	PIPE; OIL L=753	1-32571-160-0	01	1	0005-			●
265	BOLT; CLIP M6X35 FLANGE	0-28680-635-0	03	1	0005-			●
270	CLIP; OIL PIPE ID=9 & 9 L=25	1-09701-212-2	03	1	0005-			●
287	BRACKET; CLIP,OIL PIPE (A)	1-32579-014-1	01	1	0005-			●
287	BRACKET; CLIP,OIL PIPE (B)	1-32579-015-2	01	1	0005-			●
404	GASKET; OIL PIPE ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-			●
405	BOLT; EYE,OIL PIPE M14X27 FLANGE	1-09675-086-0	01	1	0005-			●
439	BOLT; BRKT M10X16 FLANGE	0-28181-016-0	01	1	0005-			●

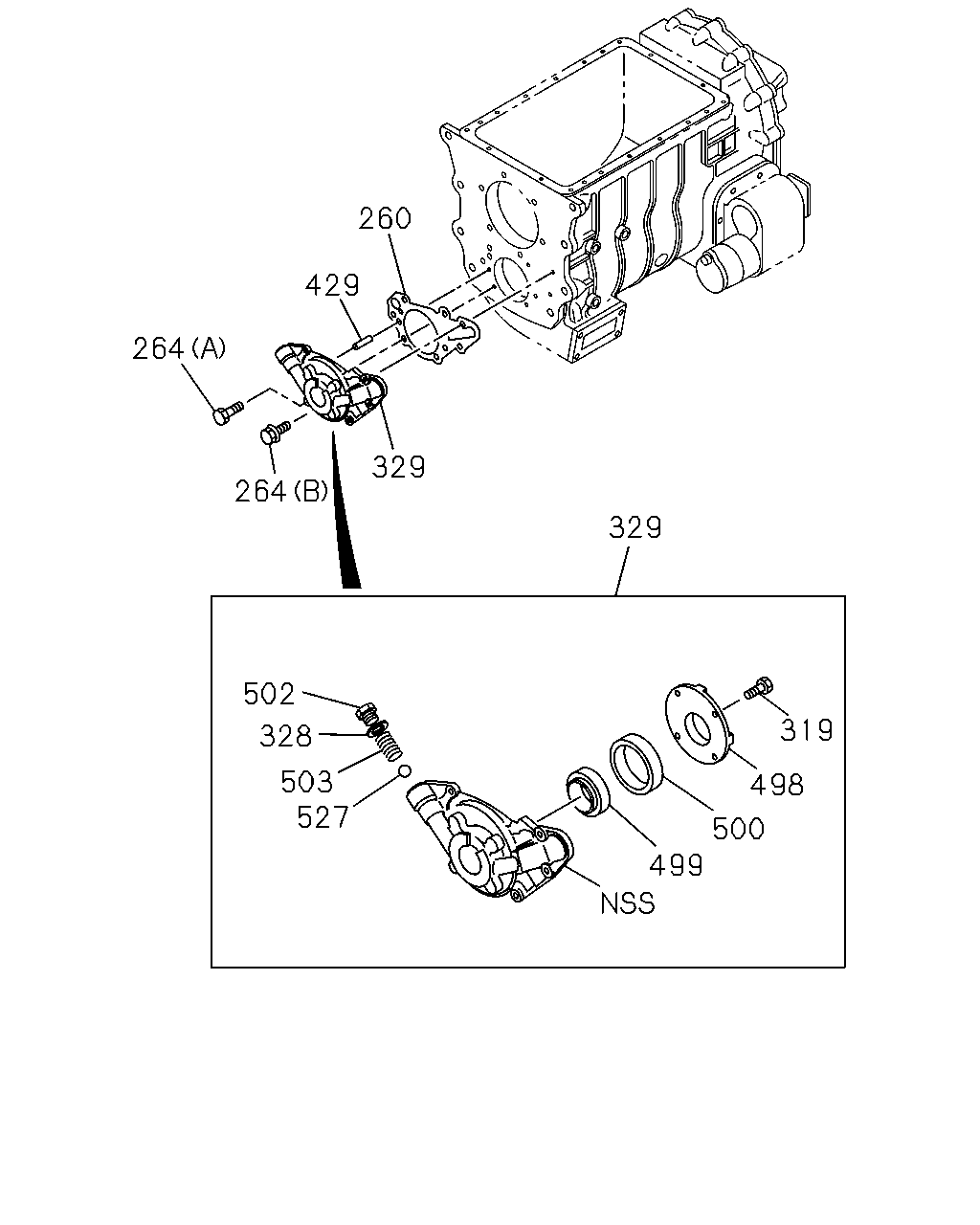

260 429 264 329 264 329 502 319 328 503 527 498 500 499

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
260	GASKET; OIL PUMP	1-34142-026-0	01	1	0005-			●
264	BOLT; OIL PUMP (A) M10X30 FLANGE	0-28181-030-0	05	1	0005-			●
264	BOLT; OIL PUMP (B) M10X40 FLANGE	0-28181-040-0	02	1	0005-			●
319	BOLT; COVER	1-34159-075-0	04	1	0005-			●
328	GASKET; PLUG	8-94244-656-0	01	1	0005-			●
329	PUMP ASM; OIL	1-34150-099-0	01	1	0005-			●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	9601-	●	●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	04	1	0005-			●
498	COVER; ROTER,OIL PUMP	1-34159-067-1	01	1	0005-			●
499	ROTOR; INNER,OIL PUMP	1-34159-053-0	01	1	0005-			●
500	ROTOR; OUTER,OIL PUMP	1-34159-054-0	01	1	0005-			●
502	PLUG; OIL PUMP	8-94244-655-0	01	1	0005-			●
503	SPRING; OIL PUMP	1-34159-083-0	01	1	0005-			●
527	BALL; OIL PUMP	9-00097-531-0	01	1	0005-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
