Sayfa 8-45 - Isuzu EPC

8-45 — HEATER PIPING (#48163) — 318 parça

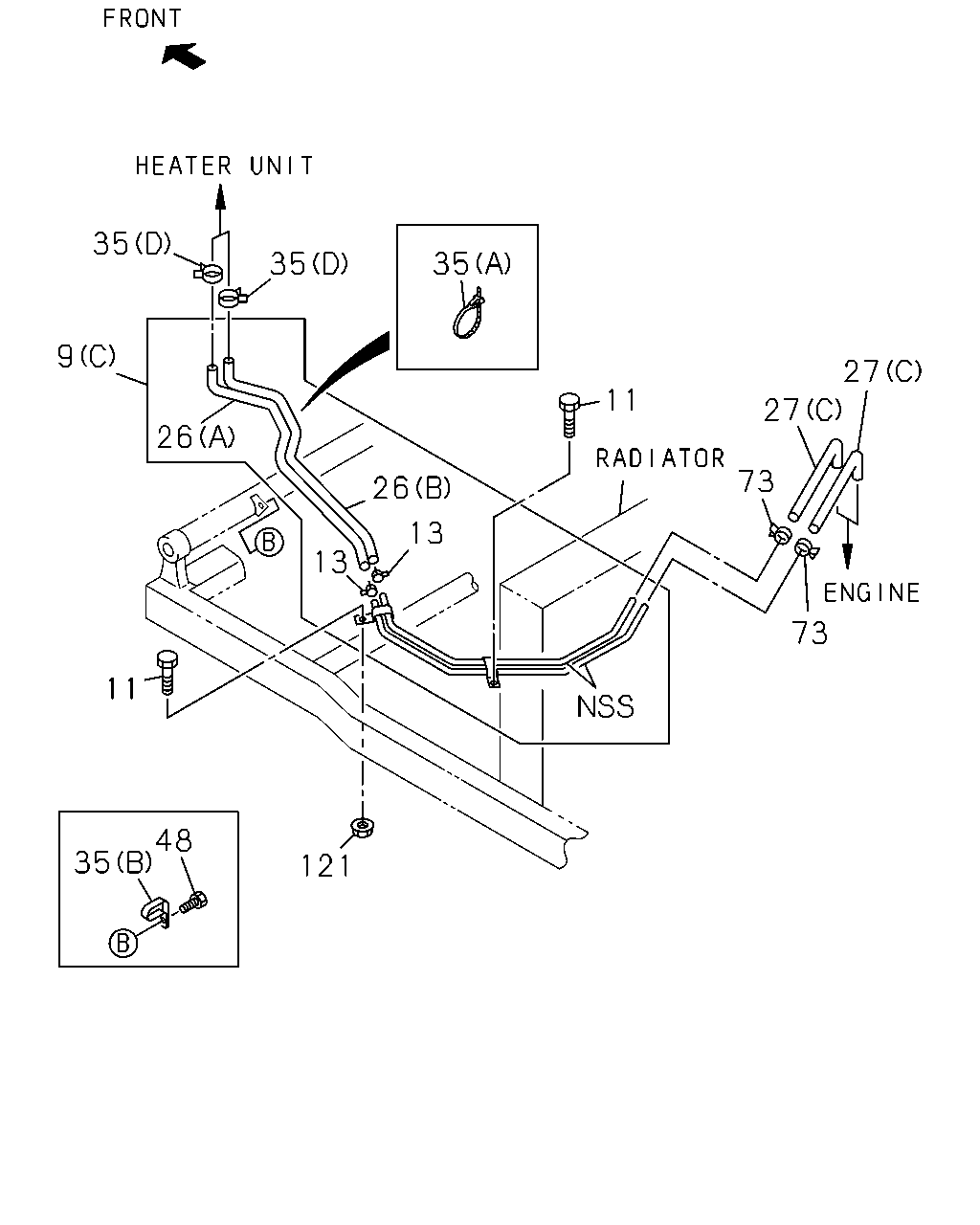

35 35 25 35 35 73 27 48 73 35 11 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
11	08.845 BOLT; HTR PIPE 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0501	●	●	●	●
11	08.845 BOLT; HTR PIPE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0502-0512		●	●
11	08.845 BOLT; HTR PIPE HEATER & DEFROSTER(C41) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0502-0512					●
11	08.845 BOLT; HTR PIPE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-		●	●
11	08.845 BOLT; HTR PIPE HEATER & DEFROSTER(C41) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-					●
11	08.845 BOLT; HTR PIPE 4JH1 ENG(RJX),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0211-0501	●	●	●		●
11	08.845 BOLT; HTR PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0211-0501						●
11	08.845 BOLT; HTR PIPE 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512	●	●	●
11	08.845 BOLT; HTR PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512				●
11	08.845 BOLT; HTR PIPE 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-1003	●	●	●
11	08.845 BOLT; HTR PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-1003				●
11	08.845 BOLT; HTR PIPE 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1004-	●	●
11	08.845 BOLT; HTR PIPE 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1004-			●
11	08.845 BOLT; HTR PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1004-				●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. TURBOCHARGER<K51>	8-97129-200-0	01	1	0211-0501	●	●	●		●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1 ENG(RLF)	8-97129-200-0	01	1	0502-	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97187-049-0	01	1	0211-0501	●	●	●		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (C)	8-97205-283-0	02	1	0610-0712	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (C)	8-97205-283-0	02	1	0801-	●		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. TURBOCHARGER<K51> (A)	8-97129-201-0	01	1	0211-0501	●	●	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) (A)	8-97129-201-0	01	1	0502-	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97185-290-0	01	1	0211-0501	●	●	●		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97185-290-0	01	1	0502-1003	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97185-290-0	01	1	0502-1003				●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97185-290-0	01	1	1004-	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97185-290-0	01	1	1004-			●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97185-290-0	01	1	1004-				●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> (A)	8-97187-050-0	01	1	0211-0501	●	●	●		●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B)	5-83574-006-0	01	1	0211-0501	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 08.846 (B)	5-83574-006-0	01	1	0502-0610	●	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 08.846 (B)	8-98029-677-0	01	1	0611-	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	02	1	0211-0501	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 02.559 (A) L=250	5-09707-030-1	01	1	0502-		●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 02.559 (A) L=250	5-09707-030-1	01	1	0502-					●
35	08.852 CLIP; WATER HOSE 4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) ID=22	8-94382-401-0	04	1	0211-0501	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 08.846 (D) ID=22	8-94382-401-0	02	1	0502-0610	●	●	●
35	08.852 CLIP; WATER HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 03.278 (D) ID=22	8-97359-141-0	02	1	0611-	●	●	●
35	08.852 CLIP; WATER HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>,FRT INDEPENDENT SUSPENSION(6PP) 08.846 (C)	5-83574-003-0	01	1	0211-0501	●	●	●		●	●
35	08.852 CLIP; WATER HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 08.846 (C)	5-83574-003-0	01	1	0502-	●	●	●
35	08.852 CLIP; WATER HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>,FRT INDEPENDENT SUSPENSION(6PP) 08.846 (D) ID=22	8-94382-401-0	02	1	0211-0501	●	●	●		●	●
35	08.852 CLIP; WATER HOSE 4HF1-N ENG(RJZ),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	02	1	0502-0609	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	02	1	0502-0609				●
35	08.852 CLIP; WATER HOSE 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	02	1	0610-1003	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4HF1-N ENG(RJZ),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	02	1	1004-	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	01	1	0211-0501	●	●	●		●
35	08.852 CLIP; WATER HOSE 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) ID=22	8-94382-401-0	04	1	0502-0610	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (D) ID=22	8-97359-141-0	04	1	0611-	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 03.483 (E) L=450	1-09707-142-1	01	1	0502-		●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 03.483 (E) L=450	1-09707-142-1	01	1	0502-					●
35	08.852 CLIP; WATER HOSE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) (E) L=350	8-94152-256-1	01	1	0502-		●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) (E) L=350	8-94152-256-1	01	1	0502-					●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0211-0501	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JH1 ENG(RJX),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>,FRT INDEPENDENT SUSPENSION(6PP) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0211-0501	●	●	●		●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0502-0512	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0502-0512	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0601-	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0601-	●	●	●
73	08.846 CLIP; HTR HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	0211-0310	●	●	●		●	●
73	08.846 CLIP; HTR HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	0311-0501	●	●	●		●	●
73	08.846 CLIP; HTR HOSE 4JH1 ENG(RJX) ID=22	8-94382-401-0	02	1	0311-0501	●	●	●		●
73	08.846 CLIP; HTR HOSE 4JH1-TC ENG(RDM),4JB1 ENG(RLF) ID=22	8-94382-401-0	02	1	0502-0609	●	●	●		●
73	08.846 CLIP; HTR HOSE 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 ENG(RLF) ID=22	8-94382-401-0	02	1	0610-0610	●	●	●		●
73	08.846 CLIP; HTR HOSE 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 ENG(RLF) 03.278 ID=22	8-97359-141-0	02	1	0611-	●	●	●		●
73	08.846 CLIP; HTR HOSE 4JH1 ENG(RJX) 01.166 ID=25	9-09915-642-2	02	1	0211-0310	●	●	●		●

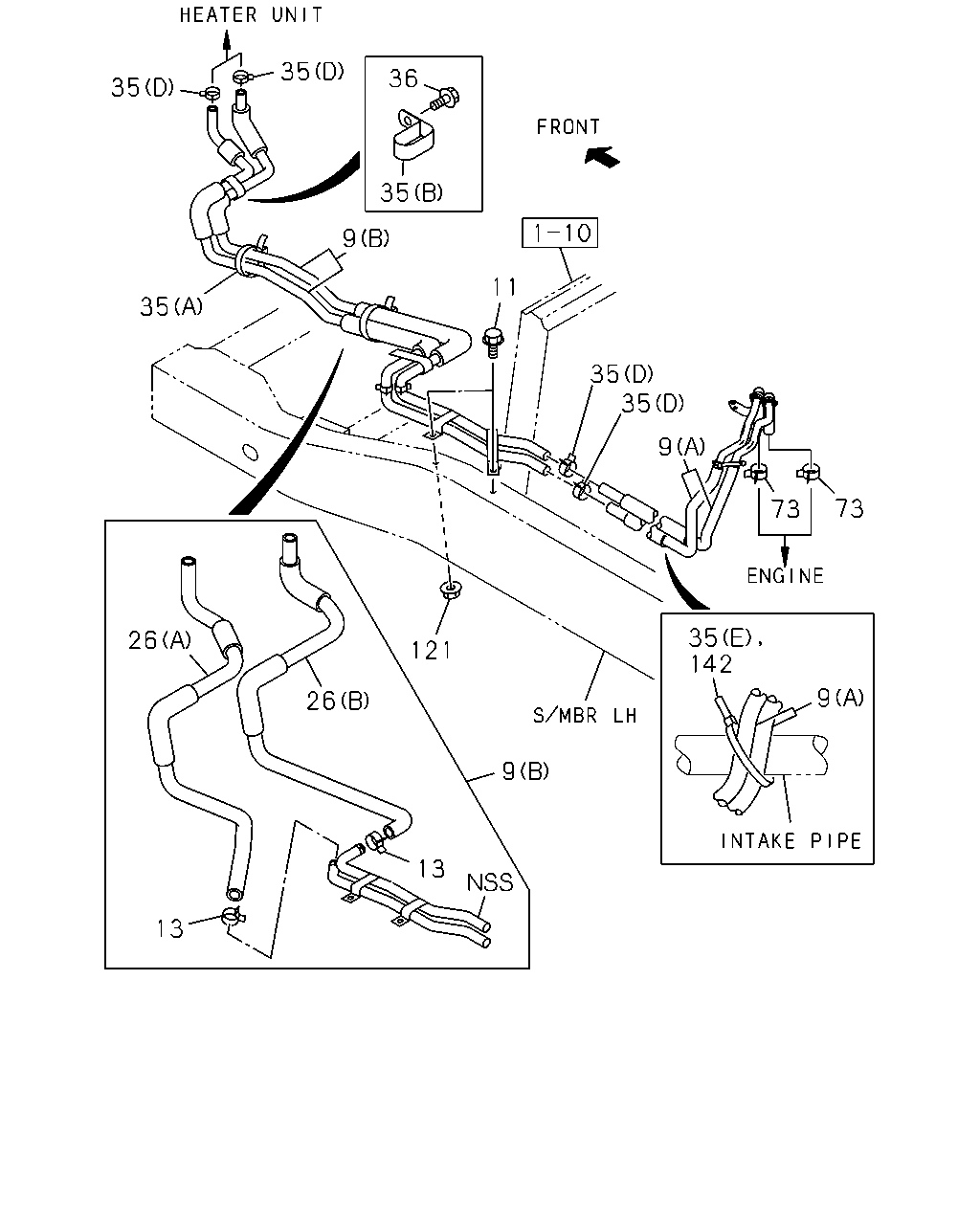

35 36 35 35 9 11 35 35 35 9 73 73 35 142 26 121 9 26 9 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
9	08.846 PIPE; HTR 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (C)	8-97205-282-1	01	1	0211-0501	●	●	●		●
9	08.846 PIPE; HTR 4JH1 ENG(RJX) (A)	8-97261-456-3	01	1	0211-0501	●	●	●		●
9	08.846 PIPE; HTR 4JH1-TC ENG(RDM) (A)	8-97261-456-3	01	1	0502-		●	●		●
9	08.846 PIPE; HTR 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (B)	8-97260-267-3	01	1	0211-0501	●	●	●		●
9	08.846 PIPE; HTR 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) (B)	8-97260-267-3	01	1	0502-		●	●
9	08.846 PIPE; HTR HEATER & DEFROSTER(C41) (B)	8-97260-267-3	01	1	0502-					●
11	08.845 BOLT; HTR PIPE 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0501	●	●	●	●
11	08.845 BOLT; HTR PIPE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0502-0512		●	●
11	08.845 BOLT; HTR PIPE HEATER & DEFROSTER(C41) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0502-0512					●
11	08.845 BOLT; HTR PIPE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-		●	●
11	08.845 BOLT; HTR PIPE HEATER & DEFROSTER(C41) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-					●
11	08.845 BOLT; HTR PIPE 4JH1 ENG(RJX),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0211-0501	●	●	●		●
11	08.845 BOLT; HTR PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0211-0501						●
11	08.845 BOLT; HTR PIPE 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512	●	●	●
11	08.845 BOLT; HTR PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512				●
11	08.845 BOLT; HTR PIPE 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-1003	●	●	●
11	08.845 BOLT; HTR PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-1003				●
11	08.845 BOLT; HTR PIPE 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1004-	●	●
11	08.845 BOLT; HTR PIPE 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1004-			●
11	08.845 BOLT; HTR PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1004-				●
13	08.846 CLIP; HTR HOSE 4JH1 ENG(RJX),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> ID=22	8-94382-401-0	02	1	0211-0501	●	●	●		●
13	08.846 CLIP; HTR HOSE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	0502-		●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	0502-					●
26	08.846 HOSE; HTR 4JH1 ENG(RJX),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (A)	8-97239-082-0	01	1	0211-0501	●	●	●		●
26	08.846 HOSE; HTR 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) (A)	8-97239-082-0	01	1	0502-		●	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41) (A)	8-97239-082-0	01	1	0502-					●
26	08.846 HOSE; HTR 4JH1 ENG(RJX),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (B)	8-97239-083-0	01	1	0211-0501	●	●	●		●
26	08.846 HOSE; HTR 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) (B)	8-97239-083-0	01	1	0502-		●	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41) (B)	8-97239-083-0	01	1	0502-					●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B)	5-83574-006-0	01	1	0211-0501	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 08.846 (B)	5-83574-006-0	01	1	0502-0610	●	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 08.846 (B)	8-98029-677-0	01	1	0611-	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	02	1	0211-0501	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 02.559 (A) L=250	5-09707-030-1	01	1	0502-		●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 02.559 (A) L=250	5-09707-030-1	01	1	0502-					●
35	08.852 CLIP; WATER HOSE 4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) ID=22	8-94382-401-0	04	1	0211-0501	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 08.846 (D) ID=22	8-94382-401-0	02	1	0502-0610	●	●	●
35	08.852 CLIP; WATER HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 03.278 (D) ID=22	8-97359-141-0	02	1	0611-	●	●	●
35	08.852 CLIP; WATER HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>,FRT INDEPENDENT SUSPENSION(6PP) 08.846 (C)	5-83574-003-0	01	1	0211-0501	●	●	●		●	●
35	08.852 CLIP; WATER HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 08.846 (C)	5-83574-003-0	01	1	0502-	●	●	●
35	08.852 CLIP; WATER HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>,FRT INDEPENDENT SUSPENSION(6PP) 08.846 (D) ID=22	8-94382-401-0	02	1	0211-0501	●	●	●		●	●
35	08.852 CLIP; WATER HOSE 4HF1-N ENG(RJZ),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	02	1	0502-0609	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	02	1	0502-0609				●
35	08.852 CLIP; WATER HOSE 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	02	1	0610-1003	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4HF1-N ENG(RJZ),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	02	1	1004-	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	01	1	0211-0501	●	●	●		●
35	08.852 CLIP; WATER HOSE 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) ID=22	8-94382-401-0	04	1	0502-0610	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (D) ID=22	8-97359-141-0	04	1	0611-	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 03.483 (E) L=450	1-09707-142-1	01	1	0502-		●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 03.483 (E) L=450	1-09707-142-1	01	1	0502-					●
35	08.852 CLIP; WATER HOSE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) (E) L=350	8-94152-256-1	01	1	0502-		●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) (E) L=350	8-94152-256-1	01	1	0502-					●
36	08.846 BOLT; BRKT 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0211-0501	●	●	●		●
36	08.846 BOLT; BRKT 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0502-0512		●	●
36	08.846 BOLT; BRKT HEATER & DEFROSTER(C41) 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0502-0512					●
36	08.846 BOLT; BRKT 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0601-		●	●
36	08.846 BOLT; BRKT HEATER & DEFROSTER(C41) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0601-					●
73	08.846 CLIP; HTR HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	0211-0310	●	●	●		●	●
73	08.846 CLIP; HTR HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	0311-0501	●	●	●		●	●
73	08.846 CLIP; HTR HOSE 4JH1 ENG(RJX) ID=22	8-94382-401-0	02	1	0311-0501	●	●	●		●
73	08.846 CLIP; HTR HOSE 4JH1-TC ENG(RDM),4JB1 ENG(RLF) ID=22	8-94382-401-0	02	1	0502-0609	●	●	●		●
73	08.846 CLIP; HTR HOSE 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 ENG(RLF) ID=22	8-94382-401-0	02	1	0610-0610	●	●	●		●
73	08.846 CLIP; HTR HOSE 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 ENG(RLF) 03.278 ID=22	8-97359-141-0	02	1	0611-	●	●	●		●
73	08.846 CLIP; HTR HOSE 4JH1 ENG(RJX) 01.166 ID=25	9-09915-642-2	02	1	0211-0310	●	●	●		●
121	08.845 NUT; PIPE 4JH1 ENG(RJX),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.540 M8 FLANGE	0-91150-208-0	01	1	0211-0501	●	●	●		●
121	08.845 NUT; PIPE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 01.540 M8 FLANGE	0-91150-208-0	01	1	0502-0602		●	●
121	08.845 NUT; PIPE HEATER & DEFROSTER(C41) 01.540 M8 FLANGE	0-91150-208-0	01	1	0502-0602					●
121	08.845 NUT; PIPE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 01.540 M8 FLANGE	0-91180-208-0	01	1	0603-1401		●	●
121	08.845 NUT; PIPE HEATER & DEFROSTER(C41) 01.540 M8 FLANGE	0-91180-208-0	01	1	0603-1401					●
121	08.845 NUT; PIPE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 01.062 M8 FLANGE	0-91180-108-0	01	1	1402-		●	●
121	08.845 NUT; PIPE HEATER & DEFROSTER(C41) 01.062 M8 FLANGE	0-91180-108-0	01	1	1402-					●
142	08.846 CLIP; BAND 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 03.483 L=450	1-09707-142-1	01	1	0211-0501	●	●	●		●
142	08.846 CLIP; BAND 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 08.852 L=350	8-94152-256-1	01	1	0211-0501	●	●	●		●

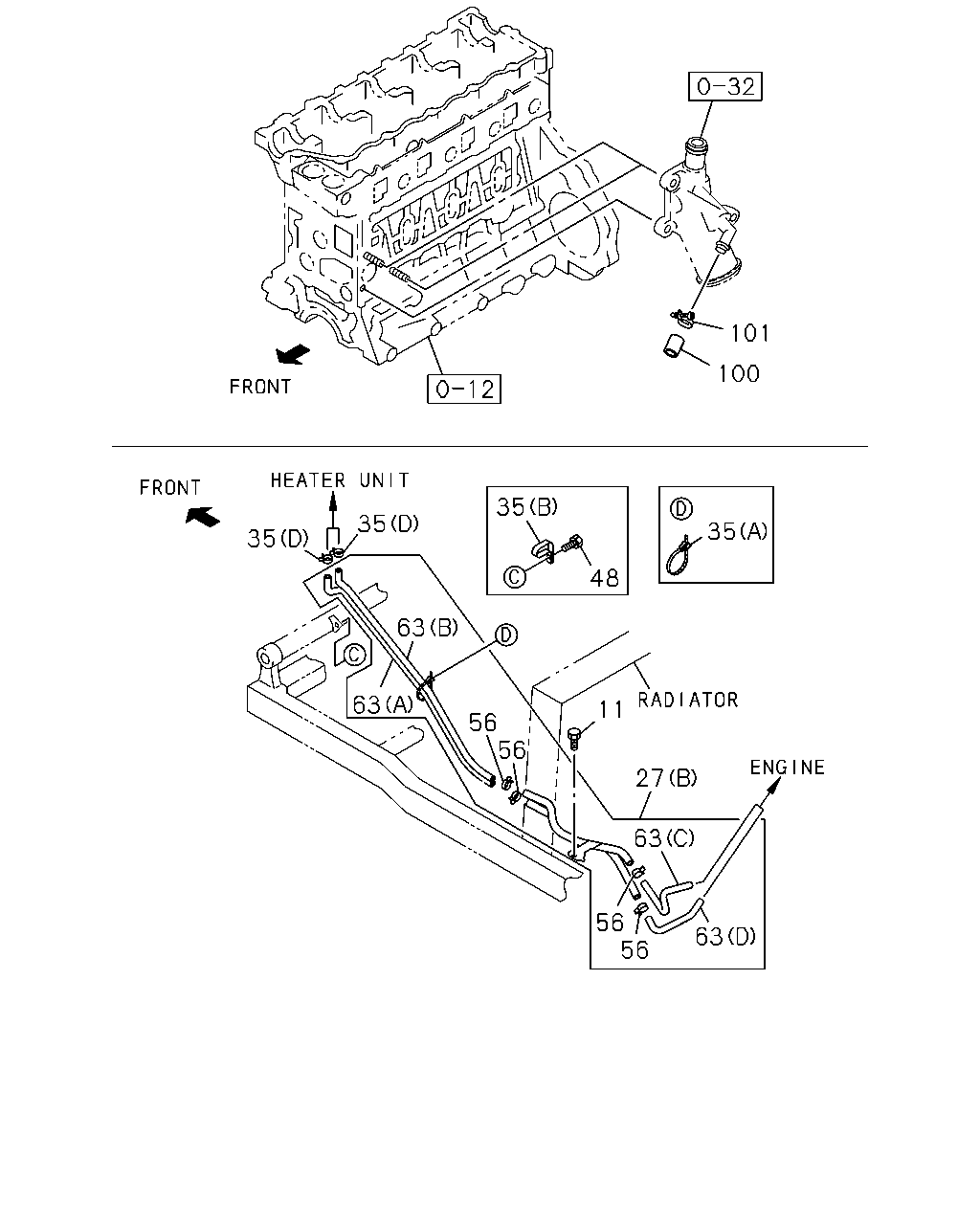

101 100 35 35 35 35 48 63 63 11 56 56 27 63 56 56 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
11	08.845 BOLT; HTR PIPE 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0501	●	●	●	●
11	08.845 BOLT; HTR PIPE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0502-0512		●	●
11	08.845 BOLT; HTR PIPE HEATER & DEFROSTER(C41) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0502-0512					●
11	08.845 BOLT; HTR PIPE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-		●	●
11	08.845 BOLT; HTR PIPE HEATER & DEFROSTER(C41) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-					●
11	08.845 BOLT; HTR PIPE 4JH1 ENG(RJX),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0211-0501	●	●	●		●
11	08.845 BOLT; HTR PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0211-0501						●
11	08.845 BOLT; HTR PIPE 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512	●	●	●
11	08.845 BOLT; HTR PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512				●
11	08.845 BOLT; HTR PIPE 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-1003	●	●	●
11	08.845 BOLT; HTR PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-1003				●
11	08.845 BOLT; HTR PIPE 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1004-	●	●
11	08.845 BOLT; HTR PIPE 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1004-			●
11	08.845 BOLT; HTR PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1004-				●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (C)	8-97205-283-0	02	1	0610-0712	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (C)	8-97205-283-0	02	1	0801-	●		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. TURBOCHARGER<K51> (A)	8-97129-201-0	01	1	0211-0501	●	●	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) (A)	8-97129-201-0	01	1	0502-	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97185-290-0	01	1	0211-0501	●	●	●		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97185-290-0	01	1	0502-1003	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97185-290-0	01	1	0502-1003				●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97185-290-0	01	1	1004-	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97185-290-0	01	1	1004-			●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97185-290-0	01	1	1004-				●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> (A)	8-97187-050-0	01	1	0211-0501	●	●	●		●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B)	5-83574-006-0	01	1	0211-0501	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 08.846 (B)	5-83574-006-0	01	1	0502-0610	●	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 08.846 (B)	8-98029-677-0	01	1	0611-	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	02	1	0211-0501	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 02.559 (A) L=250	5-09707-030-1	01	1	0502-		●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 02.559 (A) L=250	5-09707-030-1	01	1	0502-					●
35	08.852 CLIP; WATER HOSE 4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) ID=22	8-94382-401-0	04	1	0211-0501	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 08.846 (D) ID=22	8-94382-401-0	02	1	0502-0610	●	●	●
35	08.852 CLIP; WATER HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 03.278 (D) ID=22	8-97359-141-0	02	1	0611-	●	●	●
35	08.852 CLIP; WATER HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>,FRT INDEPENDENT SUSPENSION(6PP) 08.846 (C)	5-83574-003-0	01	1	0211-0501	●	●	●		●	●
35	08.852 CLIP; WATER HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 08.846 (C)	5-83574-003-0	01	1	0502-	●	●	●
35	08.852 CLIP; WATER HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>,FRT INDEPENDENT SUSPENSION(6PP) 08.846 (D) ID=22	8-94382-401-0	02	1	0211-0501	●	●	●		●	●
35	08.852 CLIP; WATER HOSE 4HF1-N ENG(RJZ),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	02	1	0502-0609	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	02	1	0502-0609				●
35	08.852 CLIP; WATER HOSE 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	02	1	0610-1003	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4HF1-N ENG(RJZ),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	02	1	1004-	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	01	1	0211-0501	●	●	●		●
35	08.852 CLIP; WATER HOSE 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) ID=22	8-94382-401-0	04	1	0502-0610	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (D) ID=22	8-97359-141-0	04	1	0611-	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 03.483 (E) L=450	1-09707-142-1	01	1	0502-		●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 03.483 (E) L=450	1-09707-142-1	01	1	0502-					●
35	08.852 CLIP; WATER HOSE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) (E) L=350	8-94152-256-1	01	1	0502-		●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) (E) L=350	8-94152-256-1	01	1	0502-					●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0211-0501	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JH1 ENG(RJX),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>,FRT INDEPENDENT SUSPENSION(6PP) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0211-0501	●	●	●		●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0502-0512	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0502-0512	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0601-	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0601-	●	●	●
56	08.846 CLAMP; HTR HOSE 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=22	8-94382-401-0	04	1	0211-0501	●	●	●		●
56	08.846 CLAMP; HTR HOSE 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=22	8-94382-401-0	04	1	0502-1003	●	●	●
56	08.846 CLAMP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=22	8-94382-401-0	04	1	0502-1003				●
56	08.846 CLAMP; HTR HOSE 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=22	8-94382-401-0	04	1	1004-	●	●
56	08.846 CLAMP; HTR HOSE 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=22	8-94382-401-0	04	1	1004-			●
56	08.846 CLAMP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=22	8-94382-401-0	04	1	1004-				●
63	08.846 HOSE; WATER 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-97128-450-0	01	1	0211-0501	●	●	●		●
63	08.846 HOSE; WATER 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-97128-450-0	01	1	0502-1003	●	●	●
63	08.846 HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-97128-450-0	01	1	0502-1003				●
63	08.846 HOSE; WATER 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-97128-450-0	01	1	1004-	●	●
63	08.846 HOSE; WATER 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-97128-450-0	01	1	1004-			●
63	08.846 HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-97128-450-0	01	1	1004-				●
63	08.846 HOSE; WATER 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97128-451-0	01	1	0211-0501	●	●	●		●
63	08.846 HOSE; WATER 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97128-451-0	01	1	0502-1003	●	●	●
63	08.846 HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97128-451-0	01	1	0502-1003				●
63	08.846 HOSE; WATER 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97128-451-0	01	1	1004-	●	●
63	08.846 HOSE; WATER 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97128-451-0	01	1	1004-			●
63	08.846 HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97128-451-0	01	1	1004-				●
63	08.846 HOSE; WATER 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97130-103-0	01	1	0211-0501	●	●	●		●
63	08.846 HOSE; WATER 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97130-103-0	01	1	0502-1003	●	●	●
63	08.846 HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97130-103-0	01	1	0502-1003				●
63	08.846 HOSE; WATER 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97130-103-0	01	1	1004-	●	●
63	08.846 HOSE; WATER 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97130-103-0	01	1	1004-			●
63	08.846 HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97130-103-0	01	1	1004-				●
63	08.846 HOSE; WATER 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97130-104-0	01	1	0211-0501	●	●	●		●
63	08.846 HOSE; WATER 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97130-104-0	01	1	0502-1003	●	●	●
63	08.846 HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97130-104-0	01	1	0502-1003				●
63	08.846 HOSE; WATER 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97130-104-0	01	1	1004-	●	●
63	08.846 HOSE; WATER 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97130-104-0	01	1	1004-			●
63	08.846 HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97130-104-0	01	1	1004-				●
100	08.846 CAP; RUBBER,WATER PIPE 4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166	8-94107-793-0	02	1	0211-0501	●	●	●	●
100	08.846 CAP; RUBBER,WATER PIPE 4HF1-N ENG(RJZ) 01.166	8-94107-793-0	02	1	0502-1202	●	●	●	●
100	08.846 CAP; RUBBER,WATER PIPE 4HF1-N ENG(RJZ) 01.166	8-94107-793-0	01	1	1203-	●	●	●	●
100	08.846 CAP; RUBBER,WATER PIPE 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),ENGINE POWER N-SPEC(7QV) 01.166	8-94107-793-0	01	1	0211-0501	●	●	●	●
100	08.846 CAP; RUBBER,WATER PIPE 4HG1 ENG(RJH) 01.166	8-94107-793-0	01	1	0502-0609			●
100	08.846 CAP; RUBBER,WATER PIPE 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166	8-94107-793-0	01	1	0610-1003			●
100	08.846 CAP; RUBBER,WATER PIPE 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUD E COMPENSATOR(EE2) 01.166	8-94107-793-0	01	1	1004-1202			●
101	08.846 CLIP; CAP,WATER PIPE 4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 ID=25	8-94233-115-0	02	1	0211-0501	●	●	●	●
101	08.846 CLIP; CAP,WATER PIPE 4HF1-N ENG(RJZ) 01.166 ID=25	8-94233-115-0	02	1	0502-1202	●	●	●	●
101	08.846 CLIP; CAP,WATER PIPE 4HF1-N ENG(RJZ) 01.166 ID=25	8-94233-115-0	01	1	1203-	●	●	●	●
101	08.846 CLIP; CAP,WATER PIPE 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),ENGINE POWER N-SPEC(7QV) 01.166 ID=25	8-94233-115-0	01	1	0211-0501	●	●	●	●
101	08.846 CLIP; CAP,WATER PIPE 4HG1 ENG(RJH) 01.166 ID=25	8-94233-115-0	01	1	0502-0609			●
101	08.846 CLIP; CAP,WATER PIPE 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 ID=25	8-94233-115-0	01	1	0610-1003			●
101	08.846 CLIP; CAP,WATER PIPE 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUD E COMPENSATOR(EE2) 01.166 ID=25	8-94233-115-0	01	1	1004-1202			●

35 35 35 9 27 11 27 26 73 26 13 13 73 11 48 35 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
9	08.846 PIPE; HTR 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (C)	8-97205-282-1	01	1	0211-0501	●	●	●		●
9	08.846 PIPE; HTR 4JH1 ENG(RJX) (A)	8-97261-456-3	01	1	0211-0501	●	●	●		●
9	08.846 PIPE; HTR 4JH1-TC ENG(RDM) (A)	8-97261-456-3	01	1	0502-		●	●		●
9	08.846 PIPE; HTR 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (B)	8-97260-267-3	01	1	0211-0501	●	●	●		●
9	08.846 PIPE; HTR 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) (B)	8-97260-267-3	01	1	0502-		●	●
9	08.846 PIPE; HTR HEATER & DEFROSTER(C41) (B)	8-97260-267-3	01	1	0502-					●
11	08.845 BOLT; HTR PIPE 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0501	●	●	●	●
11	08.845 BOLT; HTR PIPE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0502-0512		●	●
11	08.845 BOLT; HTR PIPE HEATER & DEFROSTER(C41) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0502-0512					●
11	08.845 BOLT; HTR PIPE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-		●	●
11	08.845 BOLT; HTR PIPE HEATER & DEFROSTER(C41) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-					●
11	08.845 BOLT; HTR PIPE 4JH1 ENG(RJX),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0211-0501	●	●	●		●
11	08.845 BOLT; HTR PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0211-0501						●
11	08.845 BOLT; HTR PIPE 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512	●	●	●
11	08.845 BOLT; HTR PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512				●
11	08.845 BOLT; HTR PIPE 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-1003	●	●	●
11	08.845 BOLT; HTR PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-1003				●
11	08.845 BOLT; HTR PIPE 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1004-	●	●
11	08.845 BOLT; HTR PIPE 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1004-			●
11	08.845 BOLT; HTR PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1004-				●
13	08.846 CLIP; HTR HOSE 4JH1 ENG(RJX),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> ID=22	8-94382-401-0	02	1	0211-0501	●	●	●		●
13	08.846 CLIP; HTR HOSE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	0502-		●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	0502-					●
26	08.846 HOSE; HTR 4JH1 ENG(RJX),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (A)	8-97239-082-0	01	1	0211-0501	●	●	●		●
26	08.846 HOSE; HTR 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) (A)	8-97239-082-0	01	1	0502-		●	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41) (A)	8-97239-082-0	01	1	0502-					●
26	08.846 HOSE; HTR 4JH1 ENG(RJX),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (B)	8-97239-083-0	01	1	0211-0501	●	●	●		●
26	08.846 HOSE; HTR 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) (B)	8-97239-083-0	01	1	0502-		●	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41) (B)	8-97239-083-0	01	1	0502-					●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (C)	8-97205-283-0	02	1	0610-0712	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (C)	8-97205-283-0	02	1	0801-	●		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. TURBOCHARGER<K51> (A)	8-97129-201-0	01	1	0211-0501	●	●	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) (A)	8-97129-201-0	01	1	0502-	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97185-290-0	01	1	0211-0501	●	●	●		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97185-290-0	01	1	0502-1003	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97185-290-0	01	1	0502-1003				●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97185-290-0	01	1	1004-	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HG1-T ENG(RDP),4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97185-290-0	01	1	1004-			●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97185-290-0	01	1	1004-				●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> (A)	8-97187-050-0	01	1	0211-0501	●	●	●		●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B)	5-83574-006-0	01	1	0211-0501	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 08.846 (B)	5-83574-006-0	01	1	0502-0610	●	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 08.846 (B)	8-98029-677-0	01	1	0611-	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	02	1	0211-0501	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 02.559 (A) L=250	5-09707-030-1	01	1	0502-		●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 02.559 (A) L=250	5-09707-030-1	01	1	0502-					●
35	08.852 CLIP; WATER HOSE 4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) ID=22	8-94382-401-0	04	1	0211-0501	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 08.846 (D) ID=22	8-94382-401-0	02	1	0502-0610	●	●	●
35	08.852 CLIP; WATER HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 03.278 (D) ID=22	8-97359-141-0	02	1	0611-	●	●	●
35	08.852 CLIP; WATER HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>,FRT INDEPENDENT SUSPENSION(6PP) 08.846 (C)	5-83574-003-0	01	1	0211-0501	●	●	●		●	●
35	08.852 CLIP; WATER HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 08.846 (C)	5-83574-003-0	01	1	0502-	●	●	●
35	08.852 CLIP; WATER HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>,FRT INDEPENDENT SUSPENSION(6PP) 08.846 (D) ID=22	8-94382-401-0	02	1	0211-0501	●	●	●		●	●
35	08.852 CLIP; WATER HOSE 4HF1-N ENG(RJZ),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	02	1	0502-0609	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	02	1	0502-0609				●
35	08.852 CLIP; WATER HOSE 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	02	1	0610-1003	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4HF1-N ENG(RJZ),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	02	1	1004-	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	01	1	0211-0501	●	●	●		●
35	08.852 CLIP; WATER HOSE 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) ID=22	8-94382-401-0	04	1	0502-0610	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (D) ID=22	8-97359-141-0	04	1	0611-	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 03.483 (E) L=450	1-09707-142-1	01	1	0502-		●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 03.483 (E) L=450	1-09707-142-1	01	1	0502-					●
35	08.852 CLIP; WATER HOSE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) (E) L=350	8-94152-256-1	01	1	0502-		●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) (E) L=350	8-94152-256-1	01	1	0502-					●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0211-0501	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JH1 ENG(RJX),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>,FRT INDEPENDENT SUSPENSION(6PP) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0211-0501	●	●	●		●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0502-0512	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0502-0512	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0601-	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0601-	●	●	●
73	08.846 CLIP; HTR HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	0211-0310	●	●	●		●	●
73	08.846 CLIP; HTR HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	0311-0501	●	●	●		●	●
73	08.846 CLIP; HTR HOSE 4JH1 ENG(RJX) ID=22	8-94382-401-0	02	1	0311-0501	●	●	●		●
73	08.846 CLIP; HTR HOSE 4JH1-TC ENG(RDM),4JB1 ENG(RLF) ID=22	8-94382-401-0	02	1	0502-0609	●	●	●		●
73	08.846 CLIP; HTR HOSE 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 ENG(RLF) ID=22	8-94382-401-0	02	1	0610-0610	●	●	●		●
73	08.846 CLIP; HTR HOSE 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 ENG(RLF) 03.278 ID=22	8-97359-141-0	02	1	0611-	●	●	●		●
73	08.846 CLIP; HTR HOSE 4JH1 ENG(RJX) 01.166 ID=25	9-09915-642-2	02	1	0211-0310	●	●	●		●
121	08.845 NUT; PIPE 4JH1 ENG(RJX),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.540 M8 FLANGE	0-91150-208-0	01	1	0211-0501	●	●	●		●
121	08.845 NUT; PIPE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 01.540 M8 FLANGE	0-91150-208-0	01	1	0502-0602		●	●
121	08.845 NUT; PIPE HEATER & DEFROSTER(C41) 01.540 M8 FLANGE	0-91150-208-0	01	1	0502-0602					●
121	08.845 NUT; PIPE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 01.540 M8 FLANGE	0-91180-208-0	01	1	0603-1401		●	●
121	08.845 NUT; PIPE HEATER & DEFROSTER(C41) 01.540 M8 FLANGE	0-91180-208-0	01	1	0603-1401					●
121	08.845 NUT; PIPE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 01.062 M8 FLANGE	0-91180-108-0	01	1	1402-		●	●
121	08.845 NUT; PIPE HEATER & DEFROSTER(C41) 01.062 M8 FLANGE	0-91180-108-0	01	1	1402-					●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
