◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50944 - NKR(RHD)EXC.EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#48161) — 233 parça

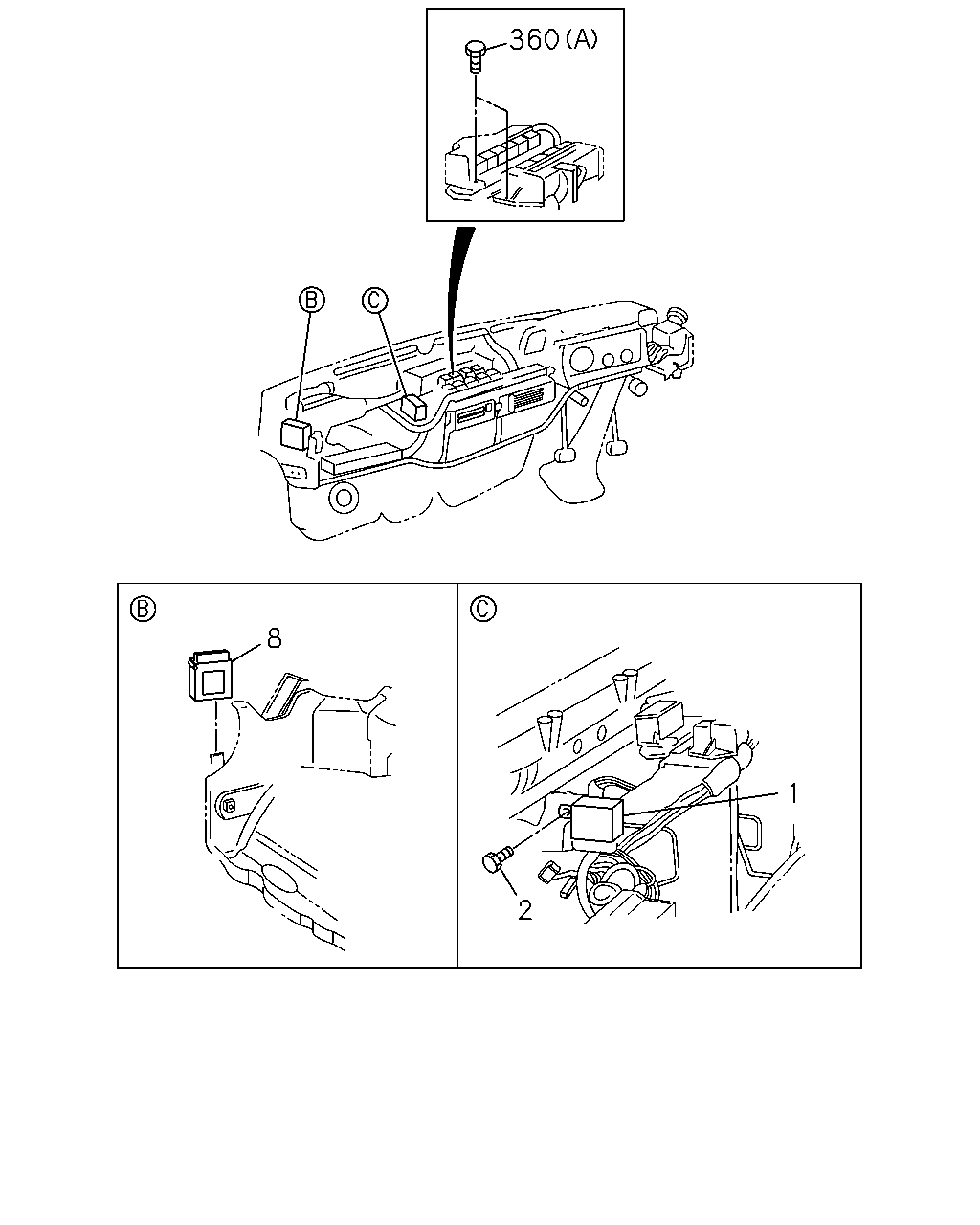

çizim 11620
360 8 1 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.575 UNIT; FLASHER
VOLTAGE 24V<7AE> 		8-97086-508-1 01 1 0211-0211 ● ● ●
1 02.575 UNIT; FLASHER 8-97086-508-1 01 1 0211-0211 ●
1 02.575 UNIT; FLASHER
VOLTAGE 24V<7AE> 		8-97360-084-1 01 1 0212- ● ● ●
1 02.575 UNIT; FLASHER 8-97360-084-1 01 1 0212- ●
1 02.575 UNIT; FLASHER
EXC. VOLTAGE 24V<7AE> 		8-97228-398-0 01 1 0211-0501 ● ● ●
1 02.575 UNIT; FLASHER 8-97228-398-0 01 1 0211-0501 ● ●
1 02.575 UNIT; FLASHER
EXC. VOLTAGE 24V<7AE> 		8-97228-398-0 01 1 0502- ● ● ●
1 02.575 UNIT; FLASHER 8-97228-398-0 01 1 0502- ●
2 02.892 BOLT; FLASHER UNIT
10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 01 1 0211-0501 ● ● ● ● ● ●
2 02.892 BOLT; FLASHER UNIT
10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 01 1 0502-1210 ● ● ● ● ●
2 02.892 BOLT; FLASHER UNIT
02.587 M6X19.5 W/LK&PL WASHER 		8-97360-226-0 01 1 1211- ● ● ● ● ●
8 16.067 RELAY; WIPER
INTERMITTENT WIPER<C13> VOLTAGE 24V<7AE> 		8-97184-233-0 01 1 0211-0301 ● ● ●
8 16.067 RELAY; WIPER
INTERMITTENT WIPER<C13> 		8-97184-233-0 01 1 0211-0301 ●
8 16.067 RELAY; WIPER
INTERMITTENT WIPER<C13> VOLTAGE 24V<7AE> 		8-97363-983-0 01 1 0302- ● ● ●
8 16.067 RELAY; WIPER
INTERMITTENT WIPER<C13> 		8-97363-983-0 01 1 0302- ●
8 16.067 RELAY; WIPER
INTERMITTENT WIPER<C13> EXC. VOLTAGE 24V<7AE> 		8-97855-186-0 01 1 0211-0301 ● ● ●
8 16.067 RELAY; WIPER
INTERMITTENT WIPER<C13> 		8-97855-186-0 01 1 0211-0301 ● ●
8 16.067 RELAY; WIPER
INTERMITTENT WIPER<C13> EXC. VOLTAGE 24V<7AE> 		8-97363-984-0 01 1 0302-0501 ● ● ●
8 16.067 RELAY; WIPER
INTERMITTENT WIPER<C13> 		8-97363-984-0 01 1 0302-0501 ● ●
8 16.067 RELAY; WIPER
INTERMITTENT WIPER<C13> EXC. VOLTAGE 24V<7AE> 		8-97363-984-0 01 1 0502- ● ● ●
8 16.067 RELAY; WIPER
INTERMITTENT WIPER<C13> 		8-97363-984-0 01 1 0502- ●
360 02.483 BOLT; RELAY BOX
02.559 (B) M8X25 FLANGE 		0-28680-825-0 03 1 0211-0501 ● ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
02.559 (B) M8X25 FLANGE 		0-28680-825-0 03 1 0502-0512 ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
06.216 (B) M8X25 FLANGE 		0-28650-825-0 03 1 0601- ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
10.230 (A) M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 0211-0501 ● ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
4JH1-TC ENG(RDM) 10.230 (A) M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 0502-1210 ● ●
360 02.483 BOLT; RELAY BOX
10.230 (A) M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 0502-1210 ●
360 02.483 BOLT; RELAY BOX
4JH1-TC ENG(RDM) 02.587 (A) M6X19.5 W/LK&PL WASHER 		8-97360-226-0 04 1 1211- ● ●
360 02.483 BOLT; RELAY BOX
02.587 (A) M6X19.5 W/LK&PL WASHER 		8-97360-226-0 04 1 1211- ●
360 02.483 BOLT; RELAY BOX
4HF1-S ENG(RLS) 01.062 (C) M8X16 FLANGE 		0-28080-816-0 01 1 0211-0501 ● ●
360 02.483 BOLT; RELAY BOX
4HG1 ENG(RJH),4HF1-S ENG(RLS) 01.062 (C) M8X16 FLANGE 		0-28080-816-0 01 1 0211-0501 ●
360 02.483 BOLT; RELAY BOX
01.062 (C) M8X16 FLANGE 		0-28080-816-0 01 1 0211-0501 ●
360 02.483 BOLT; RELAY BOX
4HF1-N ENG(RJZ) 01.062 (C) M8X16 FLANGE 		0-28080-816-0 01 1 0502-0512 ● ●
360 02.483 BOLT; RELAY BOX
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.062 (C) M8X16 FLANGE 		0-28080-816-0 01 1 0502-0512 ●
360 02.483 BOLT; RELAY BOX
01.062 (C) M8X16 FLANGE 		0-28080-816-0 01 1 0502-0512 ●
360 02.483 BOLT; RELAY BOX
4HF1-N ENG(RJZ) 02.343 (C) M8X16 FLANGE 		0-28050-816-0 01 1 0601-0609 ● ●
360 02.483 BOLT; RELAY BOX
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.343 (C) M8X16 FLANGE 		0-28050-816-0 01 1 0601-0609 ●
360 02.483 BOLT; RELAY BOX
02.343 (C) M8X16 FLANGE 		0-28050-816-0 01 1 0601-0609 ●
360 02.483 BOLT; RELAY BOX
4HF1-N ENG(RJZ) 02.343 (C) M8X16 FLANGE 		0-28050-816-0 01 1 0610-1404 ● ●
360 02.483 BOLT; RELAY BOX
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.343 (C) M8X16 FLANGE 		0-28050-816-0 01 1 0610-1404 ●
360 02.483 BOLT; RELAY BOX
02.343 (C) M8X16 FLANGE 		0-28050-816-0 01 1 0610-1404 ●
360 02.483 BOLT; RELAY BOX
4HF1-N ENG(RJZ) 02.343 (C) M8X16 FLANGE 		0-28050-816-0 01 1 1405-1405 ● ●
360 02.483 BOLT; RELAY BOX
4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) INDONESIA EQUIPMENT(S4S) MINI BUS CHASSIS(V4B) 02.343 (C) M8X16 FLANGE 		0-28050-816-0 01 1 1405-1405 ●
360 02.483 BOLT; RELAY BOX
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) EXC. MINI BUS CHASSIS(V4B) 02.343 (C) M8X16 FLANGE 		0-28050-816-0 01 1 1405-1405 ●
360 02.483 BOLT; RELAY BOX
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.343 (C) M8X16 FLANGE 		0-28050-816-0 01 1 1405-1405 ●
360 02.483 BOLT; RELAY BOX
02.343 (C) M8X16 FLANGE 		0-28050-816-0 01 1 1405-1405 ●
360 02.483 BOLT; RELAY BOX
4HF1-N ENG(RJZ) 02.343 (C) M8X16 FLANGE 		0-28050-816-0 01 1 1405- ● ●
360 02.483 BOLT; RELAY BOX
4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) INDONESIA EQUIPMENT(S4S) MINI BUS CHASSIS(V4B) 02.343 (C) M8X16 FLANGE 		0-28050-816-0 01 1 1405- ●
360 02.483 BOLT; RELAY BOX
4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) 02.343 (C) M8X16 FLANGE 		0-28050-816-0 01 1 1405- ●
360 02.483 BOLT; RELAY BOX
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.343 (C) M8X16 FLANGE 		0-28050-816-0 01 1 1405- ●
360 02.483 BOLT; RELAY BOX
02.343 (C) M8X16 FLANGE 		0-28050-816-0 01 1 1405- ●
360 02.483 BOLT; RELAY BOX
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) 10.230 (A) M6X16 W/LK&PL WASHER 		8-94139-963-0 02 1 0502-0609 ● ● ● ●
360 02.483 BOLT; RELAY BOX
4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4HG1ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) 10.230 (A) M6X16 W/LK&PL WASHER 		8-94139-963-0 02 1 0610-1210 ● ● ● ●
360 02.483 BOLT; RELAY BOX
4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4HG1ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) 02.587 (A) M6X19.5 W/LK&PL WASHER 		8-97360-226-0 02 1 1211- ● ● ● ●
çizim 53395
361 45 44 46
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
44 02.810 HORN; HIGH NOTE
DUAL TONE HORN(U05) VOLTAGE 24V<7AE> 		8-97211-741-2 01 1 0211- ● ● ●
44 02.810 HORN; HIGH NOTE
DUAL TONE HORN(U05) 		8-97211-741-2 01 1 0211- ●
44 02.810 HORN; HIGH NOTE
DUAL TONE HORN(U05) EXC. VOLTAGE 24V<7AE> 		8-97211-743-1 01 1 0211-0501 ● ● ●
44 02.810 HORN; HIGH NOTE
DUAL TONE HORN(U05) 		8-97211-743-1 01 1 0211-0501 ● ●
44 02.810 HORN; HIGH NOTE
DUAL TONE HORN(U05) EXC. VOLTAGE 24V<7AE> 		8-97211-743-2 01 1 0502- ● ● ●
44 02.810 HORN; HIGH NOTE
DUAL TONE HORN(U05) 		8-97211-743-2 01 1 0502- ●
45 02.810 HORN; LOW NOTE
SINGLE HEAVY DUTY HORN(6HG) VOLTAGE 24V<7AE> 		8-97109-364-1 01 1 0211- ● ● ●
45 02.810 HORN; LOW NOTE
SINGLE HEAVY DUTY HORN(6HG) 		8-97109-364-1 01 1 0211- ●
45 02.810 HORN; LOW NOTE
SINGLE HEAVY DUTY HORN(6HG) EXC. VOLTAGE 24V<7AE> 		8-97109-362-1 01 1 0211-0501 ● ● ●
45 02.810 HORN; LOW NOTE
SINGLE HEAVY DUTY HORN(6HG) 		8-97109-362-1 01 1 0211-0501 ● ●
45 02.810 HORN; LOW NOTE
SINGLE HEAVY DUTY HORN(6HG) EXC. VOLTAGE 24V<7AE> 		8-97109-362-1 01 1 0502- ● ● ●
45 02.810 HORN; LOW NOTE
SINGLE HEAVY DUTY HORN(6HG) 		8-97109-362-1 01 1 0502- ●
45 02.810 HORN; LOW NOTE
EXC. SINGLE HEAVY DUTY HORN(6HG), VOLTAGE 24V<7AE> 		8-97211-744-1 01 1 0211-0501 ● ● ●
45 02.810 HORN; LOW NOTE
EXC. SINGLE HEAVY DUTY HORN(6HG) 		8-97211-744-1 01 1 0211-0501 ● ●
45 02.810 HORN; LOW NOTE
EXC. SINGLE HEAVY DUTY HORN(6HG), VOLTAGE 24V<7AE> 		8-97211-744-2 01 1 0502- ● ● ●
45 02.810 HORN; LOW NOTE
EXC. SINGLE HEAVY DUTY HORN(6HG) 		8-97211-744-2 01 1 0502- ●
45 02.810 HORN; LOW NOTE
VOLTAGE 24V<7AE> EXC. SINGLE HEAVY DUTY HORN(6HG) 		8-97211-740-2 01 1 0211- ● ● ●
45 02.810 HORN; LOW NOTE
EXC. SINGLE HEAVY DUTY HORN(6HG) 		8-97211-740-2 01 1 0211- ●
46 02.812 BOLT; HORN TO BODY
DUAL TONE HORN(U05) 02.559 M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0211-0501 ● ● ● ● ● ●
46 02.812 BOLT; HORN TO BODY
DUAL TONE HORN(U05) 02.559 M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0502-1004 ● ● ● ● ●
46 02.812 BOLT; HORN TO BODY
DUAL TONE HORN(U05) 02.343 M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1005- ● ● ● ● ●
46 02.812 BOLT; HORN TO BODY
EXC. DUAL TONE HORN(U05) 02.559 M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0211-0501 ● ● ● ● ● ●
46 02.812 BOLT; HORN TO BODY
EXC. DUAL TONE HORN(U05) 02.559 M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0502-1004 ● ● ● ● ●
46 02.812 BOLT; HORN TO BODY
EXC. DUAL TONE HORN(U05) 02.343 M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1005- ● ● ● ● ●
361 02.559 BOLT; CONNECTOR
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0211-0501 ● ● ● ● ● ●
361 02.559 BOLT; CONNECTOR
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0502-1210 ● ● ● ● ●
361 02.559 BOLT; CONNECTOR
02.587 M6X19.5 W/LK&PL WASHER 		8-97360-226-0 01 1 1211- ● ● ● ● ●
çizim 53655
22 11 29 534
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
11 02.485 RELAY; DIMMER
VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ●
11 02.485 RELAY; DIMMER
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ●
11 02.485 RELAY; DIMMER
VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ● ●
11 02.485 RELAY; DIMMER
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ●
11 02.485 RELAY; DIMMER
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ● ●
11 02.485 RELAY; DIMMER
08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ●
11 02.485 RELAY; DIMMER
EXC. VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0502- ● ● ●
11 02.485 RELAY; DIMMER
02.510 12V 20A 		8-97173-037-1 01 1 0502- ●
22 02.679 RELAY; STOP LAMP
VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ●
22 02.679 RELAY; STOP LAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ●
22 02.679 RELAY; STOP LAMP
VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ● ●
22 02.679 RELAY; STOP LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ●
22 02.679 RELAY; STOP LAMP
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ● ●
22 02.679 RELAY; STOP LAMP
08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ●
22 02.679 RELAY; STOP LAMP
EXC. VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0502- ● ● ●
22 02.679 RELAY; STOP LAMP
02.510 12V 20A 		8-97173-037-1 01 1 0502- ●
29 02.815 RELAY; HORN
VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ●
29 02.815 RELAY; HORN
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ●
29 02.815 RELAY; HORN
VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ● ●
29 02.815 RELAY; HORN
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ●
29 02.815 RELAY; HORN
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ● ●
29 02.815 RELAY; HORN
08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ●
29 02.815 RELAY; HORN
EXC. VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0502- ● ● ●
29 02.815 RELAY; HORN
02.510 12V 20A 		8-97173-037-1 01 1 0502- ●
534 02.485 RELAY; FUEL FILTER
4JH1 ENG(RJX) FUEL SEDIMENTER WITH HEATER<6HU> 08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ● ● ●

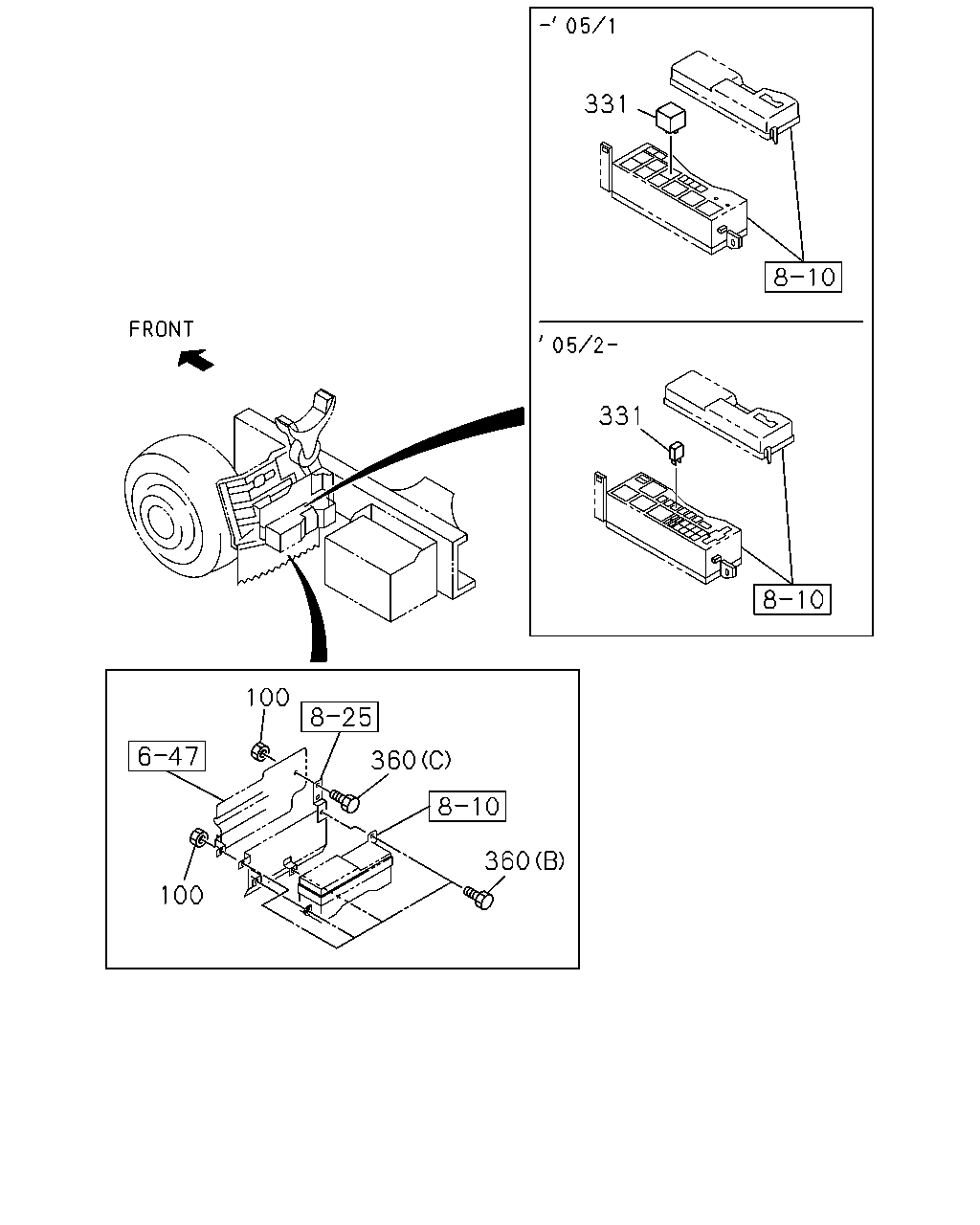

çizim 53828
331 331 100 360 360 100
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
100 09.277 NUT; RELAY BOX COVER
4HF1-S ENG(RLS) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0211-0501 ● ●
100 09.277 NUT; RELAY BOX COVER
4HG1 ENG(RJH),4HF1-S ENG(RLS) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0211-0501 ●
100 09.277 NUT; RELAY BOX COVER
07.633 M8 FLANGE 		0-91150-108-0 02 1 0211-0501 ●
100 09.277 NUT; RELAY BOX COVER
4HF1-N ENG(RJZ) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0502-0602 ● ●
100 09.277 NUT; RELAY BOX COVER
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0502-0602 ●
100 09.277 NUT; RELAY BOX COVER
07.633 M8 FLANGE 		0-91150-108-0 02 1 0502-0602 ●
100 09.277 NUT; RELAY BOX COVER
4HF1-N ENG(RJZ) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0603-0609 ● ●
100 09.277 NUT; RELAY BOX COVER
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0603-0609 ●
100 09.277 NUT; RELAY BOX COVER
01.062 M8 FLANGE 		0-91180-108-0 02 1 0603-0609 ●
100 09.277 NUT; RELAY BOX COVER
4HF1-N ENG(RJZ) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0610-1404 ● ●
100 09.277 NUT; RELAY BOX COVER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0610-1404 ●
100 09.277 NUT; RELAY BOX COVER
01.062 M8 FLANGE 		0-91180-108-0 02 1 0610-1404 ●
100 09.277 NUT; RELAY BOX COVER
4HF1-N ENG(RJZ) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1405-1405 ● ●
100 09.277 NUT; RELAY BOX COVER
4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) INDONESIA EQUIPMENT(S4S) MINI BUS CHASSIS(V4B) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1405-1405 ●
100 09.277 NUT; RELAY BOX COVER
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) EXC. MINI BUS CHASSIS(V4B) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1405-1405 ●
100 09.277 NUT; RELAY BOX COVER
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1405-1405 ●
100 09.277 NUT; RELAY BOX COVER
01.062 M8 FLANGE 		0-91180-108-0 02 1 1405-1405 ●
100 09.277 NUT; RELAY BOX COVER
4HF1-N ENG(RJZ) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1405- ● ●
100 09.277 NUT; RELAY BOX COVER
4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) INDONESIA EQUIPMENT(S4S) MINI BUS CHASSIS(V4B) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1405- ●
100 09.277 NUT; RELAY BOX COVER
4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1405- ●
100 09.277 NUT; RELAY BOX COVER
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1405- ●
100 09.277 NUT; RELAY BOX COVER
01.062 M8 FLANGE 		0-91180-108-0 02 1 1405- ●
100 09.277 NUT; RELAY BOX COVER
4JH1 ENG(RJX),4JB1 ENG(RLF) 07.633 M8 FLANGE 		0-91150-108-0 03 1 0211-0501 ● ● ● ●
100 09.277 NUT; RELAY BOX COVER
07.633 M8 FLANGE 		0-91150-108-0 03 1 0211-0501 ●
100 09.277 NUT; RELAY BOX COVER
4JB1 ENG(RLF) 07.633 M8 FLANGE 		0-91150-108-0 03 1 0502-0602 ●
100 09.277 NUT; RELAY BOX COVER
4JH1-TC ENG(RDM),4JB1 ENG(RLF) 07.633 M8 FLANGE 		0-91150-108-0 03 1 0502-0602 ● ●
100 09.277 NUT; RELAY BOX COVER
07.633 M8 FLANGE 		0-91150-108-0 03 1 0502-0602 ●
100 09.277 NUT; RELAY BOX COVER
4JB1 ENG(RLF) 01.062 M8 FLANGE 		0-91180-108-0 03 1 0603-0609 ●
100 09.277 NUT; RELAY BOX COVER
4JH1-TC ENG(RDM),4JB1 ENG(RLF) 01.062 M8 FLANGE 		0-91180-108-0 03 1 0603-0609 ● ●
100 09.277 NUT; RELAY BOX COVER
01.062 M8 FLANGE 		0-91180-108-0 03 1 0603-0609 ●
100 09.277 NUT; RELAY BOX COVER
4JB1-TC ENG(RDT),4JB1 ENG(RLF) 01.062 M8 FLANGE 		0-91180-108-0 03 1 0610-0712 ●
100 09.277 NUT; RELAY BOX COVER
4JH1-TC ENG(RDM),4JB1 ENG(RLF) 01.062 M8 FLANGE 		0-91180-108-0 03 1 0610-0712 ● ●
100 09.277 NUT; RELAY BOX COVER
01.062 M8 FLANGE 		0-91180-108-0 03 1 0610-0712 ●
100 09.277 NUT; RELAY BOX COVER
4JB1-TC ENG(RDT),4JB1 ENG(RLF) 01.062 M8 FLANGE 		0-91180-108-0 03 1 0801-1404 ●
100 09.277 NUT; RELAY BOX COVER
4JH1-TC ENG(RDM),4JB1 ENG(RLF) 01.062 M8 FLANGE 		0-91180-108-0 03 1 0801-1404 ●
100 09.277 NUT; RELAY BOX COVER
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 ENG(RLF) 01.062 M8 FLANGE 		0-91180-108-0 03 1 0801-1404 ●
100 09.277 NUT; RELAY BOX COVER
01.062 M8 FLANGE 		0-91180-108-0 03 1 0801-1404 ●
100 09.277 NUT; RELAY BOX COVER
4JB1-TC ENG(RDT),4JB1 ENG(RLF) 01.062 M8 FLANGE 		0-91180-108-0 03 1 1405- ●
100 09.277 NUT; RELAY BOX COVER
4JH1-TC ENG(RDM),4JB1 ENG(RLF) 01.062 M8 FLANGE 		0-91180-108-0 03 1 1405- ●
100 09.277 NUT; RELAY BOX COVER
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 ENG(RLF) 01.062 M8 FLANGE 		0-91180-108-0 03 1 1405- ●
100 09.277 NUT; RELAY BOX COVER
4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) INDONESIA EQUIPMENT(S4S) MINI BUS CHASSIS(V4B) 01.062 M8 FLANGE 		0-91180-108-0 03 1 1405- ●
100 09.277 NUT; RELAY BOX COVER
01.062 M8 FLANGE 		0-91180-108-0 03 1 1405- ●
331 02.510 RELAY; A/C
4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) 08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ● ● ●
331 02.510 RELAY; A/C
4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) 12V 20A 		8-97173-037-1 01 1 0502- ● ●
331 02.510 RELAY; A/C
AIR CONDITIONER MANUAL CONT(C60) 12V 20A 		8-97173-037-1 01 1 0502- ●
360 02.483 BOLT; RELAY BOX
02.559 (B) M8X25 FLANGE 		0-28680-825-0 03 1 0211-0501 ● ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
02.559 (B) M8X25 FLANGE 		0-28680-825-0 03 1 0502-0512 ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
06.216 (B) M8X25 FLANGE 		0-28650-825-0 03 1 0601- ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
10.230 (A) M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 0211-0501 ● ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
4JH1-TC ENG(RDM) 10.230 (A) M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 0502-1210 ● ●
360 02.483 BOLT; RELAY BOX
10.230 (A) M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 0502-1210 ●
360 02.483 BOLT; RELAY BOX
4JH1-TC ENG(RDM) 02.587 (A) M6X19.5 W/LK&PL WASHER 		8-97360-226-0 04 1 1211- ● ●
360 02.483 BOLT; RELAY BOX
02.587 (A) M6X19.5 W/LK&PL WASHER 		8-97360-226-0 04 1 1211- ●
360 02.483 BOLT; RELAY BOX
4HF1-S ENG(RLS) 01.062 (C) M8X16 FLANGE 		0-28080-816-0 01 1 0211-0501 ● ●
360 02.483 BOLT; RELAY BOX
4HG1 ENG(RJH),4HF1-S ENG(RLS) 01.062 (C) M8X16 FLANGE 		0-28080-816-0 01 1 0211-0501 ●
360 02.483 BOLT; RELAY BOX
01.062 (C) M8X16 FLANGE 		0-28080-816-0 01 1 0211-0501 ●
360 02.483 BOLT; RELAY BOX
4HF1-N ENG(RJZ) 01.062 (C) M8X16 FLANGE 		0-28080-816-0 01 1 0502-0512 ● ●
360 02.483 BOLT; RELAY BOX
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.062 (C) M8X16 FLANGE 		0-28080-816-0 01 1 0502-0512 ●
360 02.483 BOLT; RELAY BOX
01.062 (C) M8X16 FLANGE 		0-28080-816-0 01 1 0502-0512 ●
360 02.483 BOLT; RELAY BOX
4HF1-N ENG(RJZ) 02.343 (C) M8X16 FLANGE 		0-28050-816-0 01 1 0601-0609 ● ●
360 02.483 BOLT; RELAY BOX
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.343 (C) M8X16 FLANGE 		0-28050-816-0 01 1 0601-0609 ●
360 02.483 BOLT; RELAY BOX
02.343 (C) M8X16 FLANGE 		0-28050-816-0 01 1 0601-0609 ●
360 02.483 BOLT; RELAY BOX
4HF1-N ENG(RJZ) 02.343 (C) M8X16 FLANGE 		0-28050-816-0 01 1 0610-1404 ● ●
360 02.483 BOLT; RELAY BOX
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.343 (C) M8X16 FLANGE 		0-28050-816-0 01 1 0610-1404 ●
360 02.483 BOLT; RELAY BOX
02.343 (C) M8X16 FLANGE 		0-28050-816-0 01 1 0610-1404 ●
360 02.483 BOLT; RELAY BOX
4HF1-N ENG(RJZ) 02.343 (C) M8X16 FLANGE 		0-28050-816-0 01 1 1405-1405 ● ●
360 02.483 BOLT; RELAY BOX
4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) INDONESIA EQUIPMENT(S4S) MINI BUS CHASSIS(V4B) 02.343 (C) M8X16 FLANGE 		0-28050-816-0 01 1 1405-1405 ●
360 02.483 BOLT; RELAY BOX
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) EXC. MINI BUS CHASSIS(V4B) 02.343 (C) M8X16 FLANGE 		0-28050-816-0 01 1 1405-1405 ●
360 02.483 BOLT; RELAY BOX
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.343 (C) M8X16 FLANGE 		0-28050-816-0 01 1 1405-1405 ●
360 02.483 BOLT; RELAY BOX
02.343 (C) M8X16 FLANGE 		0-28050-816-0 01 1 1405-1405 ●
360 02.483 BOLT; RELAY BOX
4HF1-N ENG(RJZ) 02.343 (C) M8X16 FLANGE 		0-28050-816-0 01 1 1405- ● ●
360 02.483 BOLT; RELAY BOX
4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) INDONESIA EQUIPMENT(S4S) MINI BUS CHASSIS(V4B) 02.343 (C) M8X16 FLANGE 		0-28050-816-0 01 1 1405- ●
360 02.483 BOLT; RELAY BOX
4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) 02.343 (C) M8X16 FLANGE 		0-28050-816-0 01 1 1405- ●
360 02.483 BOLT; RELAY BOX
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.343 (C) M8X16 FLANGE 		0-28050-816-0 01 1 1405- ●
360 02.483 BOLT; RELAY BOX
02.343 (C) M8X16 FLANGE 		0-28050-816-0 01 1 1405- ●
360 02.483 BOLT; RELAY BOX
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) 10.230 (A) M6X16 W/LK&PL WASHER 		8-94139-963-0 02 1 0502-0609 ● ● ● ●
360 02.483 BOLT; RELAY BOX
4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4HG1ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) 10.230 (A) M6X16 W/LK&PL WASHER 		8-94139-963-0 02 1 0610-1210 ● ● ● ●
360 02.483 BOLT; RELAY BOX
4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4HG1ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) 02.587 (A) M6X19.5 W/LK&PL WASHER 		8-97360-226-0 02 1 1211- ● ● ● ●

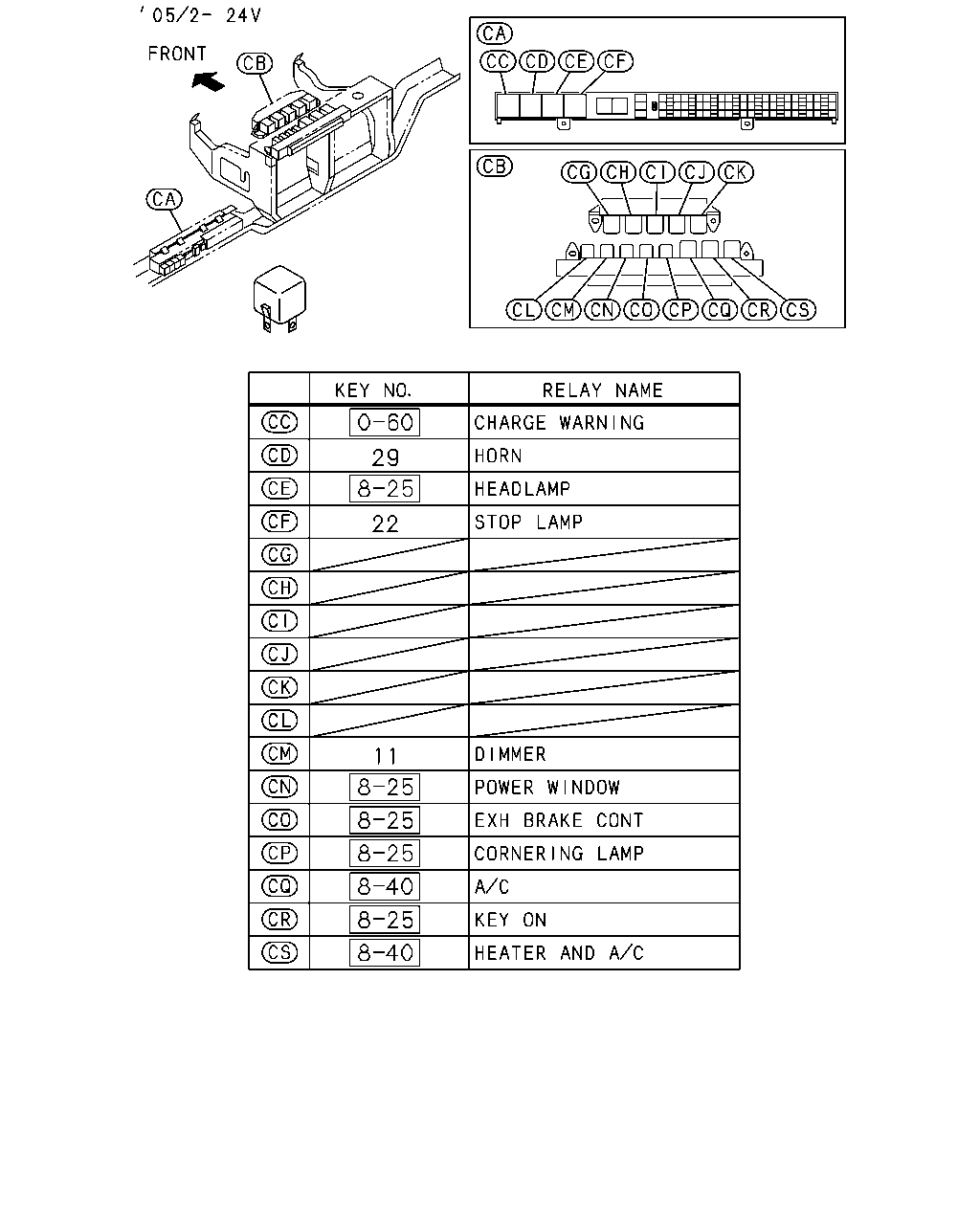

çizim 55282
29 22 11
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
11 02.485 RELAY; DIMMER
VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ●
11 02.485 RELAY; DIMMER
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ●
11 02.485 RELAY; DIMMER
VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ● ●
11 02.485 RELAY; DIMMER
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ●
11 02.485 RELAY; DIMMER
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ● ●
11 02.485 RELAY; DIMMER
08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ●
11 02.485 RELAY; DIMMER
EXC. VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0502- ● ● ●
11 02.485 RELAY; DIMMER
02.510 12V 20A 		8-97173-037-1 01 1 0502- ●
22 02.679 RELAY; STOP LAMP
VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ●
22 02.679 RELAY; STOP LAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ●
22 02.679 RELAY; STOP LAMP
VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ● ●
22 02.679 RELAY; STOP LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ●
22 02.679 RELAY; STOP LAMP
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ● ●
22 02.679 RELAY; STOP LAMP
08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ●
22 02.679 RELAY; STOP LAMP
EXC. VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0502- ● ● ●
22 02.679 RELAY; STOP LAMP
02.510 12V 20A 		8-97173-037-1 01 1 0502- ●
29 02.815 RELAY; HORN
VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ●
29 02.815 RELAY; HORN
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ●
29 02.815 RELAY; HORN
VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ● ●
29 02.815 RELAY; HORN
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ●
29 02.815 RELAY; HORN
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ● ●
29 02.815 RELAY; HORN
08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ●
29 02.815 RELAY; HORN
EXC. VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0502- ● ● ●
29 02.815 RELAY; HORN
02.510 12V 20A 		8-97173-037-1 01 1 0502- ●

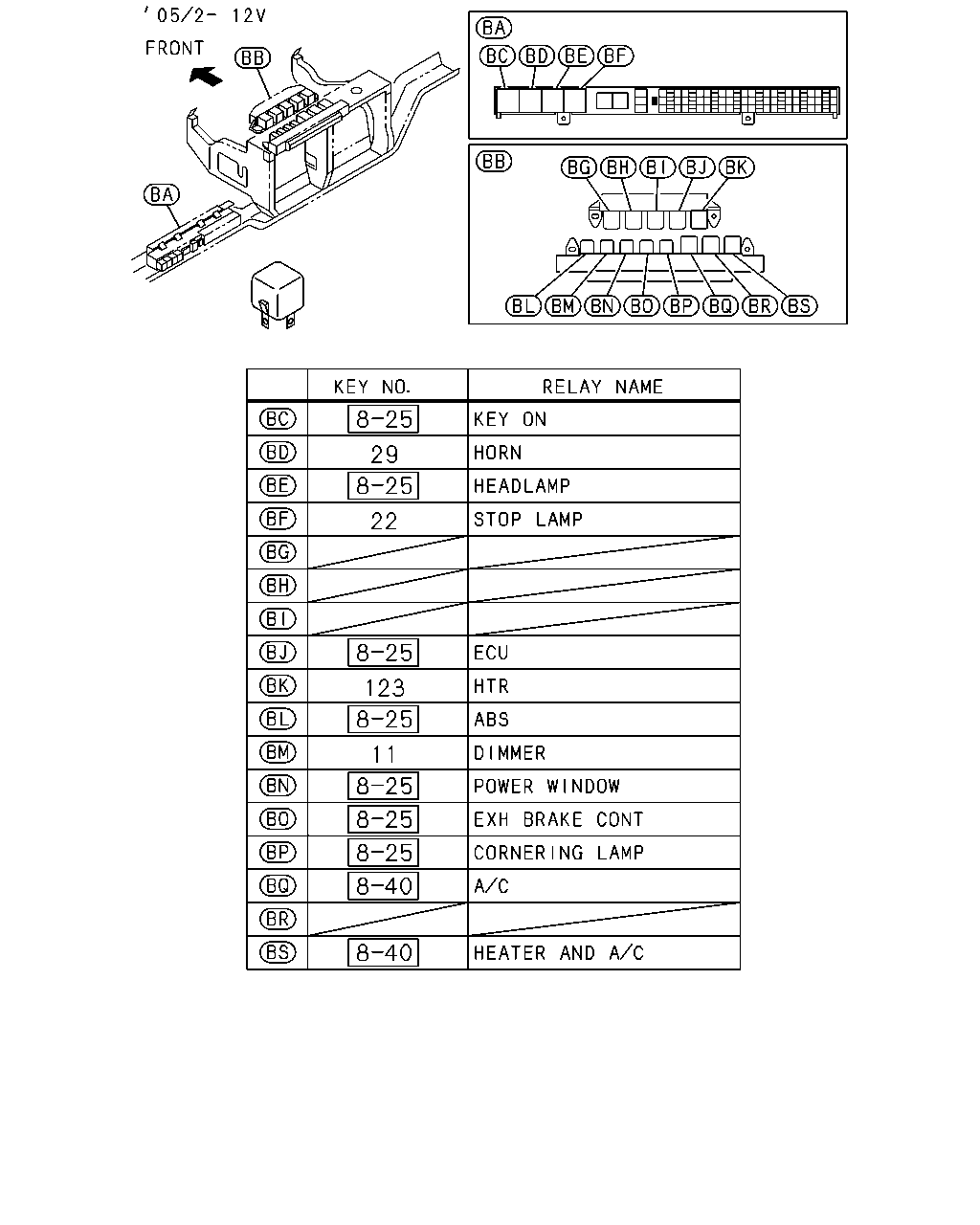

çizim 55285
29 22 123 11
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
11 02.485 RELAY; DIMMER
VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ●
11 02.485 RELAY; DIMMER
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ●
11 02.485 RELAY; DIMMER
VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ● ●
11 02.485 RELAY; DIMMER
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ●
11 02.485 RELAY; DIMMER
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ● ●
11 02.485 RELAY; DIMMER
08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ●
11 02.485 RELAY; DIMMER
EXC. VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0502- ● ● ●
11 02.485 RELAY; DIMMER
02.510 12V 20A 		8-97173-037-1 01 1 0502- ●
22 02.679 RELAY; STOP LAMP
VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ●
22 02.679 RELAY; STOP LAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ●
22 02.679 RELAY; STOP LAMP
VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ● ●
22 02.679 RELAY; STOP LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ●
22 02.679 RELAY; STOP LAMP
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ● ●
22 02.679 RELAY; STOP LAMP
08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ●
22 02.679 RELAY; STOP LAMP
EXC. VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0502- ● ● ●
22 02.679 RELAY; STOP LAMP
02.510 12V 20A 		8-97173-037-1 01 1 0502- ●
29 02.815 RELAY; HORN
VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ●
29 02.815 RELAY; HORN
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ●
29 02.815 RELAY; HORN
VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ● ●
29 02.815 RELAY; HORN
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ●
29 02.815 RELAY; HORN
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ● ●
29 02.815 RELAY; HORN
08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ●
29 02.815 RELAY; HORN
EXC. VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0502- ● ● ●
29 02.815 RELAY; HORN
02.510 12V 20A 		8-97173-037-1 01 1 0502- ●
123 02.270 RELAY; HTR
4JH1-TC ENG(RDM) FUEL SEDIMENTER WITH HEATER<6HU> 08.852 12V 20A 		8-97060-926-1 01 1 0502- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
