8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#48160) — 72 parça

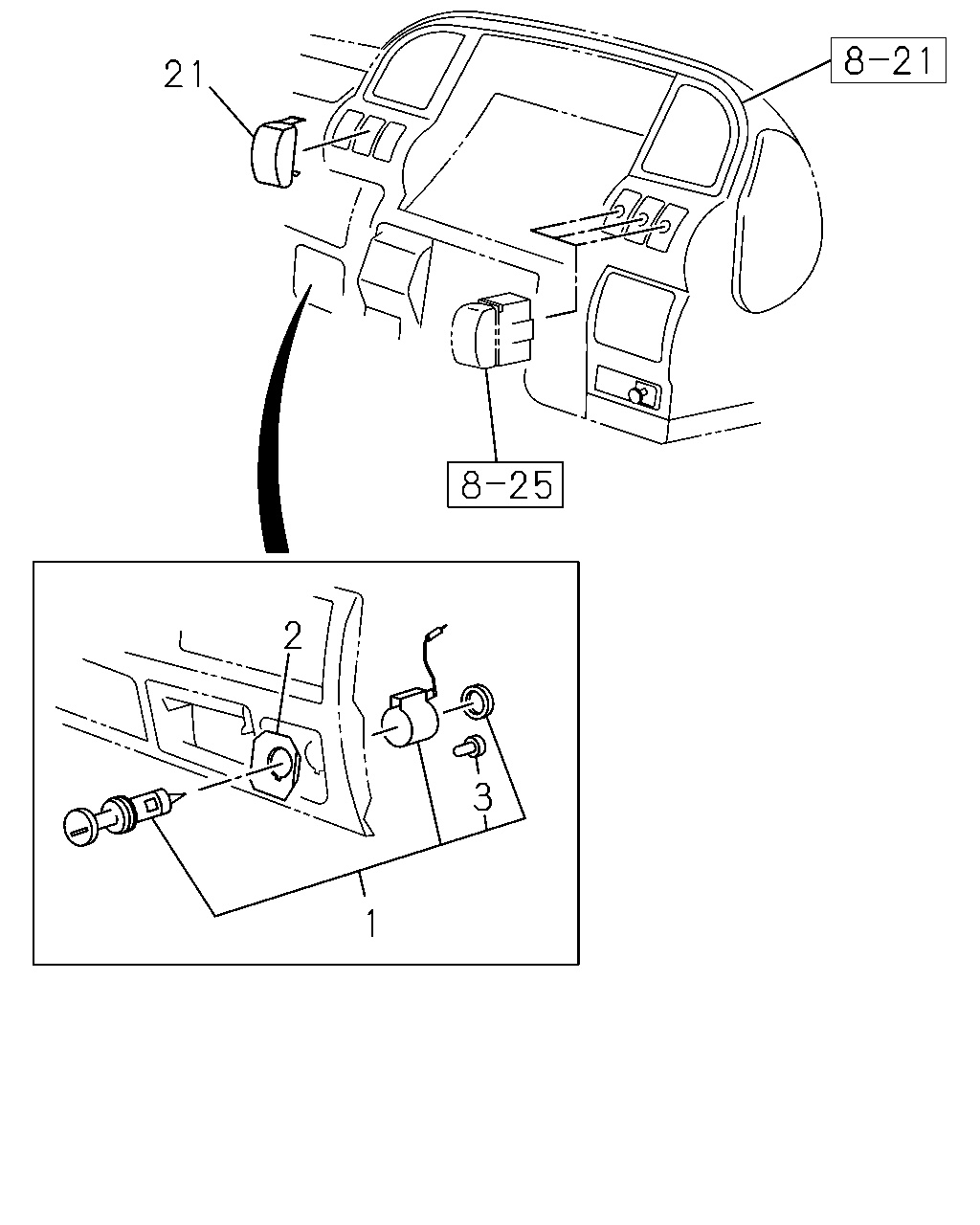

çizim 11619
21 2 3 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 09.709 LIGHTER; CIGAR
VOLTAGE 24V<7AE> 		8-97320-325-0 01 1 0211- ● ● ●
1 09.709 LIGHTER; CIGAR 8-97320-325-0 01 1 0211- ●
1 09.709 LIGHTER; CIGAR
EXC. VOLTAGE 24V<7AE> 		8-97320-322-0 01 1 0211-0501 ● ● ●
1 09.709 LIGHTER; CIGAR 8-97320-322-0 01 1 0211-0501 ● ●
1 09.709 LIGHTER; CIGAR
EXC. VOLTAGE 24V<7AE> 		8-97320-322-0 01 1 0502- ● ● ●
1 09.709 LIGHTER; CIGAR 8-97320-322-0 01 1 0502- ●
2 09.709 BEZEL; CIGAR LIGHTER 8-97853-159-1 01 1 0211-0501 ● ● ● ● ● ●
2 09.709 BEZEL; CIGAR LIGHTER 8-97853-159-1 01 1 0502-0706 ● ● ● ● ●
2 09.709 BEZEL; CIGAR LIGHTER 8-98091-060-0 01 1 0707- ● ● ● ● ●
3 08.991 BULB; CIGAR LIGHTER
VOLTAGE 24V<7AE> 28V 1.8W 		8-97173-159-0 01 1 0211- ● ● ●
3 08.991 BULB; CIGAR LIGHTER
28V 1.8W 		8-97173-159-0 01 1 0211- ●
3 08.991 BULB; CIGAR LIGHTER
EXC. VOLTAGE 24V<7AE> 14V 1.4W 		8-97173-160-0 01 1 0211-0501 ● ● ●
3 08.991 BULB; CIGAR LIGHTER
14V 1.4W 		8-97173-160-0 01 1 0211-0501 ● ●
3 08.991 BULB; CIGAR LIGHTER
EXC. VOLTAGE 24V<7AE> 14V 1.4W 		8-97173-160-0 01 1 0502- ● ● ●
3 08.991 BULB; CIGAR LIGHTER
14V 1.4W 		8-97173-160-0 01 1 0502- ●
21 09.744 COVER; HOLE 8-97136-694-0 02 1 0211-0501 ● ● ● ● ● ●
21 09.744 COVER; HOLE
4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1-S ENG(RLS) 		8-97136-694-0 01 1 0211-0501 ● ●
21 09.744 COVER; HOLE 8-97136-694-0 01 1 0211-0501 ● ●
21 09.744 COVER; HOLE
4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1-S ENG(RLS) 		8-97136-694-0 01 1 0211-0501 ●
21 09.744 COVER; HOLE
4JH1 ENG(RJX),4JB1 ENG(RLF) 		8-97136-694-0 01 1 0211-0501 ●
21 09.744 COVER; HOLE
4JH1-TC ENG(RDM),4HG1 ENG(RJH), 4HF1-NENG(RJZ),4JB1 ENG(RLF) 		8-97136-694-0 01 1 0502-0609 ● ● ● ● ●
21 09.744 COVER; HOLE 8-97136-694-0 01 1 0502-0609 ● ● ● ● ●
21 09.744 COVER; HOLE 8-97136-694-0 01 1 0610- ● ● ● ● ●
21 09.744 COVER; HOLE
4JH1-TC ENG(RDM),4HG1-T ENG(RDP), 4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) 		8-97136-694-0 01 1 0610- ● ● ●
21 09.744 COVER; HOLE 8-97136-694-0 01 1 0610- ● ●

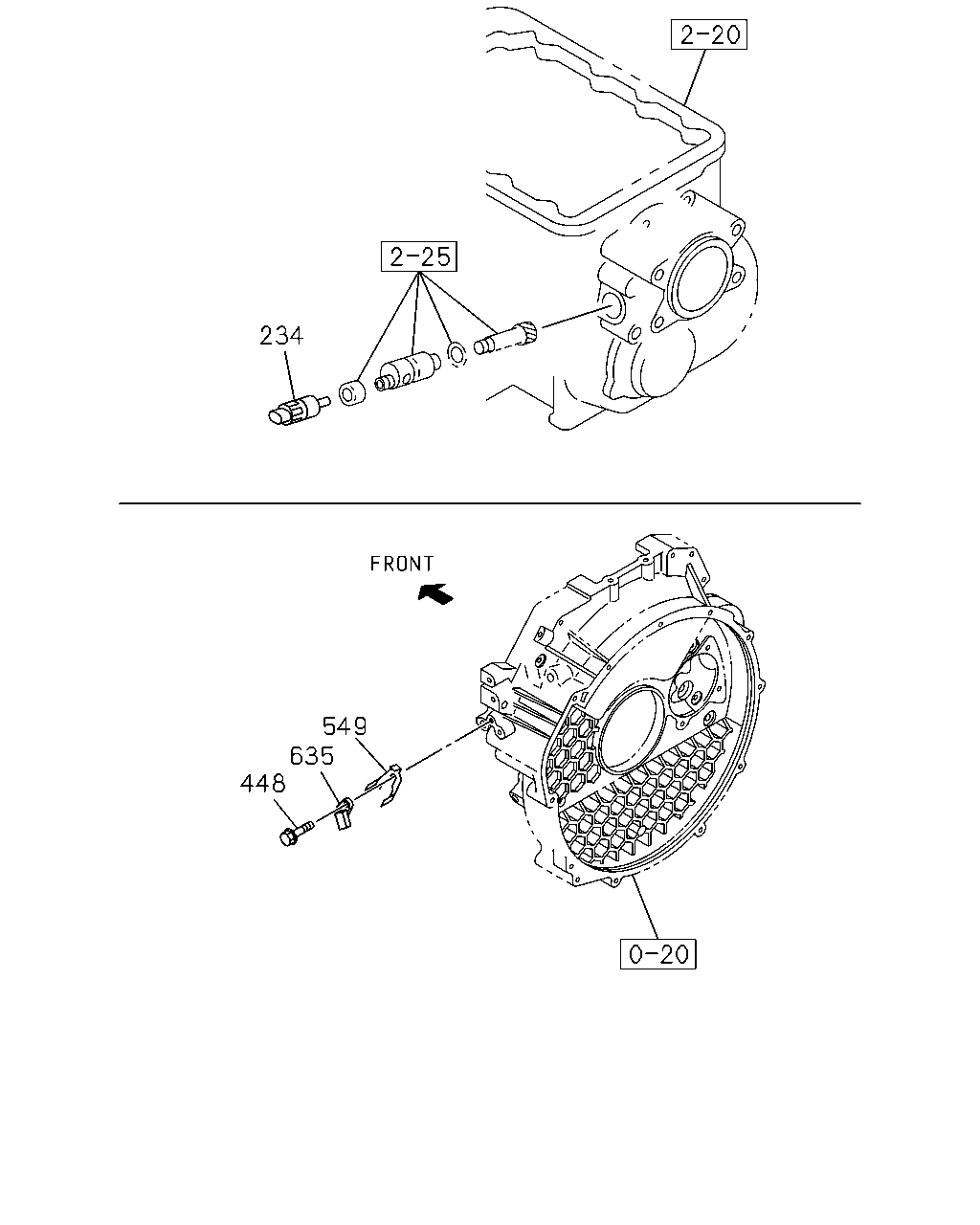

çizim 53653
234 549 635 448
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
234 03.682 SENSOR; VEHICLE SPD
4 PULSE ALUMINUM 		8-97256-525-0 01 1 0211-0501 ● ● ● ● ● ●
234 03.682 SENSOR; VEHICLE SPD
4 PULSE ALUMINUM 		8-97256-525-0 01 1 0502- ● ● ● ● ●
448 02.500 BOLT; SENSOR
4HG1 ENG(RJH),4HF1-S ENG(RLS) 00.738 M6X16 FLANGE 		0-28080-616-0 01 1 0211-0501 ● ● ● ●
448 02.500 BOLT; SENSOR
4HF1-N ENG(RJZ) 00.738 M6X16 FLANGE 		0-28080-616-0 01 1 0502-0512 ● ● ● ●
448 02.500 BOLT; SENSOR
4HF1-N ENG(RJZ) 09.242 M6X16 FLANGE 		0-28050-616-0 01 1 0601-0609 ● ● ● ●
448 02.500 BOLT; SENSOR
4HF1-N ENG(RJZ) 09.242 M6X16 FLANGE 		0-28050-616-0 01 1 0610-1405 ● ●
448 02.500 BOLT; SENSOR
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 09.242 M6X16 FLANGE 		0-28050-616-0 01 1 0610-1405 ●
448 02.500 BOLT; SENSOR
4JH1-TC ENG(RDM) 09.242 M6X16 FLANGE 		0-28050-616-0 01 1 0610-1405 ●
448 02.500 BOLT; SENSOR
4HF1-N ENG(RJZ) 09.242 M6X16 FLANGE 		0-28050-616-0 01 1 1406- ● ●
448 02.500 BOLT; SENSOR
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 09.242 M6X16 FLANGE 		0-28050-616-0 01 1 1406- ●
549 02.510 SHEET
4HG1 ENG(RJH),4HF1-S ENG(RLS) 09.743 		8-97161-633-2 01 1 0211-0501 ● ● ● ●
549 02.510 SHEET
4HF1-N ENG(RJZ) 09.743 		8-97161-633-2 01 1 0502-0609 ● ● ● ●
549 02.510 SHEET
4HF1-N ENG(RJZ) 09.743 		8-97161-633-2 01 1 0610-1405 ● ●
549 02.510 SHEET
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 09.743 		8-97161-633-2 01 1 0610-1405 ●
549 02.510 SHEET
4JH1-TC ENG(RDM) 09.743 		8-97161-633-2 01 1 0610-1405 ●
549 02.510 SHEET
4HF1-N ENG(RJZ) 09.743 		8-97161-633-2 01 1 1406- ● ●
549 02.510 SHEET
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 09.743 		8-97161-633-2 01 1 1406- ●
635 09.750 SENSOR; TACHOMETER
4HG1 ENG(RJH),4HF1-S ENG(RLS) CALSONIC KANSEI 		8-97163-104-0 01 1 0211-0501 ● ● ● ●
635 09.750 SENSOR; TACHOMETER
4HF1-N ENG(RJZ) CALSONIC KANSEI 		8-97163-104-0 01 1 0502- ● ● ● ●
635 09.750 SENSOR; TACHOMETER
4HG1-T ENG(RDP) YAZAKI 		8-97214-325-0 01 1 0610- ●

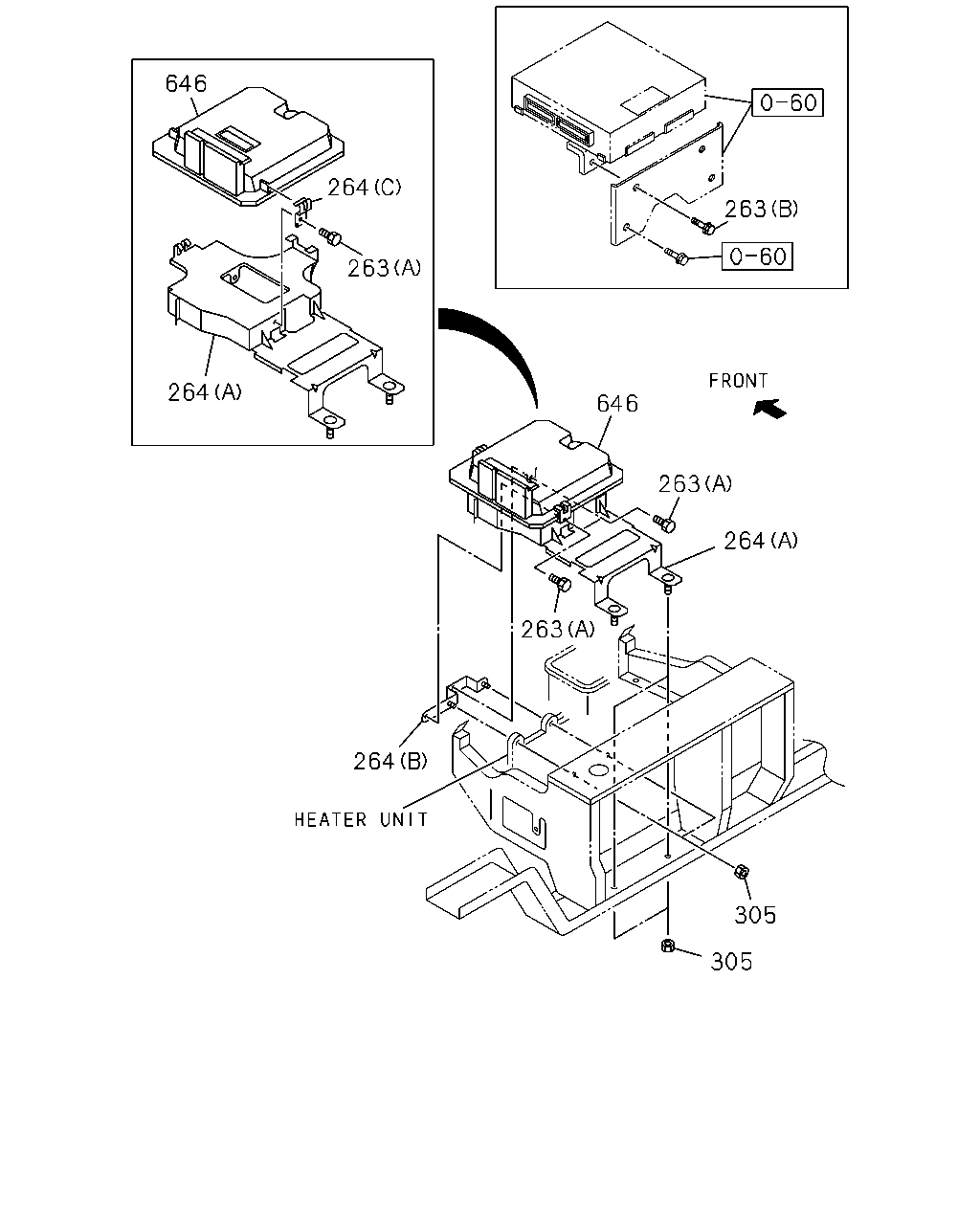

çizim 53654
646 264 263 263 264 646 263 264 263 264 305 305
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
263 04.115 BOLT; CONT UNIT
4JH1 ENG(RJX) 04.930 (A) M6X20 FLANGE 		0-28680-620-0 03 1 0211-0501 ● ● ● ●
263 04.115 BOLT; CONT UNIT
4JH1-TC ENG(RDM) 04.930 (A) M6X20 FLANGE 		0-28680-620-0 03 1 0502-0512 ● ●
263 04.115 BOLT; CONT UNIT
04.930 (A) M6X20 FLANGE 		0-28680-620-0 03 1 0502-0512 ●
263 04.115 BOLT; CONT UNIT
4JH1-TC ENG(RDM) 03.162 (A) M6X20 FLANGE 		0-28650-620-0 03 1 0601- ● ●
263 04.115 BOLT; CONT UNIT
03.162 (A) M6X20 FLANGE 		0-28650-620-0 03 1 0601- ●
263 04.115 BOLT; CONT UNIT
4HG1-T ENG(RDP) (B) M6X20 FLANGE 		0-28250-620-0 02 1 0610-1404 ●
263 04.115 BOLT; CONT UNIT
4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2014(VZE) (B) M6X20 FLANGE 		0-28250-620-0 02 1 1405-1405 ●
263 04.115 BOLT; CONT UNIT
4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2015(VZF) (B) M6X20 FLANGE 		0-28250-620-0 02 1 1406- ●
264 02.500 BRACKET; CONT UNIT
4JH1 ENG(RJX) (C) 		8-97240-154-1 01 1 0211-0501 ● ● ● ●
264 02.500 BRACKET; CONT UNIT
4JH1-TC ENG(RDM) (C) 		8-97240-154-1 01 1 0502- ● ●
264 02.500 BRACKET; CONT UNIT
(C) 		8-97240-154-1 01 1 0502- ●
264 02.500 BRACKET; CONT UNIT
4JH1 ENG(RJX) (A) 		8-97309-166-4 01 1 0211-0501 ● ● ● ●
264 02.500 BRACKET; CONT UNIT
4JH1-TC ENG(RDM) (A) 		8-97309-166-4 01 1 0502- ● ●
264 02.500 BRACKET; CONT UNIT
(A) 		8-97309-166-4 01 1 0502- ●
264 02.500 BRACKET; CONT UNIT
4JH1 ENG(RJX) (B) 		8-97312-797-2 01 1 0211-0501 ● ● ● ●
264 02.500 BRACKET; CONT UNIT
4JH1-TC ENG(RDM) (B) 		8-97312-797-2 01 1 0502- ● ●
264 02.500 BRACKET; CONT UNIT
(B) 		8-97312-797-2 01 1 0502- ●
305 08.915 NUT; CONT UNIT
4JH1 ENG(RJX) 04.594 M6 FLANGE 		0-91150-106-0 04 1 0211-0501 ● ● ● ●
305 08.915 NUT; CONT UNIT
4JH1-TC ENG(RDM) 04.594 M6 FLANGE 		0-91150-106-0 04 1 0502-0602 ● ●
305 08.915 NUT; CONT UNIT
04.594 M6 FLANGE 		0-91150-106-0 04 1 0502-0602 ●
305 08.915 NUT; CONT UNIT
4JH1-TC ENG(RDM) 01.062 M6 FLANGE 		0-91180-106-0 04 1 0603- ● ●
305 08.915 NUT; CONT UNIT
01.062 M6 FLANGE 		0-91180-106-0 04 1 0603- ●
646 02.510 CONTROL UNIT; ENG
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) 		8-97288-153-4 01 1 0211-0501 ● ● ●
646 02.510 CONTROL UNIT; ENG
4JH1-TC ENG(RDM) HONG KONG EQUIPMENT(PQ1) 		8-97288-153-4 01 1 0502- ● ●
646 02.510 CONTROL UNIT; ENG
4JH1 ENG(RJX) AUSTRALIA EQUIPMENT(RR3) 		8-97351-961-1 01 1 0211-0501 ● ● ●
646 02.510 CONTROL UNIT; ENG
4JH1-TC ENG(RDM) AUSTRALIA EQUIPMENT(RR3) 		8-97351-961-1 01 1 0502- ● ●
646 02.510 CONTROL UNIT; ENG 8-97351-961-1 01 1 0502- ●
