◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50944 - NKR(RHD)EXC.EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#48159) — 309 parça

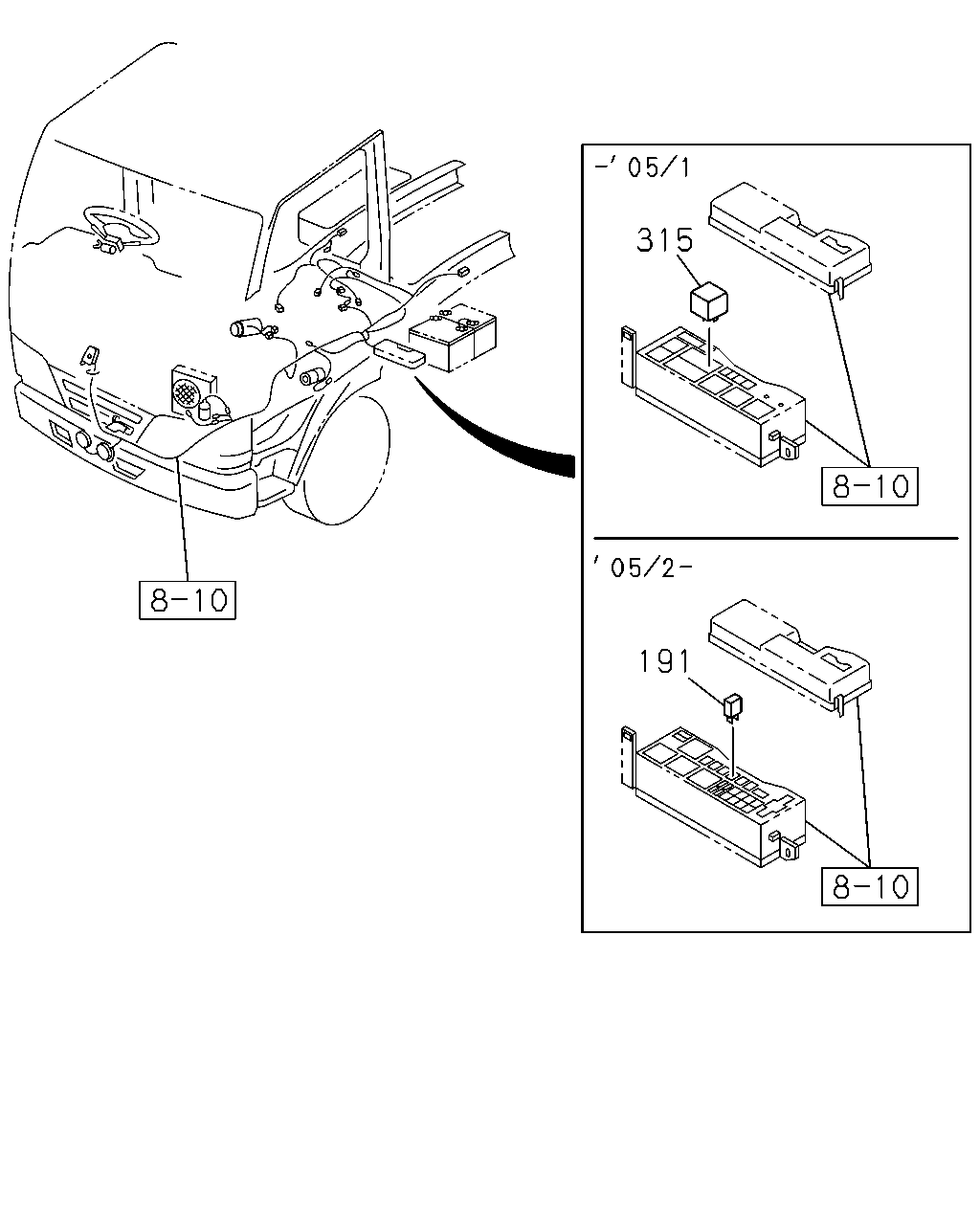

çizim 11158
315 191
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
191 02.510 RELAY; EXH BRK CUT
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ● ●
191 02.510 RELAY; EXH BRK CUT
4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502-0609 ● ● ● ●
191 02.510 RELAY; EXH BRK CUT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0610- ● ● ● ●
191 02.510 RELAY; EXH BRK CUT
4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ● ● ●
191 02.510 RELAY; EXH BRK CUT
EXHAUST BRAKE<NF8> 08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ●
191 02.510 RELAY; EXH BRK CUT
4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 12V 20A 		8-97173-037-1 01 1 0502-0609 ● ● ●
191 02.510 RELAY; EXH BRK CUT
4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 12V 20A 		8-97173-037-1 01 1 0610- ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ● ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ● ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 02.510 12V 20A 		8-97173-037-1 01 1 0502-0609 ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 02.510 12V 20A 		8-97173-037-1 01 1 0502-0609 ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 02.510 12V 20A 		8-97173-037-1 01 1 0610- ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
4JB1-TC ENG(RDT),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 02.510 12V 20A 		8-97173-037-1 01 1 0610- ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
EXHAUST BRAKE<NF8> VOLTAGE 24V<7AE> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
FUEL SEDIMENTER WITH HEATER<6HU> VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
EXHAUST BRAKE<NF8> VOLTAGE 24V<7AE> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
FUEL SEDIMENTER WITH HEATER<6HU> VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
REAR HEATER<C35> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ●
315 09.277 RELAY; EXH BRAKE CONT
EXHAUST BRAKE<NF8> EXC. REAR HEATER<C35>,FUEL SEDIMENTERWITH HEATER<6HU> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ●
315 09.277 RELAY; EXH BRAKE CONT
FUEL SEDIMENTER WITH HEATER<6HU> EXC. REAR HEATER<C35> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ●

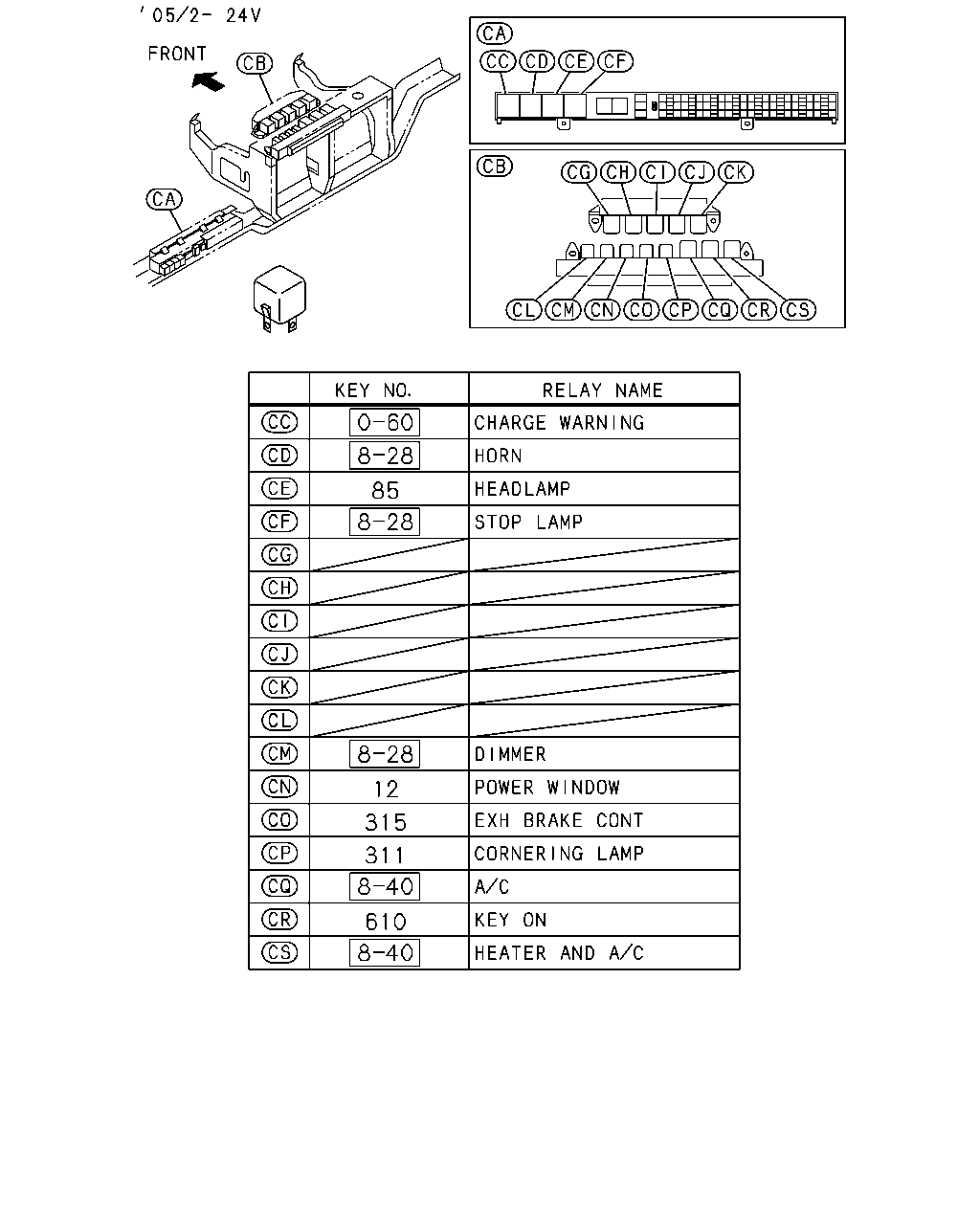

çizim 12051
85 12 315 311 610
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> VOLTAGE 24V<7AE> 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0502- ● ● ●
12 08.852 RELAY; POWER WINDOW
02.510 12V 20A 		8-97173-037-1 01 1 0502- ●
85 02.485 RELAY; HEADLAMP
VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ●
85 02.485 RELAY; HEADLAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ●
85 02.485 RELAY; HEADLAMP
VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ● ●
85 02.485 RELAY; HEADLAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ●
85 02.485 RELAY; HEADLAMP
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ● ●
85 02.485 RELAY; HEADLAMP
08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ●
85 02.485 RELAY; HEADLAMP
EXC. VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0502- ● ● ●
85 02.485 RELAY; HEADLAMP
02.510 12V 20A 		8-97173-037-1 01 1 0502- ●
311 02.596 RELAY; CORNERING LAMP
EXC. AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2),VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ● ● ● ●
311 02.596 RELAY; CORNERING LAMP
EXC. VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0502- ●
311 02.596 RELAY; CORNERING LAMP
EXC. AUSTRALIA EQUIPMENT(RR3), VOLTAGE24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0502- ● ●
311 02.596 RELAY; CORNERING LAMP
VOLTAGE 24V<7AE> EXC. AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ● ●
311 02.596 RELAY; CORNERING LAMP
VOLTAGE 24V<7AE> EXC. AUSTRALIA EQUIPMENT(RR3) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ● ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ● ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 02.510 12V 20A 		8-97173-037-1 01 1 0502-0609 ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 02.510 12V 20A 		8-97173-037-1 01 1 0502-0609 ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 02.510 12V 20A 		8-97173-037-1 01 1 0610- ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
4JB1-TC ENG(RDT),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 02.510 12V 20A 		8-97173-037-1 01 1 0610- ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
EXHAUST BRAKE<NF8> VOLTAGE 24V<7AE> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
FUEL SEDIMENTER WITH HEATER<6HU> VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
EXHAUST BRAKE<NF8> VOLTAGE 24V<7AE> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
FUEL SEDIMENTER WITH HEATER<6HU> VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
REAR HEATER<C35> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ●
315 09.277 RELAY; EXH BRAKE CONT
EXHAUST BRAKE<NF8> EXC. REAR HEATER<C35>,FUEL SEDIMENTERWITH HEATER<6HU> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ●
315 09.277 RELAY; EXH BRAKE CONT
FUEL SEDIMENTER WITH HEATER<6HU> EXC. REAR HEATER<C35> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ●
610 02.510 RELAY; KEY ON
VOLTAGE 24V<7AE> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0502- ● ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0502- ●
610 02.510 RELAY; KEY ON
EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97173-037-1 01 1 0502- ● ● ●
610 02.510 RELAY; KEY ON
12V 20A 		8-97173-037-1 01 1 0502- ●

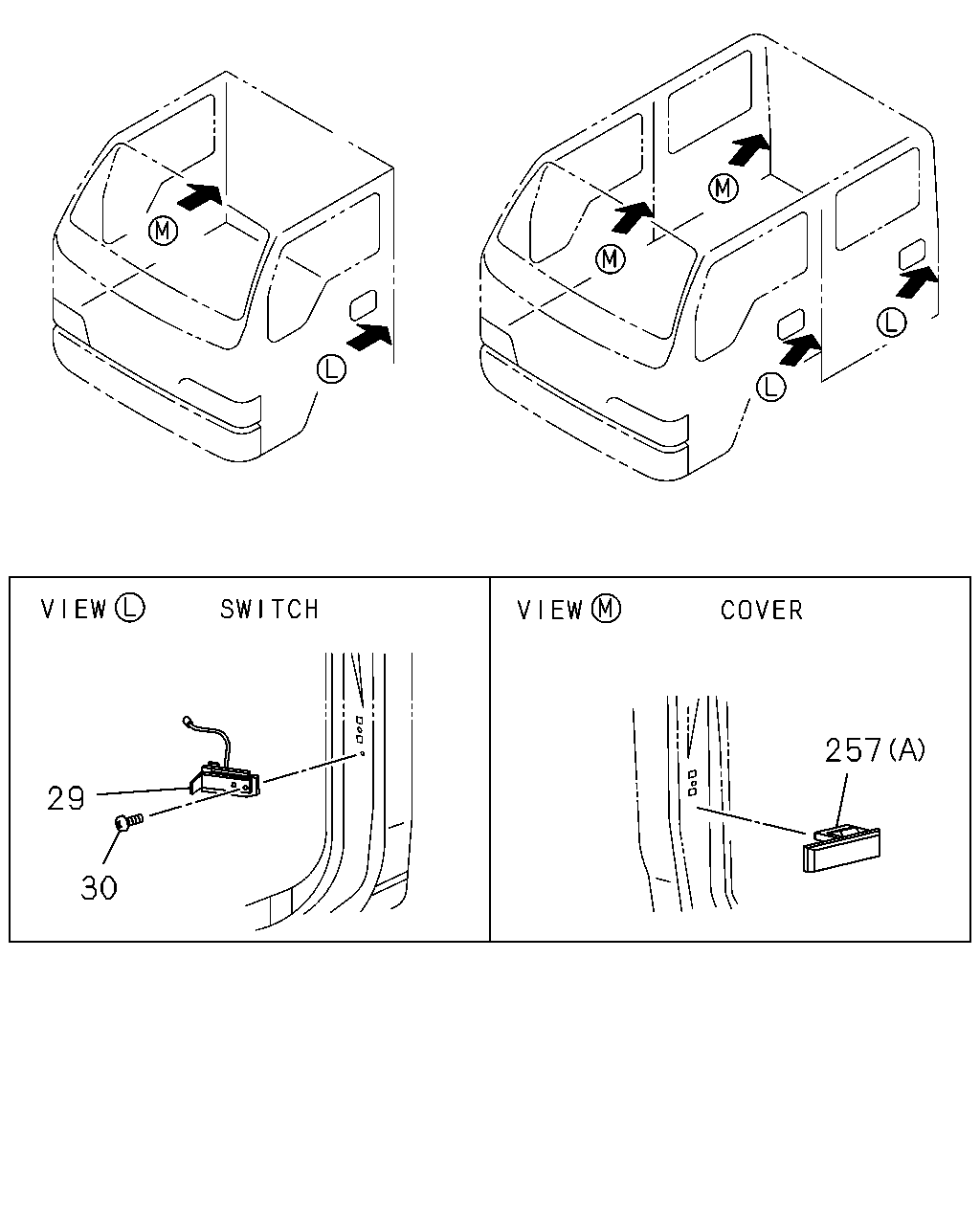

çizim 12415
257 29 30
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
29 16.263 SWITCH; DOOR 8-97855-032-3 01 1 0211-0501 ●
29 16.263 SWITCH; DOOR
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97855-032-3 01 1 0211-0501 ● ● ●
29 16.263 SWITCH; DOOR 8-97855-032-3 01 1 0502- ●
29 16.263 SWITCH; DOOR
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97855-032-3 01 1 0502- ● ●
29 16.263 SWITCH; DOOR 8-97855-032-3 02 1 0211-0501 ● ●
29 16.263 SWITCH; DOOR
AUSTRALIA EQUIPMENT(RR3) 		8-97855-032-3 02 1 0211-0501 ● ● ●
29 16.263 SWITCH; DOOR
AUSTRALIA EQUIPMENT(RR3) 		8-97855-032-3 02 1 0502- ● ●
29 16.263 SWITCH; DOOR 8-97855-032-3 02 1 0502- ● ●
30 16.263 SCREW; DOOR SW
M5X16 		8-94279-341-0 01 1 0211-0501 ●
30 16.263 SCREW; DOOR SW
EXC. AUSTRALIA EQUIPMENT(RR3) M5X16 		8-94279-341-0 01 1 0211-0501 ● ● ●
30 16.263 SCREW; DOOR SW
M5X16 		8-94279-341-0 01 1 0502- ●
30 16.263 SCREW; DOOR SW
EXC. AUSTRALIA EQUIPMENT(RR3) M5X16 		8-94279-341-0 01 1 0502- ● ●
30 16.263 SCREW; DOOR SW
M5X16 		8-94279-341-0 02 1 0211-0501 ● ●
30 16.263 SCREW; DOOR SW
AUSTRALIA EQUIPMENT(RR3) M5X16 		8-94279-341-0 02 1 0211-0501 ● ● ●
30 16.263 SCREW; DOOR SW
AUSTRALIA EQUIPMENT(RR3) M5X16 		8-94279-341-0 02 1 0502- ● ●
30 16.263 SCREW; DOOR SW
M5X16 		8-94279-341-0 02 1 0502- ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 01 1 0211-0501 ●
257 16.081 COVER; HOLE,SW
EXC. AUSTRALIA EQUIPMENT(RR3) 16.494 (A) 		8-94229-914-1 01 1 0211-0501 ● ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 01 1 0502- ●
257 16.081 COVER; HOLE,SW
EXC. AUSTRALIA EQUIPMENT(RR3) 16.494 (A) 		8-94229-914-1 01 1 0502- ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.744 (C) 		8-97136-694-0 01 1 0211-0501 ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.744 (C) 		8-97136-694-0 01 1 0502- ● ● ● ● ●
257 16.081 COVER; HOLE,SW
09.744 (C) 		8-97136-694-0 01 1 0502- ● ● ● ● ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66) 02.485 (B) 		8-94310-890-0 01 1 0211-0301 ● ● ● ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66) 02.485 (B) 		8-94310-890-0 01 1 0302-0501 ● ● ● ●
257 16.081 COVER; HOLE,SW
PTO MANUAL CONTROL(6WC) 02.485 (B) 		8-94310-890-0 01 1 0302-0501 ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66) 02.485 (B) 		8-94310-890-0 01 1 0502- ● ● ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 02 1 0211-0501 ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 02 1 0502- ●

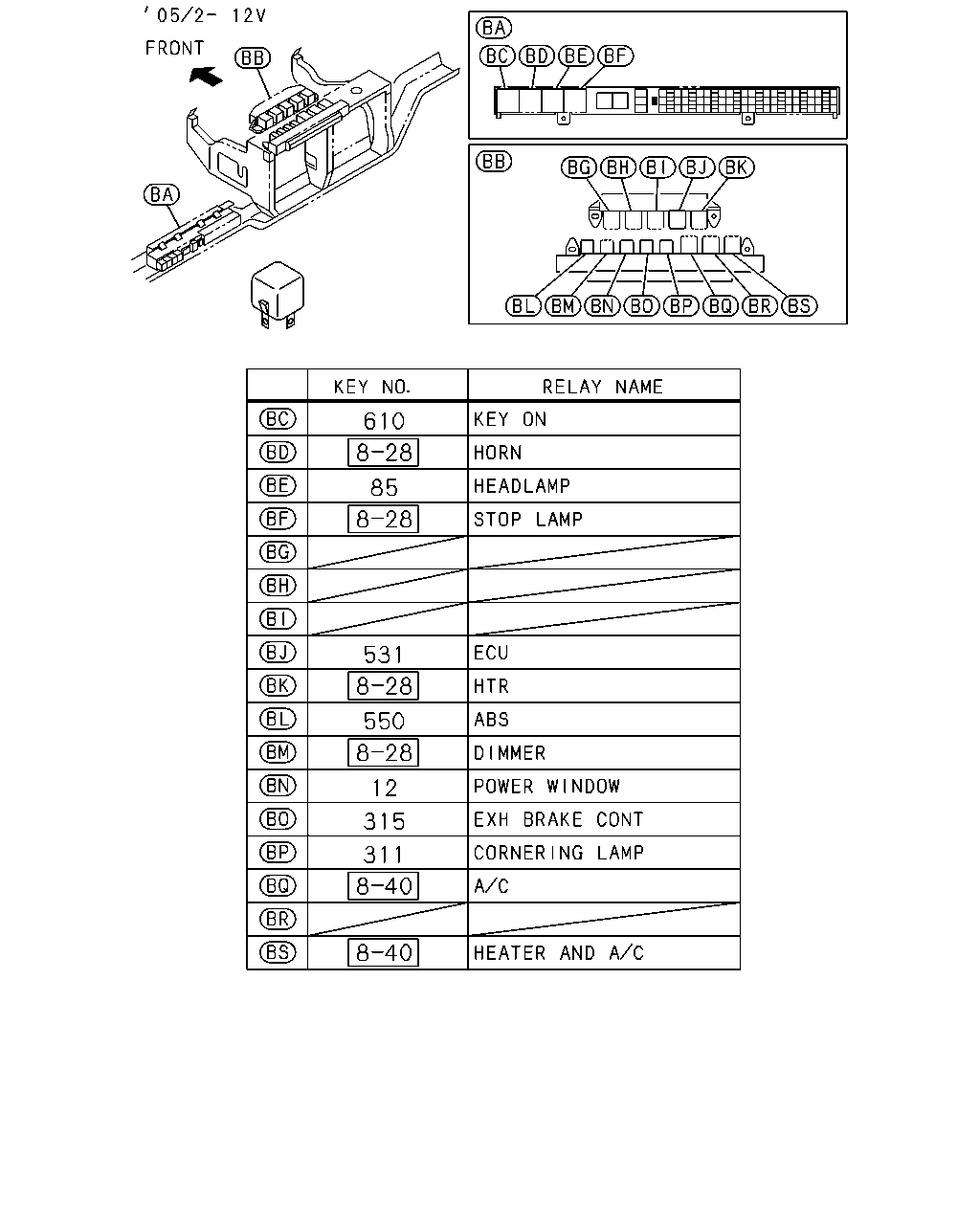

çizim 51381
610 85 531 550 12 315 311
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> VOLTAGE 24V<7AE> 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0502- ● ● ●
12 08.852 RELAY; POWER WINDOW
02.510 12V 20A 		8-97173-037-1 01 1 0502- ●
85 02.485 RELAY; HEADLAMP
VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ●
85 02.485 RELAY; HEADLAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ●
85 02.485 RELAY; HEADLAMP
VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ● ●
85 02.485 RELAY; HEADLAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ●
85 02.485 RELAY; HEADLAMP
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ● ●
85 02.485 RELAY; HEADLAMP
08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ●
85 02.485 RELAY; HEADLAMP
EXC. VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0502- ● ● ●
85 02.485 RELAY; HEADLAMP
02.510 12V 20A 		8-97173-037-1 01 1 0502- ●
311 02.596 RELAY; CORNERING LAMP
EXC. AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2),VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ● ● ● ●
311 02.596 RELAY; CORNERING LAMP
EXC. VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0502- ●
311 02.596 RELAY; CORNERING LAMP
EXC. AUSTRALIA EQUIPMENT(RR3), VOLTAGE24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0502- ● ●
311 02.596 RELAY; CORNERING LAMP
VOLTAGE 24V<7AE> EXC. AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ● ●
311 02.596 RELAY; CORNERING LAMP
VOLTAGE 24V<7AE> EXC. AUSTRALIA EQUIPMENT(RR3) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ● ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ● ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 02.510 12V 20A 		8-97173-037-1 01 1 0502-0609 ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 02.510 12V 20A 		8-97173-037-1 01 1 0502-0609 ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 02.510 12V 20A 		8-97173-037-1 01 1 0610- ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
4JB1-TC ENG(RDT),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 02.510 12V 20A 		8-97173-037-1 01 1 0610- ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
EXHAUST BRAKE<NF8> VOLTAGE 24V<7AE> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
FUEL SEDIMENTER WITH HEATER<6HU> VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
EXHAUST BRAKE<NF8> VOLTAGE 24V<7AE> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
FUEL SEDIMENTER WITH HEATER<6HU> VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
REAR HEATER<C35> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ●
315 09.277 RELAY; EXH BRAKE CONT
EXHAUST BRAKE<NF8> EXC. REAR HEATER<C35>,FUEL SEDIMENTERWITH HEATER<6HU> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ●
315 09.277 RELAY; EXH BRAKE CONT
FUEL SEDIMENTER WITH HEATER<6HU> EXC. REAR HEATER<C35> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ●
531 02.515 RELAY; ECU
4JH1 ENG(RJX) 08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ● ● ●
531 02.515 RELAY; ECU
4JH1-TC ENG(RDM) 08.852 12V 20A 		8-97060-926-1 01 1 0502- ● ●
531 02.515 RELAY; ECU
08.852 12V 20A 		8-97060-926-1 01 1 0502- ●
550 02.510 RELAY; ABS
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97173-037-1 01 1 0502- ● ●
550 02.510 RELAY; ABS
12V 20A 		8-97173-037-1 01 1 0502- ●
610 02.510 RELAY; KEY ON
VOLTAGE 24V<7AE> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0502- ● ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0502- ●
610 02.510 RELAY; KEY ON
EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97173-037-1 01 1 0502- ● ● ●
610 02.510 RELAY; KEY ON
12V 20A 		8-97173-037-1 01 1 0502- ●
çizim 52276
85 531 311 12 191
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> VOLTAGE 24V<7AE> 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0502- ● ● ●
12 08.852 RELAY; POWER WINDOW
02.510 12V 20A 		8-97173-037-1 01 1 0502- ●
85 02.485 RELAY; HEADLAMP
VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ●
85 02.485 RELAY; HEADLAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ●
85 02.485 RELAY; HEADLAMP
VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ● ●
85 02.485 RELAY; HEADLAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ●
85 02.485 RELAY; HEADLAMP
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ● ●
85 02.485 RELAY; HEADLAMP
08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ●
85 02.485 RELAY; HEADLAMP
EXC. VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0502- ● ● ●
85 02.485 RELAY; HEADLAMP
02.510 12V 20A 		8-97173-037-1 01 1 0502- ●
191 02.510 RELAY; EXH BRK CUT
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ● ●
191 02.510 RELAY; EXH BRK CUT
4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502-0609 ● ● ● ●
191 02.510 RELAY; EXH BRK CUT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0610- ● ● ● ●
191 02.510 RELAY; EXH BRK CUT
4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ● ● ●
191 02.510 RELAY; EXH BRK CUT
EXHAUST BRAKE<NF8> 08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ●
191 02.510 RELAY; EXH BRK CUT
4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 12V 20A 		8-97173-037-1 01 1 0502-0609 ● ● ●
191 02.510 RELAY; EXH BRK CUT
4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 12V 20A 		8-97173-037-1 01 1 0610- ● ● ●
311 02.596 RELAY; CORNERING LAMP
EXC. AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2),VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ● ● ● ●
311 02.596 RELAY; CORNERING LAMP
EXC. VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0502- ●
311 02.596 RELAY; CORNERING LAMP
EXC. AUSTRALIA EQUIPMENT(RR3), VOLTAGE24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0502- ● ●
311 02.596 RELAY; CORNERING LAMP
VOLTAGE 24V<7AE> EXC. AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ● ●
311 02.596 RELAY; CORNERING LAMP
VOLTAGE 24V<7AE> EXC. AUSTRALIA EQUIPMENT(RR3) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ● ● ●
531 02.515 RELAY; ECU
4JH1 ENG(RJX) 08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ● ● ●
531 02.515 RELAY; ECU
4JH1-TC ENG(RDM) 08.852 12V 20A 		8-97060-926-1 01 1 0502- ● ●
531 02.515 RELAY; ECU
08.852 12V 20A 		8-97060-926-1 01 1 0502- ●

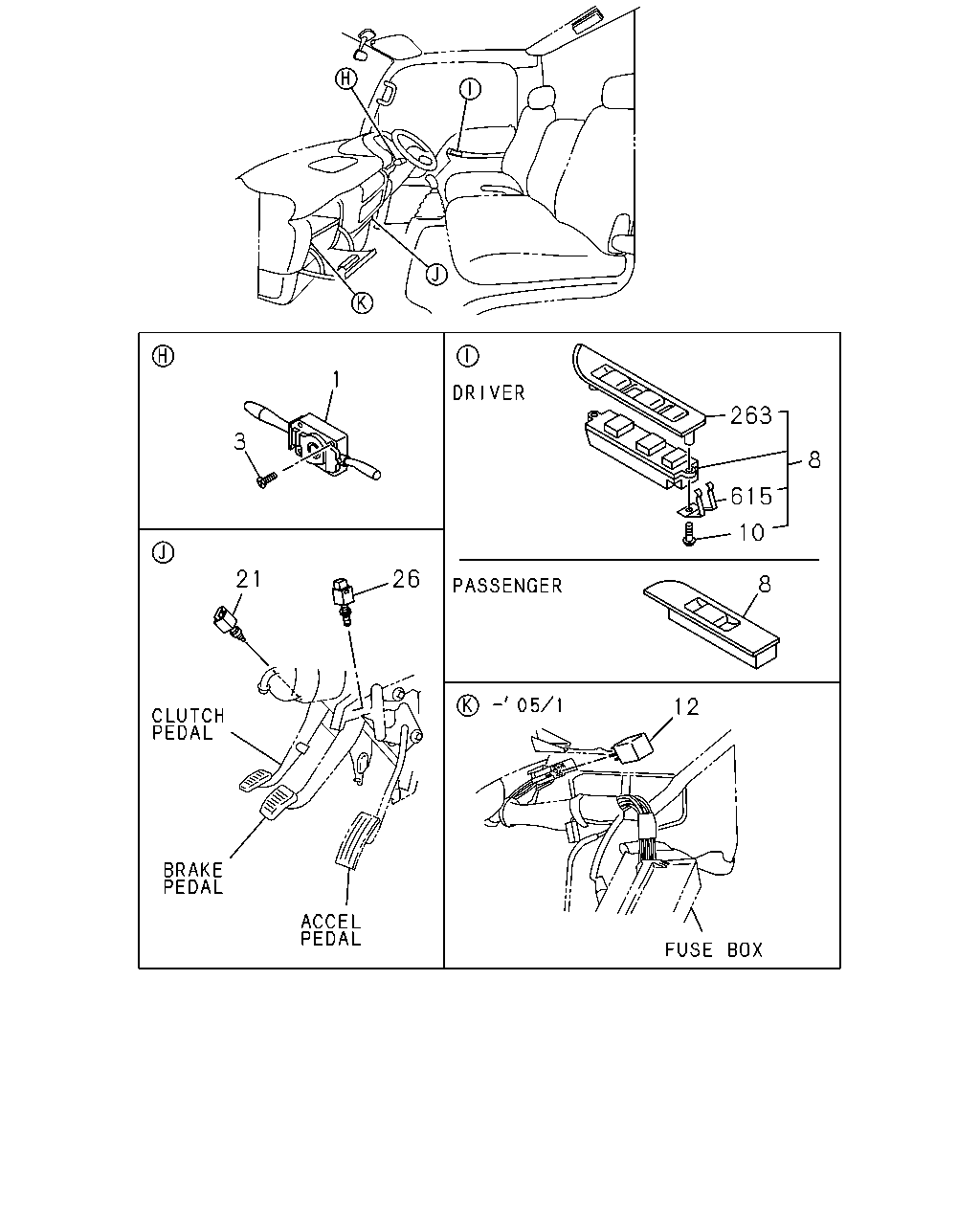

çizim 52676
1 263 3 8 615 10 21 26 8 12
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13> 		8-97287-886-2 01 1 0211-0301 ● ● ● ● ● ●
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13> 		8-97364-072-0 01 1 0302-0501 ● ● ● ● ● ●
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13> 		8-97383-515-0 01 1 0502- ● ● ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-97287-892-2 01 1 0211-0301 ● ● ● ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-97364-076-0 01 1 0302-0501 ● ● ● ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-97383-519-0 01 1 0502- ● ● ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. EXHAUST BRAKE<NF8> 		8-97287-893-2 01 1 0211-0301 ● ● ● ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. EXHAUST BRAKE<NF8> 		8-97364-077-0 01 1 0302-0501 ● ● ● ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. EXHAUST BRAKE<NF8> 		8-97383-520-0 01 1 0502- ● ● ● ● ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8> 		8-97287-887-2 01 1 0211-0301 ● ● ● ● ● ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8> 		8-97364-073-0 01 1 0302-0501 ● ● ● ● ● ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8> 		8-97383-516-0 01 1 0502- ● ● ● ● ●
3 02.897 SCREW; COMB SW
M5X20 W/LK WASHER 		9-03910-520-0 04 1 0211-0501 ● ● ● ● ● ●
3 02.897 SCREW; COMB SW
M5X20 W/LK WASHER 		9-03910-520-0 04 1 0502-0604 ● ● ● ● ●
3 02.897 SCREW; COMB SW
M5X20 W/LK WASHER 		0-36220-520-0 04 1 0605-0612 ● ● ● ● ●
3 02.897 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 04 1 0701- ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-97214-398-0 01 1 0211-0501 ● ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-97214-398-0 01 1 0502-0703 ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
PASSENGER SIDE 		8-97214-398-0 01 1 0502-0703 ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-98075-445-0 01 1 0704-0907 ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
PASSENGER SIDE 		8-98075-445-0 01 1 0704-0907 ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-98147-235-0 01 1 0908- ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
PASSENGER SIDE 		8-98147-235-0 01 1 0908- ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> VOLTAGE 24V<7AE> DRIVER SIDE 		8-97315-176-0 01 1 0211-0907 ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97315-176-0 01 1 0211-0907 ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> VOLTAGE 24V<7AE> DRIVER SIDE 		8-98147-225-0 01 1 0908- ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-98147-225-0 01 1 0908- ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 24V<7AE> DRIVER SIDE 		8-97315-177-0 01 1 0211-0301 ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97315-177-0 01 1 0211-0301 ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 24V<7AE> DRIVER SIDE 		8-97364-112-0 01 1 0302-0501 ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97364-112-0 01 1 0302-0501 ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 24V<7AE> DRIVER SIDE 		8-97364-112-0 01 1 0502-0907 ● ● ●
8 16.263 SWITCH; POWER WINDOW
DRIVER SIDE 		8-97364-112-0 01 1 0502-0907 ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 24V<7AE> DRIVER SIDE 		8-98147-227-0 01 1 0908- ● ● ●
8 16.263 SWITCH; POWER WINDOW
DRIVER SIDE 		8-98147-227-0 01 1 0908- ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-97219-239-0 02 1 0211-0501 ● ● ● ● ● ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-97219-239-0 02 1 0502- ● ● ● ●
10 03.885 SCREW; POWER WINDOW SW 8-97219-239-0 02 1 0502- ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> VOLTAGE 24V<7AE> 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0502- ● ● ●
12 08.852 RELAY; POWER WINDOW
02.510 12V 20A 		8-97173-037-1 01 1 0502- ●
21 02.575 SWITCH; CLU
4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> 04.054 		8-94331-723-1 01 1 0211-0211 ● ● ● ● ● ●
21 02.575 SWITCH; CLU
4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> 		8-97358-248-0 01 1 0212-0501 ● ● ● ● ● ●
21 02.575 SWITCH; CLU
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 		8-97358-248-0 01 1 0502-0609 ● ● ● ●
21 02.575 SWITCH; CLU
4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4HG1ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 		8-97358-248-0 01 1 0610- ● ● ● ●
21 02.575 SWITCH; CLU
4JH1 ENG(RJX) 		8-97260-603-0 01 1 0211-0501 ● ● ● ●
21 02.575 SWITCH; CLU
4JH1-TC ENG(RDM) 		8-97260-603-0 01 1 0502- ● ●
21 02.575 SWITCH; CLU 8-97260-603-0 01 1 0502- ●
26 03.636 SWITCH; ACCEL
4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> 04.054 		8-94368-343-0 01 1 0211-0211 ● ● ● ● ● ●
26 03.636 SWITCH; ACCEL
4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> 		8-97358-315-0 01 1 0212-0501 ● ● ● ● ● ●
26 03.636 SWITCH; ACCEL
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 		8-97358-315-0 01 1 0502-0609 ● ● ● ●
26 03.636 SWITCH; ACCEL
4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4HG1ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 		8-97358-315-0 01 1 0610- ● ● ● ●
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> 		8-97219-234-0 01 1 0211-0501 ● ● ● ● ● ●
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> 		8-97219-234-0 01 1 0502- ● ● ● ●
263 16.081 COVER; SW 8-97219-234-0 01 1 0502- ●
615 16.263 SPRING; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-97219-238-0 01 1 0211-0501 ● ● ● ● ● ●
615 16.263 SPRING; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-97219-238-0 01 1 0502- ● ● ● ●
615 16.263 SPRING; POWER WINDOW SW 8-97219-238-0 01 1 0502- ●

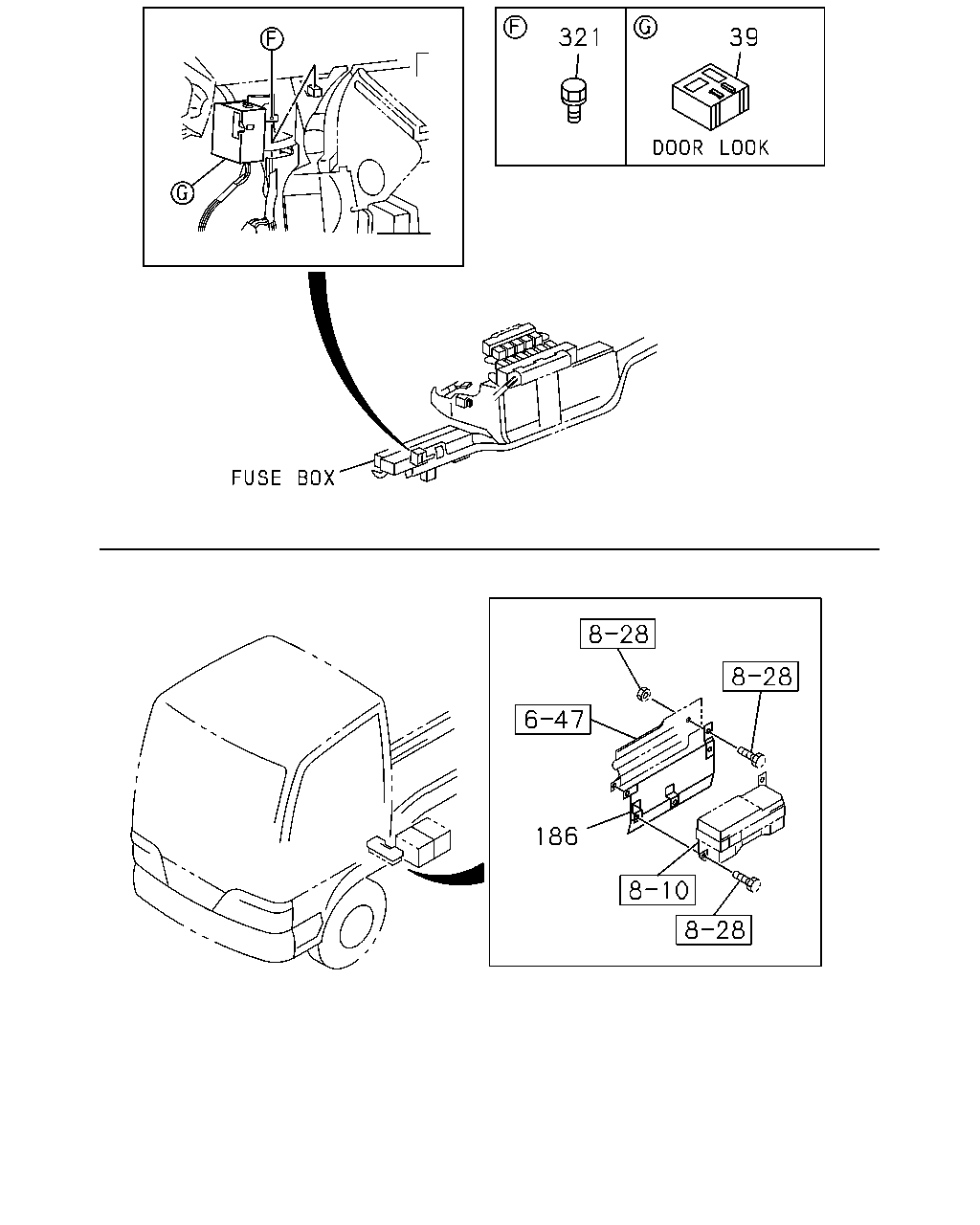

çizim 55247
321 39 186
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> EXC. VOLTAGE 24V<7AE> 		8-97177-215-0 01 1 0211-0211 ● ● ● ● ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> EXC. VOLTAGE 24V<7AE> 		8-97359-591-0 01 1 0212-0501 ● ● ● ● ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> EXC. VOLTAGE 24V<7AE> 		8-97359-591-0 01 1 0502- ● ● ●
39 16.341 RELAY; DOOR LK 8-97359-591-0 01 1 0502- ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> VOLTAGE 24V<7AE> 		8-97177-214-0 01 1 0211- ● ● ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> 		8-97177-214-0 01 1 0211- ●
186 09.277 BRACKET; RELAY BOX
4HF1-S ENG(RLS) 		8-97135-422-1 01 1 0211-0501 ● ●
186 09.277 BRACKET; RELAY BOX
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97135-422-1 01 1 0211-0501 ●
186 09.277 BRACKET; RELAY BOX 8-97135-422-1 01 1 0211-0501 ●
186 09.277 BRACKET; RELAY BOX
4HF1-N ENG(RJZ) 		8-97135-422-1 01 1 0502-0609 ● ●
186 09.277 BRACKET; RELAY BOX
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-97135-422-1 01 1 0502-0609 ●
186 09.277 BRACKET; RELAY BOX 8-97135-422-1 01 1 0502-0609 ●
186 09.277 BRACKET; RELAY BOX
4HF1-N ENG(RJZ) 		8-97135-422-1 01 1 0610-1404 ● ●
186 09.277 BRACKET; RELAY BOX
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-97135-422-1 01 1 0610-1404 ●
186 09.277 BRACKET; RELAY BOX 8-97135-422-1 01 1 0610-1404 ●
186 09.277 BRACKET; RELAY BOX
4HF1-N ENG(RJZ) 		8-97135-422-1 01 1 1405-1405 ● ●
186 09.277 BRACKET; RELAY BOX
4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) INDONESIA EQUIPMENT(S4S) MINI BUS CHASSIS(V4B) 		8-97135-422-1 01 1 1405-1405 ●
186 09.277 BRACKET; RELAY BOX
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) EXC. MINI BUS CHASSIS(V4B) 		8-97135-422-1 01 1 1405-1405 ●
186 09.277 BRACKET; RELAY BOX
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-97135-422-1 01 1 1405-1405 ●
186 09.277 BRACKET; RELAY BOX 8-97135-422-1 01 1 1405-1405 ●
186 09.277 BRACKET; RELAY BOX
4HF1-N ENG(RJZ) 		8-97135-422-1 01 1 1405- ● ●
186 09.277 BRACKET; RELAY BOX
4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) INDONESIA EQUIPMENT(S4S) MINI BUS CHASSIS(V4B) 		8-97135-422-1 01 1 1405- ●
186 09.277 BRACKET; RELAY BOX
4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) 		8-97135-422-1 01 1 1405- ●
186 09.277 BRACKET; RELAY BOX
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-97135-422-1 01 1 1405- ●
186 09.277 BRACKET; RELAY BOX 8-97135-422-1 01 1 1405- ●
321 16.341 BOLT; RELAY
AUTO DOOR LOCK<AU4> 01.269 M5X20 		8-94436-927-0 01 1 0211-0501 ● ● ● ● ● ●
321 16.341 BOLT; RELAY
AUTO DOOR LOCK<AU4> 01.269 M5X20 		8-94436-927-0 01 1 0502-0612 ● ● ● ●
321 16.341 BOLT; RELAY
01.269 M5X20 		8-94436-927-0 01 1 0502-0612 ●
321 16.341 BOLT; RELAY
AUTO DOOR LOCK<AU4> 16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0701-1101 ● ● ● ●
321 16.341 BOLT; RELAY
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0701-1101 ●
321 16.341 BOLT; RELAY
AUTO DOOR LOCK<AU4> 16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212 ● ● ● ●
321 16.341 BOLT; RELAY
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212 ●
321 16.341 BOLT; RELAY
AUTO DOOR LOCK<AU4> 16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ● ● ● ●
321 16.341 BOLT; RELAY
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ●

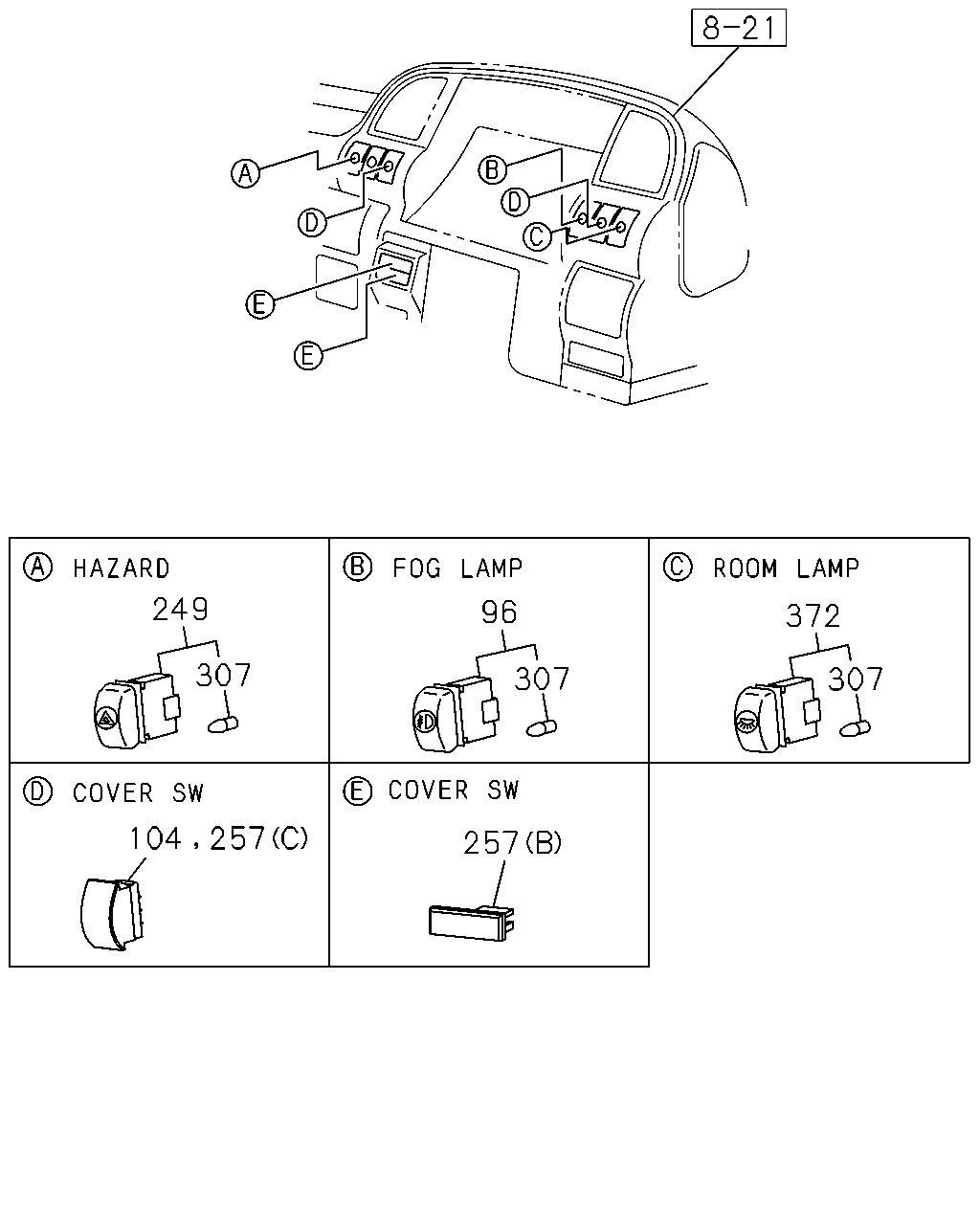

çizim 55248
249 96 372 307 307 307 257 104 257
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
96 02.485 SWITCH; FOG LAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. AUSTRALIA EQUIPMENT(RR3),FOG LAMP<T96>,VOLTAGE 24V<7AE> 		8-97140-964-0 01 1 0211-0501 ● ● ● ● ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97140-964-0 01 1 0502- ● ● ●
96 02.485 SWITCH; FOG LAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> VOLTAGE 24V<7AE> EXC. AUSTRALIA EQUIPMENT(RR3),FOG LAMP<T96> 		8-97170-441-0 01 1 0211-0501 ● ● ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> VOLTAGE 24V<7AE> 		8-97170-441-0 01 1 0502- ● ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97170-441-0 01 1 0502- ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. AUSTRALIA EQUIPMENT(RR3), HALOGENHEAD LAMP RECTANGULAR<TR4>,FOG LAMP<T96> 09.744 		8-97136-694-0 01 1 0211-0501 ● ● ● ● ● ●
104 09.778 COVER; SW HOLE,FOG LAMP
AUSTRALIA EQUIPMENT(RR3) 09.744 		8-97136-694-0 01 1 0211-0501 ● ● ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 09.744 		8-97136-694-0 01 1 0502- ● ● ● ●
104 09.778 COVER; SW HOLE,FOG LAMP
09.744 		8-97136-694-0 01 1 0502- ●
249 02.485 SWITCH; HAZARD
VOLTAGE 24V<7AE> 		8-97202-475-0 01 1 0211- ● ● ●
249 02.485 SWITCH; HAZARD 8-97202-475-0 01 1 0211- ●
249 02.485 SWITCH; HAZARD
EXC. VOLTAGE 24V<7AE> 		8-97202-476-0 01 1 0211-0501 ● ● ●
249 02.485 SWITCH; HAZARD 8-97202-476-0 01 1 0211-0501 ● ●
249 02.485 SWITCH; HAZARD
EXC. VOLTAGE 24V<7AE> 		8-97202-476-0 01 1 0502- ● ● ●
249 02.485 SWITCH; HAZARD 8-97202-476-0 01 1 0502- ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 01 1 0211-0501 ●
257 16.081 COVER; HOLE,SW
EXC. AUSTRALIA EQUIPMENT(RR3) 16.494 (A) 		8-94229-914-1 01 1 0211-0501 ● ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 01 1 0502- ●
257 16.081 COVER; HOLE,SW
EXC. AUSTRALIA EQUIPMENT(RR3) 16.494 (A) 		8-94229-914-1 01 1 0502- ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.744 (C) 		8-97136-694-0 01 1 0211-0501 ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.744 (C) 		8-97136-694-0 01 1 0502- ● ● ● ● ●
257 16.081 COVER; HOLE,SW
09.744 (C) 		8-97136-694-0 01 1 0502- ● ● ● ● ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66) 02.485 (B) 		8-94310-890-0 01 1 0211-0301 ● ● ● ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66) 02.485 (B) 		8-94310-890-0 01 1 0302-0501 ● ● ● ●
257 16.081 COVER; HOLE,SW
PTO MANUAL CONTROL(6WC) 02.485 (B) 		8-94310-890-0 01 1 0302-0501 ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66) 02.485 (B) 		8-94310-890-0 01 1 0502- ● ● ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 02 1 0211-0501 ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 02 1 0502- ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 14V 60MA 		8-97116-329-0 01 1 0211-0501 ● ● ● ● ●
307 08.991 BULB ASM; SW
ROOM LAMP SWITCH<7KL> EXC. VOLTAGE 24V<7AE> 14V 60MA 		8-97116-329-0 01 1 0211-0501 ● ● ● ● ●
307 08.991 BULB ASM; SW
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. AUSTRALIA EQUIPMENT(RR3),FOG LAMP<T96>,VOLTAGE 24V<7AE> 14V 60MA 		8-97116-329-0 01 1 0211-0501 ● ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 14V 60MA 		8-97116-329-0 01 1 0502- ● ● ●
307 08.991 BULB ASM; SW
ROOM LAMP SWITCH<7KL> EXC. VOLTAGE 24V<7AE> 14V 60MA 		8-97116-329-0 01 1 0502- ● ● ●
307 08.991 BULB ASM; SW
ROOM LAMP SWITCH<7KL> 14V 60MA 		8-97116-329-0 01 1 0502- ●
307 08.991 BULB ASM; SW
VOLTAGE 24V<7AE> 28V 40MA 		8-97116-331-0 02 1 0211- ● ● ●
307 08.991 BULB ASM; SW
28V 40MA 		8-97116-331-0 02 1 0211- ●
307 08.991 BULB ASM; SW
EXC. VOLTAGE 24V<7AE> 14V 60MA 		8-97116-329-0 02 1 0211-0501 ● ● ●
307 08.991 BULB ASM; SW
14V 60MA 		8-97116-329-0 02 1 0211-0501 ● ●
307 08.991 BULB ASM; SW
EXC. VOLTAGE 24V<7AE> 14V 60MA 		8-97116-329-0 02 1 0502- ● ● ●
307 08.991 BULB ASM; SW
14V 60MA 		8-97116-329-0 02 1 0502- ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> VOLTAGE 24V<7AE> 28V 40MA 		8-97116-331-0 01 1 0211-0501 ● ● ● ●
307 08.991 BULB ASM; SW
VOLTAGE 24V<7AE> ROOM LAMP SWITCH<7KL> 28V 40MA 		8-97116-331-0 01 1 0211-0501 ● ● ● ●
307 08.991 BULB ASM; SW
HALOGEN HEAD LAMP RECTANGULAR<TR4> VOLTAGE 24V<7AE> EXC. AUSTRALIA EQUIPMENT(RR3),FOG LAMP<T96> 28V 40MA 		8-97116-331-0 01 1 0211-0501 ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> VOLTAGE 24V<7AE> 28V 40MA 		8-97116-331-0 01 1 0502- ● ● ● ●
307 08.991 BULB ASM; SW
VOLTAGE 24V<7AE> ROOM LAMP SWITCH<7KL> 28V 40MA 		8-97116-331-0 01 1 0502- ● ● ● ●
372 08.852 SWITCH; ROOM LAMP
ROOM LAMP SWITCH<7KL> EXC. VOLTAGE 24V<7AE> 		8-97136-692-0 01 1 0211-0501 ● ● ●
372 08.852 SWITCH; ROOM LAMP
ROOM LAMP SWITCH<7KL> 		8-97136-692-0 01 1 0211-0501 ● ●
372 08.852 SWITCH; ROOM LAMP
ROOM LAMP SWITCH<7KL> EXC. VOLTAGE 24V<7AE> 		8-97136-692-0 01 1 0502- ● ● ●
372 08.852 SWITCH; ROOM LAMP
ROOM LAMP SWITCH<7KL> 		8-97136-692-0 01 1 0502- ●
372 08.852 SWITCH; ROOM LAMP
VOLTAGE 24V<7AE> ROOM LAMP SWITCH<7KL> 		8-97136-693-0 01 1 0211- ● ● ●
372 08.852 SWITCH; ROOM LAMP
ROOM LAMP SWITCH<7KL> 		8-97136-693-0 01 1 0211- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
