Sayfa 8-15 - Isuzu EPC

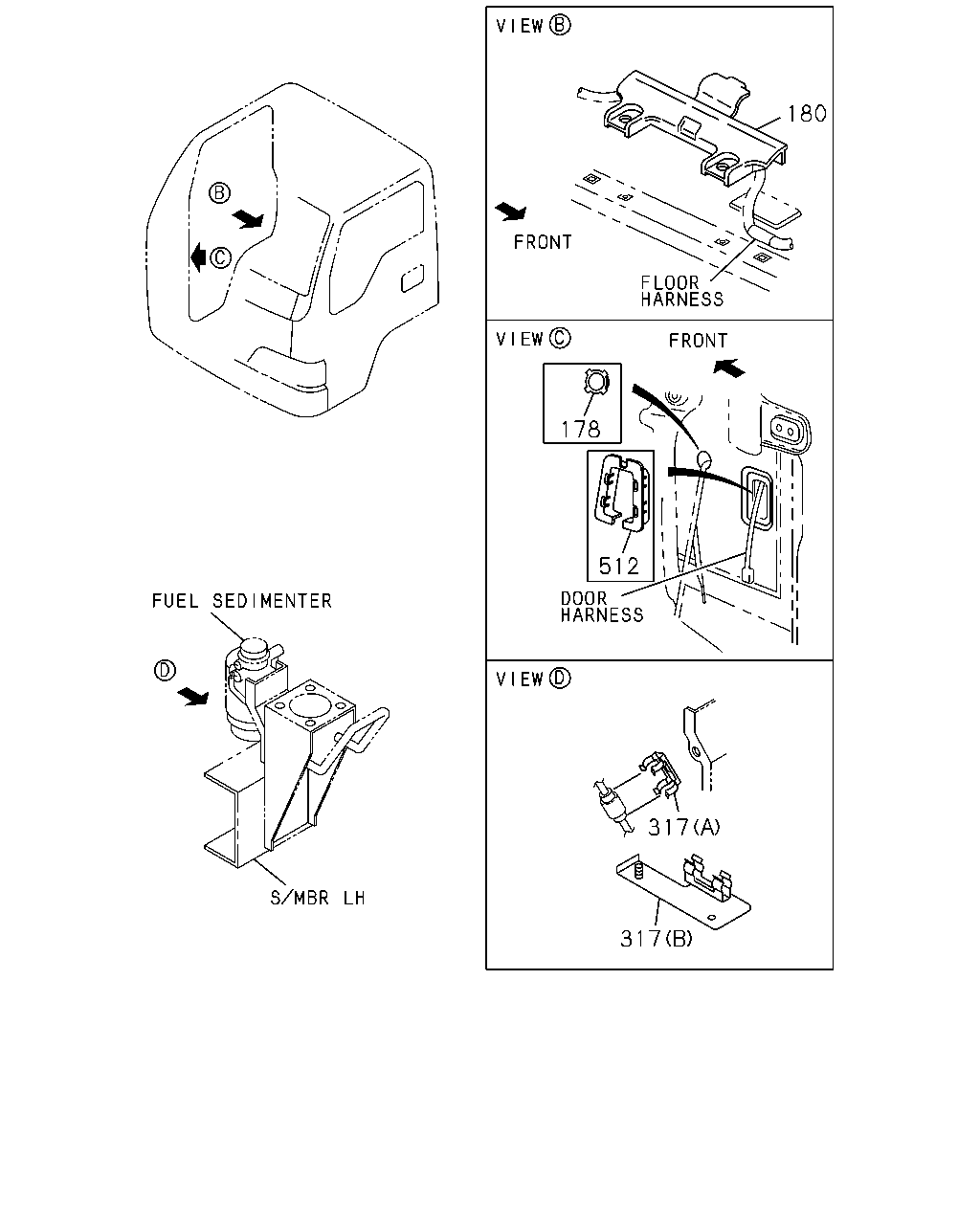

8-15 — FIXING PARTS; WIRING HARNESS (#48157) — 842 parça

31 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (C)	8-97357-142-0	03	1	0211-0211	●	●	●	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (C)	8-97362-859-0	03	1	0211-0501	●	●	●	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JH1-TC ENG(RDM),4HG1 ENG(RJH), 4HF1-NENG(RJZ) EXC. FRAME-KICK UP<7EW> (C)	8-97362-859-0	03	1	0502-0609	●	●	●	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HF1-N ENG(RJZ) (C)	8-97362-859-0	03	1	0610-	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (C)	8-97362-859-0	03	1	0610-		●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JH1-TC ENG(RDM),4HG1-T ENG(RDP), 4HG1ENG(RJH),4HF1-N ENG(RJZ) (C)	8-97362-859-0	03	1	0610-			●
31	02.559 BRACKET; HARNESS CLIP,PIPE (C)	8-97362-859-0	03	1	0610-				●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JB1 ENG(RLF) (A) L=20	8-94165-263-1	01	1	0211-0501	●	●	●		●
31	02.559 BRACKET; HARNESS CLIP,PIPE (A) L=20	8-94165-263-1	01	1	0211-0501						●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JB1 ENG(RLF) (A) L=20	8-94165-263-1	01	1	0502-0609	●	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JB1-TC ENG(RDT),4JB1 ENG(RLF) (A) L=20	8-94165-263-1	01	1	0610-0712	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JB1 ENG(RLF) (A) L=20	8-94165-263-1	01	1	0610-0712		●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JB1-TC ENG(RDT),4JB1 ENG(RLF) (A) L=20	8-94165-263-1	01	1	0801-	●		●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JB1 ENG(RLF) (A) L=20	8-94165-263-1	01	1	0801-		●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JB1 ENG(RLF) (B)	8-97077-845-0	02	1	0211-0501	●	●	●		●
31	02.559 BRACKET; HARNESS CLIP,PIPE (B)	8-97077-845-0	02	1	0211-0501						●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JB1 ENG(RLF) (B)	8-97077-845-0	02	1	0502-0609	●	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JB1-TC ENG(RDT),4JB1 ENG(RLF) (B)	8-97077-845-0	02	1	0610-0712	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JB1 ENG(RLF) (B)	8-97077-845-0	02	1	0610-0712		●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JB1-TC ENG(RDT),4JB1 ENG(RLF) (B)	8-97077-845-0	02	1	0801-	●		●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JB1 ENG(RLF) (B)	8-97077-845-0	02	1	0801-		●

38 150 38 460 38 139 150 8 139 150 358 139 38 139 150 139 466 159 159 386 377 386 377 386 481 139 64 511 511 219 219 219 294 515 219 294 469 515 524 294 519

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
8	02.559 BOLT; BRKT,CONNECTOR 08.225 M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0211-0501	●	●	●	●	●	●
8	02.559 BOLT; BRKT,CONNECTOR 08.225 M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0502-1210	●	●	●	●	●
8	02.559 BOLT; BRKT,CONNECTOR 02.587 M6X19.5 W/LK&PL WASHER	8-97360-226-0	02	1	1211-	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.334 (D) M6X25 FLANGE	0-28680-625-0	02	1	0211-0501	●
38	02.559 BOLT; CLIP,HARNESS 02.334 (D) M6X25 FLANGE	0-28680-625-0	02	1	0211-0501			●	●	●	●
38	02.559 BOLT; CLIP,HARNESS EXC. FRAME-KICK UP<7EW> 02.334 (D) M6X25 FLANGE	0-28680-625-0	02	1	0211-0501		●
38	02.559 BOLT; CLIP,HARNESS 02.334 (D) M6X25 FLANGE	0-28680-625-0	02	1	0502-0512	●		●	●	●
38	02.559 BOLT; CLIP,HARNESS EXC. FRAME-KICK UP<7EW> 02.334 (D) M6X25 FLANGE	0-28680-625-0	02	1	0502-0512		●
38	02.559 BOLT; CLIP,HARNESS 00.685 (D) M6X25 FLANGE	0-28650-625-0	02	1	0601-	●		●	●	●
38	02.559 BOLT; CLIP,HARNESS EXC. FRAME-KICK UP<7EW> 00.685 (D) M6X25 FLANGE	0-28650-625-0	02	1	0601-		●
38	02.559 BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28680-825-0	01	1	0211-0501	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28680-825-0	01	1	0502-0512	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JH1 ENG(RJX),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 04.329 (A) M5X16 W/LK WASHER	9-03910-516-0	01	1	0211-0501	●	●	●		●	●
38	02.559 BOLT; CLIP,HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> 04.329 (A) M5X16 W/LK WASHER	9-03910-516-0	01	1	0211-0501	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> 04.329 (A) M5X16 W/LK WASHER	9-03910-516-0	01	1	0502-0604	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JH1-TC ENG(RDM),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 04.329 (A) M5X16 W/LK WASHER	9-03910-516-0	01	1	0502-0604	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> (A) M5X16 W/LK WASHER	0-36220-516-0	01	1	0605-0609	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JH1-TC ENG(RDM),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> (A) M5X16 W/LK WASHER	0-36220-516-0	01	1	0605-0609	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> (A) M5X16 W/LK WASHER	0-36220-516-0	01	1	0610-	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> (A) M5X16 W/LK WASHER	0-36220-516-0	01	1	0610-	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1-S ENG(RLS) 02.334 (D) M6X25 FLANGE	0-28680-625-0	01	1	0211-0305	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JB1 ENG(RLF) 04.930 (C) M6X20 FLANGE	0-28680-620-0	01	1	0211-0211	●	●	●		●
38	02.559 BOLT; CLIP,HARNESS FRT INDEPENDENT SUSPENSION(6PP) 04.930 (C) M6X20 FLANGE	0-28680-620-0	01	1	0211-0211	●
38	02.559 BOLT; CLIP,HARNESS FRT INDEPENDENT SUSPENSION(6PP) 04.930 (C) M6X20 FLANGE	0-28680-620-0	01	1	0211-0211	●
38	02.559 BOLT; CLIP,HARNESS 04.930 (C) M6X20 FLANGE	0-28680-620-0	01	1	0211-0211						●
38	02.559 BOLT; CLIP,HARNESS FRAME-KICK UP<7EW> 04.930 (C) M6X20 FLANGE	0-28680-620-0	01	1	0211-0211		●
38	02.559 BOLT; CLIP,HARNESS FRAME-KICK UP<7EW> 04.930 (C) M6X20 FLANGE	0-28680-620-0	01	1	0211-0211		●
38	02.559 BOLT; CLIP,HARNESS 4JB1 ENG(RLF) 04.930 (C) M6X20 FLANGE	0-28680-620-0	01	1	0212-0501	●	●	●		●
38	02.559 BOLT; CLIP,HARNESS FRT INDEPENDENT SUSPENSION(6PP) 04.930 (C) M6X20 FLANGE	0-28680-620-0	01	1	0212-0501	●
38	02.559 BOLT; CLIP,HARNESS FRT INDEPENDENT SUSPENSION(6PP) 04.930 (C) M6X20 FLANGE	0-28680-620-0	01	1	0212-0501	●
38	02.559 BOLT; CLIP,HARNESS 04.930 (C) M6X20 FLANGE	0-28680-620-0	01	1	0212-0501						●
38	02.559 BOLT; CLIP,HARNESS FRAME-KICK UP<7EW> 04.930 (C) M6X20 FLANGE	0-28680-620-0	01	1	0212-0501		●
38	02.559 BOLT; CLIP,HARNESS 4JB1 ENG(RLF) 04.930 (C) M6X20 FLANGE	0-28680-620-0	01	1	0502-0512	●	●	●
38	02.559 BOLT; CLIP,HARNESS FRAME-KICK UP<7EW> 04.930 (C) M6X20 FLANGE	0-28680-620-0	01	1	0502-0512		●
38	02.559 BOLT; CLIP,HARNESS 4JB1 ENG(RLF) 03.162 (C) M6X20 FLANGE	0-28650-620-0	01	1	0601-0609	●	●	●
38	02.559 BOLT; CLIP,HARNESS FRAME-KICK UP<7EW> 03.162 (C) M6X20 FLANGE	0-28650-620-0	01	1	0601-0609		●
38	02.559 BOLT; CLIP,HARNESS 4JB1-TC ENG(RDT),4JB1 ENG(RLF) 03.162 (C) M6X20 FLANGE	0-28650-620-0	01	1	0610-0712	●
38	02.559 BOLT; CLIP,HARNESS 4JB1 ENG(RLF) 03.162 (C) M6X20 FLANGE	0-28650-620-0	01	1	0610-0712		●	●
38	02.559 BOLT; CLIP,HARNESS FRAME-KICK UP<7EW> 03.162 (C) M6X20 FLANGE	0-28650-620-0	01	1	0610-0712		●
38	02.559 BOLT; CLIP,HARNESS 4JB1-TC ENG(RDT),4JB1 ENG(RLF) 03.162 (C) M6X20 FLANGE	0-28650-620-0	01	1	0801-	●		●
38	02.559 BOLT; CLIP,HARNESS 4JB1 ENG(RLF) 03.162 (C) M6X20 FLANGE	0-28650-620-0	01	1	0801-		●
38	02.559 BOLT; CLIP,HARNESS FRAME-KICK UP<7EW> 03.162 (C) M6X20 FLANGE	0-28650-620-0	01	1	0801-		●
64	02.559 SCREW; CLIP 16.742 M4X16 TAPPING	1-09981-477-0	01	1	0211-0501				●		●
64	02.559 SCREW; CLIP 16.742 M4X16 TAPPING	1-09981-477-0	01	1	0502-				●
139	02.559 BOLT; BRKT 4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 01.062 (A) M8X16 FLANGE	0-28080-816-0	03	1	0211-0501	●	●	●	●	●	●
139	02.559 BOLT; BRKT 01.062 (A) M8X16 FLANGE	0-28080-816-0	03	1	0502-0512	●		●	●	●
139	02.559 BOLT; BRKT EXC. FRAME-KICK UP<7EW> 01.062 (A) M8X16 FLANGE	0-28080-816-0	03	1	0502-0512		●
139	02.559 BOLT; BRKT 02.343 (A) M8X16 FLANGE	0-28050-816-0	03	1	0601-	●		●	●	●
139	02.559 BOLT; BRKT EXC. FRAME-KICK UP<7EW> 02.343 (A) M8X16 FLANGE	0-28050-816-0	03	1	0601-		●
139	02.559 BOLT; BRKT 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (C)	8-97028-451-3	01	1	0211-0501	●	●	●	●	●
139	02.559 BOLT; BRKT 4JH1-TC ENG(RDM),4HG1 ENG(RJH), 4HF1-NENG(RJZ) EXC. FRAME-KICK UP<7EW> (C)	8-97028-451-3	01	1	0502-0609	●	●	●	●	●
139	02.559 BOLT; BRKT 4HF1-N ENG(RJZ) (C)	8-97028-451-3	01	1	0610-1401	●
139	02.559 BOLT; BRKT 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (C)	8-97028-451-3	01	1	0610-1401		●
139	02.559 BOLT; BRKT 4JH1-TC ENG(RDM),4HG1-T ENG(RDP), 4HG1ENG(RJH),4HF1-N ENG(RJZ) (C)	8-97028-451-3	01	1	0610-1401			●
139	02.559 BOLT; BRKT (C)	8-97028-451-3	01	1	0610-1401				●	●
139	02.559 BOLT; BRKT 4HF1-N ENG(RJZ) (C)	8-97028-451-3	01	1	1402-	●
139	02.559 BOLT; BRKT 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (C)	8-97028-451-3	01	1	1402-		●
139	02.559 BOLT; BRKT 4JH1-TC ENG(RDM),4HG1-T ENG(RDP), 4HG1ENG(RJH),4HF1-N ENG(RJZ) (C)	8-97028-451-3	01	1	1402-			●
139	02.559 BOLT; BRKT 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) SPECIAL PACKAGE<7BB> (C)	8-97028-451-3	01	1	1402-			●
139	02.559 BOLT; BRKT (C)	8-97028-451-3	01	1	1402-				●	●
139	02.559 BOLT; BRKT FRAME-KICK UP<7EW> (B) M8X25 FLANGE	0-28680-825-0	02	1	0211-0512		●
139	02.559 BOLT; BRKT FRAME-KICK UP<7EW> 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
139	02.559 BOLT; BRKT 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> 02.334 (E) M6X25 FLANGE	0-28680-625-0	01	1	0211-0501		●
139	02.559 BOLT; BRKT 4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> 02.334 (E) M6X25 FLANGE	0-28680-625-0	01	1	0502-0512		●
139	02.559 BOLT; BRKT 4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> 00.685 (E) M6X25 FLANGE	0-28650-625-0	01	1	0601-		●
139	02.559 BOLT; BRKT 4JH1 ENG(RJX),4JB1 ENG(RLF) REAR WIDE TREAD(V4T) 02.183 (D) M8X35 FLANGE	0-28680-835-0	01	1	0211-0501		●
139	02.559 BOLT; BRKT 4JH1 ENG(RJX) AUSTRALIA EQUIPMENT(RR3) 02.183 (D) M8X35 FLANGE	0-28680-835-0	01	1	0211-0501			●
139	02.559 BOLT; BRKT 4JH1-TC ENG(RDM),4JB1 ENG(RLF) REAR WIDE TREAD(V4T) 02.183 (D) M8X35 FLANGE	0-28680-835-0	01	1	0502-0512		●
139	02.559 BOLT; BRKT 4JH1-TC ENG(RDM),4JB1 ENG(RLF) REAR WIDE TREAD(V4T) 01.060 (D) M8X35 FLANGE	0-28650-835-0	01	1	0601-		●
139	02.559 BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> 04.665 (F) M8X10 W/LK WASHER	8-97025-916-0	02	1	0502-0610		●	●
139	02.559 BOLT; BRKT 04.665 (F) M8X10 W/LK WASHER	8-97025-916-0	02	1	0502-0610					●
139	02.559 BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> 04.665 (F) M8X10 W/LK WASHER	8-98029-928-0	02	1	0611-		●	●
139	02.559 BOLT; BRKT 04.665 (F) M8X10 W/LK WASHER	8-98029-928-0	02	1	0611-					●
150	02.343 BOLT; CLIP 4JH1 ENG(RJX),4JB1 ENG(RLF) 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0211-0501	●	●	●		●	●
150	02.343 BOLT; CLIP 4JH1-TC ENG(RDM),4JB1 ENG(RLF) 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0502-0512	●	●	●		●
150	02.343 BOLT; CLIP 4JH1-TC ENG(RDM),4JB1 ENG(RLF) (A) M8X12 FLANGE	0-28050-812-0	01	1	0601-0609	●	●	●		●
150	02.343 BOLT; CLIP 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 ENG(RLF) (A) M8X12 FLANGE	0-28050-812-0	01	1	0610-	●	●	●		●
150	02.343 BOLT; CLIP 4JH1 ENG(RJX) 02.500 (C) M6X10 FLANGE	0-28080-610-0	01	1	0211-0501	●	●	●		●
150	02.343 BOLT; CLIP 4JH1-TC ENG(RDM) 02.500 (C) M6X10 FLANGE	0-28080-610-0	01	1	0502-0512		●	●		●
150	02.343 BOLT; CLIP 4JH1-TC ENG(RDM) 03.671 (C) M6X10 FLANGE	0-28050-610-0	01	1	0601-		●	●		●
150	02.343 BOLT; CLIP RR BODY NON FLAT BED(RS5) 02.334 (B) M6X25 FLANGE	0-28680-625-0	01	1	0211-0501						●
150	02.343 BOLT; CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> 02.559 (D) M8X25 FLANGE	0-28680-825-0	01	1	0502-0512		●
150	02.343 BOLT; CLIP 02.559 (D) M8X25 FLANGE	0-28680-825-0	01	1	0502-0512					●
150	02.343 BOLT; CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 (D) M8X25 FLANGE	0-28650-825-0	01	1	0601-		●
150	02.343 BOLT; CLIP 06.216 (D) M8X25 FLANGE	0-28650-825-0	01	1	0601-					●
159	02.559 BOLT; GRAND ENG ELEC 02.343 (A) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0211-0501	●	●	●	●	●	●
159	02.559 BOLT; GRAND ENG ELEC 02.343 (A) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0502-1004	●	●	●	●	●
159	02.559 BOLT; GRAND ENG ELEC 02.343 (B) M8X24 W/PL WASHER	8-98141-256-1	01	1	1005-	●	●	●	●	●
219	02.559 NUT EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	0211-0501	●
219	02.559 NUT 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	0211-0501			●	●	●	●
219	02.559 NUT 4JH1 ENG(RJX),4JB1 ENG(RLF) REAR WIDE TREAD(V4T) 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	0211-0501		●
219	02.559 NUT EXC. FRAME-KICK UP<7EW> 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	0211-0501		●
219	02.559 NUT 4JH1 ENG(RJX) AUSTRALIA EQUIPMENT(RR3) 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	0211-0501			●
219	02.559 NUT 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	0502-0602	●		●	●	●
219	02.559 NUT 4JH1-TC ENG(RDM),4JB1 ENG(RLF) REAR WIDE TREAD(V4T) 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	0502-0602		●
219	02.559 NUT EXC. FRAME-KICK UP<7EW> 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	0502-0602		●
219	02.559 NUT 01.062 (C) M8 FLANGE	0-91180-108-0	01	1	0603-	●		●	●	●
219	02.559 NUT 4JH1-TC ENG(RDM),4JB1 ENG(RLF) REAR WIDE TREAD(V4T) 01.062 (C) M8 FLANGE	0-91180-108-0	01	1	0603-		●
219	02.559 NUT EXC. FRAME-KICK UP<7EW> 01.062 (C) M8 FLANGE	0-91180-108-0	01	1	0603-		●
219	02.559 NUT EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.594 (B) M6 FLANGE	0-91150-106-0	02	1	0211-0501	●
219	02.559 NUT 04.594 (B) M6 FLANGE	0-91150-106-0	02	1	0211-0501			●	●	●	●
219	02.559 NUT EXC. FRAME-KICK UP<7EW> 04.594 (B) M6 FLANGE	0-91150-106-0	02	1	0211-0501		●
219	02.559 NUT 4JB1 ENG(RLF) 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0502-0602	●	●	●
219	02.559 NUT 4HF1-N ENG(RJZ),4JB1 ENG(RLF) 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0502-0602	●
219	02.559 NUT 4HF1-N ENG(RJZ),4JB1 ENG(RLF) EXC. FRAME-KICK UP<7EW> 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0502-0602		●
219	02.559 NUT 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0502-0602			●
219	02.559 NUT 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0502-0602				●
219	02.559 NUT 4JB1 ENG(RLF) 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0603-0609	●	●	●
219	02.559 NUT 4HF1-N ENG(RJZ),4JB1 ENG(RLF) 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0603-0609	●
219	02.559 NUT 4HF1-N ENG(RJZ),4JB1 ENG(RLF) EXC. FRAME-KICK UP<7EW> 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0603-0609		●
219	02.559 NUT 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0603-0609			●
219	02.559 NUT 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0603-0609				●
219	02.559 NUT 4JB1-TC ENG(RDT),4JB1 ENG(RLF) 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0610-0712	●
219	02.559 NUT 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1ENG(RLF) 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0610-0712	●
219	02.559 NUT 4JB1 ENG(RLF) 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0610-0712		●	●
219	02.559 NUT 4HF1-N ENG(RJZ),4JB1 ENG(RLF) EXC. FRAME-KICK UP<7EW> 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0610-0712		●
219	02.559 NUT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0610-0712			●
219	02.559 NUT 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0610-0712				●
219	02.559 NUT 4JB1-TC ENG(RDT),4JB1 ENG(RLF) 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0801-	●		●
219	02.559 NUT 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1ENG(RLF) 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0801-	●
219	02.559 NUT 4JB1 ENG(RLF) 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0801-		●
219	02.559 NUT 4HF1-N ENG(RJZ),4JB1 ENG(RLF) EXC. FRAME-KICK UP<7EW> 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0801-		●
219	02.559 NUT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4HG1ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0801-			●
219	02.559 NUT 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0801-				●
219	02.559 NUT 4JH1 ENG(RJX),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 09.744 (A) M5 FLANGE	5-09440-003-0	01	1	0211-0501	●	●	●		●	●
219	02.559 NUT 4HG1 ENG(RJH),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> 09.744 (A) M5 FLANGE	5-09440-003-0	01	1	0211-0501	●	●	●	●
219	02.559 NUT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> 09.744 (A) M5 FLANGE	5-09440-003-0	01	1	0502-0609	●	●	●	●
219	02.559 NUT 4JH1-TC ENG(RDM),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 09.744 (A) M5 FLANGE	5-09440-003-0	01	1	0502-0609	●	●	●
219	02.559 NUT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> 09.744 (A) M5 FLANGE	5-09440-003-0	01	1	0610-	●	●	●	●
219	02.559 NUT 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 09.744 (A) M5 FLANGE	5-09440-003-0	01	1	0610-	●	●	●
219	02.559 NUT 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0211-0211	●		●	●	●	●
219	02.559 NUT 4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1-S ENG(RLS) 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0211-0211	●	●
219	02.559 NUT FRT INDEPENDENT SUSPENSION(6PP) 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0211-0211	●
219	02.559 NUT 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0211-0211				●		●
219	02.559 NUT EXC. FRAME-KICK UP<7EW> 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0211-0211		●
219	02.559 NUT 4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1-S ENG(RLS) 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0211-0211			●
219	02.559 NUT 4JH1 ENG(RJX),4JB1 ENG(RLF) 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0211-0211					●
219	02.559 NUT EXC. FRAME-KICK UP<7EW> 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0212-0305	●	●	●	●	●	●
219	02.559 NUT 4JH1 ENG(RJX) EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0212-0305	●	●	●		●
219	02.559 NUT 4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1-S ENG(RLS) 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0212-0305	●	●	●		●
219	02.559 NUT FRT INDEPENDENT SUSPENSION(6PP) 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0212-0305	●
219	02.559 NUT 4JB1 ENG(RLF) 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0212-0305						●
219	02.559 NUT 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1-S ENG(RLS) 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0212-0305				●
219	02.559 NUT 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0306-0501	●		●	●	●	●
219	02.559 NUT 4JH1 ENG(RJX) EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0306-0501	●
219	02.559 NUT FRT INDEPENDENT SUSPENSION(6PP) 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0306-0501	●
219	02.559 NUT 4JB1 ENG(RLF) 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0306-0501	●
219	02.559 NUT 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0306-0501						●
219	02.559 NUT 4JH1 ENG(RJX),4JB1 ENG(RLF) 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0306-0501		●	●		●
219	02.559 NUT EXC. FRAME-KICK UP<7EW> 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0306-0501		●
219	02.559 NUT 04.594 (B) M6 FLANGE	0-91150-106-0	02	1	0502-0602	●		●	●	●
219	02.559 NUT 4JH1-TC ENG(RDM) 04.594 (B) M6 FLANGE	0-91150-106-0	02	1	0502-0602		●	●
219	02.559 NUT EXC. FRAME-KICK UP<7EW> 04.594 (B) M6 FLANGE	0-91150-106-0	02	1	0502-0602		●
219	02.559 NUT 04.594 (B) M6 FLANGE	0-91150-106-0	02	1	0502-0602					●
219	02.559 NUT 01.062 (B) M6 FLANGE	0-91180-106-0	02	1	0603-	●		●	●	●
219	02.559 NUT 4JH1-TC ENG(RDM) 01.062 (B) M6 FLANGE	0-91180-106-0	02	1	0603-		●	●
219	02.559 NUT EXC. FRAME-KICK UP<7EW> 01.062 (B) M6 FLANGE	0-91180-106-0	02	1	0603-		●
219	02.559 NUT 01.062 (B) M6 FLANGE	0-91180-106-0	02	1	0603-					●
219	02.559 NUT 4HG1 ENG(RJH),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B) 07.829 (D) M6 FLANGE	5-09440-004-0	01	1	0211-0501	●	●	●	●
219	02.559 NUT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B) 07.829 (D) M6 FLANGE	5-09440-004-0	01	1	0502-0609	●	●	●	●
219	02.559 NUT 4HF1-N ENG(RJZ) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B) 07.829 (D) M6 FLANGE	5-09440-004-0	01	1	0610-	●	●
219	02.559 NUT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B) 07.829 (D) M6 FLANGE	5-09440-004-0	01	1	0610-			●
219	02.559 NUT FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B) 07.829 (D) M6 FLANGE	5-09440-004-0	01	1	0610-				●
294	02.559 NUT 4HF1-S ENG(RLS) 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0211-0306	●
294	02.559 NUT RR BODY NON FLAT BED(RS5) 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0211-0306						●
294	02.559 NUT 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0211-0306		●
294	02.559 NUT 4HG1 ENG(RJH),4HF1-S ENG(RLS) 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0211-0306			●
294	02.559 NUT 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0211-0306				●
294	02.559 NUT 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0307-0501	●	●	●	●	●	●
294	02.559 NUT 4HF1-S ENG(RLS) 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0307-0501	●
294	02.559 NUT RR BODY NON FLAT BED(RS5) 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0307-0501						●
294	02.559 NUT 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0307-0501		●
294	02.559 NUT 4HG1 ENG(RJH),4HF1-S ENG(RLS) 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0307-0501			●
294	02.559 NUT 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0307-0501				●
294	02.559 NUT 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0502-0602	●	●	●	●	●
294	02.559 NUT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0502-0602	●	●	●	●
294	02.559 NUT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0603-0609	●	●	●	●	●
294	02.559 NUT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0603-0609	●	●	●	●
294	02.559 NUT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0610-	●	●	●	●	●
294	02.559 NUT 4HF1-N ENG(RJZ) 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0610-	●
294	02.559 NUT 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0610-		●
294	02.559 NUT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0610-			●
294	02.559 NUT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0610-				●
294	02.559 NUT 04.785 (B) M10 FLANGE	0-91150-110-0	01	1	0211-0211	●	●	●	●	●	●
294	02.559 NUT M/T MYY5T(RSM) 04.785 (B) M10 FLANGE	0-91150-110-0	01	1	0212-0501	●	●	●		●
294	02.559 NUT 04.785 (B) M10 FLANGE	0-91150-110-0	01	1	0212-0501				●
294	02.559 NUT M/T MYY5T(RSM) 04.785 (B) M10 FLANGE	0-91150-110-0	01	1	0502-0602	●	●	●
294	02.559 NUT 04.785 (B) M10 FLANGE	0-91150-110-0	01	1	0502-0602				●	●
294	02.559 NUT M/T MYY5T(RSM) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0603-	●	●	●
294	02.559 NUT 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0603-				●	●
294	02.559 NUT 4 WHEEL ANTI LOCK BRAKE<JE5> 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	0502-0602		●
294	02.559 NUT 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	0502-0602					●
294	02.559 NUT 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 (C) M8 FLANGE	0-91180-108-0	01	1	0603-		●
294	02.559 NUT 01.062 (C) M8 FLANGE	0-91180-108-0	01	1	0603-					●
358	02.480 BOLT; EARTH 4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0211-0501	●	●	●	●
358	02.480 BOLT; EARTH 4HF1-N ENG(RJZ) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0502-0512	●	●	●	●
358	02.480 BOLT; EARTH 4HF1-N ENG(RJZ) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0601-	●	●	●	●
377	02.559 BOLT; CAB EARTH (A) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0211-0501	●	●	●	●	●	●
377	02.559 BOLT; CAB EARTH (A) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0502-1004	●	●	●	●	●
377	02.559 BOLT; CAB EARTH 02.343 (B) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1005-	●	●	●	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (A) M6X16 W/LK&PL WASHER	8-97086-823-0	01	1	0211-0501	●	●	●	●	●	●
386	02.559 BOLT; GRAND HARNESS (B) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0502-0509	●	●	●	●	●
386	02.559 BOLT; GRAND HARNESS EXC. INDONESIA EQUIPMENT(S4S) (B) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0510-1004	●		●
386	02.559 BOLT; GRAND HARNESS (B) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0510-1004		●		●	●
386	02.559 BOLT; GRAND HARNESS EXC. INDONESIA EQUIPMENT(S4S) 02.343 (C) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1005-	●		●
386	02.559 BOLT; GRAND HARNESS 02.343 (C) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1005-		●		●	●
386	02.559 BOLT; GRAND HARNESS INDONESIA EQUIPMENT(S4S) 02.343 (A) M6X16 W/LK&PL WASHER	8-97086-823-0	01	1	0510-	●		●
460	02.559 BOLT; HARNESS PROTECTOR FRT INDEPENDENT SUSPENSION(6PP) 04.930 M6X20 FLANGE	0-28680-620-0	02	1	0211-0501	●
460	02.559 BOLT; HARNESS PROTECTOR FRAME-KICK UP<7EW> 04.930 M6X20 FLANGE	0-28680-620-0	02	1	0211-0501		●
460	02.559 BOLT; HARNESS PROTECTOR FRAME-KICK UP<7EW> 04.930 M6X20 FLANGE	0-28680-620-0	02	1	0502-0512		●
460	02.559 BOLT; HARNESS PROTECTOR FRAME-KICK UP<7EW> 03.162 M6X20 FLANGE	0-28650-620-0	02	1	0601-		●
466	02.483 BOLT; HEAT PROTECTOR FRT INDEPENDENT SUSPENSION(6PP) 02.183 M8X35 FLANGE	0-28680-835-0	02	1	0211-0501	●
466	02.483 BOLT; HEAT PROTECTOR 4JH1 ENG(RJX),4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.183 M8X35 FLANGE	0-28680-835-0	01	1	0211-0501	●
466	02.483 BOLT; HEAT PROTECTOR 4HF1-S ENG(RLS) 02.183 M8X35 FLANGE	0-28680-835-0	01	1	0211-0501	●
466	02.483 BOLT; HEAT PROTECTOR 02.183 M8X35 FLANGE	0-28680-835-0	01	1	0211-0501				●		●
466	02.483 BOLT; HEAT PROTECTOR 4JH1 ENG(RJX),4JB1 ENG(RLF) EXC. REAR WIDE TREAD(V4T) 02.183 M8X35 FLANGE	0-28680-835-0	01	1	0211-0501		●
466	02.483 BOLT; HEAT PROTECTOR 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 02.183 M8X35 FLANGE	0-28680-835-0	01	1	0211-0501		●
466	02.483 BOLT; HEAT PROTECTOR 4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1-S ENG(RLS) EXC. AUSTRALIA EQUIPMENT(RR3) 02.183 M8X35 FLANGE	0-28680-835-0	01	1	0211-0501			●
466	02.483 BOLT; HEAT PROTECTOR 4JH1 ENG(RJX),4JB1 ENG(RLF) 02.183 M8X35 FLANGE	0-28680-835-0	01	1	0211-0501					●
466	02.483 BOLT; HEAT PROTECTOR 4HF1-N ENG(RJZ),4JB1 ENG(RLF) 02.183 M8X35 FLANGE	0-28680-835-0	01	1	0502-0512	●
466	02.483 BOLT; HEAT PROTECTOR 4JH1-TC ENG(RDM),4JB1 ENG(RLF) EXC. REAR WIDE TREAD(V4T) 02.183 M8X35 FLANGE	0-28680-835-0	01	1	0502-0512		●
466	02.483 BOLT; HEAT PROTECTOR 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 02.183 M8X35 FLANGE	0-28680-835-0	01	1	0502-0512		●
466	02.483 BOLT; HEAT PROTECTOR 4JH1-TC ENG(RDM),4HG1 ENG(RJH), 4HF1-NENG(RJZ),4JB1 ENG(RLF) 02.183 M8X35 FLANGE	0-28680-835-0	01	1	0502-0512			●
466	02.483 BOLT; HEAT PROTECTOR 02.183 M8X35 FLANGE	0-28680-835-0	01	1	0502-0512				●	●
466	02.483 BOLT; HEAT PROTECTOR 4HF1-N ENG(RJZ),4JB1 ENG(RLF) 01.060 M8X35 FLANGE	0-28650-835-0	01	1	0601-0609	●
466	02.483 BOLT; HEAT PROTECTOR 4JH1-TC ENG(RDM),4JB1 ENG(RLF) EXC. REAR WIDE TREAD(V4T) 01.060 M8X35 FLANGE	0-28650-835-0	01	1	0601-0609		●
466	02.483 BOLT; HEAT PROTECTOR 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 01.060 M8X35 FLANGE	0-28650-835-0	01	1	0601-0609		●
466	02.483 BOLT; HEAT PROTECTOR 4JH1-TC ENG(RDM),4HG1 ENG(RJH), 4HF1-NENG(RJZ),4JB1 ENG(RLF) 01.060 M8X35 FLANGE	0-28650-835-0	01	1	0601-0609			●
466	02.483 BOLT; HEAT PROTECTOR 01.060 M8X35 FLANGE	0-28650-835-0	01	1	0601-0609				●	●
466	02.483 BOLT; HEAT PROTECTOR 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1ENG(RLF) 01.060 M8X35 FLANGE	0-28650-835-0	01	1	0610-0712	●
466	02.483 BOLT; HEAT PROTECTOR 4JH1-TC ENG(RDM),4JB1 ENG(RLF) EXC. REAR WIDE TREAD(V4T) 01.060 M8X35 FLANGE	0-28650-835-0	01	1	0610-0712		●
466	02.483 BOLT; HEAT PROTECTOR 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 01.060 M8X35 FLANGE	0-28650-835-0	01	1	0610-0712		●
466	02.483 BOLT; HEAT PROTECTOR 4JH1-TC ENG(RDM),4HG1-T ENG(RDP), 4HG1ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) 01.060 M8X35 FLANGE	0-28650-835-0	01	1	0610-0712			●
466	02.483 BOLT; HEAT PROTECTOR 01.060 M8X35 FLANGE	0-28650-835-0	01	1	0610-0712				●	●
466	02.483 BOLT; HEAT PROTECTOR 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1ENG(RLF) 01.060 M8X35 FLANGE	0-28650-835-0	01	1	0801-	●
466	02.483 BOLT; HEAT PROTECTOR 4JH1-TC ENG(RDM),4JB1 ENG(RLF) EXC. REAR WIDE TREAD(V4T) 01.060 M8X35 FLANGE	0-28650-835-0	01	1	0801-		●
466	02.483 BOLT; HEAT PROTECTOR 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 01.060 M8X35 FLANGE	0-28650-835-0	01	1	0801-		●
466	02.483 BOLT; HEAT PROTECTOR 4JH1-TC ENG(RDM),4HG1-T ENG(RDP), 4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) 01.060 M8X35 FLANGE	0-28650-835-0	01	1	0801-			●
466	02.483 BOLT; HEAT PROTECTOR 01.060 M8X35 FLANGE	0-28650-835-0	01	1	0801-				●	●
469	02.559 NUT; PROTECTOR FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501	●
469	02.559 NUT; PROTECTOR 4JH1 ENG(RJX),4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501	●
469	02.559 NUT; PROTECTOR 4HF1-S ENG(RLS) 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501	●
469	02.559 NUT; PROTECTOR 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501				●		●
469	02.559 NUT; PROTECTOR 4JH1 ENG(RJX),4JB1 ENG(RLF) EXC. REAR WIDE TREAD(V4T) 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501		●
469	02.559 NUT; PROTECTOR 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501		●
469	02.559 NUT; PROTECTOR 4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1-S ENG(RLS) EXC. AUSTRALIA EQUIPMENT(RR3) 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501			●
469	02.559 NUT; PROTECTOR 4JH1 ENG(RJX),4JB1 ENG(RLF) 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501					●
469	02.559 NUT; PROTECTOR 4HF1-N ENG(RJZ),4JB1 ENG(RLF) 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602	●
469	02.559 NUT; PROTECTOR 4JH1-TC ENG(RDM),4JB1 ENG(RLF) EXC. REAR WIDE TREAD(V4T) 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602		●
469	02.559 NUT; PROTECTOR 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602		●
469	02.559 NUT; PROTECTOR 4JH1-TC ENG(RDM),4HG1 ENG(RJH), 4HF1-NENG(RJZ),4JB1 ENG(RLF) 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602			●
469	02.559 NUT; PROTECTOR 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602				●	●
469	02.559 NUT; PROTECTOR 4HF1-N ENG(RJZ),4JB1 ENG(RLF) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0609	●
469	02.559 NUT; PROTECTOR 4JH1-TC ENG(RDM),4JB1 ENG(RLF) EXC. REAR WIDE TREAD(V4T) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0609		●
469	02.559 NUT; PROTECTOR 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0609		●
469	02.559 NUT; PROTECTOR 4JH1-TC ENG(RDM),4HG1 ENG(RJH), 4HF1-NENG(RJZ),4JB1 ENG(RLF) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0609			●
469	02.559 NUT; PROTECTOR 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0609				●	●
469	02.559 NUT; PROTECTOR 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1ENG(RLF) 01.062 M8 FLANGE	0-91180-108-0	01	1	0610-0712	●
469	02.559 NUT; PROTECTOR 4JH1-TC ENG(RDM),4JB1 ENG(RLF) EXC. REAR WIDE TREAD(V4T) 01.062 M8 FLANGE	0-91180-108-0	01	1	0610-0712		●
469	02.559 NUT; PROTECTOR 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 01.062 M8 FLANGE	0-91180-108-0	01	1	0610-0712		●
469	02.559 NUT; PROTECTOR 4JH1-TC ENG(RDM),4HG1-T ENG(RDP), 4HG1ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) 01.062 M8 FLANGE	0-91180-108-0	01	1	0610-0712			●
469	02.559 NUT; PROTECTOR 01.062 M8 FLANGE	0-91180-108-0	01	1	0610-0712				●	●
469	02.559 NUT; PROTECTOR 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1ENG(RLF) 01.062 M8 FLANGE	0-91180-108-0	01	1	0801-	●
469	02.559 NUT; PROTECTOR 4JH1-TC ENG(RDM),4JB1 ENG(RLF) EXC. REAR WIDE TREAD(V4T) 01.062 M8 FLANGE	0-91180-108-0	01	1	0801-		●
469	02.559 NUT; PROTECTOR 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 01.062 M8 FLANGE	0-91180-108-0	01	1	0801-		●
469	02.559 NUT; PROTECTOR 4JH1-TC ENG(RDM),4HG1-T ENG(RDP), 4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) 01.062 M8 FLANGE	0-91180-108-0	01	1	0801-			●
469	02.559 NUT; PROTECTOR 01.062 M8 FLANGE	0-91180-108-0	01	1	0801-				●	●
481	13.090 BOLT; CABLE HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0502-0512		●	●
481	13.090 BOLT; CABLE HARNESS 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0502-0512					●
481	13.090 BOLT; CABLE HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0601-		●	●
481	13.090 BOLT; CABLE HARNESS 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0601-					●
511	02.559 SCREW; HARNESS COVER 08.845 (A) M5X14 TAPPING W/PL WASHER	0-74110-514-0	04	1	0211-0501	●	●	●	●	●	●
511	02.559 SCREW; HARNESS COVER 08.845 (A) M5X14 TAPPING W/PL WASHER	0-74110-514-0	04	1	0502-0604	●	●	●	●	●
511	02.559 SCREW; HARNESS COVER 16.800 (A) M5X14 TAPPING W/PL WASHER	0-74160-514-0	04	1	0605-0702	●	●	●	●	●
511	02.559 SCREW; HARNESS COVER 04.681 (B) T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	04	1	0703-	●	●	●	●	●
515	02.559 NUT; BRKT 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 04.594 (A) M6 FLANGE	0-91150-106-0	02	1	0211-0501	●	●	●	●	●
515	02.559 NUT; BRKT 4JH1-TC ENG(RDM),4HG1 ENG(RJH), 4HF1-NENG(RJZ) EXC. FRAME-KICK UP<7EW> 04.594 (A) M6 FLANGE	0-91150-106-0	02	1	0502-0602	●	●	●	●	●
515	02.559 NUT; BRKT 4JH1-TC ENG(RDM),4HG1 ENG(RJH), 4HF1-NENG(RJZ) EXC. FRAME-KICK UP<7EW> 01.062 (A) M6 FLANGE	0-91180-106-0	02	1	0603-0609	●	●	●	●	●
515	02.559 NUT; BRKT 4HF1-N ENG(RJZ) 01.062 (A) M6 FLANGE	0-91180-106-0	02	1	0610-	●
515	02.559 NUT; BRKT 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 01.062 (A) M6 FLANGE	0-91180-106-0	02	1	0610-		●
515	02.559 NUT; BRKT 4JH1-TC ENG(RDM),4HG1-T ENG(RDP), 4HG1ENG(RJH),4HF1-N ENG(RJZ) 01.062 (A) M6 FLANGE	0-91180-106-0	02	1	0610-			●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	02	1	0610-				●	●
515	02.559 NUT; BRKT 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0502-0602	●		●	●	●
515	02.559 NUT; BRKT EXC. FRAME-KICK UP<7EW> 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0502-0602		●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0603-	●		●	●	●
515	02.559 NUT; BRKT EXC. FRAME-KICK UP<7EW> 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0603-		●
515	02.559 NUT; BRKT 4JH1 ENG(RJX),4JB1 ENG(RLF) REAR WIDE TREAD(V4T) 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	0211-0501		●
515	02.559 NUT; BRKT 4JH1 ENG(RJX) AUSTRALIA EQUIPMENT(RR3) 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	0211-0501			●
515	02.559 NUT; BRKT 4JH1-TC ENG(RDM),4JB1 ENG(RLF) REAR WIDE TREAD(V4T) 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	0502-0602		●
515	02.559 NUT; BRKT 4JH1-TC ENG(RDM),4JB1 ENG(RLF) REAR WIDE TREAD(V4T) 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0603-		●
519	02.559 NUT; EARTH CABLE 4JB1 ENG(RLF) 05.586 M12 FLANGE	0-91150-112-0	01	1	0211-0501	●	●	●		●
519	02.559 NUT; EARTH CABLE 05.586 M12 FLANGE	0-91150-112-0	01	1	0211-0501						●
519	02.559 NUT; EARTH CABLE 4JB1 ENG(RLF) 05.586 M12 FLANGE	0-91150-112-0	01	1	0502-0602	●	●	●
519	02.559 NUT; EARTH CABLE 4JB1 ENG(RLF) 02.042 M12 FLANGE	0-91180-112-0	01	1	0603-0609	●	●	●
519	02.559 NUT; EARTH CABLE 4JB1-TC ENG(RDT),4JB1 ENG(RLF) 02.042 M12 FLANGE	0-91180-112-0	01	1	0610-0712	●
519	02.559 NUT; EARTH CABLE 4JB1 ENG(RLF) 02.042 M12 FLANGE	0-91180-112-0	01	1	0610-0712		●	●
519	02.559 NUT; EARTH CABLE 4JB1-TC ENG(RDT),4JB1 ENG(RLF) 02.042 M12 FLANGE	0-91180-112-0	01	1	0801-	●		●
519	02.559 NUT; EARTH CABLE 4JB1 ENG(RLF) 02.042 M12 FLANGE	0-91180-112-0	01	1	0801-		●
524	02.559 NUT; HARNESS 4JH1 ENG(RJX) 01.540 M8 FLANGE	0-91150-208-0	01	1	0211-0501	●	●	●		●
524	02.559 NUT; HARNESS 4JH1-TC ENG(RDM) 01.540 M8 FLANGE	0-91150-208-0	01	1	0502-0602		●	●		●
524	02.559 NUT; HARNESS 4JH1-TC ENG(RDM) 01.540 M8 FLANGE	0-91180-208-0	01	1	0603-		●	●		●

180 178 512 317 317

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
178	02.559 GROMMET; HARNESS ID=47	8-94279-735-0	01	1	0211-0501	●	●	●	●	●	●
178	02.559 GROMMET; HARNESS ID=47	8-94279-735-0	01	1	0502-	●	●	●	●	●
180	02.559 COVER; HARNESS	8-97856-130-4	02	1	0211-0501	●	●	●	●	●	●
180	02.559 COVER; HARNESS	8-97856-130-4	02	1	0502-	●	●	●	●	●
317	02.559 CLAMP; CONNECTOR 4JH1 ENG(RJX),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-94441-365-0	01	1	0211-0501	●	●	●		●	●
317	02.559 CLAMP; CONNECTOR 4HG1 ENG(RJH),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-94441-365-0	01	1	0211-0501	●	●	●	●
317	02.559 CLAMP; CONNECTOR 4HG1 ENG(RJH),4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-94441-365-0	01	1	0502-0609	●	●	●	●
317	02.559 CLAMP; CONNECTOR 4JH1-TC ENG(RDM),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-94441-365-0	01	1	0502-0609	●	●	●
317	02.559 CLAMP; CONNECTOR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-94441-365-0	01	1	0610-	●	●	●	●
317	02.559 CLAMP; CONNECTOR 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-94441-365-0	01	1	0610-	●	●	●
317	02.559 CLAMP; CONNECTOR 4HG1 ENG(RJH),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B) (B)	8-94366-903-0	01	1	0211-0501	●	●	●	●
317	02.559 CLAMP; CONNECTOR 4HG1 ENG(RJH),4HF1-N ENG(RJZ) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B) (B)	8-94366-903-0	01	1	0502-0609	●	●	●	●
317	02.559 CLAMP; CONNECTOR 4HF1-N ENG(RJZ) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B) (B)	8-94366-903-0	01	1	0610-	●	●
317	02.559 CLAMP; CONNECTOR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B) (B)	8-94366-903-0	01	1	0610-			●
317	02.559 CLAMP; CONNECTOR FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B) (B)	8-94366-903-0	01	1	0610-				●
512	02.559 PROTECTOR; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>, AUSTRALIA EQUIPMENT(RR3)	8-97072-950-0	02	1	0211-0501	●	●	●	●	●	●
512	02.559 PROTECTOR; HARNESS POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3)	8-97072-950-0	02	1	0211-0501	●	●	●	●	●	●
512	02.559 PROTECTOR; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3),RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/F M W/CASSETTE 2 SPEAKERS(6VL)	8-97072-950-0	02	1	0211-0501	●	●	●	●	●	●
512	02.559 PROTECTOR; HARNESS RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3)	8-97072-950-0	02	1	0211-0501	●	●	●	●
512	02.559 PROTECTOR; HARNESS AUSTRALIA EQUIPMENT(RR3)	8-97072-950-0	02	1	0211-0501		●	●		●
512	02.559 PROTECTOR; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>, AUSTRALIA EQUIPMENT(RR3)	8-97072-950-0	02	1	0502-	●	●	●	●
512	02.559 PROTECTOR; HARNESS POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3)	8-97072-950-0	02	1	0502-	●	●	●	●
512	02.559 PROTECTOR; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3),RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/F M W/CASSETTE 2 SPEAKERS(6VL)	8-97072-950-0	02	1	0502-	●	●	●	●
512	02.559 PROTECTOR; HARNESS RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3)	8-97072-950-0	02	1	0502-	●	●	●	●
512	02.559 PROTECTOR; HARNESS AUSTRALIA EQUIPMENT(RR3)	8-97072-950-0	02	1	0502-		●	●		●

16 48 16 183 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
16	02.559 CLIP; HARNESS (F) L=135	1-09987-143-1	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (M) L=170.3	1-09987-182-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 16.065 (E) 1 SET=5 PIECE	1-09987-214-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (L) L=80	5-09700-307-1	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (B) ID=12	5-09700-331-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (C) L=250	5-09707-030-1	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 03.162 (A) L=140	5-09707-031-1	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (N) L=100	8-94327-067-1	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.343 (G) ID=10 & 16	8-94413-325-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (J) L=100	8-94442-388-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (K) L=60	8-94457-053-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 01.166 (H) ID=22 & 22	8-94464-837-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (O) L=155	8-97173-307-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (I) ID=15-32	8-97174-404-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 01.150 (P) ID=12	8-97367-983-0	AR	1	0303-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (Q) ID=24 H=40 L=24	1-09701-243-0	AR	1	0502-	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.589 (R) ID=27	5-09700-323-0	AR	1	0502-	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS VIN MODEL YEAR 2012(VZC) (I) T=4.5 & 9	8-97371-947-0	01	1	1202-1404			●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE) EXC. MINI BUS CHASSIS(V4B) (I) T=4.5 & 9	8-97371-947-0	01	1	1405-1405			●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) EXC. MINI BUS CHASSIS(V4B) (I) T=4.5 & 9	8-97371-947-0	01	1	1406-			●
48	02.559 CLIP; FRAME HARNESS VIN MODEL YEAR 2012(VZC) (AC) T=10.5	8-97371-950-0	01	1	1202-1404			●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE) EXC. MINI BUS CHASSIS(V4B) (AC) T=10.5	8-97371-950-0	01	1	1405-1405			●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2014(VZE) EXC. MINI BUS CHASSIS(V4B) (AC) T=10.5	8-97371-950-0	01	1	1405-1405			●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) EXC. MINI BUS CHASSIS(V4B) (AC) T=10.5	8-97371-950-0	01	1	1406-			●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) EXC. MINI BUS CHASSIS(V4B) (AC) T=10.5	8-97371-950-0	01	1	1406-			●
48	02.559 CLIP; FRAME HARNESS (N) ID=27 H=40 L=33	1-09700-156-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (L) ID=19 H=70 L=25	1-09700-773-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (J) ID=33 L=63	1-09700-807-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (O) ID=31 L=30	1-09700-969-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 04.866 (S) ID=24 H=60 L=27	1-09701-004-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (AA) ID=31.5 H=23 L=25	1-09701-017-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (C) L=170.3	1-09987-182-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (T) ID=5-12 L=14.5	1-09987-221-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (H) ID=14 L=47	5-09700-319-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (M) ID=20	5-09700-321-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.589 (D) ID=27	5-09700-323-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 03.162 (A) L=140	5-09707-031-1	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (Y) T=9.2	5-09709-013-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.525 (I) T=4.5 & 9	5-09709-023-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.525 (F) T=9.2 & 9	5-09709-025-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (Z) T=5.5	5-09709-047-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 13	5-09709-096-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 03.008 (E) L=330	5-09709-118-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (R) ID=24	8-94149-610-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 00.855 (U) ID=8.3 & 16.5	8-94169-027-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (K) ID=20	8-94169-650-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (V) ID=10 & 11	8-94438-996-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (W) ID=14-20	8-97061-603-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (P) ID=9	8-97063-874-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (Q) ID=30 W/STUD	8-97078-642-2	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (G) ID=11 L=16	9-09525-025-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.516 (X) ID=13 L=20	9-09525-235-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 04.785 (AB) ID=9.6	8-94147-870-0	AR	1	0502-	●	●	●	●	●
183	02.559 CLIP; CONNECTOR 4HF1-S ENG(RLS) 02.480 (A) ID=10.5 & 4.8	8-97019-966-0	01	1	0211-0301	●	●
183	02.559 CLIP; CONNECTOR 4HG1 ENG(RJH),4HF1-S ENG(RLS) 02.480 (A) ID=10.5 & 4.8	8-97019-966-0	01	1	0211-0301			●
183	02.559 CLIP; CONNECTOR 02.480 (A) ID=10.5 & 4.8	8-97019-966-0	01	1	0211-0301				●
183	02.559 CLIP; CONNECTOR (B) L=15	8-94315-436-1	02	1	0211-0501				●		●
183	02.559 CLIP; CONNECTOR (B) L=15	8-94315-436-1	02	1	0502-				●

14 16 48 162 208 220 483 16 488 48 14 16 205 16 48 142 464 488 16 483 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
14	02.559 CLIP; BAND,HARNESS 03.430 (A) L=200	8-94464-835-0	01	1	0211-0501	●	●	●	●	●	●
14	02.559 CLIP; BAND,HARNESS 03.430 (A) L=200	8-94464-835-0	01	1	0502-	●	●	●	●	●
14	02.559 CLIP; BAND,HARNESS 4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 03.162 (B) L=140	5-09707-031-1	01	1	0211-0501	●	●
14	02.559 CLIP; BAND,HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 03.162 (B) L=140	5-09707-031-1	01	1	0211-0501			●
14	02.559 CLIP; BAND,HARNESS 4JB1 ENG(RLF) 03.162 (B) L=140	5-09707-031-1	01	1	0502-0609	●
14	02.559 CLIP; BAND,HARNESS 4JH1-TC ENG(RDM),4JB1 ENG(RLF) 03.162 (B) L=140	5-09707-031-1	01	1	0502-0609		●	●
14	02.559 CLIP; BAND,HARNESS 03.162 (B) L=140	5-09707-031-1	01	1	0502-0609					●
14	02.559 CLIP; BAND,HARNESS 4JB1-TC ENG(RDT),4JB1 ENG(RLF) 03.162 (B) L=140	5-09707-031-1	01	1	0610-0712	●
14	02.559 CLIP; BAND,HARNESS 4JH1-TC ENG(RDM),4JB1 ENG(RLF) 03.162 (B) L=140	5-09707-031-1	01	1	0610-0712		●	●
14	02.559 CLIP; BAND,HARNESS 03.162 (B) L=140	5-09707-031-1	01	1	0610-0712					●
14	02.559 CLIP; BAND,HARNESS 4JB1-TC ENG(RDT),4JB1 ENG(RLF) 03.162 (B) L=140	5-09707-031-1	01	1	0801-	●
14	02.559 CLIP; BAND,HARNESS 4JH1-TC ENG(RDM),4JB1 ENG(RLF) 03.162 (B) L=140	5-09707-031-1	01	1	0801-		●
14	02.559 CLIP; BAND,HARNESS 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 ENG(RLF) 03.162 (B) L=140	5-09707-031-1	01	1	0801-			●
14	02.559 CLIP; BAND,HARNESS 03.162 (B) L=140	5-09707-031-1	01	1	0801-					●
16	02.559 CLIP; HARNESS (F) L=135	1-09987-143-1	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (M) L=170.3	1-09987-182-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 16.065 (E) 1 SET=5 PIECE	1-09987-214-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (L) L=80	5-09700-307-1	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (B) ID=12	5-09700-331-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (C) L=250	5-09707-030-1	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 03.162 (A) L=140	5-09707-031-1	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (N) L=100	8-94327-067-1	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.343 (G) ID=10 & 16	8-94413-325-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (J) L=100	8-94442-388-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (K) L=60	8-94457-053-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 01.166 (H) ID=22 & 22	8-94464-837-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (O) L=155	8-97173-307-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (I) ID=15-32	8-97174-404-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 01.150 (P) ID=12	8-97367-983-0	AR	1	0303-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (Q) ID=24 H=40 L=24	1-09701-243-0	AR	1	0502-	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.589 (R) ID=27	5-09700-323-0	AR	1	0502-	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS VIN MODEL YEAR 2012(VZC) (I) T=4.5 & 9	8-97371-947-0	01	1	1202-1404			●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE) EXC. MINI BUS CHASSIS(V4B) (I) T=4.5 & 9	8-97371-947-0	01	1	1405-1405			●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) EXC. MINI BUS CHASSIS(V4B) (I) T=4.5 & 9	8-97371-947-0	01	1	1406-			●
48	02.559 CLIP; FRAME HARNESS VIN MODEL YEAR 2012(VZC) (AC) T=10.5	8-97371-950-0	01	1	1202-1404			●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE) EXC. MINI BUS CHASSIS(V4B) (AC) T=10.5	8-97371-950-0	01	1	1405-1405			●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2014(VZE) EXC. MINI BUS CHASSIS(V4B) (AC) T=10.5	8-97371-950-0	01	1	1405-1405			●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) EXC. MINI BUS CHASSIS(V4B) (AC) T=10.5	8-97371-950-0	01	1	1406-			●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) EXC. MINI BUS CHASSIS(V4B) (AC) T=10.5	8-97371-950-0	01	1	1406-			●
48	02.559 CLIP; FRAME HARNESS (N) ID=27 H=40 L=33	1-09700-156-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (L) ID=19 H=70 L=25	1-09700-773-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (J) ID=33 L=63	1-09700-807-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (O) ID=31 L=30	1-09700-969-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 04.866 (S) ID=24 H=60 L=27	1-09701-004-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (AA) ID=31.5 H=23 L=25	1-09701-017-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (C) L=170.3	1-09987-182-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (T) ID=5-12 L=14.5	1-09987-221-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (H) ID=14 L=47	5-09700-319-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (M) ID=20	5-09700-321-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.589 (D) ID=27	5-09700-323-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 03.162 (A) L=140	5-09707-031-1	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (Y) T=9.2	5-09709-013-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.525 (I) T=4.5 & 9	5-09709-023-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.525 (F) T=9.2 & 9	5-09709-025-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (Z) T=5.5	5-09709-047-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 13	5-09709-096-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 03.008 (E) L=330	5-09709-118-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (R) ID=24	8-94149-610-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 00.855 (U) ID=8.3 & 16.5	8-94169-027-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (K) ID=20	8-94169-650-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (V) ID=10 & 11	8-94438-996-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (W) ID=14-20	8-97061-603-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (P) ID=9	8-97063-874-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (Q) ID=30 W/STUD	8-97078-642-2	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (G) ID=11 L=16	9-09525-025-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.516 (X) ID=13 L=20	9-09525-235-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 04.785 (AB) ID=9.6	8-94147-870-0	AR	1	0502-	●	●	●	●	●
142	02.559 CLIP; HARNESS,ENG M/T MYY5T(RSM) L=170.3	1-09987-182-0	01	1	0211-0501	●	●	●		●
142	02.559 CLIP; HARNESS,ENG L=170.3	1-09987-182-0	01	1	0211-0501				●
142	02.559 CLIP; HARNESS,ENG 4HF1-N ENG(RJZ) L=170.3	1-09987-182-0	01	1	0502-0609	●	●
142	02.559 CLIP; HARNESS,ENG 4HG1 ENG(RJH),4HF1-N ENG(RJZ) L=170.3	1-09987-182-0	01	1	0502-0609			●
142	02.559 CLIP; HARNESS,ENG L=170.3	1-09987-182-0	01	1	0502-0609				●
142	02.559 CLIP; HARNESS,ENG 4HF1-N ENG(RJZ) L=170.3	1-09987-182-0	01	1	0610-	●	●
142	02.559 CLIP; HARNESS,ENG 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) L=170.3	1-09987-182-0	01	1	0610-			●
142	02.559 CLIP; HARNESS,ENG L=170.3	1-09987-182-0	01	1	0610-				●
162	02.559 CLIP; SW HARNESS 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1-S ENG(RLS) 03.162 L=140	5-09707-031-1	01	1	0211-0501	●	●	●	●	●
162	02.559 CLIP; SW HARNESS 4JH1-TC ENG(RDM),4HG1 ENG(RJH) 03.162 L=140	5-09707-031-1	01	1	0502-0506		●	●		●
205	02.559 CLIP; BACK LAMP HARNESS L=135	1-09987-143-1	01	1	0211-0211	●	●	●	●	●	●
205	02.559 CLIP; BACK LAMP HARNESS M/T MYY5T(RSM) L=135	1-09987-143-1	01	1	0212-0501	●	●	●		●
205	02.559 CLIP; BACK LAMP HARNESS L=135	1-09987-143-1	01	1	0212-0501				●
205	02.559 CLIP; BACK LAMP HARNESS M/T MYY5T(RSM) L=135	1-09987-143-1	01	1	0502-	●	●	●
205	02.559 CLIP; BACK LAMP HARNESS L=135	1-09987-143-1	01	1	0502-				●	●
208	02.559 CLIP; HARNESS,MAG VLV 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> FRT INDEPENDENT SUSPENSION(6PP) EXC. TURBOCHARGER<K51> 03.162 (C) L=140	5-09707-031-1	01	1	0211-0501	●
208	02.559 CLIP; HARNESS,MAG VLV 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51>,FRT INDEPENDENT SUSPENSION(6PP) 01.240 (B) T=5.5	5-09709-047-0	01	1	0211-0501	●	●	●		●	●
208	02.559 CLIP; HARNESS,MAG VLV 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 01.240 (B) T=5.5	5-09709-047-0	01	1	0502-	●	●	●
208	02.559 CLIP; HARNESS,MAG VLV 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 02.557 (A) ID=10	5-09700-318-0	02	1	0211-0501	●	●	●		●
208	02.559 CLIP; HARNESS,MAG VLV EXHAUST BRAKE<NF8> 02.557 (A) ID=10	5-09700-318-0	02	1	0211-0501						●
208	02.559 CLIP; HARNESS,MAG VLV 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 02.557 (A) ID=10	5-09700-318-0	02	1	0502-	●	●	●
220	02.559 CLIP; HARNESS TO CABLE 4JH1 ENG(RJX) 03.162 L=140	5-09707-031-1	02	1	0211-0501	●	●	●		●
220	02.559 CLIP; HARNESS TO CABLE 4JH1-TC ENG(RDM) 03.162 L=140	5-09707-031-1	02	1	0502-		●	●
220	02.559 CLIP; HARNESS TO CABLE 03.162 L=140	5-09707-031-1	02	1	0502-					●
464	02.525 CLIP; SEDIMENTER HARNESS 4JH1 ENG(RJX),4JB1 ENG(RLF) 02.559 (B) ID=6.5	8-94257-639-0	01	1	0211-0501	●	●	●		●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 02.559 (B) ID=6.5	8-94257-639-0	01	1	0211-0501	●	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B),FUEL SEDIMENTER WITH HEATER<6HU> 02.559 (B) ID=6.5	8-94257-639-0	01	1	0211-0501	●	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 02.559 (B) ID=6.5	8-94257-639-0	01	1	0502-0609	●	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B),FUEL SEDIMENTER WITH HEATER<6HU> 02.559 (B) ID=6.5	8-94257-639-0	01	1	0502-0609	●	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4JH1-TC ENG(RDM),4JB1 ENG(RLF) 02.559 (B) ID=6.5	8-94257-639-0	01	1	0502-0609	●	●	●		●
464	02.525 CLIP; SEDIMENTER HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 02.559 (B) ID=6.5	8-94257-639-0	01	1	0610-0712	●	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B),FUEL SEDIMENTER WITH HEATER<6HU> 02.559 (B) ID=6.5	8-94257-639-0	01	1	0610-0712	●	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 ENG(RLF) 02.559 (B) ID=6.5	8-94257-639-0	01	1	0610-0712	●	●	●		●
464	02.525 CLIP; SEDIMENTER HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 02.559 (B) ID=6.5	8-94257-639-0	01	1	0801-	●	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B),FUEL SEDIMENTER WITH HEATER<6HU> 02.559 (B) ID=6.5	8-94257-639-0	01	1	0801-	●	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 ENG(RLF) 02.559 (B) ID=6.5	8-94257-639-0	01	1	0801-	●	●	●		●
464	02.525 CLIP; SEDIMENTER HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B) 02.587 (A) L=112	8-94232-618-0	01	1	0211-0501	●	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B) 02.587 (A) L=112	8-94232-618-0	01	1	0502-0609	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B) 02.587 (A) L=112	8-94232-618-0	01	1	0610-	●	●	●
483	02.559 CLIP; ENG HARNESS 4HF1-N ENG(RJZ) HIGH ALTITUDE COMPENSATOR(EE2) 03.162 (D) L=140	5-09707-031-1	01	1	1410-	●	●	●	●
483	02.559 CLIP; ENG HARNESS 4HG1 ENG(RJH) 03.162 (D) L=140	5-09707-031-1	01	1	1410-			●
483	02.559 CLIP; ENG HARNESS 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2015(VZF) 03.162 (D) L=140	5-09707-031-1	01	1	1410-			●
483	02.559 CLIP; ENG HARNESS 4JB1 ENG(RLF) (C) ID=11 L=20	9-09525-035-0	01	1	0211-0501	●	●	●		●	●
483	02.559 CLIP; ENG HARNESS 4JB1 ENG(RLF) (C) ID=11 L=20	9-09525-035-0	01	1	0502-0606	●	●	●
483	02.559 CLIP; ENG HARNESS 4JB1 ENG(RLF) (C) ID=11 L=20	0-95235-035-0	01	1	0607-0609	●	●	●
483	02.559 CLIP; ENG HARNESS 4JB1-TC ENG(RDT),4JB1 ENG(RLF) (C) ID=11 L=20	0-95235-035-0	01	1	0610-	●	●	●
483	02.559 CLIP; ENG HARNESS 4JH1 ENG(RJX),4JB1 ENG(RLF) 04.342 (A) L=197	1-83574-032-0	01	1	0211-0501	●	●	●		●	●
483	02.559 CLIP; ENG HARNESS 4JH1-TC ENG(RDM),4JB1 ENG(RLF) 04.342 (A) L=197	1-83574-032-0	01	1	0502-0609	●	●	●		●
483	02.559 CLIP; ENG HARNESS 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 ENG(RLF) 04.342 (A) L=197	1-83574-032-0	01	1	0610-	●	●	●		●
483	02.559 CLIP; ENG HARNESS 4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 03.162 (D) L=140	5-09707-031-1	02	1	0310-0501	●	●	●	●
483	02.559 CLIP; ENG HARNESS 4HF1-N ENG(RJZ) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 03.162 (D) L=140	5-09707-031-1	02	1	0502-	●	●	●	●
483	02.559 CLIP; ENG HARNESS 4HF1-S ENG(RLS) HIGH ALTITUDE COMPENSATOR(EE2) ENGINE POWER N-SPEC(7QV) 03.162 (D) L=140	5-09707-031-1	01	1	0310-0501	●	●	●	●
483	02.559 CLIP; ENG HARNESS 4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 03.162 (D) L=140	5-09707-031-1	01	1	0310-0501	●	●	●
483	02.559 CLIP; ENG HARNESS 4HG1 ENG(RJH) 03.162 (D) L=140	5-09707-031-1	01	1	0310-0501			●
483	02.559 CLIP; ENG HARNESS 4HF1-N ENG(RJZ) HIGH ALTITUDE COMPENSATOR(EE2) 03.162 (D) L=140	5-09707-031-1	01	1	0502-0609	●	●	●	●
483	02.559 CLIP; ENG HARNESS 4HG1 ENG(RJH) 03.162 (D) L=140	5-09707-031-1	01	1	0502-0609			●
483	02.559 CLIP; ENG HARNESS 4HF1-N ENG(RJZ) HIGH ALTITUDE COMPENSATOR(EE2) 03.162 (D) L=140	5-09707-031-1	01	1	0610-1409	●	●	●	●
483	02.559 CLIP; ENG HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) 03.162 (D) L=140	5-09707-031-1	01	1	0610-1409			●
483	02.559 CLIP; ENG HARNESS 4HG1-T ENG(RDP) VIN MODEL YEAR 2015(VZF) 03.162 (D) L=140	5-09707-031-1	03	1	1410-			●
483	02.559 CLIP; ENG HARNESS 4JH1 ENG(RJX) 02.343 (B) ID=16 L=20	9-09525-535-0	01	1	0211-0501	●	●	●		●
483	02.559 CLIP; ENG HARNESS 4JH1-TC ENG(RDM) 02.343 (B) ID=16 L=20	9-09525-535-0	01	1	0502-0606		●	●		●
483	02.559 CLIP; ENG HARNESS 4JH1-TC ENG(RDM) (B) ID=16 L=20	0-95235-535-0	01	1	0607-		●	●		●
488	02.559 CLIP; CABLE,TRAILER RR BODY FLAT BED(RS6) 02.587 (B) L=112	8-94232-618-0	04	1	0211-0501	●		●
488	02.559 CLIP; CABLE,TRAILER RR BODY NON FLAT BED(RS5) 02.587 (B) L=112	8-94232-618-0	04	1	0211-0501						●
488	02.559 CLIP; CABLE,TRAILER EXC. RR BODY FLAT BED(RS6) (A) L=250	5-09707-030-1	01	1	0211-0501	●		●
488	02.559 CLIP; CABLE,TRAILER EXC. RR BODY NON FLAT BED(RS5) (A) L=250	5-09707-030-1	01	1	0211-0501						●
488	02.559 CLIP; CABLE,TRAILER EXC. DUMP CHASSIS(V4D) (A) L=250	5-09707-030-1	01	1	0211-0501		●
488	02.559 CLIP; CABLE,TRAILER (A) L=250	5-09707-030-1	01	1	0211-0501				●	●
488	02.559 CLIP; CABLE,TRAILER (A) L=250	5-09707-030-1	01	1	0502-	●		●	●	●
488	02.559 CLIP; CABLE,TRAILER EXC. DUMP CHASSIS(V4D) (A) L=250	5-09707-030-1	01	1	0502-		●

31 53 53 53 53 312 312 412 510 27 504 504 514 514 514

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
27	02.559 PROTECTOR; EDGE 4JH1 ENG(RJX) 03.008 L=80	5-22439-006-0	01	1	0301-0501		●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (C)	8-97357-142-0	03	1	0211-0211	●	●	●	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (C)	8-97362-859-0	03	1	0211-0501	●	●	●	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JH1-TC ENG(RDM),4HG1 ENG(RJH), 4HF1-NENG(RJZ) EXC. FRAME-KICK UP<7EW> (C)	8-97362-859-0	03	1	0502-0609	●	●	●	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HF1-N ENG(RJZ) (C)	8-97362-859-0	03	1	0610-	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (C)	8-97362-859-0	03	1	0610-		●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JH1-TC ENG(RDM),4HG1-T ENG(RDP), 4HG1ENG(RJH),4HF1-N ENG(RJZ) (C)	8-97362-859-0	03	1	0610-			●
31	02.559 BRACKET; HARNESS CLIP,PIPE (C)	8-97362-859-0	03	1	0610-				●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JB1 ENG(RLF) (A) L=20	8-94165-263-1	01	1	0211-0501	●	●	●		●
31	02.559 BRACKET; HARNESS CLIP,PIPE (A) L=20	8-94165-263-1	01	1	0211-0501						●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JB1 ENG(RLF) (A) L=20	8-94165-263-1	01	1	0502-0609	●	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JB1-TC ENG(RDT),4JB1 ENG(RLF) (A) L=20	8-94165-263-1	01	1	0610-0712	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JB1 ENG(RLF) (A) L=20	8-94165-263-1	01	1	0610-0712		●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JB1-TC ENG(RDT),4JB1 ENG(RLF) (A) L=20	8-94165-263-1	01	1	0801-	●		●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JB1 ENG(RLF) (A) L=20	8-94165-263-1	01	1	0801-		●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JB1 ENG(RLF) (B)	8-97077-845-0	02	1	0211-0501	●	●	●		●
31	02.559 BRACKET; HARNESS CLIP,PIPE (B)	8-97077-845-0	02	1	0211-0501						●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JB1 ENG(RLF) (B)	8-97077-845-0	02	1	0502-0609	●	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JB1-TC ENG(RDT),4JB1 ENG(RLF) (B)	8-97077-845-0	02	1	0610-0712	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JB1 ENG(RLF) (B)	8-97077-845-0	02	1	0610-0712		●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JB1-TC ENG(RDT),4JB1 ENG(RLF) (B)	8-97077-845-0	02	1	0801-	●		●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JB1 ENG(RLF) (B)	8-97077-845-0	02	1	0801-		●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1-S ENG(RLS) (B)	8-97357-140-0	01	1	0211-0501	●	●	●	●	●
53	02.483 BRACKET; HARNESS 4JH1-TC ENG(RDM),4HG1 ENG(RJH), 4HF1-NENG(RJZ) (B)	8-97357-140-0	01	1	0502-0609	●	●	●	●	●
53	02.483 BRACKET; HARNESS 4JH1-TC ENG(RDM),4HG1-T ENG(RDP), 4HG1ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (B)	8-97357-140-0	01	1	0610-1401	●	●	●	●	●
53	02.483 BRACKET; HARNESS 4JH1-TC ENG(RDM),4HG1-T ENG(RDP), 4HG1ENG(RJH),4HF1-N ENG(RJZ) (B)	8-97357-140-0	01	1	1402-	●	●	●	●	●
53	02.483 BRACKET; HARNESS (C)	8-98003-047-0	01	1	0502-	●				●
53	02.483 BRACKET; HARNESS EXC. FRAME-KICK UP<7EW> (D)	8-98003-046-0	01	1	0502-		●
53	02.483 BRACKET; HARNESS (D)	8-98003-046-0	01	1	0502-			●	●
53	02.483 BRACKET; HARNESS 4JH1 ENG(RJX),4JB1 ENG(RLF) REAR WIDE TREAD(V4T) (A)	8-97091-462-1	01	1	0211-0501		●
53	02.483 BRACKET; HARNESS 4JH1 ENG(RJX) AUSTRALIA EQUIPMENT(RR3) (A)	8-97091-462-1	01	1	0211-0501			●
53	02.483 BRACKET; HARNESS 4JH1-TC ENG(RDM),4JB1 ENG(RLF) REAR WIDE TREAD(V4T) (A)	8-97091-462-1	01	1	0502-		●
312	02.559 BRACKET; CLIP HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (A)	8-97018-095-3	01	1	0211-0501	●	●	●	●
312	02.559 BRACKET; CLIP HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (A)	8-97018-095-3	01	1	0502-0609	●	●	●	●
312	02.559 BRACKET; CLIP HARNESS 4HF1-N ENG(RJZ) (A)	8-97018-095-3	01	1	0610-	●
312	02.559 BRACKET; CLIP HARNESS 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (A)	8-97018-095-3	01	1	0610-		●
312	02.559 BRACKET; CLIP HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A)	8-97018-095-3	01	1	0610-			●
312	02.559 BRACKET; CLIP HARNESS (A)	8-97018-095-3	01	1	0610-				●
312	02.559 BRACKET; CLIP HARNESS 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> (B)	8-97046-762-0	01	1	0211-0501		●
312	02.559 BRACKET; CLIP HARNESS 4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> (B)	8-97046-762-0	01	1	0502-		●
412	02.559 BRACKET; HARNESS,TRANS	8-97324-451-1	01	1	0211-0211	●	●	●	●	●	●
412	02.559 BRACKET; HARNESS,TRANS M/T MYY5T(RSM)	8-97324-451-1	01	1	0212-0501	●	●	●		●
412	02.559 BRACKET; HARNESS,TRANS	8-97324-451-1	01	1	0212-0501				●
412	02.559 BRACKET; HARNESS,TRANS M/T MYY5T(RSM)	8-97324-451-1	01	1	0502-	●	●	●
412	02.559 BRACKET; HARNESS,TRANS	8-97324-451-1	01	1	0502-				●	●
504	02.559 PROTECTOR; HARNESS EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.785 (A) L=200	8-97096-423-0	01	1	0211-0501	●
504	02.559 PROTECTOR; HARNESS 04.785 (A) L=200	8-97096-423-0	01	1	0211-0501			●	●	●	●
504	02.559 PROTECTOR; HARNESS EXC. FRAME-KICK UP<7EW> 04.785 (A) L=200	8-97096-423-0	01	1	0211-0501		●
504	02.559 PROTECTOR; HARNESS 04.785 (A) L=200	8-97096-423-0	01	1	0502-	●		●	●	●
504	02.559 PROTECTOR; HARNESS EXC. FRAME-KICK UP<7EW> 04.785 (A) L=200	8-97096-423-0	01	1	0502-		●
504	02.559 PROTECTOR; HARNESS 4JH1 ENG(RJX) EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.343 (B) L=120	8-97117-880-0	01	1	0211-0212	●
504	02.559 PROTECTOR; HARNESS 4JH1 ENG(RJX) 02.343 (B) L=120	8-97117-880-0	01	1	0211-0212		●	●		●
510	02.559 GROMMET; SCREW 04.931 H=15	8-94463-268-1	04	1	0211-0501	●	●	●	●	●	●
510	02.559 GROMMET; SCREW 04.931 H=15	8-94463-268-1	04	1	0502-	●	●	●	●	●
514	02.559 FINISHER; HARNESS 16.550 (A) L=120 SERVICED BY L=2040	1-71997-513-1	01	1	0211-0501	●	●	●	●	●	●
514	02.559 FINISHER; HARNESS 4JH1 ENG(RJX) 16.550 (A) L=120 SERVICED BY L=2040	1-71997-513-1	01	1	0211-0501	●	●	●		●
514	02.559 FINISHER; HARNESS (A) L=120 SERVICED BY L=500	1-79937-746-0	01	1	0502-1508	●	●	●	●	●
514	02.559 FINISHER; HARNESS 4JH1-TC ENG(RDM) (A) L=120 SERVICED BY L=500	1-79937-746-0	01	1	0502-1508		●	●
514	02.559 FINISHER; HARNESS (A) L=120 SERVICED BY L=500	1-79937-746-0	01	1	0502-1508					●
514	02.559 FINISHER; HARNESS (A) L=120 SERVICED BY L=500	1-79937-746-0	01	1	1509-	●	●	●	●	●
514	02.559 FINISHER; HARNESS 4JH1-TC ENG(RDM) (A) L=120 SERVICED BY L=500	1-79937-746-0	01	1	1509-		●
514	02.559 FINISHER; HARNESS 4JH1-TC ENG(RDM),4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2015(VZF) (A) L=120 SERVICED BY L=500	1-79937-746-0	01	1	1509-			●
514	02.559 FINISHER; HARNESS (A) L=120 SERVICED BY L=500	1-79937-746-0	01	1	1509-					●
514	02.559 FINISHER; HARNESS 16.550 (B) L=175 SERVICED BY L=2040	1-71997-513-1	01	1	0211-0501	●	●	●	●	●	●
514	02.559 FINISHER; HARNESS (B) L=175 SERVICED BY L=500	1-79937-746-0	01	1	0502-	●	●	●	●	●
514	02.559 FINISHER; HARNESS 4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1-S ENG(RLS) 16.550 (A) L=120 SERVICED BY L=2040	1-71997-513-1	02	1	0211-0501	●	●	●	●	●	●
514	02.559 FINISHER; HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) (A) L=120 SERVICED BY L=500	1-79937-746-0	02	1	0502-0609	●	●	●	●
514	02.559 FINISHER; HARNESS 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4HG1ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) (A) L=120 SERVICED BY L=500	1-79937-746-0	02	1	0610-	●	●	●	●
514	02.559 FINISHER; HARNESS 4JH1 ENG(RJX) (C) L=290 SERVICED BY L=500	1-79937-746-0	01	1	0211-0501	●	●	●		●
514	02.559 FINISHER; HARNESS 4JH1-TC ENG(RDM) (C) L=290 SERVICED BY L=500	1-79937-746-0	01	1	0502-1508		●	●
514	02.559 FINISHER; HARNESS (C) L=290 SERVICED BY L=500	1-79937-746-0	01	1	0502-1508					●
514	02.559 FINISHER; HARNESS 4JH1-TC ENG(RDM) (C) L=290 SERVICED BY L=500	1-79937-746-0	01	1	1509-		●
514	02.559 FINISHER; HARNESS 4JH1-TC ENG(RDM),4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2015(VZF) (C) L=290 SERVICED BY L=500	1-79937-746-0	01	1	1509-			●
514	02.559 FINISHER; HARNESS (C) L=290 SERVICED BY L=500	1-79937-746-0	01	1	1509-					●

48 264 16 16 264 48 48 464 397 183 48 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
16	02.559 CLIP; HARNESS (F) L=135	1-09987-143-1	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (M) L=170.3	1-09987-182-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 16.065 (E) 1 SET=5 PIECE	1-09987-214-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (L) L=80	5-09700-307-1	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (B) ID=12	5-09700-331-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (C) L=250	5-09707-030-1	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 03.162 (A) L=140	5-09707-031-1	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (N) L=100	8-94327-067-1	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.343 (G) ID=10 & 16	8-94413-325-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (J) L=100	8-94442-388-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (K) L=60	8-94457-053-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 01.166 (H) ID=22 & 22	8-94464-837-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (O) L=155	8-97173-307-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (I) ID=15-32	8-97174-404-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 01.150 (P) ID=12	8-97367-983-0	AR	1	0303-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (Q) ID=24 H=40 L=24	1-09701-243-0	AR	1	0502-	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.589 (R) ID=27	5-09700-323-0	AR	1	0502-	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS VIN MODEL YEAR 2012(VZC) (I) T=4.5 & 9	8-97371-947-0	01	1	1202-1404			●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE) EXC. MINI BUS CHASSIS(V4B) (I) T=4.5 & 9	8-97371-947-0	01	1	1405-1405			●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) EXC. MINI BUS CHASSIS(V4B) (I) T=4.5 & 9	8-97371-947-0	01	1	1406-			●
48	02.559 CLIP; FRAME HARNESS VIN MODEL YEAR 2012(VZC) (AC) T=10.5	8-97371-950-0	01	1	1202-1404			●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE) EXC. MINI BUS CHASSIS(V4B) (AC) T=10.5	8-97371-950-0	01	1	1405-1405			●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2014(VZE) EXC. MINI BUS CHASSIS(V4B) (AC) T=10.5	8-97371-950-0	01	1	1405-1405			●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) EXC. MINI BUS CHASSIS(V4B) (AC) T=10.5	8-97371-950-0	01	1	1406-			●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) EXC. MINI BUS CHASSIS(V4B) (AC) T=10.5	8-97371-950-0	01	1	1406-			●
48	02.559 CLIP; FRAME HARNESS (N) ID=27 H=40 L=33	1-09700-156-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (L) ID=19 H=70 L=25	1-09700-773-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (J) ID=33 L=63	1-09700-807-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (O) ID=31 L=30	1-09700-969-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 04.866 (S) ID=24 H=60 L=27	1-09701-004-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (AA) ID=31.5 H=23 L=25	1-09701-017-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (C) L=170.3	1-09987-182-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (T) ID=5-12 L=14.5	1-09987-221-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (H) ID=14 L=47	5-09700-319-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (M) ID=20	5-09700-321-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.589 (D) ID=27	5-09700-323-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 03.162 (A) L=140	5-09707-031-1	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (Y) T=9.2	5-09709-013-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.525 (I) T=4.5 & 9	5-09709-023-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.525 (F) T=9.2 & 9	5-09709-025-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (Z) T=5.5	5-09709-047-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 13	5-09709-096-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 03.008 (E) L=330	5-09709-118-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (R) ID=24	8-94149-610-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 00.855 (U) ID=8.3 & 16.5	8-94169-027-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (K) ID=20	8-94169-650-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (V) ID=10 & 11	8-94438-996-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (W) ID=14-20	8-97061-603-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (P) ID=9	8-97063-874-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (Q) ID=30 W/STUD	8-97078-642-2	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (G) ID=11 L=16	9-09525-025-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.516 (X) ID=13 L=20	9-09525-235-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 04.785 (AB) ID=9.6	8-94147-870-0	AR	1	0502-	●	●	●	●	●
183	02.559 CLIP; CONNECTOR 4HF1-S ENG(RLS) 02.480 (A) ID=10.5 & 4.8	8-97019-966-0	01	1	0211-0301	●	●
183	02.559 CLIP; CONNECTOR 4HG1 ENG(RJH),4HF1-S ENG(RLS) 02.480 (A) ID=10.5 & 4.8	8-97019-966-0	01	1	0211-0301			●
183	02.559 CLIP; CONNECTOR 02.480 (A) ID=10.5 & 4.8	8-97019-966-0	01	1	0211-0301				●
183	02.559 CLIP; CONNECTOR (B) L=15	8-94315-436-1	02	1	0211-0501				●		●
183	02.559 CLIP; CONNECTOR (B) L=15	8-94315-436-1	02	1	0502-				●
264	02.559 CLIP; HARNESS,HEADLAMP 02.343 (A) ID=10 & 16	8-94413-325-0	03	1	0211-0404	●	●	●	●	●	●
264	02.559 CLIP; HARNESS,HEADLAMP 02.343 (A) ID=10 & 16	8-94413-325-0	02	1	0405-0501	●	●	●	●	●	●
264	02.559 CLIP; HARNESS,HEADLAMP 02.694 (B) ID=6 & 10-13	8-97069-515-0	01	1	0405-0501	●	●	●	●	●	●
264	02.559 CLIP; HARNESS,HEADLAMP 02.694 (B) ID=6 & 10-13	8-97069-515-0	01	1	0502-	●	●	●	●	●
397	02.559 CLIP; RR DOOR HARNESS AUTO DOOR LOCK<AU4> 10.154 ID=7	8-97014-713-0	02	1	0211-0501				●		●
397	02.559 CLIP; RR DOOR HARNESS AUTO DOOR LOCK<AU4> 10.154 ID=7	8-97014-713-0	02	1	0502-				●
464	02.525 CLIP; SEDIMENTER HARNESS 4JH1 ENG(RJX),4JB1 ENG(RLF) 02.559 (B) ID=6.5	8-94257-639-0	01	1	0211-0501	●	●	●		●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 02.559 (B) ID=6.5	8-94257-639-0	01	1	0211-0501	●	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B),FUEL SEDIMENTER WITH HEATER<6HU> 02.559 (B) ID=6.5	8-94257-639-0	01	1	0211-0501	●	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 02.559 (B) ID=6.5	8-94257-639-0	01	1	0502-0609	●	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B),FUEL SEDIMENTER WITH HEATER<6HU> 02.559 (B) ID=6.5	8-94257-639-0	01	1	0502-0609	●	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4JH1-TC ENG(RDM),4JB1 ENG(RLF) 02.559 (B) ID=6.5	8-94257-639-0	01	1	0502-0609	●	●	●		●
464	02.525 CLIP; SEDIMENTER HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 02.559 (B) ID=6.5	8-94257-639-0	01	1	0610-0712	●	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B),FUEL SEDIMENTER WITH HEATER<6HU> 02.559 (B) ID=6.5	8-94257-639-0	01	1	0610-0712	●	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 ENG(RLF) 02.559 (B) ID=6.5	8-94257-639-0	01	1	0610-0712	●	●	●		●
464	02.525 CLIP; SEDIMENTER HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 02.559 (B) ID=6.5	8-94257-639-0	01	1	0801-	●	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B),FUEL SEDIMENTER WITH HEATER<6HU> 02.559 (B) ID=6.5	8-94257-639-0	01	1	0801-	●	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 ENG(RLF) 02.559 (B) ID=6.5	8-94257-639-0	01	1	0801-	●	●	●		●
464	02.525 CLIP; SEDIMENTER HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B) 02.587 (A) L=112	8-94232-618-0	01	1	0211-0501	●	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B) 02.587 (A) L=112	8-94232-618-0	01	1	0502-0609	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B) 02.587 (A) L=112	8-94232-618-0	01	1	0610-	●	●	●

16 48 16 48 48 16 48 48 16 48 52 208 48 48 208 48 48 48 48 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
16	02.559 CLIP; HARNESS (F) L=135	1-09987-143-1	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (M) L=170.3	1-09987-182-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 16.065 (E) 1 SET=5 PIECE	1-09987-214-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (L) L=80	5-09700-307-1	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (B) ID=12	5-09700-331-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (C) L=250	5-09707-030-1	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 03.162 (A) L=140	5-09707-031-1	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (N) L=100	8-94327-067-1	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.343 (G) ID=10 & 16	8-94413-325-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (J) L=100	8-94442-388-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (K) L=60	8-94457-053-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 01.166 (H) ID=22 & 22	8-94464-837-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (O) L=155	8-97173-307-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (I) ID=15-32	8-97174-404-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 01.150 (P) ID=12	8-97367-983-0	AR	1	0303-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (Q) ID=24 H=40 L=24	1-09701-243-0	AR	1	0502-	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.589 (R) ID=27	5-09700-323-0	AR	1	0502-	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS VIN MODEL YEAR 2012(VZC) (I) T=4.5 & 9	8-97371-947-0	01	1	1202-1404			●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE) EXC. MINI BUS CHASSIS(V4B) (I) T=4.5 & 9	8-97371-947-0	01	1	1405-1405			●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) EXC. MINI BUS CHASSIS(V4B) (I) T=4.5 & 9	8-97371-947-0	01	1	1406-			●
48	02.559 CLIP; FRAME HARNESS VIN MODEL YEAR 2012(VZC) (AC) T=10.5	8-97371-950-0	01	1	1202-1404			●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE) EXC. MINI BUS CHASSIS(V4B) (AC) T=10.5	8-97371-950-0	01	1	1405-1405			●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2014(VZE) EXC. MINI BUS CHASSIS(V4B) (AC) T=10.5	8-97371-950-0	01	1	1405-1405			●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) EXC. MINI BUS CHASSIS(V4B) (AC) T=10.5	8-97371-950-0	01	1	1406-			●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) EXC. MINI BUS CHASSIS(V4B) (AC) T=10.5	8-97371-950-0	01	1	1406-			●
48	02.559 CLIP; FRAME HARNESS (N) ID=27 H=40 L=33	1-09700-156-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (L) ID=19 H=70 L=25	1-09700-773-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (J) ID=33 L=63	1-09700-807-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (O) ID=31 L=30	1-09700-969-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 04.866 (S) ID=24 H=60 L=27	1-09701-004-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (AA) ID=31.5 H=23 L=25	1-09701-017-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (C) L=170.3	1-09987-182-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (T) ID=5-12 L=14.5	1-09987-221-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (H) ID=14 L=47	5-09700-319-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (M) ID=20	5-09700-321-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.589 (D) ID=27	5-09700-323-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 03.162 (A) L=140	5-09707-031-1	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (Y) T=9.2	5-09709-013-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.525 (I) T=4.5 & 9	5-09709-023-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.525 (F) T=9.2 & 9	5-09709-025-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (Z) T=5.5	5-09709-047-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 13	5-09709-096-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 03.008 (E) L=330	5-09709-118-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (R) ID=24	8-94149-610-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 00.855 (U) ID=8.3 & 16.5	8-94169-027-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (K) ID=20	8-94169-650-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (V) ID=10 & 11	8-94438-996-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (W) ID=14-20	8-97061-603-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (P) ID=9	8-97063-874-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (Q) ID=30 W/STUD	8-97078-642-2	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (G) ID=11 L=16	9-09525-025-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.516 (X) ID=13 L=20	9-09525-235-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 04.785 (AB) ID=9.6	8-94147-870-0	AR	1	0502-	●	●	●	●	●
52	02.559 CLIP; HARNESS TO BRKT EXC. FRAME-KICK UP<7EW> 01.240 ID=14 L=47	5-09700-319-0	01	1	0211-0501		●
52	02.559 CLIP; HARNESS TO BRKT 01.240 ID=14 L=47	5-09700-319-0	01	1	0211-0501			●
52	02.559 CLIP; HARNESS TO BRKT EXC. FRAME-KICK UP<7EW> 01.240 ID=14 L=47	5-09700-319-0	01	1	0502-		●
52	02.559 CLIP; HARNESS TO BRKT 01.240 ID=14 L=47	5-09700-319-0	01	1	0502-			●	●
208	02.559 CLIP; HARNESS,MAG VLV 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> FRT INDEPENDENT SUSPENSION(6PP) EXC. TURBOCHARGER<K51> 03.162 (C) L=140	5-09707-031-1	01	1	0211-0501	●
208	02.559 CLIP; HARNESS,MAG VLV 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51>,FRT INDEPENDENT SUSPENSION(6PP) 01.240 (B) T=5.5	5-09709-047-0	01	1	0211-0501	●	●	●		●	●
208	02.559 CLIP; HARNESS,MAG VLV 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 01.240 (B) T=5.5	5-09709-047-0	01	1	0502-	●	●	●
208	02.559 CLIP; HARNESS,MAG VLV 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 02.557 (A) ID=10	5-09700-318-0	02	1	0211-0501	●	●	●		●
208	02.559 CLIP; HARNESS,MAG VLV EXHAUST BRAKE<NF8> 02.557 (A) ID=10	5-09700-318-0	02	1	0211-0501						●
208	02.559 CLIP; HARNESS,MAG VLV 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 02.557 (A) ID=10	5-09700-318-0	02	1	0502-	●	●	●

483 48 48 483 48 48 48 49 16 16 48 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
16	02.559 CLIP; HARNESS (F) L=135	1-09987-143-1	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (M) L=170.3	1-09987-182-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 16.065 (E) 1 SET=5 PIECE	1-09987-214-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (L) L=80	5-09700-307-1	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (B) ID=12	5-09700-331-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (C) L=250	5-09707-030-1	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 03.162 (A) L=140	5-09707-031-1	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (N) L=100	8-94327-067-1	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.343 (G) ID=10 & 16	8-94413-325-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (J) L=100	8-94442-388-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (K) L=60	8-94457-053-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 01.166 (H) ID=22 & 22	8-94464-837-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (O) L=155	8-97173-307-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (I) ID=15-32	8-97174-404-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 01.150 (P) ID=12	8-97367-983-0	AR	1	0303-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (Q) ID=24 H=40 L=24	1-09701-243-0	AR	1	0502-	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.589 (R) ID=27	5-09700-323-0	AR	1	0502-	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS VIN MODEL YEAR 2012(VZC) (I) T=4.5 & 9	8-97371-947-0	01	1	1202-1404			●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE) EXC. MINI BUS CHASSIS(V4B) (I) T=4.5 & 9	8-97371-947-0	01	1	1405-1405			●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) EXC. MINI BUS CHASSIS(V4B) (I) T=4.5 & 9	8-97371-947-0	01	1	1406-			●
48	02.559 CLIP; FRAME HARNESS VIN MODEL YEAR 2012(VZC) (AC) T=10.5	8-97371-950-0	01	1	1202-1404			●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE) EXC. MINI BUS CHASSIS(V4B) (AC) T=10.5	8-97371-950-0	01	1	1405-1405			●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2014(VZE) EXC. MINI BUS CHASSIS(V4B) (AC) T=10.5	8-97371-950-0	01	1	1405-1405			●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) EXC. MINI BUS CHASSIS(V4B) (AC) T=10.5	8-97371-950-0	01	1	1406-			●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) EXC. MINI BUS CHASSIS(V4B) (AC) T=10.5	8-97371-950-0	01	1	1406-			●
48	02.559 CLIP; FRAME HARNESS (N) ID=27 H=40 L=33	1-09700-156-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (L) ID=19 H=70 L=25	1-09700-773-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (J) ID=33 L=63	1-09700-807-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (O) ID=31 L=30	1-09700-969-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 04.866 (S) ID=24 H=60 L=27	1-09701-004-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (AA) ID=31.5 H=23 L=25	1-09701-017-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (C) L=170.3	1-09987-182-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (T) ID=5-12 L=14.5	1-09987-221-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (H) ID=14 L=47	5-09700-319-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (M) ID=20	5-09700-321-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.589 (D) ID=27	5-09700-323-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 03.162 (A) L=140	5-09707-031-1	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (Y) T=9.2	5-09709-013-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.525 (I) T=4.5 & 9	5-09709-023-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.525 (F) T=9.2 & 9	5-09709-025-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (Z) T=5.5	5-09709-047-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 13	5-09709-096-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 03.008 (E) L=330	5-09709-118-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (R) ID=24	8-94149-610-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 00.855 (U) ID=8.3 & 16.5	8-94169-027-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (K) ID=20	8-94169-650-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (V) ID=10 & 11	8-94438-996-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (W) ID=14-20	8-97061-603-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (P) ID=9	8-97063-874-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (Q) ID=30 W/STUD	8-97078-642-2	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (G) ID=11 L=16	9-09525-025-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.516 (X) ID=13 L=20	9-09525-235-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 04.785 (AB) ID=9.6	8-94147-870-0	AR	1	0502-	●	●	●	●	●
49	02.559 CLIP; GEN HARNESS 4JH1 ENG(RJX) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0211-0501	●	●	●		●
49	02.559 CLIP; GEN HARNESS 4JH1-TC ENG(RDM) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0502-		●	●		●
483	02.559 CLIP; ENG HARNESS 4HF1-N ENG(RJZ) HIGH ALTITUDE COMPENSATOR(EE2) 03.162 (D) L=140	5-09707-031-1	01	1	1410-	●	●	●	●
483	02.559 CLIP; ENG HARNESS 4HG1 ENG(RJH) 03.162 (D) L=140	5-09707-031-1	01	1	1410-			●
483	02.559 CLIP; ENG HARNESS 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2015(VZF) 03.162 (D) L=140	5-09707-031-1	01	1	1410-			●
483	02.559 CLIP; ENG HARNESS 4JB1 ENG(RLF) (C) ID=11 L=20	9-09525-035-0	01	1	0211-0501	●	●	●		●	●
483	02.559 CLIP; ENG HARNESS 4JB1 ENG(RLF) (C) ID=11 L=20	9-09525-035-0	01	1	0502-0606	●	●	●
483	02.559 CLIP; ENG HARNESS 4JB1 ENG(RLF) (C) ID=11 L=20	0-95235-035-0	01	1	0607-0609	●	●	●
483	02.559 CLIP; ENG HARNESS 4JB1-TC ENG(RDT),4JB1 ENG(RLF) (C) ID=11 L=20	0-95235-035-0	01	1	0610-	●	●	●
483	02.559 CLIP; ENG HARNESS 4JH1 ENG(RJX),4JB1 ENG(RLF) 04.342 (A) L=197	1-83574-032-0	01	1	0211-0501	●	●	●		●	●
483	02.559 CLIP; ENG HARNESS 4JH1-TC ENG(RDM),4JB1 ENG(RLF) 04.342 (A) L=197	1-83574-032-0	01	1	0502-0609	●	●	●		●
483	02.559 CLIP; ENG HARNESS 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 ENG(RLF) 04.342 (A) L=197	1-83574-032-0	01	1	0610-	●	●	●		●
483	02.559 CLIP; ENG HARNESS 4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 03.162 (D) L=140	5-09707-031-1	02	1	0310-0501	●	●	●	●
483	02.559 CLIP; ENG HARNESS 4HF1-N ENG(RJZ) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 03.162 (D) L=140	5-09707-031-1	02	1	0502-	●	●	●	●
483	02.559 CLIP; ENG HARNESS 4HF1-S ENG(RLS) HIGH ALTITUDE COMPENSATOR(EE2) ENGINE POWER N-SPEC(7QV) 03.162 (D) L=140	5-09707-031-1	01	1	0310-0501	●	●	●	●
483	02.559 CLIP; ENG HARNESS 4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 03.162 (D) L=140	5-09707-031-1	01	1	0310-0501	●	●	●
483	02.559 CLIP; ENG HARNESS 4HG1 ENG(RJH) 03.162 (D) L=140	5-09707-031-1	01	1	0310-0501			●
483	02.559 CLIP; ENG HARNESS 4HF1-N ENG(RJZ) HIGH ALTITUDE COMPENSATOR(EE2) 03.162 (D) L=140	5-09707-031-1	01	1	0502-0609	●	●	●	●
483	02.559 CLIP; ENG HARNESS 4HG1 ENG(RJH) 03.162 (D) L=140	5-09707-031-1	01	1	0502-0609			●
483	02.559 CLIP; ENG HARNESS 4HF1-N ENG(RJZ) HIGH ALTITUDE COMPENSATOR(EE2) 03.162 (D) L=140	5-09707-031-1	01	1	0610-1409	●	●	●	●
483	02.559 CLIP; ENG HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) 03.162 (D) L=140	5-09707-031-1	01	1	0610-1409			●
483	02.559 CLIP; ENG HARNESS 4HG1-T ENG(RDP) VIN MODEL YEAR 2015(VZF) 03.162 (D) L=140	5-09707-031-1	03	1	1410-			●
483	02.559 CLIP; ENG HARNESS 4JH1 ENG(RJX) 02.343 (B) ID=16 L=20	9-09525-535-0	01	1	0211-0501	●	●	●		●
483	02.559 CLIP; ENG HARNESS 4JH1-TC ENG(RDM) 02.343 (B) ID=16 L=20	9-09525-535-0	01	1	0502-0606		●	●		●
483	02.559 CLIP; ENG HARNESS 4JH1-TC ENG(RDM) (B) ID=16 L=20	0-95235-535-0	01	1	0607-		●	●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
