◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50944 - NKR(RHD)EXC.EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#48156) — 1473 parça

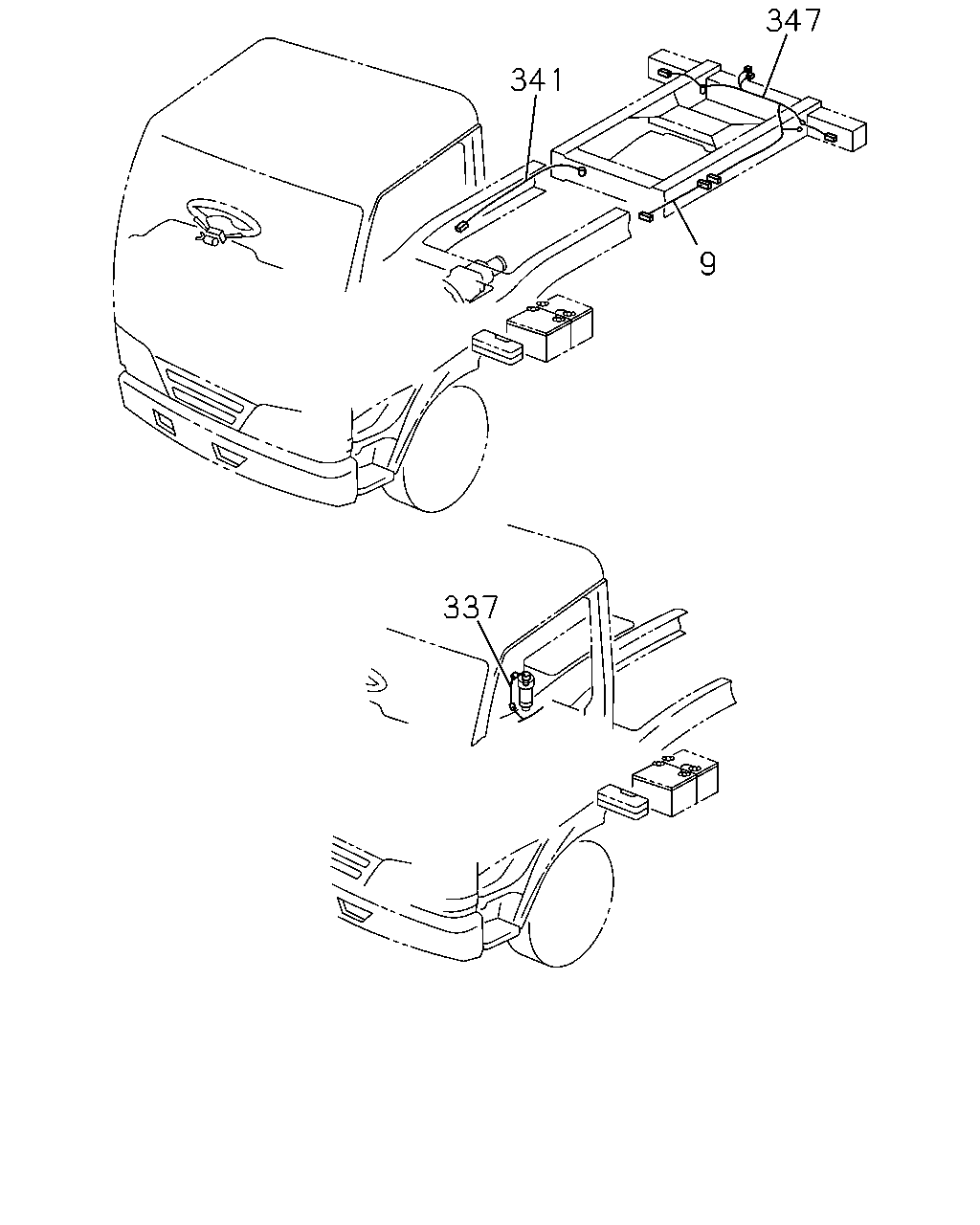

çizim 9523
347 341 9 337
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
9 02.480 HARNESS; FRAME,RR 8-97381-162-1 01 1 0502- ●
9 02.480 HARNESS; FRAME,RR
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME-KICK UP<7EW> 		8-97381-162-1 01 1 0502- ●
9 02.480 HARNESS; FRAME,RR
4 WHEEL ANTI LOCK BRAKE<JE5> REAR WIDE TREAD(V4T) 		8-98004-054-2 01 1 0502- ●
9 02.480 HARNESS; FRAME,RR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. REAR WIDE TREAD(V4T),FRAME-KICK UP<7EW> 		8-97381-165-1 01 1 0502- ●
9 02.480 HARNESS; FRAME,RR 8-97381-165-1 01 1 0502- ●
9 02.480 HARNESS; FRAME,RR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97381-166-1 01 1 0502- ●
9 02.480 HARNESS; FRAME,RR
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97381-164-1 01 1 0502- ●
9 02.480 HARNESS; FRAME,RR 8-97381-164-1 01 1 0502- ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97260-501-0 01 1 0211-0501 ● ● ● ● ● ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97260-501-0 01 1 0502- ● ● ● ●
341 02.530 HARNESS; CABLE,MAG VLV
4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 		8-97081-340-2 01 1 0211-0501 ● ● ● ●
341 02.530 HARNESS; CABLE,MAG VLV
EXHAUST BRAKE<NF8> 		8-97081-340-2 01 1 0211-0501 ●
341 02.530 HARNESS; CABLE,MAG VLV
4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 		8-97081-340-2 01 1 0502- ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED(RS6) 		8-97213-565-0 01 1 0211-0302 ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED(RS6) 		8-97364-150-0 01 1 0303-0501 ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY FLAT BED(RS6) 		8-97213-566-0 01 1 0211-0302 ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY NON FLAT BED(RS5) 		8-97213-566-0 01 1 0211-0302 ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. DUMP CHASSIS(V4D) 		8-97213-566-0 01 1 0211-0302 ●
347 02.480 HARNESS; CABLE,RR BODY 8-97213-566-0 01 1 0211-0302 ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY FLAT BED(RS6) 		8-97364-151-0 01 1 0303-0501 ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY NON FLAT BED(RS5) 		8-97364-151-0 01 1 0303-0501 ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. DUMP CHASSIS(V4D) 		8-97364-151-0 01 1 0303-0501 ●
347 02.480 HARNESS; CABLE,RR BODY 8-97364-151-0 01 1 0303-0501 ● ●
347 02.480 HARNESS; CABLE,RR BODY 8-97364-151-0 01 1 0502- ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. DUMP CHASSIS(V4D) 		8-97364-151-0 01 1 0502- ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY NON FLAT BED(RS5) 		8-97213-564-0 01 1 0211-0302 ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY NON FLAT BED(RS5) 		8-97364-149-0 01 1 0303-0501 ●

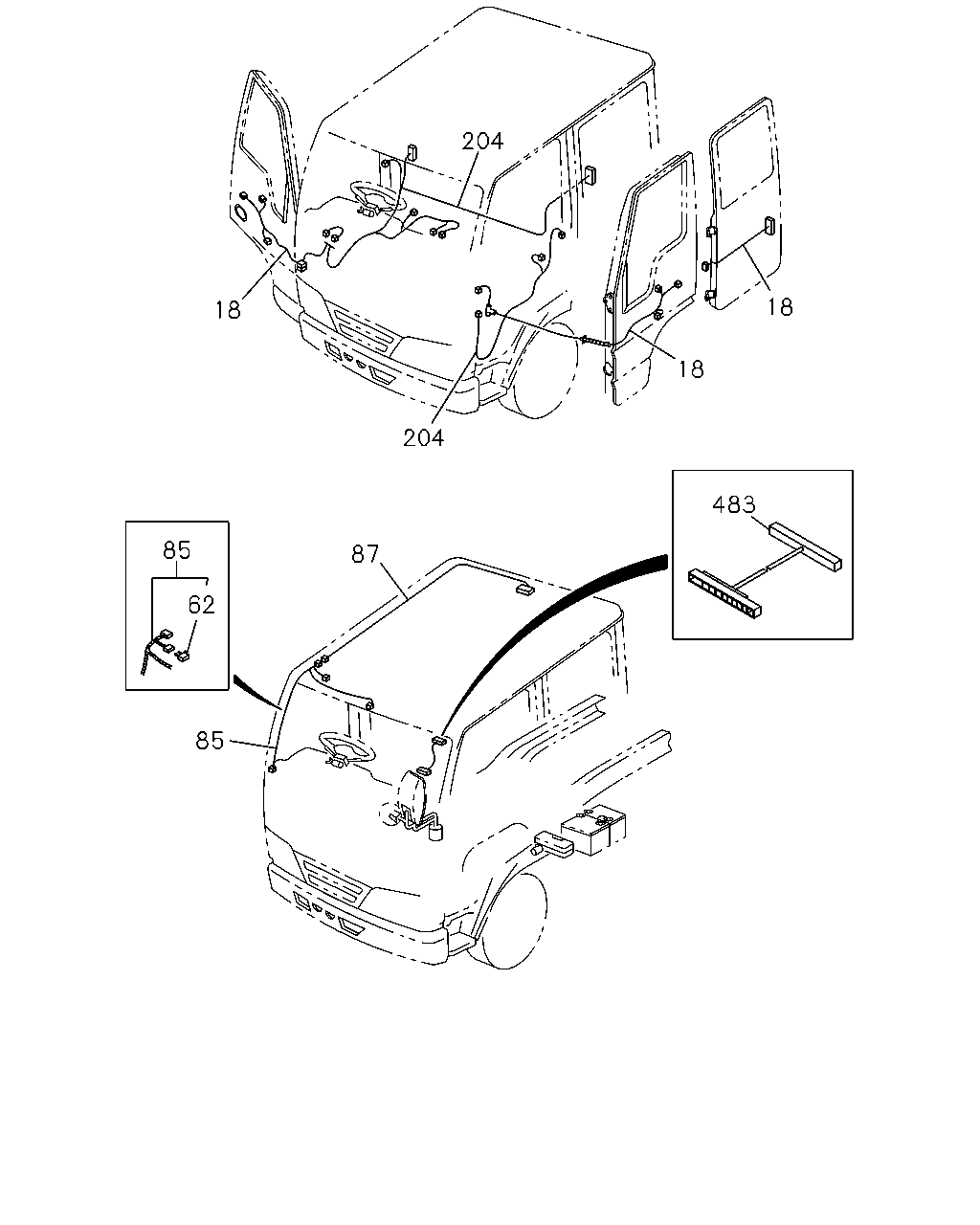

çizim 50691
204 18 18 18 204 483 85 87 62 85
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUTO DOOR LOCK<AU4> FRONT DOOR 		8-97226-669-0 01 1 1011-1405 ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-669-0 01 1 1406- ● ● ● ●
18 02.480 HARNESS; DOOR
FRONT DOOR 		8-97226-669-0 01 1 1406- ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> FRONT DOOR 		8-97226-671-1 01 1 1011-1405 ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97226-671-1 01 1 1011-1405 ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM/FM STEREO 2 S PEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2SPEAKERS(6VL) FRONT DOOR 		8-97226-671-1 01 1 1011-1405 ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-671-1 01 1 1406- ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> FRONT DOOR 		8-97226-671-1 01 1 1406- ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97226-671-1 01 1 1406- ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM/FM STEREO 2 S PEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2SPEAKERS(6VL) FRONT DOOR 		8-97226-671-1 01 1 1406- ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-671-1 01 1 0211-0501 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97226-671-1 01 1 0211-0501 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> FRONT DOOR 		8-97226-671-1 01 1 0211-0501 ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-671-1 01 1 0502-1009 ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> FRONT DOOR 		8-97226-671-1 01 1 0502-1009 ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97226-671-1 01 1 0502-1009 ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM/FM STEREO 2 S PEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2SPEAKERS(6VL) FRONT DOOR 		8-97226-671-1 01 1 0502-1009 ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-98166-819-0 01 1 1010-1010 ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> FRONT DOOR 		8-98166-819-0 01 1 1010-1010 ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-98166-819-0 01 1 1010-1010 ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM/FM STEREO 2 S PEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2SPEAKERS(6VL) FRONT DOOR 		8-98166-819-0 01 1 1010-1010 ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-98166-819-0 01 1 1011-1405 ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97105-571-1 01 1 0211-0501 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97105-571-1 01 1 0211-0501 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> FRONT DOOR 		8-97105-571-1 01 1 0211-0501 ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97105-571-1 01 1 0502- ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> FRONT DOOR 		8-97105-571-1 01 1 0502- ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97105-571-1 01 1 0502- ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM/FM STEREO 2 S PEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2SPEAKERS(6VL) FRONT DOOR 		8-97105-571-1 01 1 0502- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-669-0 01 1 0211-0501 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-669-0 01 1 0502-1009 ● ● ● ●
18 02.480 HARNESS; DOOR
FRONT DOOR 		8-97226-669-0 01 1 0502-1009 ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-98166-820-0 01 1 1010-1010 ● ● ● ●
18 02.480 HARNESS; DOOR
FRONT DOOR 		8-98166-820-0 01 1 1010-1010 ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-98166-820-0 01 1 1011-1405 ● ● ● ●
18 02.480 HARNESS; DOOR
FRONT DOOR 		8-98166-820-0 01 1 1011-1405 ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97185-142-1 01 1 0211-0501 ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. REMOTE CONT DOOR LOCK<6NF> FRONT DOOR 		8-97185-142-1 01 1 0211-0501 ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97185-142-1 01 1 0502- ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. REMOTE CONT DOOR LOCK<6NF> FRONT DOOR 		8-97185-142-1 01 1 0502- ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> REAR DOOR 		8-97075-738-2 02 1 0211-0501 ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> REAR DOOR 		8-97075-738-2 02 1 0502- ●
18 02.480 HARNESS; DOOR
REMOTE CONT DOOR LOCK<6NF> FRONT DOOR 		8-97312-148-0 01 1 0211-0501 ● ● ●
18 02.480 HARNESS; DOOR
REMOTE CONT DOOR LOCK<6NF> FRONT DOOR 		8-97312-148-0 01 1 0502- ● ●
18 02.480 HARNESS; DOOR
FRONT DOOR 		8-97312-148-0 01 1 0502- ●
62 02.530 DIODE; HARNESS
02.483 BLACK 2P-1.5A 		8-94422-639-1 01 1 0211-0501 ● ●
62 02.530 DIODE; HARNESS
02.483 BLACK 2P-1.5A 		8-94422-639-1 01 1 0502- ●
85 06.495 HARNESS; ROOM LAMP 8-97164-610-2 01 1 0211-0302 ● ● ● ●
85 06.495 HARNESS; ROOM LAMP 8-97364-158-0 01 1 0303- ● ● ● ●
85 06.495 HARNESS; ROOM LAMP 8-97162-624-3 01 1 0211-0302 ● ●
85 06.495 HARNESS; ROOM LAMP 8-97364-155-0 01 1 0303-0501 ● ●
85 06.495 HARNESS; ROOM LAMP 8-97364-155-0 01 1 0502- ●
87 02.480 HARNESS; EXT,ROOM LAMP 8-97075-747-0 01 1 0211-0501 ● ●
87 02.480 HARNESS; EXT,ROOM LAMP 8-97075-747-0 01 1 0502- ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-629-2 01 1 0211-0302 ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97364-140-0 01 1 0303- ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-632-2 01 1 0211-0302 ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97364-146-0 01 1 0303-0501 ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97364-146-0 01 1 0502- ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-626-4 01 1 0211-0302 ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97364-143-0 01 1 0303-0501 ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97364-143-0 01 1 0502- ●
204 02.559 HARNESS; CABLE,FLOOR
AUSTRALIA EQUIPMENT(RR3) 		8-97162-631-2 01 1 0211-0302 ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
AUSTRALIA EQUIPMENT(RR3) 		8-97364-145-0 01 1 0303-0501 ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
AUSTRALIA EQUIPMENT(RR3) 		8-97364-145-0 01 1 0502- ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97364-145-0 01 1 0502- ●
483 02.480 HARNESS; EXT,RADIO
RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> 		8-97372-297-0 01 1 0308-0310 ● ● ●
483 02.480 HARNESS; EXT,RADIO
RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> 		8-97372-297-0 01 1 0308-0310 ● ●
483 02.480 HARNESS; EXT,RADIO
RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> 		8-97373-419-0 01 1 0311-0501 ● ● ●
483 02.480 HARNESS; EXT,RADIO
RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> 		8-97373-419-0 01 1 0311-0501 ● ●
483 02.480 HARNESS; EXT,RADIO
RADIO AM W/AMPLIFIER(RS2) 		8-97373-419-0 01 1 0502- ● ● ●
483 02.480 HARNESS; EXT,RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ) 		8-97383-850-0 01 1 0502- ● ● ● ●

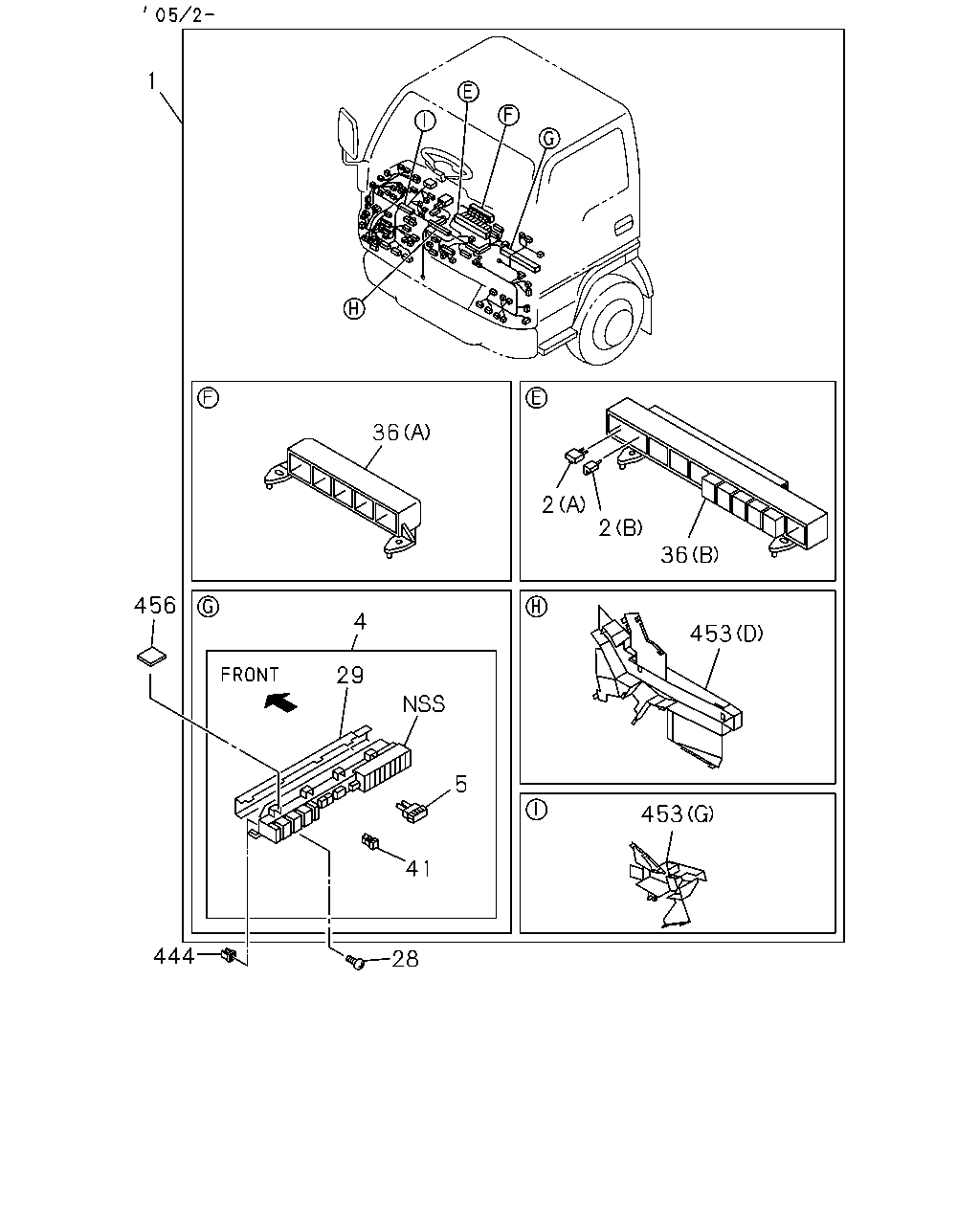

çizim 51350
1 36 2 2 36 456 4 453 29 5 453 41 444 28
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) PROVISIONAL PACKAGE SPEC<BCC> INDONESIA EQUIPMENT(S4S) 		8-98217-083-0 01 1 1207- ● ●
1 02.480 HARNESS; CAB
4HF1-N ENG(RJZ) PROVISIONAL PACKAGE SPEC<BCC> EXC. INDONESIA EQUIPMENT(S4S) 		8-98217-088-0 01 1 1207- ● ●
1 02.480 HARNESS; CAB
4HF1-N ENG(RJZ) PROVISIONAL PACKAGE SPEC<BCC> 		8-98217-088-0 01 1 1207- ●
1 02.480 HARNESS; CAB
PROVISIONAL PACKAGE SPEC<BCC> 		8-98217-088-0 01 1 1207- ●
1 02.480 HARNESS; CAB
4JB1 ENG(RLF) PROVISIONAL PACKAGE SPEC<BCC> 		8-98217-082-0 01 1 1207- ● ● ●
1 02.480 HARNESS; CAB
4HG1-T ENG(RDP) PROVISIONAL PACKAGE SPEC<BCC> INDONESIA EQUIPMENT(S4S) 		8-98217-089-0 01 1 1207-1404 ●
1 02.480 HARNESS; CAB
4HG1-T ENG(RDP) PROVISIONAL PACKAGE SPEC<BCC> INDONESIA EQUIPMENT(S4S) EXC. VIN MODEL YEAR 2014(VZE) 		8-98217-089-0 01 1 1405-1405 ●
1 02.480 HARNESS; CAB
4HG1-T ENG(RDP) PROVISIONAL PACKAGE SPEC<BCC> INDONESIA EQUIPMENT(S4S) EXC. VIN MODEL YEAR 2015(VZF) 		8-98217-089-0 01 1 1406- ●
1 02.480 HARNESS; CAB
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) VIN MODEL YEAR 2014(VZE) 		8-98272-818-0 01 1 1405-1405 ●
1 02.480 HARNESS; CAB
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) VIN MODEL YEAR 2015(VZF) 		8-98272-818-0 01 1 1406- ●
1 02.480 HARNESS; CAB
4HF1-S ENG(RLS) INDONESIA EQUIPMENT(S4S) ENGINE POWER N-SPEC(7QV) 		8-97309-087-2 01 1 0211-0501 ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1-S ENG(RLS) INDONESIA EQUIPMENT(S4S) ENGINE POWER N-SPEC(7QV) 		8-97309-087-2 01 1 0211-0501 ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) 		8-97383-606-2 01 1 0502- ● ●
1 02.480 HARNESS; CAB
4HF1-S ENG(RLS) INDONESIA EQUIPMENT(S4S) EXC. ENGINE POWER N-SPEC(7QV) 		8-97309-086-2 01 1 0211-0501 ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1-S ENG(RLS) INDONESIA EQUIPMENT(S4S) EXC. ENGINE POWER N-SPEC(7QV) 		8-97309-086-2 01 1 0211-0501 ●
1 02.480 HARNESS; CAB
4JH1-TC ENG(RDM) AUSTRALIA EQUIPMENT(RR3) 		8-97383-603-0 01 1 0502-0502 ● ●
1 02.480 HARNESS; CAB 8-97383-603-0 01 1 0502-0502 ●
1 02.480 HARNESS; CAB
4JH1-TC ENG(RDM) AUSTRALIA EQUIPMENT(RR3) 		8-98010-608-2 01 1 0502- ● ●
1 02.480 HARNESS; CAB 8-98010-608-2 01 1 0502- ●
1 02.480 HARNESS; CAB
4HF1-S ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S),ENGINE POWER N-SPEC(7QV) 		8-97309-111-2 01 1 0211-0501 ●
1 02.480 HARNESS; CAB
4HF1-S ENG(RLS) EXC. AUSTRALIA EQUIPMENT(RR3),ENGINE POWER N-SPEC(7QV) 		8-97309-111-2 01 1 0211-0501 ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. AUSTRALIA EQUIPMENT(RR3), INDONESIA EQUIPMENT(S4S),ENGINE POWER N-SPEC (7QV) 		8-97309-111-2 01 1 0211-0501 ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) 		8-98051-180-0 01 1 0610-0712 ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) 		8-98051-180-0 01 1 0801-1206 ● ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-98051-180-0 01 1 1207- ● ●

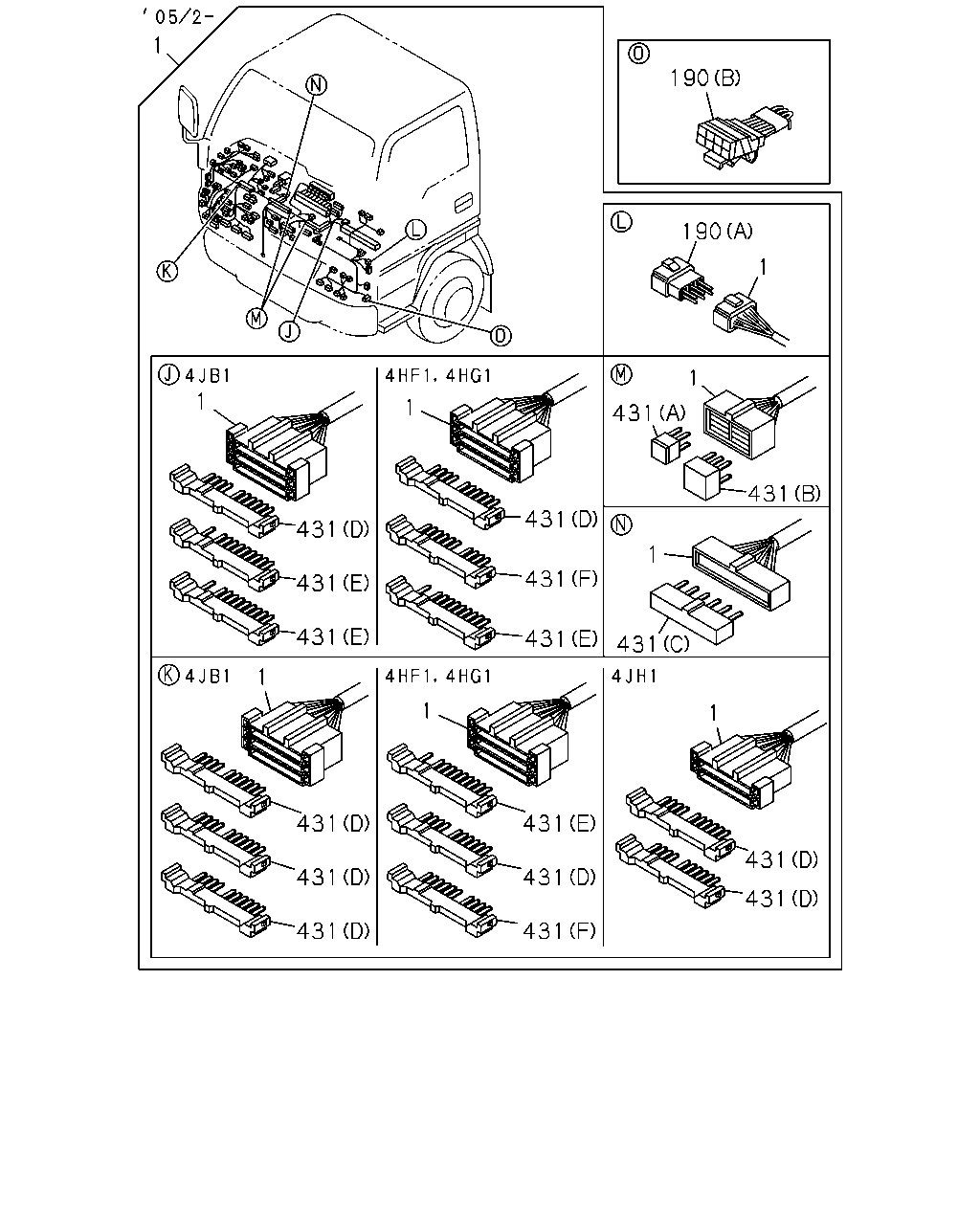

1 02.480 HARNESS; CAB
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) 		8-97312-691-1 01 1 0211-0501 ● ● ●
1 02.480 HARNESS; CAB
4HF1-N ENG(RJZ) EXC. INDONESIA EQUIPMENT(S4S) 		8-97383-605-2 01 1 0502-1206 ● ●
1 02.480 HARNESS; CAB
4HF1-N ENG(RJZ) 		8-97383-605-2 01 1 0502-1206 ●
1 02.480 HARNESS; CAB 8-97383-605-2 01 1 0502-1206 ●
1 02.480 HARNESS; CAB
4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC>, INDONESIA EQUIPMENT(S4S) 		8-97383-605-2 01 1 1207- ● ●
1 02.480 HARNESS; CAB
4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97383-605-2 01 1 1207- ●
1 02.480 HARNESS; CAB
EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97383-605-2 01 1 1207- ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. INDONESIA EQUIPMENT(S4S) 		8-97309-085-2 01 1 0211-0501 ● ● ● ●
1 02.480 HARNESS; CAB
4JH1-TC ENG(RDM) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97383-602-0 01 1 0502-0502 ● ●
1 02.480 HARNESS; CAB
4JH1-TC ENG(RDM) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-98010-607-3 01 1 0502- ● ●
1 02.480 HARNESS; CAB
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 		8-97309-082-2 01 1 0211-0501 ● ● ● ●
1 02.480 HARNESS; CAB 8-97309-082-2 01 1 0211-0501 ●
1 02.480 HARNESS; CAB
4JB1 ENG(RLF) 		8-97381-171-3 01 1 0502-1206 ● ● ●
1 02.480 HARNESS; CAB
4JB1 ENG(RLF) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97381-171-3 01 1 1207- ● ● ●
1 02.480 HARNESS; CAB
4JH1 ENG(RJX) AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF> 		8-97357-036-1 01 1 0211-0501 ● ● ●
1 02.480 HARNESS; CAB
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) 		8-98051-181-1 01 1 0610-1206 ●
1 02.480 HARNESS; CAB
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-98051-181-1 01 1 1207-1404 ●
1 02.480 HARNESS; CAB
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) EXC. PROVISIONAL PACKAGE SPEC<BCC>, VIN MODEL YEAR 2014(VZE) 		8-98051-181-1 01 1 1405-1405 ●
1 02.480 HARNESS; CAB
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) EXC. PROVISIONAL PACKAGE SPEC<BCC>, VIN MODEL YEAR 2015(VZF) 		8-98051-181-1 01 1 1406- ●

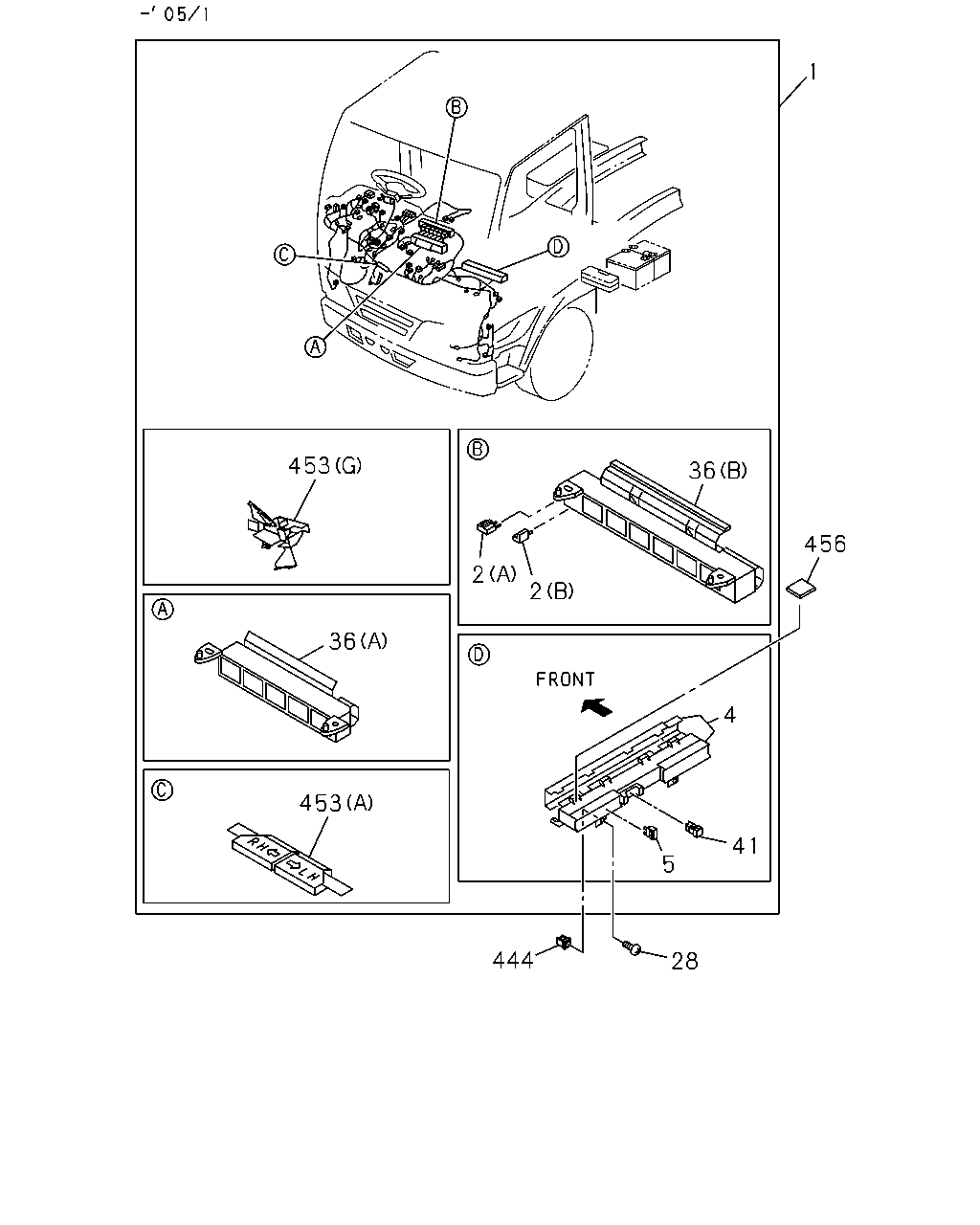

2 02.483 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 0211-0501 ● ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 0502- ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94422-640-1 AR 1 0211-0501 ● ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94422-640-1 AR 1 0502- ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS 8-97214-415-0 01 1 0211-0501 ● ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS 8-97187-921-1 01 1 0502- ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 10A RED 		5-82516-002-0 AR 1 0211-0501 ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 15A BLUE 		5-82516-003-0 AR 1 0211-0501 ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 25A CLEAR 		5-82516-005-0 AR 1 0211-0501 ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 10A MINI RED 		8-97062-022-0 AR 1 0502- ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 15A MINI BLUE 		8-97062-023-0 AR 1 0502- ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 20A MINI YELLOW 		8-97062-024-0 AR 1 0502- ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 30A PINK 		8-97183-643-0 AR 1 0502- ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0211-0501 ● ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0502-0604 ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
03.885 M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0605-0612 ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0701-1101 ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102-1212 ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301- ● ● ● ● ●
29 02.483 COVER; FUSE BOX 8-97074-955-0 01 1 0502- ● ● ● ● ●
36 02.530 BOX; RELAY
(B) 		8-97087-639-1 01 1 0211-0501 ● ● ● ● ● ●
36 02.530 BOX; RELAY
(B) 		8-97187-918-1 01 1 0502- ● ● ● ● ●
36 02.530 BOX; RELAY
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) (A) 		8-97087-638-1 01 1 0211-0501 ● ● ●
36 02.530 BOX; RELAY
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> (A) 		8-97087-640-1 01 1 0211-0501 ● ● ● ●
36 02.530 BOX; RELAY
4HF1-S ENG(RLS) (A) 		8-97087-640-1 01 1 0211-0501 ●
36 02.530 BOX; RELAY
(A) 		8-97087-640-1 01 1 0211-0501 ● ●
36 02.530 BOX; RELAY
4JH1 ENG(RJX) AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF> (A) 		8-97087-640-1 01 1 0211-0501 ● ● ●
36 02.530 BOX; RELAY
4HF1-S ENG(RLS) EXC. AUSTRALIA EQUIPMENT(RR3),ENGINE POWER N-SPEC(7QV) (A) 		8-97087-640-1 01 1 0211-0501 ●
36 02.530 BOX; RELAY
4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) (A) 		8-97087-640-1 01 1 0211-0501 ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. AUSTRALIA EQUIPMENT(RR3),ENGINE POWER N-SPEC(7QV) (A) 		8-97087-640-1 01 1 0211-0501 ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH),4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) (A) 		8-97087-640-1 01 1 0211-0501 ●
36 02.530 BOX; RELAY
4JH1-TC ENG(RDM) (A) 		8-97087-640-2 01 1 0502- ● ●
36 02.530 BOX; RELAY
(A) 		8-97087-640-2 01 1 0502- ●
41 08.821 PULLER; FUSE
02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 0211-0501 ● ● ● ● ● ●
41 08.821 PULLER; FUSE 8-97103-388-0 01 1 0502- ● ● ● ● ●
444 02.483 GROMMET; SCREW,FUSE BOX
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0211-0501 ● ● ● ● ● ●
444 02.483 GROMMET; SCREW,FUSE BOX
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0502- ● ● ● ● ●

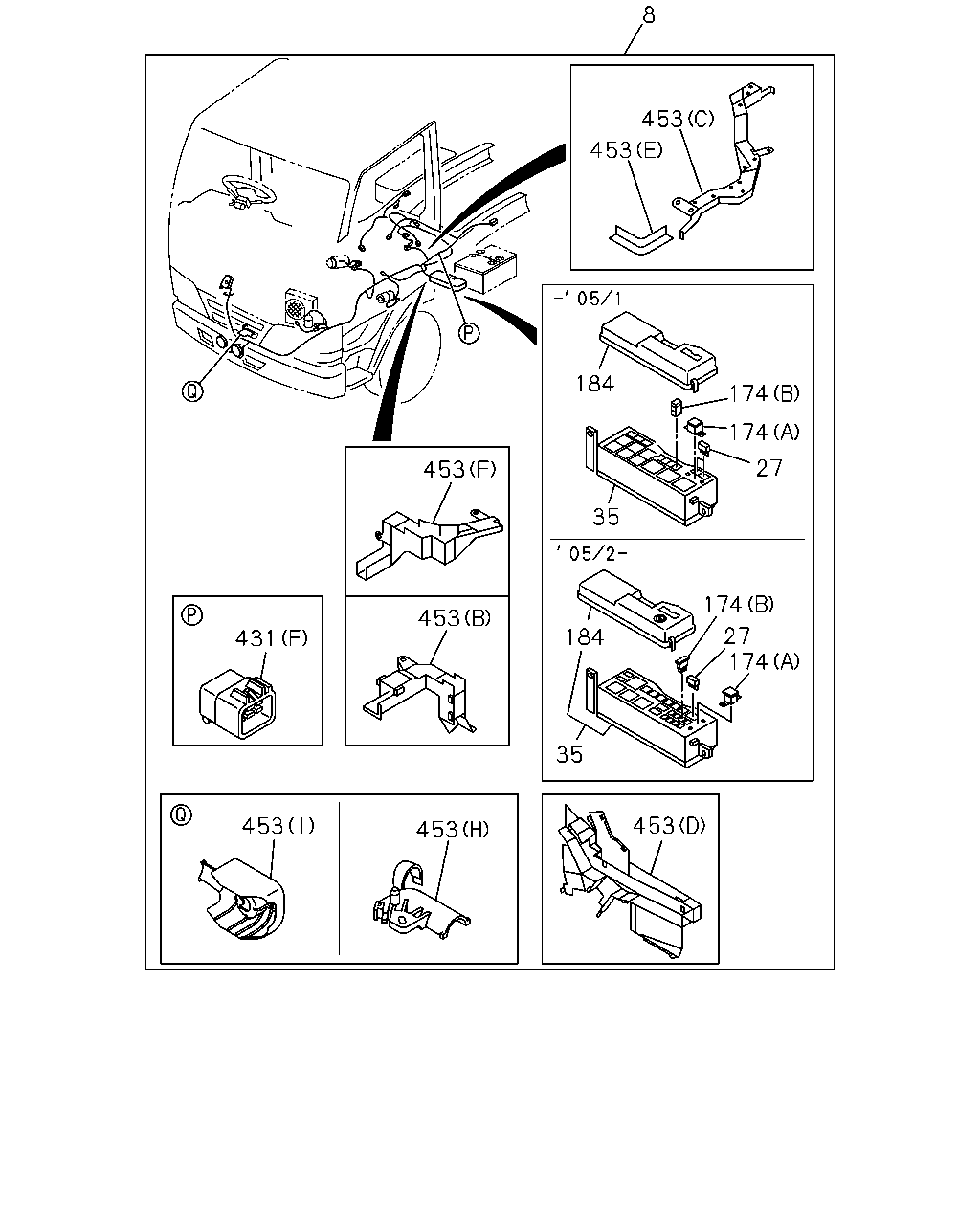

453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97075-705-2 01 1 0211-0501 ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) FRAME-KICK UP<7EW> (C) 		8-97075-705-2 01 1 0211-0501 ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) FRT INDEPENDENT SUSPENSION(6PP) (H) 		8-97075-706-4 01 1 0211-0501 ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) FRAME-KICK UP<7EW> (H) 		8-97075-706-4 01 1 0211-0501 ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) FRT INDEPENDENT SUSPENSION(6PP) (F) 		8-97120-590-0 01 1 0211-0501 ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) EXC. FRT INDEPENDENT SUSPENSION(6PP) (H) 		8-97093-668-1 01 1 0211-0303 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF),4HF1-S ENG(RLS) (H) 		8-97093-668-1 01 1 0211-0303 ●
453 02.483 PROTECTOR; HARNESS
(H) 		8-97093-668-1 01 1 0211-0303 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (H) 		8-97093-668-1 01 1 0211-0303 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (H) 		8-97093-668-1 01 1 0211-0303 ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1-S ENG(RLS) (H) 		8-97093-668-1 01 1 0211-0303 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) EXC. REAR WIDE TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP) (H) 		8-97093-668-1 01 1 0304-0501 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S), FRAME-KICK UP<7EW> (H) 		8-97093-668-1 01 1 0304-0501 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) EXC. REAR WIDE TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP) (H) 		8-97093-668-1 01 1 0304-0501 ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS) INDONESIA EQUIPMENT(S4S) (H) 		8-97093-668-1 01 1 0304-0501 ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) AUSTRALIA EQUIPMENT(RR3) (H) 		8-97093-668-1 01 1 0304-0501 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) REAR WIDE TREAD(V4T) (H) 		8-97093-668-1 01 1 0304-0501 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) EXC. TURBOCHARGER<K51>,FRT INDEPENDENT SUSPENSION(6PP) (H) 		8-97093-668-1 01 1 0304-0501 ●
453 02.483 PROTECTOR; HARNESS
(H) 		8-97093-668-1 01 1 0502-0609 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S) (H) 		8-97093-668-1 01 1 0610-0712 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ),4JB1 ENG(RLF) (H) 		8-97093-668-1 01 1 0610-0712 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) EXC. REAR WIDE TREAD(V4T) (H) 		8-97093-668-1 01 1 0610-0712 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (H) 		8-97093-668-1 01 1 0610-0712 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (H) 		8-97093-668-1 01 1 0610-0712 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1ENG(RLF) (H) 		8-97093-668-1 01 1 0610-0712 ●
453 02.483 PROTECTOR; HARNESS
(H) 		8-97093-668-1 01 1 0610-0712 ● ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) (H) 		8-97093-668-1 01 1 0801-1404 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ),4JB1 ENG(RLF) (H) 		8-97093-668-1 01 1 0801-1404 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) EXC. REAR WIDE TREAD(V4T) (H) 		8-97093-668-1 01 1 0801-1404 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (H) 		8-97093-668-1 01 1 0801-1404 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (H) 		8-97093-668-1 01 1 0801-1404 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. INDONESIA EQUIPMENT(S4S) (H) 		8-97093-668-1 01 1 0801-1404 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4HG1 ENG(RJH), 4HF1-NENG(RJZ) INDONESIA EQUIPMENT(S4S) (H) 		8-97093-668-1 01 1 0801-1404 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4JB1 ENG(RLF) (H) 		8-97093-668-1 01 1 0801-1404 ●
453 02.483 PROTECTOR; HARNESS
(H) 		8-97093-668-1 01 1 0801-1404 ● ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) (H) 		8-97093-668-1 01 1 1405-1405 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ),4JB1 ENG(RLF) (H) 		8-97093-668-1 01 1 1405-1405 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) EXC. REAR WIDE TREAD(V4T) (H) 		8-97093-668-1 01 1 1405-1405 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (H) 		8-97093-668-1 01 1 1405-1405 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (H) 		8-97093-668-1 01 1 1405-1405 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. INDONESIA EQUIPMENT(S4S) (H) 		8-97093-668-1 01 1 1405-1405 ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) VIN MODEL YEAR 2014(VZE) (H) 		8-97093-668-1 01 1 1405-1405 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4HG1 ENG(RJH), 4HF1-NENG(RJZ) INDONESIA EQUIPMENT(S4S) (H) 		8-97093-668-1 01 1 1405-1405 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4JB1 ENG(RLF) (H) 		8-97093-668-1 01 1 1405-1405 ●
453 02.483 PROTECTOR; HARNESS
(H) 		8-97093-668-1 01 1 1405-1405 ● ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) (H) 		8-97093-668-1 01 1 1406-1406 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ),4JB1 ENG(RLF) (H) 		8-97093-668-1 01 1 1406-1406 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) EXC. REAR WIDE TREAD(V4T) (H) 		8-97093-668-1 01 1 1406-1406 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (H) 		8-97093-668-1 01 1 1406-1406 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (H) 		8-97093-668-1 01 1 1406-1406 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. INDONESIA EQUIPMENT(S4S) (H) 		8-97093-668-1 01 1 1406-1406 ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) VIN MODEL YEAR 2015(VZF) (H) 		8-97093-668-1 01 1 1406-1406 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4HG1 ENG(RJH), 4HF1-NENG(RJZ) INDONESIA EQUIPMENT(S4S) (H) 		8-97093-668-1 01 1 1406-1406 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4JB1 ENG(RLF) (H) 		8-97093-668-1 01 1 1406-1406 ●
453 02.483 PROTECTOR; HARNESS
(H) 		8-97093-668-1 01 1 1406-1406 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. INDONESIA EQUIPMENT(S4S) (H) 		8-97093-668-1 01 1 1406- ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) (H) 		8-97093-668-1 01 1 1406- ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) (H) 		8-97093-668-1 01 1 1406- ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) EXC. REAR WIDE TREAD(V4T) (H) 		8-97093-668-1 01 1 1406- ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (H) 		8-97093-668-1 01 1 1406- ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (H) 		8-97093-668-1 01 1 1406- ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) VIN MODEL YEAR 2015(VZF) (H) 		8-97093-668-1 01 1 1406- ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4HG1 ENG(RJH), 4HF1-NENG(RJZ) INDONESIA EQUIPMENT(S4S) (H) 		8-97093-668-1 01 1 1406- ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4JB1 ENG(RLF) (H) 		8-97093-668-1 01 1 1406- ●
453 02.483 PROTECTOR; HARNESS
(H) 		8-97093-668-1 01 1 1406- ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97120-589-0 01 1 0211-0303 ●

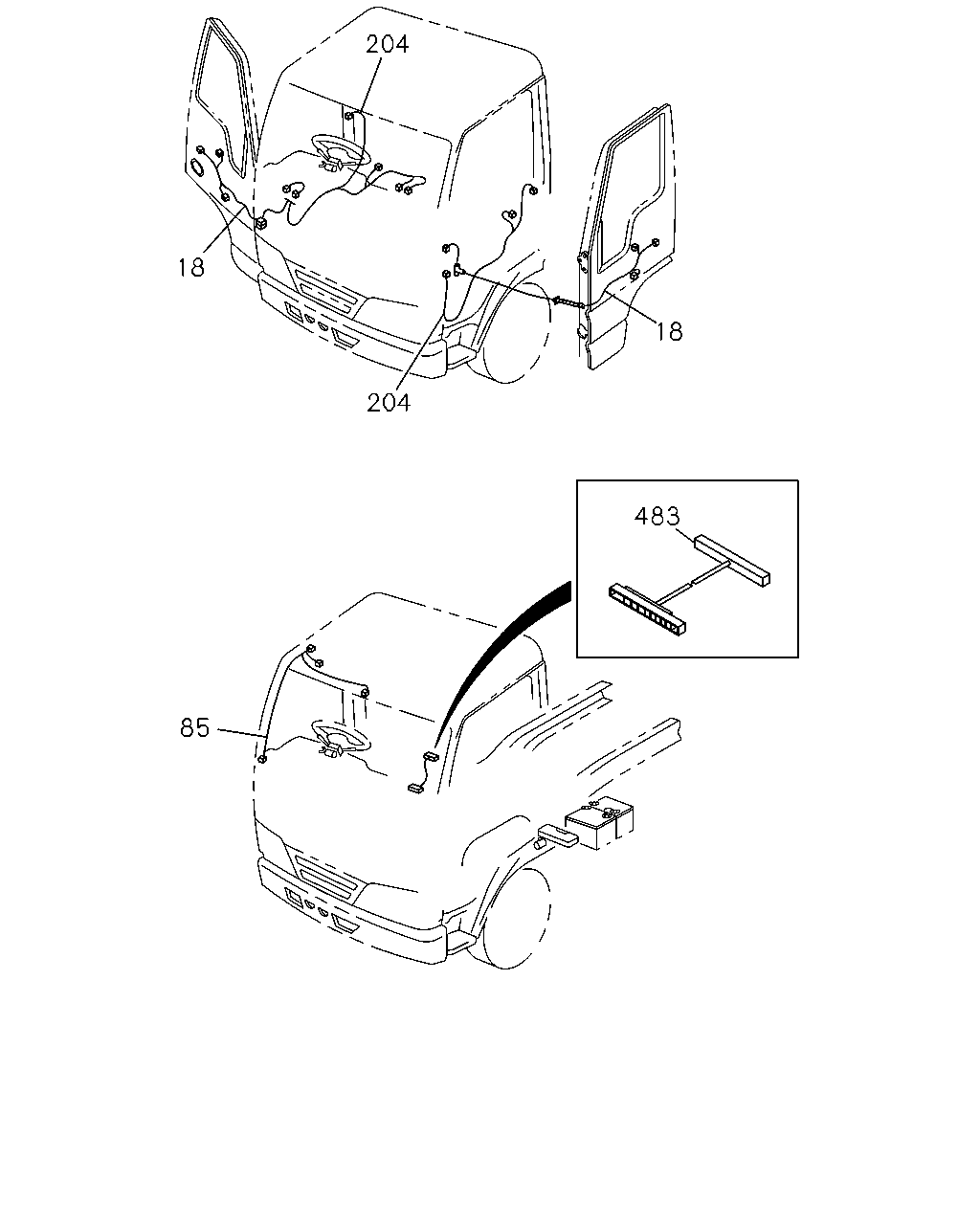

453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF),4HF1-S ENG(RLS) (B) 		8-97120-589-0 01 1 0211-0303 ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-97120-589-0 01 1 0211-0303 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (B) 		8-97120-589-0 01 1 0211-0303 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (B) 		8-97120-589-0 01 1 0211-0303 ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1-S ENG(RLS) (B) 		8-97120-589-0 01 1 0211-0303 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) EXC. REAR WIDE TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97120-589-0 01 1 0304-0501 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S), FRAME-KICK UP<7EW> (B) 		8-97120-589-0 01 1 0304-0501 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) EXC. REAR WIDE TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97120-589-0 01 1 0304-0501 ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS) INDONESIA EQUIPMENT(S4S) (B) 		8-97120-589-0 01 1 0304-0501 ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) AUSTRALIA EQUIPMENT(RR3) (B) 		8-97120-589-0 01 1 0304-0501 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) REAR WIDE TREAD(V4T) (B) 		8-97120-589-0 01 1 0304-0501 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) EXC. TURBOCHARGER<K51>,FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97120-589-0 01 1 0304-0501 ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-97120-589-0 01 1 0502- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-97259-730-2 01 1 0211-0501 ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-97259-730-3 01 1 0502- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-97259-731-2 01 1 0211-0501 ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-97259-731-2 01 1 0502- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-97262-956-3 01 1 0211-0501 ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-97262-956-3 01 1 0502- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S), FRAME-KICK UP<7EW> (I) 		8-94482-169-0 01 1 0212-0303 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (I) 		8-94482-169-0 01 1 0212-0303 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS) INDONESIA EQUIPMENT(S4S) (I) 		8-94482-169-0 01 1 0212-0303 ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S), FRAME-KICK UP<7EW> (I) 		8-94482-169-0 01 1 0304-0501 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (I) 		8-94482-169-0 01 1 0304-0501 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS) INDONESIA EQUIPMENT(S4S) (I) 		8-94482-169-0 01 1 0304-0501 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) (I) 		8-94482-169-0 01 1 0502-0504 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (I) 		8-94482-169-0 01 1 0502-0504 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (I) 		8-94482-169-0 01 1 0502-0504 ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) (I) 		8-94482-169-0 01 1 0502-0504 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. INDONESIA EQUIPMENT(S4S) (I) 		8-94482-169-0 01 1 0502-0504 ●
453 02.483 PROTECTOR; HARNESS
(I) 		8-94482-169-0 01 1 0502-0504 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) (I) 		8-94482-169-0 01 1 0505-0609 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (I) 		8-94482-169-0 01 1 0505-0609 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (I) 		8-94482-169-0 01 1 0505-0609 ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) (I) 		8-94482-169-0 01 1 0505-0609 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. INDONESIA EQUIPMENT(S4S) (I) 		8-94482-169-0 01 1 0505-0609 ●
453 02.483 PROTECTOR; HARNESS
(I) 		8-94482-169-0 01 1 0505-0609 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) (I) 		8-94482-169-0 01 1 0610- ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (I) 		8-94482-169-0 01 1 0610- ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (I) 		8-94482-169-0 01 1 0610- ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. INDONESIA EQUIPMENT(S4S) (I) 		8-94482-169-0 01 1 0610- ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) (I) 		8-94482-169-0 01 1 0610- ●
453 02.483 PROTECTOR; HARNESS
(I) 		8-94482-169-0 01 1 0610- ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> (E) 		8-94452-553-0 01 1 0211-0405 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) (E) 		8-94452-553-0 01 1 0211-0405 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-94452-553-0 01 1 0211-0405 ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) (E) 		8-94452-553-0 01 1 0211-0405 ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 0211-0405 ● ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 0211-0405 ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF> (E) 		8-94452-553-0 01 1 0211-0405 ● ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) EXC. AUSTRALIA EQUIPMENT(RR3),ENGINE POWER N-SPEC(7QV) (E) 		8-94452-553-0 01 1 0211-0405 ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) (E) 		8-94452-553-0 01 1 0211-0405 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) EXC. TURBOCHARGER<K51> (E) 		8-94452-553-0 01 1 0211-0405 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) EXC. REAR WIDE TREAD(V4T) (E) 		8-94452-553-0 01 1 0211-0405 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) (E) 		8-94452-553-0 01 1 0211-0405 ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. AUSTRALIA EQUIPMENT(RR3),ENGINE POWER N-SPEC(7QV) (E) 		8-94452-553-0 01 1 0211-0405 ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) (E) 		8-94452-553-0 01 1 0211-0405 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> (E) 		8-94452-553-0 01 1 0406-0501 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) (E) 		8-94452-553-0 01 1 0406-0501 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-94452-553-0 01 1 0406-0501 ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) (E) 		8-94452-553-0 01 1 0406-0501 ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 0406-0501 ● ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 0406-0501 ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) EXC. AUSTRALIA EQUIPMENT(RR3),ENGINE POWER N-SPEC(7QV) (E) 		8-94452-553-0 01 1 0406-0501 ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) (E) 		8-94452-553-0 01 1 0406-0501 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) EXC. TURBOCHARGER<K51> (E) 		8-94452-553-0 01 1 0406-0501 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) EXC. REAR WIDE TREAD(V4T) (E) 		8-94452-553-0 01 1 0406-0501 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) (E) 		8-94452-553-0 01 1 0406-0501 ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. AUSTRALIA EQUIPMENT(RR3),ENGINE POWER N-SPEC(7QV) (E) 		8-94452-553-0 01 1 0406-0501 ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) (E) 		8-94452-553-0 01 1 0406-0501 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) (E) 		8-94452-553-0 01 1 0502-0609 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ),4JB1 ENG(RLF) (E) 		8-94452-553-0 01 1 0502-0609 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) EXC. REAR WIDE TREAD(V4T) (E) 		8-94452-553-0 01 1 0502-0609 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1ENG(RLF) (E) 		8-94452-553-0 01 1 0502-0609 ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) (E) 		8-94452-553-0 01 1 0502-0609 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. INDONESIA EQUIPMENT(S4S) (E) 		8-94452-553-0 01 1 0502-0609 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4JB1 ENG(RLF) (E) 		8-94452-553-0 01 1 0502-0609 ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 0502-0609 ● ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) (E) 		8-94452-553-0 02 1 0610-0712 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) (E) 		8-94452-553-0 02 1 0801-1206 ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) (E) 		8-94452-553-0 01 1 1207-1404 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. INDONESIA EQUIPMENT(S4S) (E) 		8-94452-553-0 01 1 1207-1404 ● ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) (E) 		8-94452-553-0 01 1 1207-1404 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) (E) 		8-94452-553-0 01 1 1207-1404 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) (E) 		8-94452-553-0 01 1 1207-1404 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) EXC. REAR WIDE TREAD(V4T) (E) 		8-94452-553-0 01 1 1207-1404 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1ENG(RLF) (E) 		8-94452-553-0 01 1 1207-1404 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4HG1 ENG(RJH), 4HF1-NENG(RJZ) INDONESIA EQUIPMENT(S4S) (E) 		8-94452-553-0 01 1 1207-1404 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4JB1 ENG(RLF) (E) 		8-94452-553-0 01 1 1207-1404 ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP),4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) (E) 		8-94452-553-0 01 1 1207-1404 ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 1207-1404 ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) (E) 		8-94452-553-0 01 1 1405- ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. INDONESIA EQUIPMENT(S4S) (E) 		8-94452-553-0 01 1 1405- ● ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) (E) 		8-94452-553-0 01 1 1405- ● ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) (E) 		8-94452-553-0 01 1 1405- ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) (E) 		8-94452-553-0 01 1 1405- ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) EXC. REAR WIDE TREAD(V4T) (E) 		8-94452-553-0 01 1 1405- ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1ENG(RLF) (E) 		8-94452-553-0 01 1 1405- ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4JB1 ENG(RLF) (E) 		8-94452-553-0 01 1 1405- ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4HG1ENG(RJH),4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) (E) 		8-94452-553-0 01 1 1405- ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 1405- ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) (E) 		8-94452-553-0 01 1 0610-1206 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ),4JB1 ENG(RLF) (E) 		8-94452-553-0 01 1 0610-1206 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) EXC. REAR WIDE TREAD(V4T) (E) 		8-94452-553-0 01 1 0610-1206 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1ENG(RLF) (E) 		8-94452-553-0 01 1 0610-1206 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. INDONESIA EQUIPMENT(S4S) (E) 		8-94452-553-0 01 1 0610-1206 ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) (E) 		8-94452-553-0 01 1 0610-1206 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4JB1 ENG(RLF) (E) 		8-94452-553-0 01 1 0610-1206 ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 0610-1206 ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) AUSTRALIA EQUIPMENT(RR3) (E) 		8-94417-716-0 01 1 0211-0211 ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S), FRAME-KICK UP<7EW> (E) 		8-94417-716-0 01 1 0212-0303 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (E) 		8-94417-716-0 01 1 0212-0303 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS) INDONESIA EQUIPMENT(S4S) (E) 		8-94417-716-0 01 1 0212-0303 ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S), FRAME-KICK UP<7EW> (E) 		8-94417-716-0 01 1 0304-0501 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (E) 		8-94417-716-0 01 1 0304-0501 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS) INDONESIA EQUIPMENT(S4S) (E) 		8-94417-716-0 01 1 0304-0501 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) (E) 		8-94417-716-0 01 1 0502-0504 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-94417-716-0 01 1 0502-0504 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (E) 		8-94417-716-0 01 1 0502-0504 ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) (E) 		8-94417-716-0 01 1 0502-0504 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. INDONESIA EQUIPMENT(S4S) (E) 		8-94417-716-0 01 1 0502-0504 ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94417-716-0 01 1 0502-0504 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) (E) 		8-94417-716-0 01 1 0505-0609 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (E) 		8-94417-716-0 01 1 0505-0609 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (E) 		8-94417-716-0 01 1 0505-0609 ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) (E) 		8-94417-716-0 01 1 0505-0609 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. INDONESIA EQUIPMENT(S4S) (E) 		8-94417-716-0 01 1 0505-0609 ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94417-716-0 01 1 0505-0609 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) (E) 		8-94417-716-0 01 1 0610- ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (E) 		8-94417-716-0 01 1 0610- ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (E) 		8-94417-716-0 01 1 0610- ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. INDONESIA EQUIPMENT(S4S) (E) 		8-94417-716-0 01 1 0610- ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) (E) 		8-94417-716-0 01 1 0610- ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94417-716-0 01 1 0610- ● ●
456 02.483 CUSHION; FUSE BOX
16.085 15X30 T=5 		8-94270-366-2 01 1 0211-0501 ● ● ● ● ● ●
456 02.483 CUSHION; FUSE BOX
16.085 15X30 T=5 		8-94270-366-2 01 1 0502- ● ● ● ● ●
çizim 51433
1 190 190 1 1 1 1 431 431 431 431 1 431 431 431 431 431 1 1 1 431 431 431 431 431 431 431 431
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) PROVISIONAL PACKAGE SPEC<BCC> INDONESIA EQUIPMENT(S4S) 		8-98217-083-0 01 1 1207- ● ●
1 02.480 HARNESS; CAB
4HF1-N ENG(RJZ) PROVISIONAL PACKAGE SPEC<BCC> EXC. INDONESIA EQUIPMENT(S4S) 		8-98217-088-0 01 1 1207- ● ●
1 02.480 HARNESS; CAB
4HF1-N ENG(RJZ) PROVISIONAL PACKAGE SPEC<BCC> 		8-98217-088-0 01 1 1207- ●
1 02.480 HARNESS; CAB
PROVISIONAL PACKAGE SPEC<BCC> 		8-98217-088-0 01 1 1207- ●
1 02.480 HARNESS; CAB
4JB1 ENG(RLF) PROVISIONAL PACKAGE SPEC<BCC> 		8-98217-082-0 01 1 1207- ● ● ●
1 02.480 HARNESS; CAB
4HG1-T ENG(RDP) PROVISIONAL PACKAGE SPEC<BCC> INDONESIA EQUIPMENT(S4S) 		8-98217-089-0 01 1 1207-1404 ●
1 02.480 HARNESS; CAB
4HG1-T ENG(RDP) PROVISIONAL PACKAGE SPEC<BCC> INDONESIA EQUIPMENT(S4S) EXC. VIN MODEL YEAR 2014(VZE) 		8-98217-089-0 01 1 1405-1405 ●
1 02.480 HARNESS; CAB
4HG1-T ENG(RDP) PROVISIONAL PACKAGE SPEC<BCC> INDONESIA EQUIPMENT(S4S) EXC. VIN MODEL YEAR 2015(VZF) 		8-98217-089-0 01 1 1406- ●
1 02.480 HARNESS; CAB
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) VIN MODEL YEAR 2014(VZE) 		8-98272-818-0 01 1 1405-1405 ●
1 02.480 HARNESS; CAB
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) VIN MODEL YEAR 2015(VZF) 		8-98272-818-0 01 1 1406- ●
1 02.480 HARNESS; CAB
4HF1-S ENG(RLS) INDONESIA EQUIPMENT(S4S) ENGINE POWER N-SPEC(7QV) 		8-97309-087-2 01 1 0211-0501 ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1-S ENG(RLS) INDONESIA EQUIPMENT(S4S) ENGINE POWER N-SPEC(7QV) 		8-97309-087-2 01 1 0211-0501 ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) 		8-97383-606-2 01 1 0502- ● ●
1 02.480 HARNESS; CAB
4HF1-S ENG(RLS) INDONESIA EQUIPMENT(S4S) EXC. ENGINE POWER N-SPEC(7QV) 		8-97309-086-2 01 1 0211-0501 ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1-S ENG(RLS) INDONESIA EQUIPMENT(S4S) EXC. ENGINE POWER N-SPEC(7QV) 		8-97309-086-2 01 1 0211-0501 ●
1 02.480 HARNESS; CAB
4JH1-TC ENG(RDM) AUSTRALIA EQUIPMENT(RR3) 		8-97383-603-0 01 1 0502-0502 ● ●
1 02.480 HARNESS; CAB 8-97383-603-0 01 1 0502-0502 ●
1 02.480 HARNESS; CAB
4JH1-TC ENG(RDM) AUSTRALIA EQUIPMENT(RR3) 		8-98010-608-2 01 1 0502- ● ●
1 02.480 HARNESS; CAB 8-98010-608-2 01 1 0502- ●
1 02.480 HARNESS; CAB
4HF1-S ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S),ENGINE POWER N-SPEC(7QV) 		8-97309-111-2 01 1 0211-0501 ●
1 02.480 HARNESS; CAB
4HF1-S ENG(RLS) EXC. AUSTRALIA EQUIPMENT(RR3),ENGINE POWER N-SPEC(7QV) 		8-97309-111-2 01 1 0211-0501 ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. AUSTRALIA EQUIPMENT(RR3), INDONESIA EQUIPMENT(S4S),ENGINE POWER N-SPEC (7QV) 		8-97309-111-2 01 1 0211-0501 ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) 		8-98051-180-0 01 1 0610-0712 ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) 		8-98051-180-0 01 1 0801-1206 ● ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-98051-180-0 01 1 1207- ● ●
1 02.480 HARNESS; CAB
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) 		8-97312-691-1 01 1 0211-0501 ● ● ●
1 02.480 HARNESS; CAB
4HF1-N ENG(RJZ) EXC. INDONESIA EQUIPMENT(S4S) 		8-97383-605-2 01 1 0502-1206 ● ●
1 02.480 HARNESS; CAB
4HF1-N ENG(RJZ) 		8-97383-605-2 01 1 0502-1206 ●
1 02.480 HARNESS; CAB 8-97383-605-2 01 1 0502-1206 ●
1 02.480 HARNESS; CAB
4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC>, INDONESIA EQUIPMENT(S4S) 		8-97383-605-2 01 1 1207- ● ●
1 02.480 HARNESS; CAB
4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97383-605-2 01 1 1207- ●
1 02.480 HARNESS; CAB
EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97383-605-2 01 1 1207- ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. INDONESIA EQUIPMENT(S4S) 		8-97309-085-2 01 1 0211-0501 ● ● ● ●
1 02.480 HARNESS; CAB
4JH1-TC ENG(RDM) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97383-602-0 01 1 0502-0502 ● ●
1 02.480 HARNESS; CAB
4JH1-TC ENG(RDM) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-98010-607-3 01 1 0502- ● ●
1 02.480 HARNESS; CAB
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 		8-97309-082-2 01 1 0211-0501 ● ● ● ●
1 02.480 HARNESS; CAB 8-97309-082-2 01 1 0211-0501 ●
1 02.480 HARNESS; CAB
4JB1 ENG(RLF) 		8-97381-171-3 01 1 0502-1206 ● ● ●
1 02.480 HARNESS; CAB
4JB1 ENG(RLF) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97381-171-3 01 1 1207- ● ● ●
1 02.480 HARNESS; CAB
4JH1 ENG(RJX) AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF> 		8-97357-036-1 01 1 0211-0501 ● ● ●
1 02.480 HARNESS; CAB
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) 		8-98051-181-1 01 1 0610-1206 ●
1 02.480 HARNESS; CAB
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-98051-181-1 01 1 1207-1404 ●
1 02.480 HARNESS; CAB
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) EXC. PROVISIONAL PACKAGE SPEC<BCC>, VIN MODEL YEAR 2014(VZE) 		8-98051-181-1 01 1 1405-1405 ●
1 02.480 HARNESS; CAB
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) EXC. PROVISIONAL PACKAGE SPEC<BCC>, VIN MODEL YEAR 2015(VZF) 		8-98051-181-1 01 1 1406- ●
190 02.559 CONNECTOR; SHORT CIRCUIT
EXC. INTERMITTENT WIPER<C13> (B) 		8-98036-238-0 01 1 0607- ● ● ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4HG1 ENG(RJH),4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) (A) 		5-82690-411-0 01 1 0502-0502 ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) (A) 		5-82690-411-0 01 1 0502-0606 ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4JH1-TC ENG(RDM) EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		5-82690-411-0 01 1 0502-0606 ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4HG1 ENG(RJH),4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) (A) 		5-82690-411-0 01 1 0502-0606 ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) (A) 		5-82690-411-0 01 1 0607- ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4JH1-TC ENG(RDM) (A) 		5-82690-411-0 01 1 0607- ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4HG1 ENG(RJH),4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) (A) 		5-82690-411-0 01 1 0607- ●
190 02.559 CONNECTOR; SHORT CIRCUIT
(A) 		5-82690-411-0 01 1 0607- ●
431 02.530 CONNECTOR; JOINT
4JB1 ENG(RLF) (C) 6P 		1-82691-206-0 01 1 0502-0508 ● ● ●
431 02.530 CONNECTOR; JOINT
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) INDONESIA EQUIPMENT(S4S) (C) 6P 		1-82691-206-0 01 1 0502-0508 ● ●
431 02.530 CONNECTOR; JOINT
4HG1 ENG(RJH),4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) (C) 6P 		1-82691-206-0 01 1 0509-0511 ● ●
431 02.530 CONNECTOR; JOINT
4JB1 ENG(RLF) (C) 6P 		1-82691-206-0 01 1 0512-0609 ● ● ●
431 02.530 CONNECTOR; JOINT
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) INDONESIA EQUIPMENT(S4S) (C) 6P 		1-82691-206-0 01 1 0512-0609 ● ●
431 02.530 CONNECTOR; JOINT
4JB1 ENG(RLF) (C) 6P 		1-82691-206-0 01 1 0610-0712 ● ● ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) (C) 6P 		1-82691-206-0 01 1 0610-0712 ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) (C) 6P 		1-82691-206-0 01 1 0610-0712 ●
431 02.530 CONNECTOR; JOINT
4JB1 ENG(RLF) (C) 6P 		1-82691-206-0 01 1 0801- ● ● ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) (C) 6P 		1-82691-206-0 01 1 0801- ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4HG1ENG(RJH),4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) (C) 6P 		1-82691-206-0 01 1 0801- ●
431 02.530 CONNECTOR; JOINT
4JB1 ENG(RLF) (D) 10P GREEN 		1-82699-599-0 04 1 0502-0609 ● ● ●
431 02.530 CONNECTOR; JOINT
4JB1 ENG(RLF) (D) 10P GREEN 		1-82699-599-0 04 1 0610-0712 ● ● ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) (D) 10P GREEN 		1-82699-599-0 04 1 0610-0712 ●
431 02.530 CONNECTOR; JOINT
4JB1 ENG(RLF) (D) 10P GREEN 		1-82699-599-0 04 1 0801- ● ● ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) (D) 10P GREEN 		1-82699-599-0 04 1 0801- ● ●
431 02.530 CONNECTOR; JOINT
4JB1 ENG(RLF) (A) 4P 		8-97077-939-0 02 1 0502-0502 ● ● ●
431 02.530 CONNECTOR; JOINT
4JB1 ENG(RLF) (A) 4P 		8-97077-939-0 02 1 0502-0606 ● ● ●
431 02.530 CONNECTOR; JOINT
4JH1-TC ENG(RDM) EXC. AUSTRALIA EQUIPMENT(RR3) (A) 4P 		8-97077-939-0 02 1 0502-0606 ● ●
431 02.530 CONNECTOR; JOINT
4JB1 ENG(RLF) (A) 4P 		8-97077-939-0 02 1 0607-0609 ●
431 02.530 CONNECTOR; JOINT
4JH1-TC ENG(RDM),4JB1 ENG(RLF) (A) 4P 		8-97077-939-0 02 1 0607-0609 ● ●
431 02.530 CONNECTOR; JOINT
(A) 4P 		8-97077-939-0 02 1 0607-0609 ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) (A) 4P 		8-97077-939-0 01 1 0610-0612 ● ● ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP),4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S) (A) 4P 		8-97077-939-0 01 1 0610-0612 ●
431 02.530 CONNECTOR; JOINT
(A) 4P 		8-97077-939-0 01 1 0610-0612 ●
431 02.530 CONNECTOR; JOINT
4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) 4P 		8-97077-939-0 01 1 0701-1404 ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) (A) 4P 		8-97077-939-0 01 1 1405-1405 ● ●
431 02.530 CONNECTOR; JOINT
4HG1 ENG(RJH),4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) (A) 4P 		8-97077-939-0 01 1 1405-1405 ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) VIN MODEL YEAR 2014(VZE) (A) 4P 		8-97077-939-0 01 1 1405-1405 ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) EXC. INDONESIA EQUIPMENT(S4S) (A) 4P 		8-97077-939-0 01 1 1405-1405 ●
431 02.530 CONNECTOR; JOINT
(A) 4P 		8-97077-939-0 01 1 1405-1405 ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) (A) 4P 		8-97077-939-0 01 1 1406- ● ●
431 02.530 CONNECTOR; JOINT
4HG1 ENG(RJH),4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) (A) 4P 		8-97077-939-0 01 1 1406- ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) VIN MODEL YEAR 2015(VZF) (A) 4P 		8-97077-939-0 01 1 1406- ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) EXC. INDONESIA EQUIPMENT(S4S) (A) 4P 		8-97077-939-0 01 1 1406- ●
431 02.530 CONNECTOR; JOINT
(A) 4P 		8-97077-939-0 01 1 1406- ●
431 02.530 CONNECTOR; JOINT
4JB1 ENG(RLF) (B) 6P 		8-97077-941-0 02 1 0502-0502 ● ● ●
431 02.530 CONNECTOR; JOINT
4JB1 ENG(RLF) (B) 6P 		8-97077-941-0 02 1 0502-0606 ● ● ●
431 02.530 CONNECTOR; JOINT
4JH1-TC ENG(RDM) EXC. AUSTRALIA EQUIPMENT(RR3) (B) 6P 		8-97077-941-0 02 1 0502-0606 ● ●
431 02.530 CONNECTOR; JOINT
4JB1 ENG(RLF) (B) 6P 		8-97077-941-0 02 1 0607-0609 ●
431 02.530 CONNECTOR; JOINT
4JH1-TC ENG(RDM),4JB1 ENG(RLF) (B) 6P 		8-97077-941-0 02 1 0607-0609 ● ●
431 02.530 CONNECTOR; JOINT
(B) 6P 		8-97077-941-0 02 1 0607-0609 ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) (B) 6P 		8-97077-941-0 01 1 0610-0612 ● ● ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP),4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S) (B) 6P 		8-97077-941-0 01 1 0610-0612 ●
431 02.530 CONNECTOR; JOINT
(B) 6P 		8-97077-941-0 01 1 0610-0612 ●
431 02.530 CONNECTOR; JOINT
4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) 6P 		8-97077-941-0 01 1 0701-1404 ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) (B) 6P 		8-97077-941-0 01 1 1405-1405 ● ●
431 02.530 CONNECTOR; JOINT
4HG1 ENG(RJH),4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) (B) 6P 		8-97077-941-0 01 1 1405-1405 ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) VIN MODEL YEAR 2014(VZE) (B) 6P 		8-97077-941-0 01 1 1405-1405 ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) EXC. INDONESIA EQUIPMENT(S4S) (B) 6P 		8-97077-941-0 01 1 1405-1405 ●
431 02.530 CONNECTOR; JOINT
(B) 6P 		8-97077-941-0 01 1 1405-1405 ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) (B) 6P 		8-97077-941-0 01 1 1406- ● ●
431 02.530 CONNECTOR; JOINT
4HG1 ENG(RJH),4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) (B) 6P 		8-97077-941-0 01 1 1406- ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) VIN MODEL YEAR 2015(VZF) (B) 6P 		8-97077-941-0 01 1 1406- ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) EXC. INDONESIA EQUIPMENT(S4S) (B) 6P 		8-97077-941-0 01 1 1406- ●
431 02.530 CONNECTOR; JOINT
(B) 6P 		8-97077-941-0 01 1 1406- ●
431 02.530 CONNECTOR; JOINT
4HG1 ENG(RJH),4HF1-N ENG(RJZ) (F) 10P BLUE 		1-82699-598-0 02 1 0502-0609 ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) (F) 10P BLUE 		1-82699-598-0 02 1 0610- ● ● ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP),4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S) (F) 10P BLUE 		1-82699-598-0 02 1 0610- ●
431 02.530 CONNECTOR; JOINT
(F) 10P BLUE 		1-82699-598-0 02 1 0610- ●
431 02.530 CONNECTOR; JOINT
4HG1 ENG(RJH),4HF1-N ENG(RJZ) (D) 10P GREEN 		1-82699-599-0 02 1 0502-0502 ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HG1 ENG(RJH),4HF1-N ENG(RJZ) (D) 10P GREEN 		1-82699-599-0 02 1 0502-0606 ● ● ● ●
431 02.530 CONNECTOR; JOINT
4JH1-TC ENG(RDM) EXC. AUSTRALIA EQUIPMENT(RR3) (D) 10P GREEN 		1-82699-599-0 02 1 0502-0606 ● ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) (D) 10P GREEN 		1-82699-599-0 02 1 0607-1404 ●
431 02.530 CONNECTOR; JOINT
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) (D) 10P GREEN 		1-82699-599-0 02 1 0607-1404 ●
431 02.530 CONNECTOR; JOINT
4HG1 ENG(RJH),4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) (D) 10P GREEN 		1-82699-599-0 02 1 0607-1404 ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) EXC. INDONESIA EQUIPMENT(S4S) (D) 10P GREEN 		1-82699-599-0 02 1 0607-1404 ●
431 02.530 CONNECTOR; JOINT
4JH1-TC ENG(RDM) (D) 10P GREEN 		1-82699-599-0 02 1 0607-1404 ●
431 02.530 CONNECTOR; JOINT
(D) 10P GREEN 		1-82699-599-0 02 1 0607-1404 ● ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) (D) 10P GREEN 		1-82699-599-0 02 1 1405-1405 ●
431 02.530 CONNECTOR; JOINT
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) (D) 10P GREEN 		1-82699-599-0 02 1 1405-1405 ●
431 02.530 CONNECTOR; JOINT
4HG1 ENG(RJH),4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) (D) 10P GREEN 		1-82699-599-0 02 1 1405-1405 ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) VIN MODEL YEAR 2014(VZE) (D) 10P GREEN 		1-82699-599-0 02 1 1405-1405 ●
431 02.530 CONNECTOR; JOINT
4JH1-TC ENG(RDM) (D) 10P GREEN 		1-82699-599-0 02 1 1405-1405 ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) EXC. INDONESIA EQUIPMENT(S4S) (D) 10P GREEN 		1-82699-599-0 02 1 1405-1405 ●
431 02.530 CONNECTOR; JOINT
(D) 10P GREEN 		1-82699-599-0 02 1 1405-1405 ● ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) (D) 10P GREEN 		1-82699-599-0 02 1 1406- ●
431 02.530 CONNECTOR; JOINT
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) (D) 10P GREEN 		1-82699-599-0 02 1 1406- ●
431 02.530 CONNECTOR; JOINT
4HG1 ENG(RJH),4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) (D) 10P GREEN 		1-82699-599-0 02 1 1406- ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) VIN MODEL YEAR 2015(VZF) (D) 10P GREEN 		1-82699-599-0 02 1 1406- ●
431 02.530 CONNECTOR; JOINT
4JH1-TC ENG(RDM) (D) 10P GREEN 		1-82699-599-0 02 1 1406- ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) EXC. INDONESIA EQUIPMENT(S4S) (D) 10P GREEN 		1-82699-599-0 02 1 1406- ●
431 02.530 CONNECTOR; JOINT
(D) 10P GREEN 		1-82699-599-0 02 1 1406- ● ●
431 02.530 CONNECTOR; JOINT
4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) 4P 		8-97077-939-0 01 1 0502-0609 ● ● ● ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) (A) 4P 		8-97077-939-0 02 1 0610-0712 ●
431 02.530 CONNECTOR; JOINT
4JB1 ENG(RLF) (A) 4P 		8-97077-939-0 02 1 0610-0712 ●
431 02.530 CONNECTOR; JOINT
4JH1-TC ENG(RDM),4JB1 ENG(RLF) (A) 4P 		8-97077-939-0 02 1 0610-0712 ● ●
431 02.530 CONNECTOR; JOINT
(A) 4P 		8-97077-939-0 02 1 0610-0712 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) (A) 4P 		8-97077-939-0 02 1 0801- ● ●
431 02.530 CONNECTOR; JOINT
4JB1 ENG(RLF) (A) 4P 		8-97077-939-0 02 1 0801- ●
431 02.530 CONNECTOR; JOINT
4JH1-TC ENG(RDM),4JB1 ENG(RLF) (A) 4P 		8-97077-939-0 02 1 0801- ● ●
431 02.530 CONNECTOR; JOINT
(A) 4P 		8-97077-939-0 02 1 0801- ●
431 02.530 CONNECTOR; JOINT
4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) 6P 		8-97077-941-0 01 1 0502-0609 ● ● ● ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) (B) 6P 		8-97077-941-0 02 1 0610-0712 ●
431 02.530 CONNECTOR; JOINT
4JB1 ENG(RLF) (B) 6P 		8-97077-941-0 02 1 0610-0712 ●
431 02.530 CONNECTOR; JOINT
4JH1-TC ENG(RDM),4JB1 ENG(RLF) (B) 6P 		8-97077-941-0 02 1 0610-0712 ● ●
431 02.530 CONNECTOR; JOINT
(B) 6P 		8-97077-941-0 02 1 0610-0712 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) (B) 6P 		8-97077-941-0 02 1 0801- ● ●
431 02.530 CONNECTOR; JOINT
4JB1 ENG(RLF) (B) 6P 		8-97077-941-0 02 1 0801- ●
431 02.530 CONNECTOR; JOINT
4JH1-TC ENG(RDM),4JB1 ENG(RLF) (B) 6P 		8-97077-941-0 02 1 0801- ● ●
431 02.530 CONNECTOR; JOINT
(B) 6P 		8-97077-941-0 02 1 0801- ●
431 02.530 CONNECTOR; JOINT
(E) 10P BROWN 		1-82699-601-0 02 1 0502-0609 ● ●
431 02.530 CONNECTOR; JOINT
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) (E) 10P BROWN 		1-82699-601-0 02 1 0502-0609 ● ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ),4JB1 ENG(RLF) (E) 10P BROWN 		1-82699-601-0 02 1 0610-0712 ● ● ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S) (E) 10P BROWN 		1-82699-601-0 02 1 0610-0712 ● ●
431 02.530 CONNECTOR; JOINT
(E) 10P BROWN 		1-82699-601-0 02 1 0610-0712 ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ),4JB1 ENG(RLF) (E) 10P BROWN 		1-82699-601-0 02 1 0801-1404 ● ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) (E) 10P BROWN 		1-82699-601-0 02 1 0801-1404 ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) EXC. INDONESIA EQUIPMENT(S4S) (E) 10P BROWN 		1-82699-601-0 02 1 0801-1404 ●
431 02.530 CONNECTOR; JOINT
4JB1 ENG(RLF) (E) 10P BROWN 		1-82699-601-0 02 1 0801-1404 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4HG1 ENG(RJH), 4HF1-NENG(RJZ) INDONESIA EQUIPMENT(S4S) (E) 10P BROWN 		1-82699-601-0 02 1 0801-1404 ●
431 02.530 CONNECTOR; JOINT
(E) 10P BROWN 		1-82699-601-0 02 1 0801-1404 ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ),4JB1 ENG(RLF) (E) 10P BROWN 		1-82699-601-0 02 1 1405-1405 ● ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) (E) 10P BROWN 		1-82699-601-0 02 1 1405-1405 ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) VIN MODEL YEAR 2014(VZE) (E) 10P BROWN 		1-82699-601-0 02 1 1405-1405 ●
431 02.530 CONNECTOR; JOINT
4JB1 ENG(RLF) (E) 10P BROWN 		1-82699-601-0 02 1 1405-1405 ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) EXC. INDONESIA EQUIPMENT(S4S) (E) 10P BROWN 		1-82699-601-0 02 1 1405-1405 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4HG1 ENG(RJH), 4HF1-NENG(RJZ) INDONESIA EQUIPMENT(S4S) (E) 10P BROWN 		1-82699-601-0 02 1 1405-1405 ●
431 02.530 CONNECTOR; JOINT
(E) 10P BROWN 		1-82699-601-0 02 1 1405-1405 ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ),4JB1 ENG(RLF) (E) 10P BROWN 		1-82699-601-0 02 1 1406- ● ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) (E) 10P BROWN 		1-82699-601-0 02 1 1406- ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) VIN MODEL YEAR 2015(VZF) (E) 10P BROWN 		1-82699-601-0 02 1 1406- ●
431 02.530 CONNECTOR; JOINT
4JB1 ENG(RLF) (E) 10P BROWN 		1-82699-601-0 02 1 1406- ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) EXC. INDONESIA EQUIPMENT(S4S) (E) 10P BROWN 		1-82699-601-0 02 1 1406- ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4HG1 ENG(RJH), 4HF1-NENG(RJZ) INDONESIA EQUIPMENT(S4S) (E) 10P BROWN 		1-82699-601-0 02 1 1406- ●
431 02.530 CONNECTOR; JOINT
(E) 10P BROWN 		1-82699-601-0 02 1 1406- ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) (D) 10P GREEN 		1-82699-599-0 03 1 0610-1404 ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) EXC. VIN MODEL YEAR 2014(VZE) (D) 10P GREEN 		1-82699-599-0 03 1 1405-1405 ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) EXC. VIN MODEL YEAR 2015(VZF) (D) 10P GREEN 		1-82699-599-0 03 1 1406- ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) (E) 10P BROWN 		1-82699-601-0 03 1 0610-1404 ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) EXC. VIN MODEL YEAR 2014(VZE) (E) 10P BROWN 		1-82699-601-0 03 1 1405-1405 ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) EXC. VIN MODEL YEAR 2015(VZF) (E) 10P BROWN 		1-82699-601-0 03 1 1406- ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) (F) 6P 		8-97381-428-0 01 1 0610-1404 ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) EXC. VIN MODEL YEAR 2014(VZE) (F) 6P 		8-97381-428-0 01 1 1405-1405 ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) EXC. VIN MODEL YEAR 2015(VZF) (F) 6P 		8-97381-428-0 01 1 1406- ●
çizim 52120
337 339 341 347
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97260-501-0 01 1 0211-0501 ● ● ● ● ● ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97260-501-0 01 1 0502- ● ● ● ●
339 02.530 HARNESS; EXT,FUEL
02.480 		8-94318-759-0 01 1 0211- ●
341 02.530 HARNESS; CABLE,MAG VLV
4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 		8-97081-340-2 01 1 0211-0501 ● ● ● ●
341 02.530 HARNESS; CABLE,MAG VLV
EXHAUST BRAKE<NF8> 		8-97081-340-2 01 1 0211-0501 ●
341 02.530 HARNESS; CABLE,MAG VLV
4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 		8-97081-340-2 01 1 0502- ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED(RS6) 		8-97213-565-0 01 1 0211-0302 ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED(RS6) 		8-97364-150-0 01 1 0303-0501 ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY FLAT BED(RS6) 		8-97213-566-0 01 1 0211-0302 ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY NON FLAT BED(RS5) 		8-97213-566-0 01 1 0211-0302 ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. DUMP CHASSIS(V4D) 		8-97213-566-0 01 1 0211-0302 ●
347 02.480 HARNESS; CABLE,RR BODY 8-97213-566-0 01 1 0211-0302 ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY FLAT BED(RS6) 		8-97364-151-0 01 1 0303-0501 ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY NON FLAT BED(RS5) 		8-97364-151-0 01 1 0303-0501 ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. DUMP CHASSIS(V4D) 		8-97364-151-0 01 1 0303-0501 ●
347 02.480 HARNESS; CABLE,RR BODY 8-97364-151-0 01 1 0303-0501 ● ●
347 02.480 HARNESS; CABLE,RR BODY 8-97364-151-0 01 1 0502- ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. DUMP CHASSIS(V4D) 		8-97364-151-0 01 1 0502- ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY NON FLAT BED(RS5) 		8-97213-564-0 01 1 0211-0302 ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY NON FLAT BED(RS5) 		8-97364-149-0 01 1 0303-0501 ●
çizim 52538
8 453 453 184 174 174 27 453 35 174 453 27 174 184 431 35 453 453 453
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
8 02.480 HARNESS; FRAME,FRT
4HF1-S ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S) 		8-97360-341-1 01 1 0211-0303 ●
8 02.480 HARNESS; FRAME,FRT
4HF1-S ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S) 		8-97364-889-1 01 1 0304-0501 ●
8 02.480 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) 		8-98005-344-0 01 1 0610-0712 ●
8 02.480 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) 		8-98005-344-0 01 1 0801- ● ●
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) FRT INDEPENDENT SUSPENSION(6PP) 		8-97359-604-2 01 1 0211-0501 ●
8 02.480 HARNESS; FRAME,FRT
4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) 		8-97383-594-0 01 1 0502-0609 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) 		8-97383-594-0 01 1 0502-0609 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) 		8-97383-594-0 01 1 0610-1404 ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) 		8-97383-594-0 01 1 1405-1405 ●
8 02.480 HARNESS; FRAME,FRT
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) VIN MODEL YEAR 2014(VZE) 		8-97383-594-0 01 1 1405-1405 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) 		8-97383-594-0 01 1 1405-1405 ●
8 02.480 HARNESS; FRAME,FRT
4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) 		8-97383-594-0 01 1 1406- ●
8 02.480 HARNESS; FRAME,FRT
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) VIN MODEL YEAR 2015(VZF) 		8-97383-594-0 01 1 1406- ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) 		8-97383-594-0 01 1 1406- ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>,REAR WIDE TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP) 		8-97350-730-1 01 1 0211-0501 ● ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> REAR WIDE TREAD(V4T) 		8-97380-152-3 01 1 0502- ●
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) EXC. REAR WIDE TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP) 		8-97359-612-1 01 1 0211-0303 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) EXC. REAR WIDE TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP) 		8-97364-765-1 01 1 0304-0501 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1-N ENG(RJZ) EXC. INDONESIA EQUIPMENT(S4S), FRAME-KICK UP<7EW> 		8-97383-593-1 01 1 0502-0502 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1-N ENG(RJZ) EXC. INDONESIA EQUIPMENT(S4S), FRAME-KICK UP<7EW> 		8-98010-554-0 01 1 0502- ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. REAR WIDE TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP) 		8-97350-731-1 01 1 0211-0501 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) 		8-97377-875-1 01 1 0502- ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) EXC. REAR WIDE TREAD(V4T) 		8-97377-875-1 01 1 0502- ●
8 02.480 HARNESS; FRAME,FRT
4HF1-S ENG(RLS) FRAME-KICK UP<7EW> 		8-97350-726-3 01 1 0211-0501 ●
8 02.480 HARNESS; FRAME,FRT
4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 		8-97359-199-1 01 1 0211-0303 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S) 		8-97359-199-1 01 1 0211-0303 ●
8 02.480 HARNESS; FRAME,FRT 8-97359-199-1 01 1 0211-0303 ●
8 02.480 HARNESS; FRAME,FRT
4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 		8-97364-888-1 01 1 0304-0501 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S) 		8-97364-888-1 01 1 0304-0501 ●
8 02.480 HARNESS; FRAME,FRT 8-97364-888-1 01 1 0304-0501 ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) EXC. TURBOCHARGER<K51> 		8-97350-734-1 01 1 0211-0501 ●
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) REAR WIDE TREAD(V4T) 		8-97359-611-1 01 1 0211-0303 ●
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) REAR WIDE TREAD(V4T) 		8-97364-764-1 01 1 0304-0501 ●
8 02.480 HARNESS; FRAME,FRT
4JH1-TC ENG(RDM) REAR WIDE TREAD(V4T) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98017-038-0 01 1 0505- ●
8 02.480 HARNESS; FRAME,FRT
4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, REAR WIDE TREAD(V4T) 		8-98017-037-0 01 1 0505- ●
8 02.480 HARNESS; FRAME,FRT
4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98017-037-0 01 1 0505- ●
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) AUSTRALIA EQUIPMENT(RR3) 		8-97357-068-1 01 1 0211-0211 ● ●
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) AUSTRALIA EQUIPMENT(RR3) 		8-97362-338-0 01 1 0212-0303 ● ●
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) AUSTRALIA EQUIPMENT(RR3) 		8-97364-885-1 01 1 0304-0501 ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1-S ENG(RLS) INDONESIA EQUIPMENT(S4S) ENGINE POWER N-SPEC(7QV) 		8-97350-724-1 01 1 0211-0303 ●
8 02.480 HARNESS; FRAME,FRT
4HF1-S ENG(RLS) INDONESIA EQUIPMENT(S4S) ENGINE POWER N-SPEC(7QV) 		8-97364-887-1 01 1 0304-0501 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1-S ENG(RLS) INDONESIA EQUIPMENT(S4S) ENGINE POWER N-SPEC(7QV) 		8-97364-887-1 01 1 0304-0501 ●
8 02.480 HARNESS; FRAME,FRT
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. REAR WIDE TREAD(V4T) 		8-97377-883-3 01 1 0502- ●
8 02.480 HARNESS; FRAME,FRT
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-883-3 01 1 0502- ●
8 02.480 HARNESS; FRAME,FRT 8-97377-883-3 01 1 0502- ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1-S ENG(RLS) INDONESIA EQUIPMENT(S4S) EXC. ENGINE POWER N-SPEC(7QV) 		8-97350-722-1 01 1 0211-0303 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1-S ENG(RLS) INDONESIA EQUIPMENT(S4S) EXC. ENGINE POWER N-SPEC(7QV) 		8-97364-886-1 01 1 0304-0501 ●
8 02.480 HARNESS; FRAME,FRT
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) 		8-98051-182-0 01 1 0610-1404 ●
8 02.480 HARNESS; FRAME,FRT
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) EXC. VIN MODEL YEAR 2014(VZE) 		8-98051-182-0 01 1 1405-1405 ●
8 02.480 HARNESS; FRAME,FRT
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) EXC. VIN MODEL YEAR 2015(VZF) 		8-98051-182-0 01 1 1406- ●
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) AUSTRALIA EQUIPMENT(RR3) 		8-97357-067-1 01 1 0211-0211 ●
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) AUSTRALIA EQUIPMENT(RR3) 		8-97362-337-1 01 1 0212-0501 ●
27 08.965 FUSE UNIT
4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 10A MINI RED 		8-97062-022-0 01 1 0505-0507 ● ●
27 08.965 FUSE UNIT
4JH1-TC ENG(RDM) 10A MINI RED 		8-97062-022-0 01 1 0508- ● ●
27 08.965 FUSE UNIT
10A MINI RED 		8-97062-022-0 01 1 0508- ●
27 08.965 FUSE UNIT
4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 15A MINI BLUE 		8-97062-023-0 01 1 0505-0507 ● ●
27 08.965 FUSE UNIT
4JH1-TC ENG(RDM) 15A MINI BLUE 		8-97062-023-0 01 1 0508- ● ●
27 08.965 FUSE UNIT
15A MINI BLUE 		8-97062-023-0 01 1 0508- ●
35 02.530 BOX; RELAY & FUSE 8-97063-150-1 01 1 0211-0501 ● ● ● ● ● ●
35 02.530 BOX; RELAY & FUSE 8-97377-739-0 01 1 0502- ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(A) 60A YELLOW 		8-94388-303-1 AR 1 0211-0501 ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(A) 80A BLACK 		8-94388-305-0 AR 1 0211-0501 ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
02.483 (B) 50A RED 		8-94468-663-0 AR 1 0211-0501 ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
02.483 (B) 60A YELLOW 		8-94468-664-0 AR 1 0211-0501 ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(A) 100A BLUE 		8-94388-306-1 AR 1 0502- ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(B) 30A PINK 		8-97183-643-0 AR 1 0502- ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(B) 40A GREEN 		8-97183-644-0 AR 1 0502- ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(B) 50A RED 		8-97183-645-0 AR 1 0502- ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(B) 60A YELLOW 		8-97219-407-0 AR 1 0502- ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX 8-97063-152-1 01 1 0211-0501 ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX 8-97377-741-0 01 1 0502- ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4JB1 ENG(RLF) (C) 6P 		1-82691-206-0 01 1 0502-0508 ● ● ●
431 02.530 CONNECTOR; JOINT
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) INDONESIA EQUIPMENT(S4S) (C) 6P 		1-82691-206-0 01 1 0502-0508 ● ●
431 02.530 CONNECTOR; JOINT
4HG1 ENG(RJH),4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) (C) 6P 		1-82691-206-0 01 1 0509-0511 ● ●
431 02.530 CONNECTOR; JOINT
4JB1 ENG(RLF) (C) 6P 		1-82691-206-0 01 1 0512-0609 ● ● ●
431 02.530 CONNECTOR; JOINT
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) INDONESIA EQUIPMENT(S4S) (C) 6P 		1-82691-206-0 01 1 0512-0609 ● ●
431 02.530 CONNECTOR; JOINT
4JB1 ENG(RLF) (C) 6P 		1-82691-206-0 01 1 0610-0712 ● ● ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) (C) 6P 		1-82691-206-0 01 1 0610-0712 ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) (C) 6P 		1-82691-206-0 01 1 0610-0712 ●
431 02.530 CONNECTOR; JOINT
4JB1 ENG(RLF) (C) 6P 		1-82691-206-0 01 1 0801- ● ● ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) (C) 6P 		1-82691-206-0 01 1 0801- ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4HG1ENG(RJH),4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) (C) 6P 		1-82691-206-0 01 1 0801- ●
431 02.530 CONNECTOR; JOINT
4JB1 ENG(RLF) (D) 10P GREEN 		1-82699-599-0 04 1 0502-0609 ● ● ●
431 02.530 CONNECTOR; JOINT
4JB1 ENG(RLF) (D) 10P GREEN 		1-82699-599-0 04 1 0610-0712 ● ● ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) (D) 10P GREEN 		1-82699-599-0 04 1 0610-0712 ●
431 02.530 CONNECTOR; JOINT
4JB1 ENG(RLF) (D) 10P GREEN 		1-82699-599-0 04 1 0801- ● ● ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) (D) 10P GREEN 		1-82699-599-0 04 1 0801- ● ●
431 02.530 CONNECTOR; JOINT
4JB1 ENG(RLF) (A) 4P 		8-97077-939-0 02 1 0502-0502 ● ● ●
431 02.530 CONNECTOR; JOINT
4JB1 ENG(RLF) (A) 4P 		8-97077-939-0 02 1 0502-0606 ● ● ●
431 02.530 CONNECTOR; JOINT
4JH1-TC ENG(RDM) EXC. AUSTRALIA EQUIPMENT(RR3) (A) 4P 		8-97077-939-0 02 1 0502-0606 ● ●
431 02.530 CONNECTOR; JOINT
4JB1 ENG(RLF) (A) 4P 		8-97077-939-0 02 1 0607-0609 ●
431 02.530 CONNECTOR; JOINT
4JH1-TC ENG(RDM),4JB1 ENG(RLF) (A) 4P 		8-97077-939-0 02 1 0607-0609 ● ●
431 02.530 CONNECTOR; JOINT
(A) 4P 		8-97077-939-0 02 1 0607-0609 ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) (A) 4P 		8-97077-939-0 01 1 0610-0612 ● ● ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP),4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S) (A) 4P 		8-97077-939-0 01 1 0610-0612 ●
431 02.530 CONNECTOR; JOINT
(A) 4P 		8-97077-939-0 01 1 0610-0612 ●
431 02.530 CONNECTOR; JOINT
4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) 4P 		8-97077-939-0 01 1 0701-1404 ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) (A) 4P 		8-97077-939-0 01 1 1405-1405 ● ●
431 02.530 CONNECTOR; JOINT
4HG1 ENG(RJH),4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) (A) 4P 		8-97077-939-0 01 1 1405-1405 ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) VIN MODEL YEAR 2014(VZE) (A) 4P 		8-97077-939-0 01 1 1405-1405 ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) EXC. INDONESIA EQUIPMENT(S4S) (A) 4P 		8-97077-939-0 01 1 1405-1405 ●
431 02.530 CONNECTOR; JOINT
(A) 4P 		8-97077-939-0 01 1 1405-1405 ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) (A) 4P 		8-97077-939-0 01 1 1406- ● ●
431 02.530 CONNECTOR; JOINT
4HG1 ENG(RJH),4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) (A) 4P 		8-97077-939-0 01 1 1406- ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) VIN MODEL YEAR 2015(VZF) (A) 4P 		8-97077-939-0 01 1 1406- ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) EXC. INDONESIA EQUIPMENT(S4S) (A) 4P 		8-97077-939-0 01 1 1406- ●
431 02.530 CONNECTOR; JOINT
(A) 4P 		8-97077-939-0 01 1 1406- ●
431 02.530 CONNECTOR; JOINT
4JB1 ENG(RLF) (B) 6P 		8-97077-941-0 02 1 0502-0502 ● ● ●
431 02.530 CONNECTOR; JOINT
4JB1 ENG(RLF) (B) 6P 		8-97077-941-0 02 1 0502-0606 ● ● ●
431 02.530 CONNECTOR; JOINT
4JH1-TC ENG(RDM) EXC. AUSTRALIA EQUIPMENT(RR3) (B) 6P 		8-97077-941-0 02 1 0502-0606 ● ●
431 02.530 CONNECTOR; JOINT
4JB1 ENG(RLF) (B) 6P 		8-97077-941-0 02 1 0607-0609 ●
431 02.530 CONNECTOR; JOINT
4JH1-TC ENG(RDM),4JB1 ENG(RLF) (B) 6P 		8-97077-941-0 02 1 0607-0609 ● ●
431 02.530 CONNECTOR; JOINT
(B) 6P 		8-97077-941-0 02 1 0607-0609 ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) (B) 6P 		8-97077-941-0 01 1 0610-0612 ● ● ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP),4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S) (B) 6P 		8-97077-941-0 01 1 0610-0612 ●
431 02.530 CONNECTOR; JOINT
(B) 6P 		8-97077-941-0 01 1 0610-0612 ●
431 02.530 CONNECTOR; JOINT
4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) 6P 		8-97077-941-0 01 1 0701-1404 ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) (B) 6P 		8-97077-941-0 01 1 1405-1405 ● ●
431 02.530 CONNECTOR; JOINT
4HG1 ENG(RJH),4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) (B) 6P 		8-97077-941-0 01 1 1405-1405 ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) VIN MODEL YEAR 2014(VZE) (B) 6P 		8-97077-941-0 01 1 1405-1405 ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) EXC. INDONESIA EQUIPMENT(S4S) (B) 6P 		8-97077-941-0 01 1 1405-1405 ●
431 02.530 CONNECTOR; JOINT
(B) 6P 		8-97077-941-0 01 1 1405-1405 ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) (B) 6P 		8-97077-941-0 01 1 1406- ● ●
431 02.530 CONNECTOR; JOINT
4HG1 ENG(RJH),4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) (B) 6P 		8-97077-941-0 01 1 1406- ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) VIN MODEL YEAR 2015(VZF) (B) 6P 		8-97077-941-0 01 1 1406- ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) EXC. INDONESIA EQUIPMENT(S4S) (B) 6P 		8-97077-941-0 01 1 1406- ●
431 02.530 CONNECTOR; JOINT
(B) 6P 		8-97077-941-0 01 1 1406- ●
431 02.530 CONNECTOR; JOINT
4HG1 ENG(RJH),4HF1-N ENG(RJZ) (F) 10P BLUE 		1-82699-598-0 02 1 0502-0609 ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) (F) 10P BLUE 		1-82699-598-0 02 1 0610- ● ● ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP),4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S) (F) 10P BLUE 		1-82699-598-0 02 1 0610- ●
431 02.530 CONNECTOR; JOINT
(F) 10P BLUE 		1-82699-598-0 02 1 0610- ●
431 02.530 CONNECTOR; JOINT
4HG1 ENG(RJH),4HF1-N ENG(RJZ) (D) 10P GREEN 		1-82699-599-0 02 1 0502-0502 ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HG1 ENG(RJH),4HF1-N ENG(RJZ) (D) 10P GREEN 		1-82699-599-0 02 1 0502-0606 ● ● ● ●
431 02.530 CONNECTOR; JOINT
4JH1-TC ENG(RDM) EXC. AUSTRALIA EQUIPMENT(RR3) (D) 10P GREEN 		1-82699-599-0 02 1 0502-0606 ● ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) (D) 10P GREEN 		1-82699-599-0 02 1 0607-1404 ●
431 02.530 CONNECTOR; JOINT
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) (D) 10P GREEN 		1-82699-599-0 02 1 0607-1404 ●
431 02.530 CONNECTOR; JOINT
4HG1 ENG(RJH),4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) (D) 10P GREEN 		1-82699-599-0 02 1 0607-1404 ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) EXC. INDONESIA EQUIPMENT(S4S) (D) 10P GREEN 		1-82699-599-0 02 1 0607-1404 ●
431 02.530 CONNECTOR; JOINT
4JH1-TC ENG(RDM) (D) 10P GREEN 		1-82699-599-0 02 1 0607-1404 ●
431 02.530 CONNECTOR; JOINT
(D) 10P GREEN 		1-82699-599-0 02 1 0607-1404 ● ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) (D) 10P GREEN 		1-82699-599-0 02 1 1405-1405 ●
431 02.530 CONNECTOR; JOINT
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) (D) 10P GREEN 		1-82699-599-0 02 1 1405-1405 ●
431 02.530 CONNECTOR; JOINT
4HG1 ENG(RJH),4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) (D) 10P GREEN 		1-82699-599-0 02 1 1405-1405 ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) VIN MODEL YEAR 2014(VZE) (D) 10P GREEN 		1-82699-599-0 02 1 1405-1405 ●
431 02.530 CONNECTOR; JOINT
4JH1-TC ENG(RDM) (D) 10P GREEN 		1-82699-599-0 02 1 1405-1405 ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) EXC. INDONESIA EQUIPMENT(S4S) (D) 10P GREEN 		1-82699-599-0 02 1 1405-1405 ●
431 02.530 CONNECTOR; JOINT
(D) 10P GREEN 		1-82699-599-0 02 1 1405-1405 ● ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) (D) 10P GREEN 		1-82699-599-0 02 1 1406- ●
431 02.530 CONNECTOR; JOINT
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) (D) 10P GREEN 		1-82699-599-0 02 1 1406- ●
431 02.530 CONNECTOR; JOINT
4HG1 ENG(RJH),4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) (D) 10P GREEN 		1-82699-599-0 02 1 1406- ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) VIN MODEL YEAR 2015(VZF) (D) 10P GREEN 		1-82699-599-0 02 1 1406- ●
431 02.530 CONNECTOR; JOINT
4JH1-TC ENG(RDM) (D) 10P GREEN 		1-82699-599-0 02 1 1406- ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) EXC. INDONESIA EQUIPMENT(S4S) (D) 10P GREEN 		1-82699-599-0 02 1 1406- ●
431 02.530 CONNECTOR; JOINT
(D) 10P GREEN 		1-82699-599-0 02 1 1406- ● ●
431 02.530 CONNECTOR; JOINT
4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) 4P 		8-97077-939-0 01 1 0502-0609 ● ● ● ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) (A) 4P 		8-97077-939-0 02 1 0610-0712 ●
431 02.530 CONNECTOR; JOINT
4JB1 ENG(RLF) (A) 4P 		8-97077-939-0 02 1 0610-0712 ●
431 02.530 CONNECTOR; JOINT
4JH1-TC ENG(RDM),4JB1 ENG(RLF) (A) 4P 		8-97077-939-0 02 1 0610-0712 ● ●
431 02.530 CONNECTOR; JOINT
(A) 4P 		8-97077-939-0 02 1 0610-0712 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) (A) 4P 		8-97077-939-0 02 1 0801- ● ●
431 02.530 CONNECTOR; JOINT
4JB1 ENG(RLF) (A) 4P 		8-97077-939-0 02 1 0801- ●
431 02.530 CONNECTOR; JOINT
4JH1-TC ENG(RDM),4JB1 ENG(RLF) (A) 4P 		8-97077-939-0 02 1 0801- ● ●
431 02.530 CONNECTOR; JOINT
(A) 4P 		8-97077-939-0 02 1 0801- ●
431 02.530 CONNECTOR; JOINT
4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) 6P 		8-97077-941-0 01 1 0502-0609 ● ● ● ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) (B) 6P 		8-97077-941-0 02 1 0610-0712 ●
431 02.530 CONNECTOR; JOINT
4JB1 ENG(RLF) (B) 6P 		8-97077-941-0 02 1 0610-0712 ●
431 02.530 CONNECTOR; JOINT
4JH1-TC ENG(RDM),4JB1 ENG(RLF) (B) 6P 		8-97077-941-0 02 1 0610-0712 ● ●
431 02.530 CONNECTOR; JOINT
(B) 6P 		8-97077-941-0 02 1 0610-0712 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) (B) 6P 		8-97077-941-0 02 1 0801- ● ●
431 02.530 CONNECTOR; JOINT
4JB1 ENG(RLF) (B) 6P 		8-97077-941-0 02 1 0801- ●
431 02.530 CONNECTOR; JOINT
4JH1-TC ENG(RDM),4JB1 ENG(RLF) (B) 6P 		8-97077-941-0 02 1 0801- ● ●
431 02.530 CONNECTOR; JOINT
(B) 6P 		8-97077-941-0 02 1 0801- ●
431 02.530 CONNECTOR; JOINT
(E) 10P BROWN 		1-82699-601-0 02 1 0502-0609 ● ●
431 02.530 CONNECTOR; JOINT
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) (E) 10P BROWN 		1-82699-601-0 02 1 0502-0609 ● ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ),4JB1 ENG(RLF) (E) 10P BROWN 		1-82699-601-0 02 1 0610-0712 ● ● ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S) (E) 10P BROWN 		1-82699-601-0 02 1 0610-0712 ● ●
431 02.530 CONNECTOR; JOINT
(E) 10P BROWN 		1-82699-601-0 02 1 0610-0712 ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ),4JB1 ENG(RLF) (E) 10P BROWN 		1-82699-601-0 02 1 0801-1404 ● ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) (E) 10P BROWN 		1-82699-601-0 02 1 0801-1404 ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) EXC. INDONESIA EQUIPMENT(S4S) (E) 10P BROWN 		1-82699-601-0 02 1 0801-1404 ●
431 02.530 CONNECTOR; JOINT
4JB1 ENG(RLF) (E) 10P BROWN 		1-82699-601-0 02 1 0801-1404 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4HG1 ENG(RJH), 4HF1-NENG(RJZ) INDONESIA EQUIPMENT(S4S) (E) 10P BROWN 		1-82699-601-0 02 1 0801-1404 ●
431 02.530 CONNECTOR; JOINT
(E) 10P BROWN 		1-82699-601-0 02 1 0801-1404 ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ),4JB1 ENG(RLF) (E) 10P BROWN 		1-82699-601-0 02 1 1405-1405 ● ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) (E) 10P BROWN 		1-82699-601-0 02 1 1405-1405 ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) VIN MODEL YEAR 2014(VZE) (E) 10P BROWN 		1-82699-601-0 02 1 1405-1405 ●
431 02.530 CONNECTOR; JOINT
4JB1 ENG(RLF) (E) 10P BROWN 		1-82699-601-0 02 1 1405-1405 ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) EXC. INDONESIA EQUIPMENT(S4S) (E) 10P BROWN 		1-82699-601-0 02 1 1405-1405 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4HG1 ENG(RJH), 4HF1-NENG(RJZ) INDONESIA EQUIPMENT(S4S) (E) 10P BROWN 		1-82699-601-0 02 1 1405-1405 ●
431 02.530 CONNECTOR; JOINT
(E) 10P BROWN 		1-82699-601-0 02 1 1405-1405 ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ),4JB1 ENG(RLF) (E) 10P BROWN 		1-82699-601-0 02 1 1406- ● ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) (E) 10P BROWN 		1-82699-601-0 02 1 1406- ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) VIN MODEL YEAR 2015(VZF) (E) 10P BROWN 		1-82699-601-0 02 1 1406- ●
431 02.530 CONNECTOR; JOINT
4JB1 ENG(RLF) (E) 10P BROWN 		1-82699-601-0 02 1 1406- ●
431 02.530 CONNECTOR; JOINT
4HF1-N ENG(RJZ) EXC. INDONESIA EQUIPMENT(S4S) (E) 10P BROWN 		1-82699-601-0 02 1 1406- ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4HG1 ENG(RJH), 4HF1-NENG(RJZ) INDONESIA EQUIPMENT(S4S) (E) 10P BROWN 		1-82699-601-0 02 1 1406- ●
431 02.530 CONNECTOR; JOINT
(E) 10P BROWN 		1-82699-601-0 02 1 1406- ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) (D) 10P GREEN 		1-82699-599-0 03 1 0610-1404 ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) EXC. VIN MODEL YEAR 2014(VZE) (D) 10P GREEN 		1-82699-599-0 03 1 1405-1405 ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) EXC. VIN MODEL YEAR 2015(VZF) (D) 10P GREEN 		1-82699-599-0 03 1 1406- ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) (E) 10P BROWN 		1-82699-601-0 03 1 0610-1404 ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) EXC. VIN MODEL YEAR 2014(VZE) (E) 10P BROWN 		1-82699-601-0 03 1 1405-1405 ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) EXC. VIN MODEL YEAR 2015(VZF) (E) 10P BROWN 		1-82699-601-0 03 1 1406- ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) (F) 6P 		8-97381-428-0 01 1 0610-1404 ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) EXC. VIN MODEL YEAR 2014(VZE) (F) 6P 		8-97381-428-0 01 1 1405-1405 ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) EXC. VIN MODEL YEAR 2015(VZF) (F) 6P 		8-97381-428-0 01 1 1406- ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97075-705-2 01 1 0211-0501 ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) FRAME-KICK UP<7EW> (C) 		8-97075-705-2 01 1 0211-0501 ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) FRT INDEPENDENT SUSPENSION(6PP) (H) 		8-97075-706-4 01 1 0211-0501 ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) FRAME-KICK UP<7EW> (H) 		8-97075-706-4 01 1 0211-0501 ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) FRT INDEPENDENT SUSPENSION(6PP) (F) 		8-97120-590-0 01 1 0211-0501 ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) EXC. FRT INDEPENDENT SUSPENSION(6PP) (H) 		8-97093-668-1 01 1 0211-0303 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF),4HF1-S ENG(RLS) (H) 		8-97093-668-1 01 1 0211-0303 ●
453 02.483 PROTECTOR; HARNESS
(H) 		8-97093-668-1 01 1 0211-0303 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (H) 		8-97093-668-1 01 1 0211-0303 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (H) 		8-97093-668-1 01 1 0211-0303 ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1-S ENG(RLS) (H) 		8-97093-668-1 01 1 0211-0303 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) EXC. REAR WIDE TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP) (H) 		8-97093-668-1 01 1 0304-0501 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S), FRAME-KICK UP<7EW> (H) 		8-97093-668-1 01 1 0304-0501 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) EXC. REAR WIDE TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP) (H) 		8-97093-668-1 01 1 0304-0501 ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS) INDONESIA EQUIPMENT(S4S) (H) 		8-97093-668-1 01 1 0304-0501 ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) AUSTRALIA EQUIPMENT(RR3) (H) 		8-97093-668-1 01 1 0304-0501 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) REAR WIDE TREAD(V4T) (H) 		8-97093-668-1 01 1 0304-0501 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) EXC. TURBOCHARGER<K51>,FRT INDEPENDENT SUSPENSION(6PP) (H) 		8-97093-668-1 01 1 0304-0501 ●
453 02.483 PROTECTOR; HARNESS
(H) 		8-97093-668-1 01 1 0502-0609 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S) (H) 		8-97093-668-1 01 1 0610-0712 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ),4JB1 ENG(RLF) (H) 		8-97093-668-1 01 1 0610-0712 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) EXC. REAR WIDE TREAD(V4T) (H) 		8-97093-668-1 01 1 0610-0712 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (H) 		8-97093-668-1 01 1 0610-0712 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (H) 		8-97093-668-1 01 1 0610-0712 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1ENG(RLF) (H) 		8-97093-668-1 01 1 0610-0712 ●
453 02.483 PROTECTOR; HARNESS
(H) 		8-97093-668-1 01 1 0610-0712 ● ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) (H) 		8-97093-668-1 01 1 0801-1404 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ),4JB1 ENG(RLF) (H) 		8-97093-668-1 01 1 0801-1404 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) EXC. REAR WIDE TREAD(V4T) (H) 		8-97093-668-1 01 1 0801-1404 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (H) 		8-97093-668-1 01 1 0801-1404 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (H) 		8-97093-668-1 01 1 0801-1404 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. INDONESIA EQUIPMENT(S4S) (H) 		8-97093-668-1 01 1 0801-1404 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4HG1 ENG(RJH), 4HF1-NENG(RJZ) INDONESIA EQUIPMENT(S4S) (H) 		8-97093-668-1 01 1 0801-1404 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4JB1 ENG(RLF) (H) 		8-97093-668-1 01 1 0801-1404 ●
453 02.483 PROTECTOR; HARNESS
(H) 		8-97093-668-1 01 1 0801-1404 ● ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) (H) 		8-97093-668-1 01 1 1405-1405 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ),4JB1 ENG(RLF) (H) 		8-97093-668-1 01 1 1405-1405 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) EXC. REAR WIDE TREAD(V4T) (H) 		8-97093-668-1 01 1 1405-1405 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (H) 		8-97093-668-1 01 1 1405-1405 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (H) 		8-97093-668-1 01 1 1405-1405 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. INDONESIA EQUIPMENT(S4S) (H) 		8-97093-668-1 01 1 1405-1405 ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) VIN MODEL YEAR 2014(VZE) (H) 		8-97093-668-1 01 1 1405-1405 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4HG1 ENG(RJH), 4HF1-NENG(RJZ) INDONESIA EQUIPMENT(S4S) (H) 		8-97093-668-1 01 1 1405-1405 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4JB1 ENG(RLF) (H) 		8-97093-668-1 01 1 1405-1405 ●
453 02.483 PROTECTOR; HARNESS
(H) 		8-97093-668-1 01 1 1405-1405 ● ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) (H) 		8-97093-668-1 01 1 1406-1406 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ),4JB1 ENG(RLF) (H) 		8-97093-668-1 01 1 1406-1406 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) EXC. REAR WIDE TREAD(V4T) (H) 		8-97093-668-1 01 1 1406-1406 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (H) 		8-97093-668-1 01 1 1406-1406 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (H) 		8-97093-668-1 01 1 1406-1406 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. INDONESIA EQUIPMENT(S4S) (H) 		8-97093-668-1 01 1 1406-1406 ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) VIN MODEL YEAR 2015(VZF) (H) 		8-97093-668-1 01 1 1406-1406 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4HG1 ENG(RJH), 4HF1-NENG(RJZ) INDONESIA EQUIPMENT(S4S) (H) 		8-97093-668-1 01 1 1406-1406 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4JB1 ENG(RLF) (H) 		8-97093-668-1 01 1 1406-1406 ●
453 02.483 PROTECTOR; HARNESS
(H) 		8-97093-668-1 01 1 1406-1406 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. INDONESIA EQUIPMENT(S4S) (H) 		8-97093-668-1 01 1 1406- ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) (H) 		8-97093-668-1 01 1 1406- ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) (H) 		8-97093-668-1 01 1 1406- ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) EXC. REAR WIDE TREAD(V4T) (H) 		8-97093-668-1 01 1 1406- ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (H) 		8-97093-668-1 01 1 1406- ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (H) 		8-97093-668-1 01 1 1406- ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) VIN MODEL YEAR 2015(VZF) (H) 		8-97093-668-1 01 1 1406- ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4HG1 ENG(RJH), 4HF1-NENG(RJZ) INDONESIA EQUIPMENT(S4S) (H) 		8-97093-668-1 01 1 1406- ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4JB1 ENG(RLF) (H) 		8-97093-668-1 01 1 1406- ●
453 02.483 PROTECTOR; HARNESS
(H) 		8-97093-668-1 01 1 1406- ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97120-589-0 01 1 0211-0303 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF),4HF1-S ENG(RLS) (B) 		8-97120-589-0 01 1 0211-0303 ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-97120-589-0 01 1 0211-0303 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (B) 		8-97120-589-0 01 1 0211-0303 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (B) 		8-97120-589-0 01 1 0211-0303 ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1-S ENG(RLS) (B) 		8-97120-589-0 01 1 0211-0303 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) EXC. REAR WIDE TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97120-589-0 01 1 0304-0501 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S), FRAME-KICK UP<7EW> (B) 		8-97120-589-0 01 1 0304-0501 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) EXC. REAR WIDE TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97120-589-0 01 1 0304-0501 ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS) INDONESIA EQUIPMENT(S4S) (B) 		8-97120-589-0 01 1 0304-0501 ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) AUSTRALIA EQUIPMENT(RR3) (B) 		8-97120-589-0 01 1 0304-0501 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) REAR WIDE TREAD(V4T) (B) 		8-97120-589-0 01 1 0304-0501 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) EXC. TURBOCHARGER<K51>,FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97120-589-0 01 1 0304-0501 ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-97120-589-0 01 1 0502- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-97259-730-2 01 1 0211-0501 ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-97259-730-3 01 1 0502- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-97259-731-2 01 1 0211-0501 ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-97259-731-2 01 1 0502- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-97262-956-3 01 1 0211-0501 ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-97262-956-3 01 1 0502- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S), FRAME-KICK UP<7EW> (I) 		8-94482-169-0 01 1 0212-0303 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (I) 		8-94482-169-0 01 1 0212-0303 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS) INDONESIA EQUIPMENT(S4S) (I) 		8-94482-169-0 01 1 0212-0303 ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S), FRAME-KICK UP<7EW> (I) 		8-94482-169-0 01 1 0304-0501 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (I) 		8-94482-169-0 01 1 0304-0501 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS) INDONESIA EQUIPMENT(S4S) (I) 		8-94482-169-0 01 1 0304-0501 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) (I) 		8-94482-169-0 01 1 0502-0504 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (I) 		8-94482-169-0 01 1 0502-0504 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (I) 		8-94482-169-0 01 1 0502-0504 ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) (I) 		8-94482-169-0 01 1 0502-0504 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. INDONESIA EQUIPMENT(S4S) (I) 		8-94482-169-0 01 1 0502-0504 ●
453 02.483 PROTECTOR; HARNESS
(I) 		8-94482-169-0 01 1 0502-0504 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) (I) 		8-94482-169-0 01 1 0505-0609 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (I) 		8-94482-169-0 01 1 0505-0609 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (I) 		8-94482-169-0 01 1 0505-0609 ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) (I) 		8-94482-169-0 01 1 0505-0609 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. INDONESIA EQUIPMENT(S4S) (I) 		8-94482-169-0 01 1 0505-0609 ●
453 02.483 PROTECTOR; HARNESS
(I) 		8-94482-169-0 01 1 0505-0609 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) (I) 		8-94482-169-0 01 1 0610- ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (I) 		8-94482-169-0 01 1 0610- ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (I) 		8-94482-169-0 01 1 0610- ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. INDONESIA EQUIPMENT(S4S) (I) 		8-94482-169-0 01 1 0610- ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) (I) 		8-94482-169-0 01 1 0610- ●
453 02.483 PROTECTOR; HARNESS
(I) 		8-94482-169-0 01 1 0610- ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> (E) 		8-94452-553-0 01 1 0211-0405 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) (E) 		8-94452-553-0 01 1 0211-0405 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-94452-553-0 01 1 0211-0405 ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) (E) 		8-94452-553-0 01 1 0211-0405 ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 0211-0405 ● ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 0211-0405 ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF> (E) 		8-94452-553-0 01 1 0211-0405 ● ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) EXC. AUSTRALIA EQUIPMENT(RR3),ENGINE POWER N-SPEC(7QV) (E) 		8-94452-553-0 01 1 0211-0405 ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) (E) 		8-94452-553-0 01 1 0211-0405 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) EXC. TURBOCHARGER<K51> (E) 		8-94452-553-0 01 1 0211-0405 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) EXC. REAR WIDE TREAD(V4T) (E) 		8-94452-553-0 01 1 0211-0405 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) (E) 		8-94452-553-0 01 1 0211-0405 ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. AUSTRALIA EQUIPMENT(RR3),ENGINE POWER N-SPEC(7QV) (E) 		8-94452-553-0 01 1 0211-0405 ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) (E) 		8-94452-553-0 01 1 0211-0405 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> (E) 		8-94452-553-0 01 1 0406-0501 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) (E) 		8-94452-553-0 01 1 0406-0501 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-94452-553-0 01 1 0406-0501 ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) (E) 		8-94452-553-0 01 1 0406-0501 ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 0406-0501 ● ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 0406-0501 ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) EXC. AUSTRALIA EQUIPMENT(RR3),ENGINE POWER N-SPEC(7QV) (E) 		8-94452-553-0 01 1 0406-0501 ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) (E) 		8-94452-553-0 01 1 0406-0501 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) EXC. TURBOCHARGER<K51> (E) 		8-94452-553-0 01 1 0406-0501 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) EXC. REAR WIDE TREAD(V4T) (E) 		8-94452-553-0 01 1 0406-0501 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) (E) 		8-94452-553-0 01 1 0406-0501 ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. AUSTRALIA EQUIPMENT(RR3),ENGINE POWER N-SPEC(7QV) (E) 		8-94452-553-0 01 1 0406-0501 ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) (E) 		8-94452-553-0 01 1 0406-0501 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) (E) 		8-94452-553-0 01 1 0502-0609 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ),4JB1 ENG(RLF) (E) 		8-94452-553-0 01 1 0502-0609 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) EXC. REAR WIDE TREAD(V4T) (E) 		8-94452-553-0 01 1 0502-0609 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1ENG(RLF) (E) 		8-94452-553-0 01 1 0502-0609 ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) (E) 		8-94452-553-0 01 1 0502-0609 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. INDONESIA EQUIPMENT(S4S) (E) 		8-94452-553-0 01 1 0502-0609 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4JB1 ENG(RLF) (E) 		8-94452-553-0 01 1 0502-0609 ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 0502-0609 ● ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) (E) 		8-94452-553-0 02 1 0610-0712 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) (E) 		8-94452-553-0 02 1 0801-1206 ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) (E) 		8-94452-553-0 01 1 1207-1404 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. INDONESIA EQUIPMENT(S4S) (E) 		8-94452-553-0 01 1 1207-1404 ● ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) (E) 		8-94452-553-0 01 1 1207-1404 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) (E) 		8-94452-553-0 01 1 1207-1404 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) (E) 		8-94452-553-0 01 1 1207-1404 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) EXC. REAR WIDE TREAD(V4T) (E) 		8-94452-553-0 01 1 1207-1404 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1ENG(RLF) (E) 		8-94452-553-0 01 1 1207-1404 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4HG1 ENG(RJH), 4HF1-NENG(RJZ) INDONESIA EQUIPMENT(S4S) (E) 		8-94452-553-0 01 1 1207-1404 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4JB1 ENG(RLF) (E) 		8-94452-553-0 01 1 1207-1404 ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP),4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) (E) 		8-94452-553-0 01 1 1207-1404 ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 1207-1404 ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) (E) 		8-94452-553-0 01 1 1405- ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. INDONESIA EQUIPMENT(S4S) (E) 		8-94452-553-0 01 1 1405- ● ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) (E) 		8-94452-553-0 01 1 1405- ● ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) (E) 		8-94452-553-0 01 1 1405- ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) (E) 		8-94452-553-0 01 1 1405- ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) EXC. REAR WIDE TREAD(V4T) (E) 		8-94452-553-0 01 1 1405- ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1ENG(RLF) (E) 		8-94452-553-0 01 1 1405- ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4JB1 ENG(RLF) (E) 		8-94452-553-0 01 1 1405- ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4HG1ENG(RJH),4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) (E) 		8-94452-553-0 01 1 1405- ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 1405- ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) (E) 		8-94452-553-0 01 1 0610-1206 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ),4JB1 ENG(RLF) (E) 		8-94452-553-0 01 1 0610-1206 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) EXC. REAR WIDE TREAD(V4T) (E) 		8-94452-553-0 01 1 0610-1206 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1ENG(RLF) (E) 		8-94452-553-0 01 1 0610-1206 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. INDONESIA EQUIPMENT(S4S) (E) 		8-94452-553-0 01 1 0610-1206 ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) (E) 		8-94452-553-0 01 1 0610-1206 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4JB1 ENG(RLF) (E) 		8-94452-553-0 01 1 0610-1206 ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 0610-1206 ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) AUSTRALIA EQUIPMENT(RR3) (E) 		8-94417-716-0 01 1 0211-0211 ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S), FRAME-KICK UP<7EW> (E) 		8-94417-716-0 01 1 0212-0303 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (E) 		8-94417-716-0 01 1 0212-0303 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS) INDONESIA EQUIPMENT(S4S) (E) 		8-94417-716-0 01 1 0212-0303 ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S), FRAME-KICK UP<7EW> (E) 		8-94417-716-0 01 1 0304-0501 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (E) 		8-94417-716-0 01 1 0304-0501 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS) INDONESIA EQUIPMENT(S4S) (E) 		8-94417-716-0 01 1 0304-0501 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) (E) 		8-94417-716-0 01 1 0502-0504 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-94417-716-0 01 1 0502-0504 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (E) 		8-94417-716-0 01 1 0502-0504 ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) (E) 		8-94417-716-0 01 1 0502-0504 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. INDONESIA EQUIPMENT(S4S) (E) 		8-94417-716-0 01 1 0502-0504 ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94417-716-0 01 1 0502-0504 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) (E) 		8-94417-716-0 01 1 0505-0609 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (E) 		8-94417-716-0 01 1 0505-0609 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (E) 		8-94417-716-0 01 1 0505-0609 ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) (E) 		8-94417-716-0 01 1 0505-0609 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. INDONESIA EQUIPMENT(S4S) (E) 		8-94417-716-0 01 1 0505-0609 ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94417-716-0 01 1 0505-0609 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) (E) 		8-94417-716-0 01 1 0610- ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (E) 		8-94417-716-0 01 1 0610- ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (E) 		8-94417-716-0 01 1 0610- ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. INDONESIA EQUIPMENT(S4S) (E) 		8-94417-716-0 01 1 0610- ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) (E) 		8-94417-716-0 01 1 0610- ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94417-716-0 01 1 0610- ● ●
çizim 53085
1 453 36 456 2 2 36 4 453 41 5 444 28
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) PROVISIONAL PACKAGE SPEC<BCC> INDONESIA EQUIPMENT(S4S) 		8-98217-083-0 01 1 1207- ● ●
1 02.480 HARNESS; CAB
4HF1-N ENG(RJZ) PROVISIONAL PACKAGE SPEC<BCC> EXC. INDONESIA EQUIPMENT(S4S) 		8-98217-088-0 01 1 1207- ● ●
1 02.480 HARNESS; CAB
4HF1-N ENG(RJZ) PROVISIONAL PACKAGE SPEC<BCC> 		8-98217-088-0 01 1 1207- ●
1 02.480 HARNESS; CAB
PROVISIONAL PACKAGE SPEC<BCC> 		8-98217-088-0 01 1 1207- ●
1 02.480 HARNESS; CAB
4JB1 ENG(RLF) PROVISIONAL PACKAGE SPEC<BCC> 		8-98217-082-0 01 1 1207- ● ● ●
1 02.480 HARNESS; CAB
4HG1-T ENG(RDP) PROVISIONAL PACKAGE SPEC<BCC> INDONESIA EQUIPMENT(S4S) 		8-98217-089-0 01 1 1207-1404 ●
1 02.480 HARNESS; CAB
4HG1-T ENG(RDP) PROVISIONAL PACKAGE SPEC<BCC> INDONESIA EQUIPMENT(S4S) EXC. VIN MODEL YEAR 2014(VZE) 		8-98217-089-0 01 1 1405-1405 ●
1 02.480 HARNESS; CAB
4HG1-T ENG(RDP) PROVISIONAL PACKAGE SPEC<BCC> INDONESIA EQUIPMENT(S4S) EXC. VIN MODEL YEAR 2015(VZF) 		8-98217-089-0 01 1 1406- ●
1 02.480 HARNESS; CAB
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) VIN MODEL YEAR 2014(VZE) 		8-98272-818-0 01 1 1405-1405 ●
1 02.480 HARNESS; CAB
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) VIN MODEL YEAR 2015(VZF) 		8-98272-818-0 01 1 1406- ●
1 02.480 HARNESS; CAB
4HF1-S ENG(RLS) INDONESIA EQUIPMENT(S4S) ENGINE POWER N-SPEC(7QV) 		8-97309-087-2 01 1 0211-0501 ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1-S ENG(RLS) INDONESIA EQUIPMENT(S4S) ENGINE POWER N-SPEC(7QV) 		8-97309-087-2 01 1 0211-0501 ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) 		8-97383-606-2 01 1 0502- ● ●
1 02.480 HARNESS; CAB
4HF1-S ENG(RLS) INDONESIA EQUIPMENT(S4S) EXC. ENGINE POWER N-SPEC(7QV) 		8-97309-086-2 01 1 0211-0501 ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1-S ENG(RLS) INDONESIA EQUIPMENT(S4S) EXC. ENGINE POWER N-SPEC(7QV) 		8-97309-086-2 01 1 0211-0501 ●
1 02.480 HARNESS; CAB
4JH1-TC ENG(RDM) AUSTRALIA EQUIPMENT(RR3) 		8-97383-603-0 01 1 0502-0502 ● ●
1 02.480 HARNESS; CAB 8-97383-603-0 01 1 0502-0502 ●
1 02.480 HARNESS; CAB
4JH1-TC ENG(RDM) AUSTRALIA EQUIPMENT(RR3) 		8-98010-608-2 01 1 0502- ● ●
1 02.480 HARNESS; CAB 8-98010-608-2 01 1 0502- ●
1 02.480 HARNESS; CAB
4HF1-S ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S),ENGINE POWER N-SPEC(7QV) 		8-97309-111-2 01 1 0211-0501 ●
1 02.480 HARNESS; CAB
4HF1-S ENG(RLS) EXC. AUSTRALIA EQUIPMENT(RR3),ENGINE POWER N-SPEC(7QV) 		8-97309-111-2 01 1 0211-0501 ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. AUSTRALIA EQUIPMENT(RR3), INDONESIA EQUIPMENT(S4S),ENGINE POWER N-SPEC (7QV) 		8-97309-111-2 01 1 0211-0501 ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) 		8-98051-180-0 01 1 0610-0712 ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) 		8-98051-180-0 01 1 0801-1206 ● ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-98051-180-0 01 1 1207- ● ●
1 02.480 HARNESS; CAB
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) 		8-97312-691-1 01 1 0211-0501 ● ● ●
1 02.480 HARNESS; CAB
4HF1-N ENG(RJZ) EXC. INDONESIA EQUIPMENT(S4S) 		8-97383-605-2 01 1 0502-1206 ● ●
1 02.480 HARNESS; CAB
4HF1-N ENG(RJZ) 		8-97383-605-2 01 1 0502-1206 ●
1 02.480 HARNESS; CAB 8-97383-605-2 01 1 0502-1206 ●
1 02.480 HARNESS; CAB
4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC>, INDONESIA EQUIPMENT(S4S) 		8-97383-605-2 01 1 1207- ● ●
1 02.480 HARNESS; CAB
4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97383-605-2 01 1 1207- ●
1 02.480 HARNESS; CAB
EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97383-605-2 01 1 1207- ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. INDONESIA EQUIPMENT(S4S) 		8-97309-085-2 01 1 0211-0501 ● ● ● ●
1 02.480 HARNESS; CAB
4JH1-TC ENG(RDM) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97383-602-0 01 1 0502-0502 ● ●
1 02.480 HARNESS; CAB
4JH1-TC ENG(RDM) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-98010-607-3 01 1 0502- ● ●
1 02.480 HARNESS; CAB
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 		8-97309-082-2 01 1 0211-0501 ● ● ● ●
1 02.480 HARNESS; CAB 8-97309-082-2 01 1 0211-0501 ●
1 02.480 HARNESS; CAB
4JB1 ENG(RLF) 		8-97381-171-3 01 1 0502-1206 ● ● ●
1 02.480 HARNESS; CAB
4JB1 ENG(RLF) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97381-171-3 01 1 1207- ● ● ●
1 02.480 HARNESS; CAB
4JH1 ENG(RJX) AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF> 		8-97357-036-1 01 1 0211-0501 ● ● ●
1 02.480 HARNESS; CAB
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) 		8-98051-181-1 01 1 0610-1206 ●
1 02.480 HARNESS; CAB
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-98051-181-1 01 1 1207-1404 ●
1 02.480 HARNESS; CAB
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) EXC. PROVISIONAL PACKAGE SPEC<BCC>, VIN MODEL YEAR 2014(VZE) 		8-98051-181-1 01 1 1405-1405 ●
1 02.480 HARNESS; CAB
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) EXC. PROVISIONAL PACKAGE SPEC<BCC>, VIN MODEL YEAR 2015(VZF) 		8-98051-181-1 01 1 1406- ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 0211-0501 ● ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 0502- ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94422-640-1 AR 1 0211-0501 ● ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94422-640-1 AR 1 0502- ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS 8-97214-415-0 01 1 0211-0501 ● ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS 8-97187-921-1 01 1 0502- ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 10A RED 		5-82516-002-0 AR 1 0211-0501 ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 15A BLUE 		5-82516-003-0 AR 1 0211-0501 ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 25A CLEAR 		5-82516-005-0 AR 1 0211-0501 ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 10A MINI RED 		8-97062-022-0 AR 1 0502- ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 15A MINI BLUE 		8-97062-023-0 AR 1 0502- ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 20A MINI YELLOW 		8-97062-024-0 AR 1 0502- ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 30A PINK 		8-97183-643-0 AR 1 0502- ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0211-0501 ● ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0502-0604 ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
03.885 M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0605-0612 ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0701-1101 ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102-1212 ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301- ● ● ● ● ●
36 02.530 BOX; RELAY
(B) 		8-97087-639-1 01 1 0211-0501 ● ● ● ● ● ●
36 02.530 BOX; RELAY
(B) 		8-97187-918-1 01 1 0502- ● ● ● ● ●
36 02.530 BOX; RELAY
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) (A) 		8-97087-638-1 01 1 0211-0501 ● ● ●
36 02.530 BOX; RELAY
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> (A) 		8-97087-640-1 01 1 0211-0501 ● ● ● ●
36 02.530 BOX; RELAY
4HF1-S ENG(RLS) (A) 		8-97087-640-1 01 1 0211-0501 ●
36 02.530 BOX; RELAY
(A) 		8-97087-640-1 01 1 0211-0501 ● ●
36 02.530 BOX; RELAY
4JH1 ENG(RJX) AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF> (A) 		8-97087-640-1 01 1 0211-0501 ● ● ●
36 02.530 BOX; RELAY
4HF1-S ENG(RLS) EXC. AUSTRALIA EQUIPMENT(RR3),ENGINE POWER N-SPEC(7QV) (A) 		8-97087-640-1 01 1 0211-0501 ●
36 02.530 BOX; RELAY
4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) (A) 		8-97087-640-1 01 1 0211-0501 ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. AUSTRALIA EQUIPMENT(RR3),ENGINE POWER N-SPEC(7QV) (A) 		8-97087-640-1 01 1 0211-0501 ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH),4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) (A) 		8-97087-640-1 01 1 0211-0501 ●
36 02.530 BOX; RELAY
4JH1-TC ENG(RDM) (A) 		8-97087-640-2 01 1 0502- ● ●
36 02.530 BOX; RELAY
(A) 		8-97087-640-2 01 1 0502- ●
41 08.821 PULLER; FUSE
02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 0211-0501 ● ● ● ● ● ●
41 08.821 PULLER; FUSE 8-97103-388-0 01 1 0502- ● ● ● ● ●
444 02.483 GROMMET; SCREW,FUSE BOX
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0211-0501 ● ● ● ● ● ●
444 02.483 GROMMET; SCREW,FUSE BOX
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0502- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97075-705-2 01 1 0211-0501 ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) FRAME-KICK UP<7EW> (C) 		8-97075-705-2 01 1 0211-0501 ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) FRT INDEPENDENT SUSPENSION(6PP) (H) 		8-97075-706-4 01 1 0211-0501 ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) FRAME-KICK UP<7EW> (H) 		8-97075-706-4 01 1 0211-0501 ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) FRT INDEPENDENT SUSPENSION(6PP) (F) 		8-97120-590-0 01 1 0211-0501 ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) EXC. FRT INDEPENDENT SUSPENSION(6PP) (H) 		8-97093-668-1 01 1 0211-0303 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF),4HF1-S ENG(RLS) (H) 		8-97093-668-1 01 1 0211-0303 ●
453 02.483 PROTECTOR; HARNESS
(H) 		8-97093-668-1 01 1 0211-0303 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (H) 		8-97093-668-1 01 1 0211-0303 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (H) 		8-97093-668-1 01 1 0211-0303 ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1-S ENG(RLS) (H) 		8-97093-668-1 01 1 0211-0303 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) EXC. REAR WIDE TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP) (H) 		8-97093-668-1 01 1 0304-0501 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S), FRAME-KICK UP<7EW> (H) 		8-97093-668-1 01 1 0304-0501 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) EXC. REAR WIDE TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP) (H) 		8-97093-668-1 01 1 0304-0501 ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS) INDONESIA EQUIPMENT(S4S) (H) 		8-97093-668-1 01 1 0304-0501 ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) AUSTRALIA EQUIPMENT(RR3) (H) 		8-97093-668-1 01 1 0304-0501 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) REAR WIDE TREAD(V4T) (H) 		8-97093-668-1 01 1 0304-0501 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) EXC. TURBOCHARGER<K51>,FRT INDEPENDENT SUSPENSION(6PP) (H) 		8-97093-668-1 01 1 0304-0501 ●
453 02.483 PROTECTOR; HARNESS
(H) 		8-97093-668-1 01 1 0502-0609 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S) (H) 		8-97093-668-1 01 1 0610-0712 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ),4JB1 ENG(RLF) (H) 		8-97093-668-1 01 1 0610-0712 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) EXC. REAR WIDE TREAD(V4T) (H) 		8-97093-668-1 01 1 0610-0712 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (H) 		8-97093-668-1 01 1 0610-0712 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (H) 		8-97093-668-1 01 1 0610-0712 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1ENG(RLF) (H) 		8-97093-668-1 01 1 0610-0712 ●
453 02.483 PROTECTOR; HARNESS
(H) 		8-97093-668-1 01 1 0610-0712 ● ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) (H) 		8-97093-668-1 01 1 0801-1404 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ),4JB1 ENG(RLF) (H) 		8-97093-668-1 01 1 0801-1404 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) EXC. REAR WIDE TREAD(V4T) (H) 		8-97093-668-1 01 1 0801-1404 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (H) 		8-97093-668-1 01 1 0801-1404 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (H) 		8-97093-668-1 01 1 0801-1404 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. INDONESIA EQUIPMENT(S4S) (H) 		8-97093-668-1 01 1 0801-1404 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4HG1 ENG(RJH), 4HF1-NENG(RJZ) INDONESIA EQUIPMENT(S4S) (H) 		8-97093-668-1 01 1 0801-1404 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4JB1 ENG(RLF) (H) 		8-97093-668-1 01 1 0801-1404 ●
453 02.483 PROTECTOR; HARNESS
(H) 		8-97093-668-1 01 1 0801-1404 ● ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) (H) 		8-97093-668-1 01 1 1405-1405 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ),4JB1 ENG(RLF) (H) 		8-97093-668-1 01 1 1405-1405 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) EXC. REAR WIDE TREAD(V4T) (H) 		8-97093-668-1 01 1 1405-1405 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (H) 		8-97093-668-1 01 1 1405-1405 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (H) 		8-97093-668-1 01 1 1405-1405 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. INDONESIA EQUIPMENT(S4S) (H) 		8-97093-668-1 01 1 1405-1405 ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) VIN MODEL YEAR 2014(VZE) (H) 		8-97093-668-1 01 1 1405-1405 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4HG1 ENG(RJH), 4HF1-NENG(RJZ) INDONESIA EQUIPMENT(S4S) (H) 		8-97093-668-1 01 1 1405-1405 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4JB1 ENG(RLF) (H) 		8-97093-668-1 01 1 1405-1405 ●
453 02.483 PROTECTOR; HARNESS
(H) 		8-97093-668-1 01 1 1405-1405 ● ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) (H) 		8-97093-668-1 01 1 1406-1406 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ),4JB1 ENG(RLF) (H) 		8-97093-668-1 01 1 1406-1406 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) EXC. REAR WIDE TREAD(V4T) (H) 		8-97093-668-1 01 1 1406-1406 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (H) 		8-97093-668-1 01 1 1406-1406 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (H) 		8-97093-668-1 01 1 1406-1406 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. INDONESIA EQUIPMENT(S4S) (H) 		8-97093-668-1 01 1 1406-1406 ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) VIN MODEL YEAR 2015(VZF) (H) 		8-97093-668-1 01 1 1406-1406 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4HG1 ENG(RJH), 4HF1-NENG(RJZ) INDONESIA EQUIPMENT(S4S) (H) 		8-97093-668-1 01 1 1406-1406 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4JB1 ENG(RLF) (H) 		8-97093-668-1 01 1 1406-1406 ●
453 02.483 PROTECTOR; HARNESS
(H) 		8-97093-668-1 01 1 1406-1406 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. INDONESIA EQUIPMENT(S4S) (H) 		8-97093-668-1 01 1 1406- ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) (H) 		8-97093-668-1 01 1 1406- ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) (H) 		8-97093-668-1 01 1 1406- ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) EXC. REAR WIDE TREAD(V4T) (H) 		8-97093-668-1 01 1 1406- ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (H) 		8-97093-668-1 01 1 1406- ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (H) 		8-97093-668-1 01 1 1406- ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) VIN MODEL YEAR 2015(VZF) (H) 		8-97093-668-1 01 1 1406- ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4HG1 ENG(RJH), 4HF1-NENG(RJZ) INDONESIA EQUIPMENT(S4S) (H) 		8-97093-668-1 01 1 1406- ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4JB1 ENG(RLF) (H) 		8-97093-668-1 01 1 1406- ●
453 02.483 PROTECTOR; HARNESS
(H) 		8-97093-668-1 01 1 1406- ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97120-589-0 01 1 0211-0303 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF),4HF1-S ENG(RLS) (B) 		8-97120-589-0 01 1 0211-0303 ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-97120-589-0 01 1 0211-0303 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (B) 		8-97120-589-0 01 1 0211-0303 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (B) 		8-97120-589-0 01 1 0211-0303 ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1-S ENG(RLS) (B) 		8-97120-589-0 01 1 0211-0303 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) EXC. REAR WIDE TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97120-589-0 01 1 0304-0501 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S), FRAME-KICK UP<7EW> (B) 		8-97120-589-0 01 1 0304-0501 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) EXC. REAR WIDE TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97120-589-0 01 1 0304-0501 ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS) INDONESIA EQUIPMENT(S4S) (B) 		8-97120-589-0 01 1 0304-0501 ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) AUSTRALIA EQUIPMENT(RR3) (B) 		8-97120-589-0 01 1 0304-0501 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) REAR WIDE TREAD(V4T) (B) 		8-97120-589-0 01 1 0304-0501 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) EXC. TURBOCHARGER<K51>,FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97120-589-0 01 1 0304-0501 ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-97120-589-0 01 1 0502- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-97259-730-2 01 1 0211-0501 ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-97259-730-3 01 1 0502- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-97259-731-2 01 1 0211-0501 ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-97259-731-2 01 1 0502- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-97262-956-3 01 1 0211-0501 ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-97262-956-3 01 1 0502- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S), FRAME-KICK UP<7EW> (I) 		8-94482-169-0 01 1 0212-0303 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (I) 		8-94482-169-0 01 1 0212-0303 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS) INDONESIA EQUIPMENT(S4S) (I) 		8-94482-169-0 01 1 0212-0303 ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S), FRAME-KICK UP<7EW> (I) 		8-94482-169-0 01 1 0304-0501 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (I) 		8-94482-169-0 01 1 0304-0501 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS) INDONESIA EQUIPMENT(S4S) (I) 		8-94482-169-0 01 1 0304-0501 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) (I) 		8-94482-169-0 01 1 0502-0504 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (I) 		8-94482-169-0 01 1 0502-0504 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (I) 		8-94482-169-0 01 1 0502-0504 ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) (I) 		8-94482-169-0 01 1 0502-0504 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. INDONESIA EQUIPMENT(S4S) (I) 		8-94482-169-0 01 1 0502-0504 ●
453 02.483 PROTECTOR; HARNESS
(I) 		8-94482-169-0 01 1 0502-0504 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) (I) 		8-94482-169-0 01 1 0505-0609 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (I) 		8-94482-169-0 01 1 0505-0609 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (I) 		8-94482-169-0 01 1 0505-0609 ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) (I) 		8-94482-169-0 01 1 0505-0609 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. INDONESIA EQUIPMENT(S4S) (I) 		8-94482-169-0 01 1 0505-0609 ●
453 02.483 PROTECTOR; HARNESS
(I) 		8-94482-169-0 01 1 0505-0609 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) (I) 		8-94482-169-0 01 1 0610- ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (I) 		8-94482-169-0 01 1 0610- ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (I) 		8-94482-169-0 01 1 0610- ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. INDONESIA EQUIPMENT(S4S) (I) 		8-94482-169-0 01 1 0610- ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) (I) 		8-94482-169-0 01 1 0610- ●
453 02.483 PROTECTOR; HARNESS
(I) 		8-94482-169-0 01 1 0610- ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> (E) 		8-94452-553-0 01 1 0211-0405 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) (E) 		8-94452-553-0 01 1 0211-0405 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-94452-553-0 01 1 0211-0405 ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) (E) 		8-94452-553-0 01 1 0211-0405 ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 0211-0405 ● ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 0211-0405 ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF> (E) 		8-94452-553-0 01 1 0211-0405 ● ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) EXC. AUSTRALIA EQUIPMENT(RR3),ENGINE POWER N-SPEC(7QV) (E) 		8-94452-553-0 01 1 0211-0405 ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) (E) 		8-94452-553-0 01 1 0211-0405 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) EXC. TURBOCHARGER<K51> (E) 		8-94452-553-0 01 1 0211-0405 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) EXC. REAR WIDE TREAD(V4T) (E) 		8-94452-553-0 01 1 0211-0405 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) (E) 		8-94452-553-0 01 1 0211-0405 ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. AUSTRALIA EQUIPMENT(RR3),ENGINE POWER N-SPEC(7QV) (E) 		8-94452-553-0 01 1 0211-0405 ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) (E) 		8-94452-553-0 01 1 0211-0405 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> (E) 		8-94452-553-0 01 1 0406-0501 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) (E) 		8-94452-553-0 01 1 0406-0501 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-94452-553-0 01 1 0406-0501 ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) (E) 		8-94452-553-0 01 1 0406-0501 ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 0406-0501 ● ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 0406-0501 ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) EXC. AUSTRALIA EQUIPMENT(RR3),ENGINE POWER N-SPEC(7QV) (E) 		8-94452-553-0 01 1 0406-0501 ●
453 02.483 PROTECTOR; HARNESS
4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) (E) 		8-94452-553-0 01 1 0406-0501 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) EXC. TURBOCHARGER<K51> (E) 		8-94452-553-0 01 1 0406-0501 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) EXC. REAR WIDE TREAD(V4T) (E) 		8-94452-553-0 01 1 0406-0501 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) (E) 		8-94452-553-0 01 1 0406-0501 ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. AUSTRALIA EQUIPMENT(RR3),ENGINE POWER N-SPEC(7QV) (E) 		8-94452-553-0 01 1 0406-0501 ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) (E) 		8-94452-553-0 01 1 0406-0501 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) (E) 		8-94452-553-0 01 1 0502-0609 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ),4JB1 ENG(RLF) (E) 		8-94452-553-0 01 1 0502-0609 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) EXC. REAR WIDE TREAD(V4T) (E) 		8-94452-553-0 01 1 0502-0609 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1ENG(RLF) (E) 		8-94452-553-0 01 1 0502-0609 ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) (E) 		8-94452-553-0 01 1 0502-0609 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. INDONESIA EQUIPMENT(S4S) (E) 		8-94452-553-0 01 1 0502-0609 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4JB1 ENG(RLF) (E) 		8-94452-553-0 01 1 0502-0609 ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 0502-0609 ● ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) (E) 		8-94452-553-0 02 1 0610-0712 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) (E) 		8-94452-553-0 02 1 0801-1206 ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) (E) 		8-94452-553-0 01 1 1207-1404 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. INDONESIA EQUIPMENT(S4S) (E) 		8-94452-553-0 01 1 1207-1404 ● ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) (E) 		8-94452-553-0 01 1 1207-1404 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) (E) 		8-94452-553-0 01 1 1207-1404 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) (E) 		8-94452-553-0 01 1 1207-1404 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) EXC. REAR WIDE TREAD(V4T) (E) 		8-94452-553-0 01 1 1207-1404 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1ENG(RLF) (E) 		8-94452-553-0 01 1 1207-1404 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4HG1 ENG(RJH), 4HF1-NENG(RJZ) INDONESIA EQUIPMENT(S4S) (E) 		8-94452-553-0 01 1 1207-1404 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4JB1 ENG(RLF) (E) 		8-94452-553-0 01 1 1207-1404 ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP),4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) (E) 		8-94452-553-0 01 1 1207-1404 ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 1207-1404 ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) (E) 		8-94452-553-0 01 1 1405- ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. INDONESIA EQUIPMENT(S4S) (E) 		8-94452-553-0 01 1 1405- ● ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) (E) 		8-94452-553-0 01 1 1405- ● ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) (E) 		8-94452-553-0 01 1 1405- ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) (E) 		8-94452-553-0 01 1 1405- ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) EXC. REAR WIDE TREAD(V4T) (E) 		8-94452-553-0 01 1 1405- ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1ENG(RLF) (E) 		8-94452-553-0 01 1 1405- ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4JB1 ENG(RLF) (E) 		8-94452-553-0 01 1 1405- ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4HG1ENG(RJH),4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) (E) 		8-94452-553-0 01 1 1405- ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 1405- ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) (E) 		8-94452-553-0 01 1 0610-1206 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ),4JB1 ENG(RLF) (E) 		8-94452-553-0 01 1 0610-1206 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) EXC. REAR WIDE TREAD(V4T) (E) 		8-94452-553-0 01 1 0610-1206 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1ENG(RLF) (E) 		8-94452-553-0 01 1 0610-1206 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. INDONESIA EQUIPMENT(S4S) (E) 		8-94452-553-0 01 1 0610-1206 ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) (E) 		8-94452-553-0 01 1 0610-1206 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM),4JB1 ENG(RLF) (E) 		8-94452-553-0 01 1 0610-1206 ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 0610-1206 ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) AUSTRALIA EQUIPMENT(RR3) (E) 		8-94417-716-0 01 1 0211-0211 ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S), FRAME-KICK UP<7EW> (E) 		8-94417-716-0 01 1 0212-0303 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (E) 		8-94417-716-0 01 1 0212-0303 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS) INDONESIA EQUIPMENT(S4S) (E) 		8-94417-716-0 01 1 0212-0303 ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S), FRAME-KICK UP<7EW> (E) 		8-94417-716-0 01 1 0304-0501 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (E) 		8-94417-716-0 01 1 0304-0501 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS) INDONESIA EQUIPMENT(S4S) (E) 		8-94417-716-0 01 1 0304-0501 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) (E) 		8-94417-716-0 01 1 0502-0504 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-94417-716-0 01 1 0502-0504 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (E) 		8-94417-716-0 01 1 0502-0504 ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) (E) 		8-94417-716-0 01 1 0502-0504 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. INDONESIA EQUIPMENT(S4S) (E) 		8-94417-716-0 01 1 0502-0504 ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94417-716-0 01 1 0502-0504 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) (E) 		8-94417-716-0 01 1 0505-0609 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (E) 		8-94417-716-0 01 1 0505-0609 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (E) 		8-94417-716-0 01 1 0505-0609 ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) (E) 		8-94417-716-0 01 1 0505-0609 ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. INDONESIA EQUIPMENT(S4S) (E) 		8-94417-716-0 01 1 0505-0609 ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94417-716-0 01 1 0505-0609 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) (E) 		8-94417-716-0 01 1 0610- ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (E) 		8-94417-716-0 01 1 0610- ● ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (E) 		8-94417-716-0 01 1 0610- ●
453 02.483 PROTECTOR; HARNESS
4HF1-N ENG(RJZ) EXC. INDONESIA EQUIPMENT(S4S) (E) 		8-94417-716-0 01 1 0610- ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) (E) 		8-94417-716-0 01 1 0610- ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94417-716-0 01 1 0610- ● ●
456 02.483 CUSHION; FUSE BOX
16.085 15X30 T=5 		8-94270-366-2 01 1 0211-0501 ● ● ● ● ● ●
456 02.483 CUSHION; FUSE BOX
16.085 15X30 T=5 		8-94270-366-2 01 1 0502- ● ● ● ● ●
çizim 53159
204 18 18 204 483 85
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUTO DOOR LOCK<AU4> FRONT DOOR 		8-97226-669-0 01 1 1011-1405 ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-669-0 01 1 1406- ● ● ● ●
18 02.480 HARNESS; DOOR
FRONT DOOR 		8-97226-669-0 01 1 1406- ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> FRONT DOOR 		8-97226-671-1 01 1 1011-1405 ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97226-671-1 01 1 1011-1405 ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM/FM STEREO 2 S PEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2SPEAKERS(6VL) FRONT DOOR 		8-97226-671-1 01 1 1011-1405 ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-671-1 01 1 1406- ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> FRONT DOOR 		8-97226-671-1 01 1 1406- ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97226-671-1 01 1 1406- ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM/FM STEREO 2 S PEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2SPEAKERS(6VL) FRONT DOOR 		8-97226-671-1 01 1 1406- ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-671-1 01 1 0211-0501 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97226-671-1 01 1 0211-0501 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> FRONT DOOR 		8-97226-671-1 01 1 0211-0501 ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-671-1 01 1 0502-1009 ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> FRONT DOOR 		8-97226-671-1 01 1 0502-1009 ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97226-671-1 01 1 0502-1009 ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM/FM STEREO 2 S PEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2SPEAKERS(6VL) FRONT DOOR 		8-97226-671-1 01 1 0502-1009 ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-98166-819-0 01 1 1010-1010 ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> FRONT DOOR 		8-98166-819-0 01 1 1010-1010 ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-98166-819-0 01 1 1010-1010 ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM/FM STEREO 2 S PEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2SPEAKERS(6VL) FRONT DOOR 		8-98166-819-0 01 1 1010-1010 ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-98166-819-0 01 1 1011-1405 ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97105-571-1 01 1 0211-0501 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97105-571-1 01 1 0211-0501 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> FRONT DOOR 		8-97105-571-1 01 1 0211-0501 ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97105-571-1 01 1 0502- ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> FRONT DOOR 		8-97105-571-1 01 1 0502- ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97105-571-1 01 1 0502- ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM/FM STEREO 2 S PEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2SPEAKERS(6VL) FRONT DOOR 		8-97105-571-1 01 1 0502- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-669-0 01 1 0211-0501 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-669-0 01 1 0502-1009 ● ● ● ●
18 02.480 HARNESS; DOOR
FRONT DOOR 		8-97226-669-0 01 1 0502-1009 ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-98166-820-0 01 1 1010-1010 ● ● ● ●
18 02.480 HARNESS; DOOR
FRONT DOOR 		8-98166-820-0 01 1 1010-1010 ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-98166-820-0 01 1 1011-1405 ● ● ● ●
18 02.480 HARNESS; DOOR
FRONT DOOR 		8-98166-820-0 01 1 1011-1405 ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97185-142-1 01 1 0211-0501 ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. REMOTE CONT DOOR LOCK<6NF> FRONT DOOR 		8-97185-142-1 01 1 0211-0501 ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97185-142-1 01 1 0502- ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. REMOTE CONT DOOR LOCK<6NF> FRONT DOOR 		8-97185-142-1 01 1 0502- ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> REAR DOOR 		8-97075-738-2 02 1 0211-0501 ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> REAR DOOR 		8-97075-738-2 02 1 0502- ●
18 02.480 HARNESS; DOOR
REMOTE CONT DOOR LOCK<6NF> FRONT DOOR 		8-97312-148-0 01 1 0211-0501 ● ● ●
18 02.480 HARNESS; DOOR
REMOTE CONT DOOR LOCK<6NF> FRONT DOOR 		8-97312-148-0 01 1 0502- ● ●
18 02.480 HARNESS; DOOR
FRONT DOOR 		8-97312-148-0 01 1 0502- ●
85 06.495 HARNESS; ROOM LAMP 8-97164-610-2 01 1 0211-0302 ● ● ● ●
85 06.495 HARNESS; ROOM LAMP 8-97364-158-0 01 1 0303- ● ● ● ●
85 06.495 HARNESS; ROOM LAMP 8-97162-624-3 01 1 0211-0302 ● ●
85 06.495 HARNESS; ROOM LAMP 8-97364-155-0 01 1 0303-0501 ● ●
85 06.495 HARNESS; ROOM LAMP 8-97364-155-0 01 1 0502- ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-629-2 01 1 0211-0302 ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97364-140-0 01 1 0303- ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-632-2 01 1 0211-0302 ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97364-146-0 01 1 0303-0501 ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97364-146-0 01 1 0502- ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-626-4 01 1 0211-0302 ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97364-143-0 01 1 0303-0501 ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97364-143-0 01 1 0502- ●
204 02.559 HARNESS; CABLE,FLOOR
AUSTRALIA EQUIPMENT(RR3) 		8-97162-631-2 01 1 0211-0302 ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
AUSTRALIA EQUIPMENT(RR3) 		8-97364-145-0 01 1 0303-0501 ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
AUSTRALIA EQUIPMENT(RR3) 		8-97364-145-0 01 1 0502- ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97364-145-0 01 1 0502- ●
483 02.480 HARNESS; EXT,RADIO
RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> 		8-97372-297-0 01 1 0308-0310 ● ● ●
483 02.480 HARNESS; EXT,RADIO
RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> 		8-97372-297-0 01 1 0308-0310 ● ●
483 02.480 HARNESS; EXT,RADIO
RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> 		8-97373-419-0 01 1 0311-0501 ● ● ●
483 02.480 HARNESS; EXT,RADIO
RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> 		8-97373-419-0 01 1 0311-0501 ● ●
483 02.480 HARNESS; EXT,RADIO
RADIO AM W/AMPLIFIER(RS2) 		8-97373-419-0 01 1 0502- ● ● ●
483 02.480 HARNESS; EXT,RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ) 		8-97383-850-0 01 1 0502- ● ● ● ●
çizim 53257
575 13 416 8 329 441 630
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
8 02.480 HARNESS; FRAME,FRT
4HF1-S ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S) 		8-97360-341-1 01 1 0211-0303 ●
8 02.480 HARNESS; FRAME,FRT
4HF1-S ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S) 		8-97364-889-1 01 1 0304-0501 ●
8 02.480 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) 		8-98005-344-0 01 1 0610-0712 ●
8 02.480 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) 		8-98005-344-0 01 1 0801- ● ●
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) FRT INDEPENDENT SUSPENSION(6PP) 		8-97359-604-2 01 1 0211-0501 ●
8 02.480 HARNESS; FRAME,FRT
4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) 		8-97383-594-0 01 1 0502-0609 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) 		8-97383-594-0 01 1 0502-0609 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) 		8-97383-594-0 01 1 0610-1404 ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) 		8-97383-594-0 01 1 1405-1405 ●
8 02.480 HARNESS; FRAME,FRT
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) VIN MODEL YEAR 2014(VZE) 		8-97383-594-0 01 1 1405-1405 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) 		8-97383-594-0 01 1 1405-1405 ●
8 02.480 HARNESS; FRAME,FRT
4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) 		8-97383-594-0 01 1 1406- ●
8 02.480 HARNESS; FRAME,FRT
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) VIN MODEL YEAR 2015(VZF) 		8-97383-594-0 01 1 1406- ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1-N ENG(RJZ) INDONESIA EQUIPMENT(S4S) 		8-97383-594-0 01 1 1406- ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>,REAR WIDE TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP) 		8-97350-730-1 01 1 0211-0501 ● ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> REAR WIDE TREAD(V4T) 		8-97380-152-3 01 1 0502- ●
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) EXC. REAR WIDE TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP) 		8-97359-612-1 01 1 0211-0303 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) EXC. REAR WIDE TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP) 		8-97364-765-1 01 1 0304-0501 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1-N ENG(RJZ) EXC. INDONESIA EQUIPMENT(S4S), FRAME-KICK UP<7EW> 		8-97383-593-1 01 1 0502-0502 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1-N ENG(RJZ) EXC. INDONESIA EQUIPMENT(S4S), FRAME-KICK UP<7EW> 		8-98010-554-0 01 1 0502- ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. REAR WIDE TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP) 		8-97350-731-1 01 1 0211-0501 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) 		8-97377-875-1 01 1 0502- ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) EXC. REAR WIDE TREAD(V4T) 		8-97377-875-1 01 1 0502- ●
8 02.480 HARNESS; FRAME,FRT
4HF1-S ENG(RLS) FRAME-KICK UP<7EW> 		8-97350-726-3 01 1 0211-0501 ●
8 02.480 HARNESS; FRAME,FRT
4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 		8-97359-199-1 01 1 0211-0303 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S) 		8-97359-199-1 01 1 0211-0303 ●
8 02.480 HARNESS; FRAME,FRT 8-97359-199-1 01 1 0211-0303 ●
8 02.480 HARNESS; FRAME,FRT
4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 		8-97364-888-1 01 1 0304-0501 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S) 		8-97364-888-1 01 1 0304-0501 ●
8 02.480 HARNESS; FRAME,FRT 8-97364-888-1 01 1 0304-0501 ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) EXC. TURBOCHARGER<K51> 		8-97350-734-1 01 1 0211-0501 ●
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) REAR WIDE TREAD(V4T) 		8-97359-611-1 01 1 0211-0303 ●
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) REAR WIDE TREAD(V4T) 		8-97364-764-1 01 1 0304-0501 ●
8 02.480 HARNESS; FRAME,FRT
4JH1-TC ENG(RDM) REAR WIDE TREAD(V4T) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98017-038-0 01 1 0505- ●
8 02.480 HARNESS; FRAME,FRT
4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, REAR WIDE TREAD(V4T) 		8-98017-037-0 01 1 0505- ●
8 02.480 HARNESS; FRAME,FRT
4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98017-037-0 01 1 0505- ●
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) AUSTRALIA EQUIPMENT(RR3) 		8-97357-068-1 01 1 0211-0211 ● ●
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) AUSTRALIA EQUIPMENT(RR3) 		8-97362-338-0 01 1 0212-0303 ● ●
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) AUSTRALIA EQUIPMENT(RR3) 		8-97364-885-1 01 1 0304-0501 ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1-S ENG(RLS) INDONESIA EQUIPMENT(S4S) ENGINE POWER N-SPEC(7QV) 		8-97350-724-1 01 1 0211-0303 ●
8 02.480 HARNESS; FRAME,FRT
4HF1-S ENG(RLS) INDONESIA EQUIPMENT(S4S) ENGINE POWER N-SPEC(7QV) 		8-97364-887-1 01 1 0304-0501 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1-S ENG(RLS) INDONESIA EQUIPMENT(S4S) ENGINE POWER N-SPEC(7QV) 		8-97364-887-1 01 1 0304-0501 ●
8 02.480 HARNESS; FRAME,FRT
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. REAR WIDE TREAD(V4T) 		8-97377-883-3 01 1 0502- ●
8 02.480 HARNESS; FRAME,FRT
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-883-3 01 1 0502- ●
8 02.480 HARNESS; FRAME,FRT 8-97377-883-3 01 1 0502- ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1-S ENG(RLS) INDONESIA EQUIPMENT(S4S) EXC. ENGINE POWER N-SPEC(7QV) 		8-97350-722-1 01 1 0211-0303 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1-S ENG(RLS) INDONESIA EQUIPMENT(S4S) EXC. ENGINE POWER N-SPEC(7QV) 		8-97364-886-1 01 1 0304-0501 ●
8 02.480 HARNESS; FRAME,FRT
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) 		8-98051-182-0 01 1 0610-1404 ●
8 02.480 HARNESS; FRAME,FRT
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) EXC. VIN MODEL YEAR 2014(VZE) 		8-98051-182-0 01 1 1405-1405 ●
8 02.480 HARNESS; FRAME,FRT
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) EXC. VIN MODEL YEAR 2015(VZF) 		8-98051-182-0 01 1 1406- ●
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) AUSTRALIA EQUIPMENT(RR3) 		8-97357-067-1 01 1 0211-0211 ●
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) AUSTRALIA EQUIPMENT(RR3) 		8-97362-337-1 01 1 0212-0501 ●
13 02.525 HARNESS; ENG
4HG1-T ENG(RDP) GLOW SYSTEM DELETE<7RK> EXC. INDONESIA EQUIPMENT(S4S),VIN MODEL YEAR 2015(VZF) 		8-97360-784-1 01 1 1406- ●
13 02.525 HARNESS; ENG
4HG1-T ENG(RDP) VIN MODEL YEAR 2015(VZF) 		8-98298-790-0 01 1 1411- ●
13 02.525 HARNESS; ENG
4HG1-T ENG(RDP) FAST GLOW SYSTEM<KM6> 		8-97360-767-1 01 1 1004- ●
13 02.525 HARNESS; ENG
4JB1-TC ENG(RDT) 		8-97218-750-1 01 1 0610-0712 ●
13 02.525 HARNESS; ENG
4JB1-TC ENG(RDT) 		8-97218-750-1 01 1 0801- ● ●
13 02.525 HARNESS; ENG
4JB1 ENG(RLF) 		8-97173-694-1 01 1 0211-0501 ● ● ● ● ●
13 02.525 HARNESS; ENG
4JB1 ENG(RLF) 		8-97173-694-2 01 1 0502- ● ● ●
13 02.525 HARNESS; ENG
4HF1-S ENG(RLS) 		8-97356-988-0 01 1 0211-0302 ● ● ●
13 02.525 HARNESS; ENG
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 		8-97356-988-0 01 1 0303-0501 ● ● ●
13 02.525 HARNESS; ENG
4HG1 ENG(RJH) 		8-97356-988-1 01 1 0502-1404 ●
13 02.525 HARNESS; ENG
4HG1-T ENG(RDP),4HG1 ENG(RJH) 		8-97356-988-1 01 1 1405-1405 ●
13 02.525 HARNESS; ENG
4HG1 ENG(RJH) 		8-97356-988-1 01 1 1406-1410 ●
13 02.525 HARNESS; ENG
4HG1-T ENG(RDP) VIN MODEL YEAR 2015(VZF) 		8-97356-988-1 01 1 1406-1410 ●
13 02.525 HARNESS; ENG
4HG1 ENG(RJH) 		8-97356-988-1 01 1 1411- ●
13 02.525 HARNESS; ENG
4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97356-991-0 01 1 0211-0302 ● ● ● ●
13 02.525 HARNESS; ENG
4HG1 ENG(RJH) 		8-97356-991-0 01 1 0211-0302 ●
13 02.525 HARNESS; ENG
4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97356-991-0 01 1 0303-0501 ● ● ● ●
13 02.525 HARNESS; ENG
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 		8-97356-991-0 01 1 0502- ● ● ● ●
13 02.525 HARNESS; ENG
4JH1 ENG(RJX) GENERATOR 12V80A(K97) 		8-97261-132-4 01 1 0211-0501 ● ● ● ●
13 02.525 HARNESS; ENG
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) 		8-97261-132-4 01 1 0211-0501 ● ● ●
13 02.525 HARNESS; ENG
4JH1-TC ENG(RDM) GENERATOR 12V80A(K97) EXC. HONG KONG EQUIPMENT(PQ1) 		8-97261-132-6 01 1 0502-0506 ● ● ●
13 02.525 HARNESS; ENG
4JH1-TC ENG(RDM) HONG KONG EQUIPMENT(PQ1) 		8-97261-132-6 01 1 0502-0506 ● ●
13 02.525 HARNESS; ENG
4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) GENERATOR 12V80A(K97) POWER STEERING<N40> EXC. HONG KONG EQUIPMENT(PQ1) 		8-97261-132-6 01 1 0507-0507 ● ●
13 02.525 HARNESS; ENG
4JH1-TC ENG(RDM) HONG KONG EQUIPMENT(PQ1) 		8-97261-132-6 01 1 0507-0507 ● ●
13 02.525 HARNESS; ENG
HEATER & DEFROSTER(C41) GENERATOR 12V80A(K97) 		8-97261-132-6 01 1 0507-0507 ●
13 02.525 HARNESS; ENG
4JH1-TC ENG(RDM) GENERATOR 12V80A(K97) EXC. HONG KONG EQUIPMENT(PQ1) 		8-97261-132-6 01 1 0507- ● ● ●
13 02.525 HARNESS; ENG
4JH1-TC ENG(RDM) HONG KONG EQUIPMENT(PQ1) 		8-97261-132-6 01 1 0507- ● ●
13 02.525 HARNESS; ENG
4JH1 ENG(RJX) EXC. GENERATOR 12V80A(K97),HONG KONG EQUIPMENT(PQ1) 		8-97240-032-5 01 1 0211-0501 ● ● ● ●
13 02.525 HARNESS; ENG
4JH1-TC ENG(RDM) EXC. GENERATOR 12V80A(K97),HONG KONG EQUIPMENT(PQ1) 		8-97240-032-7 01 1 0502-0506 ● ●
13 02.525 HARNESS; ENG
4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) POWER STEERING<N40> EXC. GENERATOR 12V80A(K97),HONG KONG EQUIPMENT(PQ1) 		8-97240-032-7 01 1 0507-0507 ● ●
13 02.525 HARNESS; ENG
HEATER & DEFROSTER(C41) EXC. GENERATOR 12V80A(K97) 		8-97240-032-7 01 1 0507-0507 ●
13 02.525 HARNESS; ENG
4JH1-TC ENG(RDM) EXC. GENERATOR 12V80A(K97),HONG KONG EQUIPMENT(PQ1) 		8-97240-032-7 01 1 0507- ● ●
13 02.525 HARNESS; ENG
4HF1-S ENG(RLS) FRAME-KICK UP<7EW> 		8-97356-990-0 01 1 0211-0501 ●
13 02.525 HARNESS; ENG
4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> 		8-97356-990-0 01 1 0502- ●
13 02.525 HARNESS; ENG
4HG1-T ENG(RDP) 		8-97360-784-1 01 1 0610-1302 ●
13 02.525 HARNESS; ENG
4HG1-T ENG(RDP) 		8-98211-412-0 01 1 1303-1404 ●
13 02.525 HARNESS; ENG
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) EXC. VIN MODEL YEAR 2015(VZF) 		8-98211-412-0 01 1 1405- ●
329 02.480 CABLE; ENG TO FRAME
4HG1-T ENG(RDP) 		8-97520-927-0 01 1 1506- ●
329 02.480 CABLE; ENG TO FRAME
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97177-383-0 01 1 0211-0501 ● ● ● ●
329 02.480 CABLE; ENG TO FRAME
4HF1-N ENG(RJZ) 		8-97177-383-0 01 1 0502-0609 ● ● ● ●
329 02.480 CABLE; ENG TO FRAME
4HF1-N ENG(RJZ) 		8-97177-383-0 01 1 0610-1405 ● ●
329 02.480 CABLE; ENG TO FRAME
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-97177-383-0 01 1 0610-1405 ●
329 02.480 CABLE; ENG TO FRAME
4JH1-TC ENG(RDM) 		8-97177-383-0 01 1 0610-1405 ●
329 02.480 CABLE; ENG TO FRAME
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-97177-383-0 01 1 1406-1505 ● ● ● ●
329 02.480 CABLE; ENG TO FRAME
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-97177-383-0 01 1 1506- ● ● ● ●
329 02.480 CABLE; ENG TO FRAME
4HG1-T ENG(RDP) EXC. INDONESIA EQUIPMENT(S4S),VIN MODEL YEAR 2015(VZF) 		8-97177-383-0 01 1 1506- ●
329 02.480 CABLE; ENG TO FRAME
4JB1 ENG(RLF) 		8-97260-486-1 01 1 0211-0501 ● ● ● ●
329 02.480 CABLE; ENG TO FRAME 8-97260-486-1 01 1 0211-0501 ●
329 02.480 CABLE; ENG TO FRAME
4JB1 ENG(RLF) 		8-97260-486-1 01 1 0502-0609 ● ● ●
329 02.480 CABLE; ENG TO FRAME
4JB1-TC ENG(RDT),4JB1 ENG(RLF) 		8-97260-486-1 01 1 0610-0712 ●
329 02.480 CABLE; ENG TO FRAME
4JB1 ENG(RLF) 		8-97260-486-1 01 1 0610-0712 ● ●
329 02.480 CABLE; ENG TO FRAME
4JB1-TC ENG(RDT),4JB1 ENG(RLF) 		8-97260-486-1 01 1 0801- ● ●
329 02.480 CABLE; ENG TO FRAME
4JB1 ENG(RLF) 		8-97260-486-1 01 1 0801- ●
329 02.480 CABLE; ENG TO FRAME
4JH1 ENG(RJX) 		8-97305-771-0 01 1 0211-0501 ● ● ● ●
329 02.480 CABLE; ENG TO FRAME
4JH1-TC ENG(RDM) 		8-97305-771-0 01 1 0502- ● ●
329 02.480 CABLE; ENG TO FRAME 8-97305-771-0 01 1 0502- ●
416 02.559 NUT; TERMINAL
4HF1-S ENG(RLS) 02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 0211-0501 ● ●
416 02.559 NUT; TERMINAL
4HG1 ENG(RJH),4HF1-S ENG(RLS) 02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 0211-0501 ●
416 02.559 NUT; TERMINAL
02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 0211-0501 ●
416 02.559 NUT; TERMINAL
4HF1-N ENG(RJZ) 02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 0502-0609 ● ●
416 02.559 NUT; TERMINAL
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 0502-0609 ●
416 02.559 NUT; TERMINAL
02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 0502-0609 ●
416 02.559 NUT; TERMINAL
4HF1-N ENG(RJZ) 02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 0610- ● ●
416 02.559 NUT; TERMINAL
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 0610- ●
416 02.559 NUT; TERMINAL
02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 0610- ●
441 02.480 HARNESS; CABLE,SPEED SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97308-220-4 01 1 0502- ● ●
441 02.480 HARNESS; CABLE,SPEED SENSOR 8-97308-224-2 01 1 0502- ●
575 02.525 HARNESS; GLOW PLUG
4JH1 ENG(RJX) 		8-97212-328-0 01 1 0211-0501 ● ● ● ●
575 02.525 HARNESS; GLOW PLUG
4JH1-TC ENG(RDM) 		8-97212-328-0 01 1 0502-0609 ● ● ●
575 02.525 HARNESS; GLOW PLUG
4JB1-TC ENG(RDT) 		8-97212-328-0 01 1 0610-0712 ●
575 02.525 HARNESS; GLOW PLUG
4JH1-TC ENG(RDM) 		8-97212-328-0 01 1 0610-0712 ● ● ●
575 02.525 HARNESS; GLOW PLUG
4JB1-TC ENG(RDT) 		8-97212-328-0 01 1 0801- ●
575 02.525 HARNESS; GLOW PLUG
4JH1-TC ENG(RDM) 		8-97212-328-0 01 1 0801- ● ●
575 02.525 HARNESS; GLOW PLUG
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT) 		8-97212-328-0 01 1 0801- ●
630 02.559 CONNECTOR; SHORT,ABS 8-97258-073-0 01 1 0502- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
