Sayfa 8-03 - Isuzu EPC

8-03 — LAMP; REAR AND REAR SIDE (#48154) — 193 parça

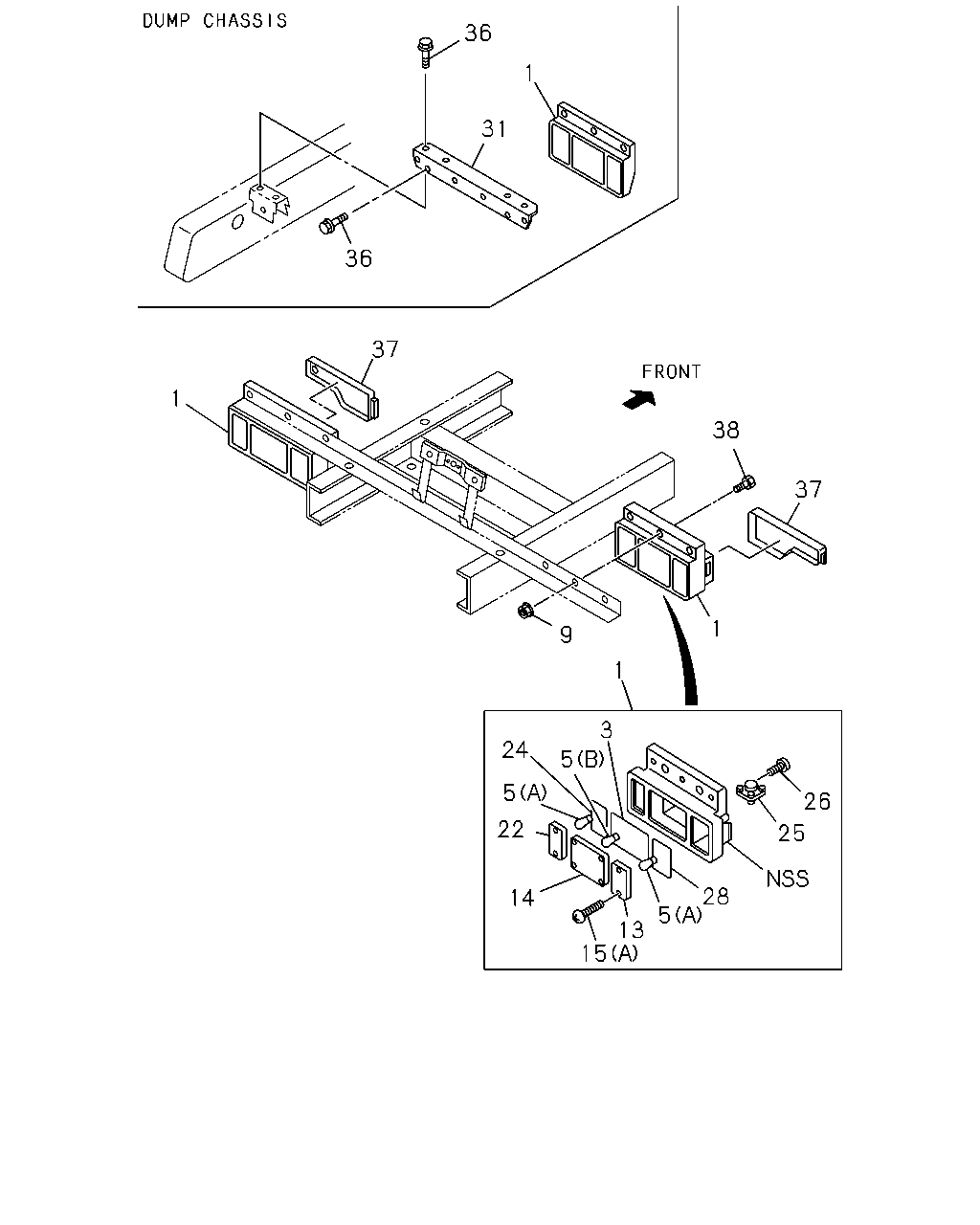

36 1 31 36 37 1 38 37 1 9 1 3 24 5 5 26 22 25 28 14 5 13 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	02.679 LAMP ASM; RR COMB BACK BUZZER<YM9> VOLTAGE 24V<7AE>	8-98120-440-0	01	1	0807-	●	●
1	02.679 LAMP ASM; RR COMB REAR WIDE TREAD(V4T) BACK BUZZER<YM9> VOLTAGE 24V<7AE> EXC. SPARE TIRE CARRIER INSIDE MOUNTE D<P15>,DUMP CHASSIS(V4D)	8-98120-440-0	01	1	0807-			●
1	02.679 LAMP ASM; RR COMB BACK BUZZER<YM9> VOLTAGE 24V<7AE> EXC. DUMP CHASSIS(V4D),REAR WIDE TREAD(V4T)	8-98120-440-0	01	1	0807-			●
1	02.679 LAMP ASM; RR COMB BACK BUZZER<YM9>	8-98120-440-0	01	1	0807-				●
1	02.679 LAMP ASM; RR COMB BACK BUZZER<YM9> EXC. VOLTAGE 24V<7AE>	8-98120-439-0	01	1	0807-	●	●
1	02.679 LAMP ASM; RR COMB REAR WIDE TREAD(V4T) BACK BUZZER<YM9> EXC. SPARE TIRE CARRIER INSIDE MOUNTE D<P15>,DUMP CHASSIS(V4D),VOLTAGE 24V<7AE>	8-98120-439-0	01	1	0807-			●
1	02.679 LAMP ASM; RR COMB BACK BUZZER<YM9> EXC. DUMP CHASSIS(V4D),REAR WIDE TREAD(V4T),VOLTAGE 24V<7AE>	8-98120-439-0	01	1	0807-			●
1	02.679 LAMP ASM; RR COMB	8-98120-439-0	01	1	0807-					●
1	02.679 LAMP ASM; RR COMB VOLTAGE 24V<7AE>	8-98034-325-0	01	1	0807-	●	●
1	02.679 LAMP ASM; RR COMB REAR WIDE TREAD(V4T) VOLTAGE 24V<7AE> EXC. SPARE TIRE CARRIER INSIDE MOUNTE D<P15>,DUMP CHASSIS(V4D)	8-98034-325-0	01	1	0807-			●
1	02.679 LAMP ASM; RR COMB VOLTAGE 24V<7AE> EXC. DUMP CHASSIS(V4D),REAR WIDE TREAD(V4T)	8-98034-325-0	01	1	0807-			●
1	02.679 LAMP ASM; RR COMB	8-98034-325-0	01	1	0807-				●
1	02.679 LAMP ASM; RR COMB VOLTAGE 24V<7AE> EXC. BACK BUZZER<YM9>	8-98034-324-0	01	1	0807-	●	●
1	02.679 LAMP ASM; RR COMB REAR WIDE TREAD(V4T) VOLTAGE 24V<7AE> EXC. SPARE TIRE CARRIER INSIDE MOUNTE D<P15>,DUMP CHASSIS(V4D),BACK BUZZER<YM9>	8-98034-324-0	01	1	0807-			●
1	02.679 LAMP ASM; RR COMB VOLTAGE 24V<7AE> EXC. DUMP CHASSIS(V4D),REAR WIDE TREAD(V4T),BACK BUZZER<YM9>	8-98034-324-0	01	1	0807-			●
1	02.679 LAMP ASM; RR COMB EXC. BACK BUZZER<YM9>	8-98034-324-0	01	1	0807-				●
1	02.679 LAMP ASM; RR COMB EXC. BACK BUZZER<YM9>,VOLTAGE 24V<7AE>	8-98072-024-0	01	1	0807-	●	●
1	02.679 LAMP ASM; RR COMB REAR WIDE TREAD(V4T) EXC. SPARE TIRE CARRIER INSIDE MOUNTE D<P15>,DUMP CHASSIS(V4D),BACK BUZZER<YM9>,VOLTAGE 24V<7AE>	8-98072-024-0	01	1	0807-			●
1	02.679 LAMP ASM; RR COMB EXC. DUMP CHASSIS(V4D),REAR WIDE TREAD(V4T),BACK BUZZER<YM9>,VOLTAGE 24V<7AE>	8-98072-024-0	01	1	0807-			●
1	02.679 LAMP ASM; RR COMB EXC. VOLTAGE 24V<7AE>	8-98072-025-0	01	1	0807-	●	●
1	02.679 LAMP ASM; RR COMB REAR WIDE TREAD(V4T) EXC. SPARE TIRE CARRIER INSIDE MOUNTE D<P15>,DUMP CHASSIS(V4D),VOLTAGE 24V<7AE>	8-98072-025-0	01	1	0807-			●
1	02.679 LAMP ASM; RR COMB EXC. DUMP CHASSIS(V4D),REAR WIDE TREAD(V4T),VOLTAGE 24V<7AE>	8-98072-025-0	01	1	0807-			●
1	02.679 LAMP ASM; RR COMB	8-98072-025-0	01	1	0807-					●
1	02.679 LAMP ASM; RR COMB BACK BUZZER<YM9> VOLTAGE 24V<7AE>	8-97213-370-0	01	1	0211-0806	●	●	●
1	02.679 LAMP ASM; RR COMB BACK BUZZER<YM9>	8-97213-370-0	01	1	0211-0806				●
1	02.679 LAMP ASM; RR COMB SPARE TIRE CARRIER INSIDE MOUNTED<P15> REAR WIDE TREAD(V4T) BACK BUZZER<YM9> VOLTAGE 24V<7AE> EXC. DUMP CHASSIS(V4D)	8-97213-370-0	01	1	0807-			●
1	02.679 LAMP ASM; RR COMB DUMP CHASSIS(V4D) BACK BUZZER<YM9> VOLTAGE 24V<7AE>	8-97213-370-0	01	1	0807-			●
1	02.679 LAMP ASM; RR COMB BACK BUZZER<YM9> EXC. VOLTAGE 24V<7AE>	8-97213-353-0	01	1	0211-0501	●	●	●
1	02.679 LAMP ASM; RR COMB BACK BUZZER<YM9>	8-97213-353-0	01	1	0211-0501					●	●
1	02.679 LAMP ASM; RR COMB BACK BUZZER<YM9> EXC. VOLTAGE 24V<7AE>	8-97213-353-0	01	1	0502-0806	●	●	●
1	02.679 LAMP ASM; RR COMB	8-97213-353-0	01	1	0502-0806					●
1	02.679 LAMP ASM; RR COMB SPARE TIRE CARRIER INSIDE MOUNTED<P15> REAR WIDE TREAD(V4T) BACK BUZZER<YM9> EXC. DUMP CHASSIS(V4D),VOLTAGE 24V<7AE>	8-97213-353-0	01	1	0807-			●
1	02.679 LAMP ASM; RR COMB DUMP CHASSIS(V4D) BACK BUZZER<YM9> EXC. VOLTAGE 24V<7AE>	8-97213-353-0	01	1	0807-			●
1	02.679 LAMP ASM; RR COMB EXC. BACK BUZZER<YM9>,VOLTAGE 24V<7AE>	8-97213-351-0	01	1	0211-0501	●	●	●
1	02.679 LAMP ASM; RR COMB EXC. BACK BUZZER<YM9>	8-97213-351-0	01	1	0211-0501					●	●
1	02.679 LAMP ASM; RR COMB EXC. BACK BUZZER<YM9>,VOLTAGE 24V<7AE>	8-97213-351-0	01	1	0502-0806	●	●	●
1	02.679 LAMP ASM; RR COMB SPARE TIRE CARRIER INSIDE MOUNTED<P15> REAR WIDE TREAD(V4T) EXC. DUMP CHASSIS(V4D),BACK BUZZER<YM9>,VOLTAGE 24V<7AE>	8-97213-351-0	01	1	0807-			●
1	02.679 LAMP ASM; RR COMB DUMP CHASSIS(V4D) EXC. BACK BUZZER<YM9>,VOLTAGE 24V<7AE>	8-97213-351-0	01	1	0807-			●
1	02.679 LAMP ASM; RR COMB VOLTAGE 24V<7AE>	8-97213-369-0	01	1	0211-0806	●	●	●
1	02.679 LAMP ASM; RR COMB	8-97213-369-0	01	1	0211-0806				●
1	02.679 LAMP ASM; RR COMB SPARE TIRE CARRIER INSIDE MOUNTED<P15> REAR WIDE TREAD(V4T) VOLTAGE 24V<7AE> EXC. DUMP CHASSIS(V4D)	8-97213-369-0	01	1	0807-			●
1	02.679 LAMP ASM; RR COMB DUMP CHASSIS(V4D) VOLTAGE 24V<7AE>	8-97213-369-0	01	1	0807-			●
1	02.679 LAMP ASM; RR COMB VOLTAGE 24V<7AE> EXC. BACK BUZZER<YM9>	8-97213-368-0	01	1	0211-0806	●	●	●
1	02.679 LAMP ASM; RR COMB EXC. BACK BUZZER<YM9>	8-97213-368-0	01	1	0211-0806				●
1	02.679 LAMP ASM; RR COMB SPARE TIRE CARRIER INSIDE MOUNTED<P15> REAR WIDE TREAD(V4T) VOLTAGE 24V<7AE> EXC. DUMP CHASSIS(V4D),BACK BUZZER<YM9>	8-97213-368-0	01	1	0807-			●
1	02.679 LAMP ASM; RR COMB DUMP CHASSIS(V4D) VOLTAGE 24V<7AE> EXC. BACK BUZZER<YM9>	8-97213-368-0	01	1	0807-			●
1	02.679 LAMP ASM; RR COMB EXC. VOLTAGE 24V<7AE>	8-97213-352-0	01	1	0211-0501	●	●	●
1	02.679 LAMP ASM; RR COMB	8-97213-352-0	01	1	0211-0501					●	●
1	02.679 LAMP ASM; RR COMB EXC. VOLTAGE 24V<7AE>	8-97213-352-0	01	1	0502-0806	●	●	●
1	02.679 LAMP ASM; RR COMB	8-97213-352-0	01	1	0502-0806					●
1	02.679 LAMP ASM; RR COMB SPARE TIRE CARRIER INSIDE MOUNTED<P15> REAR WIDE TREAD(V4T) EXC. DUMP CHASSIS(V4D),VOLTAGE 24V<7AE>	8-97213-352-0	01	1	0807-			●
1	02.679 LAMP ASM; RR COMB DUMP CHASSIS(V4D) EXC. VOLTAGE 24V<7AE>	8-97213-352-0	01	1	0807-			●
3	02.684 GASKET; RR COMB LAMP	8-94257-505-0	02	1	0211-	●	●	●	●	●	●
5	08.991 BULB; RR COMB LAMP VOLTAGE 24V<7AE> EXC. DUMP CHASSIS(V4D),REAR WIDE TREAD(V4T),BACK BUZZER<YM9> (A) 24V 21W	1-82194-108-0	02	1	0807-	●	●	●	●
5	08.991 BULB; RR COMB LAMP VOLTAGE 24V<7AE> EXC. DUMP CHASSIS(V4D),REAR WIDE TREAD(V4T) (A) 24V 21W	1-82194-108-0	02	1	0807-	●	●	●	●
5	08.991 BULB; RR COMB LAMP REAR WIDE TREAD(V4T) VOLTAGE 24V<7AE> EXC. SPARE TIRE CARRIER INSIDE MOUNTE D<P15>,DUMP CHASSIS(V4D),BACK BUZZER<YM9> (A) 24V 21W	1-82194-108-0	02	1	0807-	●	●	●	●
5	08.991 BULB; RR COMB LAMP REAR WIDE TREAD(V4T) VOLTAGE 24V<7AE> EXC. SPARE TIRE CARRIER INSIDE MOUNTE D<P15>,DUMP CHASSIS(V4D) (A) 24V 21W	1-82194-108-0	02	1	0807-	●	●	●	●
5	08.991 BULB; RR COMB LAMP VOLTAGE 24V<7AE> EXC. DUMP CHASSIS(V4D),REAR WIDE TREAD(V4T),BACK BUZZER<YM9> (B) 24V 21/5W	1-82194-109-0	01	1	0807-	●	●	●	●
5	08.991 BULB; RR COMB LAMP VOLTAGE 24V<7AE> EXC. DUMP CHASSIS(V4D),REAR WIDE TREAD(V4T) (B) 24V 21/5W	1-82194-109-0	01	1	0807-	●	●	●	●
5	08.991 BULB; RR COMB LAMP REAR WIDE TREAD(V4T) VOLTAGE 24V<7AE> EXC. SPARE TIRE CARRIER INSIDE MOUNTE D<P15>,DUMP CHASSIS(V4D),BACK BUZZER<YM9> (B) 24V 21/5W	1-82194-109-0	01	1	0807-	●	●	●	●
5	08.991 BULB; RR COMB LAMP REAR WIDE TREAD(V4T) VOLTAGE 24V<7AE> EXC. SPARE TIRE CARRIER INSIDE MOUNTE D<P15>,DUMP CHASSIS(V4D) (B) 24V 21/5W	1-82194-109-0	01	1	0807-	●	●	●	●
5	08.991 BULB; RR COMB LAMP VOLTAGE 24V<7AE> (A) 24V 21W	1-82194-036-0	04	1	0211-0806	●	●	●
5	08.991 BULB; RR COMB LAMP (A) 24V 21W	1-82194-036-0	04	1	0211-0806				●
5	08.991 BULB; RR COMB LAMP VOLTAGE 24V<7AE> (B) 24V 21/5W	1-82194-038-0	02	1	0211-0806	●	●	●
5	08.991 BULB; RR COMB LAMP (B) 24V 21/5W	1-82194-038-0	02	1	0211-0806				●
5	08.991 BULB; RR COMB LAMP EXC. VOLTAGE 24V<7AE> (A) 12V 21W	8-94124-074-0	04	1	0211-	●	●	●
5	08.991 BULB; RR COMB LAMP (A) 12V 21W	8-94124-074-0	04	1	0211-					●	●
5	08.991 BULB; RR COMB LAMP EXC. VOLTAGE 24V<7AE> (B) 12V 21/5W	8-94125-959-0	02	1	0211-	●	●	●
5	08.991 BULB; RR COMB LAMP (B) 12V 21/5W	8-94125-959-0	02	1	0211-					●	●
5	08.991 BULB; RR COMB LAMP SPARE TIRE CARRIER INSIDE MOUNTED<P15> REAR WIDE TREAD(V4T) VOLTAGE 24V<7AE> EXC. DUMP CHASSIS(V4D) (A) 24V 21W	1-82194-036-0	02	1	0807-	●	●	●	●
5	08.991 BULB; RR COMB LAMP SPARE TIRE CARRIER INSIDE MOUNTED<P15> REAR WIDE TREAD(V4T) VOLTAGE 24V<7AE> EXC. DUMP CHASSIS(V4D) (A) 24V 21W	1-82194-036-0	02	1	0807-	●	●	●	●
5	08.991 BULB; RR COMB LAMP DUMP CHASSIS(V4D) VOLTAGE 24V<7AE> (A) 24V 21W	1-82194-036-0	02	1	0807-	●	●	●	●
5	08.991 BULB; RR COMB LAMP DUMP CHASSIS(V4D) VOLTAGE 24V<7AE> (A) 24V 21W	1-82194-036-0	02	1	0807-	●	●	●	●
5	08.991 BULB; RR COMB LAMP SPARE TIRE CARRIER INSIDE MOUNTED<P15> BACK BUZZER<YM9> VOLTAGE 24V<7AE> EXC. DUMP CHASSIS(V4D),REAR WIDE TREAD(V4T) (A) 24V 21W	1-82194-036-0	02	1	0807-	●	●	●	●
5	08.991 BULB; RR COMB LAMP BACK BUZZER<YM9> VOLTAGE 24V<7AE> EXC. SPARE TIRE CARRIER INSIDE MOUNTE D<P15>,DUMP CHASSIS(V4D) (A) 24V 21W	1-82194-036-0	02	1	0807-	●	●	●	●
5	08.991 BULB; RR COMB LAMP SPARE TIRE CARRIER INSIDE MOUNTED<P15> REAR WIDE TREAD(V4T) VOLTAGE 24V<7AE> EXC. DUMP CHASSIS(V4D) (B) 24V 21/5W	1-82194-038-0	01	1	0807-	●	●	●	●
5	08.991 BULB; RR COMB LAMP SPARE TIRE CARRIER INSIDE MOUNTED<P15> REAR WIDE TREAD(V4T) VOLTAGE 24V<7AE> EXC. DUMP CHASSIS(V4D) (B) 24V 21/5W	1-82194-038-0	01	1	0807-	●	●	●	●
5	08.991 BULB; RR COMB LAMP DUMP CHASSIS(V4D) VOLTAGE 24V<7AE> (B) 24V 21/5W	1-82194-038-0	01	1	0807-	●	●	●	●
5	08.991 BULB; RR COMB LAMP DUMP CHASSIS(V4D) VOLTAGE 24V<7AE> (B) 24V 21/5W	1-82194-038-0	01	1	0807-	●	●	●	●
5	08.991 BULB; RR COMB LAMP SPARE TIRE CARRIER INSIDE MOUNTED<P15> BACK BUZZER<YM9> VOLTAGE 24V<7AE> EXC. DUMP CHASSIS(V4D),REAR WIDE TREAD(V4T) (B) 24V 21/5W	1-82194-038-0	01	1	0807-	●	●	●	●
5	08.991 BULB; RR COMB LAMP BACK BUZZER<YM9> VOLTAGE 24V<7AE> EXC. SPARE TIRE CARRIER INSIDE MOUNTE D<P15>,DUMP CHASSIS(V4D) (B) 24V 21/5W	1-82194-038-0	01	1	0807-	●	●	●	●
9	02.689 NUT; LAMP,RR COMB EXC. RR BODY FLAT BED(RS6) 07.829 M6 FLANGE	5-09440-004-0	06	1	0211-0501	●	●
9	02.689 NUT; LAMP,RR COMB EXC. RR BODY NON FLAT BED(RS5) 07.829 M6 FLANGE	5-09440-004-0	06	1	0211-0501						●
9	02.689 NUT; LAMP,RR COMB EXC. DUMP CHASSIS(V4D) 07.829 M6 FLANGE	5-09440-004-0	06	1	0211-0501			●
9	02.689 NUT; LAMP,RR COMB 07.829 M6 FLANGE	5-09440-004-0	06	1	0211-0501				●	●
9	02.689 NUT; LAMP,RR COMB 07.829 M6 FLANGE	5-09440-004-0	06	1	0502-	●	●		●	●
9	02.689 NUT; LAMP,RR COMB EXC. DUMP CHASSIS(V4D) 07.829 M6 FLANGE	5-09440-004-0	06	1	0502-			●
13	02.682 LENS; TURN SIGNAL	8-94174-639-0	01	1	0211-0501	●	●	●	●	●	●
13	02.682 LENS; TURN SIGNAL	8-94174-639-0	01	1	0502-	●	●	●	●	●
13	02.682 LENS; TURN SIGNAL	8-94174-638-0	01	1	0211-0501	●	●	●	●	●	●
13	02.682 LENS; TURN SIGNAL	8-94174-638-0	01	1	0502-	●	●	●	●	●
14	02.682 LENS; TAIL & STOP,RR COMB LAMP	8-94178-625-0	01	1	0211-0501	●	●	●	●	●	●
14	02.682 LENS; TAIL & STOP,RR COMB LAMP	8-94178-625-0	01	1	0502-	●	●	●	●	●
14	02.682 LENS; TAIL & STOP,RR COMB LAMP	8-94178-624-0	01	1	0211-0501	●	●	●	●	●	●
14	02.682 LENS; TAIL & STOP,RR COMB LAMP	8-94178-624-0	01	1	0502-	●	●	●	●	●
15	02.664 SCREW; RR COMB LAMP 08.977 (A) M4X20 TAPPING STAINLESS	0-71190-420-0	16	1	0211-	●	●	●	●	●	●
15	02.664 SCREW; RR COMB LAMP RR BODY NON FLAT BED(RS5),RR BODY FLAT BED(RS6) EXC. AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) 14.550 (B) M5X20	9-93490-520-0	02	1	0211-0501	●	●				●
22	02.697 LENS; BACKUP,RR COMB LAMP CLEAR	8-94257-512-1	02	1	0211-	●	●	●	●	●	●
24	02.697 GASKET; BACK,LAMP	8-94257-506-0	02	1	0211-	●	●	●	●	●	●
25	02.810 HORN ASM; BACK BACK BUZZER<YM9>	8-94257-518-0	01	1	0211-0501	●	●	●	●	●	●
25	02.810 HORN ASM; BACK BACK BUZZER<YM9>	8-94257-518-0	01	1	0502-	●	●	●	●
25	02.810 HORN ASM; BACK	8-94257-518-0	01	1	0502-					●
26	02.812 SCREW; BACK HORN 09.655 M4X14 TAPPING	9-07076-414-0	01	1	0211-0501	●	●	●	●	●	●
26	02.812 SCREW; BACK HORN 09.655 M4X14 TAPPING	9-07076-414-0	01	1	0502-	●	●	●	●	●
26	02.812 SCREW; BACK HORN BACK BUZZER<YM9> 02.688 M4X12 TAPPING	9-07076-412-0	02	1	0211-0501	●	●	●	●	●	●
26	02.812 SCREW; BACK HORN BACK BUZZER<YM9> 02.688 M4X12 TAPPING	9-07076-412-0	02	1	0502-	●	●	●	●
26	02.812 SCREW; BACK HORN 02.688 M4X12 TAPPING	9-07076-412-0	02	1	0502-					●
26	02.812 SCREW; BACK HORN EXC. BACK BUZZER<YM9> 02.688 M4X12 TAPPING	9-07076-412-0	01	1	0211-0501	●	●	●	●	●	●
26	02.812 SCREW; BACK HORN EXC. BACK BUZZER<YM9> 02.688 M4X12 TAPPING	9-07076-412-0	01	1	0502-	●	●	●	●
28	02.684 GASKET; TURN,LAMP	8-94257-507-0	02	1	0211-	●	●	●	●	●	●
31	02.664 BRACKET; RR COMB LAMP DUMP CHASSIS(V4D)	8-94116-145-2	02	1	0211-			●
36	02.664 BOLT; BRKT,RR COMB DUMP CHASSIS(V4D)	0-51040-820-0	06	1	0211-0512			●
36	02.664 BOLT; BRKT,RR COMB DUMP CHASSIS(V4D)	0-51540-820-0	06	1	0601-			●
37	02.680 COVER; RR COMB LAMP	8-94129-274-4	01	1	0211-0501	●	●	●	●	●	●
37	02.680 COVER; RR COMB LAMP	8-94129-274-4	01	1	0502-	●	●	●	●	●
37	02.680 COVER; RR COMB LAMP	8-94128-858-4	01	1	0211-0501	●	●	●	●	●	●
37	02.680 COVER; RR COMB LAMP	8-94128-858-4	01	1	0502-	●	●	●	●	●
38	02.689 BOLT; LAMP,RR COMB 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) SPECIAL PACKAGE<7BB> 02.664 M6X20	8-94402-623-0	04	1	1402-1405	●	●
38	02.689 BOLT; LAMP,RR COMB 4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) VIN MODEL YEAR 2012(VZC) SPECIAL PACKAGE<7BB> 02.664 M6X20	8-94402-623-0	04	1	1402-1405		●
38	02.689 BOLT; LAMP,RR COMB 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) SPECIAL PACKAGE<7BB> 02.664 M6X20	8-94402-623-0	04	1	1406-	●	●
38	02.689 BOLT; LAMP,RR COMB 4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) SPECIAL PACKAGE<7BB> 02.664 M6X20	8-94402-623-0	04	1	1406-		●
38	02.689 BOLT; LAMP,RR COMB 02.664 M6X20	8-94402-623-0	06	1	0211-0501	●	●	●	●	●	●
38	02.689 BOLT; LAMP,RR COMB 02.664 M6X20	8-94402-623-0	06	1	0502-	●	●	●	●	●

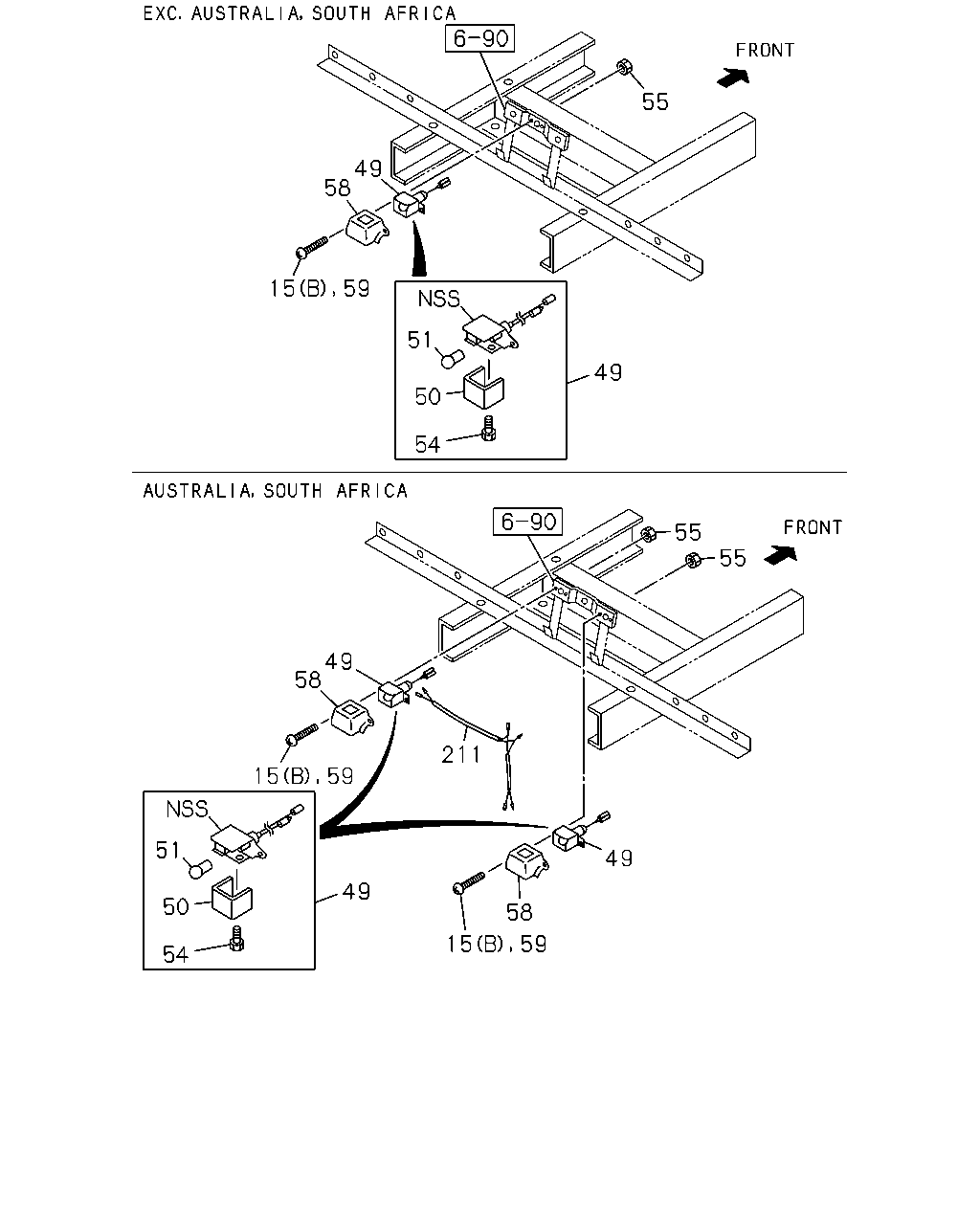

55 49 58 51 49 50 54 55 55 49 58 211 51 49 49 50 58 54 15 59 15 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
15	02.664 SCREW; RR COMB LAMP 08.977 (A) M4X20 TAPPING STAINLESS	0-71190-420-0	16	1	0211-	●	●	●	●	●	●
15	02.664 SCREW; RR COMB LAMP RR BODY NON FLAT BED(RS5),RR BODY FLAT BED(RS6) EXC. AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) 14.550 (B) M5X20	9-93490-520-0	02	1	0211-0501	●	●				●
49	02.700 LAMP; LICENSE PLATE EXC. AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2),VOLTAGE 24V<7AE> 12V 10W	5-82120-020-0	01	1	0211-0501	●	●	●		●	●
49	02.700 LAMP; LICENSE PLATE EXC. AUSTRALIA EQUIPMENT(RR3), VOLTAGE24V<7AE> 12V 10W	5-82120-020-0	01	1	0502-	●	●	●
49	02.700 LAMP; LICENSE PLATE VOLTAGE 24V<7AE> EXC. AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) 24V 12W	5-82120-021-0	01	1	0211-0501	●	●	●	●
49	02.700 LAMP; LICENSE PLATE VOLTAGE 24V<7AE> EXC. AUSTRALIA EQUIPMENT(RR3) 24V 12W	5-82120-021-1	01	1	0502-	●	●	●	●
49	02.700 LAMP; LICENSE PLATE AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICAEQUIPMENT(SW2) VOLTAGE 24V<7AE> 24V 5W	8-97105-380-0	02	1	0211-0501		●	●
49	02.700 LAMP; LICENSE PLATE AUSTRALIA EQUIPMENT(RR3) VOLTAGE 24V<7AE> 24V 5W	8-97105-380-0	02	1	0502-1509		●	●
49	02.700 LAMP; LICENSE PLATE AUSTRALIA EQUIPMENT(RR3) VOLTAGE 24V<7AE> 24V 5W	8-98329-430-0	02	1	1510-		●	●
49	02.700 LAMP; LICENSE PLATE AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICAEQUIPMENT(SW2) EXC. VOLTAGE 24V<7AE> 12V 5W	8-97105-382-0	02	1	0211-0501		●	●		●
49	02.700 LAMP; LICENSE PLATE AUSTRALIA EQUIPMENT(RR3) EXC. VOLTAGE 24V<7AE> 12V 5W	8-97105-382-0	02	1	0502-1509		●	●
49	02.700 LAMP; LICENSE PLATE 12V 5W	8-97105-382-0	02	1	0502-1509					●
49	02.700 LAMP; LICENSE PLATE AUSTRALIA EQUIPMENT(RR3) EXC. VOLTAGE 24V<7AE> 12V 5W	8-98329-429-0	02	1	1510-		●	●
49	02.700 LAMP; LICENSE PLATE 12V 5W	8-98329-429-0	02	1	1510-					●
50	02.709 LENS; LICENSE PLATE LAMP	5-82125-004-0	01	1	0211-0501	●			●		●
50	02.709 LENS; LICENSE PLATE LAMP EXC. AUSTRALIA EQUIPMENT(RR3)	5-82125-004-0	01	1	0211-0501			●		●
50	02.709 LENS; LICENSE PLATE LAMP EXC. AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2)	5-82125-004-0	01	1	0211-0501		●
50	02.709 LENS; LICENSE PLATE LAMP	5-82125-004-0	01	1	0502-	●			●
50	02.709 LENS; LICENSE PLATE LAMP EXC. AUSTRALIA EQUIPMENT(RR3)	5-82125-004-0	01	1	0502-		●	●
50	02.709 LENS; LICENSE PLATE LAMP AUSTRALIA EQUIPMENT(RR3)	8-97108-212-0	02	1	0211-0501			●		●
50	02.709 LENS; LICENSE PLATE LAMP AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICAEQUIPMENT(SW2)	8-97108-212-0	02	1	0211-0501		●
50	02.709 LENS; LICENSE PLATE LAMP AUSTRALIA EQUIPMENT(RR3)	8-97108-212-0	02	1	0502-		●	●
50	02.709 LENS; LICENSE PLATE LAMP	8-97108-212-0	02	1	0502-					●
51	08.991 BULB; LICENSE PLATE LAMP EXC. AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2),VOLTAGE 24V<7AE> 12V 10W	8-94126-494-0	01	1	0211-0501	●	●	●		●	●
51	08.991 BULB; LICENSE PLATE LAMP EXC. AUSTRALIA EQUIPMENT(RR3), VOLTAGE24V<7AE> 12V 10W	8-94126-494-0	01	1	0502-	●	●	●
51	08.991 BULB; LICENSE PLATE LAMP VOLTAGE 24V<7AE> EXC. AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) 24V 12W	1-82194-004-0	01	1	0211-0501	●	●	●	●
51	08.991 BULB; LICENSE PLATE LAMP VOLTAGE 24V<7AE> EXC. AUSTRALIA EQUIPMENT(RR3) 24V 12W	1-82194-004-0	01	1	0502-	●	●	●	●
51	08.991 BULB; LICENSE PLATE LAMP AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICAEQUIPMENT(SW2) VOLTAGE 24V<7AE> 24V 5W	1-82194-039-0	02	1	0211-0501		●	●
51	08.991 BULB; LICENSE PLATE LAMP AUSTRALIA EQUIPMENT(RR3) VOLTAGE 24V<7AE> 24V 5W	1-82194-039-0	02	1	0502-		●	●
51	08.991 BULB; LICENSE PLATE LAMP AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICAEQUIPMENT(SW2) EXC. VOLTAGE 24V<7AE> 12V 5W	8-94124-075-0	02	1	0211-0501		●	●		●
51	08.991 BULB; LICENSE PLATE LAMP AUSTRALIA EQUIPMENT(RR3) EXC. VOLTAGE 24V<7AE> 12V 5W	8-94124-075-0	02	1	0502-		●	●
51	08.991 BULB; LICENSE PLATE LAMP 12V 5W	8-94124-075-0	02	1	0502-					●
54	02.708 SCREW; LICENSE PLATE LAMP 02.709 M4X8	8-94419-312-0	01	1	0211-0501	●			●		●
54	02.708 SCREW; LICENSE PLATE LAMP EXC. AUSTRALIA EQUIPMENT(RR3) 02.709 M4X8	8-94419-312-0	01	1	0211-0501			●		●
54	02.708 SCREW; LICENSE PLATE LAMP EXC. AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) 02.709 M4X8	8-94419-312-0	01	1	0211-0501		●
54	02.708 SCREW; LICENSE PLATE LAMP 02.709 M4X8	8-94419-312-0	01	1	0502-	●			●
54	02.708 SCREW; LICENSE PLATE LAMP EXC. AUSTRALIA EQUIPMENT(RR3) 02.709 M4X8	8-94419-312-0	01	1	0502-		●	●
54	02.708 SCREW; LICENSE PLATE LAMP AUSTRALIA EQUIPMENT(RR3) 02.709 M4X8	8-94419-312-0	02	1	0211-0501			●		●
54	02.708 SCREW; LICENSE PLATE LAMP AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICAEQUIPMENT(SW2) 02.709 M4X8	8-94419-312-0	02	1	0211-0501		●
54	02.708 SCREW; LICENSE PLATE LAMP AUSTRALIA EQUIPMENT(RR3) 02.709 M4X8	8-94419-312-0	02	1	0502-		●	●
54	02.708 SCREW; LICENSE PLATE LAMP 02.709 M4X8	8-94419-312-0	02	1	0502-					●
55	02.708 NUT; LICENSE PLATE LAMP 03.444 M5 FLANGE	8-94153-039-0	02	1	0211-0501	●			●		●
55	02.708 NUT; LICENSE PLATE LAMP EXC. AUSTRALIA EQUIPMENT(RR3) 03.444 M5 FLANGE	8-94153-039-0	02	1	0211-0501			●		●
55	02.708 NUT; LICENSE PLATE LAMP EXC. AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) 03.444 M5 FLANGE	8-94153-039-0	02	1	0211-0501		●
55	02.708 NUT; LICENSE PLATE LAMP 03.444 M5 FLANGE	8-94153-039-0	02	1	0502-	●			●
55	02.708 NUT; LICENSE PLATE LAMP EXC. AUSTRALIA EQUIPMENT(RR3) 03.444 M5 FLANGE	8-94153-039-0	02	1	0502-		●	●
55	02.708 NUT; LICENSE PLATE LAMP AUSTRALIA EQUIPMENT(RR3) 03.444 M5 FLANGE	8-94153-039-0	04	1	0211-0501			●		●
55	02.708 NUT; LICENSE PLATE LAMP AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICAEQUIPMENT(SW2) 03.444 M5 FLANGE	8-94153-039-0	04	1	0211-0501		●
55	02.708 NUT; LICENSE PLATE LAMP AUSTRALIA EQUIPMENT(RR3) 03.444 M5 FLANGE	8-94153-039-0	04	1	0502-		●	●
55	02.708 NUT; LICENSE PLATE LAMP 03.444 M5 FLANGE	8-94153-039-0	04	1	0502-					●
58	02.705 COVER; LICENSE PLATE LAMP	8-97076-590-1	01	1	0211-0501	●			●		●
58	02.705 COVER; LICENSE PLATE LAMP EXC. AUSTRALIA EQUIPMENT(RR3)	8-97076-590-1	01	1	0211-0501			●		●
58	02.705 COVER; LICENSE PLATE LAMP EXC. AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2)	8-97076-590-1	01	1	0211-0501		●
58	02.705 COVER; LICENSE PLATE LAMP	8-97076-590-1	01	1	0502-	●			●
58	02.705 COVER; LICENSE PLATE LAMP EXC. AUSTRALIA EQUIPMENT(RR3)	8-97076-590-1	01	1	0502-		●	●
58	02.705 COVER; LICENSE PLATE LAMP AUSTRALIA EQUIPMENT(RR3)	8-97076-590-1	02	1	0211-0501			●		●
58	02.705 COVER; LICENSE PLATE LAMP AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICAEQUIPMENT(SW2)	8-97076-590-1	02	1	0211-0501		●
58	02.705 COVER; LICENSE PLATE LAMP AUSTRALIA EQUIPMENT(RR3)	8-97076-590-1	02	1	0502-		●	●
58	02.705 COVER; LICENSE PLATE LAMP	8-97076-590-1	02	1	0502-					●
59	02.708 SCREW; TAP,LICENSE LAMP BODY EXC. AUSTRALIA EQUIPMENT(RR3),RR BODYNON FLAT BED(RS5),RR BODY FLAT BED(RS6),SOUTH AFRICA EQUIPMENT(SW2) 14.550 M5X20	9-93490-520-0	02	1	0211-0501	●	●	●	●	●	●
59	02.708 SCREW; TAP,LICENSE LAMP BODY 14.550 M5X20	9-93490-520-0	02	1	0502-	●			●
59	02.708 SCREW; TAP,LICENSE LAMP BODY EXC. AUSTRALIA EQUIPMENT(RR3) 14.550 M5X20	9-93490-520-0	02	1	0502-		●	●
59	02.708 SCREW; TAP,LICENSE LAMP BODY AUSTRALIA EQUIPMENT(RR3) 14.550 M5X20	9-93490-520-0	04	1	0211-0501			●		●
59	02.708 SCREW; TAP,LICENSE LAMP BODY AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICAEQUIPMENT(SW2) 14.550 M5X20	9-93490-520-0	04	1	0211-0501		●
59	02.708 SCREW; TAP,LICENSE LAMP BODY AUSTRALIA EQUIPMENT(RR3) 14.550 M5X20	9-93490-520-0	04	1	0502-		●	●
59	02.708 SCREW; TAP,LICENSE LAMP BODY 14.550 M5X20	9-93490-520-0	04	1	0502-					●
211	02.708 HARNESS; EXT AUSTRALIA EQUIPMENT(RR3)	5-82129-004-1	01	1	0211-0501			●		●
211	02.708 HARNESS; EXT AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICAEQUIPMENT(SW2)	5-82129-004-1	01	1	0211-0501		●
211	02.708 HARNESS; EXT AUSTRALIA EQUIPMENT(RR3)	5-82129-004-1	01	1	0502-		●	●
211	02.708 HARNESS; EXT	5-82129-004-1	01	1	0502-					●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
