Sayfa 7-42 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50944 - NKR(RHD)EXC.EURO4 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-42 - ASH TRAY ▶

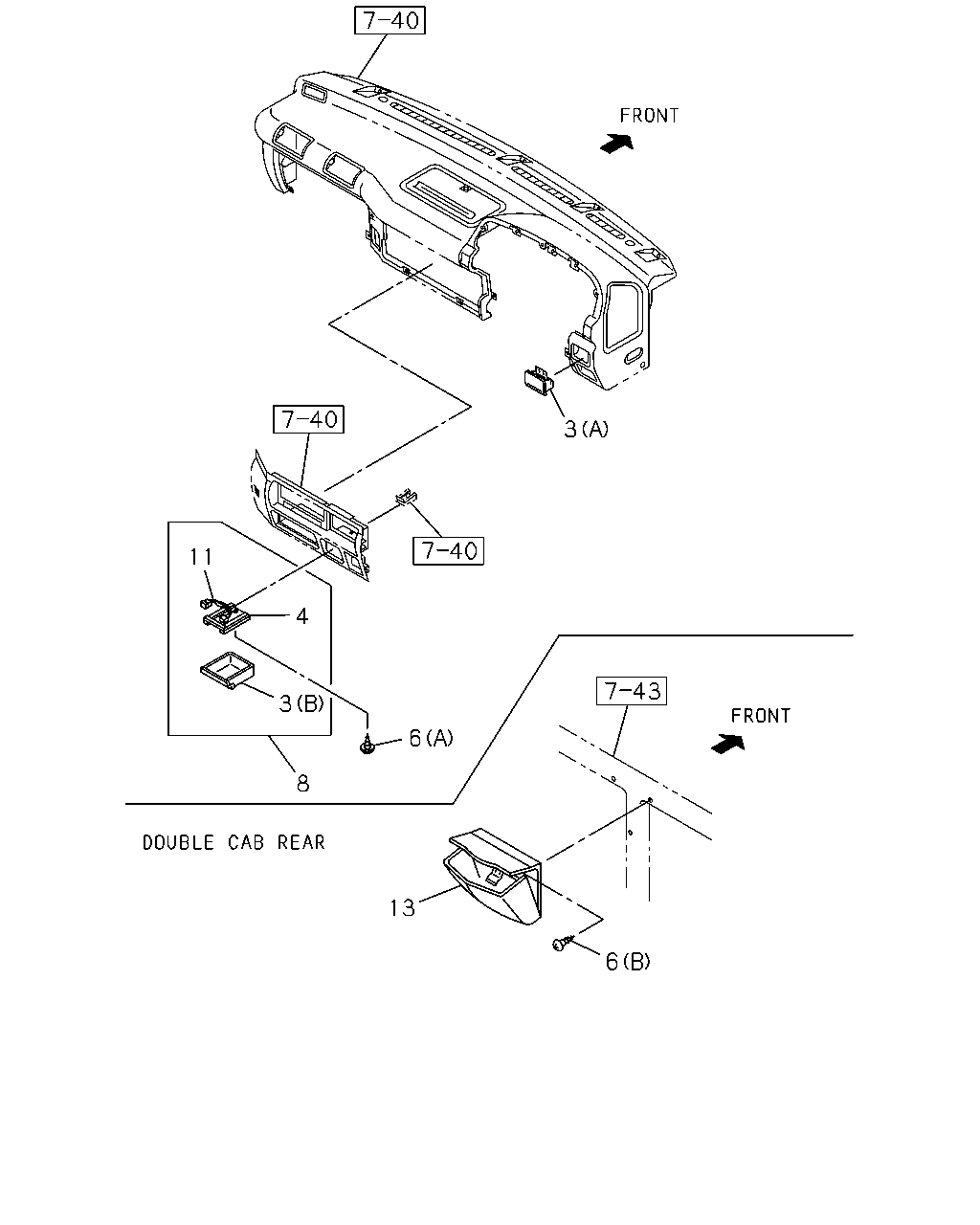

7-42 — ASH TRAY (#48148) — 58 parça

3 11 4 3 6 8 13 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
3	16.120 CASE ASM; ASH TRAY INNER ASH TRAY DRIVER SIDE<7KU> (A) DARK GRAY	8-97198-913-0	01	1	0211-0501	●	●	●	●	●	●
3	16.120 CASE ASM; ASH TRAY INNER INTERIOR COLOR GRAY(153) ASH TRAY DRIVER SIDE<7KU> (A) DARK GRAY	8-97198-913-0	01	1	0502-	●			●
3	16.120 CASE ASM; ASH TRAY INNER VOLTAGE 24V<7AE> (B) DARK GRAY	8-97898-280-0	01	1	0211-0305	●		●	●
3	16.120 CASE ASM; ASH TRAY INNER (B) DARK GRAY	8-97898-280-0	01	1	0211-0305					●
3	16.120 CASE ASM; ASH TRAY INNER VOLTAGE 24V<7AE> EXC. INDONESIA EQUIPMENT(S4S) (B) DARK GRAY	8-97898-280-0	01	1	0306-	●			●
3	16.120 CASE ASM; ASH TRAY INNER INDONESIA EQUIPMENT(S4S) (B) DARK GRAY	8-97898-280-0	01	1	0306-	●			●
3	16.120 CASE ASM; ASH TRAY INNER VOLTAGE 24V<7AE> (B) DARK GRAY	8-97898-280-0	01	1	0306-			●
3	16.120 CASE ASM; ASH TRAY INNER (B) DARK GRAY	8-97898-280-0	01	1	0306-					●
3	16.120 CASE ASM; ASH TRAY INNER EXC. VOLTAGE 24V<7AE> (B) DARK GRAY	8-97993-294-0	01	1	0211-0305	●		●	●
3	16.120 CASE ASM; ASH TRAY INNER (B) DARK GRAY	8-97993-294-0	01	1	0211-0305		●				●
3	16.120 CASE ASM; ASH TRAY INNER EXC. INDONESIA EQUIPMENT(S4S), VOLTAGE24V<7AE> (B) DARK GRAY	8-97993-294-0	01	1	0306-0501	●			●
3	16.120 CASE ASM; ASH TRAY INNER (B) DARK GRAY	8-97993-294-0	01	1	0306-0501		●				●
3	16.120 CASE ASM; ASH TRAY INNER EXC. VOLTAGE 24V<7AE> (B) DARK GRAY	8-97993-294-0	01	1	0306-0501			●
3	16.120 CASE ASM; ASH TRAY INNER EXC. INDONESIA EQUIPMENT(S4S), VOLTAGE24V<7AE> (B) DARK GRAY	8-97993-294-0	01	1	0502-	●			●
3	16.120 CASE ASM; ASH TRAY INNER EXC. VOLTAGE 24V<7AE> (B) DARK GRAY	8-97993-294-0	01	1	0502-			●
3	16.120 CASE ASM; ASH TRAY INNER (B) DARK GRAY	8-97993-294-0	01	1	0502-						●
3	16.120 CASE ASM; ASH TRAY INNER INTERIOR COLOR BLUISH GRAY(158) ASH TRAY DRIVER SIDE<7KU> (A) DARK GRAY	8-97582-213-0	01	1	0502-	●			●
3	16.120 CASE ASM; ASH TRAY INNER ASH TRAY DRIVER SIDE<7KU> (A) DARK GRAY	8-97582-213-0	01	1	0502-			●		●	●
4	16.120 CASE ASM; ASH TRAY OUTER	8-97898-279-0	01	1	0211-0305	●	●	●	●	●	●
4	16.120 CASE ASM; ASH TRAY OUTER EXC. INDONESIA EQUIPMENT(S4S)	8-97898-279-0	01	1	0306-0501	●			●
4	16.120 CASE ASM; ASH TRAY OUTER	8-97898-279-0	01	1	0306-0501		●	●		●	●
4	16.120 CASE ASM; ASH TRAY OUTER EXC. INDONESIA EQUIPMENT(S4S)	8-97898-279-0	01	1	0502-	●			●
4	16.120 CASE ASM; ASH TRAY OUTER	8-97898-279-0	01	1	0502-			●		●	●
4	16.120 CASE ASM; ASH TRAY OUTER INDONESIA EQUIPMENT(S4S)	8-97583-031-0	01	1	0306-	●			●
6	16.120 SCREW; ASH TRAY 07.874 (A) M6X16 TRUSS-HEAD	8-94318-980-0	01	1	0211-0501	●	●	●	●	●	●
6	16.120 SCREW; ASH TRAY 07.874 (A) M6X16 TRUSS-HEAD	8-94318-980-0	01	1	0502-	●		●	●	●	●
6	16.120 SCREW; ASH TRAY 16.345 (B) M4X10 TAPPING OVAL-HEAD	0-70680-410-0	03	1	0211-0501		●			●
6	16.120 SCREW; ASH TRAY 16.345 (B) M4X10 TAPPING OVAL-HEAD	0-70680-410-0	03	1	0502-0603					●
6	16.120 SCREW; ASH TRAY (B) M4X10 TAPPING OVAL-HEAD	0-70640-410-0	03	1	0604-					●
8	16.120 TRAY ASM; ASH VOLTAGE 24V<7AE>	8-97898-278-0	01	1	0211-0305	●		●	●
8	16.120 TRAY ASM; ASH	8-97898-278-0	01	1	0211-0305					●
8	16.120 TRAY ASM; ASH VOLTAGE 24V<7AE> EXC. INDONESIA EQUIPMENT(S4S)	8-97898-278-0	01	1	0306-	●			●
8	16.120 TRAY ASM; ASH VOLTAGE 24V<7AE>	8-97898-278-0	01	1	0306-			●
8	16.120 TRAY ASM; ASH	8-97898-278-0	01	1	0306-					●
8	16.120 TRAY ASM; ASH EXC. VOLTAGE 24V<7AE>	8-97898-282-0	01	1	0211-0305	●		●	●
8	16.120 TRAY ASM; ASH	8-97898-282-0	01	1	0211-0305		●				●
8	16.120 TRAY ASM; ASH EXC. INDONESIA EQUIPMENT(S4S), VOLTAGE24V<7AE>	8-97898-282-0	01	1	0306-0501	●			●
8	16.120 TRAY ASM; ASH	8-97898-282-0	01	1	0306-0501		●				●
8	16.120 TRAY ASM; ASH EXC. VOLTAGE 24V<7AE>	8-97898-282-0	01	1	0306-0501			●
8	16.120 TRAY ASM; ASH EXC. INDONESIA EQUIPMENT(S4S), VOLTAGE24V<7AE>	8-97898-282-0	01	1	0502-	●			●
8	16.120 TRAY ASM; ASH EXC. VOLTAGE 24V<7AE>	8-97898-282-0	01	1	0502-			●
8	16.120 TRAY ASM; ASH	8-97898-282-0	01	1	0502-						●
8	16.120 TRAY ASM; ASH INDONESIA EQUIPMENT(S4S)	8-97583-030-0	01	1	0306-	●			●
11	08.991 BULB; ASH TRAY VOLTAGE 24V<7AE> 16.120	8-97898-281-0	01	1	0211-0305	●		●	●
11	08.991 BULB; ASH TRAY 16.120	8-97898-281-0	01	1	0211-0305					●
11	08.991 BULB; ASH TRAY VOLTAGE 24V<7AE> EXC. INDONESIA EQUIPMENT(S4S) 16.120	8-97898-281-0	01	1	0306-	●			●
11	08.991 BULB; ASH TRAY VOLTAGE 24V<7AE> 16.120	8-97898-281-0	01	1	0306-			●
11	08.991 BULB; ASH TRAY 16.120	8-97898-281-0	01	1	0306-					●
11	08.991 BULB; ASH TRAY EXC. VOLTAGE 24V<7AE>	8-97898-283-0	01	1	0211-0305	●		●	●
11	08.991 BULB; ASH TRAY	8-97898-283-0	01	1	0211-0305		●				●
11	08.991 BULB; ASH TRAY EXC. INDONESIA EQUIPMENT(S4S), VOLTAGE24V<7AE>	8-97898-283-0	01	1	0306-0501	●			●
11	08.991 BULB; ASH TRAY	8-97898-283-0	01	1	0306-0501		●				●
11	08.991 BULB; ASH TRAY EXC. VOLTAGE 24V<7AE>	8-97898-283-0	01	1	0306-0501			●
11	08.991 BULB; ASH TRAY EXC. INDONESIA EQUIPMENT(S4S), VOLTAGE24V<7AE>	8-97898-283-0	01	1	0502-	●			●
11	08.991 BULB; ASH TRAY EXC. VOLTAGE 24V<7AE>	8-97898-283-0	01	1	0502-			●
11	08.991 BULB; ASH TRAY	8-97898-283-0	01	1	0502-						●
13	16.120 TRAY ASM; ASH,RR	5-76457-001-0	01	1	0211-0501		●			●
13	16.120 TRAY ASM; ASH,RR	5-76457-001-0	01	1	0502-					●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
