7-41 — UNDER COVER; INSTRUMENT (#48147) — 26 parça

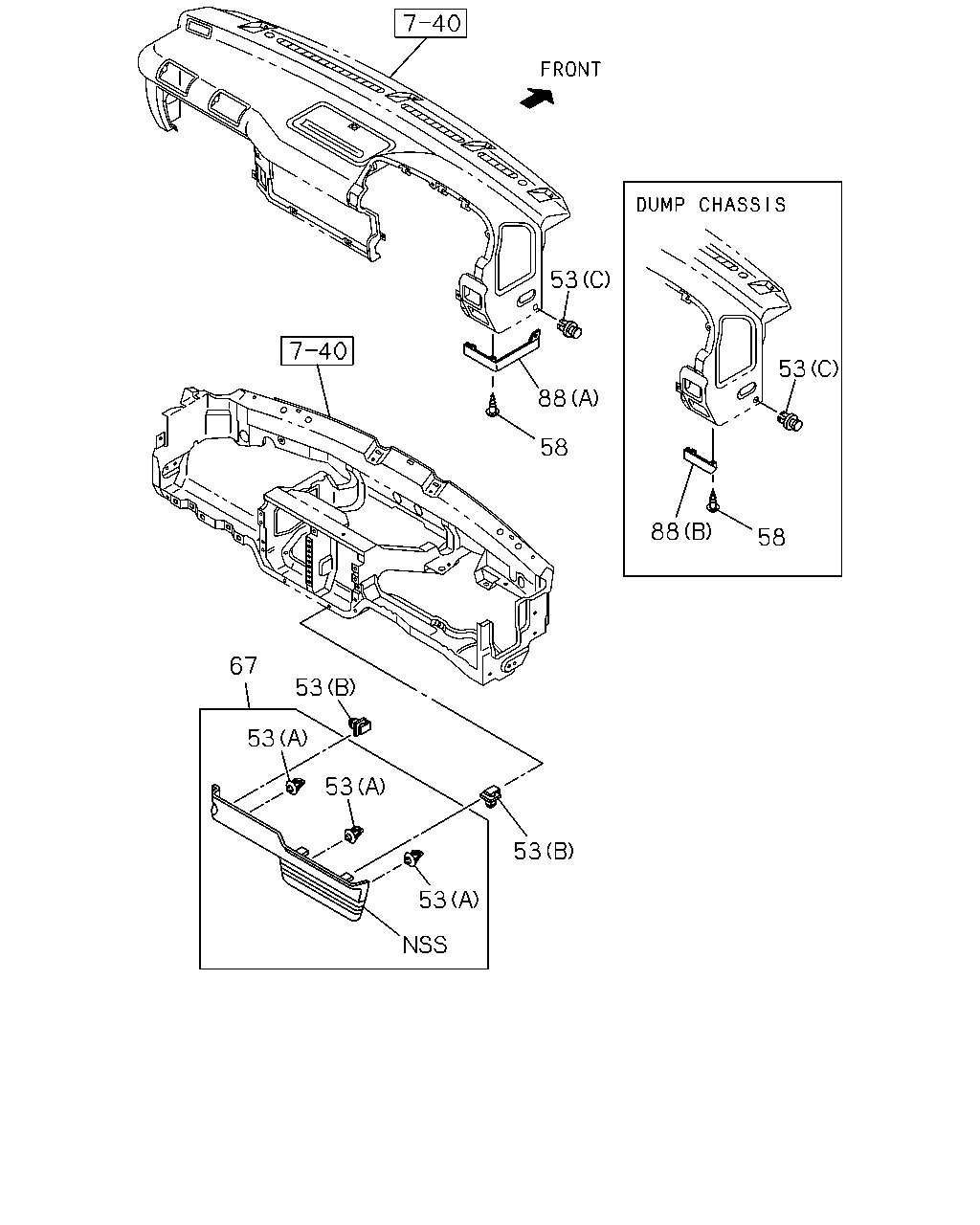

çizim 50694
53 53 88 58 88 58 67 53 53 53 53 53
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
53 16.085 CLIP; UNDER COVER
16.100 (A) 		8-97853-169-0 03 1 0211-0501 ● ● ● ● ● ●
53 16.085 CLIP; UNDER COVER
16.100 (A) 		8-97853-169-0 03 1 0502- ● ● ● ● ●
53 16.085 CLIP; UNDER COVER
(B) 		8-97853-249-5 03 1 0211-0501 ● ● ● ● ● ●
53 16.085 CLIP; UNDER COVER
(B) 		8-97853-249-5 03 1 0502- ● ● ● ● ●
53 16.085 CLIP; UNDER COVER
06.521 (C) DARK GRAY 		8-97857-542-0 01 1 0211-0501 ● ● ● ● ●
53 16.085 CLIP; UNDER COVER
EXC. DUMP CHASSIS(V4D) 06.521 (C) DARK GRAY 		8-97857-542-0 01 1 0211-0501 ●
53 16.085 CLIP; UNDER COVER
INTERIOR COLOR GRAY(153) 06.521 (C) DARK GRAY 		8-97857-542-0 01 1 0502-0603 ● ●
53 16.085 CLIP; UNDER COVER
INTERIOR COLOR BLUISH GRAY(158) 06.521 (C) DARK GRAY 		8-97582-246-0 01 1 0502-0603 ● ●
53 16.085 CLIP; UNDER COVER
EXC. DUMP CHASSIS(V4D) 06.521 (C) DARK GRAY 		8-97582-246-0 01 1 0502-0603 ●
53 16.085 CLIP; UNDER COVER
06.521 (C) DARK GRAY 		8-97582-246-0 01 1 0502-0603 ● ●
53 16.085 CLIP; UNDER COVER
06.521 (C) DARK GRAY 		8-97582-246-0 01 1 0604- ● ● ● ●
53 16.085 CLIP; UNDER COVER
EXC. DUMP CHASSIS(V4D) 06.521 (C) DARK GRAY 		8-97582-246-0 01 1 0604- ●
53 16.085 CLIP; UNDER COVER
DUMP CHASSIS(V4D) 16.800 (C) BLACK 		8-94493-404-0 01 1 0211- ●
58 09.264 SCREW; UNDER COVER
16.067 M5X14 		8-94279-325-0 02 1 0211-0501 ● ● ● ● ● ●
58 09.264 SCREW; UNDER COVER
16.067 M5X14 		8-94279-325-0 02 1 0502-0612 ● ● ● ● ●
58 09.264 SCREW; UNDER COVER
09.655 M5X14 TAPPING W/TORQUES 		8-98061-856-0 02 1 0701- ● ● ● ● ●
67 16.081 COVER; UNDER,INST PNL 8-97856-660-4 01 1 0211-0501 ● ● ● ● ● ●
67 16.081 COVER; UNDER,INST PNL 8-97856-660-4 01 1 0502- ● ● ● ● ●
88 16.081 COVER; UNDER,INST PNL SIDE
(A) DARK GRAY 		8-97859-801-2 01 1 0211-0501 ● ● ● ● ●
88 16.081 COVER; UNDER,INST PNL SIDE
EXC. DUMP CHASSIS(V4D) (A) DARK GRAY 		8-97859-801-2 01 1 0211-0501 ●
88 16.081 COVER; UNDER,INST PNL SIDE
INTERIOR COLOR GRAY(153) (A) DARK GRAY 		8-97859-801-2 01 1 0502- ● ●
88 16.081 COVER; UNDER,INST PNL SIDE
INTERIOR COLOR BLUISH GRAY(158) (A) DARK GRAY 		8-97582-201-2 01 1 0502- ● ●
88 16.081 COVER; UNDER,INST PNL SIDE
EXC. DUMP CHASSIS(V4D) (A) DARK GRAY 		8-97582-201-2 01 1 0502- ●
88 16.081 COVER; UNDER,INST PNL SIDE
(A) DARK GRAY 		8-97582-201-2 01 1 0502- ● ●
88 16.081 COVER; UNDER,INST PNL SIDE
DUMP CHASSIS(V4D) (B) DARK GRAY 		8-97859-803-2 01 1 0211-0501 ●
88 16.081 COVER; UNDER,INST PNL SIDE
DUMP CHASSIS(V4D) (B) DARK GRAY 		8-97582-202-2 01 1 0502- ●
