◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50944 - NKR(RHD)EXC.EURO4 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#48143) — 148 parça

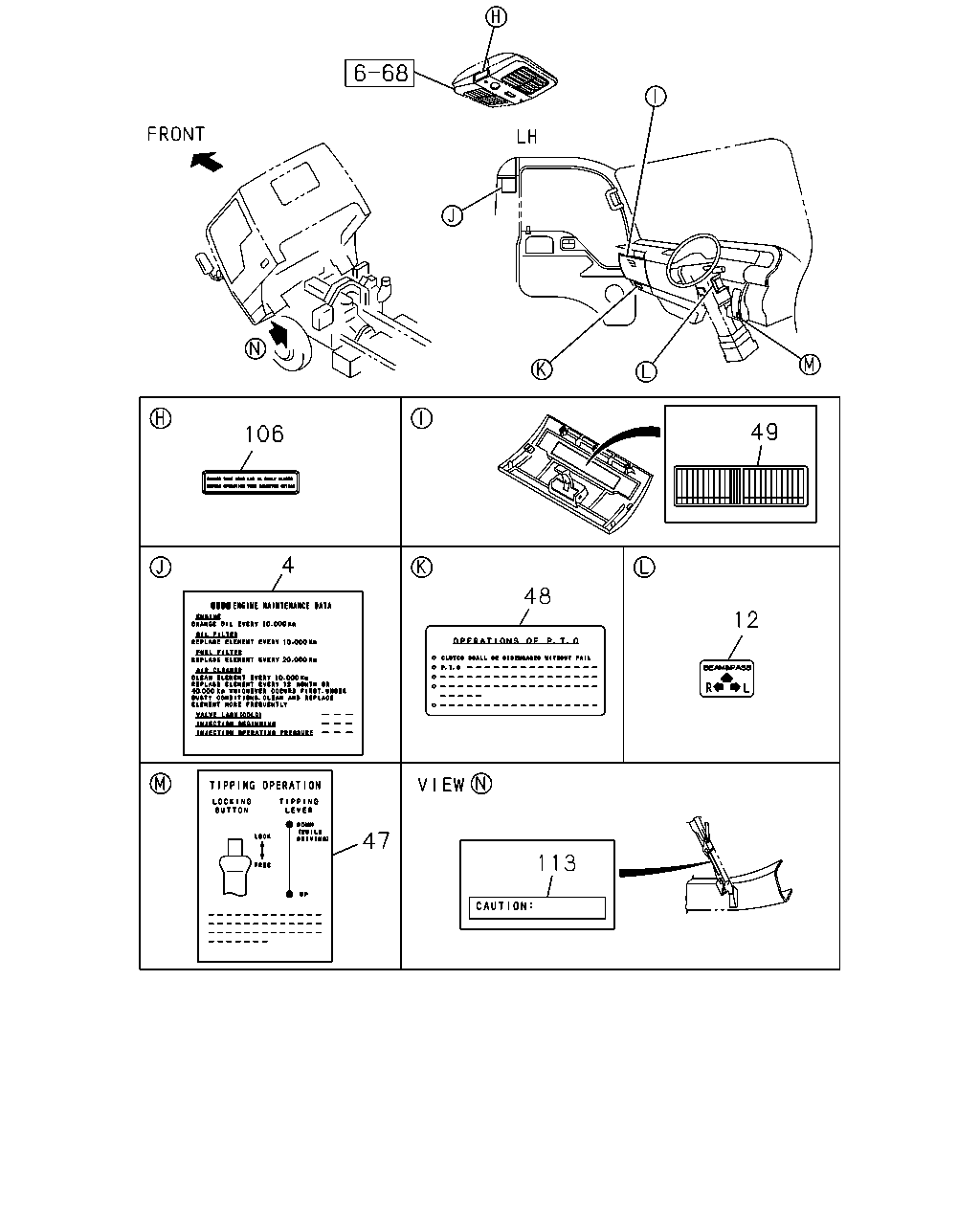

çizim 13576
49 106 4 48 12 47 113
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
4 00.004 LABEL; ENG MAINTENANCE
4JB1-TC ENG(RDT) EXC. CAUTION SPANISH<YN1> 		8-97205-917-0 01 1 0610-0712 ●
4 00.004 LABEL; ENG MAINTENANCE
4JB1-TC ENG(RDT) EXC. CAUTION SPANISH<YN1> 		8-97205-917-0 01 1 0801- ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HF1-S ENG(RLS) CAUTION SPANISH<YN1> ENGINE POWER N-SPEC(7QV) 		8-97215-749-0 01 1 0211-0501 ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
CAUTION SPANISH<YN1> 		8-97215-749-0 01 1 0211-0501 ●
4 00.004 LABEL; ENG MAINTENANCE
4HF1-N ENG(RJZ) CAUTION SPANISH<YN1> 		8-97215-749-0 01 1 0502- ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
CAUTION SPANISH<YN1> 		8-97215-749-0 01 1 0502- ●
4 00.004 LABEL; ENG MAINTENANCE
4HF1-S ENG(RLS) CAUTION SPANISH<YN1> EXC. ENGINE POWER N-SPEC(7QV) 		8-97189-399-0 01 1 0211-0501 ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HF1-S ENG(RLS) EXC. CAUTION SPANISH<YN1>,ENGINE POWER N-SPEC(7QV) 		8-97189-398-0 01 1 0211-0501 ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. CAUTION SPANISH<YN1> 		8-97215-748-0 01 1 0211-0501 ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
EXC. CAUTION SPANISH<YN1> 		8-97215-748-0 01 1 0211-0501 ●
4 00.004 LABEL; ENG MAINTENANCE
4HF1-N ENG(RJZ) EXC. CAUTION SPANISH<YN1> 		8-97215-748-0 01 1 0502- ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
EXC. CAUTION SPANISH<YN1> 		8-97215-748-0 01 1 0502- ●
4 00.004 LABEL; ENG MAINTENANCE
4JB1 ENG(RLF) CAUTION SPANISH<YN1> EXC. TURBOCHARGER<K51> 		8-97189-414-0 01 1 0211-0501 ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
CAUTION SPANISH<YN1> 		8-97189-414-0 01 1 0211-0501 ●
4 00.004 LABEL; ENG MAINTENANCE
4JB1 ENG(RLF) CAUTION SPANISH<YN1> 		8-97189-414-0 01 1 0502- ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JB1 ENG(RLF) TURBOCHARGER<K51> CAUTION SPANISH<YN1> EXC. CHARGE AIR COOLER<6PL> 		8-97218-365-0 01 1 0211-0501 ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JB1 ENG(RLF) TURBOCHARGER<K51> CAUTION SPANISH<YN1> CHARGE AIR COOLER<6PL> 		8-97231-257-0 01 1 0211-0501 ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. CAUTION SPANISH<YN1>,CHARGE AIR COOLER<6PL> 		8-97189-415-0 01 1 0211-0501 ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> EXC. CAUTION SPANISH<YN1> 		8-97231-256-0 01 1 0211-0501 ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>,CAUTION SPANISH<YN1> 		8-97189-413-0 01 1 0211-0501 ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
EXC. CAUTION SPANISH<YN1> 		8-97189-413-0 01 1 0211-0501 ●
4 00.004 LABEL; ENG MAINTENANCE
4JB1 ENG(RLF) EXC. CAUTION SPANISH<YN1> 		8-97189-413-0 01 1 0502- ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JH1 ENG(RJX) CAUTION SPANISH<YN1> 		8-97260-428-1 01 1 0211-0501 ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JH1-TC ENG(RDM) CAUTION SPANISH<YN1> 		8-97260-428-1 01 1 0502- ● ●
4 00.004 LABEL; ENG MAINTENANCE
CAUTION SPANISH<YN1> 		8-97260-428-1 01 1 0502- ●
4 00.004 LABEL; ENG MAINTENANCE
4JH1 ENG(RJX) EXC. CAUTION SPANISH<YN1> 		8-97260-427-1 01 1 0211-0501 ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JH1-TC ENG(RDM) EXC. CAUTION SPANISH<YN1> 		8-97260-427-1 01 1 0502- ● ●
4 00.004 LABEL; ENG MAINTENANCE
EXC. CAUTION SPANISH<YN1> 		8-97260-427-1 01 1 0502- ●
4 00.004 LABEL; ENG MAINTENANCE
4HG1 ENG(RJH) EXC. CAUTION SPANISH<YN1> 		8-97189-401-1 01 1 0211- ●
4 00.004 LABEL; ENG MAINTENANCE
4HG1-T ENG(RDP) 		8-97187-424-0 01 1 0610- ●
12 02.459 LABEL; TURN 8-94273-445-0 01 1 0211-0501 ● ● ● ● ● ●
12 02.459 LABEL; TURN 8-94273-445-0 01 1 0502- ● ● ● ● ●
47 08.808 PLATE; CAUTION,DUMP CONT
DUMP BODY 2.8M SHINMEIWA(RS7) 		8-97115-792-0 01 1 0211- ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) CAUTION SPANISH<YN1> 		8-94313-054-0 01 1 0211-0302 ● ● ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) CAUTION SPANISH<YN1> EXC. PTO MANUAL CONTROL(6WC) 		8-94313-054-0 01 1 0303-0501 ●
48 08.808 PLATE; CAUTION,PTO
CAUTION SPANISH<YN1> PTO MANUAL CONTROL(6WC) 		8-94313-054-0 01 1 0303-0501 ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) CAUTION SPANISH<YN1> 		8-94313-054-0 01 1 0303-0501 ● ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) CAUTION SPANISH<YN1> 		8-94313-054-0 01 1 0502- ● ● ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) EXC. CAUTION SPANISH<YN1> 		8-94469-277-0 01 1 0211-0301 ● ● ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) EXC. CAUTION SPANISH<YN1> 		8-94469-277-0 01 1 0302-0302 ● ● ● ●
48 08.808 PLATE; CAUTION,PTO
PTO MANUAL CONTROL(6WC) EXC. CAUTION SPANISH<YN1> 		8-94469-277-0 01 1 0302-0302 ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) EXC. CAUTION SPANISH<YN1>,PTO MANUAL CONTROL(6WC) 		8-94469-277-0 01 1 0303-0501 ●
48 08.808 PLATE; CAUTION,PTO
PTO MANUAL CONTROL(6WC) EXC. CAUTION SPANISH<YN1> 		8-94469-277-0 01 1 0303-0501 ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) EXC. CAUTION SPANISH<YN1> 		8-94469-277-0 01 1 0303-0501 ● ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) EXC. CAUTION SPANISH<YN1> 		8-94469-277-0 01 1 0502- ● ● ● ●
49 08.808 PLATE; CAUTION,FUSE BOX
4HF1-S ENG(RLS) 		8-97182-191-0 01 1 0211-0501 ● ●
49 08.808 PLATE; CAUTION,FUSE BOX
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97182-191-0 01 1 0211-0501 ●
49 08.808 PLATE; CAUTION,FUSE BOX 8-97182-191-0 01 1 0211-0501 ●
49 08.808 PLATE; CAUTION,FUSE BOX
4HF1-N ENG(RJZ) 		8-97377-715-0 01 1 0502-0609 ● ●
49 08.808 PLATE; CAUTION,FUSE BOX
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-97377-715-0 01 1 0502-0609 ●
49 08.808 PLATE; CAUTION,FUSE BOX 8-97377-715-0 01 1 0502-0609 ●
49 08.808 PLATE; CAUTION,FUSE BOX
4HF1-N ENG(RJZ) 		8-97377-715-0 01 1 0610- ● ●
49 08.808 PLATE; CAUTION,FUSE BOX
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-97377-715-0 01 1 0610- ●
49 08.808 PLATE; CAUTION,FUSE BOX 8-97377-715-0 01 1 0610- ●
49 08.808 PLATE; CAUTION,FUSE BOX
4JB1 ENG(RLF) 		8-97182-190-0 01 1 0211-0501 ● ● ● ●
49 08.808 PLATE; CAUTION,FUSE BOX 8-97182-190-0 01 1 0211-0501 ●
49 08.808 PLATE; CAUTION,FUSE BOX
4JB1 ENG(RLF) 		8-97381-167-0 01 1 0502-0609 ● ● ●
49 08.808 PLATE; CAUTION,FUSE BOX
4JB1-TC ENG(RDT),4JB1 ENG(RLF) 		8-97381-167-0 01 1 0610-0712 ●
49 08.808 PLATE; CAUTION,FUSE BOX
4JB1 ENG(RLF) 		8-97381-167-0 01 1 0610-0712 ● ●
49 08.808 PLATE; CAUTION,FUSE BOX
4JB1-TC ENG(RDT),4JB1 ENG(RLF) 		8-97381-167-0 01 1 0801- ● ●
49 08.808 PLATE; CAUTION,FUSE BOX
4JB1 ENG(RLF) 		8-97381-167-0 01 1 0801- ●
49 08.808 PLATE; CAUTION,FUSE BOX
4JH1 ENG(RJX) 		8-97260-561-0 01 1 0211-0501 ● ● ● ●
49 08.808 PLATE; CAUTION,FUSE BOX
4JH1-TC ENG(RDM) 		8-97377-716-0 01 1 0502- ● ●
49 08.808 PLATE; CAUTION,FUSE BOX 8-97377-716-0 01 1 0502- ●
106 08.808 PLATE; CAUTION,ROOF VENT
ROOF VENTILATOR<C55> CAUTION SPANISH<YN1> 		8-97580-590-0 01 1 0211-0501 ● ● ● ● ● ●
106 08.808 PLATE; CAUTION,ROOF VENT
ROOF VENTILATOR<C55> CAUTION SPANISH<YN1> 		8-97580-590-0 01 1 0502- ● ● ● ● ●
106 08.808 PLATE; CAUTION,ROOF VENT
ROOF VENTILATOR<C55> EXC. CAUTION SPANISH<YN1> 		8-97580-589-0 01 1 0211-0501 ● ● ● ● ● ●
106 08.808 PLATE; CAUTION,ROOF VENT
ROOF VENTILATOR<C55> EXC. CAUTION SPANISH<YN1> 		8-97580-589-0 01 1 0502- ● ● ● ● ●
113 08.808 PLATE; CAUTION,CAB STAY
MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) 		8-97108-090-0 01 1 0211-0501 ●
çizim 53078
35 35 2 96 9 130 5 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 03.680 LABEL; FUEL CAUTION 8-97203-837-0 01 1 0211-0501 ●
5 05.880 LABEL; TIRE AIR PRESSURE
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5. 5F-15-25(CUQ) CAUTION SPANISH<YN1> (A) 		8-98096-198-3 01 1 1004- ●
5 05.880 LABEL; TIRE AIR PRESSURE
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5. 5F-15-25(CUQ) EXC. CAUTION SPANISH<YN1> (A) 		8-98096-197-3 01 1 1004- ●
5 05.880 LABEL; TIRE AIR PRESSURE
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85 (ATB) CAUTION SPANISH<YN1> (A) 		8-97188-833-0 01 1 0211-0302 ●
5 05.880 LABEL; TIRE AIR PRESSURE
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85 (ATB),FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5J-85(CQS) CAUTION SPANISH<YN1> (A) 		8-97188-833-0 01 1 0303-0307 ●
5 05.880 LABEL; TIRE AIR PRESSURE
FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X 5.5J-85(CQS) CAUTION SPANISH<YN1> (A) 		8-97188-833-0 01 1 0308-0501 ●
5 05.880 LABEL; TIRE AIR PRESSURE
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85 (ATB) EXC. CAUTION SPANISH<YN1> (B) 		8-97188-832-0 01 1 0211-0302 ●
5 05.880 LABEL; TIRE AIR PRESSURE
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85 (ATB),FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5J-85(CQS) EXC. CAUTION SPANISH<YN1> (B) 		8-97188-832-0 01 1 0303-0307 ●
5 05.880 LABEL; TIRE AIR PRESSURE
FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X 5.5J-85(CQS) EXC. CAUTION SPANISH<YN1> (B) 		8-97188-832-0 01 1 0308-0501 ●
5 05.880 LABEL; TIRE AIR PRESSURE
4JB1 ENG(RLF),4HF1-S ENG(RLS) FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT 7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25 (22H),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H) CAUTION SPANISH<YN1> (A) 		8-94400-943-0 01 1 0211-0501 ●
5 05.880 LABEL; TIRE AIR PRESSURE
4HF1-N ENG(RJZ),4JB1 ENG(RLF) FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT 7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25 (22H),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H) CAUTION SPANISH<YN1> (A) 		8-94400-943-0 01 1 0502- ●
5 05.880 LABEL; TIRE AIR PRESSURE
4JB1 ENG(RLF),4HF1-S ENG(RLS) FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT 7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25 (22H),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H) EXC. CAUTION SPANISH<YN1> (B) 		8-94178-979-0 01 1 0211-0501 ●
5 05.880 LABEL; TIRE AIR PRESSURE
4HF1-N ENG(RJZ),4JB1 ENG(RLF) FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT 7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25 (22H),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H) EXC. CAUTION SPANISH<YN1> (B) 		8-94178-979-0 01 1 0502- ●
5 05.880 LABEL; TIRE AIR PRESSURE
CAUTION SPANISH<YN1> (A) 		8-94440-619-0 01 1 0211-0501 ●
5 05.880 LABEL; TIRE AIR PRESSURE
EXC. CAUTION SPANISH<YN1> (B) 		8-94440-618-0 01 1 0211-0501 ●
9 08.808 PLATE; NAME,SPD RANGE
4JH1 ENG(RJX),4JB1 ENG(RLF) CAUTION SPANISH<YN1> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-94158-938-0 01 1 0211-0501 ● ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JB1 ENG(RLF) CAUTION SPANISH<YN1> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-94158-938-0 01 1 0502-0609 ●
9 08.808 PLATE; NAME,SPD RANGE
4JH1-TC ENG(RDM),4JB1 ENG(RLF) CAUTION SPANISH<YN1> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-94158-938-0 01 1 0502-0609 ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JB1-TC ENG(RDT),4JB1 ENG(RLF) CAUTION SPANISH<YN1> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-94158-938-0 01 1 0610-0712 ●
9 08.808 PLATE; NAME,SPD RANGE
4JH1-TC ENG(RDM),4JB1 ENG(RLF) CAUTION SPANISH<YN1> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-94158-938-0 01 1 0610-0712 ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 ENG(RLF) CAUTION SPANISH<YN1> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-94158-938-0 01 1 0801- ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JH1 ENG(RJX),4JB1 ENG(RLF) SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16>,CAUTION SPANISH<YN1> 		8-94158-944-0 01 1 0211-0501 ● ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JB1 ENG(RLF) SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16>,CAUTION SPANISH<YN1> 		8-94158-944-0 01 1 0502-0609 ●
9 08.808 PLATE; NAME,SPD RANGE
4JH1-TC ENG(RDM),4JB1 ENG(RLF) SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16>,CAUTION SPANISH<YN1> 		8-94158-944-0 01 1 0502-0609 ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JB1-TC ENG(RDT),4JB1 ENG(RLF) SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16>,CAUTION SPANISH<YN1> 		8-94158-944-0 01 1 0610-0712 ●
9 08.808 PLATE; NAME,SPD RANGE
4JH1-TC ENG(RDM),4JB1 ENG(RLF) SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16>,CAUTION SPANISH<YN1> 		8-94158-944-0 01 1 0610-0712 ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 ENG(RLF) SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16>,CAUTION SPANISH<YN1> 		8-94158-944-0 01 1 0801- ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JH1 ENG(RJX),4JB1 ENG(RLF) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16>,CAUTION SPANISH<YN1> 		8-94158-936-0 01 1 0211-0501 ● ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JB1 ENG(RLF) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16>,CAUTION SPANISH<YN1> 		8-94158-936-0 01 1 0502-0609 ●
9 08.808 PLATE; NAME,SPD RANGE
4JH1-TC ENG(RDM),4JB1 ENG(RLF) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16>,CAUTION SPANISH<YN1> 		8-94158-936-0 01 1 0502-0609 ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16>,CAUTION SPANISH<YN1> 		8-94158-936-0 01 1 0610-0712 ●
9 08.808 PLATE; NAME,SPD RANGE
4JH1-TC ENG(RDM),4JB1 ENG(RLF) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16>,CAUTION SPANISH<YN1> 		8-94158-936-0 01 1 0610-0712 ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 ENG(RLF) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16>,CAUTION SPANISH<YN1> 		8-94158-936-0 01 1 0801- ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4HG1 ENG(RJH),4HF1-S ENG(RLS) M/T MYY5T(RSM) CAUTION SPANISH<YN1> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-94158-942-0 01 1 0211-0501 ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4HF1-N ENG(RJZ) M/T MYY5T(RSM) CAUTION SPANISH<YN1> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-94158-942-0 01 1 0502-0609 ● ●
9 08.808 PLATE; NAME,SPD RANGE
4HG1 ENG(RJH),4HF1-N ENG(RJZ) M/T MYY5T(RSM) CAUTION SPANISH<YN1> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-94158-942-0 01 1 0502-0609 ●
9 08.808 PLATE; NAME,SPD RANGE
CAUTION SPANISH<YN1> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-94158-942-0 01 1 0502-0609 ●
9 08.808 PLATE; NAME,SPD RANGE
4HF1-N ENG(RJZ) M/T MYY5T(RSM) CAUTION SPANISH<YN1> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-94158-942-0 01 1 0610- ● ●
9 08.808 PLATE; NAME,SPD RANGE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) M/T MYY5T(RSM) CAUTION SPANISH<YN1> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-94158-942-0 01 1 0610- ●
9 08.808 PLATE; NAME,SPD RANGE
CAUTION SPANISH<YN1> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-94158-942-0 01 1 0610- ●
9 08.808 PLATE; NAME,SPD RANGE
4HG1 ENG(RJH),4HF1-S ENG(RLS) M/T MYY5T(RSM) SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16>,CAUTION SPANISH<YN1> 		8-94158-946-0 01 1 0211-0501 ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4HF1-N ENG(RJZ) M/T MYY5T(RSM) SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16>,CAUTION SPANISH<YN1> 		8-94158-946-0 01 1 0502-0609 ● ●
9 08.808 PLATE; NAME,SPD RANGE
4HG1 ENG(RJH),4HF1-N ENG(RJZ) M/T MYY5T(RSM) SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16>,CAUTION SPANISH<YN1> 		8-94158-946-0 01 1 0502-0609 ●
9 08.808 PLATE; NAME,SPD RANGE
SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16>,CAUTION SPANISH<YN1> 		8-94158-946-0 01 1 0502-0609 ●
9 08.808 PLATE; NAME,SPD RANGE
4HF1-N ENG(RJZ) M/T MYY5T(RSM) SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16>,CAUTION SPANISH<YN1> 		8-94158-946-0 01 1 0610- ● ●
9 08.808 PLATE; NAME,SPD RANGE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) M/T MYY5T(RSM) SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16>,CAUTION SPANISH<YN1> 		8-94158-946-0 01 1 0610- ●
9 08.808 PLATE; NAME,SPD RANGE
SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16>,CAUTION SPANISH<YN1> 		8-94158-946-0 01 1 0610- ●
9 08.808 PLATE; NAME,SPD RANGE
4HG1 ENG(RJH),4HF1-S ENG(RLS) M/T MYY5T(RSM) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16>,CAUTION SPANISH<YN1> 		8-94158-940-0 01 1 0211-0501 ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4HF1-N ENG(RJZ) M/T MYY5T(RSM) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16>,CAUTION SPANISH<YN1> 		8-94158-940-0 01 1 0502-0609 ● ●
9 08.808 PLATE; NAME,SPD RANGE
4HG1 ENG(RJH),4HF1-N ENG(RJZ) M/T MYY5T(RSM) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16>,CAUTION SPANISH<YN1> 		8-94158-940-0 01 1 0502-0609 ●
9 08.808 PLATE; NAME,SPD RANGE
EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16>,CAUTION SPANISH<YN1> 		8-94158-940-0 01 1 0502-0609 ●
9 08.808 PLATE; NAME,SPD RANGE
4HF1-N ENG(RJZ) M/T MYY5T(RSM) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16>,CAUTION SPANISH<YN1> 		8-94158-940-0 01 1 0610- ● ●
9 08.808 PLATE; NAME,SPD RANGE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) M/T MYY5T(RSM) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16>,CAUTION SPANISH<YN1> 		8-94158-940-0 01 1 0610- ●
9 08.808 PLATE; NAME,SPD RANGE
EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16>,CAUTION SPANISH<YN1> 		8-94158-940-0 01 1 0610- ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1> (A) 		8-97857-419-1 01 1 0211-1005 ● ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1> (A) 		8-98070-512-0 01 1 1006- ● ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> (B) 		5-85881-328-1 01 1 0211- ● ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> (A) 		8-97856-228-0 01 1 0211-1005 ● ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> (A) 		8-98067-809-0 01 1 1006- ● ● ● ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JB1-TC ENG(RDT) 		8-97066-479-1 01 1 0610-0712 ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JB1-TC ENG(RDT) 		8-97066-479-1 01 1 0801- ● ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> 		8-97092-930-1 01 1 0211-0311 ● ● ● ● ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JB1 ENG(RLF) TURBOCHARGER<K51> 		8-97092-930-1 01 1 0312-0501 ● ● ● ● ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JH1 ENG(RJX) 		8-97092-930-1 01 1 0312-0501 ● ● ● ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JH1-TC ENG(RDM),4JB1 ENG(RLF) 		8-97092-930-1 01 1 0502- ● ● ● ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JH1 ENG(RJX) 		8-97066-479-1 01 1 0211-0311 ● ● ● ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JB1 ENG(RLF) TURBOCHARGER<K51> 		8-97066-479-1 01 1 0211-0311 ● ● ● ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JB1 ENG(RLF) TURBOCHARGER<K51> 		8-97066-479-1 01 1 0312-0501 ● ● ● ●
130 08.808 PLATE; CAUTION,GUARD FRAME
BODY COLOR ARC WHITE(729),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) RR BODY FLAT BED(RS6) 		8-94192-480-0 02 1 0211-0501 ●
130 08.808 PLATE; CAUTION,GUARD FRAME
RR BODY FLAT BED(RS6) 		8-94192-480-0 02 1 0211-0501 ●
çizim 53258
261 261 135
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
135 08.808 PLATE; CAUTION,ENGINE
4JH1 ENG(RJX) 		8-97383-253-0 01 1 0412-0501 ● ● ● ●
135 08.808 PLATE; CAUTION,ENGINE
4JH1-TC ENG(RDM) 		8-97383-253-0 01 1 0502- ● ●
135 08.808 PLATE; CAUTION,ENGINE 8-97383-253-0 01 1 0502- ●
261 08.808 PLATE; CAUTION,FUEL SYSTEM
4JH1 ENG(RJX) CAUTION SPANISH<YN1> (B) 		8-97319-705-0 01 1 0211-0501 ● ● ● ●
261 08.808 PLATE; CAUTION,FUEL SYSTEM
4JH1-TC ENG(RDM) CAUTION SPANISH<YN1> (B) 		8-97319-705-0 01 1 0502- ● ●
261 08.808 PLATE; CAUTION,FUEL SYSTEM
CAUTION SPANISH<YN1> (B) 		8-97319-705-0 01 1 0502- ●
261 08.808 PLATE; CAUTION,FUEL SYSTEM
4JH1 ENG(RJX) EXC. CAUTION SPANISH<YN1> (A) 		8-97315-725-0 01 1 0211-0501 ● ● ● ●
261 08.808 PLATE; CAUTION,FUEL SYSTEM
4JH1-TC ENG(RDM) EXC. CAUTION SPANISH<YN1> (A) 		8-97315-725-0 01 1 0502- ● ●
261 08.808 PLATE; CAUTION,FUEL SYSTEM
EXC. CAUTION SPANISH<YN1> (A) 		8-97315-725-0 01 1 0502- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
