6-90 — REAR BUMPER (#48141) — 105 parça

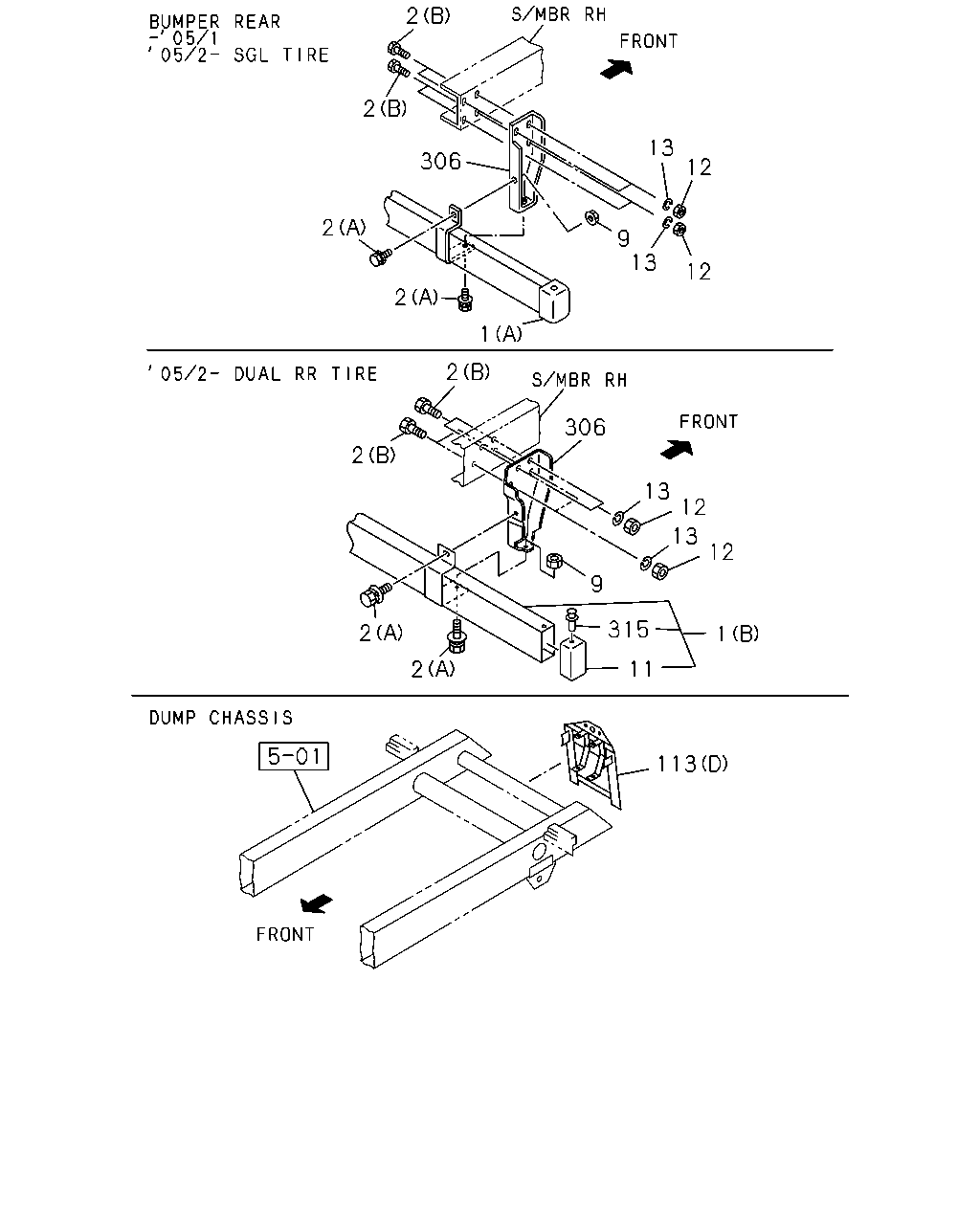

çizim 52397
2 2 13 306 12 2 9 13 12 2 1 2 306 2 13 12 13 12 9 315 2 1 2 11 113
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 07.070 BUMPER; RR
BUMPER REAR<7HZ> (A) 		8-97174-004-2 01 1 0211- ●
1 07.070 BUMPER; RR
BUMPER REAR<7HZ> (A) 		8-97174-005-1 01 1 0211-0501 ● ●
1 07.070 BUMPER; RR
BUMPER REAR<7HZ> (B) STAMP IJ2H 		8-98000-145-1 01 1 0502- ● ●
2 07.874 BOLT; BACK BAR
BUMPER REAR<7HZ> 07.347 (B) M14X30 		0-20801-430-0 08 1 0211-0512 ● ● ●
2 07.874 BOLT; BACK BAR
BUMPER REAR<7HZ> (B) M14X30 		0-20851-430-0 08 1 0601- ● ● ●
2 07.874 BOLT; BACK BAR
BUMPER REAR<7HZ> 01.271 (A) M10X30 		8-94324-205-0 04 1 0211- ● ● ●
9 07.070 NUT; BUMPER
BUMPER REAR<7HZ> 08.917 M10 FLANGE 		0-91150-210-0 02 1 0211-0602 ● ● ●
9 07.070 NUT; BUMPER
BUMPER REAR<7HZ> 04.085 M10 FLANGE 		0-91180-210-0 02 1 0603- ● ● ●
11 07.829 CAP; RR BUMPER
BUMPER REAR<7HZ> 		8-97174-008-0 02 1 0502- ● ●
12 07.833 NUT; BRKT
BUMPER REAR<7HZ> 07.529 M14 		9-99110-514-0 08 1 0211-0512 ● ● ●
12 07.833 NUT; BRKT
BUMPER REAR<7HZ> M14 		0-91110-514-0 08 1 0601-0610 ● ● ●
12 07.833 NUT; BRKT
BUMPER REAR<7HZ> 00.429 M14 FLANGE 		0-91180-214-0 08 1 0611- ● ● ●
13 07.833 WASHER; LK,BACK BAR TO FRAME
BUMPER REAR<7HZ> 05.422 ID=14.2 		9-09150-814-0 08 1 0211-0603 ● ● ●
13 07.833 WASHER; LK,BACK BAR TO FRAME
BUMPER REAR<7HZ> 06.174 ID=14.2 		0-91510-814-0 08 1 0604-0610 ● ● ●
113 07.800 BRACKET; LICENSE PLATE
(A) 		8-98029-390-3 01 1 0807- ● ● ● ●
113 07.800 BRACKET; LICENSE PLATE
REAR WIDE TREAD(V4T) EXC. SPARE TIRE CARRIER INSIDE MOUNTE D<P15>,DUMP CHASSIS(V4D) (A) 		8-98029-390-3 01 1 0807- ●
113 07.800 BRACKET; LICENSE PLATE
EXC. DUMP CHASSIS(V4D),REAR WIDE TREAD(V4T) (A) 		8-98029-390-3 01 1 0807- ●
113 07.800 BRACKET; LICENSE PLATE
RR BODY FLAT BED(RS6) (B) 		8-97077-573-2 01 1 0211-0501 ● ●
113 07.800 BRACKET; LICENSE PLATE
EXC. RR BODY FLAT BED(RS6) 02.662 (A) 		8-97096-644-2 01 1 0211-0501 ● ●
113 07.800 BRACKET; LICENSE PLATE
EXC. RR BODY NON FLAT BED(RS5) 02.662 (A) 		8-97096-644-2 01 1 0211-0501 ●
113 07.800 BRACKET; LICENSE PLATE
EXC. DUMP CHASSIS(V4D) 02.662 (A) 		8-97096-644-2 01 1 0211-0501 ●
113 07.800 BRACKET; LICENSE PLATE
02.662 (A) 		8-97096-644-2 01 1 0211-0501 ● ●
113 07.800 BRACKET; LICENSE PLATE
02.662 (A) 		8-97096-644-3 01 1 0502-0806 ● ● ● ●
113 07.800 BRACKET; LICENSE PLATE
EXC. DUMP CHASSIS(V4D) 02.662 (A) 		8-97096-644-3 01 1 0502-0806 ●
113 07.800 BRACKET; LICENSE PLATE
SPARE TIRE CARRIER INSIDE MOUNTED<P15> REAR WIDE TREAD(V4T) EXC. DUMP CHASSIS(V4D) 02.662 (A) 		8-97096-644-3 01 1 0807- ●
113 07.800 BRACKET; LICENSE PLATE
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) RR BODY NON FLAT BED(RS5) (C) 		8-94197-117-0 01 1 0211-0501 ●
113 07.800 BRACKET; LICENSE PLATE
4HF1-S ENG(RLS) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> 07.039 (D) 		8-97033-248-2 01 1 0211-0501 ●
306 07.836 BAR; BACK,RR
BUMPER REAR<7HZ> STAMP BL 		8-97128-333-0 01 1 0211-0501 ● ● ●
306 07.836 BAR; BACK,RR
BUMPER REAR<7HZ> STAMP IA2 		8-98000-171-0 01 1 0502- ● ● ●
306 07.836 BAR; BACK,RR
BUMPER REAR<7HZ> STAMP BR 		8-97128-334-0 01 1 0211-0501 ● ● ●
306 07.836 BAR; BACK,RR
BUMPER REAR<7HZ> STAMP IA2 		8-98000-172-0 01 1 0502- ● ● ●
315 07.829 RIVET; CAP
BUMPER REAR<7HZ> 08.155 D8X13.5 		1-09987-248-1 04 1 0502- ● ●

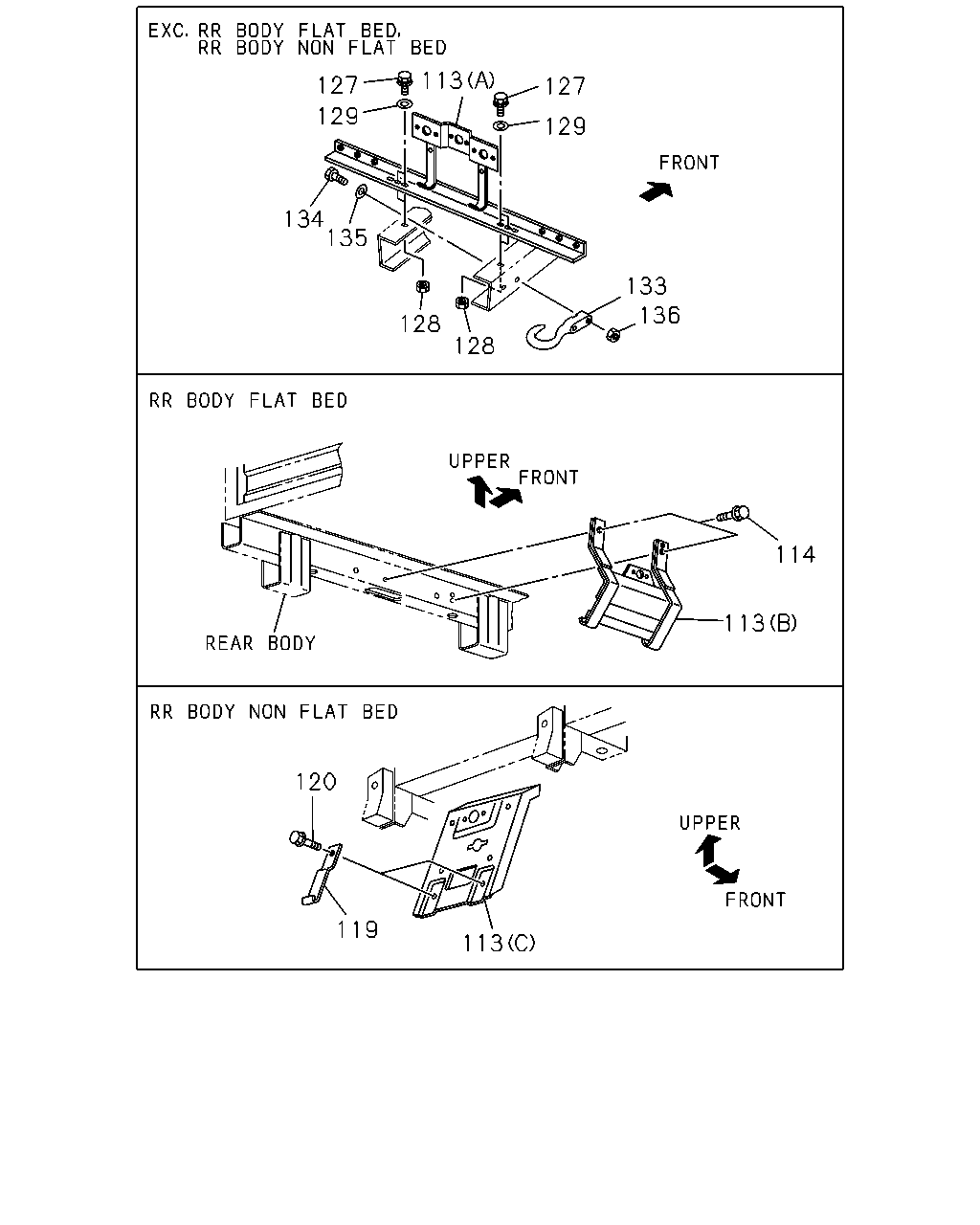

çizim 53016
113 127 127 129 129 134 135 133 136 128 128 114 113 120 119 113
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
113 07.800 BRACKET; LICENSE PLATE
(A) 		8-98029-390-3 01 1 0807- ● ● ● ●
113 07.800 BRACKET; LICENSE PLATE
REAR WIDE TREAD(V4T) EXC. SPARE TIRE CARRIER INSIDE MOUNTE D<P15>,DUMP CHASSIS(V4D) (A) 		8-98029-390-3 01 1 0807- ●
113 07.800 BRACKET; LICENSE PLATE
EXC. DUMP CHASSIS(V4D),REAR WIDE TREAD(V4T) (A) 		8-98029-390-3 01 1 0807- ●
113 07.800 BRACKET; LICENSE PLATE
RR BODY FLAT BED(RS6) (B) 		8-97077-573-2 01 1 0211-0501 ● ●
113 07.800 BRACKET; LICENSE PLATE
EXC. RR BODY FLAT BED(RS6) 02.662 (A) 		8-97096-644-2 01 1 0211-0501 ● ●
113 07.800 BRACKET; LICENSE PLATE
EXC. RR BODY NON FLAT BED(RS5) 02.662 (A) 		8-97096-644-2 01 1 0211-0501 ●
113 07.800 BRACKET; LICENSE PLATE
EXC. DUMP CHASSIS(V4D) 02.662 (A) 		8-97096-644-2 01 1 0211-0501 ●
113 07.800 BRACKET; LICENSE PLATE
02.662 (A) 		8-97096-644-2 01 1 0211-0501 ● ●
113 07.800 BRACKET; LICENSE PLATE
02.662 (A) 		8-97096-644-3 01 1 0502-0806 ● ● ● ●
113 07.800 BRACKET; LICENSE PLATE
EXC. DUMP CHASSIS(V4D) 02.662 (A) 		8-97096-644-3 01 1 0502-0806 ●
113 07.800 BRACKET; LICENSE PLATE
SPARE TIRE CARRIER INSIDE MOUNTED<P15> REAR WIDE TREAD(V4T) EXC. DUMP CHASSIS(V4D) 02.662 (A) 		8-97096-644-3 01 1 0807- ●
113 07.800 BRACKET; LICENSE PLATE
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) RR BODY NON FLAT BED(RS5) (C) 		8-94197-117-0 01 1 0211-0501 ●
113 07.800 BRACKET; LICENSE PLATE
4HF1-S ENG(RLS) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> 07.039 (D) 		8-97033-248-2 01 1 0211-0501 ●
114 07.800 BOLT; BRKT,LICENSE PLATE
RR BODY FLAT BED(RS6) 02.334 M6X25 FLANGE 		0-28680-625-0 02 1 0211-0501 ● ●
119 07.800 HOOK; LICENSE PLATE BRKT
RR BODY NON FLAT BED(RS5) 		8-97069-728-0 02 1 0211-0501 ●
120 07.800 BOLT
RR BODY NON FLAT BED(RS5) 		8-97069-572-0 02 1 0211-0501 ●
127 02.662 BOLT; CROSS PLATE
EXC. RR BODY FLAT BED(RS6) 03.483 M8X40 W/LK&PL WASHER 		0-50140-840-0 02 1 0211-0403 ● ●
127 02.662 BOLT; CROSS PLATE
EXC. RR BODY NON FLAT BED(RS5) 03.483 M8X40 W/LK&PL WASHER 		0-50140-840-0 02 1 0211-0403 ●
127 02.662 BOLT; CROSS PLATE
EXC. DUMP CHASSIS(V4D) 03.483 M8X40 W/LK&PL WASHER 		0-50140-840-0 02 1 0211-0403 ●
127 02.662 BOLT; CROSS PLATE
03.483 M8X40 W/LK&PL WASHER 		0-50140-840-0 02 1 0211-0403 ● ●
127 02.662 BOLT; CROSS PLATE
EXC. RR BODY FLAT BED(RS6) 03.704 M8X40 FLANGE 		0-28680-840-0 02 1 0404-0501 ● ●
127 02.662 BOLT; CROSS PLATE
EXC. RR BODY NON FLAT BED(RS5) 03.704 M8X40 FLANGE 		0-28680-840-0 02 1 0404-0501 ●
127 02.662 BOLT; CROSS PLATE
EXC. DUMP CHASSIS(V4D) 03.704 M8X40 FLANGE 		0-28680-840-0 02 1 0404-0501 ●
127 02.662 BOLT; CROSS PLATE
03.704 M8X40 FLANGE 		0-28680-840-0 02 1 0404-0501 ● ●
127 02.662 BOLT; CROSS PLATE
03.704 M8X40 FLANGE 		0-28680-840-0 02 1 0502-0512 ● ● ● ●
127 02.662 BOLT; CROSS PLATE
EXC. DUMP CHASSIS(V4D) 03.704 M8X40 FLANGE 		0-28680-840-0 02 1 0502-0512 ●
127 02.662 BOLT; CROSS PLATE
00.685 M8X40 FLANGE 		0-28650-840-0 02 1 0601- ● ● ● ●
127 02.662 BOLT; CROSS PLATE
EXC. DUMP CHASSIS(V4D) 00.685 M8X40 FLANGE 		0-28650-840-0 02 1 0601- ●
128 02.662 NUT; CROSS PLATE
EXC. RR BODY FLAT BED(RS6) 02.559 M8 		9-09110-408-0 02 1 0211-0501 ● ●
128 02.662 NUT; CROSS PLATE
EXC. RR BODY NON FLAT BED(RS5) 02.559 M8 		9-09110-408-0 02 1 0211-0501 ●
128 02.662 NUT; CROSS PLATE
EXC. DUMP CHASSIS(V4D) 02.559 M8 		9-09110-408-0 02 1 0211-0501 ●
128 02.662 NUT; CROSS PLATE
02.559 M8 		9-09110-408-0 02 1 0211-0501 ● ●
128 02.662 NUT; CROSS PLATE
02.559 M8 		9-09110-408-0 02 1 0502-0512 ● ● ● ●
128 02.662 NUT; CROSS PLATE
EXC. DUMP CHASSIS(V4D) 02.559 M8 		9-09110-408-0 02 1 0502-0512 ●
128 02.662 NUT; CROSS PLATE
02.334 M8 		0-91110-508-0 02 1 0601-0709 ● ● ● ●
128 02.662 NUT; CROSS PLATE
EXC. DUMP CHASSIS(V4D) 02.334 M8 		0-91110-508-0 02 1 0601-0709 ●
128 02.662 NUT; CROSS PLATE
01.062 M8 FLANGE 		0-91180-108-0 02 1 0710- ● ● ● ●
128 02.662 NUT; CROSS PLATE
EXC. DUMP CHASSIS(V4D) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0710- ●
129 03.162 WASHER; PL,CROSS PLATE
03.706 ID=8.4 OD=26 		0-91614-808-0 02 1 0809- ● ●
129 03.162 WASHER; PL,CROSS PLATE
02.334 ID=8.4 OD=26 		9-09164-808-0 02 1 0211-0605 ●
129 03.162 WASHER; PL,CROSS PLATE
03.706 ID=8.4 OD=26 		0-91614-808-0 02 1 0606-0709 ●
133 07.112 HOOK
07.330 		8-94183-262-0 01 1 0211-0501 ● ● ●
133 07.112 HOOK
DUMP CHASSIS(V4D) 07.330 		8-94183-262-0 01 1 0211-0501 ●
133 07.112 HOOK
07.330 		8-94183-262-0 01 1 0502- ● ●
133 07.112 HOOK
DUMP CHASSIS(V4D) 07.330 		8-94183-262-0 01 1 0502- ●
133 07.112 HOOK
EXC. DUMP CHASSIS(V4D) 07.068 		8-94249-270-2 01 1 0211- ●
133 07.112 HOOK
07.068 		8-94249-270-2 01 1 0211- ● ●
134 07.068 BOLT; HOOK
BUMPER REAR<7HZ> M14X60 		0-10861-460-0 02 1 1409- ● ●
134 07.068 BOLT; HOOK
00.004 M10X45 W/LK WASHER 		0-50041-045-0 02 1 0211-0501 ● ● ●
134 07.068 BOLT; HOOK
DUMP CHASSIS(V4D) 00.004 M10X45 W/LK WASHER 		0-50041-045-0 02 1 0211-0501 ●
134 07.068 BOLT; HOOK
00.004 M10X45 W/LK WASHER 		0-50041-045-0 02 1 0502-0909 ● ●
134 07.068 BOLT; HOOK
DUMP CHASSIS(V4D) 00.004 M10X45 W/LK WASHER 		0-50041-045-0 02 1 0502-0909 ●
134 07.068 BOLT; HOOK
M10X45 W/LK WASHER 		0-50541-045-0 02 1 0910- ● ●
134 07.068 BOLT; HOOK
DUMP CHASSIS(V4D) M10X45 W/LK WASHER 		0-50541-045-0 02 1 0910- ●
134 07.068 BOLT; HOOK
EXC. DUMP CHASSIS(V4D) 07.039 M14X50 		0-10806-450-0 02 1 0211-0512 ●
134 07.068 BOLT; HOOK
07.039 M14X50 		0-10806-450-0 02 1 0211-0512 ● ●
134 07.068 BOLT; HOOK
EXC. DUMP CHASSIS(V4D) 07.039 M14X50 		0-10856-450-0 02 1 0601-1408 ●
134 07.068 BOLT; HOOK
07.039 M14X50 		0-10856-450-0 02 1 0601-1408 ● ●
134 07.068 BOLT; HOOK
EXC. DUMP CHASSIS(V4D) 07.039 M14X50 		0-10856-450-0 02 1 1409- ●
134 07.068 BOLT; HOOK
EXC. BUMPER REAR<7HZ> 07.039 M14X50 		0-10856-450-0 02 1 1409- ● ●
135 07.068 WASHER; LK,HOOK
EXC. DUMP CHASSIS(V4D) 05.422 ID=14.2 		9-09150-814-0 02 1 0211-0603 ●
135 07.068 WASHER; LK,HOOK
05.422 ID=14.2 		9-09150-814-0 02 1 0211-0603 ● ●
135 07.068 WASHER; LK,HOOK
EXC. DUMP CHASSIS(V4D) 06.174 ID=14.2 		0-91510-814-0 02 1 0604-0610 ●
135 07.068 WASHER; LK,HOOK
06.174 ID=14.2 		0-91510-814-0 02 1 0604-0610 ● ●
136 07.068 NUT; HOOK
00.002 M10 		9-09110-510-0 02 1 0211-0501 ● ● ●
136 07.068 NUT; HOOK
00.002 M10 		9-09110-510-0 02 1 0502-0512 ● ●
136 07.068 NUT; HOOK
00.833 M10 		0-91110-510-0 02 1 0601- ● ●
136 07.068 NUT; HOOK
EXC. DUMP CHASSIS(V4D) 07.529 M14 		9-99110-514-0 02 1 0211-0512 ●
136 07.068 NUT; HOOK
07.529 M14 		9-99110-514-0 02 1 0211-0512 ● ●
136 07.068 NUT; HOOK
EXC. DUMP CHASSIS(V4D) 07.833 M14 		0-91110-514-0 02 1 0601-0610 ●
136 07.068 NUT; HOOK
07.833 M14 		0-91110-514-0 02 1 0601-0610 ● ●
136 07.068 NUT; HOOK
EXC. DUMP CHASSIS(V4D) 00.429 M14 FLANGE 		0-91180-214-0 02 1 0611- ●
136 07.068 NUT; HOOK
00.429 M14 FLANGE 		0-91180-214-0 02 1 0611- ● ●
