2-08A — CLUTCH MASTER CYLINDER (#4814) — 28 parça

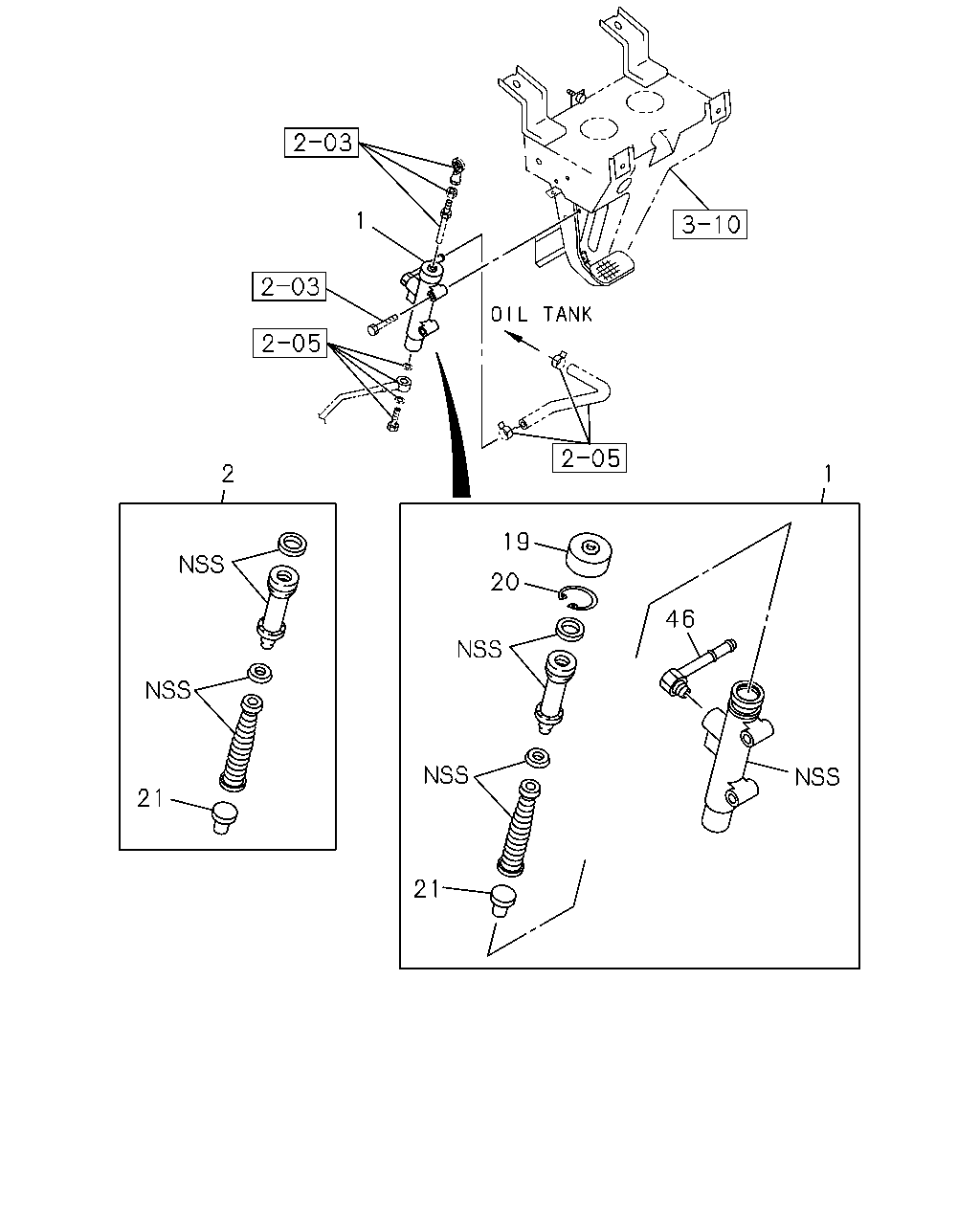

çizim 41505
1 2 1 19 20 46 21 21
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CYLINDER ASM; CLUTCH MASTER
ZF M/T<X9E> 		1-47500-242-1 01 1 9601-9904 ●
1 CYLINDER ASM; CLUTCH MASTER
ZF M/T<X9E> 		1-47500-242-2 01 1 9905- ● ● ●
1 CYLINDER ASM; CLUTCH MASTER
ISUZU M/T<X9A>,FULLER M/T<X9B> 		1-47500-232-1 01 1 9601-9610 ● ●
1 CYLINDER ASM; CLUTCH MASTER
ISUZU M/T<X9A> 		1-47500-232-1 01 1 9611-9904 ●
1 CYLINDER ASM; CLUTCH MASTER
FULLER M/T<X9B> 		1-47500-232-1 01 1 9611-9904 ●
1 CYLINDER ASM; CLUTCH MASTER
ISUZU M/T<X9A>,FULLER M/T<X9B> 		1-47500-232-2 01 1 9905- ● ● ●
2 REPAIR KIT; CLU M/CYL
ISUZU M/T<X9A> 		1-85576-114-0 01 1 9601-9610 ●
2 REPAIR KIT; CLU M/CYL
ISUZU M/T<X9A> 		1-85576-114-0 01 1 9611-9904 ●
2 REPAIR KIT; CLU M/CYL
FULLER M/T<X9B> 		1-85576-114-0 01 1 9611-9904 ●
2 REPAIR KIT; CLU M/CYL
ISUZU M/T<X9A>,FULLER M/T<X9B> 		1-85576-114-0 01 1 9905- ● ● ●
2 REPAIR KIT; CLU M/CYL
ZF M/T<X9E> 		1-47550-046-0 01 1 9601-9904 ●
2 REPAIR KIT; CLU M/CYL
ZF M/T<X9E> 		1-47550-046-0 01 1 9905- ● ● ●
19 BOOT; CLU M/CYL
ISUZU M/T<X9A> 		9-47545-032-0 01 1 9601-9610 ●
19 BOOT; CLU M/CYL
ISUZU M/T<X9A> 		9-47545-032-0 01 1 9611-9904 ●
19 BOOT; CLU M/CYL
FULLER M/T<X9B> 		9-47545-032-0 01 1 9611-9904 ●
19 BOOT; CLU M/CYL
ISUZU M/T<X9A>,FULLER M/T<X9B> 		9-47545-032-0 01 1 9905- ● ● ●
19 BOOT; CLU M/CYL
ZF M/T<X9E> 		1-47545-011-0 01 1 9601-9904 ●
19 BOOT; CLU M/CYL
ZF M/T<X9E> 		1-47545-011-0 01 1 9905- ● ● ●
20 RING; SNAP,BODY
ISUZU M/T<X9A> OD=26.9 		9-09180-125-0 01 1 9601-9610 ●
20 RING; SNAP,BODY
ISUZU M/T<X9A> OD=26.9 		9-09180-125-0 01 1 9611-9904 ●
20 RING; SNAP,BODY
FULLER M/T<X9B> OD=26.9 		9-09180-125-0 01 1 9611-9904 ●
20 RING; SNAP,BODY
ISUZU M/T<X9A>,FULLER M/T<X9B> OD=26.9 		9-09180-125-0 01 1 9905- ● ● ●
20 RING; SNAP,BODY
ZF M/T<X9E> 		1-47515-009-0 01 1 9601-9904 ●
20 RING; SNAP,BODY
ZF M/T<X9E> 		1-47515-009-0 01 1 9905- ● ● ●
21 VALVE; CHECK 1-47565-004-0 01 1 9601-9904 ●
21 VALVE; CHECK 1-47565-004-0 01 1 9905- ● ● ●
46 CONNECTOR; PIPE 1-47517-004-0 01 1 9601-9904 ●
46 CONNECTOR; PIPE 1-47517-004-0 01 1 9905- ● ● ●
