6-80 — BACK PANEL (#48138) — 96 parça

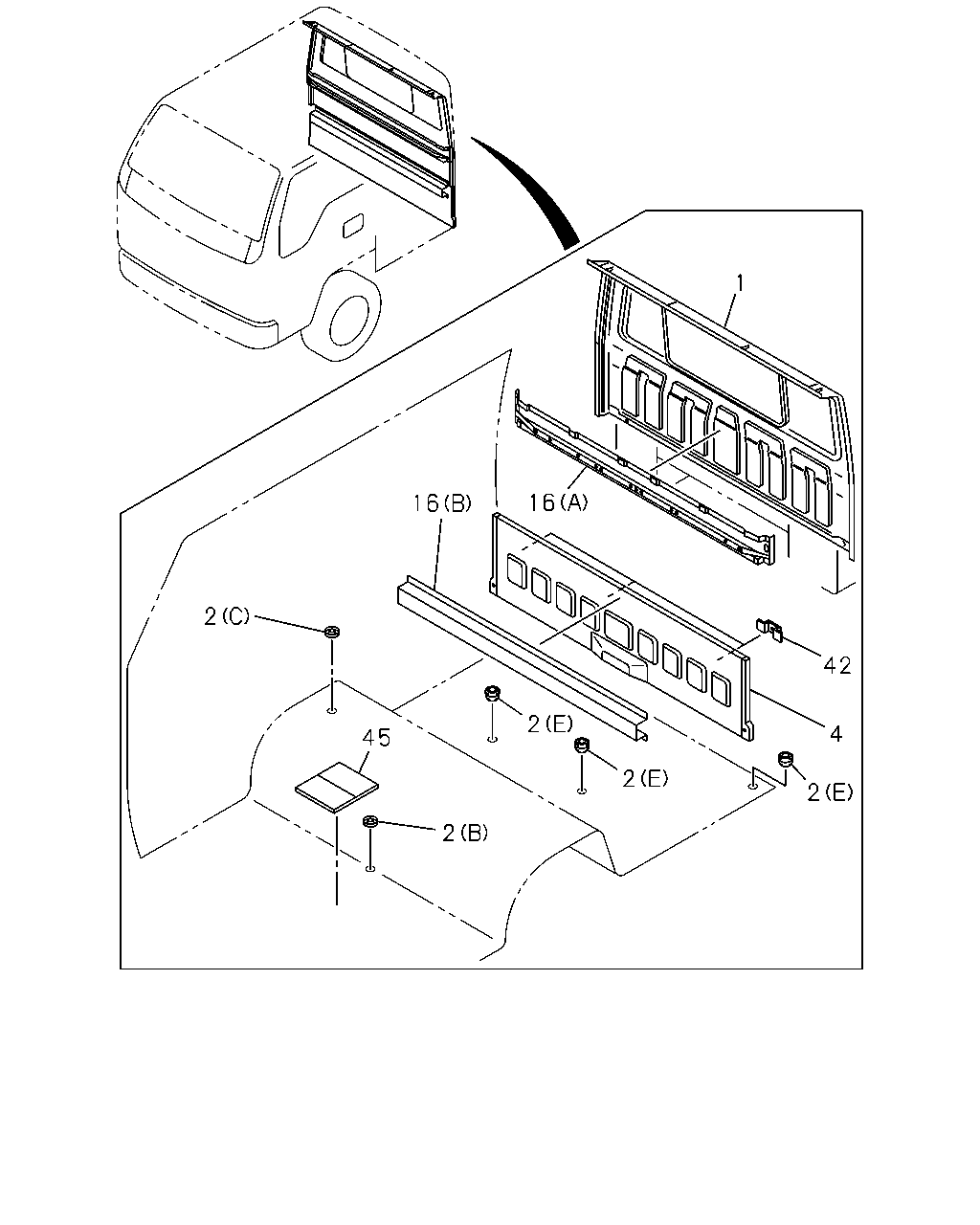

çizim 11496
1 16 16 2 42 2 4 45 2 2 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.587 PANEL; BACK OUTER
4HF1-N ENG(RJZ) 		8-97851-352-2 01 1 0502-0609 ● ●
1 16.587 PANEL; BACK OUTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-97851-352-2 01 1 0502-0609 ●
1 16.587 PANEL; BACK OUTER
4JB1-TC ENG(RDT),4JB1 ENG(RLF) 		8-97851-352-2 01 1 0610-0712 ●
1 16.587 PANEL; BACK OUTER
4JH1-TC ENG(RDM) INTERIOR DELUXE<RBB> 		8-97851-352-2 01 1 0610-0712 ● ●
1 16.587 PANEL; BACK OUTER
4JH1-TC ENG(RDM),4JB1 ENG(RLF) EXC. INTERIOR DELUXE<RBB> 		8-97851-352-2 01 1 0610-0712 ● ●
1 16.587 PANEL; BACK OUTER 8-97851-352-2 01 1 0610-0712 ● ●
1 16.587 PANEL; BACK OUTER
4JB1-TC ENG(RDT),4JB1 ENG(RLF) 		8-97851-352-2 01 1 0801-1404 ●
1 16.587 PANEL; BACK OUTER
4JH1-TC ENG(RDM) INTERIOR DELUXE<RBB> 		8-97851-352-2 01 1 0801-1404 ● ●
1 16.587 PANEL; BACK OUTER
4JH1-TC ENG(RDM),4JB1 ENG(RLF) EXC. INTERIOR DELUXE<RBB> 		8-97851-352-2 01 1 0801-1404 ●
1 16.587 PANEL; BACK OUTER
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 ENG(RLF) EXC. INTERIOR DELUXE<RBB> 		8-97851-352-2 01 1 0801-1404 ●
1 16.587 PANEL; BACK OUTER 8-97851-352-2 01 1 0801-1404 ● ●
1 16.587 PANEL; BACK OUTER
4JB1-TC ENG(RDT),4JB1 ENG(RLF) 		8-97851-352-2 01 1 1405- ●
1 16.587 PANEL; BACK OUTER
4JH1-TC ENG(RDM) INTERIOR DELUXE<RBB> 		8-97851-352-2 01 1 1405- ● ●
1 16.587 PANEL; BACK OUTER
4JH1-TC ENG(RDM),4JB1 ENG(RLF) EXC. INTERIOR DELUXE<RBB> 		8-97851-352-2 01 1 1405- ●
1 16.587 PANEL; BACK OUTER
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 ENG(RLF) EXC. INTERIOR DELUXE<RBB> 		8-97851-352-2 01 1 1405- ●
1 16.587 PANEL; BACK OUTER
4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) EXC. INTERIOR DELUXE<RBB> 		8-97851-352-2 01 1 1405- ●
1 16.587 PANEL; BACK OUTER 8-97851-352-2 01 1 1405- ● ●
1 16.587 PANEL; BACK OUTER 8-97851-352-2 01 1 0211-0501 ● ● ● ● ● ●
1 16.587 PANEL; BACK OUTER
4JB1 ENG(RLF) 		8-97851-352-2 01 1 0502-0609 ●
1 16.587 PANEL; BACK OUTER
4JH1-TC ENG(RDM) INTERIOR DELUXE<RBB> 		8-97851-352-2 01 1 0502-0609 ● ●
1 16.587 PANEL; BACK OUTER
4JH1-TC ENG(RDM),4JB1 ENG(RLF) EXC. INTERIOR DELUXE<RBB> 		8-97851-352-2 01 1 0502-0609 ● ●
1 16.587 PANEL; BACK OUTER 8-97851-352-2 01 1 0502-0609 ● ●
1 16.587 PANEL; BACK OUTER
4HF1-N ENG(RJZ) 		8-97851-352-2 01 1 0610-1404 ● ●
1 16.587 PANEL; BACK OUTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-97851-352-2 01 1 0610-1404 ●
1 16.587 PANEL; BACK OUTER
4HF1-N ENG(RJZ) 		8-97851-352-2 01 1 1405- ● ●
1 16.587 PANEL; BACK OUTER
4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) EXC. INTERIOR DELUXE<RBB>,MINI BUS CHASSIS(V4B) 		8-97851-352-2 01 1 1405- ●
1 16.587 PANEL; BACK OUTER
4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) 		8-97851-352-2 01 1 1405- ●
1 16.587 PANEL; BACK OUTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-97851-352-2 01 1 1405- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
08.155 (B) OD=28.5 		8-94279-711-0 02 1 0211-0501 ● ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
08.155 (B) OD=28.5 		8-94279-711-0 02 1 0502- ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
00.785 (C) OD=16.2 		8-94492-493-0 02 1 0211-0501 ● ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
00.785 (C) OD=16.2 		8-94492-493-0 02 1 0502-0512 ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (C) OD=15.0 		8-94279-040-0 02 1 0601- ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 04 1 0211- ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
02.580 (D) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0211-0710 ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545 (D) OD=32 BLACK 		8-98031-126-0 02 1 0711- ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
15.222 (E) OD=35 		8-94122-971-0 04 1 0211-0501 ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
15.222 (E) OD=35 		8-94122-971-0 04 1 0502- ●
4 16.575 PANEL; CAB BACK LWR 8-97851-145-6 01 1 0211-0501 ● ●
4 16.575 PANEL; CAB BACK LWR 8-97851-145-6 01 1 0502- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97867-215-0 01 1 0211-0501 ● ● ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97867-215-0 01 1 0502- ● ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(B) 		8-97851-300-1 01 1 0211-0501 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(B) 		8-97851-300-1 01 1 0502- ●
42 16.587 BRACKET; HEAT PROTECTOR
16.588 		8-94265-170-1 03 1 0211-0501 ● ●
42 16.587 BRACKET; HEAT PROTECTOR
16.588 		8-94265-170-1 03 1 0502- ●
45 16.587 SHEET; MELTING,BACK PANEL
16.850 NON ASBESTOS 1000X600 T=1.5; PARTS ON LY 		8-94262-093-0 02 1 0211-0501 ● ●
45 16.587 SHEET; MELTING,BACK PANEL
16.850 NON ASBESTOS 1000X600 T=1.5; PARTS ON LY 		8-94262-093-0 02 1 0502- ●

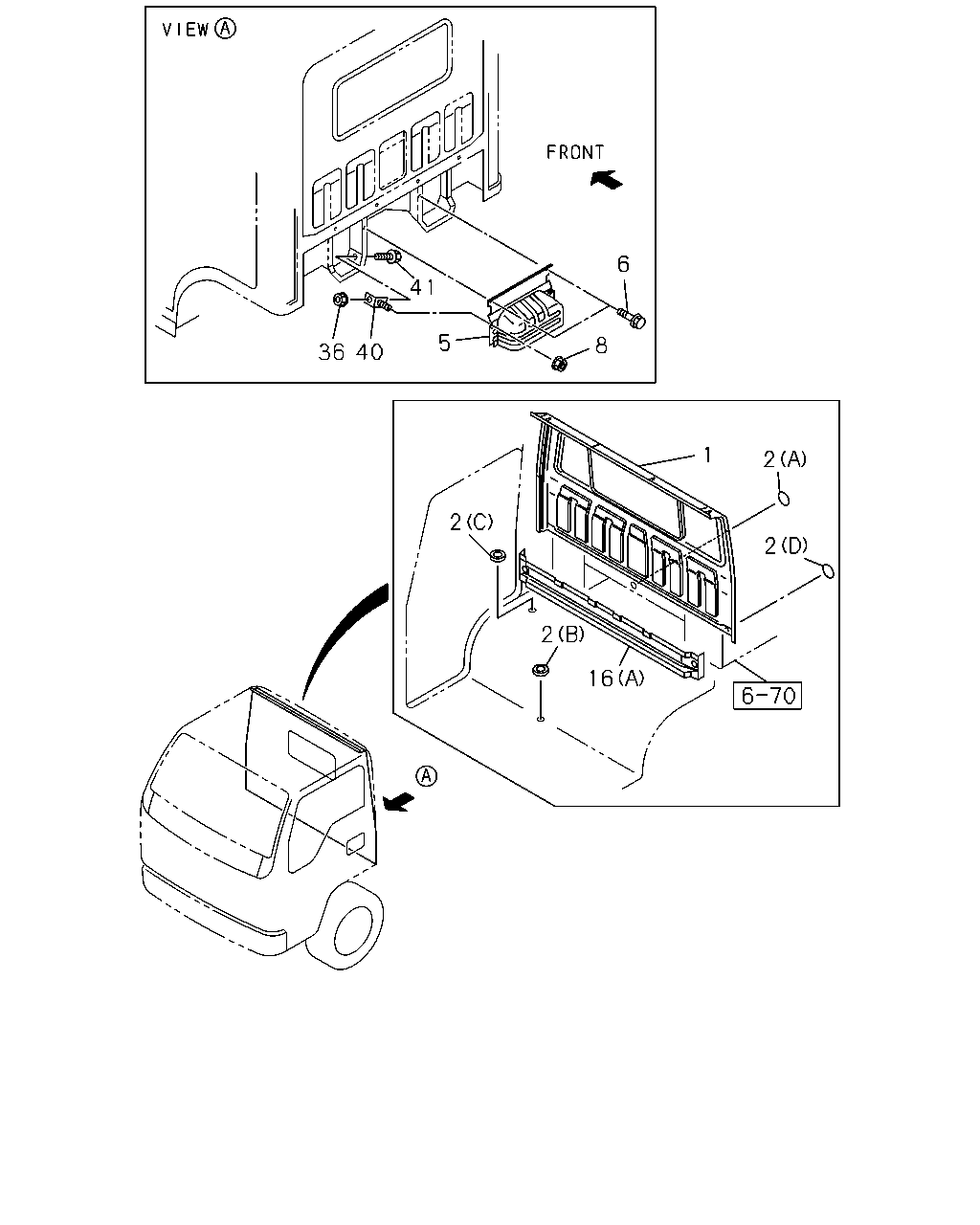

çizim 55116
6 41 5 8 36 40 1 2 2 2 2 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.587 PANEL; BACK OUTER
4HF1-N ENG(RJZ) 		8-97851-352-2 01 1 0502-0609 ● ●
1 16.587 PANEL; BACK OUTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-97851-352-2 01 1 0502-0609 ●
1 16.587 PANEL; BACK OUTER
4JB1-TC ENG(RDT),4JB1 ENG(RLF) 		8-97851-352-2 01 1 0610-0712 ●
1 16.587 PANEL; BACK OUTER
4JH1-TC ENG(RDM) INTERIOR DELUXE<RBB> 		8-97851-352-2 01 1 0610-0712 ● ●
1 16.587 PANEL; BACK OUTER
4JH1-TC ENG(RDM),4JB1 ENG(RLF) EXC. INTERIOR DELUXE<RBB> 		8-97851-352-2 01 1 0610-0712 ● ●
1 16.587 PANEL; BACK OUTER 8-97851-352-2 01 1 0610-0712 ● ●
1 16.587 PANEL; BACK OUTER
4JB1-TC ENG(RDT),4JB1 ENG(RLF) 		8-97851-352-2 01 1 0801-1404 ●
1 16.587 PANEL; BACK OUTER
4JH1-TC ENG(RDM) INTERIOR DELUXE<RBB> 		8-97851-352-2 01 1 0801-1404 ● ●
1 16.587 PANEL; BACK OUTER
4JH1-TC ENG(RDM),4JB1 ENG(RLF) EXC. INTERIOR DELUXE<RBB> 		8-97851-352-2 01 1 0801-1404 ●
1 16.587 PANEL; BACK OUTER
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 ENG(RLF) EXC. INTERIOR DELUXE<RBB> 		8-97851-352-2 01 1 0801-1404 ●
1 16.587 PANEL; BACK OUTER 8-97851-352-2 01 1 0801-1404 ● ●
1 16.587 PANEL; BACK OUTER
4JB1-TC ENG(RDT),4JB1 ENG(RLF) 		8-97851-352-2 01 1 1405- ●
1 16.587 PANEL; BACK OUTER
4JH1-TC ENG(RDM) INTERIOR DELUXE<RBB> 		8-97851-352-2 01 1 1405- ● ●
1 16.587 PANEL; BACK OUTER
4JH1-TC ENG(RDM),4JB1 ENG(RLF) EXC. INTERIOR DELUXE<RBB> 		8-97851-352-2 01 1 1405- ●
1 16.587 PANEL; BACK OUTER
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 ENG(RLF) EXC. INTERIOR DELUXE<RBB> 		8-97851-352-2 01 1 1405- ●
1 16.587 PANEL; BACK OUTER
4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) EXC. INTERIOR DELUXE<RBB> 		8-97851-352-2 01 1 1405- ●
1 16.587 PANEL; BACK OUTER 8-97851-352-2 01 1 1405- ● ●
1 16.587 PANEL; BACK OUTER 8-97851-352-2 01 1 0211-0501 ● ● ● ● ● ●
1 16.587 PANEL; BACK OUTER
4JB1 ENG(RLF) 		8-97851-352-2 01 1 0502-0609 ●
1 16.587 PANEL; BACK OUTER
4JH1-TC ENG(RDM) INTERIOR DELUXE<RBB> 		8-97851-352-2 01 1 0502-0609 ● ●
1 16.587 PANEL; BACK OUTER
4JH1-TC ENG(RDM),4JB1 ENG(RLF) EXC. INTERIOR DELUXE<RBB> 		8-97851-352-2 01 1 0502-0609 ● ●
1 16.587 PANEL; BACK OUTER 8-97851-352-2 01 1 0502-0609 ● ●
1 16.587 PANEL; BACK OUTER
4HF1-N ENG(RJZ) 		8-97851-352-2 01 1 0610-1404 ● ●
1 16.587 PANEL; BACK OUTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-97851-352-2 01 1 0610-1404 ●
1 16.587 PANEL; BACK OUTER
4HF1-N ENG(RJZ) 		8-97851-352-2 01 1 1405- ● ●
1 16.587 PANEL; BACK OUTER
4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) EXC. INTERIOR DELUXE<RBB>,MINI BUS CHASSIS(V4B) 		8-97851-352-2 01 1 1405- ●
1 16.587 PANEL; BACK OUTER
4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) 		8-97851-352-2 01 1 1405- ●
1 16.587 PANEL; BACK OUTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-97851-352-2 01 1 1405- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
08.155 (B) OD=28.5 		8-94279-711-0 02 1 0211-0501 ● ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
08.155 (B) OD=28.5 		8-94279-711-0 02 1 0502- ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
00.785 (C) OD=16.2 		8-94492-493-0 02 1 0211-0501 ● ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
00.785 (C) OD=16.2 		8-94492-493-0 02 1 0502-0512 ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (C) OD=15.0 		8-94279-040-0 02 1 0601- ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 04 1 0211- ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
02.580 (D) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0211-0710 ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545 (D) OD=32 BLACK 		8-98031-126-0 02 1 0711- ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
15.222 (E) OD=35 		8-94122-971-0 04 1 0211-0501 ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
15.222 (E) OD=35 		8-94122-971-0 04 1 0502- ●
5 16.587 PANEL; CAB BACK
4JH1 ENG(RJX) MANUAL TILT CAB<RWZ> NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97259-949-1 01 1 0211-0501 ●
6 16.587 BOLT; BACK PANEL
4JH1 ENG(RJX) MANUAL TILT CAB<RWZ> NOISE PACK FOR REGULATION VAR.2<7TF> 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0211-0501 ●
8 16.587 NUT; BACK PANEL
4JH1 ENG(RJX) MANUAL TILT CAB<RWZ> NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0211-0501 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97867-215-0 01 1 0211-0501 ● ● ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97867-215-0 01 1 0502- ● ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(B) 		8-97851-300-1 01 1 0211-0501 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(B) 		8-97851-300-1 01 1 0502- ●
36 16.587 NUT; BRKT
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) MANUAL TILT CAB<RWZ> NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0211-0501 ●
40 16.587 BRACKET; BACK PANEL
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) MANUAL TILT CAB<RWZ> NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97322-264-0 02 1 0211-0501 ●
41 16.587 BOLT
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) MANUAL TILT CAB<RWZ> NOISE PACK FOR REGULATION VAR.2<7TF> 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0211-0501 ●
