◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50944 - NKR(RHD)EXC.EURO4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-76 - FLOOR EQUIPMENT AND SEALING ▶
6-76 — FLOOR EQUIPMENT AND SEALING (#48136) — 200 parça
çizim 11348
371 248
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
248 16.850 SEAL; EXT,FRT & RR
02.580 OD=36 T=0.05 BLACK 		5-76777-035-0 04 1 0307-0501 ● ● ● ● ● ●
248 16.850 SEAL; EXT,FRT & RR
INDONESIA EQUIPMENT(S4S) 02.580 OD=36 T=0.05 BLACK 		5-76777-035-0 04 1 0502- ● ●
371 16.549 GROMMET; LOCATION HOLE
16.547 14.5X14.5 BLACK 		8-94279-714-0 02 1 0304-0501 ● ● ● ● ● ●
371 16.549 GROMMET; LOCATION HOLE
16.547 14.5X14.5 BLACK 		8-94279-714-0 02 1 0502- ● ● ● ● ●

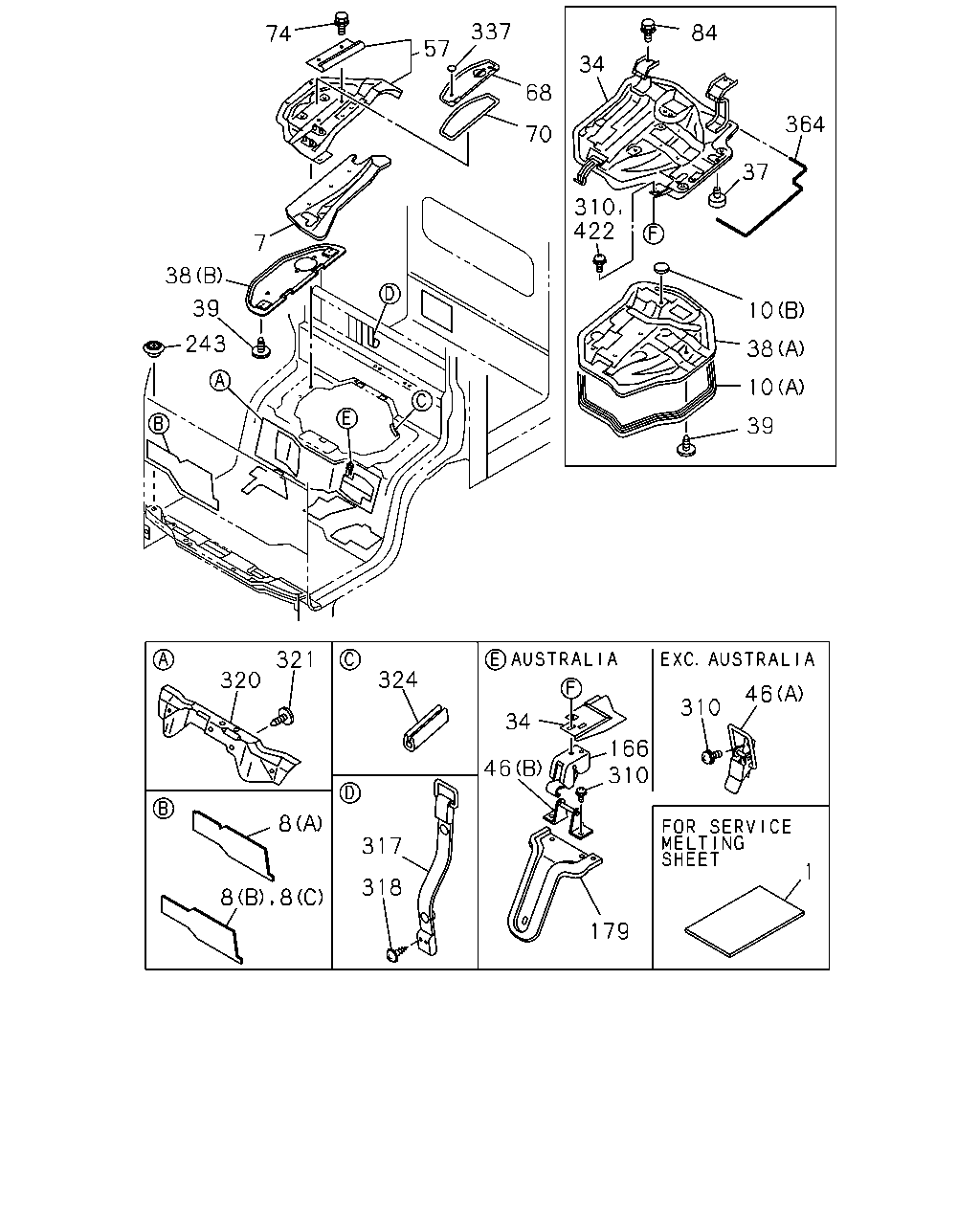

çizim 13512
337 84 74 57 34 68 364 70 37 310 422 7 38 39 10 243 38 10 39 321 324 320 46 310 34 166 310 46 8 317 1 318 179 8 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.850 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ON LY 		8-94262-093-0 AR 1 0211-0501 ● ● ● ● ● ●
1 16.850 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ON LY 		8-94262-093-0 AR 1 0502- ● ● ● ● ●
7 16.545 INSULATOR; SUPPORT COVER
MANUAL TILT CAB<RWZ> EXC. HONG KONG EQUIPMENT(PQ1) 		8-97853-543-3 01 1 0211-0501 ● ● ●
7 16.545 INSULATOR; SUPPORT COVER
MANUAL TILT CAB<RWZ> 		8-97853-543-3 01 1 0211-0501 ●
7 16.545 INSULATOR; SUPPORT COVER
MANUAL TILT CAB<RWZ> 		8-97853-543-3 01 1 0502- ● ●
7 16.545 INSULATOR; SUPPORT COVER
MANUAL TILT CAB<RWZ> EXC. HONG KONG EQUIPMENT(PQ1) 		8-97853-543-3 01 1 0502- ● ●
7 16.545 INSULATOR; SUPPORT COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97853-544-3 01 1 0211-0501 ● ● ● ●
7 16.545 INSULATOR; SUPPORT COVER
HONG KONG EQUIPMENT(PQ1) 		8-97853-544-3 01 1 0211-0501 ● ● ●
7 16.545 INSULATOR; SUPPORT COVER 8-97853-544-3 01 1 0211-0501 ● ●
7 16.545 INSULATOR; SUPPORT COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97853-544-3 01 1 0502- ● ● ● ●
7 16.545 INSULATOR; SUPPORT COVER
HONG KONG EQUIPMENT(PQ1) 		8-97853-544-3 01 1 0502- ● ●
7 16.545 INSULATOR; SUPPORT COVER 8-97853-544-3 01 1 0502- ●
8 16.802 MAT; SILENCER,FRT PANEL
(A) 		8-97853-604-2 01 1 0211-0501 ● ● ● ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL
INDONESIA EQUIPMENT(S4S) (A) 		8-97853-604-2 01 1 0502-0506 ● ●
8 16.802 MAT; SILENCER,FRT PANEL
(A) 		8-97853-603-2 01 1 0211-0501 ● ● ● ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL
INDONESIA EQUIPMENT(S4S) (A) 		8-97853-603-2 01 1 0502-0506 ● ●
8 16.802 MAT; SILENCER,FRT PANEL
EXC. INDONESIA EQUIPMENT(S4S) (B) 		8-97581-659-2 01 1 0502-0506 ● ●
8 16.802 MAT; SILENCER,FRT PANEL
(B) 		8-97581-659-2 01 1 0502-0506 ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL
(B) 		8-97581-659-3 01 1 0507-0606 ● ● ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL
EXC. INDONESIA EQUIPMENT(S4S) (B) 		8-97581-658-2 01 1 0502-0506 ● ●
8 16.802 MAT; SILENCER,FRT PANEL
(B) 		8-97581-658-2 01 1 0502-0506 ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL
(B) 		8-97581-658-3 01 1 0507-0606 ● ● ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL
(C) 		8-98019-713-2 02 1 0607- ● ● ● ● ●
10 16.549 SEAL; ENG COVER
(A) 		8-97853-010-3 01 1 0211-0501 ● ● ● ● ● ●
10 16.549 SEAL; ENG COVER
(A) 		8-97853-010-4 01 1 0502- ● ● ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR ARC WHITE(729) INTERIOR DELUXE<RBB> 16.592 (B) OD=36 WHITE 		1-76778-007-0 01 1 0211- ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR FT ORANGE(609),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) INTERIOR DELUXE<RBB> 02.580 (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0211-0501 ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR FT ORANGE(609),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) INTERIOR DELUXE<RBB> 02.580 (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0502-0710 ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR FT ORANGE(609) INTERIOR DELUXE<RBB> 02.580 (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0502-0710 ●
10 16.549 SEAL; ENG COVER
BODY COLOR FT ORANGE(609),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) INTERIOR DELUXE<RBB> 16.545 (B) OD=32 BLACK 		8-98031-126-0 01 1 0711- ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR FT ORANGE(609) INTERIOR DELUXE<RBB> 16.545 (B) OD=32 BLACK 		8-98031-126-0 01 1 0711- ●
34 16.549 COVER ASM; ENG,CAB FLOOR 8-97850-673-1 01 1 0211-0501 ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97850-673-1 01 1 0211-0501 ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR 8-97850-673-1 01 1 0502- ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97850-673-1 01 1 0502- ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
AUSTRALIA EQUIPMENT(RR3) 		8-97850-905-1 01 1 0211-0501 ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
AUSTRALIA EQUIPMENT(RR3) 		8-97850-905-1 01 1 0502- ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR 8-97850-905-1 01 1 0502- ●
37 16.549 RUBBER; BUFFER,ENG COVER
16.155 OD=30 T=10 		5-74917-001-2 02 1 0211-0501 ● ● ● ● ● ●
37 16.549 RUBBER; BUFFER,ENG COVER
16.155 OD=30 T=10 		5-74917-001-2 02 1 0502- ● ● ● ● ●
38 16.549 INSULATOR; ENG COVER
(A) 		8-97859-917-0 01 1 0211-0501 ● ● ● ● ● ●
38 16.549 INSULATOR; ENG COVER
(A) 		8-97859-917-0 01 1 0502- ● ● ● ● ●
38 16.549 INSULATOR; ENG COVER
EXC. MANUAL TILT CAB<RWZ> (B) 		8-97856-803-0 01 1 0211-0501 ● ● ● ●
38 16.549 INSULATOR; ENG COVER
HONG KONG EQUIPMENT(PQ1) MANUAL TILT CAB<RWZ> (B) 		8-97856-803-0 01 1 0211-0501 ● ● ●
38 16.549 INSULATOR; ENG COVER
(B) 		8-97856-803-0 01 1 0211-0501 ● ●
38 16.549 INSULATOR; ENG COVER
EXC. MANUAL TILT CAB<RWZ> (B) 		8-97856-803-0 01 1 0502- ● ● ● ●
38 16.549 INSULATOR; ENG COVER
HONG KONG EQUIPMENT(PQ1) MANUAL TILT CAB<RWZ> (B) 		8-97856-803-0 01 1 0502- ● ●
38 16.549 INSULATOR; ENG COVER
(B) 		8-97856-803-0 01 1 0502- ●
39 16.549 CLIP; INSULATOR,COVER
OD=30 		8-94279-952-0 05 1 0211-0501 ● ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
EXC. MANUAL TILT CAB<RWZ> OD=30 		8-94279-952-0 05 1 0211-0501 ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
HONG KONG EQUIPMENT(PQ1) OD=30 		8-94279-952-0 05 1 0211-0501 ● ● ●
39 16.549 CLIP; INSULATOR,COVER
OD=30 		8-94279-952-0 05 1 0211-0501 ● ●
39 16.549 CLIP; INSULATOR,COVER
OD=30 		8-94279-952-0 05 1 0502- ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
EXC. MANUAL TILT CAB<RWZ> OD=30 		8-94279-952-0 05 1 0502- ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
HONG KONG EQUIPMENT(PQ1) OD=30 		8-94279-952-0 05 1 0502- ● ●
39 16.549 CLIP; INSULATOR,COVER
OD=30 		8-94279-952-0 05 1 0502- ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> EXC. HONG KONG EQUIPMENT(PQ1) OD=30 		8-94279-952-0 07 1 0211-0501 ● ● ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> OD=30 		8-94279-952-0 07 1 0211-0501 ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> OD=30 		8-94279-952-0 07 1 0502- ● ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> EXC. HONG KONG EQUIPMENT(PQ1) OD=30 		8-94279-952-0 07 1 0502- ● ●
39 16.549 CLIP; INSULATOR,COVER
EXC. MANUAL TILT CAB<RWZ> OD=30 		8-94279-952-0 02 1 0211-0501 ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
HONG KONG EQUIPMENT(PQ1) MANUAL TILT CAB<RWZ> OD=30 		8-94279-952-0 02 1 0211-0501 ● ● ●
39 16.549 CLIP; INSULATOR,COVER
OD=30 		8-94279-952-0 02 1 0211-0501 ● ●
39 16.549 CLIP; INSULATOR,COVER
EXC. MANUAL TILT CAB<RWZ> OD=30 		8-94279-952-0 02 1 0502- ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
HONG KONG EQUIPMENT(PQ1) MANUAL TILT CAB<RWZ> OD=30 		8-94279-952-0 02 1 0502- ● ●
39 16.549 CLIP; INSULATOR,COVER
OD=30 		8-94279-952-0 02 1 0502- ●
46 16.549 HOOK ASM; ENG COVER
(A) 		8-97853-632-2 02 1 0211-0501 ● ● ●
46 16.549 HOOK ASM; ENG COVER
EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97853-632-2 02 1 0211-0501 ● ● ●
46 16.549 HOOK ASM; ENG COVER
(A) 		8-97853-632-2 02 1 0502- ● ●
46 16.549 HOOK ASM; ENG COVER
EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97853-632-2 02 1 0502- ● ●
46 16.549 HOOK ASM; ENG COVER
AUSTRALIA EQUIPMENT(RR3) (B) 		8-97850-594-2 02 1 0211-0501 ● ● ●
46 16.549 HOOK ASM; ENG COVER
AUSTRALIA EQUIPMENT(RR3) (B) 		8-97850-594-2 02 1 0502-0608 ● ●
46 16.549 HOOK ASM; ENG COVER
(B) 		8-97850-594-2 02 1 0502-0608 ●
46 16.549 HOOK ASM; ENG COVER
AUSTRALIA EQUIPMENT(RR3) (B) 		8-98040-145-0 02 1 0609- ● ●
46 16.549 HOOK ASM; ENG COVER
(B) 		8-98040-145-0 02 1 0609- ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
MANUAL TILT CAB<RWZ> EXC. HONG KONG EQUIPMENT(PQ1) 		8-97866-687-1 01 1 0211-0501 ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
MANUAL TILT CAB<RWZ> 		8-97866-687-1 01 1 0211-0501 ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
MANUAL TILT CAB<RWZ> 		8-97866-687-1 01 1 0502- ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
MANUAL TILT CAB<RWZ> EXC. HONG KONG EQUIPMENT(PQ1) 		8-97866-687-1 01 1 0502- ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97866-688-1 01 1 0211-0501 ● ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
HONG KONG EQUIPMENT(PQ1) 		8-97866-688-1 01 1 0211-0501 ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR 8-97866-688-1 01 1 0211-0501 ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97866-688-1 01 1 0502- ● ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
HONG KONG EQUIPMENT(PQ1) 		8-97866-688-1 01 1 0502- ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR 8-97866-688-1 01 1 0502- ●
68 16.549 COVER ASM; SUB,ENG COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97853-712-3 01 1 0211-0312 ● ● ● ●
68 16.549 COVER ASM; SUB,ENG COVER
HONG KONG EQUIPMENT(PQ1) MANUAL TILT CAB<RWZ> 		8-97853-712-3 01 1 0211-0312 ● ● ●
68 16.549 COVER ASM; SUB,ENG COVER 8-97853-712-3 01 1 0211-0312 ● ●
68 16.549 COVER ASM; SUB,ENG COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97583-489-0 01 1 0401-0501 ● ● ● ●
68 16.549 COVER ASM; SUB,ENG COVER
HONG KONG EQUIPMENT(PQ1) MANUAL TILT CAB<RWZ> 		8-97583-489-0 01 1 0401-0501 ● ● ●
68 16.549 COVER ASM; SUB,ENG COVER 8-97583-489-0 01 1 0401-0501 ● ●
68 16.549 COVER ASM; SUB,ENG COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97583-489-0 01 1 0502-0608 ● ● ● ●
68 16.549 COVER ASM; SUB,ENG COVER
HONG KONG EQUIPMENT(PQ1) MANUAL TILT CAB<RWZ> 		8-97583-489-0 01 1 0502-0608 ● ●
68 16.549 COVER ASM; SUB,ENG COVER 8-97583-489-0 01 1 0502-0608 ●
68 16.549 COVER ASM; SUB,ENG COVER
EXC. MANUAL TILT CAB<RWZ> 		8-98040-141-0 01 1 0609- ● ● ● ●
68 16.549 COVER ASM; SUB,ENG COVER
HONG KONG EQUIPMENT(PQ1) MANUAL TILT CAB<RWZ> 		8-98040-141-0 01 1 0609- ● ●
68 16.549 COVER ASM; SUB,ENG COVER 8-98040-141-0 01 1 0609- ●
70 16.549 SEAL; ENG SUB COVER,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97853-050-1 01 1 0211-0501 ● ● ● ●
70 16.549 SEAL; ENG SUB COVER,CAB FLOOR
HONG KONG EQUIPMENT(PQ1) MANUAL TILT CAB<RWZ> 		8-97853-050-1 01 1 0211-0501 ● ● ●
70 16.549 SEAL; ENG SUB COVER,CAB FLOOR 8-97853-050-1 01 1 0211-0501 ● ●
70 16.549 SEAL; ENG SUB COVER,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97853-050-1 01 1 0502- ● ● ● ●
70 16.549 SEAL; ENG SUB COVER,CAB FLOOR
HONG KONG EQUIPMENT(PQ1) MANUAL TILT CAB<RWZ> 		8-97853-050-1 01 1 0502- ● ●
70 16.549 SEAL; ENG SUB COVER,CAB FLOOR 8-97853-050-1 01 1 0502- ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.664 M8X20 FLANGE 		0-28680-820-0 04 1 0211-0501 ● ● ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.664 M8X20 FLANGE 		0-28680-820-0 04 1 0502-0512 ● ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
01.531 M8X20 FLANGE 		0-28650-820-0 04 1 0601- ● ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0211-0501 ● ● ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0502-0512 ● ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ● ● ● ●
84 16.549 BOLT; ENG COVER HINGE
02.664 M8X20 FLANGE 		0-28680-820-0 04 1 0211-0501 ● ● ● ● ● ●
84 16.549 BOLT; ENG COVER HINGE
02.664 M8X20 FLANGE 		0-28680-820-0 04 1 0502-0512 ● ● ● ● ●
84 16.549 BOLT; ENG COVER HINGE
01.531 M8X20 FLANGE 		0-28650-820-0 04 1 0601- ● ● ● ● ●
166 16.549 LOCK; ENG COVER
AUSTRALIA EQUIPMENT(RR3) 		8-97850-915-1 02 1 0211-0501 ● ● ●
166 16.549 LOCK; ENG COVER
AUSTRALIA EQUIPMENT(RR3) 		8-97850-915-1 02 1 0502-0608 ● ●
166 16.549 LOCK; ENG COVER 8-97850-915-1 02 1 0502-0608 ●
166 16.549 LOCK; ENG COVER
AUSTRALIA EQUIPMENT(RR3) 		8-98040-152-0 02 1 0609- ● ●
166 16.549 LOCK; ENG COVER 8-98040-152-0 02 1 0609- ●
179 16.549 REINFORCEMENT; COVER
AUSTRALIA EQUIPMENT(RR3) 		8-97857-866-2 01 1 0211-0501 ● ● ●
179 16.549 REINFORCEMENT; COVER
AUSTRALIA EQUIPMENT(RR3) 		8-97857-866-2 01 1 0502-0609 ● ●
179 16.549 REINFORCEMENT; COVER 8-97857-866-2 01 1 0502-0609 ●
179 16.549 REINFORCEMENT; COVER
AUSTRALIA EQUIPMENT(RR3) 		8-98048-301-1 01 1 0610- ● ●
179 16.549 REINFORCEMENT; COVER 8-98048-301-1 01 1 0610- ●
243 16.547 GROMMET; STOPPER,CHECK HOLE LID
OD=12.1 		8-97898-423-0 01 1 0211-0501 ● ● ● ● ● ●
243 16.547 GROMMET; STOPPER,CHECK HOLE LID
OD=12.1 		8-97898-423-0 01 1 0502- ● ● ● ● ●
310 16.549 SCREW; ENG COVER HOOK
16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 0211-0501 ● ● ●
310 16.549 SCREW; ENG COVER HOOK
EXC. AUSTRALIA EQUIPMENT(RR3) 16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 0211-0501 ● ● ●
310 16.549 SCREW; ENG COVER HOOK
16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 0502-0612 ● ●
310 16.549 SCREW; ENG COVER HOOK
EXC. AUSTRALIA EQUIPMENT(RR3) 16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 0502-0612 ● ●
310 16.549 SCREW; ENG COVER HOOK
16.570 M6X16 		0-38050-616-0 04 1 0701-0810 ● ●
310 16.549 SCREW; ENG COVER HOOK
EXC. AUSTRALIA EQUIPMENT(RR3) 16.570 M6X16 		0-38050-616-0 04 1 0701-0810 ● ●
310 16.549 SCREW; ENG COVER HOOK
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 0811- ● ●
310 16.549 SCREW; ENG COVER HOOK
EXC. AUSTRALIA EQUIPMENT(RR3) 02.343 M6X16 FLANGE 		0-28650-616-0 04 1 0811- ● ●
310 16.549 SCREW; ENG COVER HOOK
AUSTRALIA EQUIPMENT(RR3) 16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 09 1 0211-0501 ● ● ●
310 16.549 SCREW; ENG COVER HOOK
AUSTRALIA EQUIPMENT(RR3) 16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 09 1 0502-0604 ● ●
310 16.549 SCREW; ENG COVER HOOK
16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 09 1 0502-0604 ●
310 16.549 SCREW; ENG COVER HOOK
AUSTRALIA EQUIPMENT(RR3) 16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 05 1 0605-0612 ● ●
310 16.549 SCREW; ENG COVER HOOK
16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 05 1 0605-0612 ●
310 16.549 SCREW; ENG COVER HOOK
AUSTRALIA EQUIPMENT(RR3) 16.570 M6X16 		0-38050-616-0 05 1 0701- ● ●
310 16.549 SCREW; ENG COVER HOOK
16.570 M6X16 		0-38050-616-0 05 1 0701- ●
317 16.549 BAND; ENGINE COVER
L=535 BLACK 		8-97867-201-1 01 1 0211-0501 ● ● ● ● ● ●
317 16.549 BAND; ENGINE COVER
L=535 BLACK 		8-97867-201-1 01 1 0502- ● ● ● ● ●
318 16.549 SCREW; BAND
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0211-0501 ● ● ● ● ● ●
318 16.549 SCREW; BAND
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0502-0604 ● ● ● ● ●
318 16.549 SCREW; BAND
03.885 M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0605-0612 ● ● ● ● ●
318 16.549 SCREW; BAND
16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 02 1 0701- ● ● ● ● ●
320 16.549 INSULATOR; FLOOR,FRT 8-97856-277-6 01 1 0211-0501 ● ● ● ● ● ●
320 16.549 INSULATOR; FLOOR,FRT 8-97856-277-6 01 1 0502- ● ● ● ● ●
321 16.549 CLIP; INSULATOR,FLOOR
OD=30 		8-94279-952-0 04 1 0211-0304 ● ● ● ● ● ●
321 16.549 CLIP; INSULATOR,FLOOR
OD=30 		8-94279-952-0 03 1 0305-0501 ● ● ● ● ● ●
321 16.549 CLIP; INSULATOR,FLOOR
OD=30 		8-94279-952-0 03 1 0502- ● ● ● ● ●
324 16.545 FINISHER; FLOOR PANEL
L=140 		8-97892-742-0 01 1 0211-0501 ● ● ● ● ● ●
324 16.545 FINISHER; FLOOR PANEL
L=140 		8-97892-742-0 01 1 0502- ● ● ● ● ●
337 16.545 SEAL; CLIP HOLE
4JH1 ENG(RJX) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0211-0501 ● ● ● ●
337 16.545 SEAL; CLIP HOLE
4JH1-TC ENG(RDM) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0502- ● ●
337 16.545 SEAL; CLIP HOLE
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0502- ●
364 16.545 FINISHER; ENG COVER SIDE
L=1100 		8-97892-744-0 01 1 0211-0501 ● ● ● ● ● ●
364 16.545 FINISHER; ENG COVER SIDE
L=1100 		8-97892-744-0 01 1 0502- ● ● ● ● ●
422 16.549 BOLT; LOCK,ENG COVER
AUSTRALIA EQUIPMENT(RR3) 10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 0605-0612 ● ●
422 16.549 BOLT; LOCK,ENG COVER
10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 0605-0612 ●
422 16.549 BOLT; LOCK,ENG COVER
AUSTRALIA EQUIPMENT(RR3) 16.570 M6X16 		0-38050-616-0 04 1 0701-0810 ● ●
422 16.549 BOLT; LOCK,ENG COVER
16.570 M6X16 		0-38050-616-0 04 1 0701-0810 ●
422 16.549 BOLT; LOCK,ENG COVER
AUSTRALIA EQUIPMENT(RR3) 02.343 M6X16 FLANGE 		0-28650-616-0 04 1 0811- ● ●
422 16.549 BOLT; LOCK,ENG COVER
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 0811- ●

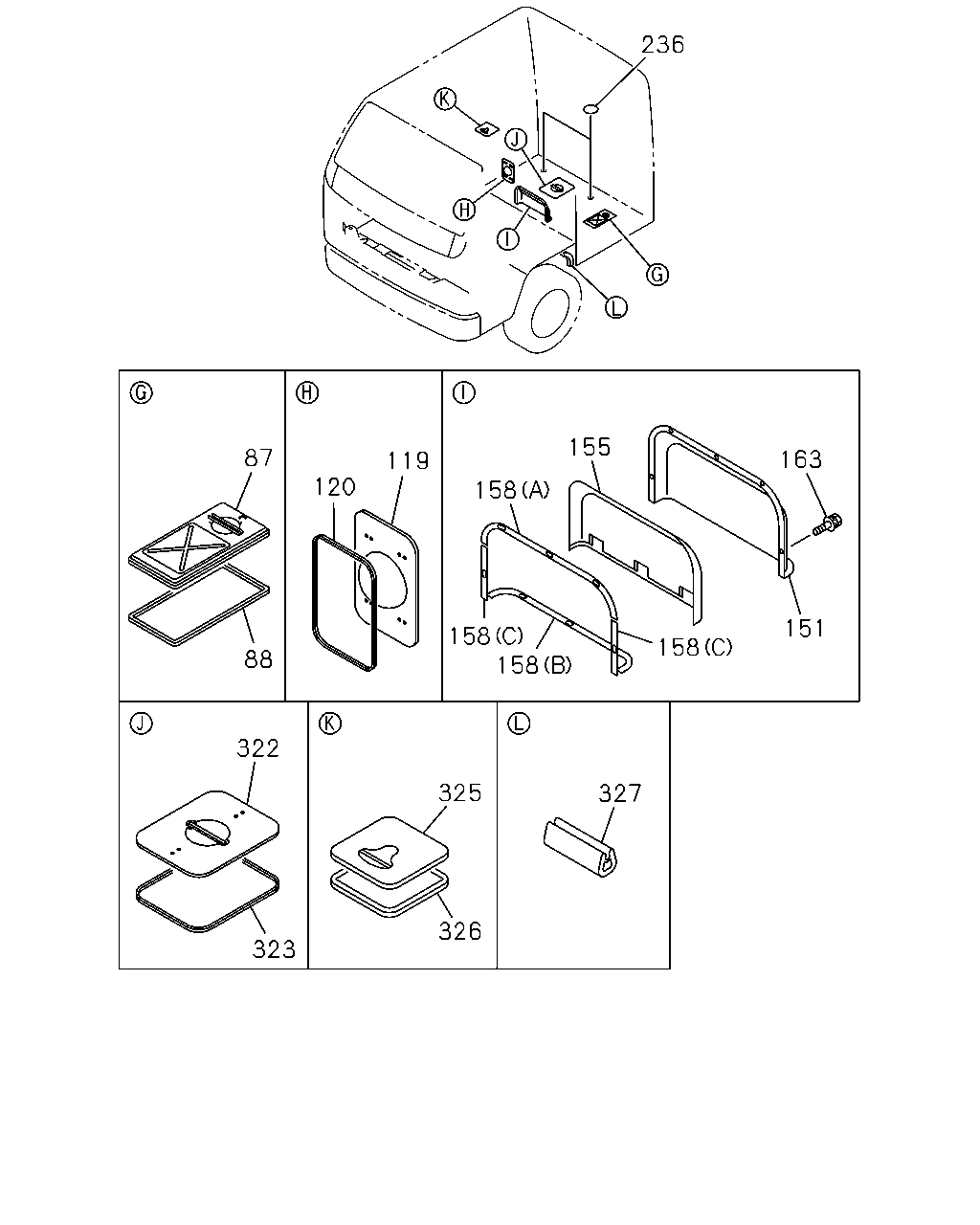

çizim 52846
236 155 87 163 119 120 158 151 158 158 158 88 322 325 327 326 323
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
87 16.549 COVER; BATTERY CHECK HOLE 8-97856-332-4 01 1 0211-0501 ● ●
87 16.549 COVER; BATTERY CHECK HOLE 8-97856-332-4 01 1 0502- ●
88 16.549 SEAL; BATTERY CHECK HOLE COVER 8-97853-725-1 01 1 0211-0501 ● ●
88 16.549 SEAL; BATTERY CHECK HOLE COVER 8-97853-725-1 01 1 0502- ●
119 16.090 LID; P/S OIL TANK 8-97853-440-2 01 1 0211-0501 ● ●
119 16.090 LID; P/S OIL TANK 8-97853-440-2 01 1 0502- ●
120 16.090 SEAL; LID,P/S 8-97853-441-1 01 1 0211-0501 ● ●
120 16.090 SEAL; LID,P/S 8-97853-441-1 01 1 0502- ●
151 16.549 COVER ASM; ENG 8-97850-285-0 01 1 0211-0501 ● ●
151 16.549 COVER ASM; ENG 8-97850-285-0 01 1 0502- ●
155 16.549 INSULATOR; RR,ENG COVER 8-97853-433-1 01 1 0211-0501 ● ●
155 16.549 INSULATOR; RR,ENG COVER 8-97853-433-1 01 1 0502- ●
158 16.549 SEAL; RR,ENG COVER,FRT
(A) 		8-97853-434-0 01 1 0211-0501 ● ●
158 16.549 SEAL; RR,ENG COVER,FRT
(A) 		8-97853-434-0 01 1 0502- ●
158 16.549 SEAL; RR,ENG COVER,FRT
(B) 		8-97853-435-0 01 1 0211-0501 ● ●
158 16.549 SEAL; RR,ENG COVER,FRT
(B) 		8-97853-435-0 01 1 0502- ●
158 16.549 SEAL; RR,ENG COVER,FRT
(C) 		8-97853-436-1 02 1 0211-0501 ● ●
158 16.549 SEAL; RR,ENG COVER,FRT
(C) 		8-97853-436-1 02 1 0502- ●
163 16.549 BOLT; RR,ENG COVER,FRT
04.439 M6X16 FLANGE 		0-28680-616-0 08 1 0211-0501 ● ●
163 16.549 BOLT; RR,ENG COVER,FRT
04.439 M6X16 FLANGE 		0-28680-616-0 08 1 0502-0512 ●
163 16.549 BOLT; RR,ENG COVER,FRT
02.343 M6X16 FLANGE 		0-28650-616-0 08 1 0601- ●
236 16.549 SEAL; CHECK HOLE
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0211-0501 ● ●
236 16.549 SEAL; CHECK HOLE
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0502- ●
322 16.549 COVER; A/T OIL 8-97853-442-2 01 1 0211-0501 ● ●
322 16.549 COVER; A/T OIL 8-97853-442-2 01 1 0502- ●
323 16.549 SEAL; COVER,A/T OIL 8-97853-443-2 01 1 0211-0501 ● ●
323 16.549 SEAL; COVER,A/T OIL 8-97853-443-2 01 1 0502- ●
325 16.549 COVER; LLC 8-97856-974-0 01 1 0211-0501 ● ●
325 16.549 COVER; LLC 8-97856-974-0 01 1 0502- ●
326 16.549 SEAL; COVER 8-97856-975-1 01 1 0211-0501 ● ●
326 16.549 SEAL; COVER 8-97856-975-1 01 1 0502- ●
327 16.545 FINISHER; CTR PILLAR,LWR 8-97857-257-1 02 1 0211-0501 ● ●
327 16.545 FINISHER; CTR PILLAR,LWR 8-97857-257-1 02 1 0502- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
