6-75 — MAT AND CARPET (#48135) — 158 parça

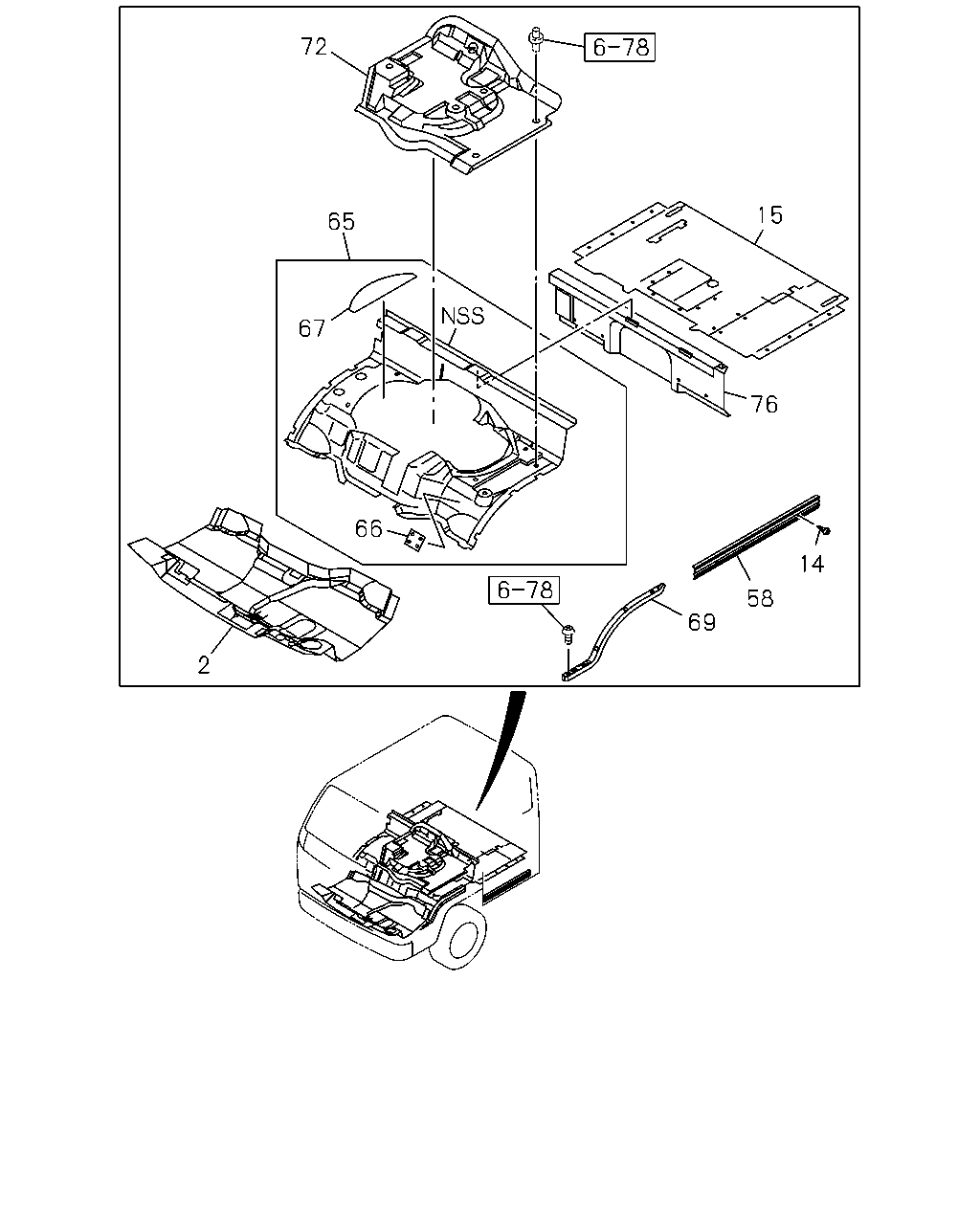

çizim 51389
72 15 65 67 76 66 14 58 69 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) DARK GRAY 		8-97996-652-2 01 1 0211-0501 ● ● ●
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97996-652-2 01 1 0211-0501 ● ● ●
2 16.800 MAT; FLOOR
INTERIOR COLOR GRAY(153) AIR CONDITIONER MANUAL CONT(C60) EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97996-652-4 01 1 0502- ● ●
2 16.800 MAT; FLOOR
EXC. AIR CONDITIONER MANUAL CONT(C60) DARK GRAY 		8-97996-650-2 01 1 0211-0501 ● ● ●
2 16.800 MAT; FLOOR
EXC. AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97996-650-2 01 1 0211-0501 ● ● ●
2 16.800 MAT; FLOOR
INTERIOR COLOR GRAY(153) EXC. AIR CONDITIONER MANUAL CONT(C60) ,AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97996-650-4 01 1 0502- ● ●
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97996-676-1 01 1 0211-0501 ● ● ●
2 16.800 MAT; FLOOR
INTERIOR COLOR BLUISH GRAY(158) AIR CONDITIONER MANUAL CONT(C60) EXC. AUSTRALIA EQUIPMENT(RR3) GRAY 		8-97582-920-4 01 1 0502- ● ● ● ●
2 16.800 MAT; FLOOR
AUSTRALIA EQUIPMENT(RR3) EXC. AIR CONDITIONER MANUAL CONT(C60) DARK GRAY 		8-97996-674-2 01 1 0211-0501 ● ● ●
2 16.800 MAT; FLOOR
INTERIOR COLOR BLUISH GRAY(158) EXC. AIR CONDITIONER MANUAL CONT(C60) ,AUSTRALIA EQUIPMENT(RR3) GRAY 		8-97582-919-4 01 1 0502- ● ● ● ●
2 16.800 MAT; FLOOR
INTERIOR COLOR BLUISH GRAY(158) AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) 		8-97588-858-3 01 1 0502- ● ● ●
2 16.800 MAT; FLOOR
INTERIOR COLOR BLUISH GRAY(158) AUSTRALIA EQUIPMENT(RR3) EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97588-857-4 01 1 0502- ● ● ●
14 16.870 SCREW; PLATE
16.345 M5X16 W/PL WASHER TAPPING 		8-94279-123-0 08 1 0211-0501 ● ●
14 16.870 SCREW; PLATE
16.345 M5X16 W/PL WASHER TAPPING 		8-94279-123-0 08 1 0502-0612 ●
14 16.870 SCREW; PLATE
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 0701- ●
15 16.800 MAT; FLOOR REAR
DARK GRAY 		8-97996-668-1 01 1 0211-0501 ● ●
15 16.800 MAT; FLOOR REAR
GRAY 		8-97587-425-2 01 1 0502- ●
58 08.153 PLATE; GUARD,RR FLOOR MAT 8-97081-344-3 02 1 0211-0501 ● ●
58 08.153 PLATE; GUARD,RR FLOOR MAT 8-97081-344-3 02 1 0502- ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ> DARK GRAY 		8-97996-696-0 01 1 0211-0501 ● ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
HONG KONG EQUIPMENT(PQ1) DARK GRAY 		8-97996-696-0 01 1 0211-0501 ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
INTERIOR COLOR GRAY(153) EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ> DARK GRAY 		8-97996-696-1 01 1 0502- ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
INTERIOR COLOR GRAY(153) HONG KONG EQUIPMENT(PQ1) DARK GRAY 		8-97996-696-1 01 1 0502- ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
MANUAL TILT CAB<RWZ> EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97996-694-0 01 1 0211-0501 ● ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
INTERIOR COLOR BLUISH GRAY(158) MANUAL TILT CAB<RWZ> EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3) GRAY 		8-97588-864-1 01 1 0502- ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
DARK GRAY 		8-97996-775-0 01 1 0211-0501 ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
GRAY 		8-97587-471-1 01 1 0502- ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
INTERIOR COLOR BLUISH GRAY(158) AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> 		8-97588-861-1 01 1 0502- ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> 		8-97996-738-0 01 1 0211-0501 ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
INTERIOR COLOR BLUISH GRAY(158) EXC. MANUAL TILT CAB<RWZ> GRAY 		8-97587-470-1 01 1 0502- ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
HONG KONG EQUIPMENT(PQ1) GRAY 		8-97587-470-1 01 1 0502- ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
INTERIOR COLOR BLUISH GRAY(158) EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ> GRAY 		8-97587-470-1 01 1 0502- ● ●
66 16.549 HOOK; COVER
INTERIOR COLOR BLUISH GRAY(158) GRAY 		8-97583-948-0 02 1 0502- ●
66 16.549 HOOK; COVER
EXC. AUSTRALIA EQUIPMENT(RR3) GRAY 		8-97583-948-0 02 1 0502- ●
66 16.549 HOOK; COVER
INTERIOR COLOR BLUISH GRAY(158) EXC. AUSTRALIA EQUIPMENT(RR3) GRAY 		8-97583-948-0 02 1 0502- ●
66 16.549 HOOK; COVER
GRAY 		8-97583-948-0 02 1 0502- ●
66 16.549 HOOK; COVER
DARK GRAY 		8-97997-582-0 02 1 0211-0501 ● ● ●
66 16.549 HOOK; COVER
EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97997-582-0 02 1 0211-0501 ● ● ●
66 16.549 HOOK; COVER
INTERIOR COLOR GRAY(153) EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ> DARK GRAY 		8-97997-582-0 02 1 0502- ● ●
66 16.549 HOOK; COVER
INTERIOR COLOR GRAY(153) HONG KONG EQUIPMENT(PQ1) DARK GRAY 		8-97997-582-0 02 1 0502- ●
67 16.549 LID; COVER
HONG KONG EQUIPMENT(PQ1) DARK GRAY 		8-97997-586-0 01 1 0211-0501 ● ● ●
67 16.549 LID; COVER
EXC. HONG KONG EQUIPMENT(PQ1),MANUAL TILT CAB<RWZ> DARK GRAY 		8-97997-586-0 01 1 0211-0501 ●
67 16.549 LID; COVER
DARK GRAY 		8-97997-586-0 01 1 0211-0501 ● ●
67 16.549 LID; COVER
EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ> DARK GRAY 		8-97997-586-0 01 1 0211-0501 ● ●
67 16.549 LID; COVER
EXC. AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ> DARK GRAY 		8-97997-586-0 01 1 0211-0501 ●
67 16.549 LID; COVER
INTERIOR COLOR GRAY(153) EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ> DARK GRAY 		8-97997-586-0 01 1 0502- ● ●
67 16.549 LID; COVER
INTERIOR COLOR GRAY(153) HONG KONG EQUIPMENT(PQ1) DARK GRAY 		8-97997-586-0 01 1 0502- ●
67 16.549 LID; COVER
INTERIOR COLOR BLUISH GRAY(158) EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ> GRAY 		8-97583-947-0 01 1 0502- ● ● ●
67 16.549 LID; COVER
INTERIOR COLOR BLUISH GRAY(158) HONG KONG EQUIPMENT(PQ1) GRAY 		8-97583-947-0 01 1 0502- ● ●
67 16.549 LID; COVER
GRAY 		8-97583-947-0 01 1 0502- ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
DARK GRAY 		8-97857-552-0 01 1 0211-0501 ● ● ● ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97857-552-1 01 1 0502-0709 ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
INTERIOR COLOR GRAY(153) INDONESIA EQUIPMENT(S4S) DARK GRAY 		8-97857-552-1 01 1 0710- ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
DARK GRAY 		8-97857-551-0 01 1 0211-0501 ● ● ● ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97857-551-1 01 1 0502-0709 ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
INTERIOR COLOR GRAY(153) INDONESIA EQUIPMENT(S4S) DARK GRAY 		8-97857-551-1 01 1 0710- ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
INTERIOR COLOR BLUISH GRAY(158) GRAY 		8-97582-229-1 01 1 0502-0702 ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97582-229-1 01 1 0502-0702 ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
INTERIOR COLOR BLUISH GRAY(158) GRAY 		8-97409-479-0 01 1 0703-0709 ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97409-479-0 01 1 0703-0709 ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
INTERIOR COLOR BLUISH GRAY(158) EXC. INDONESIA EQUIPMENT(S4S) GRAY 		8-97409-479-0 01 1 0710- ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97409-479-0 01 1 0710- ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
INTERIOR COLOR BLUISH GRAY(158) GRAY 		8-97582-228-1 01 1 0502-0702 ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97582-228-1 01 1 0502-0702 ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
INTERIOR COLOR BLUISH GRAY(158) GRAY 		8-97409-478-0 01 1 0703-0709 ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97409-478-0 01 1 0703-0709 ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
INTERIOR COLOR BLUISH GRAY(158) EXC. INDONESIA EQUIPMENT(S4S) GRAY 		8-97409-478-0 01 1 0710- ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97409-478-0 01 1 0710- ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
DARK GRAY 		8-97996-720-0 01 1 0211-0501 ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97996-720-0 01 1 0211-0501 ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97996-720-1 01 1 0502- ●
72 16.800 MAT; SILENCER,ENG COVER
INTERIOR COLOR GRAY(153) EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97996-720-1 01 1 0502- ●
72 16.800 MAT; SILENCER,ENG COVER
AUSTRALIA EQUIPMENT(RR3) GRAY 		8-97582-233-1 01 1 0502- ●
72 16.800 MAT; SILENCER,ENG COVER
INTERIOR COLOR BLUISH GRAY(158) AUSTRALIA EQUIPMENT(RR3) GRAY 		8-97582-233-1 01 1 0502- ●
72 16.800 MAT; SILENCER,ENG COVER
GRAY 		8-97582-233-1 01 1 0502- ●
72 16.800 MAT; SILENCER,ENG COVER
AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97996-745-0 01 1 0211-0501 ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
INTERIOR COLOR BLUISH GRAY(158) GRAY 		8-97587-473-1 01 1 0502- ●
72 16.800 MAT; SILENCER,ENG COVER
EXC. AUSTRALIA EQUIPMENT(RR3) GRAY 		8-97587-473-1 01 1 0502- ●
72 16.800 MAT; SILENCER,ENG COVER
INTERIOR COLOR BLUISH GRAY(158) EXC. AUSTRALIA EQUIPMENT(RR3) GRAY 		8-97587-473-1 01 1 0502- ●
72 16.800 MAT; SILENCER,ENG COVER
GRAY 		8-97587-473-1 01 1 0502- ●
76 16.800 MAT; FLOOR,REINF,CAB RR MTG
DARK GRAY 		8-97985-065-0 01 1 0211-0501 ● ●
76 16.800 MAT; FLOOR,REINF,CAB RR MTG
GRAY 		8-97582-190-2 01 1 0502- ●

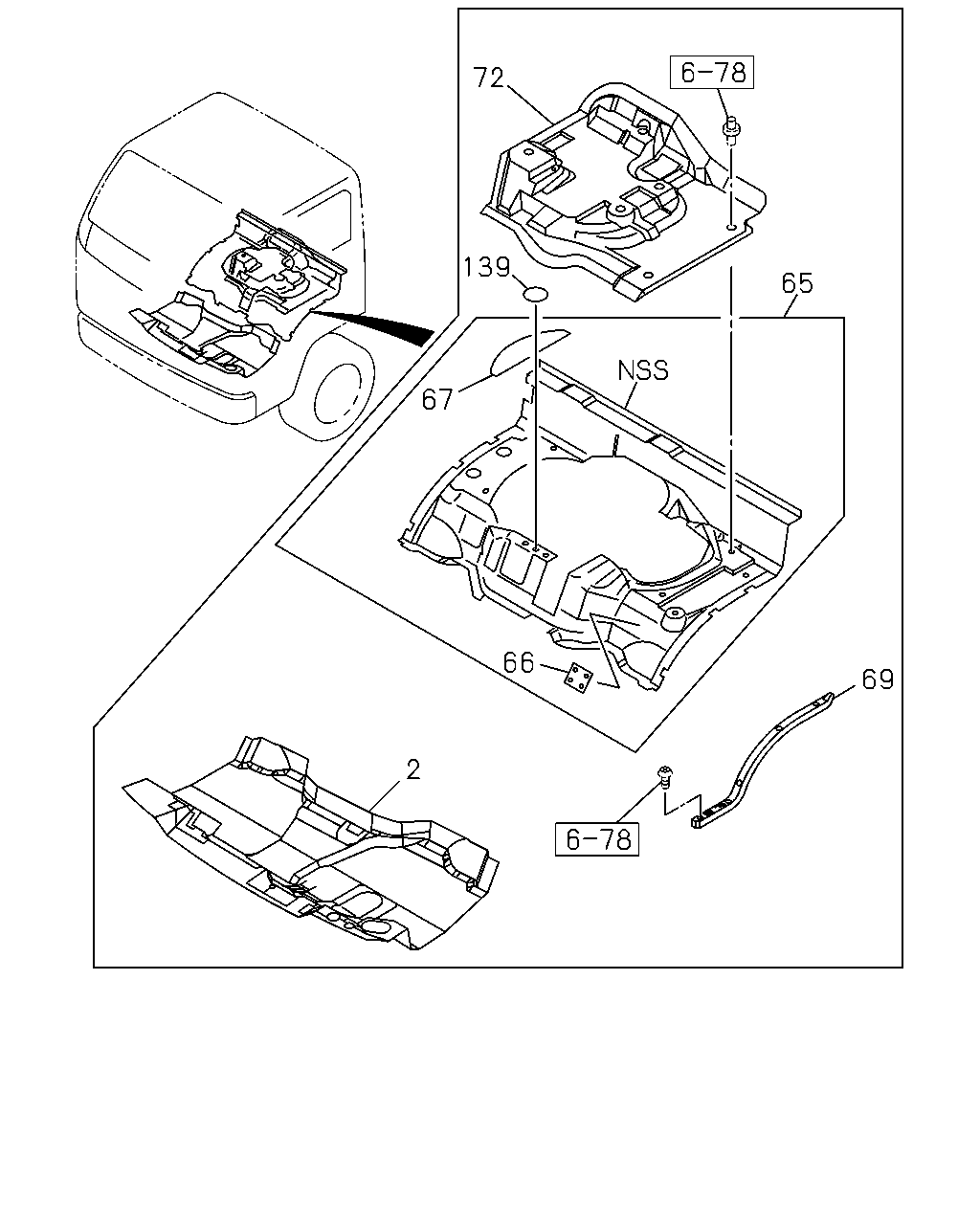

çizim 52433
72 139 65 67 66 69 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) DARK GRAY 		8-97996-652-2 01 1 0211-0501 ● ● ●
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97996-652-2 01 1 0211-0501 ● ● ●
2 16.800 MAT; FLOOR
INTERIOR COLOR GRAY(153) AIR CONDITIONER MANUAL CONT(C60) EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97996-652-4 01 1 0502- ● ●
2 16.800 MAT; FLOOR
EXC. AIR CONDITIONER MANUAL CONT(C60) DARK GRAY 		8-97996-650-2 01 1 0211-0501 ● ● ●
2 16.800 MAT; FLOOR
EXC. AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97996-650-2 01 1 0211-0501 ● ● ●
2 16.800 MAT; FLOOR
INTERIOR COLOR GRAY(153) EXC. AIR CONDITIONER MANUAL CONT(C60) ,AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97996-650-4 01 1 0502- ● ●
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97996-676-1 01 1 0211-0501 ● ● ●
2 16.800 MAT; FLOOR
INTERIOR COLOR BLUISH GRAY(158) AIR CONDITIONER MANUAL CONT(C60) EXC. AUSTRALIA EQUIPMENT(RR3) GRAY 		8-97582-920-4 01 1 0502- ● ● ● ●
2 16.800 MAT; FLOOR
AUSTRALIA EQUIPMENT(RR3) EXC. AIR CONDITIONER MANUAL CONT(C60) DARK GRAY 		8-97996-674-2 01 1 0211-0501 ● ● ●
2 16.800 MAT; FLOOR
INTERIOR COLOR BLUISH GRAY(158) EXC. AIR CONDITIONER MANUAL CONT(C60) ,AUSTRALIA EQUIPMENT(RR3) GRAY 		8-97582-919-4 01 1 0502- ● ● ● ●
2 16.800 MAT; FLOOR
INTERIOR COLOR BLUISH GRAY(158) AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) 		8-97588-858-3 01 1 0502- ● ● ●
2 16.800 MAT; FLOOR
INTERIOR COLOR BLUISH GRAY(158) AUSTRALIA EQUIPMENT(RR3) EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97588-857-4 01 1 0502- ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ> DARK GRAY 		8-97996-696-0 01 1 0211-0501 ● ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
HONG KONG EQUIPMENT(PQ1) DARK GRAY 		8-97996-696-0 01 1 0211-0501 ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
INTERIOR COLOR GRAY(153) EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ> DARK GRAY 		8-97996-696-1 01 1 0502- ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
INTERIOR COLOR GRAY(153) HONG KONG EQUIPMENT(PQ1) DARK GRAY 		8-97996-696-1 01 1 0502- ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
MANUAL TILT CAB<RWZ> EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97996-694-0 01 1 0211-0501 ● ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
INTERIOR COLOR BLUISH GRAY(158) MANUAL TILT CAB<RWZ> EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3) GRAY 		8-97588-864-1 01 1 0502- ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
DARK GRAY 		8-97996-775-0 01 1 0211-0501 ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
GRAY 		8-97587-471-1 01 1 0502- ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
INTERIOR COLOR BLUISH GRAY(158) AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> 		8-97588-861-1 01 1 0502- ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> 		8-97996-738-0 01 1 0211-0501 ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
INTERIOR COLOR BLUISH GRAY(158) EXC. MANUAL TILT CAB<RWZ> GRAY 		8-97587-470-1 01 1 0502- ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
HONG KONG EQUIPMENT(PQ1) GRAY 		8-97587-470-1 01 1 0502- ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
INTERIOR COLOR BLUISH GRAY(158) EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ> GRAY 		8-97587-470-1 01 1 0502- ● ●
66 16.549 HOOK; COVER
INTERIOR COLOR BLUISH GRAY(158) GRAY 		8-97583-948-0 02 1 0502- ●
66 16.549 HOOK; COVER
EXC. AUSTRALIA EQUIPMENT(RR3) GRAY 		8-97583-948-0 02 1 0502- ●
66 16.549 HOOK; COVER
INTERIOR COLOR BLUISH GRAY(158) EXC. AUSTRALIA EQUIPMENT(RR3) GRAY 		8-97583-948-0 02 1 0502- ●
66 16.549 HOOK; COVER
GRAY 		8-97583-948-0 02 1 0502- ●
66 16.549 HOOK; COVER
DARK GRAY 		8-97997-582-0 02 1 0211-0501 ● ● ●
66 16.549 HOOK; COVER
EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97997-582-0 02 1 0211-0501 ● ● ●
66 16.549 HOOK; COVER
INTERIOR COLOR GRAY(153) EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ> DARK GRAY 		8-97997-582-0 02 1 0502- ● ●
66 16.549 HOOK; COVER
INTERIOR COLOR GRAY(153) HONG KONG EQUIPMENT(PQ1) DARK GRAY 		8-97997-582-0 02 1 0502- ●
67 16.549 LID; COVER
HONG KONG EQUIPMENT(PQ1) DARK GRAY 		8-97997-586-0 01 1 0211-0501 ● ● ●
67 16.549 LID; COVER
EXC. HONG KONG EQUIPMENT(PQ1),MANUAL TILT CAB<RWZ> DARK GRAY 		8-97997-586-0 01 1 0211-0501 ●
67 16.549 LID; COVER
DARK GRAY 		8-97997-586-0 01 1 0211-0501 ● ●
67 16.549 LID; COVER
EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ> DARK GRAY 		8-97997-586-0 01 1 0211-0501 ● ●
67 16.549 LID; COVER
EXC. AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ> DARK GRAY 		8-97997-586-0 01 1 0211-0501 ●
67 16.549 LID; COVER
INTERIOR COLOR GRAY(153) EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ> DARK GRAY 		8-97997-586-0 01 1 0502- ● ●
67 16.549 LID; COVER
INTERIOR COLOR GRAY(153) HONG KONG EQUIPMENT(PQ1) DARK GRAY 		8-97997-586-0 01 1 0502- ●
67 16.549 LID; COVER
INTERIOR COLOR BLUISH GRAY(158) EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ> GRAY 		8-97583-947-0 01 1 0502- ● ● ●
67 16.549 LID; COVER
INTERIOR COLOR BLUISH GRAY(158) HONG KONG EQUIPMENT(PQ1) GRAY 		8-97583-947-0 01 1 0502- ● ●
67 16.549 LID; COVER
GRAY 		8-97583-947-0 01 1 0502- ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
DARK GRAY 		8-97857-552-0 01 1 0211-0501 ● ● ● ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97857-552-1 01 1 0502-0709 ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
INTERIOR COLOR GRAY(153) INDONESIA EQUIPMENT(S4S) DARK GRAY 		8-97857-552-1 01 1 0710- ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
DARK GRAY 		8-97857-551-0 01 1 0211-0501 ● ● ● ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97857-551-1 01 1 0502-0709 ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
INTERIOR COLOR GRAY(153) INDONESIA EQUIPMENT(S4S) DARK GRAY 		8-97857-551-1 01 1 0710- ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
INTERIOR COLOR BLUISH GRAY(158) GRAY 		8-97582-229-1 01 1 0502-0702 ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97582-229-1 01 1 0502-0702 ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
INTERIOR COLOR BLUISH GRAY(158) GRAY 		8-97409-479-0 01 1 0703-0709 ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97409-479-0 01 1 0703-0709 ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
INTERIOR COLOR BLUISH GRAY(158) EXC. INDONESIA EQUIPMENT(S4S) GRAY 		8-97409-479-0 01 1 0710- ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97409-479-0 01 1 0710- ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
INTERIOR COLOR BLUISH GRAY(158) GRAY 		8-97582-228-1 01 1 0502-0702 ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97582-228-1 01 1 0502-0702 ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
INTERIOR COLOR BLUISH GRAY(158) GRAY 		8-97409-478-0 01 1 0703-0709 ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97409-478-0 01 1 0703-0709 ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
INTERIOR COLOR BLUISH GRAY(158) EXC. INDONESIA EQUIPMENT(S4S) GRAY 		8-97409-478-0 01 1 0710- ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97409-478-0 01 1 0710- ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
DARK GRAY 		8-97996-720-0 01 1 0211-0501 ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97996-720-0 01 1 0211-0501 ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97996-720-1 01 1 0502- ●
72 16.800 MAT; SILENCER,ENG COVER
INTERIOR COLOR GRAY(153) EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97996-720-1 01 1 0502- ●
72 16.800 MAT; SILENCER,ENG COVER
AUSTRALIA EQUIPMENT(RR3) GRAY 		8-97582-233-1 01 1 0502- ●
72 16.800 MAT; SILENCER,ENG COVER
INTERIOR COLOR BLUISH GRAY(158) AUSTRALIA EQUIPMENT(RR3) GRAY 		8-97582-233-1 01 1 0502- ●
72 16.800 MAT; SILENCER,ENG COVER
GRAY 		8-97582-233-1 01 1 0502- ●
72 16.800 MAT; SILENCER,ENG COVER
AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97996-745-0 01 1 0211-0501 ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
INTERIOR COLOR BLUISH GRAY(158) GRAY 		8-97587-473-1 01 1 0502- ●
72 16.800 MAT; SILENCER,ENG COVER
EXC. AUSTRALIA EQUIPMENT(RR3) GRAY 		8-97587-473-1 01 1 0502- ●
72 16.800 MAT; SILENCER,ENG COVER
INTERIOR COLOR BLUISH GRAY(158) EXC. AUSTRALIA EQUIPMENT(RR3) GRAY 		8-97587-473-1 01 1 0502- ●
72 16.800 MAT; SILENCER,ENG COVER
GRAY 		8-97587-473-1 01 1 0502- ●
139 16.800 SEAL; FLOOR
AUSTRALIA EQUIPMENT(RR3) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0211-0501 ● ● ●
139 16.800 SEAL; FLOOR
AUSTRALIA EQUIPMENT(RR3) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0502- ● ●
139 16.800 SEAL; FLOOR
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0502- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
