Sayfa 7-43 - Isuzu EPC

7-43 — SUN VISOR AND ASSIST GRIP (#48132) — 220 parça

151

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
151	16.450 COVER; BRKT TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> (A)	1-73318-553-1	01	1	9312-9611	●	●	●	●
151	16.450 COVER; BRKT TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> (A)	1-73318-553-1	01	1	9612-9711	●	●	●	●	●
151	16.450 COVER; BRKT TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> (C) LIGHT GRAY	8-97867-250-0	01	1	9712-	●	●	●	●	●	●
151	16.450 COVER; BRKT EUROPEAN BASIC EQUIPMENT(EK4) 16.069 (B)	8-97859-113-1	01	1	9402-9504		●	●
151	16.450 COVER; BRKT EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) 16.069 (B)	8-97859-113-2	01	1	9505-9506		●	●
151	16.450 COVER; BRKT DOOR MIRROR<6VE> 16.069 (B)	8-97859-113-2	01	1	9507-9601	●	●	●
151	16.450 COVER; BRKT DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 16.069 (B)	8-97859-113-2	01	1	9602-9704	●	●	●
151	16.450 COVER; BRKT DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 16.069 (B)	8-97859-113-2	01	1	9705-9710	●	●	●	●
151	16.450 COVER; BRKT EUROPEAN BASIC EQUIPMENT(EK4) 16.069 (B)	8-97859-112-1	01	1	9402-9504		●	●
151	16.450 COVER; BRKT EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) 16.069 (B)	8-97859-112-2	01	1	9505-9506		●	●
151	16.450 COVER; BRKT DOOR MIRROR<6VE> 16.069 (B)	8-97859-112-2	01	1	9507-9601	●	●	●
151	16.450 COVER; BRKT DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 16.069 (B)	8-97859-112-2	01	1	9602-9704	●	●	●
151	16.450 COVER; BRKT DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 16.069 (B)	8-97859-112-2	01	1	9705-9710	●	●	●	●

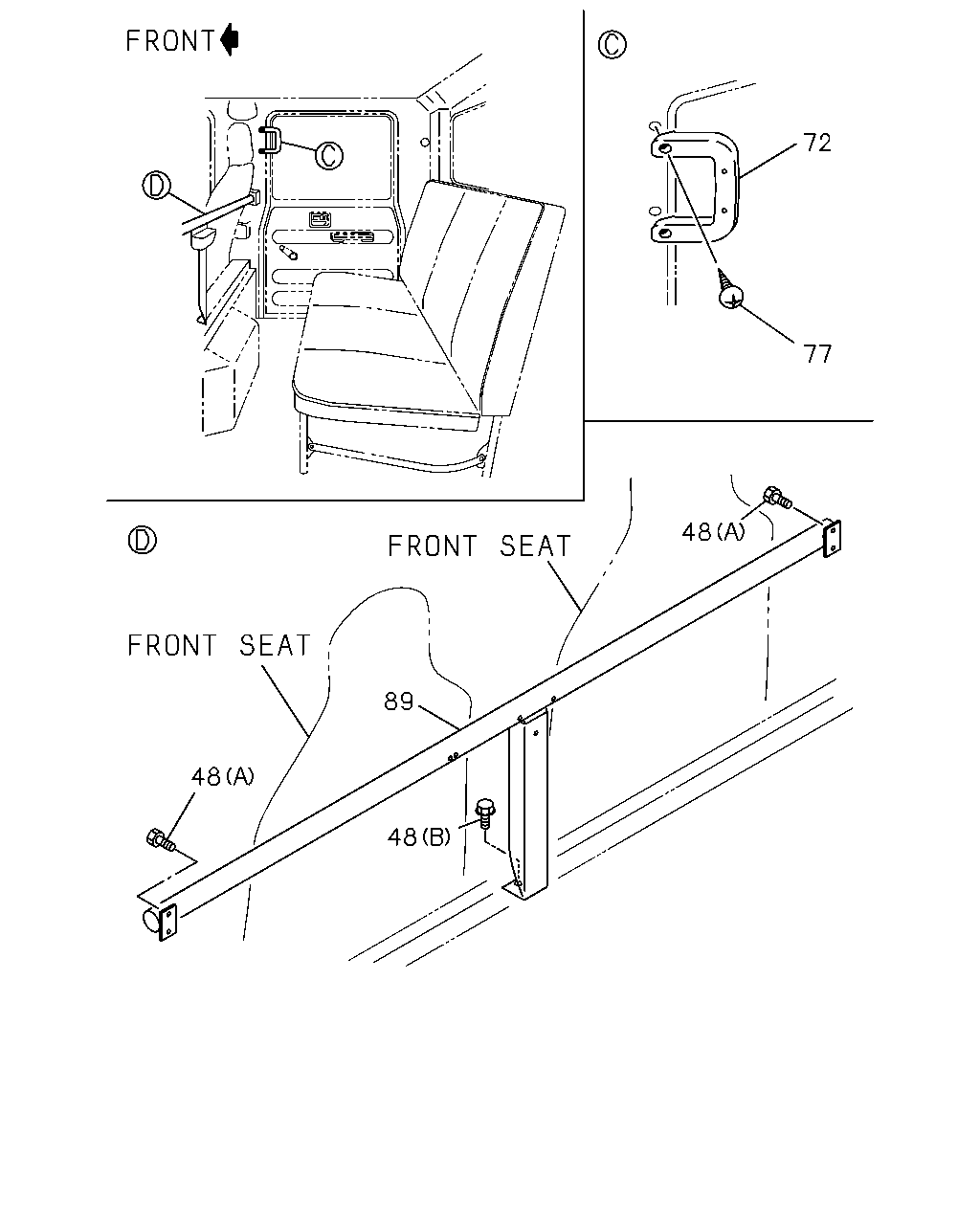

72 77 48 89 48 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	D
48	16.450 BOLT; ASSIST GRIP 16.350 (A) M6X12 W/LK&PL WASHER	8-94279-200-0	04	1	9312-	●
48	16.450 BOLT; ASSIST GRIP 08.225 (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9312-	●
72	16.450 GRIP; ASSIST,CAB ENTRY,BACK DARK BEIGE	8-97853-802-2	02	1	9312-9608	●
72	16.450 GRIP; ASSIST,CAB ENTRY,BACK DARK BEIGE	8-97867-883-0	02	1	9609-9711	●
72	16.450 GRIP; ASSIST,CAB ENTRY,BACK DARK GRAY	8-97867-209-0	02	1	9712-	●
77	16.450 SCREW; ASSIST GRIP M4X30	8-94279-360-0	04	1	9312-9608	●
77	16.450 SCREW; ASSIST GRIP M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	9609-	●
89	16.560 HANDLE; ASSIST	8-97857-350-1	01	1	9312-	●

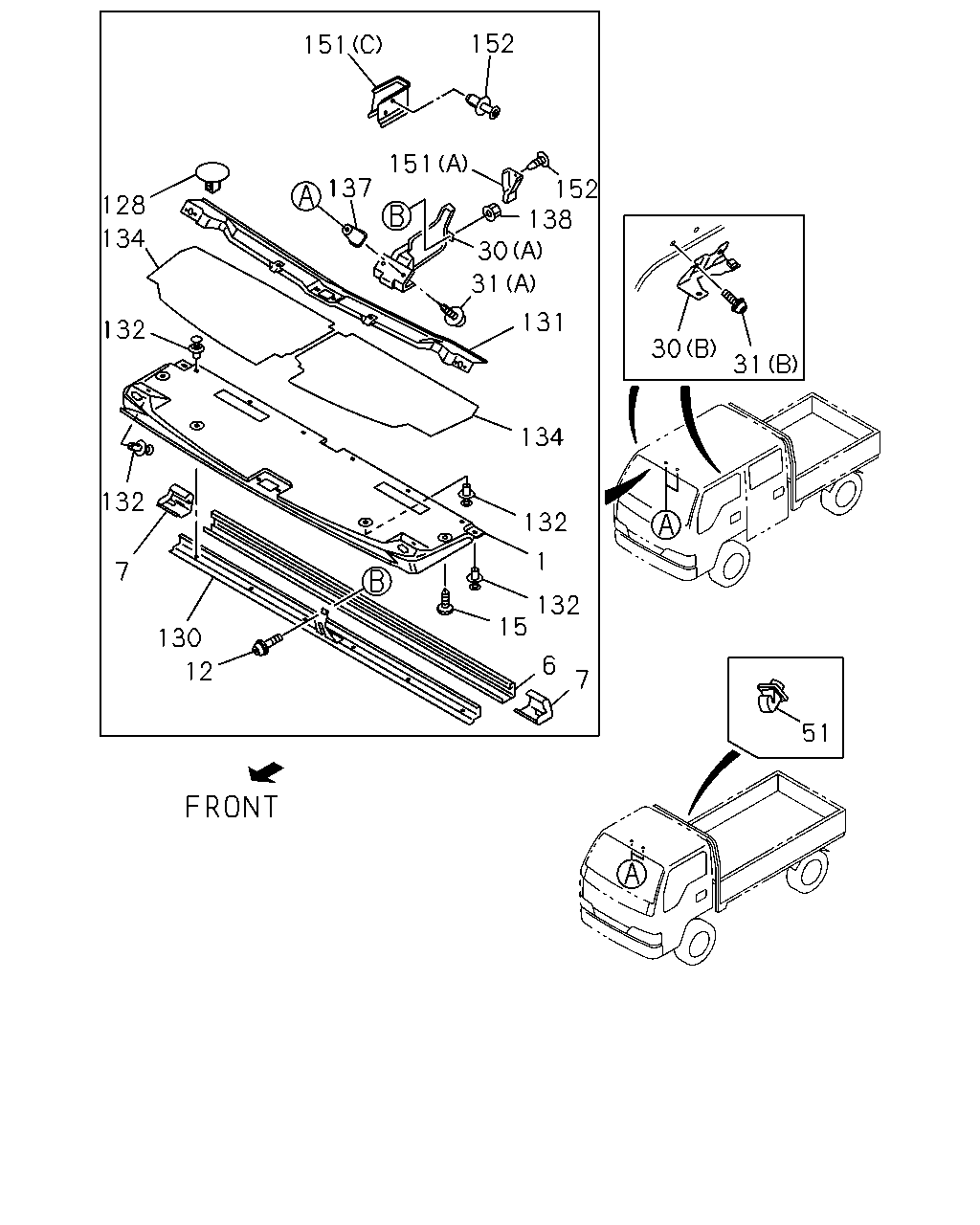

152 151 151 152 138 137 128 134 30 31 131 132 30 31 134 132 132 1 7 132 15 130 6 12 7 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	16.742 BOARD; HEADER SHELF TRAY ROOF HEAD<7EJ> GRAY	8-97856-718-3	01	1	9312-9602	●	●	●	●
1	16.742 BOARD; HEADER SHELF TRAY ROOF HEAD<7EJ> GRAY	8-97867-759-0	01	1	9603-9611	●	●	●	●
1	16.742 BOARD; HEADER SHELF TRAY ROOF HEAD<7EJ> GRAY	8-97867-759-0	01	1	9612-9711	●	●	●	●	●
1	16.742 BOARD; HEADER SHELF TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97867-528-0	01	1	9712-	●	●	●	●	●	●
6	16.742 FINISHER; HEADER SHELF,REAR TRAY ROOF HEAD<7EJ> GRAY	8-97856-128-1	01	1	9312-9611	●	●	●	●
6	16.742 FINISHER; HEADER SHELF,REAR TRAY ROOF HEAD<7EJ> GRAY	8-97856-128-1	01	1	9612-9711	●	●	●	●	●
6	16.742 FINISHER; HEADER SHELF,REAR TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97867-529-1	01	1	9712-	●	●	●	●	●	●
7	16.742 FINISHER; HEADER SHELF,CORNER TRAY ROOF HEAD<7EJ> GRAY	8-97856-057-3	01	1	9312-9611	●	●	●	●
7	16.742 FINISHER; HEADER SHELF,CORNER TRAY ROOF HEAD<7EJ> GRAY	8-97856-057-3	01	1	9612-9711	●	●	●	●	●
7	16.742 FINISHER; HEADER SHELF,CORNER TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97859-849-3	01	1	9712-	●	●	●	●	●	●
7	16.742 FINISHER; HEADER SHELF,CORNER TRAY ROOF HEAD<7EJ> GRAY	8-97856-056-3	01	1	9312-9611	●	●	●	●
7	16.742 FINISHER; HEADER SHELF,CORNER TRAY ROOF HEAD<7EJ> GRAY	8-97856-056-3	01	1	9612-9711	●	●	●	●	●
7	16.742 FINISHER; HEADER SHELF,CORNER TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97859-848-3	01	1	9712-	●	●	●	●	●	●
12	16.742 SCREW; HEADER SHELF 16.320 M6X20 W/LK&PL WASHER	8-94279-403-0	03	1	9312-9405	●	●	●	●
12	16.742 SCREW; HEADER SHELF TRAY ROOF HEAD<7EJ> 16.320 M6X20 W/LK&PL WASHER	8-94279-403-0	03	1	9406-9611	●	●	●	●
12	16.742 SCREW; HEADER SHELF TRAY ROOF HEAD<7EJ> 16.320 M6X20 W/LK&PL WASHER	8-94279-403-0	03	1	9612-9711	●	●	●	●	●
12	16.742 SCREW; HEADER SHELF TRAY ROOF HEAD<7EJ> 16.320 M6X20 W/LK&PL WASHER	8-94279-403-0	03	1	9712-	●	●	●	●	●	●
15	16.742 FASTENER; HEADER SHELF BOARD TRAY ROOF HEAD<7EJ> D6.8X11 PUSH RIVET	8-97856-755-0	02	1	9312-9407		●		●
15	16.742 FASTENER; HEADER SHELF BOARD TRAY ROOF HEAD<7EJ> D6.8X11 PUSH RIVET	8-97856-755-0	02	1	9408-9611	●	●	●	●
15	16.742 FASTENER; HEADER SHELF BOARD TRAY ROOF HEAD<7EJ> D6.8X11 PUSH RIVET	8-97856-755-0	02	1	9612-9711	●	●	●	●	●
15	16.742 FASTENER; HEADER SHELF BOARD TRAY ROOF HEAD<7EJ> D6.8X11 PUSH RIVET	8-97856-755-0	02	1	9712-9712	●	●	●	●	●	●
15	16.742 FASTENER; HEADER SHELF BOARD TRAY ROOF HEAD<7EJ> LIGHT GRAY, D6.8X11 PUSH RIVET	8-97867-240-0	02	1	9801-	●	●	●	●	●	●
30	16.742 BRACKET ASM; HEADER SHELF TRAY ROOF HEAD<7EJ> (A)	8-97856-012-6	01	1	9312-9405	●	●	●	●
30	16.742 BRACKET ASM; HEADER SHELF TRAY ROOF HEAD<7EJ> (A)	8-97859-388-1	01	1	9406-9611	●	●	●	●
30	16.742 BRACKET ASM; HEADER SHELF TRAY ROOF HEAD<7EJ> (A)	8-97859-388-1	01	1	9612-9711	●	●	●	●	●
30	16.742 BRACKET ASM; HEADER SHELF TRAY ROOF HEAD<7EJ> (A)	8-97859-388-1	01	1	9712-	●	●	●	●	●	●
30	16.742 BRACKET ASM; HEADER SHELF TRAY ROOF HEAD<7EJ> (B)	8-97856-798-1	01	1	9312-9611	●	●	●	●
30	16.742 BRACKET ASM; HEADER SHELF TRAY ROOF HEAD<7EJ> (B)	8-97856-798-1	01	1	9612-9711	●	●	●	●	●
30	16.742 BRACKET ASM; HEADER SHELF TRAY ROOF HEAD<7EJ> (B)	8-97856-798-2	01	1	9712-	●	●	●	●	●	●
30	16.742 BRACKET ASM; HEADER SHELF TRAY ROOF HEAD<7EJ> (B)	8-97856-797-1	01	1	9312-9611	●	●	●	●
30	16.742 BRACKET ASM; HEADER SHELF TRAY ROOF HEAD<7EJ> (B)	8-97856-797-1	01	1	9612-9711	●	●	●	●	●
30	16.742 BRACKET ASM; HEADER SHELF TRAY ROOF HEAD<7EJ> (B)	8-97856-797-2	01	1	9712-	●	●	●	●	●	●
31	16.742 SCREW; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> 16.802 (A) M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	9312-9611	●	●	●	●
31	16.742 SCREW; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> 16.802 (A) M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	9612-9711	●	●	●	●	●
31	16.742 SCREW; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> 16.802 (A) M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	9712-	●	●	●	●	●	●
31	16.742 SCREW; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> 16.320 (B) M6X20 W/LK&PL WASHER	8-94279-403-0	04	1	9312-9611	●	●	●	●
31	16.742 SCREW; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> 16.320 (B) M6X20 W/LK&PL WASHER	8-94279-403-0	04	1	9612-9711	●	●	●	●	●
31	16.742 SCREW; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> 16.320 (B) M6X20 W/LK&PL WASHER	8-94279-403-0	04	1	9712-	●	●	●	●	●	●
51	16.570 HOOK; COAT HANGER INTERIOR DELUXE<RBB> GRAY	8-97856-015-1	01	1	9507-9711	●	●	●
51	16.570 HOOK; COAT HANGER INTERIOR DELUXE<RBB> LIGHT GRAY	8-97867-259-1	01	1	9712-	●	●	●			●
128	16.742 FASTENER; HEADER SHELF TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> GRAY	8-97853-998-2	01	1	9312-9611	●	●	●
128	16.742 FASTENER; HEADER SHELF TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> GRAY	8-97853-998-2	01	1	9612-9704	●	●	●		●
128	16.742 FASTENER; HEADER SHELF TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> GRAY	8-97853-998-2	01	1	9705-9711	●	●	●	●	●
128	16.742 FASTENER; HEADER SHELF TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> LIGHT GRAY	8-97867-230-2	01	1	9712-	●	●	●	●	●	●
130	16.742 REIFORCEMENT; HEADER SHELF,RR TRAY ROOF HEAD<7EJ>	8-97853-746-3	01	1	9312-9604	●	●	●	●
130	16.742 REIFORCEMENT; HEADER SHELF,RR TRAY ROOF HEAD<7EJ>	8-97859-532-1	01	1	9605-9611	●	●	●	●
130	16.742 REIFORCEMENT; HEADER SHELF,RR TRAY ROOF HEAD<7EJ>	8-97859-532-1	01	1	9612-9711	●	●	●	●	●
130	16.742 REIFORCEMENT; HEADER SHELF,RR TRAY ROOF HEAD<7EJ>	8-97859-532-1	01	1	9712-	●	●	●	●	●	●
131	16.742 REIFORCEMENT; HEADER SHELF,FRT TRAY ROOF HEAD<7EJ>	8-97853-745-5	01	1	9312-9611	●	●	●	●
131	16.742 REIFORCEMENT; HEADER SHELF,FRT TRAY ROOF HEAD<7EJ>	8-97853-745-5	01	1	9612-9711	●	●	●	●	●
131	16.742 REIFORCEMENT; HEADER SHELF,FRT TRAY ROOF HEAD<7EJ>	8-97853-745-5	01	1	9712-	●	●	●	●	●	●
132	16.742 FASTENER; BOARD,HEADER SHELF TRAY ROOF HEAD<7EJ> D6.8X11 PUSH RIVET	8-97856-755-0	10	1	9312-9407		●		●
132	16.742 FASTENER; BOARD,HEADER SHELF TRAY ROOF HEAD<7EJ> D6.8X11 PUSH RIVET	8-97856-755-0	10	1	9408-9510	●	●	●	●
132	16.742 FASTENER; BOARD,HEADER SHELF TRAY ROOF HEAD<7EJ> D6.8X11 PUSH RIVET	8-97856-755-0	08	1	9511-9611	●	●	●	●
132	16.742 FASTENER; BOARD,HEADER SHELF TRAY ROOF HEAD<7EJ> D6.8X11 PUSH RIVET	8-97856-755-0	08	1	9612-9711	●	●	●	●	●
132	16.742 FASTENER; BOARD,HEADER SHELF TRAY ROOF HEAD<7EJ> D6.8X11 PUSH RIVET	8-97856-755-0	08	1	9712-9712	●	●	●	●	●	●
132	16.742 FASTENER; BOARD,HEADER SHELF TRAY ROOF HEAD<7EJ> LIGHT GRAY, D6.8X11 PUSH RIVET	8-97867-240-0	08	1	9801-	●	●	●	●	●	●
134	16.742 SHEET; HEADER SHELF TRAY ROOF HEAD<7EJ>	8-97856-385-2	01	1	9312-9602	●	●	●	●
134	16.742 SHEET; HEADER SHELF TRAY ROOF HEAD<7EJ>	8-97856-384-2	01	1	9312-9602	●	●	●	●
134	16.742 SHEET; HEADER SHELF TRAY ROOF HEAD<7EJ>	8-97867-479-0	02	1	9603-9611	●	●	●	●
134	16.742 SHEET; HEADER SHELF TRAY ROOF HEAD<7EJ>	8-97867-479-0	02	1	9612-9711	●	●	●	●	●
134	16.742 SHEET; HEADER SHELF TRAY ROOF HEAD<7EJ>	8-97867-479-0	02	1	9712-	●	●	●	●	●	●
137	16.742 GROMMET; SCREW,HEADER SHELF TRAY ROOF HEAD<7EJ> 09.743 D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	01	1	9312-9503	●	●	●	●
137	16.742 GROMMET; SCREW,HEADER SHELF TRAY ROOF HEAD<7EJ> 16.588	8-94279-039-0	01	1	9504-9611	●	●	●	●
137	16.742 GROMMET; SCREW,HEADER SHELF TRAY ROOF HEAD<7EJ> 16.588	8-94279-039-0	01	1	9612-9711	●	●	●	●	●
137	16.742 GROMMET; SCREW,HEADER SHELF TRAY ROOF HEAD<7EJ> 16.588	8-94279-039-0	01	1	9712-	●	●	●	●	●	●
138	16.742 NUT; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> 16.800 M6 FLANGE	1-09984-018-0	01	1	9312-9409	●	●	●	●
138	16.742 NUT; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	9410-9611	●	●	●	●
138	16.742 NUT; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	9612-9711	●	●	●	●	●
138	16.742 NUT; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	9712-	●	●	●	●	●	●
151	16.450 COVER; BRKT TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> (A)	1-73318-553-1	01	1	9312-9611	●	●	●	●
151	16.450 COVER; BRKT TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> (A)	1-73318-553-1	01	1	9612-9711	●	●	●	●	●
151	16.450 COVER; BRKT TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> (C) LIGHT GRAY	8-97867-250-0	01	1	9712-	●	●	●	●	●	●
151	16.450 COVER; BRKT EUROPEAN BASIC EQUIPMENT(EK4) 16.069 (B)	8-97859-113-1	01	1	9402-9504		●	●
151	16.450 COVER; BRKT EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) 16.069 (B)	8-97859-113-2	01	1	9505-9506		●	●
151	16.450 COVER; BRKT DOOR MIRROR<6VE> 16.069 (B)	8-97859-113-2	01	1	9507-9601	●	●	●
151	16.450 COVER; BRKT DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 16.069 (B)	8-97859-113-2	01	1	9602-9704	●	●	●
151	16.450 COVER; BRKT DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 16.069 (B)	8-97859-113-2	01	1	9705-9710	●	●	●	●
151	16.450 COVER; BRKT EUROPEAN BASIC EQUIPMENT(EK4) 16.069 (B)	8-97859-112-1	01	1	9402-9504		●	●
151	16.450 COVER; BRKT EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) 16.069 (B)	8-97859-112-2	01	1	9505-9506		●	●
151	16.450 COVER; BRKT DOOR MIRROR<6VE> 16.069 (B)	8-97859-112-2	01	1	9507-9601	●	●	●
151	16.450 COVER; BRKT DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 16.069 (B)	8-97859-112-2	01	1	9602-9704	●	●	●
151	16.450 COVER; BRKT DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 16.069 (B)	8-97859-112-2	01	1	9705-9710	●	●	●	●
152	16.450 CLIP; BRKT TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> GRAY	8-97857-053-0	02	1	9312-9611	●	●	●	●
152	16.450 CLIP; BRKT TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> GRAY	8-97857-053-0	02	1	9612-9711	●	●	●	●	●
152	16.450 CLIP; BRKT TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> LIGHT GRAY	8-97867-185-0	02	1	9712-	●	●	●	●	●	●

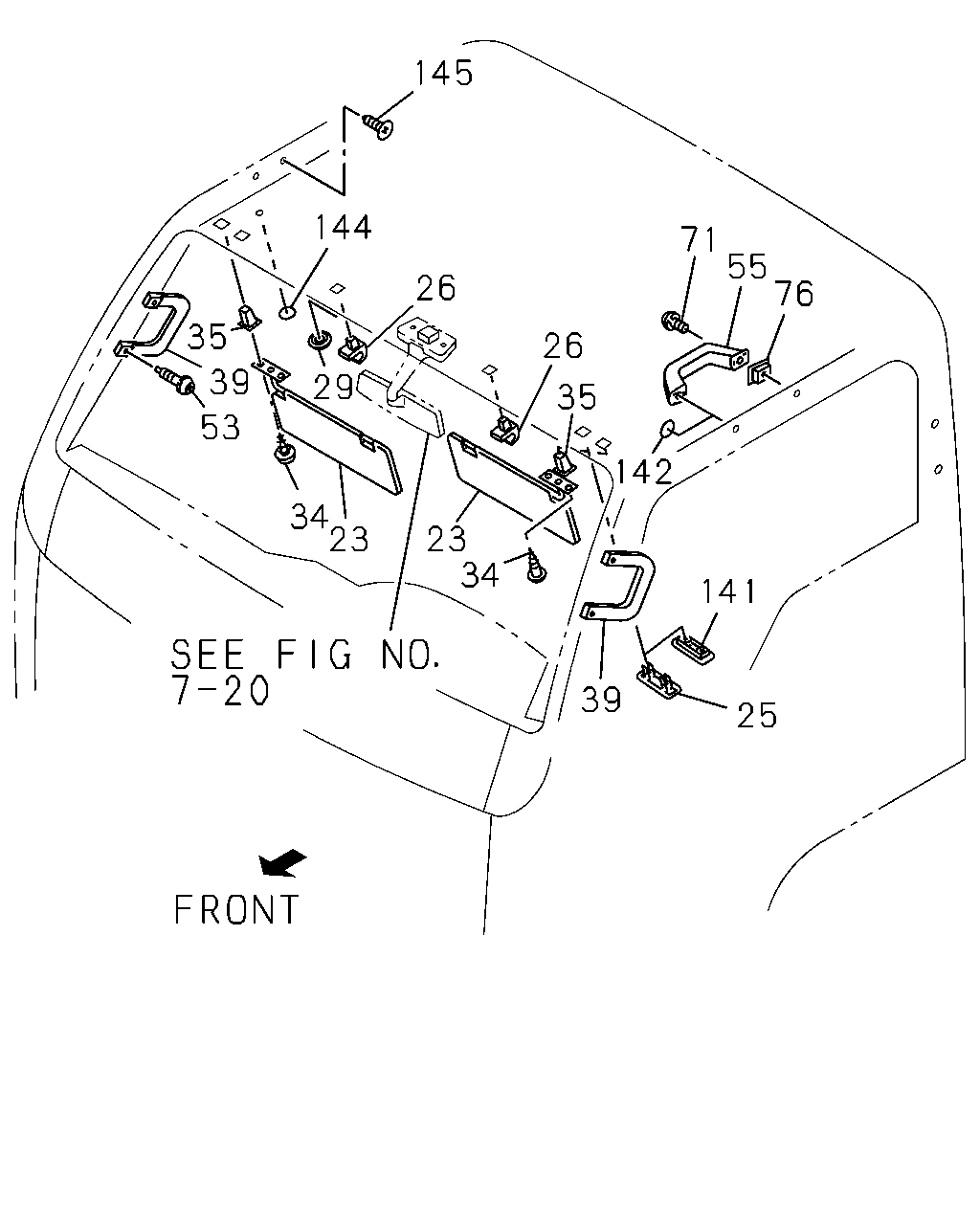

145 144 71 55 76 26 35 26 39 29 35 142 53 34 23 23 34 141 39 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
23	16.070 SUN VISOR SUNVISOR PASSENGER SIDE<D20> TRAY ROOF HEAD<7EJ> PASSENGER GRAY	8-97856-835-2	01	1	9312-9611	●	●	●	●
23	16.070 SUN VISOR SUNVISOR PASSENGER SIDE<D20> TRAY ROOF HEAD<7EJ> EXC. CHINA EQUIPMENT(YT2) PASSENGER GRAY	8-97856-835-2	01	1	9612-9710	●	●	●	●	●
23	16.070 SUN VISOR CHINA EQUIPMENT(YT2) TRAY ROOF HEAD<7EJ> PASSENGER GRAY	8-97856-835-2	01	1	9612-9710		●	●	●
23	16.070 SUN VISOR SUNVISOR PASSENGER SIDE<D20> TRAY ROOF HEAD<7EJ> PASSENGER GRAY	8-97856-835-2	01	1	9711-9711	●	●	●	●	●
23	16.070 SUN VISOR SUNVISOR PASSENGER SIDE<D20> TRAY ROOF HEAD<7EJ> PASSENGER LIGHT GRAY	8-97868-341-2	01	1	9712-	●	●	●	●	●	●
23	16.070 SUN VISOR SUNVISOR PASSENGER SIDE<D20> EXC. TRAY ROOF HEAD<7EJ> PASSENGER GRAY	8-97856-491-2	01	1	9312-9503	●	●	●	●
23	16.070 SUN VISOR SUNVISOR PASSENGER SIDE<D20> EXC. TRAY ROOF HEAD<7EJ> PASSENGER GRAY	8-97859-920-0	01	1	9504-9611	●	●	●	●
23	16.070 SUN VISOR SUNVISOR PASSENGER SIDE<D20> TRAY ROOF HEAD<7EJ> EXC. CHINA EQUIPMENT(YT2) PASSENGER GRAY	8-97859-920-0	01	1	9612-9704	●	●	●	●	●
23	16.070 SUN VISOR CHINA EQUIPMENT(YT2) EXC. TRAY ROOF HEAD<7EJ> PASSENGER GRAY	8-97859-920-0	01	1	9612-9704		●	●	●
23	16.070 SUN VISOR SUNVISOR PASSENGER SIDE<D20> EXC. CHINA EQUIPMENT(YT2),TRAY ROOF HEAD<7EJ> PASSENGER GRAY	8-97859-920-0	01	1	9705-9710	●	●	●	●	●
23	16.070 SUN VISOR CHINA EQUIPMENT(YT2) EXC. TRAY ROOF HEAD<7EJ> PASSENGER GRAY	8-97859-920-0	01	1	9705-9710		●	●	●
23	16.070 SUN VISOR SUNVISOR PASSENGER SIDE<D20> EXC. TRAY ROOF HEAD<7EJ> PASSENGER GRAY	8-97859-920-0	01	1	9711-9711	●	●	●	●	●
23	16.070 SUN VISOR SUNVISOR PASSENGER SIDE<D20> EXC. TRAY ROOF HEAD<7EJ> PASSENGER LIGHT GRAY	8-97868-342-1	01	1	9712-	●	●	●	●	●	●
23	16.070 SUN VISOR TRAY ROOF HEAD<7EJ> DRIVER GRAY	8-97856-124-3	01	1	9312-9611	●	●	●	●
23	16.070 SUN VISOR TRAY ROOF HEAD<7EJ> DRIVER GRAY	8-97856-124-3	01	1	9612-9711	●	●	●	●	●
23	16.070 SUN VISOR TRAY ROOF HEAD<7EJ> DRIVER LIGHT GRAY	8-97867-526-3	01	1	9712-	●	●	●	●	●	●
23	16.070 SUN VISOR EXC. TRAY ROOF HEAD<7EJ> DRIVER GRAY	8-97856-492-2	01	1	9312-9503	●	●	●	●
23	16.070 SUN VISOR EXC. TRAY ROOF HEAD<7EJ> DRIVER GRAY	8-97859-922-0	01	1	9504-9611	●	●	●	●
23	16.070 SUN VISOR EXC. TRAY ROOF HEAD<7EJ> DRIVER GRAY	8-97859-922-0	01	1	9612-9711	●	●	●	●	●
23	16.070 SUN VISOR EXC. TRAY ROOF HEAD<7EJ> DRIVER LIGHT GRAY	8-97868-343-1	01	1	9712-	●	●	●	●	●	●
25	16.070 COVER; HOLE,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>, TRAY ROOF HEAD<7EJ> GRAY	8-97853-968-3	01	1	9312-9611	●	●	●
25	16.070 COVER; HOLE,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>, TRAY ROOF HEAD<7EJ> GRAY	8-97853-968-3	01	1	9612-9704	●	●	●		●
25	16.070 COVER; HOLE,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>, TRAY ROOF HEAD<7EJ> GRAY	8-97853-968-3	01	1	9705-9711	●	●	●	●	●
25	16.070 COVER; HOLE,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>, TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97859-846-3	01	1	9712-	●	●	●	●	●	●
26	16.070 HOLDER; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>, TRAY ROOF HEAD<7EJ> GRAY	8-97856-239-0	01	1	9312-9611	●	●	●
26	16.070 HOLDER; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>, TRAY ROOF HEAD<7EJ> GRAY	8-97856-239-0	01	1	9612-9704	●	●	●		●
26	16.070 HOLDER; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>, TRAY ROOF HEAD<7EJ> GRAY	8-97856-239-0	01	1	9705-9711	●	●	●	●	●
26	16.070 HOLDER; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>, TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-94351-982-0	01	1	9712-	●	●	●	●	●	●
26	16.070 HOLDER; SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> GRAY	8-97853-966-2	01	1	9312-9611	●	●	●
26	16.070 HOLDER; SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> GRAY	8-97853-966-2	01	1	9612-9704	●	●	●		●
26	16.070 HOLDER; SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> GRAY	8-97853-966-2	01	1	9705-9711	●	●	●	●	●
26	16.070 HOLDER; SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> LIGHT GRAY	8-97867-184-2	01	1	9712-	●	●	●	●	●	●
26	16.070 HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> TRAY ROOF HEAD<7EJ> GRAY	8-97853-966-2	02	1	9312-9611	●	●	●	●
26	16.070 HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> TRAY ROOF HEAD<7EJ> GRAY	8-97853-966-2	02	1	9612-9711	●	●	●	●	●
26	16.070 HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97867-184-2	02	1	9712-	●	●	●	●	●	●
26	16.070 HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> EXC. TRAY ROOF HEAD<7EJ> GRAY	8-97856-239-0	02	1	9312-9611	●	●	●	●
26	16.070 HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> EXC. TRAY ROOF HEAD<7EJ> GRAY	8-97856-239-0	02	1	9612-9711	●	●	●	●	●
26	16.070 HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-94351-982-0	02	1	9712-	●	●	●	●	●	●
29	16.070 HOLDER; GROMMET,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>, TRAY ROOF HEAD<7EJ> 16.547 OD=15.0	8-94279-040-0	01	1	9312-9611	●	●	●
29	16.070 HOLDER; GROMMET,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>, TRAY ROOF HEAD<7EJ> 16.547 OD=15.0	8-94279-040-0	01	1	9612-9704	●	●	●		●
29	16.070 HOLDER; GROMMET,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>, TRAY ROOF HEAD<7EJ> 16.547 OD=15.0	8-94279-040-0	01	1	9705-9711	●	●	●	●	●
29	16.070 HOLDER; GROMMET,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>, TRAY ROOF HEAD<7EJ> 16.547 OD=15.0	8-94279-040-0	01	1	9712-	●	●	●	●	●	●
34	16.070 SCREW; SUN VISOR SUNVISOR PASSENGER SIDE<D20> 03.671 M5X20	5-09981-059-0	04	1	9312-9611	●	●	●
34	16.070 SCREW; SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> 03.671 M5X20	5-09981-059-0	04	1	9312-9611	●	●	●
34	16.070 SCREW; SUN VISOR 03.671 M5X20	5-09981-059-0	04	1	9312-9611				●
34	16.070 SCREW; SUN VISOR SUNVISOR PASSENGER SIDE<D20> 03.671 M5X20	5-09981-059-0	04	1	9612-9704	●	●	●		●
34	16.070 SCREW; SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> 03.671 M5X20	5-09981-059-0	04	1	9612-9704	●	●	●		●
34	16.070 SCREW; SUN VISOR 03.671 M5X20	5-09981-059-0	04	1	9612-9704				●
34	16.070 SCREW; SUN VISOR SUNVISOR PASSENGER SIDE<D20> 03.671 M5X20	5-09981-059-0	04	1	9705-9711	●	●	●	●	●
34	16.070 SCREW; SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> 03.671 M5X20	5-09981-059-0	04	1	9705-9711	●	●	●	●	●
34	16.070 SCREW; SUN VISOR SUNVISOR PASSENGER SIDE<D20> 03.671 M5X20	5-09981-059-0	04	1	9712-	●	●	●	●	●	●
34	16.070 SCREW; SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> 03.671 M5X20	5-09981-059-0	04	1	9712-	●	●	●	●	●	●
34	16.070 SCREW; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>, TRAY ROOF HEAD<7EJ> 03.671 M5X20	5-09981-059-0	02	1	9312-9611	●	●	●
34	16.070 SCREW; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>, TRAY ROOF HEAD<7EJ> 03.671 M5X20	5-09981-059-0	02	1	9612-9704	●	●	●		●
34	16.070 SCREW; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>, TRAY ROOF HEAD<7EJ> 03.671 M5X20	5-09981-059-0	02	1	9705-9711	●	●	●	●	●
34	16.070 SCREW; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>, TRAY ROOF HEAD<7EJ> 03.671 M5X20	5-09981-059-0	02	1	9712-	●	●	●	●	●	●
35	16.070 GROMMET; SCREW,SUN VISOR SUNVISOR PASSENGER SIDE<D20> 09.743 D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	9312-9503	●	●	●
35	16.070 GROMMET; SCREW,SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> 09.743 D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	9312-9503	●	●	●
35	16.070 GROMMET; SCREW,SUN VISOR 09.743 D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	9312-9503				●
35	16.070 GROMMET; SCREW,SUN VISOR SUNVISOR PASSENGER SIDE<D20> 16.588	8-94279-039-0	04	1	9504-9611	●	●	●
35	16.070 GROMMET; SCREW,SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> 16.588	8-94279-039-0	04	1	9504-9611	●	●	●
35	16.070 GROMMET; SCREW,SUN VISOR 16.588	8-94279-039-0	04	1	9504-9611				●
35	16.070 GROMMET; SCREW,SUN VISOR SUNVISOR PASSENGER SIDE<D20> 16.588	8-94279-039-0	04	1	9612-9704	●	●	●		●
35	16.070 GROMMET; SCREW,SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> 16.588	8-94279-039-0	04	1	9612-9704	●	●	●		●
35	16.070 GROMMET; SCREW,SUN VISOR 16.588	8-94279-039-0	04	1	9612-9704				●
35	16.070 GROMMET; SCREW,SUN VISOR SUNVISOR PASSENGER SIDE<D20> 16.588	8-94279-039-0	04	1	9705-9711	●	●	●	●	●
35	16.070 GROMMET; SCREW,SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> 16.588	8-94279-039-0	04	1	9705-9711	●	●	●	●	●
35	16.070 GROMMET; SCREW,SUN VISOR SUNVISOR PASSENGER SIDE<D20> 16.588	8-94279-039-0	04	1	9712-	●	●	●	●	●	●
35	16.070 GROMMET; SCREW,SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> 16.588	8-94279-039-0	04	1	9712-	●	●	●	●	●	●
35	16.070 GROMMET; SCREW,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>, TRAY ROOF HEAD<7EJ> 09.743 D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	02	1	9312-9503	●	●	●
35	16.070 GROMMET; SCREW,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>, TRAY ROOF HEAD<7EJ> 16.588	8-94279-039-0	02	1	9504-9611	●	●	●
35	16.070 GROMMET; SCREW,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>, TRAY ROOF HEAD<7EJ> 16.588	8-94279-039-0	02	1	9612-9704	●	●	●		●
35	16.070 GROMMET; SCREW,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>, TRAY ROOF HEAD<7EJ> 16.588	8-94279-039-0	02	1	9705-9711	●	●	●	●	●
35	16.070 GROMMET; SCREW,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>, TRAY ROOF HEAD<7EJ> 16.588	8-94279-039-0	02	1	9712-	●	●	●	●	●	●
39	16.450 HANDLE; ASSIST,A-POST DARK BEIGE	8-97853-802-2	02	1	9312-9608	●	●	●	●
39	16.450 HANDLE; ASSIST,A-POST DARK BEIGE	8-97867-883-0	02	1	9609-9611	●	●	●	●
39	16.450 HANDLE; ASSIST,A-POST DARK BEIGE	8-97867-883-0	02	1	9612-9711	●	●	●	●	●
39	16.450 HANDLE; ASSIST,A-POST DARK GRAY	8-97867-209-0	02	1	9712-	●	●	●	●	●	●
53	16.450 SCREW; ASSIST HANDLE M4X30	8-94279-360-0	04	1	9312-9608	●	●	●	●
53	16.450 SCREW; ASSIST HANDLE M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	9609-9611	●	●	●	●
53	16.450 SCREW; ASSIST HANDLE M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	9612-9711	●	●	●	●	●
53	16.450 SCREW; ASSIST HANDLE M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	9712-	●	●	●	●	●	●
55	16.450 GRIP; ASSIST,CAB SIDE UPR GRAY	8-97853-837-2	01	1	9312-9510	●	●	●	●
55	16.450 GRIP; ASSIST,CAB SIDE UPR ASSIST GRIP PASSENGER<EG5> GRAY	8-97853-837-2	01	1	9511-9611	●	●	●	●
55	16.450 GRIP; ASSIST,CAB SIDE UPR ASSIST GRIP PASSENGER<EG5> GRAY	8-97853-837-2	01	1	9612-9711	●	●	●	●	●
55	16.450 GRIP; ASSIST,CAB SIDE UPR ASSIST GRIP PASSENGER<EG5> 16.346 DARK GRAY	8-97098-476-2	01	1	9712-	●	●	●	●	●	●
71	16.450 SCREW M4X30	8-94279-360-0	02	1	9312-9510	●	●	●	●
71	16.450 SCREW ASSIST GRIP PASSENGER<EG5> M6X30 W/LK WASHER	5-09981-064-0	02	1	9511-9611	●	●	●	●
71	16.450 SCREW ASSIST GRIP PASSENGER<EG5> M6X30 W/LK WASHER	5-09981-064-0	02	1	9612-9711	●	●	●	●	●
71	16.450 SCREW ASSIST GRIP PASSENGER<EG5> M6X30 W/LK WASHER	5-09981-064-0	02	1	9712-	●	●	●	●	●	●
76	16.742 SPACER; ASSIST GRIP INTERIOR DELUXE<RBB> GRAY	8-97856-673-0	02	1	9507-9711	●	●	●
76	16.742 SPACER; ASSIST GRIP INTERIOR DELUXE<RBB> DARK GRAY	8-97859-854-0	02	1	9712-	●	●	●			●
141	16.070 COVER; SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> GRAY	8-97853-967-1	01	1	9312-9611	●	●	●
141	16.070 COVER; SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> GRAY	8-97853-967-1	01	1	9612-9704	●	●	●		●
141	16.070 COVER; SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> GRAY	8-97853-967-1	01	1	9705-9711	●	●	●	●	●
141	16.070 COVER; SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> LIGHT GRAY	8-97859-845-1	01	1	9712-	●	●	●	●	●	●
142	16.742 SEAL; ASSIST GRIP BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY YELLO W(916) EXC. ASSIST GRIP PASSENGER<EG5> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	02	1	9511-9711	●	●	●	●
142	16.742 SEAL; ASSIST GRIP BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY YELLO W(916) EXC. ASSIST GRIP PASSENGER<EG5> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	02	1	9712-	●	●	●	●	●	●
142	16.742 SEAL; ASSIST GRIP BODY COLOR ARC WHITE(729) EXC. ASSIST GRIP PASSENGER<EG5> 16.570 OD=20 T=0.05 WHITE	8-97856-832-1	02	1	9511-9611	●	●	●	●
142	16.742 SEAL; ASSIST GRIP BODY COLOR ARC WHITE(729) EXC. ASSIST GRIP PASSENGER<EG5> 16.570 OD=20 T=0.05 WHITE	8-97856-832-1	02	1	9612-9711	●	●	●	●	●
142	16.742 SEAL; ASSIST GRIP BODY COLOR ARC WHITE(729) EXC. ASSIST GRIP PASSENGER<EG5> 16.570 OD=20 T=0.05 WHITE	8-97856-832-1	02	1	9712-	●	●	●	●	●	●
144	16.070 SEAL; LOCATION HOLE 16.081 WHITE	1-76777-076-0	02	1	9312-9402	●	●	●	●
144	16.070 SEAL; LOCATION HOLE 16.570 OD=20 T=0.05 WHITE	8-97856-832-1	02	1	9403-9403	●	●	●	●
144	16.070 SEAL; LOCATION HOLE BODY COLOR ARC WHITE(729) EXC. TRAY ROOF HEAD<7EJ> 16.570 OD=20 T=0.05 WHITE	8-97856-832-1	02	1	9404-9611	●	●	●	●
144	16.070 SEAL; LOCATION HOLE BODY COLOR ARC WHITE(729) EXC. TRAY ROOF HEAD<7EJ> 16.570 OD=20 T=0.05 WHITE	8-97856-832-1	02	1	9612-9711	●	●	●	●	●
144	16.070 SEAL; LOCATION HOLE BODY COLOR ARC WHITE(729) EXC. TRAY ROOF HEAD<7EJ> 16.570 OD=20 T=0.05 WHITE	8-97856-832-1	02	1	9712-	●	●	●	●	●	●
144	16.070 SEAL; LOCATION HOLE 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	02	1	9312-9403	●	●	●	●
144	16.070 SEAL; LOCATION HOLE EXC. TRAY ROOF HEAD<7EJ> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	02	1	9404-9611	●	●	●	●
144	16.070 SEAL; LOCATION HOLE EXC. TRAY ROOF HEAD<7EJ> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	02	1	9612-9711	●	●	●	●	●
144	16.070 SEAL; LOCATION HOLE EXC. TRAY ROOF HEAD<7EJ> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	02	1	9712-	●	●	●	●	●	●
145	16.070 PLUG; HOLE EXC. TRAY ROOF HEAD<7EJ> 16.069 OD=12 L=14.8	8-94279-921-0	04	1	9312-9611	●	●	●	●
145	16.070 PLUG; HOLE EXC. TRAY ROOF HEAD<7EJ> 16.069 OD=12 L=14.8	8-94279-921-0	04	1	9612-9711	●	●	●	●	●
145	16.070 PLUG; HOLE EXC. TRAY ROOF HEAD<7EJ> 16.069 OD=12 L=14.8	8-94279-921-0	04	1	9712-	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
