Sayfa 7-40 - Isuzu EPC

7-40 — INSTRUMENT PANEL AND BOX (#48129) — 272 parça

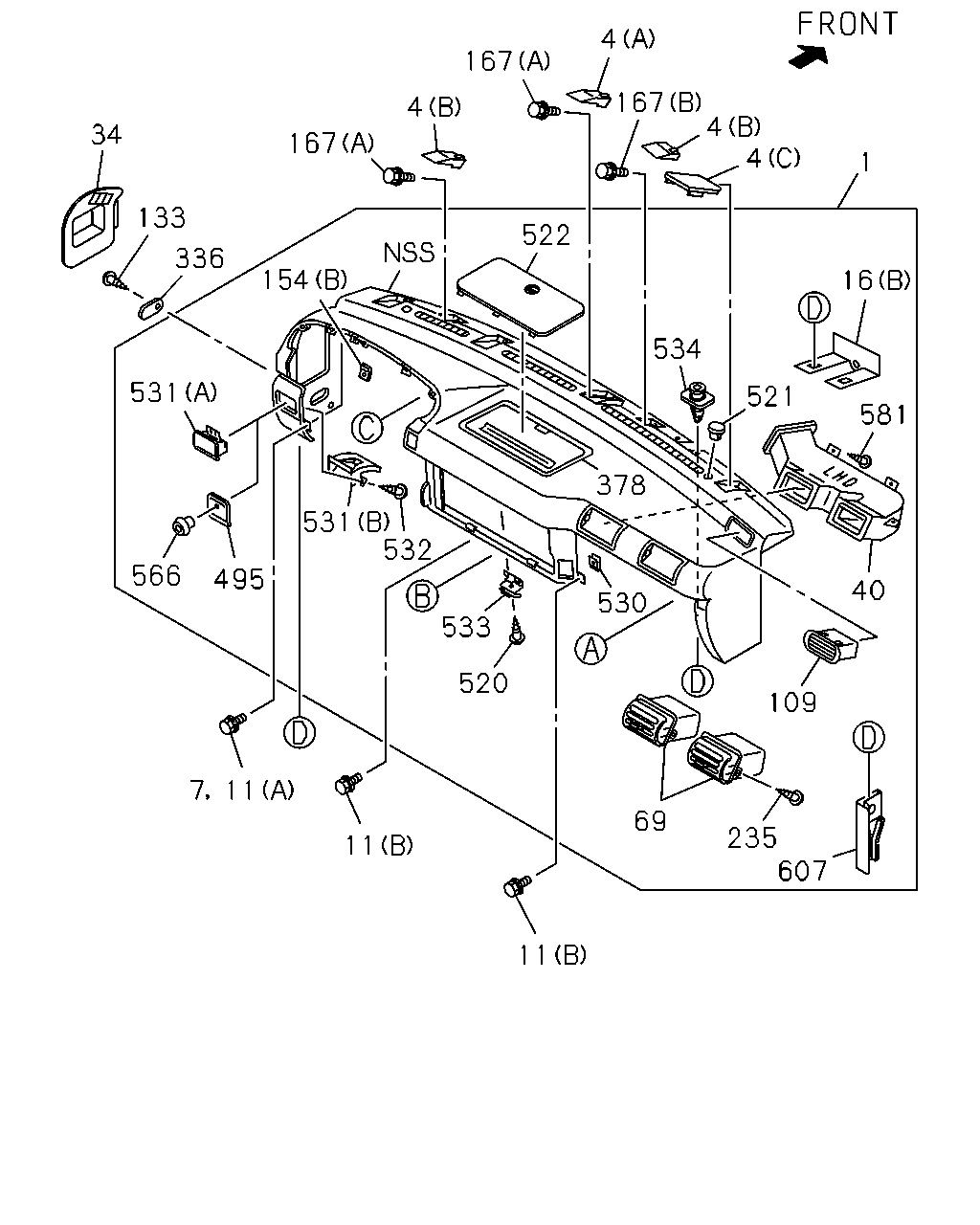

4 167 167 4 4 4 34 167 1 133 522 336 154 16 534 531 521 581 378 531 532 566 495 40 530 533 520 109 7 11 69 235 607 11 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	16.080 PANEL; INST DARK BEIGE	8-97856-929-5	01	1	9312-9506	●	●	●	●
1	16.080 PANEL; INST ASH TRAY DRIVER SIDE<7KU> DARK BEIGE	8-97856-929-5	01	1	9507-9510	●	●	●	●
1	16.080 PANEL; INST IDENTIFICATION LABEL FOR KD<6UT> EXC. ASH TRAY DRIVER SIDE<7KU> DARK BEIGE	8-97859-980-3	01	1	9507-9507		●	●
1	16.080 PANEL; INST PTO TRANSMISSION SIDE(V66) ADJUST HEADLAMP<6RC> EXC. ASH TRAY DRIVER SIDE<7KU> DARK BEIGE	8-97859-980-4	01	1	9508-9510	●	●	●
1	16.080 PANEL; INST IDENTIFICATION LABEL FOR KD<6UT> EXC. ASH TRAY DRIVER SIDE<7KU> DARK BEIGE	8-97859-980-4	01	1	9508-9510	●	●	●
1	16.080 PANEL; INST DARK BEIGE	8-97855-260-5	01	1	9511-9611	●	●	●	●
1	16.080 PANEL; INST DARK BEIGE	8-97855-260-5	01	1	9612-9711	●	●	●	●	●
1	16.080 PANEL; INST DARK GRAY	8-97195-962-0	01	1	9712-	●	●	●	●	●	●
4	16.080 COVER; INST PNL (A) DARK BEIGE	8-97853-880-3	02	1	9312-9611	●	●	●	●
4	16.080 COVER; INST PNL (A) DARK BEIGE	8-97853-880-3	02	1	9612-9711	●	●	●	●	●
4	16.080 COVER; INST PNL (A) DARK GRAY	8-97857-523-3	02	1	9712-	●	●	●	●	●	●
4	16.080 COVER; INST PNL (B) DARK BEIGE	8-97853-882-3	01	1	9312-9611	●	●	●	●
4	16.080 COVER; INST PNL (B) DARK BEIGE	8-97853-882-3	01	1	9612-9711	●	●	●	●	●
4	16.080 COVER; INST PNL (B) DARK GRAY	8-97857-525-3	01	1	9712-	●	●	●	●	●	●
4	16.080 COVER; INST PNL (C) DARK BEIGE	8-97856-155-1	01	1	9312-9611	●	●	●	●
4	16.080 COVER; INST PNL (C) DARK BEIGE	8-97856-155-1	01	1	9612-9711	●	●	●	●	●
4	16.080 COVER; INST PNL (C) DARK GRAY	8-97857-527-1	01	1	9712-	●	●	●	●	●	●
4	16.080 COVER; INST PNL (B) DARK BEIGE	8-97853-881-3	01	1	9312-9611	●	●	●	●
4	16.080 COVER; INST PNL (B) DARK BEIGE	8-97853-881-3	01	1	9612-9711	●	●	●	●	●
4	16.080 COVER; INST PNL (B) DARK GRAY	8-97857-524-3	01	1	9712-	●	●	●	●	●	●
4	16.080 COVER; INST PNL (C) DARK BEIGE	8-97856-154-1	01	1	9312-9611	●	●	●	●
4	16.080 COVER; INST PNL (C) DARK BEIGE	8-97856-154-1	01	1	9612-9711	●	●	●	●	●
4	16.080 COVER; INST PNL (C) DARK GRAY	8-97857-526-1	01	1	9712-	●	●	●	●	●	●
7	16.085 BOLT; SUPPORT,INST PNL M8X20 FLANGE	8-97114-431-0	06	1	9407-9604	●	●	●	●
7	16.085 BOLT; SUPPORT,INST PNL M8X20 FLANGE	8-97114-431-0	04	1	9604-9611	●	●	●	●
7	16.085 BOLT; SUPPORT,INST PNL M8X20 FLANGE	8-97114-431-0	04	1	9612-9711	●	●	●	●	●
7	16.085 BOLT; SUPPORT,INST PNL M8X20 FLANGE	8-97114-431-0	04	1	9712-	●	●	●	●	●	●
7	16.085 BOLT; SUPPORT,INST PNL 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9604-9611	●	●	●	●
7	16.085 BOLT; SUPPORT,INST PNL 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9612-9711	●	●	●	●	●
7	16.085 BOLT; SUPPORT,INST PNL 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9712-	●	●	●	●	●	●
11	16.090 BOLT; INST PNL 02.343 (A) M8X22	8-94122-771-0	04	1	9312-9405	●	●	●	●
11	16.090 BOLT; INST PNL 16.085 (A) M8X20 FLANGE	8-97114-431-0	06	1	9406-9406	●	●	●	●
11	16.090 BOLT; INST PNL 08.225 (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	06	1	9312-9611	●	●	●	●
11	16.090 BOLT; INST PNL 08.225 (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	06	1	9612-9711	●	●	●	●	●
11	16.090 BOLT; INST PNL 08.225 (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	06	1	9712-	●	●	●	●	●	●
16	16.085 BRACKET; INST PNL (A)	8-97853-306-3	01	1	9312-9611	●	●	●	●
16	16.085 BRACKET; INST PNL (A)	8-97853-306-3	01	1	9612-9711	●	●	●	●	●
16	16.085 BRACKET; INST PNL (A)	8-97853-306-7	01	1	9712-	●	●	●	●	●	●
16	16.085 BRACKET; INST PNL (B)	8-97856-132-0	01	1	9312-9611	●	●	●	●
16	16.085 BRACKET; INST PNL (B)	8-97856-132-0	01	1	9612-9711	●	●	●	●	●
16	16.085 BRACKET; INST PNL (B)	8-97856-132-0	01	1	9712-	●	●	●	●	●	●
16	16.085 BRACKET; INST PNL (B)	8-97856-131-0	01	1	9312-9611	●	●	●	●
16	16.085 BRACKET; INST PNL (B)	8-97856-131-0	01	1	9612-9711	●	●	●	●	●
16	16.085 BRACKET; INST PNL (B)	8-97856-131-0	01	1	9712-	●	●	●	●	●	●
34	16.085 LID; OIL TANK DARK BEIGE	8-97856-919-5	01	1	9312-9611	●	●	●	●
34	16.085 LID; OIL TANK DARK BEIGE	8-97856-919-5	01	1	9612-9711	●	●	●	●	●
34	16.085 LID; OIL TANK DARK GRAY	8-97857-499-5	01	1	9712-	●	●	●	●	●	●
40	09.264 DUCT; VENT,SIDE CLUSTER BEZEL 09.786	8-97069-825-0	01	1	9604-9611	●	●	●	●
40	09.264 DUCT; VENT,SIDE CLUSTER BEZEL 09.786	8-97069-825-0	01	1	9612-9711	●	●	●	●	●
40	09.264 DUCT; VENT,SIDE CLUSTER BEZEL 09.786	8-97069-825-0	01	1	9712-	●	●	●	●	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET DARK BEIGE	8-97853-878-2	02	1	9312-9611	●	●	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET DARK BEIGE	8-97853-878-2	02	1	9612-9711	●	●	●	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET DARK GRAY	8-97890-631-0	02	1	9712-	●	●	●	●	●	●
109	16.081 GRILLE; INST PNL SIDE,UPR DARK BEIGE	8-97856-923-0	01	1	9312-9611	●	●	●	●
109	16.081 GRILLE; INST PNL SIDE,UPR DARK BEIGE	8-97856-923-0	01	1	9612-9711	●	●	●	●	●
109	16.081 GRILLE; INST PNL SIDE,UPR DARK GRAY	8-97857-530-0	01	1	9712-	●	●	●	●	●	●
133	16.081 SCREW; COVER,INST PNL 09.744 M5X20 TAPPING W/PL WASHER	0-74110-520-0	02	1	9312-9611	●	●	●	●
133	16.081 SCREW; COVER,INST PNL 09.744 M5X20 TAPPING W/PL WASHER	0-74110-520-0	02	1	9612-9711	●	●	●	●	●
133	16.081 SCREW; COVER,INST PNL 09.744 M5X20 TAPPING W/PL WASHER	0-74110-520-0	02	1	9712-	●	●	●	●	●	●
154	16.085 NUT 16.081 (A) M5 SPIRE NUT	8-94279-051-0	01	1	9312-9611	●	●	●	●
154	16.085 NUT 16.081 (A) M5 SPIRE NUT	8-94279-051-0	01	1	9612-9612	●	●	●	●	●
154	16.085 NUT 16.742 (A) M6 SPIRE NUT	8-94291-960-0	01	1	9701-9711	●	●	●	●	●
154	16.085 NUT 16.742 (A) M6 SPIRE NUT	8-94291-960-0	01	1	9712-	●	●	●	●	●	●
154	16.085 NUT 16.742 (B) M6 SPIRE NUT	8-94291-960-0	03	1	9312-9611	●	●	●	●
154	16.085 NUT 16.742 (B) M6 SPIRE NUT	8-94291-960-0	03	1	9612-9711	●	●	●	●	●
154	16.085 NUT 16.742 (B) M6 SPIRE NUT	8-94291-960-0	03	1	9712-9806	●	●	●	●	●	●
154	16.085 NUT (B) M6 SPIRE NUT	8-97210-973-1	03	1	9807-	●	●	●	●	●	●
167	16.085 BOLT; REINF TO INST 06.500 (A) M6X25	8-94279-204-0	04	1	9312-9611	●	●	●	●
167	16.085 BOLT; REINF TO INST 06.500 (A) M6X25	8-94279-204-0	04	1	9612-9711	●	●	●	●	●
167	16.085 BOLT; REINF TO INST 06.500 (A) M6X25	8-94279-204-0	04	1	9712-	●	●	●	●	●	●
167	16.085 BOLT; REINF TO INST (B) M6X24 FLANGE	8-94279-231-1	02	1	9312-9611	●	●	●	●
167	16.085 BOLT; REINF TO INST (B) M6X24 FLANGE	8-94279-231-1	02	1	9612-9711	●	●	●	●	●
167	16.085 BOLT; REINF TO INST (B) M6X24 FLANGE	8-94279-231-1	02	1	9712-	●	●	●	●	●	●
235	16.081 SCREW; GRILLE 16.067 M5X14	8-94279-325-0	04	1	9312-9611	●	●	●	●
235	16.081 SCREW; GRILLE 16.067 M5X14	8-94279-325-0	04	1	9612-9711	●	●	●	●	●
235	16.081 SCREW; GRILLE 16.067 M5X14	8-94279-325-0	04	1	9712-	●	●	●	●	●	●
336	16.081 COVER; INST PANEL SIDE DARK BEIGE	8-97853-885-4	02	1	9312-9611	●	●	●	●
336	16.081 COVER; INST PANEL SIDE DARK BEIGE	8-97853-885-4	02	1	9612-9711	●	●	●	●	●
336	16.081 COVER; INST PANEL SIDE DARK GRAY	8-97857-528-4	02	1	9712-	●	●	●	●	●	●
378	09.743 SEAL; INST PANEL	8-97853-938-0	01	1	9312-9611	●	●	●	●
378	09.743 SEAL; INST PANEL	8-97853-938-0	01	1	9612-9711	●	●	●	●	●
378	09.743 SEAL; INST PANEL	8-97853-938-0	01	1	9712-	●	●	●	●	●	●
495	09.743 BEZEL; SW PTO TRANSMISSION SIDE(V66) ADJUST HEADLAMP<6RC> EXC. ASH TRAY DRIVER SIDE<7KU> DARK BEIGE	8-97863-830-1	01	1	9507-9704	●	●	●
495	09.743 BEZEL; SW PTO TRANSMISSION SIDE(V66) ADJUST HEADLAMP<6RC> EXC. ASH TRAY DRIVER SIDE<7KU> DARK BEIGE	8-97863-830-1	01	1	9705-9711	●	●	●	●
495	09.743 BEZEL; SW PTO TRANSMISSION SIDE(V66) ADJUST HEADLAMP<6RC> EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY	8-97868-411-1	01	1	9712-	●	●	●	●		●
495	09.743 BEZEL; SW IDENTIFICATION LABEL FOR KD<6UT> EXC. ASH TRAY DRIVER SIDE<7KU> DARK BEIGE	8-97859-977-4	01	1	9507-9507		●	●
495	09.743 BEZEL; SW PTO TRANSMISSION SIDE(V66) ADJUST HEADLAMP<6RC> EXC. ASH TRAY DRIVER SIDE<7KU> DARK BEIGE	8-97859-977-4	01	1	9507-9510	●	●	●
495	09.743 BEZEL; SW IDENTIFICATION LABEL FOR KD<6UT> EXC. ASH TRAY DRIVER SIDE<7KU> DARK BEIGE	8-97859-977-4	01	1	9507-9510	●	●	●
495	09.743 BEZEL; SW PTO TRANSMISSION SIDE(V66) EXC. ADJUST HEADLAMP<6RC>,ASH TRAY DRIVER SIDE<7KU> DARK BEIGE	8-97859-977-4	01	1	9511-9704	●	●	●	●
495	09.743 BEZEL; SW EXC. PTO TRANSMISSION SIDE(V66),ASH TRAY DRIVER SIDE<7KU> DARK BEIGE	8-97859-977-4	01	1	9511-9704	●	●	●	●
495	09.743 BEZEL; SW EXC. PTO TRANSMISSION SIDE(V66),ASH TRAY DRIVER SIDE<7KU> DARK BEIGE	8-97859-977-4	01	1	9705-9711	●	●	●	●	●
495	09.743 BEZEL; SW PTO TRANSMISSION SIDE(V66) EXC. ADJUST HEADLAMP<6RC>,ASH TRAY DRIVER SIDE<7KU> DARK BEIGE	8-97859-977-4	01	1	9705-9711	●	●	●	●
495	09.743 BEZEL; SW EXC. PTO TRANSMISSION SIDE(V66),ASH TRAY DRIVER SIDE<7KU> DARK GRAY	8-97857-548-4	01	1	9712-	●	●	●	●	●	●
495	09.743 BEZEL; SW PTO TRANSMISSION SIDE(V66) EXC. ADJUST HEADLAMP<6RC>,ASH TRAY DRIVER SIDE<7KU> DARK GRAY	8-97857-548-4	01	1	9712-	●	●	●	●		●
520	16.085 SCREW; CLIP,SPRING 16.067 M5X14	8-94279-325-0	04	1	9312-9406	●	●	●	●
520	16.085 SCREW; CLIP,SPRING 16.067 M5X14	8-94279-325-0	03	1	9407-9611	●	●	●	●
520	16.085 SCREW; CLIP,SPRING 16.067 M5X14	8-94279-325-0	03	1	9612-9711	●	●	●	●	●
520	16.085 SCREW; CLIP,SPRING 16.067 M5X14	8-94279-325-0	03	1	9712-	●	●	●	●	●	●
521	16.081 COVER; SUN SENSOR DARK BEIGE	8-97853-890-2	01	1	9312-9611	●	●	●	●
521	16.081 COVER; SUN SENSOR DARK BEIGE	8-97853-890-2	01	1	9612-9711	●	●	●	●	●
521	16.081 COVER; SUN SENSOR DARK GRAY	8-97857-529-2	01	1	9712-	●	●	●	●	●	●
522	16.085 LID; RELAY BOX DARK BEIGE	8-97853-876-4	01	1	9312-9611	●	●	●	●
522	16.085 LID; RELAY BOX DARK BEIGE	8-97853-876-4	01	1	9612-9711	●	●	●	●	●
522	16.085 LID; RELAY BOX DARK GRAY	8-97857-520-5	01	1	9712-	●	●	●	●	●	●
530	16.100 CLIP; GLOVE BOX	8-97856-135-0	01	1	9312-9611	●	●	●	●
530	16.100 CLIP; GLOVE BOX	8-97856-135-0	01	1	9612-9711	●	●	●	●	●
530	16.100 CLIP; GLOVE BOX	8-97856-135-0	01	1	9712-	●	●	●	●	●	●
531	16.100 CASE; ASH TRAY (B)	8-97853-130-0	01	1	9312-9506	●	●	●	●
531	16.100 CASE; ASH TRAY ASH TRAY DRIVER SIDE<7KU> (B)	8-97853-130-0	01	1	9507-9611	●	●	●	●
531	16.100 CASE; ASH TRAY ASH TRAY DRIVER SIDE<7KU> (B)	8-97853-130-0	01	1	9612-9711	●	●	●	●	●
531	16.100 CASE; ASH TRAY ASH TRAY DRIVER SIDE<7KU> (B)	8-97853-130-0	01	1	9712-	●	●	●	●	●	●
531	16.100 CASE; ASH TRAY (A) DARK BEIGE	8-97853-892-2	01	1	9312-9506	●	●	●	●
531	16.100 CASE; ASH TRAY ASH TRAY DRIVER SIDE<7KU> (A) DARK BEIGE	8-97853-892-2	01	1	9507-9507	●	●	●	●
531	16.100 CASE; ASH TRAY ASH TRAY DRIVER SIDE<7KU> (A) DARK BEIGE	8-97853-892-2	01	1	9507-9510	●	●	●	●
532	16.100 SCREW; ASH TRAY 16.067 M5X14	8-94279-325-0	02	1	9312-9506	●	●	●	●
532	16.100 SCREW; ASH TRAY ASH TRAY DRIVER SIDE<7KU> 16.067 M5X14	8-94279-325-0	02	1	9507-9611	●	●	●	●
532	16.100 SCREW; ASH TRAY ASH TRAY DRIVER SIDE<7KU> 16.067 M5X14	8-94279-325-0	02	1	9612-9711	●	●	●	●	●
532	16.100 SCREW; ASH TRAY ASH TRAY DRIVER SIDE<7KU> 16.067 M5X14	8-94279-325-0	02	1	9712-	●	●	●	●	●	●
533	16.100 CLIP; SPRING,CTR CLUSTER	8-97853-170-2	03	1	9312-9406	●	●	●	●
533	16.100 CLIP; SPRING,CTR CLUSTER	8-97853-170-4	02	1	9407-9611	●	●	●	●
533	16.100 CLIP; SPRING,CTR CLUSTER	8-97853-170-4	02	1	9612-9711	●	●	●	●	●
533	16.100 CLIP; SPRING,CTR CLUSTER	8-97853-170-5	02	1	9712-	●	●	●	●	●	●
534	16.100 CLIP; BRKT	8-97856-276-0	04	1	9312-9611	●	●	●	●
534	16.100 CLIP; BRKT	8-97856-276-0	04	1	9612-9711	●	●	●	●	●
534	16.100 CLIP; BRKT	8-97856-276-0	04	1	9712-	●	●	●	●	●	●
566	16.085 PLUG; HOLE IDENTIFICATION LABEL FOR KD<6UT> EXC. ASH TRAY DRIVER SIDE<7KU>	8-97859-978-0	01	1	9507-9507		●	●
566	16.085 PLUG; HOLE PTO TRANSMISSION SIDE(V66) ADJUST HEADLAMP<6RC> EXC. ASH TRAY DRIVER SIDE<7KU>	8-97859-978-0	01	1	9507-9507	●	●	●
566	16.085 PLUG; HOLE IDENTIFICATION LABEL FOR KD<6UT> EXC. ASH TRAY DRIVER SIDE<7KU>	8-97859-978-0	01	1	9507-9507	●	●	●
566	16.085 PLUG; HOLE PTO TRANSMISSION SIDE(V66) ADJUST HEADLAMP<6RC> EXC. ASH TRAY DRIVER SIDE<7KU> DARK BEIGE	8-97863-839-0	01	1	9508-9510	●	●	●
566	16.085 PLUG; HOLE IDENTIFICATION LABEL FOR KD<6UT> EXC. ASH TRAY DRIVER SIDE<7KU> DARK BEIGE	8-97863-839-0	01	1	9508-9510	●	●	●
566	16.085 PLUG; HOLE PTO TRANSMISSION SIDE(V66) EXC. ADJUST HEADLAMP<6RC>,ASH TRAY DRIVER SIDE<7KU> DARK BEIGE	8-97863-839-0	01	1	9511-9704	●	●	●	●
566	16.085 PLUG; HOLE EXC. PTO TRANSMISSION SIDE(V66),ASH TRAY DRIVER SIDE<7KU> DARK BEIGE	8-97863-839-0	01	1	9511-9704	●	●	●	●
566	16.085 PLUG; HOLE EXC. PTO TRANSMISSION SIDE(V66),ASH TRAY DRIVER SIDE<7KU> DARK BEIGE	8-97863-839-0	01	1	9705-9711	●	●	●	●	●
566	16.085 PLUG; HOLE PTO TRANSMISSION SIDE(V66) EXC. ADJUST HEADLAMP<6RC>,ASH TRAY DRIVER SIDE<7KU> DARK BEIGE	8-97863-839-0	01	1	9705-9711	●	●	●	●
566	16.085 PLUG; HOLE EXC. PTO TRANSMISSION SIDE(V66),ASH TRAY DRIVER SIDE<7KU> DARK GRAY	8-97868-413-0	01	1	9712-	●	●	●	●	●	●
566	16.085 PLUG; HOLE PTO TRANSMISSION SIDE(V66) EXC. ADJUST HEADLAMP<6RC>,ASH TRAY DRIVER SIDE<7KU> DARK GRAY	8-97868-413-0	01	1	9712-	●	●	●	●		●
581	09.744 SCREW 16.067 M5X14	8-94279-325-0	03	1	9405-9611	●	●	●	●
581	09.744 SCREW 16.067 M5X14	8-94279-325-0	03	1	9612-9711	●	●	●	●	●
581	09.744 SCREW 16.067 M5X14	8-94279-325-0	03	1	9712-	●	●	●	●	●	●
607	16.085 FIXING ASM; CLIP INST TO M/CSTR	8-97857-893-2	01	1	9312-9611	●	●	●	●
607	16.085 FIXING ASM; CLIP INST TO M/CSTR	8-97857-893-2	01	1	9612-9711	●	●	●	●	●
607	16.085 FIXING ASM; CLIP INST TO M/CSTR	8-97857-893-2	01	1	9712-	●	●	●	●	●	●

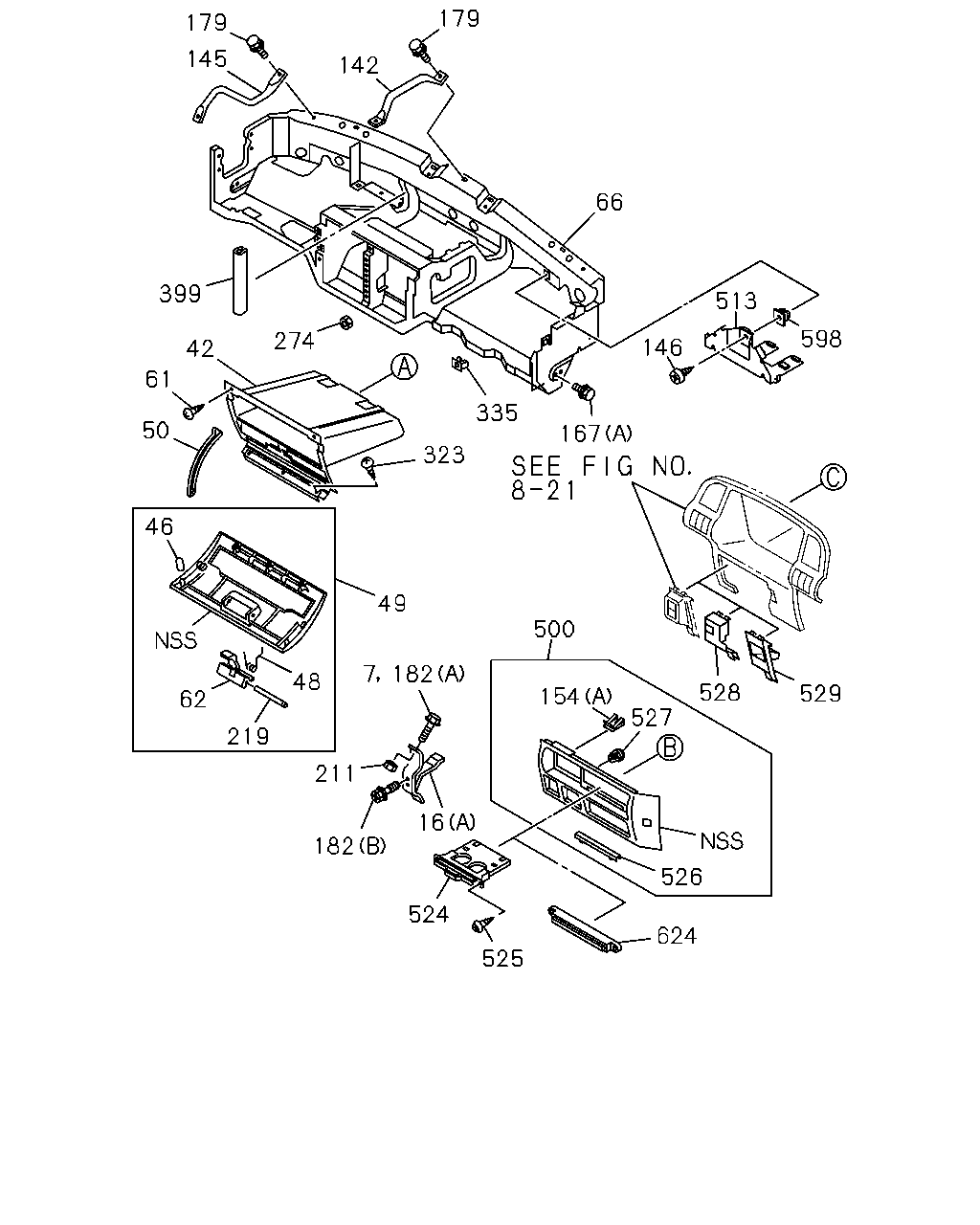

179 179 145 142 66 399 513 598 274 146 42 61 335 50 167 323 46 49 500 7 182 48 528 529 154 62 527 219 211 16 182 526 524 624 525

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
7	16.085 BOLT; SUPPORT,INST PNL M8X20 FLANGE	8-97114-431-0	06	1	9407-9604	●	●	●	●
7	16.085 BOLT; SUPPORT,INST PNL M8X20 FLANGE	8-97114-431-0	04	1	9604-9611	●	●	●	●
7	16.085 BOLT; SUPPORT,INST PNL M8X20 FLANGE	8-97114-431-0	04	1	9612-9711	●	●	●	●	●
7	16.085 BOLT; SUPPORT,INST PNL M8X20 FLANGE	8-97114-431-0	04	1	9712-	●	●	●	●	●	●
7	16.085 BOLT; SUPPORT,INST PNL 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9604-9611	●	●	●	●
7	16.085 BOLT; SUPPORT,INST PNL 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9612-9711	●	●	●	●	●
7	16.085 BOLT; SUPPORT,INST PNL 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9712-	●	●	●	●	●	●
16	16.085 BRACKET; INST PNL (A)	8-97853-306-3	01	1	9312-9611	●	●	●	●
16	16.085 BRACKET; INST PNL (A)	8-97853-306-3	01	1	9612-9711	●	●	●	●	●
16	16.085 BRACKET; INST PNL (A)	8-97853-306-7	01	1	9712-	●	●	●	●	●	●
16	16.085 BRACKET; INST PNL (B)	8-97856-132-0	01	1	9312-9611	●	●	●	●
16	16.085 BRACKET; INST PNL (B)	8-97856-132-0	01	1	9612-9711	●	●	●	●	●
16	16.085 BRACKET; INST PNL (B)	8-97856-132-0	01	1	9712-	●	●	●	●	●	●
16	16.085 BRACKET; INST PNL (B)	8-97856-131-0	01	1	9312-9611	●	●	●	●
16	16.085 BRACKET; INST PNL (B)	8-97856-131-0	01	1	9612-9711	●	●	●	●	●
16	16.085 BRACKET; INST PNL (B)	8-97856-131-0	01	1	9712-	●	●	●	●	●	●
42	16.100 BOX; GLOVE,INST PNL	8-97853-281-3	01	1	9312-9611	●	●	●	●
42	16.100 BOX; GLOVE,INST PNL	8-97853-281-3	01	1	9612-9711	●	●	●	●	●
42	16.100 BOX; GLOVE,INST PNL	8-97853-281-4	01	1	9712-	●	●	●	●	●	●
46	16.110 CAP; GLOVE BOX STOPPER	8-94270-538-0	02	1	9312-9611	●	●	●	●
46	16.110 CAP; GLOVE BOX STOPPER	8-94270-538-0	02	1	9612-9711	●	●	●	●	●
46	16.110 CAP; GLOVE BOX STOPPER	8-94270-538-0	02	1	9712-	●	●	●	●	●	●
48	16.110 SPRING; GLOVE BOX LID	8-97853-750-1	01	1	9312-9611	●	●	●	●
48	16.110 SPRING; GLOVE BOX LID	8-97853-750-1	01	1	9612-9711	●	●	●	●	●
48	16.110 SPRING; GLOVE BOX LID	8-97853-750-1	01	1	9712-	●	●	●	●	●	●
49	16.110 LID; GLOVE BOX DARK BEIGE	8-97856-166-2	01	1	9312-9611	●	●	●	●
49	16.110 LID; GLOVE BOX DARK BEIGE	8-97856-166-2	01	1	9612-9711	●	●	●	●	●
49	16.110 LID; GLOVE BOX DARK GRAY	8-97857-496-2	01	1	9712-	●	●	●	●	●	●
50	16.110 STOPPER; LID,GLOVE BOX,INST CLUS	8-97853-152-0	02	1	9312-9611	●	●	●	●
50	16.110 STOPPER; LID,GLOVE BOX,INST CLUS	8-97853-152-0	02	1	9612-9711	●	●	●	●	●
50	16.110 STOPPER; LID,GLOVE BOX,INST CLUS	8-97853-152-0	02	1	9712-	●	●	●	●	●	●
61	16.100 SCREW; GLOVE BOX 16.802 M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	9312-9611	●	●	●	●
61	16.100 SCREW; GLOVE BOX 16.802 M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	9612-9711	●	●	●	●	●
61	16.100 SCREW; GLOVE BOX 16.802 M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	9712-	●	●	●	●	●	●
62	16.110 KNOB; GLOVE BOX LID DARK BEIGE	8-97853-861-1	01	1	9312-9611	●	●	●	●
62	16.110 KNOB; GLOVE BOX LID DARK BEIGE	8-97853-861-1	01	1	9612-9711	●	●	●	●	●
62	16.110 KNOB; GLOVE BOX LID DARK GRAY	8-97857-498-1	01	1	9712-	●	●	●	●	●	●
66	16.085 REINFORCEMENT; INST PANEL	8-97856-420-9	01	1	9312-9410	●	●	●	●
66	16.085 REINFORCEMENT; INST PANEL	8-97859-931-3	01	1	9411-9611	●	●	●	●
66	16.085 REINFORCEMENT; INST PANEL	8-97859-931-3	01	1	9612-9711	●	●	●	●	●
66	16.085 REINFORCEMENT; INST PANEL EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97859-931-3	01	1	9712-9804	●	●	●	●	●
66	16.085 REINFORCEMENT; INST PANEL	8-97859-931-6	01	1	9805-	●	●	●	●	●	●
66	16.085 REINFORCEMENT; INST PANEL HYDRO BRAKE BOOSTER<7QQ>	8-97191-509-0	01	1	9712-9801		●	●			●
66	16.085 REINFORCEMENT; INST PANEL HYDRO BRAKE BOOSTER<7QQ>	8-97191-509-0	01	1	9802-9804		●	●		●	●
142	16.085 STAY; INST PANEL	8-97856-460-1	01	1	9312-9611	●	●	●	●
142	16.085 STAY; INST PANEL	8-97856-460-1	01	1	9612-9711	●	●	●	●	●
142	16.085 STAY; INST PANEL	8-97856-460-2	01	1	9712-	●	●	●	●	●	●
145	16.085 STAY; INST PANEL SIDE	8-97856-461-3	01	1	9312-9611	●	●	●	●
145	16.085 STAY; INST PANEL SIDE	8-97856-461-3	01	1	9612-9711	●	●	●	●	●
145	16.085 STAY; INST PANEL SIDE	8-97856-461-3	01	1	9712-	●	●	●	●	●	●
146	16.100 SCREW; TAP 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 16.802 M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	9712-9801		●	●			●
146	16.100 SCREW; TAP 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 16.802 M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	9802-		●	●		●	●
154	16.085 NUT 16.081 (A) M5 SPIRE NUT	8-94279-051-0	01	1	9312-9611	●	●	●	●
154	16.085 NUT 16.081 (A) M5 SPIRE NUT	8-94279-051-0	01	1	9612-9612	●	●	●	●	●
154	16.085 NUT 16.742 (A) M6 SPIRE NUT	8-94291-960-0	01	1	9701-9711	●	●	●	●	●
154	16.085 NUT 16.742 (A) M6 SPIRE NUT	8-94291-960-0	01	1	9712-	●	●	●	●	●	●
154	16.085 NUT 16.742 (B) M6 SPIRE NUT	8-94291-960-0	03	1	9312-9611	●	●	●	●
154	16.085 NUT 16.742 (B) M6 SPIRE NUT	8-94291-960-0	03	1	9612-9711	●	●	●	●	●
154	16.085 NUT 16.742 (B) M6 SPIRE NUT	8-94291-960-0	03	1	9712-9806	●	●	●	●	●	●
154	16.085 NUT (B) M6 SPIRE NUT	8-97210-973-1	03	1	9807-	●	●	●	●	●	●
167	16.085 BOLT; REINF TO INST 06.500 (A) M6X25	8-94279-204-0	04	1	9312-9611	●	●	●	●
167	16.085 BOLT; REINF TO INST 06.500 (A) M6X25	8-94279-204-0	04	1	9612-9711	●	●	●	●	●
167	16.085 BOLT; REINF TO INST 06.500 (A) M6X25	8-94279-204-0	04	1	9712-	●	●	●	●	●	●
167	16.085 BOLT; REINF TO INST (B) M6X24 FLANGE	8-94279-231-1	02	1	9312-9611	●	●	●	●
167	16.085 BOLT; REINF TO INST (B) M6X24 FLANGE	8-94279-231-1	02	1	9612-9711	●	●	●	●	●
167	16.085 BOLT; REINF TO INST (B) M6X24 FLANGE	8-94279-231-1	02	1	9712-	●	●	●	●	●	●
179	16.085 BOLT; STAY,INST PANEL 08.225 M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9312-9401	●	●	●	●
179	16.085 BOLT; STAY,INST PANEL 16.350 M6X12 W/LK&PL WASHER	8-94279-200-0	02	1	9402-9611	●	●	●	●
179	16.085 BOLT; STAY,INST PANEL 16.350 M6X12 W/LK&PL WASHER	8-94279-200-0	02	1	9612-9711	●	●	●	●	●
179	16.085 BOLT; STAY,INST PANEL 16.350 M6X12 W/LK&PL WASHER	8-94279-200-0	02	1	9712-	●	●	●	●	●	●
182	16.085 BOLT; BRKT,INST PANEL 02.343 (A) M8X22	8-94122-771-0	02	1	9312-9405	●	●	●	●
182	16.085 BOLT; BRKT,INST PANEL 03.483 (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	9312-9604	●	●	●	●
182	16.085 BOLT; BRKT,INST PANEL 16.550 (B) M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	9604-9611	●	●	●	●
182	16.085 BOLT; BRKT,INST PANEL 16.550 (B) M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	9612-9711	●	●	●	●	●
182	16.085 BOLT; BRKT,INST PANEL 16.550 (B) M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	9712-	●	●	●	●	●	●
211	16.120 NUT; BRKT TO INST 04.594 M6 FLANGE	0-91150-106-0	02	1	9312-9611	●	●	●	●
211	16.120 NUT; BRKT TO INST 04.594 M6 FLANGE	0-91150-106-0	02	1	9612-9711	●	●	●	●	●
211	16.120 NUT; BRKT TO INST 04.594 M6 FLANGE	0-91150-106-0	02	1	9712-	●	●	●	●	●	●
219	09.744 SHAFT; GLOVE BOX LID	5-72547-059-1	01	1	9312-9611	●	●	●	●
219	09.744 SHAFT; GLOVE BOX LID	5-72547-059-1	01	1	9612-9711	●	●	●	●	●
219	09.744 SHAFT; GLOVE BOX LID	5-72547-059-1	01	1	9712-	●	●	●	●	●	●
274	16.100 NUT; GLOVE BOX 16.081 M5 SPIRE NUT	8-94279-051-0	02	1	9312-9611	●	●	●	●
274	16.100 NUT; GLOVE BOX 16.081 M5 SPIRE NUT	8-94279-051-0	02	1	9612-9711	●	●	●	●	●
274	16.100 NUT; GLOVE BOX 16.081 M5 SPIRE NUT	8-94279-051-0	02	1	9712-	●	●	●	●	●	●
323	16.110 SCREW; GLOVE BOX LK 16.067 M5X14	8-94279-325-0	03	1	9312-9611	●	●	●	●
323	16.110 SCREW; GLOVE BOX LK 16.067 M5X14	8-94279-325-0	03	1	9612-9711	●	●	●	●	●
323	16.110 SCREW; GLOVE BOX LK 16.067 M5X14	8-94279-325-0	03	1	9712-	●	●	●	●	●	●
335	16.115 GROMMET; GLOVE BOX LK 01.269 D=8.6X7.7 L=7.5	8-94279-078-0	02	1	9312-9611	●	●	●	●
335	16.115 GROMMET; GLOVE BOX LK 01.269 D=8.6X7.7 L=7.5	8-94279-078-0	02	1	9612-9711	●	●	●	●	●
335	16.115 GROMMET; GLOVE BOX LK 01.269 D=8.6X7.7 L=7.5	8-94279-078-0	02	1	9712-	●	●	●	●	●	●
399	16.085 FINISHER; HARNESS 03.885 L=50	8-94270-377-1	01	1	9312-9611	●	●	●	●
399	16.085 FINISHER; HARNESS 03.885 L=50	8-94270-377-1	01	1	9612-9711	●	●	●	●	●
399	16.085 FINISHER; HARNESS 03.885 L=50	8-94270-377-1	01	1	9712-	●	●	●	●	●	●
500	16.081 CLUSTER; INST CENTER RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) DARK BEIGE	8-97857-899-4	01	1	9312-9611	●	●	●	●
500	16.081 CLUSTER; INST CENTER RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) DARK BEIGE	8-97857-899-4	01	1	9612-9711	●	●	●	●	●
500	16.081 CLUSTER; INST CENTER RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) DARK GRAY	8-97857-902-5	01	1	9712-	●	●	●		●	●
500	16.081 CLUSTER; INST CENTER EXC. RADIO AM/FM W/CASSETTE 2 SPEAKER S(6VL) DARK BEIGE	8-97856-970-6	01	1	9312-9611	●	●	●	●
500	16.081 CLUSTER; INST CENTER EXC. RADIO AM/FM W/CASSETTE 2 SPEAKER S(6VL) DARK BEIGE	8-97856-970-6	01	1	9612-9711	●	●	●	●	●
500	16.081 CLUSTER; INST CENTER EXC. RADIO AM/FM W/CASSETTE 2 SPEAKER S(6VL) DARK GRAY	8-97857-501-7	01	1	9712-	●	●	●	●	●	●
513	16.120 BRACKET; RELAY 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97859-391-2	01	1	9712-9801		●	●			●
513	16.120 BRACKET; RELAY 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97859-391-2	01	1	9802-		●	●		●	●
524	16.100 STAND ASM; CUP,INST	8-97853-172-5	01	1	9312-9510	●	●	●	●
524	16.100 STAND ASM; CUP,INST CUP HOLDER<7KZ>	8-97853-172-5	01	1	9511-9611	●	●	●	●
524	16.100 STAND ASM; CUP,INST CUP HOLDER<7KZ>	8-97853-172-5	01	1	9612-9711	●	●	●	●	●
524	16.100 STAND ASM; CUP,INST CUP HOLDER<7KZ>	8-97853-172-7	01	1	9712-	●	●	●	●	●	●
525	16.100 SCREW; CUP STAND 16.067 M5X14	8-94279-325-0	02	1	9312-9611	●	●	●	●
525	16.100 SCREW; CUP STAND 16.067 M5X14	8-94279-325-0	02	1	9612-9711	●	●	●	●	●
525	16.100 SCREW; CUP STAND 16.067 M5X14	8-94279-325-0	02	1	9712-	●	●	●	●	●	●
526	16.100 GUIDE; POCKET,INST CLUSTER DARK BEIGE	8-97853-896-1	01	1	9312-9611	●	●	●	●
526	16.100 GUIDE; POCKET,INST CLUSTER DARK BEIGE	8-97853-896-1	01	1	9612-9711	●	●	●	●	●
526	16.100 GUIDE; POCKET,INST CLUSTER DARK GRAY	8-97857-503-1	01	1	9712-	●	●	●	●	●	●
527	16.100 CLIP; INST CLUSTER	8-97853-169-0	04	1	9312-9611	●	●	●	●
527	16.100 CLIP; INST CLUSTER	8-97853-169-0	04	1	9612-9711	●	●	●	●	●
527	16.100 CLIP; INST CLUSTER	8-97853-169-0	04	1	9712-	●	●	●	●	●	●
528	16.081 COVER; PTO LEVER PTO TRANSMISSION SIDE(V66) EXC. ADJUST HEADLAMP<6RC> DARK BEIGE	8-97859-482-0	01	1	9407-9504	●	●	●	●
528	16.081 COVER; PTO LEVER PTO TRANSMISSION SIDE(V66) EXC. ADJUST HEADLAMP<6RC>,POWER TAKE OFF CONTROL ELECTRIC<7GR> DARK BEIGE	8-97859-482-0	01	1	9505-9506	●	●	●	●
528	16.081 COVER; PTO LEVER PTO TRANSMISSION SIDE(V66) DARK BEIGE	8-97859-482-0	01	1	9507-9611	●	●	●	●
528	16.081 COVER; PTO LEVER PTO TRANSMISSION SIDE(V66) DARK BEIGE	8-97859-482-0	01	1	9612-9711	●	●	●	●	●
528	16.081 COVER; PTO LEVER PTO TRANSMISSION SIDE(V66) BLACK	8-97868-448-0	01	1	9712-	●	●	●	●	●	●
529	16.100 POCKET; COIN	8-97856-091-4	01	1	9312-9403	●	●	●	●
529	16.100 POCKET; COIN DARK BEIGE	8-97856-091-4	01	1	9404-9406	●			●
529	16.100 POCKET; COIN EXC. ADJUST HEADLAMP<6RC> DARK BEIGE	8-97856-091-4	01	1	9404-9406		●	●
529	16.100 POCKET; COIN EXC. PTO TRANSMISSION SIDE(V66), ADJUST HEADLAMP<6RC> DARK BEIGE	8-97856-091-4	01	1	9407-9704	●	●	●	●
529	16.100 POCKET; COIN EXC. PTO TRANSMISSION SIDE(V66), ADJUST HEADLAMP<6RC> DARK BEIGE	8-97856-091-4	01	1	9705-9711	●	●	●	●	●
529	16.100 POCKET; COIN EXC. PTO TRANSMISSION SIDE(V66), ADJUST HEADLAMP<6RC> BLACK	8-97867-543-5	01	1	9712-	●	●	●	●	●	●
598	09.262 GROMMET; SCREW 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.269 D=8.6X7.7 L=7.5	8-94279-078-0	01	1	9712-9801		●	●			●
598	09.262 GROMMET; SCREW 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.269 D=8.6X7.7 L=7.5	8-94279-078-0	01	1	9802-		●	●		●	●
624	16.085 COVER; CUP STAND EXC. CUP HOLDER<7KZ>	1-72438-139-0	01	1	9511-9611	●	●	●	●
624	16.085 COVER; CUP STAND EXC. CUP HOLDER<7KZ>	1-72438-139-0	01	1	9612-9711	●	●	●	●	●
624	16.085 COVER; CUP STAND EXC. CUP HOLDER<7KZ>	1-72438-139-0	01	1	9712-	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
