◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50697 - NPR/NQR-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#48126) — 163 parça

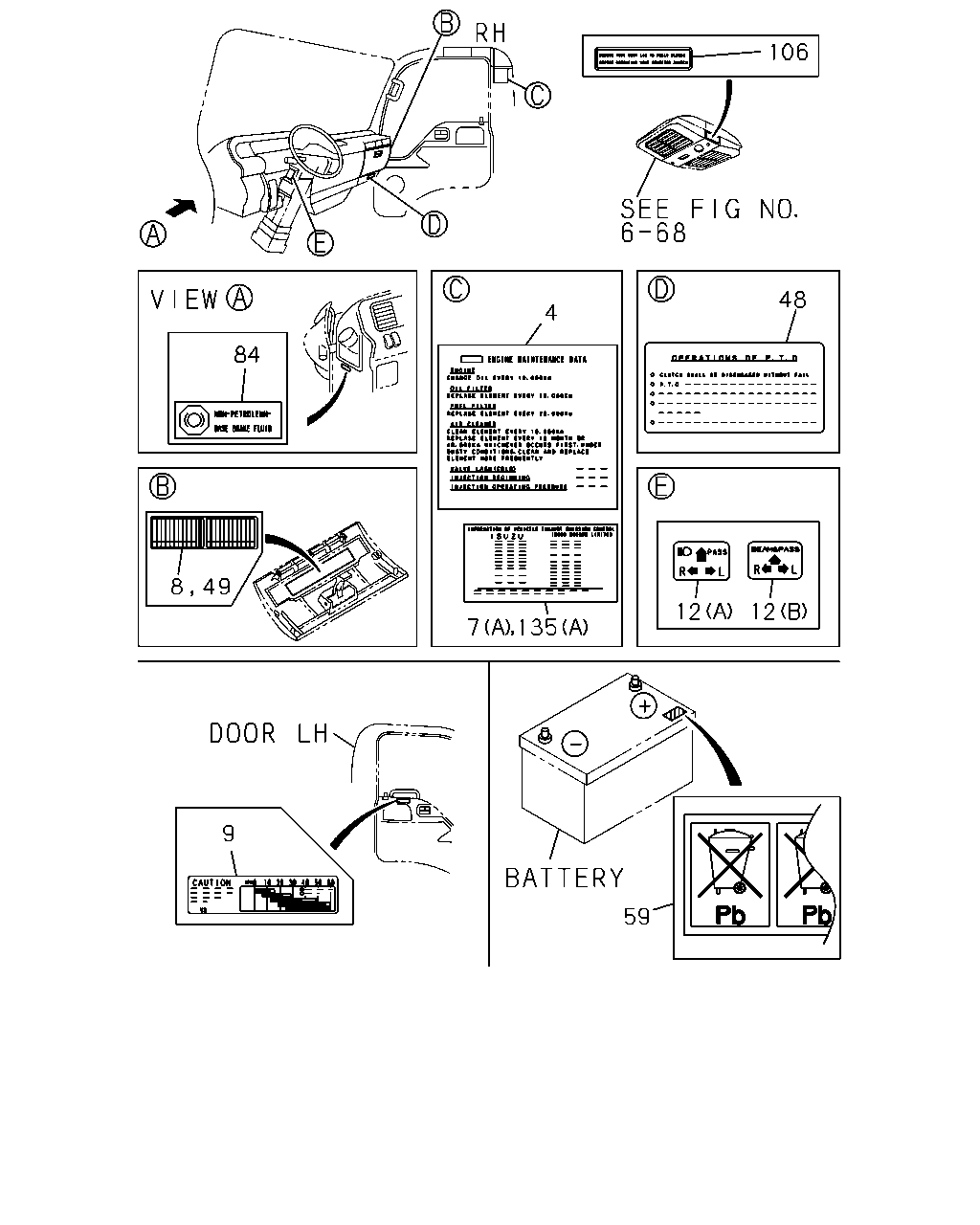

çizim 66844
106 48 84 8 49 12 12 7 135 9 59 4
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
4 00.004 LABEL; ENG MAINTENANCE
4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> 		8-97148-299-0 01 1 9602-9609 ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JG2 ENG(RJC) EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF> 		8-97148-678-0 01 1 9603-9711 ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> 		8-97148-678-0 01 1 9712-9712 ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> 		8-97189-419-0 01 1 9801- ● ●
4 00.004 LABEL; ENG MAINTENANCE
4BD1 ENG(LJ6) TURBOCHARGER(K51) CAUTION SPANISH<YN1> 		8-97095-114-0 01 1 9312-9510 ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HF1 ENG(RLS) EXC. TAIWAN EQUIPMENT(RWV),CAUTION SPANISH<YN1> 		8-97133-029-0 01 1 9511-9611 ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HF1 ENG(RLS) EXC. TAIWAN EQUIPMENT(RWV),CAUTION SPANISH<YN1> 		8-97133-029-0 01 1 9612-9711 ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HF1 ENG(RLS) EXC. TAIWAN EQUIPMENT(RWV),CAUTION SPANISH<YN1> 		8-97133-029-0 01 1 9712-9803 ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HF1 ENG(RLS) EXC. TAIWAN EQUIPMENT(RWV),CAUTION SPANISH<YN1> 		8-97189-398-0 01 1 9804- ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4BD1 ENG(LJ6) TURBOCHARGER(K51) TAIWAN EQUIPMENT(RWV) EXC. CAUTION SPANISH<YN1> 		8-97095-109-0 01 1 9312-9510 ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HF1 ENG(RLS) TAIWAN EQUIPMENT(RWV) 08.808 		8-97109-187-0 01 1 9511-9604 ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4BD1 ENG(LJ6) TURBOCHARGER(K51) EXC. TAIWAN EQUIPMENT(RWV),CAUTION SPANISH<YN1> 		8-97095-126-0 01 1 9312-9510 ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HF1 ENG(RLS) CAUTION SPANISH<YN1> 		8-97093-308-0 01 1 9312-9510 ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HF1 ENG(RLS) CAUTION SPANISH<YN1> 		8-97133-030-0 01 1 9511-9611 ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HF1 ENG(RLS) CAUTION SPANISH<YN1> 		8-97133-030-0 01 1 9612-9711 ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HF1 ENG(RLS) CAUTION SPANISH<YN1> 		8-97133-030-0 01 1 9712-9803 ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HF1 ENG(RLS) CAUTION SPANISH<YN1> 		8-97189-399-0 01 1 9804- ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HF1 ENG(RLS) EXC. CAUTION SPANISH<YN1> 		8-97093-307-0 01 1 9312-9510 ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HF1 ENG(RLS) TAIWAN EQUIPMENT(RWV) EXC. CAUTION SPANISH<YN1> 		8-97146-023-0 01 1 9511-9803 ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HF1 ENG(RLS) TAIWAN EQUIPMENT(RWV) EXC. CAUTION SPANISH<YN1> 		8-97189-400-0 01 1 9804- ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4BE1 ENG(RLH) CAUTION SPANISH<YN1> 		8-97095-113-0 01 1 9312-9711 ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4BE1 ENG(RLH) CAUTION SPANISH<YN1> 		8-97095-113-0 01 1 9712-9712 ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4BE1 ENG(RLH) CAUTION SPANISH<YN1> 		8-97189-408-0 01 1 9801- ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4BE1 ENG(RLH) EXC. CAUTION SPANISH<YN1> 		8-97095-112-0 01 1 9312-9711 ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4BE1 ENG(RLH) EXC. CAUTION SPANISH<YN1> 		8-97095-112-0 01 1 9712-9712 ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4BE1 ENG(RLH) EXC. CAUTION SPANISH<YN1> 		8-97189-407-0 01 1 9801- ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JG2 ENG(RJC) EUROPEAN BASIC EQUIPMENT(EK4) 		8-97102-129-0 01 1 9312-9504 ●
4 00.004 LABEL; ENG MAINTENANCE
4JG2 ENG(RJC) EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) 		8-97102-129-0 01 1 9505-9506 ●
4 00.004 LABEL; ENG MAINTENANCE
4JG2 ENG(RJC) EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) 		8-97102-129-0 01 1 9507-9602 ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JG2 ENG(RJC) EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EXC. EURO2 SPECIFICATION<7AF> 		8-97102-129-0 01 1 9603-9711 ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HG1 ENG(RJH) CAUTION SPANISH<YN1> 		8-97189-402-0 01 1 9712- ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4BD2 ENG(RLW) CAUTION SPANISH<YN1> 		8-97103-002-0 01 1 9312-9704 ● ●
4 00.004 LABEL; ENG MAINTENANCE
4BD2 ENG(RLW) CAUTION SPANISH<YN1> 		8-97103-002-0 01 1 9705-9712 ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4BD2 ENG(RLW) CAUTION SPANISH<YN1> 		8-97189-410-0 01 1 9801- ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4BD2 ENG(RLW) EXC. CAUTION SPANISH<YN1> 		8-97103-000-0 01 1 9312-9704 ● ●
4 00.004 LABEL; ENG MAINTENANCE
4BD2 ENG(RLW) EXC. CAUTION SPANISH<YN1> 		8-97103-000-0 01 1 9705-9712 ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4BD2 ENG(RLW) EXC. CAUTION SPANISH<YN1> 		8-97189-409-0 01 1 9801- ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HG1 ENG(RJH) EXC. CAUTION SPANISH<YN1> 		8-97189-401-0 01 1 9712- ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HE1 ENG(RLY) CAUTION SPANISH<YN1> CHARGE AIR COOLER<6PL> 		8-97189-406-0 01 1 9712-9801 ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HE1 ENG(RLY) CAUTION SPANISH<YN1> CHARGE AIR COOLER<6PL> 		8-97189-406-0 01 1 9802- ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HE1 ENG(RLY) CAUTION SPANISH<YN1> EXC. CHARGE AIR COOLER<6PL> 		8-97189-404-0 01 1 9712-9801 ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HE1 ENG(RLY) CAUTION SPANISH<YN1> EXC. CHARGE AIR COOLER<6PL> 		8-97189-404-0 01 1 9802- ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HE1 ENG(RLY) EXC. CAUTION SPANISH<YN1>,CHARGE AIR COOLER<6PL> 		8-97189-403-0 01 1 9712-9801 ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HE1 ENG(RLY) EXC. CAUTION SPANISH<YN1>,CHARGE AIR COOLER<6PL> 		8-97189-403-0 01 1 9802- ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CAUTION SPANISH<YN1> 		8-97189-405-0 01 1 9712-9801 ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CAUTION SPANISH<YN1> 		8-97189-405-0 01 1 9802- ● ● ● ●
7 03.680 LABEL; EMISSION
4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> (B) 		8-97170-219-0 01 1 9610- ● ●
7 03.680 LABEL; EMISSION
4BD1 ENG(LJ6) TAIWAN EQUIPMENT(RWV) (A) 		8-97100-864-1 01 1 9312-9510 ● ● ●
7 03.680 LABEL; EMISSION
4BD2 ENG(RLW) EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) (A) 135X70 		8-97081-082-0 01 1 9312-9312 ● ●
7 03.680 LABEL; EMISSION
4BD2 ENG(RLW) EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) (C) 		8-97110-094-0 01 1 9401-9704 ● ●
7 03.680 LABEL; EMISSION
4BD2 ENG(RLW) EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) (C) 		8-97110-094-0 01 1 9705- ● ● ●
7 03.680 LABEL; EMISSION
4BD2 ENG(RLW) TAIWAN EQUIPMENT(RWV) (A) 		8-97108-784-0 01 1 9312- ● ●
7 03.680 LABEL; EMISSION
4HE1 ENG(RLY) EUROPEAN BASIC EQUIPMENT(EK4) CHARGE AIR COOLER<6PL> (D) 		8-97203-477-0 01 1 9801-9801 ● ● ●
7 03.680 LABEL; EMISSION
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. TAIWAN EQUIPMENT(RWV),VENEZUELA EQUIPMENT(S2L),CHILE EQUIPMENT(6KB) (D) 		8-97203-477-2 01 1 9802- ● ● ● ●
7 03.680 LABEL; EMISSION
4HE1 ENG(RLY) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> (A) 		8-97201-735-0 01 1 9801-9801 ● ● ●
7 03.680 LABEL; EMISSION
4HE1 ENG(RLY) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> (A) 		8-97201-735-0 01 1 9802- ● ● ●
8 03.680 LABEL; FUSE
VOLTAGE 24V<7AE> 		8-97857-283-0 01 1 9312-9711 ● ● ● ● ●
8 03.680 LABEL; FUSE
A/T 4 SPEED-JATCO(RMK) EXC. VOLTAGE 24V<7AE> 		8-97131-171-0 01 1 9505-9711 ● ●
8 03.680 LABEL; FUSE
EXC. VOLTAGE 24V<7AE> 		8-97857-282-0 01 1 9312-9504 ● ●
8 03.680 LABEL; FUSE
FLOOR REMOTE SHIFT<M11> EXC. VOLTAGE 24V<7AE> 		8-97857-282-0 01 1 9505-9506 ● ●
8 03.680 LABEL; FUSE
FLOOR REMOTE SHIFT<M11> EXC. VOLTAGE 24V<7AE> 		8-97857-282-0 01 1 9507-9704 ● ● ●
8 03.680 LABEL; FUSE
FLOOR REMOTE SHIFT<M11> EXC. VOLTAGE 24V<7AE> 		8-97857-282-0 01 1 9705-9711 ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JG2 ENG(RJC) 		8-94158-936-0 01 1 9312-9506 ●
9 08.808 PLATE; NAME,SPD RANGE
4JG2 ENG(RJC) 		8-94158-936-0 01 1 9507-9509 ● ●
12 02.459 LABEL; TURN
(A) 		8-97853-934-0 01 1 9312-9402 ● ● ● ●
12 02.459 LABEL; TURN
(B) 		8-94273-445-0 01 1 9403-9611 ● ● ● ●
12 02.459 LABEL; TURN
(B) 		8-94273-445-0 01 1 9612-9711 ● ● ● ● ●
12 02.459 LABEL; TURN
(B) 		8-94273-445-0 01 1 9712- ● ● ● ● ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) 		8-97116-561-0 01 1 9408-9504 ● ● ● ●
48 08.808 PLATE; CAUTION,PTO
FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) 		8-97116-561-0 01 1 9505-9704 ● ● ● ●
48 08.808 PLATE; CAUTION,PTO
FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) 		8-97116-561-0 01 1 9705-9711 ● ● ● ● ●
48 08.808 PLATE; CAUTION,PTO
FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) 		8-97116-561-0 01 1 9712- ● ● ● ● ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) CAUTION SPANISH<YN1> 		8-94313-054-0 01 1 9312-9504 ● ● ● ●
48 08.808 PLATE; CAUTION,PTO
FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) CAUTION SPANISH<YN1> 		8-94313-054-0 01 1 9505-9704 ● ● ● ●
48 08.808 PLATE; CAUTION,PTO
FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) CAUTION SPANISH<YN1> 		8-94313-054-0 01 1 9705-9711 ● ● ● ● ●
48 08.808 PLATE; CAUTION,PTO
FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) CAUTION SPANISH<YN1> 		8-94313-054-0 01 1 9712- ● ● ● ● ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) EXC. CAUTION SPANISH<YN1> 		8-94469-277-0 01 1 9312-9504 ● ● ● ●
48 08.808 PLATE; CAUTION,PTO
FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. CAUTION SPANISH<YN1> 		8-94469-277-0 01 1 9505-9704 ● ● ● ●
48 08.808 PLATE; CAUTION,PTO
FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. CAUTION SPANISH<YN1> 		8-94469-277-0 01 1 9705-9711 ● ● ● ● ●
48 08.808 PLATE; CAUTION,PTO
FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. CAUTION SPANISH<YN1> 		8-94469-277-0 01 1 9712- ● ● ● ● ● ●
49 08.808 PLATE; CAUTION,FUSE BOX
EXC. VOLTAGE 24V<7AE> 		8-97182-190-0 01 1 9712-9801 ● ● ● ●
49 08.808 PLATE; CAUTION,FUSE BOX
EXC. CHARGE AIR COOLER<6PL>,VOLTAGE 24V<7AE> 		8-97182-190-0 01 1 9802- ● ● ● ●
49 08.808 PLATE; CAUTION,FUSE BOX
VOLTAGE 24V<7AE> EXC. CHARGE AIR COOLER<6PL> 		8-97182-191-0 01 1 9712- ● ● ● ● ●
49 08.808 PLATE; CAUTION,FUSE BOX
CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> 		8-97182-192-0 01 1 9712-9801 ● ● ●
49 08.808 PLATE; CAUTION,FUSE BOX
CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> 		8-97182-192-0 01 1 9802- ● ● ● ●
49 08.808 PLATE; CAUTION,FUSE BOX
CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE> 		8-97203-577-0 01 1 9802- ●
59 08.808 PLATE; CAUTION,BATTERY
EUROPEAN BASIC EQUIPMENT(EK4) IDENTIFICATION LABEL FOR KD<6UT> 10 PER 1 SHEET 		8-97116-760-0 01 1 9410-9504 ● ●
59 08.808 PLATE; CAUTION,BATTERY
EUROPEAN BASIC EQUIPMENT(EK4) 10 PER 1 SHEET 		8-97116-760-0 01 1 9505-9506 ● ●
59 08.808 PLATE; CAUTION,BATTERY
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) 10 PER 1 SHEET 		8-97116-760-0 02 1 9507-9608 ● ● ●
59 08.808 PLATE; CAUTION,BATTERY
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EXC. LEYLAND EQUIPMENT<S9Z> 10 PER 1 SHEET 		8-97116-760-0 02 1 9609-9711 ● ● ●
59 08.808 PLATE; CAUTION,BATTERY
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EXC. LEYLAND EQUIPMENT<S9Z> 10 PER 1 SHEET 		8-97116-760-0 02 1 9712- ● ● ● ● ●
84 08.808 PLATE; CAUTION,BRAKE FLUID
EUROPEAN BASIC EQUIPMENT(EK4) 		8-97062-755-2 01 1 9401-9504 ● ●
84 08.808 PLATE; CAUTION,BRAKE FLUID
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) 		8-97062-755-2 01 1 9505-9506 ● ●
84 08.808 PLATE; CAUTION,BRAKE FLUID
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) 		8-97062-755-2 01 1 9507-9704 ● ● ●
84 08.808 PLATE; CAUTION,BRAKE FLUID
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) 		8-97062-755-2 01 1 9705-9711 ● ● ● ●
84 08.808 PLATE; CAUTION,BRAKE FLUID
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) 		8-97062-755-2 01 1 9712- ● ● ● ● ●
106 08.808 PLATE; CAUTION,ROOF VENT
ROOF VENTILATOR<C55> CAUTION SPANISH<YN1> 		8-97856-820-0 01 1 9312-9611 ● ● ● ●
106 08.808 PLATE; CAUTION,ROOF VENT
ROOF VENTILATOR<C55> CAUTION SPANISH<YN1> 		8-97856-820-0 01 1 9612-9711 ● ● ● ● ●
106 08.808 PLATE; CAUTION,ROOF VENT
ROOF VENTILATOR<C55> CAUTION SPANISH<YN1> 		8-97856-820-0 01 1 9712- ● ● ● ● ● ●
106 08.808 PLATE; CAUTION,ROOF VENT
ROOF VENTILATOR<C55> EXC. CAUTION SPANISH<YN1> 		8-94273-602-0 01 1 9312-9611 ● ● ● ●
106 08.808 PLATE; CAUTION,ROOF VENT
ROOF VENTILATOR<C55> EXC. CAUTION SPANISH<YN1> 		8-94273-602-0 01 1 9612-9711 ● ● ● ● ●
106 08.808 PLATE; CAUTION,ROOF VENT
ROOF VENTILATOR<C55> EXC. CAUTION SPANISH<YN1> 		8-94273-602-0 01 1 9712- ● ● ● ● ● ●
135 08.808 PLATE; CAUTION,ENGINE
4HF1 ENG(RLS) (A) 		8-97109-187-0 01 1 9312-9510 ● ● ●
135 08.808 PLATE; CAUTION,ENGINE
4HF1 ENG(RLS) (A) 		8-97109-187-0 01 1 9604- ● ● ●
135 08.808 PLATE; CAUTION,ENGINE
4JG2 ENG(RJC) (B) 		8-97109-154-0 01 1 9312-9506 ●
135 08.808 PLATE; CAUTION,ENGINE
4JG2 ENG(RJC) (B) 		8-97109-154-0 01 1 9507-9711 ● ●
çizim 66990
130 201 7 7 135 7
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
7 03.680 LABEL; EMISSION
4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> (B) 		8-97170-219-0 01 1 9610- ● ●
7 03.680 LABEL; EMISSION
4BD1 ENG(LJ6) TAIWAN EQUIPMENT(RWV) (A) 		8-97100-864-1 01 1 9312-9510 ● ● ●
7 03.680 LABEL; EMISSION
4BD2 ENG(RLW) EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) (A) 135X70 		8-97081-082-0 01 1 9312-9312 ● ●
7 03.680 LABEL; EMISSION
4BD2 ENG(RLW) EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) (C) 		8-97110-094-0 01 1 9401-9704 ● ●
7 03.680 LABEL; EMISSION
4BD2 ENG(RLW) EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) (C) 		8-97110-094-0 01 1 9705- ● ● ●
7 03.680 LABEL; EMISSION
4BD2 ENG(RLW) TAIWAN EQUIPMENT(RWV) (A) 		8-97108-784-0 01 1 9312- ● ●
7 03.680 LABEL; EMISSION
4HE1 ENG(RLY) EUROPEAN BASIC EQUIPMENT(EK4) CHARGE AIR COOLER<6PL> (D) 		8-97203-477-0 01 1 9801-9801 ● ● ●
7 03.680 LABEL; EMISSION
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. TAIWAN EQUIPMENT(RWV),VENEZUELA EQUIPMENT(S2L),CHILE EQUIPMENT(6KB) (D) 		8-97203-477-2 01 1 9802- ● ● ● ●
7 03.680 LABEL; EMISSION
4HE1 ENG(RLY) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> (A) 		8-97201-735-0 01 1 9801-9801 ● ● ●
7 03.680 LABEL; EMISSION
4HE1 ENG(RLY) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> (A) 		8-97201-735-0 01 1 9802- ● ● ●
130 08.808 PLATE; CAUTION,GUARD FRAME
BODY COLOR ARC WHITE(729),BODY COLOR ADRIATIC BLUE(730),BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94192-480-0 02 1 9712- ● ●
135 08.808 PLATE; CAUTION,ENGINE
4HF1 ENG(RLS) (A) 		8-97109-187-0 01 1 9312-9510 ● ● ●
135 08.808 PLATE; CAUTION,ENGINE
4HF1 ENG(RLS) (A) 		8-97109-187-0 01 1 9604- ● ● ●
135 08.808 PLATE; CAUTION,ENGINE
4JG2 ENG(RJC) (B) 		8-97109-154-0 01 1 9312-9506 ●
135 08.808 PLATE; CAUTION,ENGINE
4JG2 ENG(RJC) (B) 		8-97109-154-0 01 1 9507-9711 ● ●
201 08.808 PLATE; CAUTION,BLEED BOLT
4HE1 ENG(RLY) 		8-97192-288-0 01 1 9801-9801 ● ● ●
201 08.808 PLATE; CAUTION,BLEED BOLT
4HE1 ENG(RLY) 		8-97192-288-0 01 1 9802- ● ● ● ●

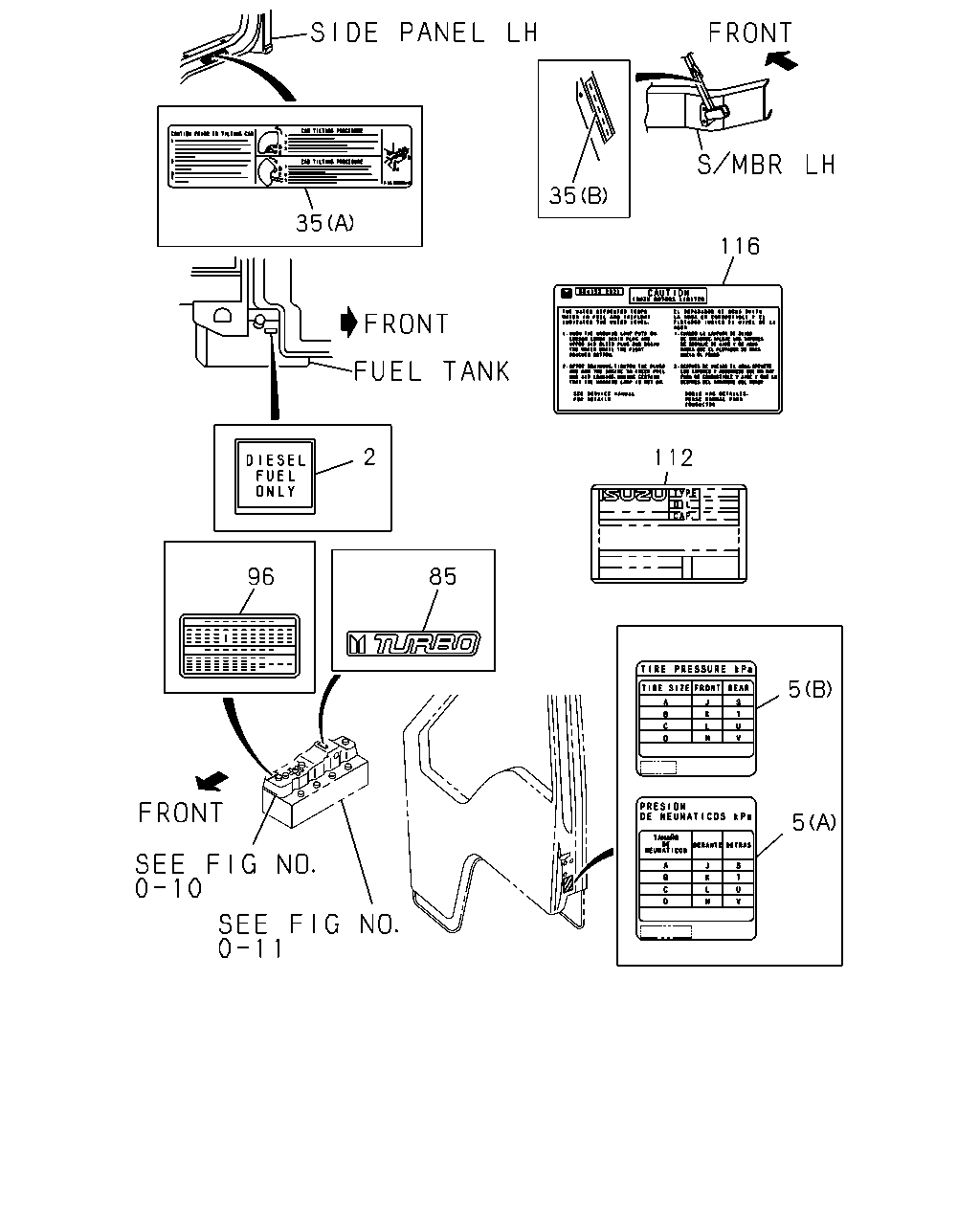

çizim 66991
35 35 116 2 112 85 96 5 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 03.680 LABEL; FUEL CAUTION
4JG2 ENG(RJC) 		8-94246-254-0 01 1 9312-9410 ●
5 05.880 LABEL; TIRE AIR PRESSURE
(AUH),(AUJ),(AUS),(AVK) CAUTION SPANISH<YN1> (A) 		8-97188-835-0 01 1 9712- ● ● ●
5 05.880 LABEL; TIRE AIR PRESSURE
(AUH),(AUJ),(AUS),(AVK) EXC. CAUTION SPANISH<YN1> (B) 		8-97188-834-0 01 1 9712- ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1> (B) 		5-85881-331-1 01 1 9312-9711 ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1> (B) 		5-85881-331-1 01 1 9712-9801 ● ● ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1> (A) 		8-97857-419-0 01 1 9312-9611 ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1> (A) 		8-97857-419-0 01 1 9612-9711 ● ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1> (A) 		8-97857-419-0 01 1 9712- ● ● ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> (B) 		5-85881-328-1 01 1 9312-9611 ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> (B) 		5-85881-328-1 01 1 9612-9711 ● ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> (B) 		5-85881-328-1 01 1 9712- ● ● ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> (A) 		8-97856-228-0 01 1 9312-9611 ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> (A) 		8-97856-228-0 01 1 9612-9711 ● ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> (A) 		8-97856-228-0 01 1 9712- ● ● ● ● ●
85 08.808 PLATE; NAME,HEAD COVER
4BD1 ENG(LJ6) 		8-94365-034-0 01 1 9312-9510 ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JG2 ENG(RJC) 		8-97092-930-0 01 1 9312-9506 ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JG2 ENG(RJC) 		8-97092-930-0 01 1 9507-9711 ● ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> 		8-97092-930-0 01 1 9712- ● ●
112 08.808 PLATE; CAUTION,T/M
4HF1 ENG(RLS) M/T MXA5R(RMT) 		8-97037-377-0 01 1 9312-9406 ● ● ●
112 08.808 PLATE; CAUTION,T/M
4BD2 ENG(RLW) M/T MXA5D(RMF) TURBOCHARGER(K51) 		8-97117-724-0 01 1 9511-9704 ● ●
112 08.808 PLATE; CAUTION,T/M
4BD2 ENG(RLW) M/T MXA5D(RMF) TURBOCHARGER(K51) 		8-97117-724-0 01 1 9705-9711 ● ● ●
116 08.808 LABEL; CAUTION,SEDIMENTER
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-94153-282-1 01 1 9312-9510 ● ● ● ●
116 08.808 LABEL; CAUTION,SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-94153-282-1 01 1 9511-9603 ● ● ● ●
116 08.808 LABEL; CAUTION,SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-94153-282-1 01 1 9604-9711 ● ● ● ● ●

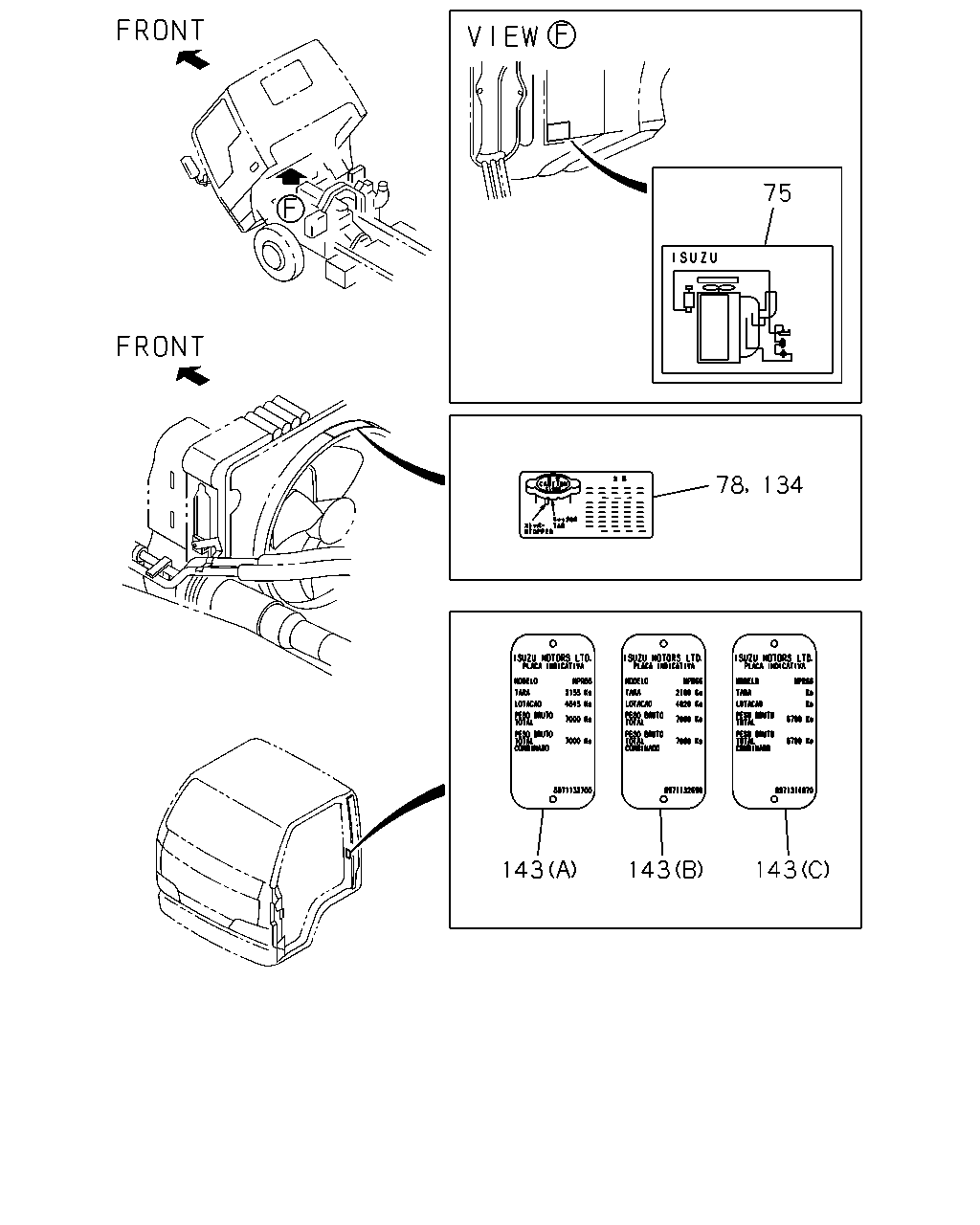

çizim 67422
75 78 134 143 143 143
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
75 03.680 PLATE; CAUTION,HOSE ROUTING
4BD2 ENG(RLW) 		8-97110-725-0 01 1 9401-9704 ● ●
75 03.680 PLATE; CAUTION,HOSE ROUTING
4BD2 ENG(RLW) 		8-97110-725-0 01 1 9705- ● ● ●
75 03.680 PLATE; CAUTION,HOSE ROUTING
4HE1 ENG(RLY) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> 		8-97183-915-1 01 1 9801-9801 ● ● ●
75 03.680 PLATE; CAUTION,HOSE ROUTING
4HE1 ENG(RLY) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> 		8-97183-915-1 01 1 9802- ● ● ●
78 08.808 PLATE; CAUTION,ENG COOLAN
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97109-623-0 01 1 9401-9406 ● ● ● ●
78 08.808 PLATE; CAUTION,ENG COOLAN
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) 		8-97109-623-0 01 1 9407-9502 ● ● ● ●
78 08.808 PLATE; CAUTION,ENG COOLAN
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97109-623-0 01 1 9503-9510 ● ● ● ●
78 08.808 PLATE; CAUTION,ENG COOLAN
4BE1 ENG(RLH),4HF1 ENG(RLS) 		8-97109-623-0 01 1 9511-9604 ● ● ● ●
78 08.808 PLATE; CAUTION,ENG COOLAN
4HF1 ENG(RLS) 		8-97109-623-0 01 1 9407-9502 ● ● ● ●
134 08.808 PLATE; CAUTION,ENGINE O/FILTER
4JG2 ENG(RJC) 		8-97109-623-0 01 1 9402-9506 ●
134 08.808 PLATE; CAUTION,ENGINE O/FILTER
4JG2 ENG(RJC) 		8-97109-623-0 01 1 9507-9602 ● ●
134 08.808 PLATE; CAUTION,ENGINE O/FILTER
4JG2 ENG(RJC) EXC. EURO2 SPECIFICATION<7AF> 		8-97109-623-0 01 1 9603-9604 ● ●
134 08.808 PLATE; CAUTION,ENGINE O/FILTER
4JG2 ENG(RJC) EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EXC. EURO2 SPECIFICATION<7AF> 		8-97109-623-0 01 1 9604-9607 ● ●
143 08.808 PLATE; WEIGHT
BRAZIL EQUIPMENT(RWF) (A) 		8-97113-270-0 01 1 9407-9504 ●
143 08.808 PLATE; WEIGHT
BRAZIL EQUIPMENT(RWF) (C) 		8-97131-497-0 01 1 9505-9702 ● ●
143 08.808 PLATE; WEIGHT
BRAZIL EQUIPMENT(RWF) (B) 		8-97113-269-0 01 1 9407-9504 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
