◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50697 - NPR/NQR-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-01 - EMBLEM AND NAME PLATE ▶
7-01 — EMBLEM AND NAME PLATE (#48125) — 75 parça

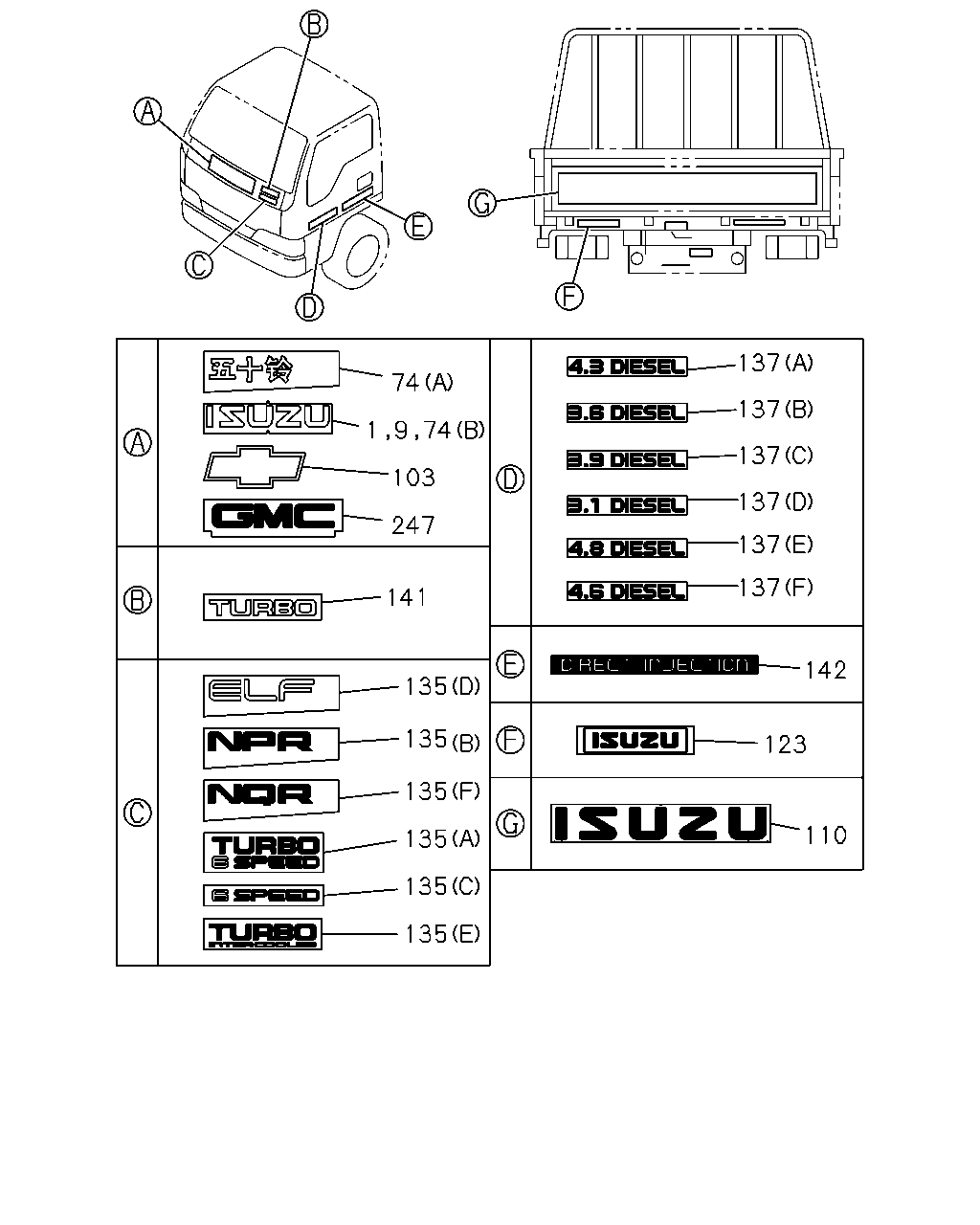

çizim 67869
137 74 137 9 74 1 137 103 137 247 137 137 141 142 135 135 123 135 110 135 135 135
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.303 MARK; ISUZU
EMBLEM ISUZU<YP4> 		8-97859-556-0 01 1 9712- ● ● ● ● ● ●
9 08.808 DECAL
EXC. MARK VEHICLE NAME<EK7>,EMBLEM ISUZU<YP4> 		8-97868-200-1 01 1 9712- ● ● ● ● ● ●
74 01.303 DECAL; "ISUZU"
(B) 		8-97853-427-1 01 1 9312-9312 ● ● ● ●
74 01.303 DECAL; "ISUZU"
EXC. MARK VEHICLE NAME<EK7> (B) 		8-97853-427-1 01 1 9401-9401 ● ● ● ●
74 01.303 DECAL; "ISUZU"
EXC. MARK VEHICLE NAME<EK7> (B) 		8-97853-283-1 01 1 9402-9611 ● ● ● ●
74 01.303 DECAL; "ISUZU"
EXC. MARK VEHICLE NAME<EK7> (B) 		8-97853-283-1 01 1 9612-9711 ● ● ● ● ●
74 01.303 DECAL; "ISUZU"
CHINA EQUIPMENT(YT2) (A) 		8-97857-852-0 01 1 9312-9704 ● ● ●
74 01.303 DECAL; "ISUZU"
CHINA EQUIPMENT(YT2) (A) 		8-97857-852-0 01 1 9705-9711 ● ● ●
74 01.303 DECAL; "ISUZU"
CHINA EQUIPMENT(YT2) (A) 		8-97869-094-1 01 1 9712- ● ●
103 01.303 EMBLEM; "CHEVROLET"
COLOMBIA EQUIPMENT(X74) 		8-97113-896-0 01 1 9408-9511 ●
103 01.303 EMBLEM; "CHEVROLET"
COLOMBIA EQUIPMENT(X74) 		8-97113-896-0 01 1 9511-9512 ● ●
103 01.303 EMBLEM; "CHEVROLET"
MARK VEHICLE NAME<EK7> EXC. BRAZIL EQUIPMENT(RWF) 		8-97113-896-0 01 1 9601-9606 ● ● ● ●
103 01.303 EMBLEM; "CHEVROLET"
MARK VEHICLE NAME<EK7> CHEVROLET MARK<YL6> 		8-97113-896-0 01 1 9607-9611 ● ● ● ●
103 01.303 EMBLEM; "CHEVROLET"
MARK VEHICLE NAME<EK7> CHEVROLET MARK<YL6> 		8-97113-896-0 01 1 9612-9711 ● ● ● ● ●
103 01.303 EMBLEM; "CHEVROLET"
MARK VEHICLE NAME<EK7> CHEVROLET MARK<YL6> 		8-97113-896-0 01 1 9712- ● ● ● ● ● ●
110 17.215 EMBLEM; "ISUZU",RR BODY
BODY COLOR CARDINAL RED(736) DECAL-ISUZU TAIL GATE<EX9> 01.303 WHITE 		8-94350-623-1 01 1 9312-9611 ● ● ● ●
110 17.215 EMBLEM; "ISUZU",RR BODY
BODY COLOR CARDINAL RED(736) DECAL-ISUZU TAIL GATE<EX9> 01.303 WHITE 		8-94350-623-1 01 1 9612-9711 ● ● ● ● ●
110 17.215 EMBLEM; "ISUZU",RR BODY
BODY COLOR CARDINAL RED(736) DECAL-ISUZU TAIL GATE<EX9> 01.303 WHITE 		8-94350-623-1 01 1 9712- ● ● ● ● ● ●
110 17.215 EMBLEM; "ISUZU",RR BODY
BODY COLOR ARC WHITE(729),BODY COLOR ADRIATIC BLUE(730),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY YELLOW(916) DECAL-ISUZU TAIL GATE<EX9> 01.303 BLACK 		8-94350-624-1 01 1 9312-9711 ● ● ● ● ●
110 17.215 EMBLEM; "ISUZU",RR BODY
BODY COLOR ARC WHITE(729),BODY COLOR ADRIATIC BLUE(730),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY YELLOW(916) DECAL-ISUZU TAIL GATE<EX9> 01.303 BLACK 		8-94350-624-1 01 1 9712- ● ● ● ● ● ●
123 17.215 PLATE; NAME,ISUZU
DUMP CHASSIS(V4D) 		8-97089-829-0 01 1 9312- ●
123 17.215 PLATE; NAME,ISUZU
RR BODY FLAT BED<RS6> 		8-97089-829-0 01 1 9312- ● ●
135 01.303 DECAL; CAB FRT
TAIWAN EQUIPMENT(RWV) (D) 		8-97856-321-0 01 1 9312-9312 ● ● ●
135 01.303 DECAL; CAB FRT
TAIWAN EQUIPMENT(RWV) (D) 		8-97856-321-0 01 1 9501-9711 ● ● ●
135 01.303 DECAL; CAB FRT
TAIWAN EQUIPMENT(RWV) (D) 		8-97868-668-0 01 1 9712-9801 ● ● ● ●
135 01.303 DECAL; CAB FRT
TAIWAN EQUIPMENT(RWV) (D) 		8-97868-668-0 01 1 9802- ● ● ● ●
135 01.303 DECAL; CAB FRT
EXC. MANUAL TILT CAB<RWZ> (B) 		8-97857-426-0 01 1 9312-9312 ● ● ● ●
135 01.303 DECAL; CAB FRT
(B) 		8-97857-426-0 01 1 9401-9412 ● ● ● ●
135 01.303 DECAL; CAB FRT
EXC. TAIWAN EQUIPMENT(RWV) (B) 		8-97857-426-0 01 1 9501-9504 ● ● ● ●
135 01.303 DECAL; CAB FRT
EXC. BRAZIL EQUIPMENT(RWF),TAIWAN EQUIPMENT(RWV) (B) 		8-97857-426-0 01 1 9505-9510 ● ● ● ●
135 01.303 DECAL; CAB FRT
EXC. BRAZIL EQUIPMENT(RWF),TAIWAN EQUIPMENT(RWV),VEHICLE CATEGORY NQR<7NQ> (B) 		8-97857-426-0 01 1 9511-9711 ● ● ● ●
135 01.303 DECAL; CAB FRT
EXC. BRAZIL EQUIPMENT(RWF),TAIWAN EQUIPMENT(RWV),VEHICLE CATEGORY NQR<7NQ> (B) 		8-97868-261-0 01 1 9712-9801 ● ● ● ●
135 01.303 DECAL; CAB FRT
EXC. BRAZIL EQUIPMENT(RWF),TAIWAN EQUIPMENT(RWV),VEHICLE CATEGORY NQR<7NQ> (B) 		8-97868-261-0 01 1 9802- ● ● ● ● ●
135 01.303 DECAL; CAB FRT
M/T MXA6S(RNB) TURBOCHARGER(K51) (A) 		8-97857-434-0 01 1 9312-9611 ●
135 01.303 DECAL; CAB FRT
M/T MXA6S(RNB) EXC. TURBOCHARGER(K51) (C) 		8-97857-433-0 01 1 9312-9611 ●
135 01.303 DECAL; CAB FRT
M/T MXA6S(RNB) EXC. TURBOCHARGER(K51) (C) 		8-97857-433-1 01 1 9612- ● ●
135 01.303 DECAL; CAB FRT
VEHICLE CATEGORY NQR<7NQ> (F) 		8-97863-844-0 01 1 9511-9611 ● ●
135 01.303 DECAL; CAB FRT
VEHICLE CATEGORY NQR<7NQ> (F) 		8-97863-844-0 01 1 9612-9711 ● ● ●
135 01.303 DECAL; CAB FRT
VEHICLE CATEGORY NQR<7NQ> EXC. BRAZIL EQUIPMENT(RWF),TAIWAN EQUIPMENT(RWV) (F) 		8-97868-263-0 01 1 9712- ● ● ● ●
135 01.303 DECAL; CAB FRT
4BD2 ENG(RLW) (E) 		8-97857-435-1 01 1 9312-9704 ● ●
135 01.303 DECAL; CAB FRT
4BD2 ENG(RLW) TURBOCHARGER(K51) (E) 		8-97857-435-1 01 1 9705-9711 ● ● ●
135 01.303 DECAL; CAB FRT
4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (E) 		8-97857-435-1 01 1 9712-9801 ● ● ●
135 01.303 DECAL; CAB FRT
4BD2 ENG(RLW) TURBOCHARGER(K51) (E) 		8-97857-435-1 01 1 9712-9801 ● ●
135 01.303 DECAL; CAB FRT
(E) 		8-97857-435-1 01 1 9712-9801 ●
135 01.303 DECAL; CAB FRT
4BD2 ENG(RLW) TURBOCHARGER(K51) (E) 		8-97857-435-1 01 1 9802- ● ● ●
135 01.303 DECAL; CAB FRT
4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (E) 		8-97857-435-1 01 1 9802- ● ● ● ●
135 01.303 DECAL; CAB FRT
4HE1 ENG(RLY) M/T MBP6P(RNC),M/T MBP6Q(RNM) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (A) 		8-97857-434-1 01 1 9712-9801 ● ● ●
135 01.303 DECAL; CAB FRT
4HE1 ENG(RLY) M/T MBP6P(RNC),M/T MBP6Q(RNM) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (A) 		8-97857-434-1 01 1 9802- ● ● ● ●
137 08.147 DECAL; DOOR
4HF1 ENG(RLS) (A) 		8-94262-884-1 02 1 9312-9611 ● ● ●
137 08.147 DECAL; DOOR
4HF1 ENG(RLS) (A) 		8-94262-884-1 02 1 9612-9711 ● ● ● ●
137 08.147 DECAL; DOOR
4HF1 ENG(RLS) (A) 		8-94262-884-1 02 1 9712- ● ● ●
137 08.147 DECAL; DOOR
4BE1 ENG(RLH) 01.303 (B) 		8-94272-726-0 02 1 9312-9406 ● ● ● ● ● ●
137 08.147 DECAL; DOOR
4BE1 ENG(RLH) 01.303 (B) 		8-94272-726-1 02 1 9407-9711 ● ● ● ●
137 08.147 DECAL; DOOR
4BE1 ENG(RLH) 01.303 (B) 		8-94272-726-1 02 1 9712- ● ● ●
137 08.147 DECAL; DOOR
4BD1 ENG(LJ6),4BD2 ENG(RLW) 17.507 (C) 		8-94272-301-0 02 1 9312-9406 ● ● ● ● ●
137 08.147 DECAL; DOOR
4BD1 ENG(LJ6),4BD2 ENG(RLW) 17.507 (C) 		8-94272-301-0 02 1 9407-9510 ● ● ●
137 08.147 DECAL; DOOR
4BD2 ENG(RLW) 17.507 (C) 		8-94272-301-0 02 1 9511-9704 ● ●
137 08.147 DECAL; DOOR
4BD2 ENG(RLW) 17.507 (C) 		8-94272-301-1 02 1 9705- ● ● ●
137 08.147 DECAL; DOOR
4JG2 ENG(RJC) (D) 		8-97857-430-0 02 1 9312-9506 ●
137 08.147 DECAL; DOOR
4JG2 ENG(RJC) (D) 		8-97857-430-0 02 1 9507- ● ●
137 08.147 DECAL; DOOR
4HG1 ENG(RJH) (F) 		8-97868-199-0 02 1 9712- ● ● ●
137 08.147 DECAL; DOOR
4HE1 ENG(RLY) (E) 		8-97890-841-0 02 1 9712-9801 ● ● ●
137 08.147 DECAL; DOOR
4HE1 ENG(RLY) (E) 		8-97890-841-0 02 1 9802- ● ● ● ●
141 01.303 EMBLEM; "TURBO"
4BD1 ENG(LJ6) 		8-97856-319-2 01 1 9312-9510 ● ● ●
142 01.303 DECAL; "DIRECT INJECTION"
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS) 17.507 		8-94272-302-0 02 1 9312-9510 ● ● ● ●
142 01.303 DECAL; "DIRECT INJECTION"
4BE1 ENG(RLH),4HF1 ENG(RLS) 17.507 		8-94272-302-1 02 1 9511-9704 ● ● ● ●
142 01.303 DECAL; "DIRECT INJECTION"
4BE1 ENG(RLH),4HF1 ENG(RLS) 17.507 		8-94272-302-1 02 1 9705-9711 ● ● ● ● ●
142 01.303 DECAL; "DIRECT INJECTION"
4BE1 ENG(RLH),4HF1 ENG(RLS),4HE1 ENG(RLY) 17.507 		8-94272-302-1 02 1 9712-9801 ● ● ● ●
142 01.303 DECAL; "DIRECT INJECTION"
4BE1 ENG(RLH),4HF1 ENG(RLS),4HE1 ENG(RLY) 17.507 		8-94272-302-1 02 1 9802- ● ● ● ● ●
247 02.559 DECAL; GMC
BRAZIL EQUIPMENT(RWF) 		8-97863-719-0 01 1 9505-9512 ● ●
247 02.559 DECAL; GMC
MARK VEHICLE NAME<EK7> BRAZIL EQUIPMENT(RWF) 		8-97863-719-0 01 1 9601-9606 ● ●
247 02.559 DECAL; GMC
MARK VEHICLE NAME<EK7> BRAZIL EQUIPMENT(RWF) EXC. CHEVROLET MARK<YL6> 		8-97863-719-0 01 1 9607-9701 ● ●
247 02.559 DECAL; GMC 8-97863-719-0 01 1 9702-9711 ● ● ● ● ●
247 02.559 DECAL; GMC
MARK VEHICLE NAME<EK7> BRAZIL EQUIPMENT(RWF) EXC. CHEVROLET MARK<YL6>, IDENTIFICATION LABEL FOR KD<6UT> 		8-97863-719-0 01 1 9702-9711 ● ●
247 02.559 DECAL; GMC 8-97863-719-0 01 1 9712- ● ● ● ● ● ●
