Sayfa 6-90 - Isuzu EPC

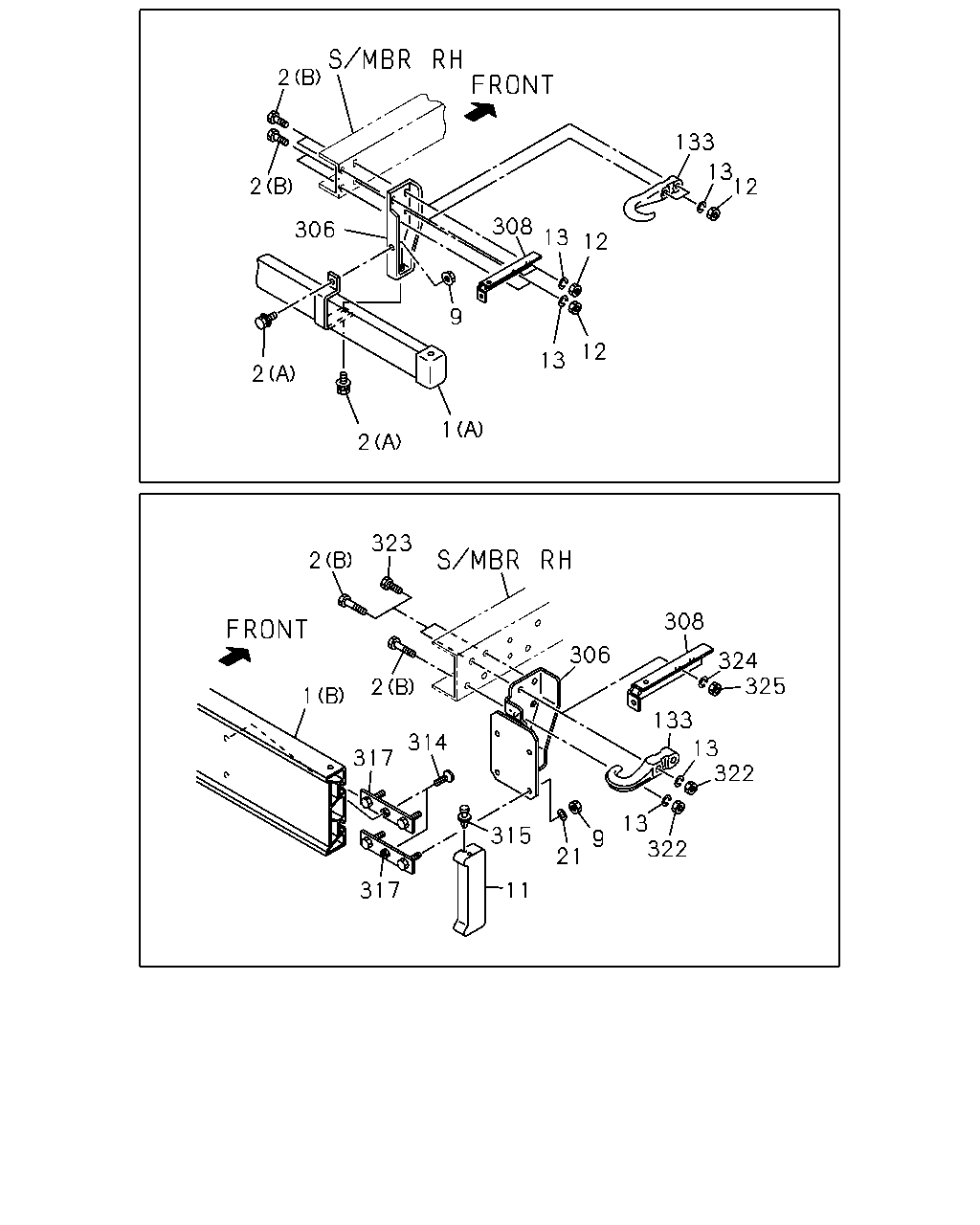

6-90 — REAR BUMPER (#48124) — 181 parça

2 133 13 12 2 308 306 13 12 9 12 13 2 1 2 323 2 308 306 324 325 2 1 133 314 13 322 317 13 322 315 9 21 317 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	07.070 BUMPER; RR BRAZIL EQUIPMENT(RWF) BUMPER REAR<7HZ> (A)	8-94101-094-1	01	1	9505-9510	●	●
1	07.070 BUMPER; RR BRAZIL EQUIPMENT(RWF) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> (A)	8-94101-094-1	01	1	9511-9711	●	●
1	07.070 BUMPER; RR BRAZIL EQUIPMENT(RWF) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> (A)	8-94101-094-1	01	1	9712-	●	●	●
1	07.070 BUMPER; RR EUROPEAN BASIC EQUIPMENT(EK4) (A)	8-97092-493-0	01	1	9312-9405	●	●
1	07.070 BUMPER; RR BUMPER REAR<7HZ> (A)	8-97092-493-0	01	1	9406-9504	●	●
1	07.070 BUMPER; RR BUMPER REAR<7HZ> EXC. BRAZIL EQUIPMENT(RWF) (A)	8-97092-493-1	01	1	9505-9506	●	●
1	07.070 BUMPER; RR BUMPER REAR<7HZ> EXC. BRAZIL EQUIPMENT(RWF) (A)	8-97092-493-1	01	1	9507-9510	●	●		●
1	07.070 BUMPER; RR BUMPER REAR<7HZ> EXC. BRAZIL EQUIPMENT(RWF),FRAME STRAIGHT TYPE<7KJ> (A)	8-97092-493-1	01	1	9511-9702	●	●		●
1	07.070 BUMPER; RR BUMPER REAR<7HZ> EXC. BRAZIL EQUIPMENT(RWF),FRAME STRAIGHT TYPE<7KJ> (A)	8-97174-006-0	01	1	9703-9711	●	●		●
1	07.070 BUMPER; RR G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) BUMPER REAR<7HZ> EXC. BRAZIL EQUIPMENT(RWF),FRAME STRAIGHT TYPE<7KJ> (A)	8-97174-006-1	01	1	9712-	●	●	●	●	●
1	07.070 BUMPER; RR FRAME STRAIGHT TYPE<7KJ> (A)	8-97174-006-1	01	1	9712-	●	●	●			●
1	07.070 BUMPER; RR G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> EXC. BRAZIL EQUIPMENT(RWF) (B)	8-97170-777-0	01	1	9712-	●	●	●
2	07.874 BOLT; BACK BAR BRAZIL EQUIPMENT(RWF) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> (A) M14X30 FLANGE	0-28681-430-0	02	1	9511-9711	●	●
2	07.874 BOLT; BACK BAR BRAZIL EQUIPMENT(RWF) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> (A) M14X30 FLANGE	0-28681-430-0	02	1	9712-	●	●	●
2	07.874 BOLT; BACK BAR BUMPER REAR<7HZ> EXC. BRAZIL EQUIPMENT(RWF) 07.347 (B) M14X30	0-20801-430-0	08	1	9505-9506	●	●
2	07.874 BOLT; BACK BAR BUMPER REAR<7HZ> EXC. BRAZIL EQUIPMENT(RWF) 07.347 (B) M14X30	0-20801-430-0	08	1	9507-9510	●	●		●
2	07.874 BOLT; BACK BAR BUMPER REAR<7HZ> EXC. BRAZIL EQUIPMENT(RWF),FRAME STRAIGHT TYPE<7KJ> 07.347 (B) M14X30	0-20801-430-0	08	1	9511-9711	●	●		●
2	07.874 BOLT; BACK BAR EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) BUMPER REAR<7HZ> 07.347 (B) M14X30	0-20801-430-0	08	1	9712-	●	●	●	●
2	07.874 BOLT; BACK BAR 07.347 (B) M14X30	0-20801-430-0	08	1	9712-					●
2	07.874 BOLT; BACK BAR EUROPEAN BASIC EQUIPMENT(EK4) 07.347 (B) M14X30	0-20801-430-0	08	1	9312-9405	●	●
2	07.874 BOLT; BACK BAR BUMPER REAR<7HZ> 07.347 (B) M14X30	0-20801-430-0	08	1	9406-9504	●	●
2	07.874 BOLT; BACK BAR BRAZIL EQUIPMENT(RWF) BUMPER REAR<7HZ> 07.347 (A) M14X30	0-20801-430-0	06	1	9505-9510	●	●
2	07.874 BOLT; BACK BAR BRAZIL EQUIPMENT(RWF) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> 07.347 (B) M14X30	0-20801-430-0	04	1	9511-9711	●	●
2	07.874 BOLT; BACK BAR BUMPER REAR<7HZ> EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) 07.347 (B) M14X30	0-20801-430-0	06	1	9712-	●	●	●	●
2	07.874 BOLT; BACK BAR EUROPEAN BASIC EQUIPMENT(EK4) (A) M10X35 W/LK&PL WASHER	8-97101-865-0	04	1	9312-9405	●	●
2	07.874 BOLT; BACK BAR BUMPER REAR<7HZ> (A) M10X35 W/LK&PL WASHER	8-97101-865-0	04	1	9406-9504	●	●
2	07.874 BOLT; BACK BAR BUMPER REAR<7HZ> EXC. BRAZIL EQUIPMENT(RWF) (A) M10X35 W/LK&PL WASHER	8-97101-865-0	04	1	9505-9506	●	●
2	07.874 BOLT; BACK BAR BUMPER REAR<7HZ> EXC. BRAZIL EQUIPMENT(RWF) (A) M10X35 W/LK&PL WASHER	8-97101-865-0	04	1	9507-9510	●	●		●
2	07.874 BOLT; BACK BAR BUMPER REAR<7HZ> EXC. BRAZIL EQUIPMENT(RWF),FRAME STRAIGHT TYPE<7KJ> (A) M10X35 W/LK&PL WASHER	8-97101-865-0	04	1	9511-9711	●	●		●
2	07.874 BOLT; BACK BAR G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) BUMPER REAR<7HZ> EXC. BRAZIL EQUIPMENT(RWF),FRAME STRAIGHT TYPE<7KJ> (A) M10X35 W/LK&PL WASHER	8-97101-865-0	04	1	9712-9804	●	●	●	●	●
2	07.874 BOLT; BACK BAR FRAME STRAIGHT TYPE<7KJ> (A) M10X35 W/LK&PL WASHER	8-97101-865-0	04	1	9712-9804	●	●	●			●
2	07.874 BOLT; BACK BAR G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) BUMPER REAR<7HZ> EXC. BRAZIL EQUIPMENT(RWF),FRAME STRAIGHT TYPE<7KJ> 01.271 (A) M10X30	8-94324-205-0	04	1	9805-	●	●	●	●	●
2	07.874 BOLT; BACK BAR FRAME STRAIGHT TYPE<7KJ> 01.271 (A) M10X30	8-94324-205-0	04	1	9805-	●	●	●			●
2	07.874 BOLT; BACK BAR BRAZIL EQUIPMENT(RWF) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> 07.347 (B) M14X30	0-20801-430-0	04	1	9712-	●	●	●
9	07.070 NUT; BUMPER BUMPER REAR<7HZ> 08.917 M10 FLANGE	0-91150-210-0	02	1	9503-9504	●	●
9	07.070 NUT; BUMPER BUMPER REAR<7HZ> EXC. BRAZIL EQUIPMENT(RWF) 08.917 M10 FLANGE	0-91150-210-0	02	1	9505-9506	●	●
9	07.070 NUT; BUMPER BUMPER REAR<7HZ> EXC. BRAZIL EQUIPMENT(RWF) 08.917 M10 FLANGE	0-91150-210-0	02	1	9507-9510	●	●		●
9	07.070 NUT; BUMPER BUMPER REAR<7HZ> EXC. BRAZIL EQUIPMENT(RWF),FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	02	1	9511-9711	●	●		●
9	07.070 NUT; BUMPER G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) BUMPER REAR<7HZ> EXC. BRAZIL EQUIPMENT(RWF),FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	02	1	9712-	●	●	●	●	●
9	07.070 NUT; BUMPER FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	02	1	9712-	●	●	●			●
9	07.070 NUT; BUMPER G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> EXC. BRAZIL EQUIPMENT(RWF) 04.634 M12	9-99110-512-0	08	1	9712-	●	●	●
10	07.874 WASHER; PL,BRKT BRAZIL EQUIPMENT(RWF) BUMPER REAR<7HZ> 04.046 ID=15 OD=30	9-09160-614-0	02	1	9505-9510	●	●
11	07.829 CAP; RR BUMPER G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> EXC. BRAZIL EQUIPMENT(RWF)	1-71290-049-0	02	1	9712-	●	●	●
12	07.833 NUT; BRKT BUMPER REAR<7HZ> EXC. BRAZIL EQUIPMENT(RWF) 07.529 M14	9-99110-514-0	08	1	9505-9506	●	●
12	07.833 NUT; BRKT BUMPER REAR<7HZ> EXC. BRAZIL EQUIPMENT(RWF) 07.529 M14	9-99110-514-0	08	1	9507-9510	●	●		●
12	07.833 NUT; BRKT BUMPER REAR<7HZ> EXC. BRAZIL EQUIPMENT(RWF),FRAME STRAIGHT TYPE<7KJ> 07.529 M14	9-99110-514-0	08	1	9511-9711	●	●		●
12	07.833 NUT; BRKT EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) BUMPER REAR<7HZ> 07.529 M14	9-99110-514-0	08	1	9712-	●	●		●
12	07.833 NUT; BRKT 07.529 M14	9-99110-514-0	08	1	9712-					●
12	07.833 NUT; BRKT EUROPEAN BASIC EQUIPMENT(EK4) 07.529 M14	9-99110-514-0	08	1	9312-9405	●	●
12	07.833 NUT; BRKT BUMPER REAR<7HZ> 07.529 M14	9-99110-514-0	08	1	9406-9504	●	●
12	07.833 NUT; BRKT BRAZIL EQUIPMENT(RWF) BUMPER REAR<7HZ> 07.529 M14	9-99110-514-0	04	1	9505-9510	●	●
12	07.833 NUT; BRKT BRAZIL EQUIPMENT(RWF) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> 07.529 M14	9-99110-514-0	04	1	9511-9711	●	●
12	07.833 NUT; BRKT BUMPER REAR<7HZ> EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) 07.529 M14	9-99110-514-0	06	1	9712-	●	●		●
12	07.833 NUT; BRKT BRAZIL EQUIPMENT(RWF) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> 07.529 M14	9-99110-514-0	04	1	9712-	●	●	●
13	07.833 WASHER; LK,BACK BAR TO FRAME BUMPER REAR<7HZ> EXC. BRAZIL EQUIPMENT(RWF) 05.422 ID=14.2	9-09150-814-0	08	1	9505-9506	●	●
13	07.833 WASHER; LK,BACK BAR TO FRAME BUMPER REAR<7HZ> EXC. BRAZIL EQUIPMENT(RWF) 05.422 ID=14.2	9-09150-814-0	08	1	9507-9510	●	●		●
13	07.833 WASHER; LK,BACK BAR TO FRAME BUMPER REAR<7HZ> EXC. BRAZIL EQUIPMENT(RWF),FRAME STRAIGHT TYPE<7KJ> 05.422 ID=14.2	9-09150-814-0	08	1	9511-9711	●	●		●
13	07.833 WASHER; LK,BACK BAR TO FRAME EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) BUMPER REAR<7HZ> 05.422 ID=14.2	9-09150-814-0	08	1	9712-	●	●	●	●
13	07.833 WASHER; LK,BACK BAR TO FRAME 05.422 ID=14.2	9-09150-814-0	08	1	9712-					●
13	07.833 WASHER; LK,BACK BAR TO FRAME EUROPEAN BASIC EQUIPMENT(EK4) 05.422 ID=14.2	9-09150-814-0	08	1	9312-9405	●	●
13	07.833 WASHER; LK,BACK BAR TO FRAME BUMPER REAR<7HZ> 05.422 ID=14.2	9-09150-814-0	08	1	9406-9504	●	●
13	07.833 WASHER; LK,BACK BAR TO FRAME BRAZIL EQUIPMENT(RWF) BUMPER REAR<7HZ> 05.422 ID=14.2	9-09150-814-0	04	1	9505-9510	●	●
13	07.833 WASHER; LK,BACK BAR TO FRAME BRAZIL EQUIPMENT(RWF) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> 05.422 ID=14.2	9-09150-814-0	04	1	9511-9711	●	●
13	07.833 WASHER; LK,BACK BAR TO FRAME BUMPER REAR<7HZ> EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) 05.422 ID=14.2	9-09150-814-0	06	1	9712-	●	●	●	●
13	07.833 WASHER; LK,BACK BAR TO FRAME BRAZIL EQUIPMENT(RWF) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> 05.422 ID=14.2	9-09150-814-0	04	1	9712-	●	●	●
21	07.070 WASHER; LK,BUMPER G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> EXC. BRAZIL EQUIPMENT(RWF) 04.634 ID=12.2	9-09150-512-0	08	1	9712-	●	●	●
133	07.112 HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4) 07.068	8-94249-270-2	01	1	9312-9402	●	●		●	●
133	07.112 HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF) 07.068	8-94249-270-2	01	1	9403-9504	●	●		●	●
133	07.112 HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) 07.068	8-94249-270-2	01	1	9505-9510	●	●		●	●
133	07.112 HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF),FRAME STRAIGHT TYPE<7KJ>,ISRAEL EQUIPMENT(7LX) 07.068	8-94249-270-2	01	1	9511-9711	●	●		●	●
133	07.112 HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF),FRAME STRAIGHT TYPE<7KJ>,ISRAEL EQUIPMENT(7LX) 07.068	8-94249-270-2	01	1	9712-9801	●	●	●	●
133	07.112 HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF),FRAME STRAIGHT TYPE<7KJ>,ISRAEL EQUIPMENT(7LX) 07.068	8-94249-270-2	01	1	9802-	●	●	●	●		●
133	07.112 HOOK FRAME STRAIGHT TYPE<7KJ> EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX)	8-97122-535-0	01	1	9511-9611	●	●
133	07.112 HOOK FRAME STRAIGHT TYPE<7KJ> EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX)	8-97122-535-0	01	1	9612-9711	●	●				●
133	07.112 HOOK FRAME STRAIGHT TYPE<7KJ> EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX)	8-97122-535-0	01	1	9712-	●	●	●			●
306	07.836 BAR; BACK,RR BRAZIL EQUIPMENT(RWF) BUMPER REAR<7HZ> 07.829	5-71230-132-0	01	1	9505-9510	●	●
306	07.836 BAR; BACK,RR BRAZIL EQUIPMENT(RWF) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> 07.829	5-71230-132-0	01	1	9511-9711	●	●
306	07.836 BAR; BACK,RR BRAZIL EQUIPMENT(RWF) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> 07.829	5-71230-132-0	01	1	9712-	●	●	●
306	07.836 BAR; BACK,RR BRAZIL EQUIPMENT(RWF) BUMPER REAR<7HZ> 07.829	5-71230-131-0	01	1	9505-9510	●	●
306	07.836 BAR; BACK,RR BRAZIL EQUIPMENT(RWF) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> 07.829	5-71230-131-0	01	1	9511-9711	●	●
306	07.836 BAR; BACK,RR BRAZIL EQUIPMENT(RWF) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> 07.829	5-71230-131-0	01	1	9712-	●	●	●
306	07.836 BAR; BACK,RR EUROPEAN BASIC EQUIPMENT(EK4) STAMP BL	8-97040-308-2	01	1	9312-9405	●	●
306	07.836 BAR; BACK,RR BUMPER REAR<7HZ> STAMP BL	8-97040-308-2	01	1	9406-9502	●	●
306	07.836 BAR; BACK,RR BUMPER REAR<7HZ> STAMP BL	8-97128-333-0	01	1	9503-9504	●	●
306	07.836 BAR; BACK,RR BUMPER REAR<7HZ> EXC. BRAZIL EQUIPMENT(RWF) STAMP BL	8-97128-333-0	01	1	9505-9506	●	●
306	07.836 BAR; BACK,RR BUMPER REAR<7HZ> EXC. BRAZIL EQUIPMENT(RWF) STAMP BL	8-97128-333-0	01	1	9507-9510	●	●		●
306	07.836 BAR; BACK,RR BUMPER REAR<7HZ> EXC. BRAZIL EQUIPMENT(RWF),FRAME STRAIGHT TYPE<7KJ> STAMP BL	8-97128-333-0	01	1	9511-9711	●	●		●
306	07.836 BAR; BACK,RR G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) BUMPER REAR<7HZ> EXC. BRAZIL EQUIPMENT(RWF),FRAME STRAIGHT TYPE<7KJ> STAMP BL	8-97128-333-0	01	1	9712-	●	●	●	●	●
306	07.836 BAR; BACK,RR FRAME STRAIGHT TYPE<7KJ> STAMP BL	8-97128-333-0	01	1	9712-	●	●	●			●
306	07.836 BAR; BACK,RR EUROPEAN BASIC EQUIPMENT(EK4) STAMP BR	8-97040-306-2	01	1	9312-9405	●	●
306	07.836 BAR; BACK,RR BUMPER REAR<7HZ> STAMP BR	8-97040-306-2	01	1	9406-9502	●	●
306	07.836 BAR; BACK,RR BUMPER REAR<7HZ> STAMP BR	8-97128-334-0	01	1	9503-9504	●	●
306	07.836 BAR; BACK,RR BUMPER REAR<7HZ> EXC. BRAZIL EQUIPMENT(RWF) STAMP BR	8-97128-334-0	01	1	9505-9506	●	●
306	07.836 BAR; BACK,RR BUMPER REAR<7HZ> EXC. BRAZIL EQUIPMENT(RWF) STAMP BR	8-97128-334-0	01	1	9507-9510	●	●		●
306	07.836 BAR; BACK,RR BUMPER REAR<7HZ> EXC. BRAZIL EQUIPMENT(RWF),FRAME STRAIGHT TYPE<7KJ> STAMP BR	8-97128-334-0	01	1	9511-9711	●	●		●
306	07.836 BAR; BACK,RR G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) BUMPER REAR<7HZ> EXC. BRAZIL EQUIPMENT(RWF),FRAME STRAIGHT TYPE<7KJ> STAMP BR	8-97128-334-0	01	1	9712-	●	●	●	●	●
306	07.836 BAR; BACK,RR FRAME STRAIGHT TYPE<7KJ> STAMP BR	8-97128-334-0	01	1	9712-	●	●	●			●
306	07.836 BAR; BACK,RR G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> EXC. BRAZIL EQUIPMENT(RWF) STAMP IA	8-97138-361-1	01	1	9712-	●	●	●
306	07.836 BAR; BACK,RR G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> EXC. BRAZIL EQUIPMENT(RWF) STAMP IA	8-97138-362-1	01	1	9712-	●	●	●
308	07.068 BRACKET; RAIL EUROPEAN BASIC EQUIPMENT(EK4)	8-97094-278-1	01	1	9312-9504	●	●
308	07.068 BRACKET; RAIL EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX)	8-97094-278-1	01	1	9505-9506	●	●
308	07.068 BRACKET; RAIL EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX)	8-97094-278-1	01	1	9507-9704	●	●		●
308	07.068 BRACKET; RAIL EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX)	8-97094-278-1	01	1	9705-9711	●	●		●	●
308	07.068 BRACKET; RAIL EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX)	8-97094-278-1	01	1	9712-	●	●	●	●
308	07.068 BRACKET; RAIL	8-97094-278-1	01	1	9712-					●
308	07.068 BRACKET; RAIL EUROPEAN BASIC EQUIPMENT(EK4)	8-97094-277-1	01	1	9312-9504	●	●
308	07.068 BRACKET; RAIL EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX)	8-97094-277-1	01	1	9505-9506	●	●
308	07.068 BRACKET; RAIL EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX)	8-97094-277-1	01	1	9507-9704	●	●		●
308	07.068 BRACKET; RAIL EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX)	8-97094-277-1	01	1	9705-9711	●	●		●	●
308	07.068 BRACKET; RAIL EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX)	8-97094-277-1	01	1	9712-	●	●	●	●
308	07.068 BRACKET; RAIL	8-97094-277-1	01	1	9712-					●
314	07.831 SCREW; PLATE G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> EXC. BRAZIL EQUIPMENT(RWF) 07.832	9-03090-620-0	04	1	9712-	●	●	●
315	07.829 RIVET; CAP G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> EXC. BRAZIL EQUIPMENT(RWF) PUSH RIVET BLACK	1-71290-041-0	04	1	9712-	●	●	●
317	07.800 PLATE; BUMPER SIDE G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> EXC. BRAZIL EQUIPMENT(RWF)	1-71290-043-1	04	1	9712-	●	●	●
322	07.833 NUT; BACK BAR TO FRAME BUMPER REAR<7HZ> EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) 07.529 M14	9-99110-514-0	06	1	9712-			●
322	07.833 NUT; BACK BAR TO FRAME EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) BUMPER REAR<7HZ> 07.529 M14	9-99110-514-0	08	1	9712-			●
323	07.833 BOLT; RAIL TO FRAME EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> 07.347 M14X30	0-20801-430-0	04	1	9712-	●	●	●
324	07.833 WASHER; LK,RAIL TO FRAME EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> 05.422 ID=14.2	9-09150-814-0	04	1	9712-	●	●	●
325	07.833 NUT; RAIL TO FRAME EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> 07.529 M14	9-99110-514-0	04	1	9712-	●	●	●

113 127 127 129 129 128 128 114 113 133 134 135 136 158

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
10	07.874 WASHER; PL,BRKT BRAZIL EQUIPMENT(RWF) BUMPER REAR<7HZ> 04.046 ID=15 OD=30	9-09160-614-0	02	1	9505-9510	●	●
113	07.800 BRACKET; LICENSE PLATE EXC. EUROPEAN BASIC EQUIPMENT(EK4), RRBODY FLAT BED<RS6> 02.662 (A)	8-97096-644-0	01	1	9312-9401	●	●		●	●
113	07.800 BRACKET; LICENSE PLATE EXC. EUROPEAN BASIC EQUIPMENT(EK4), RRBODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 02.662 (A)	8-97096-644-0	01	1	9407-9502	●	●		●	●
113	07.800 BRACKET; LICENSE PLATE EXC. EUROPEAN BASIC EQUIPMENT(EK4), RRBODY FLAT BED<RS6> 02.662 (A)	8-97096-644-0	01	1	9503-9504	●	●		●	●
113	07.800 BRACKET; LICENSE PLATE EXC. EUROPEAN BASIC EQUIPMENT(EK4), RRBODY FLAT BED<RS6>,ISRAEL EQUIPMENT(7LX) 02.662 (A)	8-97096-644-0	01	1	9505-9510	●	●		●	●
113	07.800 BRACKET; LICENSE PLATE EXC. EUROPEAN BASIC EQUIPMENT(EK4), RRBODY FLAT BED<RS6>,FRAME STRAIGHT TY PE<7KJ>,ISRAEL EQUIPMENT(7LX) 02.662 (A)	8-97096-644-0	01	1	9511-9711	●	●		●	●
113	07.800 BRACKET; LICENSE PLATE EXC. EUROPEAN BASIC EQUIPMENT(EK4), RRBODY FLAT BED<RS6>,FRAME STRAIGHT TY PE<7KJ>,ISRAEL EQUIPMENT(7LX) 02.662 (A)	8-97096-644-0	01	1	9712-9801	●	●	●	●
113	07.800 BRACKET; LICENSE PLATE EXC. EUROPEAN BASIC EQUIPMENT(EK4), RRBODY FLAT BED<RS6>,FRAME STRAIGHT TY PE<7KJ>,ISRAEL EQUIPMENT(7LX) 02.662	8-97096-644-0	01	1	9802-	●	●	●	●		●
113	07.800 BRACKET; LICENSE PLATE FRAME STRAIGHT TYPE<7KJ> EXC. EUROPEAN BASIC EQUIPMENT(EK4), RRBODY FLAT BED<RS6>,ISRAEL EQUIPMENT(7LX) 02.662 (A)	8-97122-800-0	01	1	9511-9611	●	●
113	07.800 BRACKET; LICENSE PLATE FRAME STRAIGHT TYPE<7KJ> EXC. EUROPEAN BASIC EQUIPMENT(EK4), RRBODY FLAT BED<RS6>,ISRAEL EQUIPMENT(7LX) 02.662 (A)	8-97122-800-0	01	1	9612-9711	●	●
113	07.800 BRACKET; LICENSE PLATE 02.662 (A)	8-97122-800-0	01	1	9612-9711						●
113	07.800 BRACKET; LICENSE PLATE FRAME STRAIGHT TYPE<7KJ> EXC. EUROPEAN BASIC EQUIPMENT(EK4), RRBODY FLAT BED<RS6>,ISRAEL EQUIPMENT(7LX) 02.662 (A)	8-97122-800-0	01	1	9712-9801	●	●	●
113	07.800 BRACKET; LICENSE PLATE 02.662 (A)	8-97122-800-0	01	1	9712-9801						●
113	07.800 BRACKET; LICENSE PLATE FRAME STRAIGHT TYPE<7KJ> EXC. EUROPEAN BASIC EQUIPMENT(EK4), RRBODY FLAT BED<RS6>,ISRAEL EQUIPMENT(7LX) 02.662	8-97122-800-0	01	1	9802-	●	●	●			●
113	07.800 BRACKET; LICENSE PLATE RR BODY FLAT BED<RS6> (B)	8-97077-573-2	01	1	9312-	●	●
114	07.800 BOLT; BRKT,LICENSE PLATE RR BODY FLAT BED<RS6> 01.540 M6X25 W/LK&PL WASHER	0-50140-625-0	02	1	9312-	●	●
127	02.662 BOLT; CROSS PLATE EXC. EUROPEAN BASIC EQUIPMENT(EK4), RRBODY FLAT BED<RS6> 01.252 M8X35 W/LK&PL WASHER	0-50140-835-0	02	1	9312-9401	●	●		●	●
127	02.662 BOLT; CROSS PLATE EXC. EUROPEAN BASIC EQUIPMENT(EK4), RRBODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 01.252 M8X35 W/LK&PL WASHER	0-50140-835-0	02	1	9402-9502	●	●		●	●
127	02.662 BOLT; CROSS PLATE EXC. EUROPEAN BASIC EQUIPMENT(EK4), RRBODY FLAT BED<RS6> 01.252 M8X35 W/LK&PL WASHER	0-50140-835-0	02	1	9503-9504	●	●		●	●
127	02.662 BOLT; CROSS PLATE EXC. EUROPEAN BASIC EQUIPMENT(EK4), RRBODY FLAT BED<RS6>,ISRAEL EQUIPMENT(7LX) 01.252 M8X35 W/LK&PL WASHER	0-50140-835-0	02	1	9505-9611	●	●		●	●
127	02.662 BOLT; CROSS PLATE EXC. EUROPEAN BASIC EQUIPMENT(EK4), RRBODY FLAT BED<RS6>,ISRAEL EQUIPMENT(7LX) 01.252 M8X35 W/LK&PL WASHER	0-50140-835-0	02	1	9612-9711	●	●		●	●	●
127	02.662 BOLT; CROSS PLATE EXC. EUROPEAN BASIC EQUIPMENT(EK4), RRBODY FLAT BED<RS6>,ISRAEL EQUIPMENT(7LX) 01.252 M8X35 W/LK&PL WASHER	0-50140-835-0	02	1	9712-	●	●	●
127	02.662 BOLT; CROSS PLATE 01.252 M8X35 W/LK&PL WASHER	0-50140-835-0	02	1	9712-						●
128	02.662 NUT; CROSS PLATE EXC. EUROPEAN BASIC EQUIPMENT(EK4), RRBODY FLAT BED<RS6> 02.559 M8	9-09110-408-0	02	1	9312-9401	●	●		●	●
128	02.662 NUT; CROSS PLATE EXC. EUROPEAN BASIC EQUIPMENT(EK4), RRBODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 02.559 M8	9-09110-408-0	02	1	9402-9502	●	●		●	●
128	02.662 NUT; CROSS PLATE EXC. EUROPEAN BASIC EQUIPMENT(EK4), RRBODY FLAT BED<RS6> 02.559 M8	9-09110-408-0	02	1	9503-9504	●	●		●	●
128	02.662 NUT; CROSS PLATE EXC. EUROPEAN BASIC EQUIPMENT(EK4), RRBODY FLAT BED<RS6>,ISRAEL EQUIPMENT(7LX) 02.559 M8	9-09110-408-0	02	1	9505-9611	●	●		●	●
128	02.662 NUT; CROSS PLATE EXC. EUROPEAN BASIC EQUIPMENT(EK4), RRBODY FLAT BED<RS6>,ISRAEL EQUIPMENT(7LX) 02.559 M8	9-09110-408-0	02	1	9612-9711	●	●		●	●	●
128	02.662 NUT; CROSS PLATE EXC. EUROPEAN BASIC EQUIPMENT(EK4), RRBODY FLAT BED<RS6>,ISRAEL EQUIPMENT(7LX) 02.559 M8	9-09110-408-0	02	1	9712-	●	●	●
128	02.662 NUT; CROSS PLATE 02.559 M8	9-09110-408-0	02	1	9712-						●
129	03.162 WASHER; PL,CROSS PLATE EXC. EUROPEAN BASIC EQUIPMENT(EK4), RRBODY FLAT BED<RS6> 02.334 ID=8.4 OD=26	9-09164-808-0	02	1	9312-9504		●
129	03.162 WASHER; PL,CROSS PLATE EXC. EUROPEAN BASIC EQUIPMENT(EK4), RRBODY FLAT BED<RS6>,ISRAEL EQUIPMENT(7LX) 02.334 ID=8.4 OD=26	9-09164-808-0	02	1	9505-9611		●
129	03.162 WASHER; PL,CROSS PLATE EXC. EUROPEAN BASIC EQUIPMENT(EK4), RRBODY FLAT BED<RS6>,ISRAEL EQUIPMENT(7LX) 02.334 ID=8.4 OD=26	9-09164-808-0	02	1	9612-9711		●				●
129	03.162 WASHER; PL,CROSS PLATE EXC. EUROPEAN BASIC EQUIPMENT(EK4), RRBODY FLAT BED<RS6>,ISRAEL EQUIPMENT(7LX) 02.334 ID=8.4 OD=26	9-09164-808-0	02	1	9712-		●	●			●
133	07.112 HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4) 07.068	8-94249-270-2	01	1	9312-9402	●	●		●	●
133	07.112 HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF) 07.068	8-94249-270-2	01	1	9403-9504	●	●		●	●
133	07.112 HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) 07.068	8-94249-270-2	01	1	9505-9510	●	●		●	●
133	07.112 HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF),FRAME STRAIGHT TYPE<7KJ>,ISRAEL EQUIPMENT(7LX) 07.068	8-94249-270-2	01	1	9511-9711	●	●		●	●
133	07.112 HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF),FRAME STRAIGHT TYPE<7KJ>,ISRAEL EQUIPMENT(7LX) 07.068	8-94249-270-2	01	1	9712-9801	●	●	●	●
133	07.112 HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF),FRAME STRAIGHT TYPE<7KJ>,ISRAEL EQUIPMENT(7LX) 07.068	8-94249-270-2	01	1	9802-	●	●	●	●		●
133	07.112 HOOK FRAME STRAIGHT TYPE<7KJ> EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX)	8-97122-535-0	01	1	9511-9611	●	●
133	07.112 HOOK FRAME STRAIGHT TYPE<7KJ> EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX)	8-97122-535-0	01	1	9612-9711	●	●				●
133	07.112 HOOK FRAME STRAIGHT TYPE<7KJ> EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX)	8-97122-535-0	01	1	9712-	●	●	●			●
134	07.068 BOLT; HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4) 07.039 M14X50	0-10806-450-0	02	1	9312-9402	●	●		●	●
134	07.068 BOLT; HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF) 07.039 M14X50	0-10806-450-0	02	1	9403-9504	●	●		●	●
134	07.068 BOLT; HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) 07.039 M14X50	0-10806-450-0	02	1	9505-9611	●	●		●	●
134	07.068 BOLT; HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) 07.039 M14X50	0-10806-450-0	02	1	9612-9711	●	●		●	●	●
134	07.068 BOLT; HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) 07.039 M14X50	0-10806-450-0	02	1	9712-	●	●	●	●
134	07.068 BOLT; HOOK 07.039 M14X50	0-10806-450-0	02	1	9712-						●
135	07.068 WASHER; LK,HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4) 05.422 ID=14.2	9-09150-814-0	02	1	9312-9402	●	●		●	●
135	07.068 WASHER; LK,HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF) 05.422 ID=14.2	9-09150-814-0	02	1	9403-9504	●	●		●	●
135	07.068 WASHER; LK,HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) 05.422 ID=14.2	9-09150-814-0	02	1	9505-9611	●	●		●	●
135	07.068 WASHER; LK,HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) 05.422 ID=14.2	9-09150-814-0	02	1	9612-9711	●	●		●	●	●
135	07.068 WASHER; LK,HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) 05.422 ID=14.2	9-09150-814-0	02	1	9712-	●	●	●	●
135	07.068 WASHER; LK,HOOK 05.422 ID=14.2	9-09150-814-0	02	1	9712-						●
136	07.068 NUT; HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4) 07.529 M14	9-99110-514-0	02	1	9312-9402	●	●		●	●
136	07.068 NUT; HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF) 07.529 M14	9-99110-514-0	02	1	9403-9504	●	●		●	●
136	07.068 NUT; HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) 07.529 M14	9-99110-514-0	02	1	9505-9611	●	●		●	●
136	07.068 NUT; HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) 07.529 M14	9-99110-514-0	02	1	9612-9711	●	●		●	●	●
136	07.068 NUT; HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) 07.529 M14	9-99110-514-0	02	1	9712-	●	●	●	●
136	07.068 NUT; HOOK 07.529 M14	9-99110-514-0	02	1	9712-						●
158	07.629 WASHER; PL,HOOK SPACER DUMP CHASSIS(V4D) 06.164 ID=15 OD=30	9-09164-614-0	02	1	9312-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
