Sayfa 6-80 - Isuzu EPC

6-80 — BACK PANEL (#48121) — 167 parça

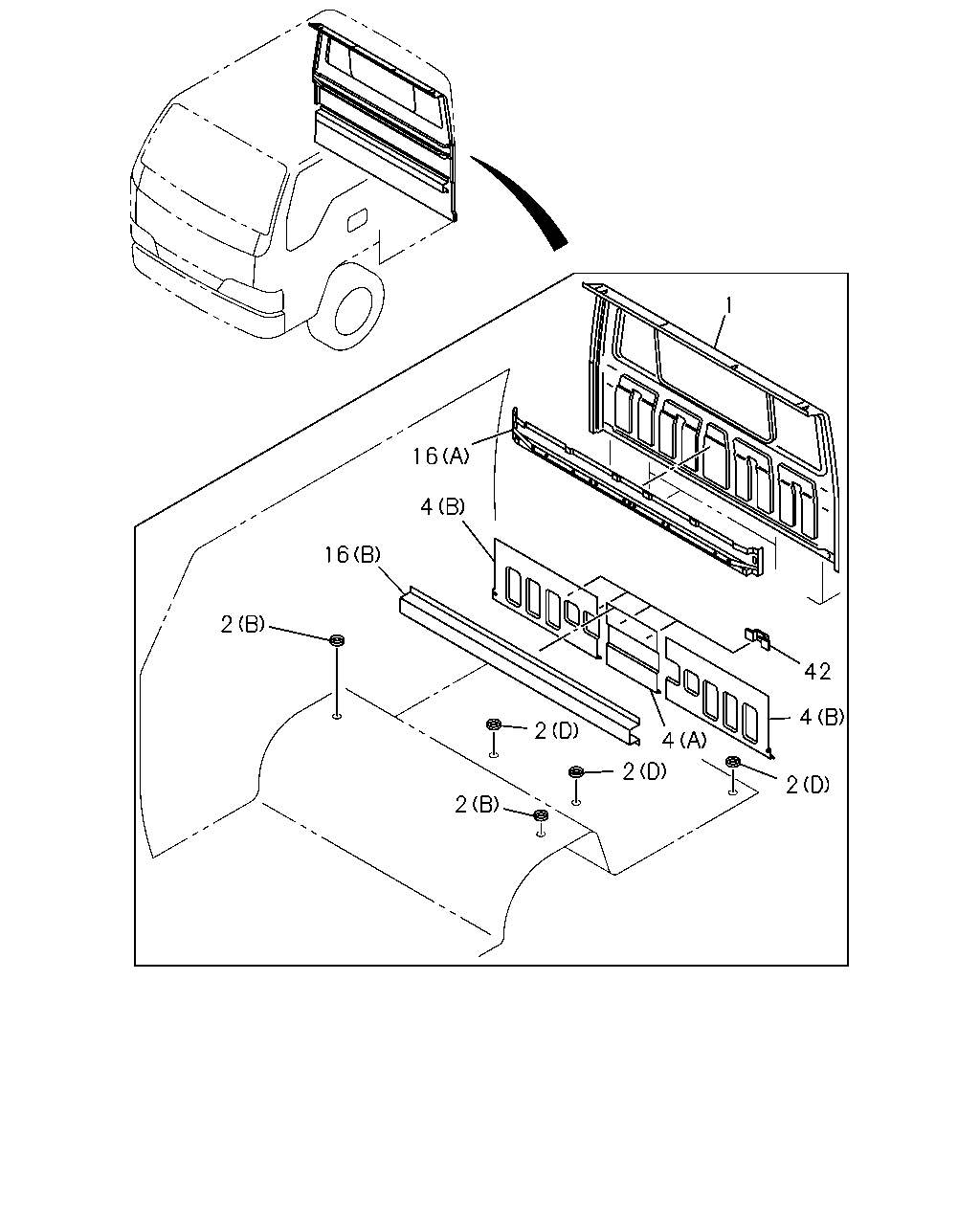

1 16 4 16 2 42 4 2 4 2 2 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	16.587 PANEL; BACK OUTER 4JG2 ENG(RJC) INTERIOR DELUXE<RBB>	8-97851-134-7	01	1	9507-9510	●	●
1	16.587 PANEL; BACK OUTER 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) AIR INTAKE REAR VERTICAL<KJ3>	8-97851-481-3	01	1	9312-9506	●	●	●
1	16.587 PANEL; BACK OUTER 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) AIR INTAKE REAR VERTICAL<KJ3> EXC. INTERIOR DELUXE<RBB>	8-97851-481-3	01	1	9507-9510	●	●	●
1	16.587 PANEL; BACK OUTER 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-97851-482-3	01	1	9312-9510	●	●	●
1	16.587 PANEL; BACK OUTER	8-97859-127-0	01	1	9511-9711	●	●	●	●
1	16.587 PANEL; BACK OUTER	8-97859-127-0	01	1	9712-	●	●	●	●	●
1	16.587 PANEL; BACK OUTER EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97851-460-3	01	1	9312-9506		●
1	16.587 PANEL; BACK OUTER 4JG2 ENG(RJC) EXC. INTERIOR DELUXE<RBB>	8-97851-460-3	01	1	9507-9510	●	●
1	16.587 PANEL; BACK OUTER 4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97851-460-3	01	1	9507-9510	●	●
1	16.587 PANEL; BACK OUTER 4BD2 ENG(RLW) INTERIOR DELUXE<RBB> AIR INTAKE REAR VERTICAL<KJ3>	8-97850-739-0	01	1	9507-9510		●	●
1	16.587 PANEL; BACK OUTER	8-97851-267-6	01	1	9312-9510						●
1	16.587 PANEL; BACK OUTER	8-97851-267-6	01	1	9511-						●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 16.547 (C) OD=36 BLACK	1-76798-018-0	02	1	9312-9611	●	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 16.547 (C) OD=36 BLACK	1-76798-018-0	02	1	9612-9711	●	●	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 16.547 (C) OD=36 BLACK	1-76798-018-0	02	1	9712-	●	●	●	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 16.165 (A) OD=25 BLACK	1-76798-019-0	04	1	9312-9611	●	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 16.165 (A) OD=25 BLACK	1-76798-019-0	04	1	9612-9711	●	●	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 16.165 (A) OD=25 BLACK	1-76798-019-0	04	1	9712-	●	●	●	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 00.785 (B) OD=16.2	8-94492-493-0	02	1	9312-9611	●	●	●			●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 00.785 (B) OD=16.2	8-94492-493-0	02	1	9612-9711	●	●	●	●		●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 00.785 (B) OD=16.2	8-94492-493-0	02	1	9712-	●	●	●	●	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 15.222 (D) OD=35	8-94122-971-0	04	1	9312-						●
4	16.575 PANEL; CAB BACK LWR (A)	8-97851-268-3	01	1	9404-						●
4	16.575 PANEL; CAB BACK LWR (B)	8-97851-293-5	01	1	9404-9510						●
4	16.575 PANEL; CAB BACK LWR (B)	8-97851-293-5	01	1	9511-						●
4	16.575 PANEL; CAB BACK LWR (B)	8-97851-292-5	01	1	9404-9510						●
4	16.575 PANEL; CAB BACK LWR (B)	8-97851-292-5	01	1	9511-						●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) (A)	8-97851-106-7	01	1	9312-9403	●	●	●
16	16.575 REINFORCEMENT; BACK OUTER PNL (A)	8-97851-106-7	01	1	9404-9406	●	●	●	●	●	●
16	16.575 REINFORCEMENT; BACK OUTER PNL (A)	8-97851-106-8	01	1	9407-9410	●	●	●			●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH) (A)	8-97851-106-8	01	1	9411-9504	●	●	●			●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH) (A)	8-97851-106-8	01	1	9505-9510	●	●	●			●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> BRAZIL EQUIPMENT(RWF) (A)	8-97851-106-8	01	1	9505-9510		●	●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4JG2 ENG(RJC),4BE1 ENG(RLH) (A)	8-97851-106-9	01	1	9511-9602	●	●	●			●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> BRAZIL EQUIPMENT(RWF) (A)	8-97851-106-9	01	1	9511-9602		●	●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4BE1 ENG(RLH) (A)	8-97851-106-9	01	1	9603-9711	●	●	●			●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4JG2 ENG(RJC) EXC. INTERIOR DELUXE<RBB> (A)	8-97851-106-9	01	1	9603-9711	●	●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> BRAZIL EQUIPMENT(RWF) (A)	8-97851-106-9	01	1	9603-9711		●	●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) (A)	8-97851-106-9	01	1	9712-	●	●	●	●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HE1 ENG(RLY) BRAZIL EQUIPMENT(RWF) (A)	8-97851-106-9	01	1	9712-		●	●		●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HF1 ENG(RLS),4BD2 ENG(RLW) (A)	8-97851-501-5	01	1	9411-9504	●	●	●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. BRAZIL EQUIPMENT(RWF) (A)	8-97851-501-6	01	1	9505-9601	●	●	●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HF1 ENG(RLS),4BD2 ENG(RLW) AIR INTAKE REAR VERTICAL<KJ3> EXC. BRAZIL EQUIPMENT(RWF) (A)	8-97851-501-6	01	1	9602-9602	●	●	●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HF1 ENG(RLS) EXC. AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97851-501-6	01	1	9602-9602		●	●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HF1 ENG(RLS),4BD2 ENG(RLW) AIR INTAKE REAR VERTICAL<KJ3> EXC. BRAZIL EQUIPMENT(RWF) (A)	8-97851-501-6	01	1	9603-9611	●	●	●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4JG2 ENG(RJC) INTERIOR DELUXE<RBB> (A)	8-97851-501-6	01	1	9603-9611	●	●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HF1 ENG(RLS) EXC. AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97851-501-6	01	1	9603-9611		●	●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HF1 ENG(RLS),4BD2 ENG(RLW) AIR INTAKE REAR VERTICAL<KJ3> EXC. BRAZIL EQUIPMENT(RWF) (A)	8-97851-501-6	01	1	9612-9711	●	●	●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4JG2 ENG(RJC) INTERIOR DELUXE<RBB> (A)	8-97851-501-6	01	1	9612-9711	●	●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97851-501-6	01	1	9612-9711		●	●
16	16.575 REINFORCEMENT; BACK OUTER PNL (A)	8-97851-501-6	01	1	9612-9711				●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HE1 ENG(RLY) EXC. BRAZIL EQUIPMENT(RWF) (A)	8-97851-501-6	01	1	9712-9809		●	●	●	●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4BD2 ENG(RLW) (A)	8-97851-501-6	01	1	9712-9809		●	●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A)	8-97851-501-6	01	1	9810-		●	●	●
16	16.575 REINFORCEMENT; BACK OUTER PNL EXC. CHARGE AIR COOLER<6PL> (A)	8-97851-501-6	01	1	9810-					●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (A)	8-97890-837-1	01	1	9810-		●	●	●
16	16.575 REINFORCEMENT; BACK OUTER PNL CHARGE AIR COOLER<6PL> (A)	8-97890-837-1	01	1	9810-					●
16	16.575 REINFORCEMENT; BACK OUTER PNL (B)	8-97851-415-1	01	1	9404-						●
42	16.587 BRACKET; HEAT PROTECTOR 16.588	8-94265-170-1	04	1	9404-						●

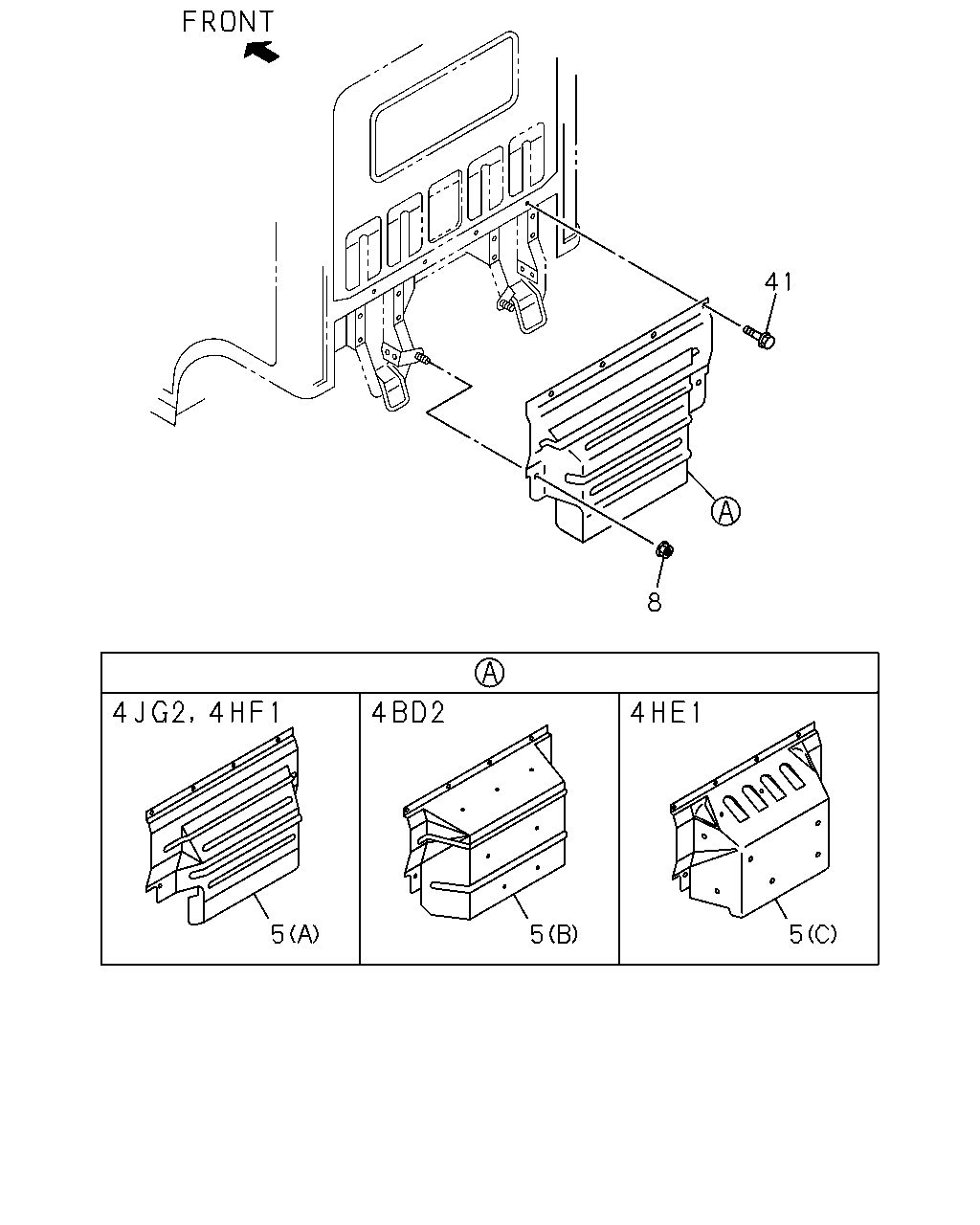

41 8 5 5 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	E
5	16.587 PANEL; CAB BACK 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> (A)	8-97143-431-2	01	1	9512-9711	●	●
5	16.587 PANEL; CAB BACK 4JG2 ENG(RJC) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97143-431-2	01	1	9712-	●	●
5	16.587 PANEL; CAB BACK 4JG2 ENG(RJC) EUROPEAN BASIC EQUIPMENT(EK4) (A)	8-97104-191-0	01	1	9312-9504		●
5	16.587 PANEL; CAB BACK 4JG2 ENG(RJC) EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) (A)	8-97104-191-0	01	1	9505-9506		●
5	16.587 PANEL; CAB BACK 4JG2 ENG(RJC) EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) (A)	8-97104-191-0	01	1	9507-9511	●	●
5	16.587 PANEL; CAB BACK 4JG2 ENG(RJC) EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EXC. EURO2 SPECIFICATION<7AF> (A)	8-97104-191-0	01	1	9512-9711	●	●
5	16.587 PANEL; CAB BACK 4BD2 ENG(RLW) EURO2 SPECIFICATION<7AF> (B)	8-97143-430-2	01	1	9512-9605		●	●
5	16.587 PANEL; CAB BACK 4HF1 ENG(RLS) M/T MXA5R(RMT) NOISE PACK FOR REGULATION<6VD> (A)	8-97092-187-1	01	1	9403-9504		●	●
5	16.587 PANEL; CAB BACK 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> (C)	8-97180-930-4	01	1	9712-		●	●	●
8	16.587 NUT; BACK PANEL 4JG2 ENG(RJC) EUROPEAN BASIC EQUIPMENT(EK4) 07.633 M8 FLANGE	0-91150-108-0	02	1	9312-9402		●
8	16.587 NUT; BACK PANEL 4HF1 ENG(RLS) M/T MXA5R(RMT) NOISE PACK FOR REGULATION<6VD> 07.633 M8 FLANGE	0-91150-108-0	02	1	9403-9504		●	●
8	16.587 NUT; BACK PANEL 4JG2 ENG(RJC) EUROPEAN BASIC EQUIPMENT(EK4) 07.633 M8 FLANGE	0-91150-108-0	02	1	9403-9504		●
8	16.587 NUT; BACK PANEL 4JG2 ENG(RJC) EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) 07.633 M8 FLANGE	0-91150-108-0	02	1	9505-9506		●
8	16.587 NUT; BACK PANEL 4JG2 ENG(RJC) EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) 07.633 M8 FLANGE	0-91150-108-0	02	1	9507-9511	●	●
8	16.587 NUT; BACK PANEL EURO2 SPECIFICATION<7AF> 07.633 M8 FLANGE	0-91150-108-0	02	1	9512-9605	●	●	●
8	16.587 NUT; BACK PANEL 4JG2 ENG(RJC) EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EXC. EURO2 SPECIFICATION<7AF> 07.633 M8 FLANGE	0-91150-108-0	02	1	9512-9605	●	●
8	16.587 NUT; BACK PANEL 4BD2 ENG(RLW) EURO2 SPECIFICATION<7AF> 07.633 M8 FLANGE	0-91150-108-0	02	1	9512-9605		●	●
8	16.587 NUT; BACK PANEL 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> 07.633 M8 FLANGE	0-91150-108-0	02	1	9606-9711	●	●
8	16.587 NUT; BACK PANEL 4JG2 ENG(RJC) EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EXC. EURO2 SPECIFICATION<7AF> 07.633 M8 FLANGE	0-91150-108-0	02	1	9606-9711	●
8	16.587 NUT; BACK PANEL 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-	●	●
8	16.587 NUT; BACK PANEL 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-		●	●	●
41	16.587 BOLT 4JG2 ENG(RJC) EUROPEAN BASIC EQUIPMENT(EK4) 16.345 M5X16 W/PL WASHER TAPPING	8-94279-123-0	04	1	9312-9402		●
41	16.587 BOLT 4HF1 ENG(RLS) M/T MXA5R(RMT) NOISE PACK FOR REGULATION<6VD> 16.345 M5X16 W/PL WASHER TAPPING	8-94279-123-0	04	1	9403-9504		●	●
41	16.587 BOLT 4JG2 ENG(RJC) EUROPEAN BASIC EQUIPMENT(EK4) 16.345 M5X16 W/PL WASHER TAPPING	8-94279-123-0	04	1	9403-9504		●
41	16.587 BOLT 4JG2 ENG(RJC) EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) 16.345 M5X16 W/PL WASHER TAPPING	8-94279-123-0	04	1	9505-9506		●
41	16.587 BOLT 4JG2 ENG(RJC) EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) 16.345 M5X16 W/PL WASHER TAPPING	8-94279-123-0	04	1	9507-9511	●	●
41	16.587 BOLT EURO2 SPECIFICATION<7AF> 16.345 M5X16 W/PL WASHER TAPPING	8-94279-123-0	04	1	9512-9605	●	●	●
41	16.587 BOLT 4JG2 ENG(RJC) EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EXC. EURO2 SPECIFICATION<7AF> 16.345 M5X16 W/PL WASHER TAPPING	8-94279-123-0	04	1	9512-9605	●	●
41	16.587 BOLT 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> 16.345 M5X16 W/PL WASHER TAPPING	8-94279-123-0	04	1	9606-9711	●	●
41	16.587 BOLT 4JG2 ENG(RJC) EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EXC. EURO2 SPECIFICATION<7AF> 16.345 M5X16 W/PL WASHER TAPPING	8-94279-123-0	04	1	9606-9711	●
41	16.587 BOLT 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 08.155 M5X16 TAPPING W/PL WASHER	8-94496-177-1	04	1	9712-	●	●
41	16.587 BOLT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 08.155 M5X16 TAPPING W/PL WASHER	8-94496-177-1	04	1	9712-		●	●	●

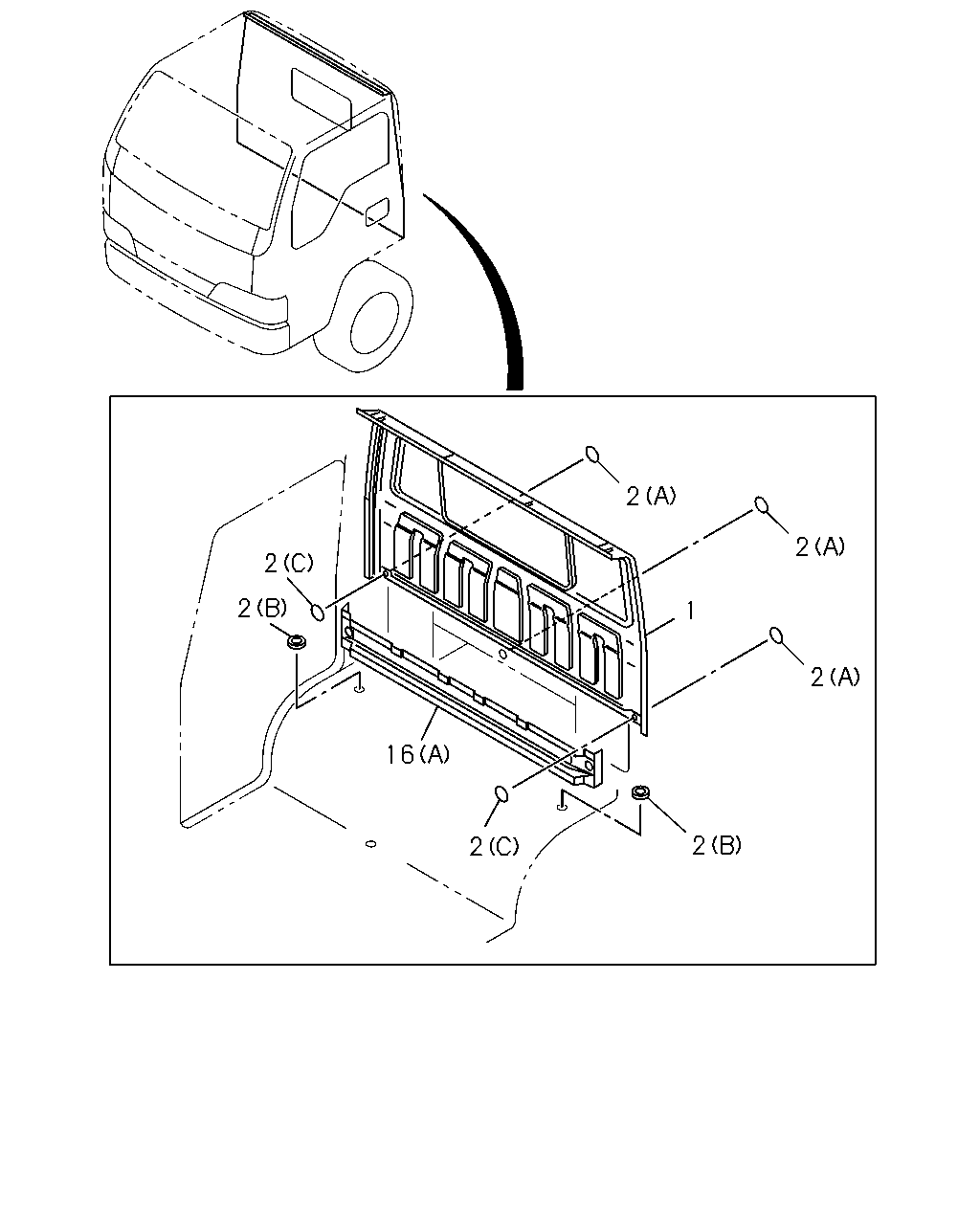

2 2 2 2 1 2 16 2 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	16.587 PANEL; BACK OUTER 4JG2 ENG(RJC) INTERIOR DELUXE<RBB>	8-97851-134-7	01	1	9507-9510	●	●
1	16.587 PANEL; BACK OUTER 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) AIR INTAKE REAR VERTICAL<KJ3>	8-97851-481-3	01	1	9312-9506	●	●	●
1	16.587 PANEL; BACK OUTER 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) AIR INTAKE REAR VERTICAL<KJ3> EXC. INTERIOR DELUXE<RBB>	8-97851-481-3	01	1	9507-9510	●	●	●
1	16.587 PANEL; BACK OUTER 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-97851-482-3	01	1	9312-9510	●	●	●
1	16.587 PANEL; BACK OUTER	8-97859-127-0	01	1	9511-9711	●	●	●	●
1	16.587 PANEL; BACK OUTER	8-97859-127-0	01	1	9712-	●	●	●	●	●
1	16.587 PANEL; BACK OUTER EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97851-460-3	01	1	9312-9506		●
1	16.587 PANEL; BACK OUTER 4JG2 ENG(RJC) EXC. INTERIOR DELUXE<RBB>	8-97851-460-3	01	1	9507-9510	●	●
1	16.587 PANEL; BACK OUTER 4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97851-460-3	01	1	9507-9510	●	●
1	16.587 PANEL; BACK OUTER 4BD2 ENG(RLW) INTERIOR DELUXE<RBB> AIR INTAKE REAR VERTICAL<KJ3>	8-97850-739-0	01	1	9507-9510		●	●
1	16.587 PANEL; BACK OUTER	8-97851-267-6	01	1	9312-9510						●
1	16.587 PANEL; BACK OUTER	8-97851-267-6	01	1	9511-						●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 16.547 (C) OD=36 BLACK	1-76798-018-0	02	1	9312-9611	●	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 16.547 (C) OD=36 BLACK	1-76798-018-0	02	1	9612-9711	●	●	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 16.547 (C) OD=36 BLACK	1-76798-018-0	02	1	9712-	●	●	●	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 16.165 (A) OD=25 BLACK	1-76798-019-0	04	1	9312-9611	●	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 16.165 (A) OD=25 BLACK	1-76798-019-0	04	1	9612-9711	●	●	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 16.165 (A) OD=25 BLACK	1-76798-019-0	04	1	9712-	●	●	●	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 00.785 (B) OD=16.2	8-94492-493-0	02	1	9312-9611	●	●	●			●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 00.785 (B) OD=16.2	8-94492-493-0	02	1	9612-9711	●	●	●	●		●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 00.785 (B) OD=16.2	8-94492-493-0	02	1	9712-	●	●	●	●	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 15.222 (D) OD=35	8-94122-971-0	04	1	9312-						●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) (A)	8-97851-106-7	01	1	9312-9403	●	●	●
16	16.575 REINFORCEMENT; BACK OUTER PNL (A)	8-97851-106-7	01	1	9404-9406	●	●	●	●	●	●
16	16.575 REINFORCEMENT; BACK OUTER PNL (A)	8-97851-106-8	01	1	9407-9410	●	●	●			●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH) (A)	8-97851-106-8	01	1	9411-9504	●	●	●			●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH) (A)	8-97851-106-8	01	1	9505-9510	●	●	●			●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> BRAZIL EQUIPMENT(RWF) (A)	8-97851-106-8	01	1	9505-9510		●	●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4JG2 ENG(RJC),4BE1 ENG(RLH) (A)	8-97851-106-9	01	1	9511-9602	●	●	●			●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> BRAZIL EQUIPMENT(RWF) (A)	8-97851-106-9	01	1	9511-9602		●	●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4BE1 ENG(RLH) (A)	8-97851-106-9	01	1	9603-9711	●	●	●			●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4JG2 ENG(RJC) EXC. INTERIOR DELUXE<RBB> (A)	8-97851-106-9	01	1	9603-9711	●	●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> BRAZIL EQUIPMENT(RWF) (A)	8-97851-106-9	01	1	9603-9711		●	●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) (A)	8-97851-106-9	01	1	9712-	●	●	●	●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HE1 ENG(RLY) BRAZIL EQUIPMENT(RWF) (A)	8-97851-106-9	01	1	9712-		●	●		●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HF1 ENG(RLS),4BD2 ENG(RLW) (A)	8-97851-501-5	01	1	9411-9504	●	●	●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. BRAZIL EQUIPMENT(RWF) (A)	8-97851-501-6	01	1	9505-9601	●	●	●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HF1 ENG(RLS),4BD2 ENG(RLW) AIR INTAKE REAR VERTICAL<KJ3> EXC. BRAZIL EQUIPMENT(RWF) (A)	8-97851-501-6	01	1	9602-9602	●	●	●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HF1 ENG(RLS) EXC. AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97851-501-6	01	1	9602-9602		●	●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HF1 ENG(RLS),4BD2 ENG(RLW) AIR INTAKE REAR VERTICAL<KJ3> EXC. BRAZIL EQUIPMENT(RWF) (A)	8-97851-501-6	01	1	9603-9611	●	●	●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4JG2 ENG(RJC) INTERIOR DELUXE<RBB> (A)	8-97851-501-6	01	1	9603-9611	●	●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HF1 ENG(RLS) EXC. AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97851-501-6	01	1	9603-9611		●	●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HF1 ENG(RLS),4BD2 ENG(RLW) AIR INTAKE REAR VERTICAL<KJ3> EXC. BRAZIL EQUIPMENT(RWF) (A)	8-97851-501-6	01	1	9612-9711	●	●	●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4JG2 ENG(RJC) INTERIOR DELUXE<RBB> (A)	8-97851-501-6	01	1	9612-9711	●	●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97851-501-6	01	1	9612-9711		●	●
16	16.575 REINFORCEMENT; BACK OUTER PNL (A)	8-97851-501-6	01	1	9612-9711				●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HE1 ENG(RLY) EXC. BRAZIL EQUIPMENT(RWF) (A)	8-97851-501-6	01	1	9712-9809		●	●	●	●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4BD2 ENG(RLW) (A)	8-97851-501-6	01	1	9712-9809		●	●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A)	8-97851-501-6	01	1	9810-		●	●	●
16	16.575 REINFORCEMENT; BACK OUTER PNL EXC. CHARGE AIR COOLER<6PL> (A)	8-97851-501-6	01	1	9810-					●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (A)	8-97890-837-1	01	1	9810-		●	●	●
16	16.575 REINFORCEMENT; BACK OUTER PNL CHARGE AIR COOLER<6PL> (A)	8-97890-837-1	01	1	9810-					●
16	16.575 REINFORCEMENT; BACK OUTER PNL (B)	8-97851-415-1	01	1	9404-						●

41 51 41 41 41 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	E
8	16.587 NUT; BACK PANEL 4JG2 ENG(RJC) EUROPEAN BASIC EQUIPMENT(EK4) 07.633 M8 FLANGE	0-91150-108-0	02	1	9312-9402		●
8	16.587 NUT; BACK PANEL 4HF1 ENG(RLS) M/T MXA5R(RMT) NOISE PACK FOR REGULATION<6VD> 07.633 M8 FLANGE	0-91150-108-0	02	1	9403-9504		●	●
8	16.587 NUT; BACK PANEL 4JG2 ENG(RJC) EUROPEAN BASIC EQUIPMENT(EK4) 07.633 M8 FLANGE	0-91150-108-0	02	1	9403-9504		●
8	16.587 NUT; BACK PANEL 4JG2 ENG(RJC) EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) 07.633 M8 FLANGE	0-91150-108-0	02	1	9505-9506		●
8	16.587 NUT; BACK PANEL 4JG2 ENG(RJC) EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) 07.633 M8 FLANGE	0-91150-108-0	02	1	9507-9511	●	●
8	16.587 NUT; BACK PANEL EURO2 SPECIFICATION<7AF> 07.633 M8 FLANGE	0-91150-108-0	02	1	9512-9605	●	●	●
8	16.587 NUT; BACK PANEL 4JG2 ENG(RJC) EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EXC. EURO2 SPECIFICATION<7AF> 07.633 M8 FLANGE	0-91150-108-0	02	1	9512-9605	●	●
8	16.587 NUT; BACK PANEL 4BD2 ENG(RLW) EURO2 SPECIFICATION<7AF> 07.633 M8 FLANGE	0-91150-108-0	02	1	9512-9605		●	●
8	16.587 NUT; BACK PANEL 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> 07.633 M8 FLANGE	0-91150-108-0	02	1	9606-9711	●	●
8	16.587 NUT; BACK PANEL 4JG2 ENG(RJC) EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EXC. EURO2 SPECIFICATION<7AF> 07.633 M8 FLANGE	0-91150-108-0	02	1	9606-9711	●
8	16.587 NUT; BACK PANEL 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-	●	●
8	16.587 NUT; BACK PANEL 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-		●	●	●
41	16.587 BOLT 4JG2 ENG(RJC) EUROPEAN BASIC EQUIPMENT(EK4) 16.345 M5X16 W/PL WASHER TAPPING	8-94279-123-0	04	1	9312-9402		●
41	16.587 BOLT 4HF1 ENG(RLS) M/T MXA5R(RMT) NOISE PACK FOR REGULATION<6VD> 16.345 M5X16 W/PL WASHER TAPPING	8-94279-123-0	04	1	9403-9504		●	●
41	16.587 BOLT 4JG2 ENG(RJC) EUROPEAN BASIC EQUIPMENT(EK4) 16.345 M5X16 W/PL WASHER TAPPING	8-94279-123-0	04	1	9403-9504		●
41	16.587 BOLT 4JG2 ENG(RJC) EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) 16.345 M5X16 W/PL WASHER TAPPING	8-94279-123-0	04	1	9505-9506		●
41	16.587 BOLT 4JG2 ENG(RJC) EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) 16.345 M5X16 W/PL WASHER TAPPING	8-94279-123-0	04	1	9507-9511	●	●
41	16.587 BOLT EURO2 SPECIFICATION<7AF> 16.345 M5X16 W/PL WASHER TAPPING	8-94279-123-0	04	1	9512-9605	●	●	●
41	16.587 BOLT 4JG2 ENG(RJC) EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EXC. EURO2 SPECIFICATION<7AF> 16.345 M5X16 W/PL WASHER TAPPING	8-94279-123-0	04	1	9512-9605	●	●
41	16.587 BOLT 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> 16.345 M5X16 W/PL WASHER TAPPING	8-94279-123-0	04	1	9606-9711	●	●
41	16.587 BOLT 4JG2 ENG(RJC) EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EXC. EURO2 SPECIFICATION<7AF> 16.345 M5X16 W/PL WASHER TAPPING	8-94279-123-0	04	1	9606-9711	●
41	16.587 BOLT 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 08.155 M5X16 TAPPING W/PL WASHER	8-94496-177-1	04	1	9712-	●	●
41	16.587 BOLT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 08.155 M5X16 TAPPING W/PL WASHER	8-94496-177-1	04	1	9712-		●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
