6-76 — FLOOR EQUIPMENT AND SEALING (#48119) — 335 parça

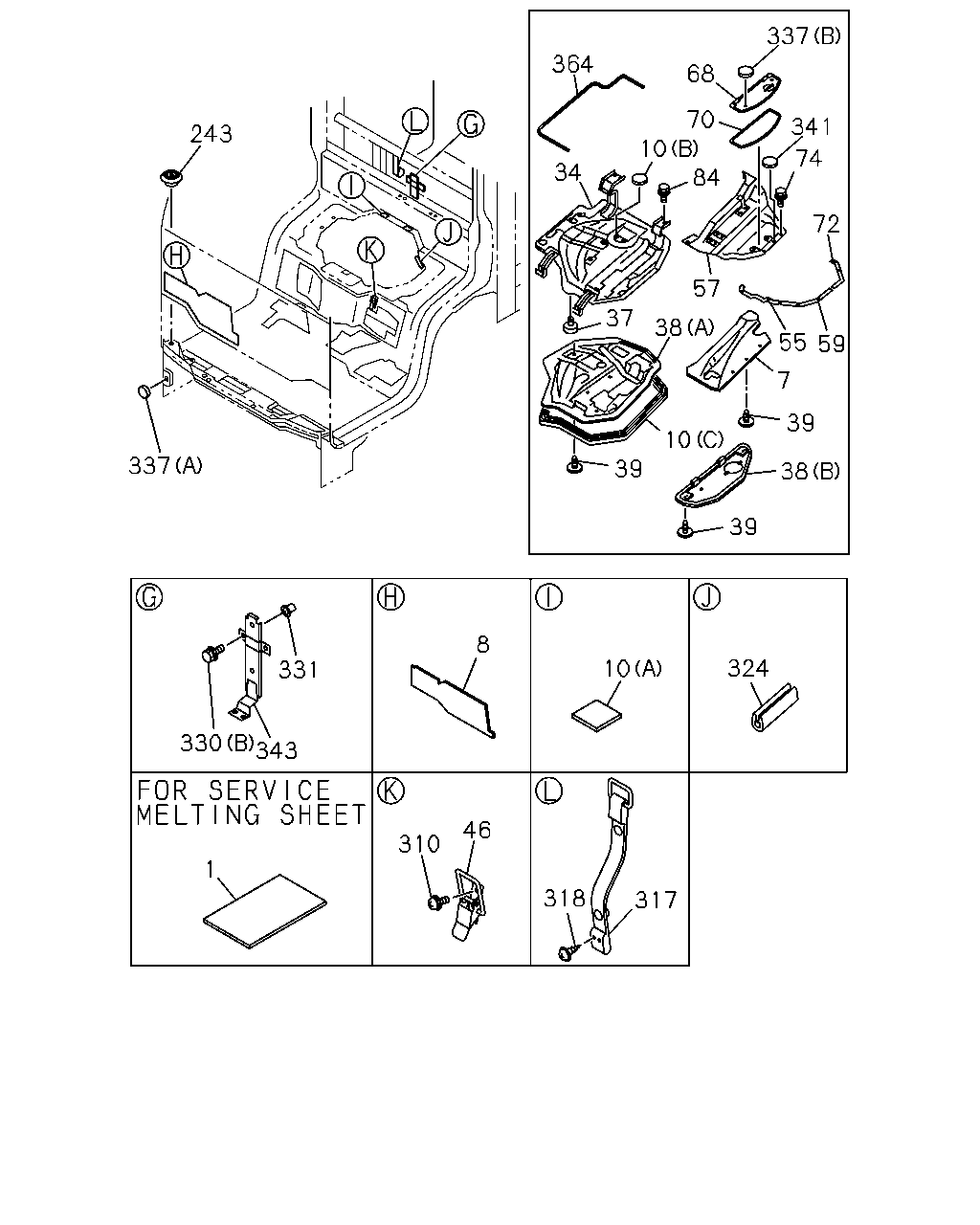

çizim 19317
337 364 68 70 10 84 341 243 74 34 72 57 37 38 55 59 7 39 10 337 39 38 39 8 331 324 10 330 343 46 310 1 318 317
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.850 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ON LY 		8-94262-093-0 01 1 9312- ● ● ● ● ●
7 16.545 INSULATOR; SUPPORT COVER
MANUAL TILT CAB<RWZ> 		8-97856-451-1 01 1 9312-9611 ● ● ●
7 16.545 INSULATOR; SUPPORT COVER
MANUAL TILT CAB<RWZ> 		8-97856-451-1 01 1 9612-9708 ● ● ●
7 16.545 INSULATOR; SUPPORT COVER 8-97856-451-1 01 1 9612-9708 ●
7 16.545 INSULATOR; SUPPORT COVER
MANUAL TILT CAB<RWZ> 		8-97850-896-0 01 1 9709-9711 ● ● ●
7 16.545 INSULATOR; SUPPORT COVER 8-97850-896-0 01 1 9709-9711 ●
7 16.545 INSULATOR; SUPPORT COVER
MANUAL TILT CAB<RWZ> 		8-97850-896-0 01 1 9712-9801 ● ● ●
7 16.545 INSULATOR; SUPPORT COVER 8-97850-896-0 01 1 9712-9801 ● ●
7 16.545 INSULATOR; SUPPORT COVER
MANUAL TILT CAB<RWZ> 		8-97850-896-0 01 1 9802- ● ● ● ● ●
7 16.545 INSULATOR; SUPPORT COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97856-452-1 01 1 9312-9708 ● ● ● ●
7 16.545 INSULATOR; SUPPORT COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97850-897-0 01 1 9709-9801 ● ● ● ●
7 16.545 INSULATOR; SUPPORT COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97850-897-0 01 1 9802- ● ● ● ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL 8-97853-606-1 01 1 9312-9611 ● ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL 8-97853-606-1 01 1 9612-9711 ● ● ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL 8-97853-606-1 01 1 9712- ● ● ● ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL 8-97853-605-2 01 1 9312-9611 ● ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL 8-97853-605-2 01 1 9612-9711 ● ● ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL 8-97853-605-2 01 1 9712- ● ● ● ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) 16.592 (B) OD=36 BLACK 		1-76778-007-0 01 1 9312-9403 ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY YELLO W(916) 16.592 (B) OD=36 BLACK 		1-76778-007-0 01 1 9404-9603 ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY YELLO W(916) 16.547 (B) OD=36 BLACK 		1-76798-018-0 01 1 9604-9604 ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY YELLO W(916) INTERIOR DELUXE<RBB> 16.547 (B) OD=36 BLACK 		1-76798-018-0 01 1 9604-9711 ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY YELLO W(916) INTERIOR DELUXE<RBB> 02.580 (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 9712-9801 ● ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY YELLO W(916) INTERIOR DELUXE<RBB> 02.580 (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 9802- ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) INTERIOR DELUXE<RBB> 02.580 (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 9802- ●
10 16.549 SEAL; ENG COVER
BODY COLOR ARC WHITE(729) 16.592 (B) OD=36 WHITE 		1-76778-007-0 01 1 9312-9604 ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR ARC WHITE(729) INTERIOR DELUXE<RBB> 16.592 (B) OD=36 WHITE 		1-76778-007-0 01 1 9604-9711 ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR ARC WHITE(729) INTERIOR DELUXE<RBB> 16.592 (B) OD=36 WHITE 		1-76778-007-0 01 1 9712- ● ● ● ●
10 16.549 SEAL; ENG COVER
(C) 		8-97853-267-4 01 1 9312-9611 ● ● ● ●
10 16.549 SEAL; ENG COVER
(C) 		8-97853-267-4 01 1 9612-9711 ● ● ● ● ●
10 16.549 SEAL; ENG COVER
(C) 		8-97853-267-4 01 1 9712- ● ● ● ● ● ●
10 16.549 SEAL; ENG COVER
(A) 		8-97857-240-0 03 1 9312-9403 ● ● ● ●
10 16.549 SEAL; ENG COVER
EXC. MANUAL TILT CAB<RWZ> (A) 		8-97857-240-0 02 1 9404-9605 ● ● ● ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR 8-97850-421-2 01 1 9312-9507 ● ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR 8-97850-679-0 01 1 9508-9611 ● ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR 8-97850-679-0 01 1 9612-9711 ● ● ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR 8-97850-679-0 01 1 9712- ● ● ● ● ● ●
37 16.549 RUBBER; BUFFER,ENG COVER
16.155 OD=30 T=10 		5-74917-001-2 02 1 9312-9611 ● ● ● ●
37 16.549 RUBBER; BUFFER,ENG COVER
16.155 OD=30 T=10 		5-74917-001-2 02 1 9612-9711 ● ● ● ● ●
37 16.549 RUBBER; BUFFER,ENG COVER
16.155 OD=30 T=10 		5-74917-001-2 02 1 9712- ● ● ● ● ● ●
38 16.549 INSULATOR; ENG COVER
(A) 		8-97856-450-3 01 1 9312-9611 ● ● ● ●
38 16.549 INSULATOR; ENG COVER
(A) 		8-97856-450-3 01 1 9612-9711 ● ● ● ● ●
38 16.549 INSULATOR; ENG COVER
(A) 		8-97856-450-3 01 1 9712- ● ● ● ● ● ●
38 16.549 INSULATOR; ENG COVER
EXC. MANUAL TILT CAB<RWZ> (B) 		8-97856-803-0 01 1 9312-9409 ● ● ● ●
38 16.549 INSULATOR; ENG COVER
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. MANUAL TILT CAB<RWZ> (B) 		8-97856-803-0 01 1 9410-9510 ● ● ● ●
38 16.549 INSULATOR; ENG COVER
4BE1 ENG(RLH),4BD2 ENG(RLW) (B) 		8-97856-803-0 01 1 9511-9708 ●
38 16.549 INSULATOR; ENG COVER
4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. MANUAL TILT CAB<RWZ> (B) 		8-97856-803-0 01 1 9709-9711 ● ● ● ●
38 16.549 INSULATOR; ENG COVER
(B) 		8-97856-803-0 01 1 9712- ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> OD=30 		8-94279-952-0 07 1 9312-9403 ● ● ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> OD=28 BLACK 		8-94279-997-0 07 1 9404-9406 ● ● ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> OD=30 		8-94279-952-0 07 1 9312-9403 ● ● ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> OD=28 BLACK 		8-94279-997-0 07 1 9404-9406 ● ● ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> OD=28 BLACK 		8-94279-997-0 09 1 9407-9611 ● ● ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> OD=28 BLACK 		8-94279-997-0 09 1 9612-9711 ● ● ●
39 16.549 CLIP; INSULATOR,COVER
OD=28 BLACK 		8-94279-997-0 09 1 9612-9711 ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> OD=28 BLACK 		8-94279-997-0 09 1 9712-9801 ● ● ●
39 16.549 CLIP; INSULATOR,COVER
OD=28 BLACK 		8-94279-997-0 09 1 9712-9801 ● ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> OD=28 BLACK 		8-94279-997-0 09 1 9802- ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
OD=30 		8-94279-952-0 06 1 9312-9403 ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
OD=28 BLACK 		8-94279-997-0 06 1 9404-9406 ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
OD=28 BLACK 		8-94279-997-0 05 1 9407-9611 ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
OD=28 BLACK 		8-94279-997-0 05 1 9612-9711 ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
OD=28 BLACK 		8-94279-997-0 05 1 9712- ● ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
EXC. MANUAL TILT CAB<RWZ> OD=30 		8-94279-952-0 02 1 9312-9403 ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
EXC. MANUAL TILT CAB<RWZ> OD=28 BLACK 		8-94279-997-0 02 1 9404-9406 ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
EXC. MANUAL TILT CAB<RWZ> OD=28 BLACK 		8-94279-997-0 06 1 9407-9801 ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
EXC. MANUAL TILT CAB<RWZ> OD=28 BLACK 		8-94279-997-0 06 1 9802- ● ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. MANUAL TILT CAB<RWZ> OD=28 BLACK 		8-94279-997-0 02 1 9410-9510 ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
4BE1 ENG(RLH),4BD2 ENG(RLW) OD=28 BLACK 		8-94279-997-0 02 1 9708-9708 ●
39 16.549 CLIP; INSULATOR,COVER
4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. MANUAL TILT CAB<RWZ> OD=28 BLACK 		8-94279-997-0 02 1 9709-9711 ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
OD=28 BLACK 		8-94279-997-0 02 1 9712- ●
46 16.549 HOOK ASM; ENG COVER 8-97853-632-2 02 1 9312-9611 ● ● ● ●
46 16.549 HOOK ASM; ENG COVER 8-97853-632-2 02 1 9612-9711 ● ● ● ● ●
46 16.549 HOOK ASM; ENG COVER 8-97853-632-2 02 1 9712- ● ● ● ● ● ●
55 16.549 SEAL; SUPPORT COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97857-469-0 01 1 9312-9605 ● ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
MANUAL TILT CAB<RWZ> 		8-97850-415-6 01 1 9312-9509 ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
MANUAL TILT CAB<RWZ> 		8-97866-691-0 01 1 9510-9611 ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
MANUAL TILT CAB<RWZ> 		8-97866-691-0 01 1 9612-9706 ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR 8-97866-691-0 01 1 9612-9706 ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
MANUAL TILT CAB<RWZ> 		8-97850-888-0 01 1 9707-9711 ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR 8-97850-888-0 01 1 9707-9711 ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
MANUAL TILT CAB<RWZ> 		8-97850-888-0 01 1 9712-9801 ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR 8-97850-888-0 01 1 9712-9801 ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
MANUAL TILT CAB<RWZ> 		8-97850-888-0 01 1 9802- ● ● ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-416-5 01 1 9312-9509 ● ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97866-692-0 01 1 9510-9706 ● ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-889-0 01 1 9707-9801 ● ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-889-0 01 1 9802- ● ● ● ● ● ●
59 16.549 SEAL; SUPPORT COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97857-466-0 01 1 9312-9605 ● ● ● ●
68 16.549 COVER ASM; SUB,ENG COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97853-712-3 01 1 9312-9510 ● ● ● ●
68 16.549 COVER ASM; SUB,ENG COVER 8-97853-712-3 01 1 9708-9708 ●
68 16.549 COVER ASM; SUB,ENG COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97853-712-3 01 1 9709-9801 ● ● ● ●
68 16.549 COVER ASM; SUB,ENG COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97853-712-3 01 1 9802- ● ● ● ● ● ●
70 16.549 SEAL; ENG SUB COVER,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97853-050-1 01 1 9312-9510 ● ● ● ●
70 16.549 SEAL; ENG SUB COVER,CAB FLOOR 8-97853-050-1 01 1 9708-9708 ●
70 16.549 SEAL; ENG SUB COVER,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97853-050-1 01 1 9709-9801 ● ● ● ●
70 16.549 SEAL; ENG SUB COVER,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97853-050-1 01 1 9802- ● ● ● ● ● ●
72 16.549 SEAL; SUPPORT COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97857-468-0 01 1 9312-9605 ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
EXC. MANUAL TILT CAB<RWZ> 03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 04 1 9408-9605 ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 05 1 9312-9407 ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
MANUAL TILT CAB<RWZ> 03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 05 1 9408-9605 ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 05 1 9408-9605 ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.664 M8X20 FLANGE 		0-28680-820-0 05 1 9606-9611 ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.664 M8X20 FLANGE 		0-28680-820-0 05 1 9612-9711 ● ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.664 M8X20 FLANGE 		0-28680-820-0 05 1 9712- ● ● ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 01 1 9312-9605 ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9606-9611 ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9612-9711 ● ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9712- ● ● ● ● ● ●
84 16.549 BOLT; ENG COVER HINGE
04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9312-9604 ● ● ● ●
84 16.549 BOLT; ENG COVER HINGE
02.664 M8X20 FLANGE 		0-28680-820-0 04 1 9604-9611 ● ● ● ●
84 16.549 BOLT; ENG COVER HINGE
02.664 M8X20 FLANGE 		0-28680-820-0 04 1 9612-9711 ● ● ● ● ●
84 16.549 BOLT; ENG COVER HINGE
02.664 M8X20 FLANGE 		0-28680-820-0 04 1 9712- ● ● ● ● ● ●
243 16.547 GROMMET; STOPPER,CHECK HOLE LID
16.549 OD=12.1 		8-94279-716-0 01 1 9410-9611 ● ● ● ●
243 16.547 GROMMET; STOPPER,CHECK HOLE LID
16.549 OD=12.1 		8-94279-716-0 01 1 9612-9711 ● ● ● ● ●
243 16.547 GROMMET; STOPPER,CHECK HOLE LID
16.549 OD=12.1 		8-94279-716-0 01 1 9712- ● ● ● ● ● ●
310 16.549 SCREW; ENG COVER HOOK
16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 9312-9611 ● ● ● ●
310 16.549 SCREW; ENG COVER HOOK
16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 9612-9711 ● ● ● ● ●
310 16.549 SCREW; ENG COVER HOOK
16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 9712- ● ● ● ● ● ●
317 16.549 BAND; ENGINE COVER
L=535 DARK BEIGE 		8-97853-607-3 01 1 9312-9611 ● ● ● ●
317 16.549 BAND; ENGINE COVER
L=535 DARK BEIGE 		8-97853-607-3 01 1 9612-9711 ● ● ● ● ●
317 16.549 BAND; ENGINE COVER
L=535 BLACK 		8-97867-201-0 01 1 9712- ● ● ● ● ● ●
318 16.549 SCREW; BAND
15.222 M5X25 TAPPING W/PL WASHER 		0-74310-525-0 02 1 9312-9401 ● ● ● ●
318 16.549 SCREW; BAND
15.222 M5X25 TAPPING W/PL WASHER 		0-74310-525-0 02 1 9402-9409 ● ● ●
318 16.549 SCREW; BAND
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9402-9409 ●
318 16.549 SCREW; BAND
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9410-9611 ● ● ● ●
318 16.549 SCREW; BAND
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9612-9711 ● ● ● ● ●
318 16.549 SCREW; BAND
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9712- ● ● ● ● ● ●
324 16.545 FINISHER; FLOOR PANEL
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) L=140 		8-97867-865-0 01 1 9608-9611 ● ● ● ●
324 16.545 FINISHER; FLOOR PANEL
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) L=140 		8-97867-865-0 01 1 9612-9707 ● ● ● ● ●
324 16.545 FINISHER; FLOOR PANEL
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) L=140 		8-97867-865-0 01 1 9708-9711 ● ● ● ● ●
324 16.545 FINISHER; FLOOR PANEL
4JG2 ENG(RJC),4BE1 ENG(RLH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW), 4HE1ENG(RLY) L=140 		8-97867-865-0 01 1 9712-9801 ● ● ● ● ● ●
324 16.545 FINISHER; FLOOR PANEL
L=140 		8-97867-865-0 01 1 9802- ● ● ● ● ● ●
330 16.545 BOLT; BRKT
BRAZIL EQUIPMENT(RWF) 08.225 (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9409-9604 ● ●
330 16.545 BOLT; BRKT
BRAZIL EQUIPMENT(RWF) 04.439 (B) M6X16 FLANGE 		0-28680-616-0 03 1 9604-9711 ● ●
330 16.545 BOLT; BRKT
BRAZIL EQUIPMENT(RWF) 04.439 (B) M6X16 FLANGE 		0-28680-616-0 03 1 9712- ● ● ●
331 16.545 NUT; BRKT
BRAZIL EQUIPMENT(RWF) 08.143 		1-09984-156-0 03 1 9409-9711 ● ●
331 16.545 NUT; BRKT
BRAZIL EQUIPMENT(RWF) 08.143 		1-09984-156-0 03 1 9712- ● ● ●
337 16.545 SEAL; CLIP HOLE
4JG2 ENG(RJC),4HF1 ENG(RLS) EXC. MANUAL TILT CAB<RWZ> 16.570 (B) OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 9410-9506 ● ● ●
337 16.545 SEAL; CLIP HOLE
4JG2 ENG(RJC),4HF1 ENG(RLS) EXC. MANUAL TILT CAB<RWZ> 16.570 (A) OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 9507-9510 ● ●
337 16.545 SEAL; CLIP HOLE
4HF1 ENG(RLS) EXC. MANUAL TILT CAB<RWZ> 16.570 (A) OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 9507-9510 ●
337 16.545 SEAL; CLIP HOLE
16.165 (A) OD=25 BLACK 		1-76798-019-0 01 1 9312-9611 ● ● ● ●
337 16.545 SEAL; CLIP HOLE
16.165 (A) OD=25 BLACK 		1-76798-019-0 01 1 9612-9711 ● ● ● ● ●
337 16.545 SEAL; CLIP HOLE
16.165 (A) OD=25 BLACK 		1-76798-019-0 01 1 9712- ● ● ● ● ● ●
337 16.545 SEAL; CLIP HOLE
4BE1 ENG(RLH),4BD2 ENG(RLW) 16.570 (B) OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 9708-9708 ●
337 16.545 SEAL; CLIP HOLE
4JG2 ENG(RJC),4HF1 ENG(RLS) EXC. MANUAL TILT CAB<RWZ> 16.570 (B) OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 9709-9711 ● ●
337 16.545 SEAL; CLIP HOLE
4HF1 ENG(RLS) EXC. MANUAL TILT CAB<RWZ> 16.570 (B) OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 9709-9711 ●
337 16.545 SEAL; CLIP HOLE
4HF1 ENG(RLS) EXC. MANUAL TILT CAB<RWZ> 16.570 (B) OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 9712- ● ● ●
341 16.549 SEAL; INSULATOR HOLE
EXC. MANUAL TILT CAB<RWZ> 16.570 OD=20 T=0.05 WHITE 		8-97856-832-1 01 1 9312-9801 ● ● ● ●
341 16.549 SEAL; INSULATOR HOLE
EXC. MANUAL TILT CAB<RWZ> 16.570 OD=20 T=0.05 WHITE 		8-97856-832-1 01 1 9802- ● ● ● ● ● ●
343 16.587 BRACKET; FIRE EXTINGUISHER
BRAZIL EQUIPMENT(RWF) 		8-97859-427-1 01 1 9409-9711 ● ●
343 16.587 BRACKET; FIRE EXTINGUISHER
BRAZIL EQUIPMENT(RWF) 		8-97859-427-1 01 1 9712- ● ● ●
364 16.545 FINISHER; ENG COVER SIDE
L=1000 		8-97890-597-0 01 1 9709-9711 ● ● ● ● ●
364 16.545 FINISHER; ENG COVER SIDE
L=1000 		8-97890-597-0 01 1 9712- ● ● ● ● ● ●

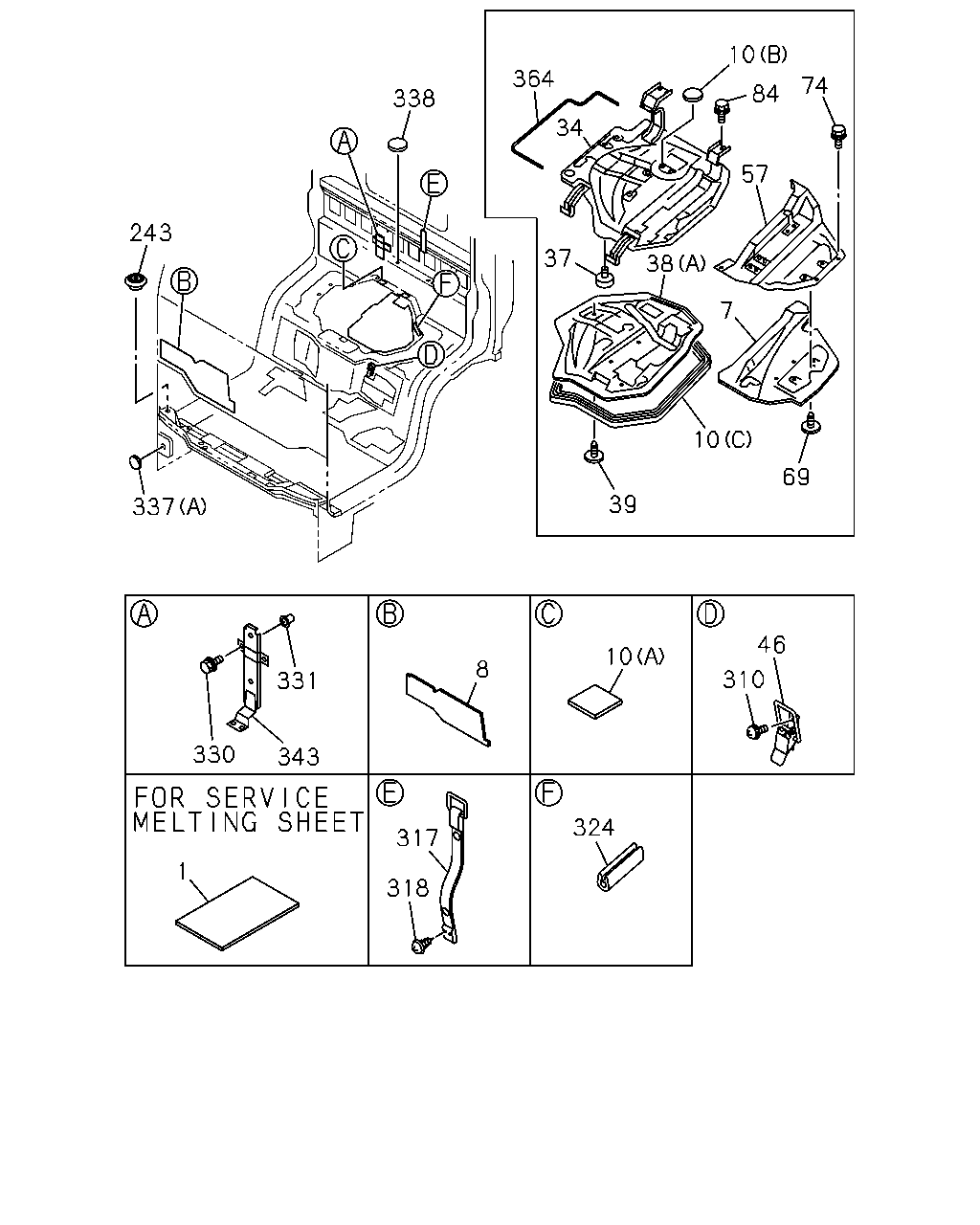

çizim 67141
10 364 74 84 338 34 57 243 37 38 7 10 69 39 337 46 10 331 8 310 330 343 324 317 1 318
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.850 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ON LY 		8-94262-093-0 01 1 9312- ● ● ● ● ●
7 16.545 INSULATOR; SUPPORT COVER
MANUAL TILT CAB<RWZ> 		8-97856-451-1 01 1 9312-9611 ● ● ●
7 16.545 INSULATOR; SUPPORT COVER
MANUAL TILT CAB<RWZ> 		8-97856-451-1 01 1 9612-9708 ● ● ●
7 16.545 INSULATOR; SUPPORT COVER 8-97856-451-1 01 1 9612-9708 ●
7 16.545 INSULATOR; SUPPORT COVER
MANUAL TILT CAB<RWZ> 		8-97850-896-0 01 1 9709-9711 ● ● ●
7 16.545 INSULATOR; SUPPORT COVER 8-97850-896-0 01 1 9709-9711 ●
7 16.545 INSULATOR; SUPPORT COVER
MANUAL TILT CAB<RWZ> 		8-97850-896-0 01 1 9712-9801 ● ● ●
7 16.545 INSULATOR; SUPPORT COVER 8-97850-896-0 01 1 9712-9801 ● ●
7 16.545 INSULATOR; SUPPORT COVER
MANUAL TILT CAB<RWZ> 		8-97850-896-0 01 1 9802- ● ● ● ● ●
7 16.545 INSULATOR; SUPPORT COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97856-452-1 01 1 9312-9708 ● ● ● ●
7 16.545 INSULATOR; SUPPORT COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97850-897-0 01 1 9709-9801 ● ● ● ●
7 16.545 INSULATOR; SUPPORT COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97850-897-0 01 1 9802- ● ● ● ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL 8-97853-606-1 01 1 9312-9611 ● ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL 8-97853-606-1 01 1 9612-9711 ● ● ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL 8-97853-606-1 01 1 9712- ● ● ● ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL 8-97853-605-2 01 1 9312-9611 ● ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL 8-97853-605-2 01 1 9612-9711 ● ● ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL 8-97853-605-2 01 1 9712- ● ● ● ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) 16.592 (B) OD=36 BLACK 		1-76778-007-0 01 1 9312-9403 ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY YELLO W(916) 16.592 (B) OD=36 BLACK 		1-76778-007-0 01 1 9404-9603 ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY YELLO W(916) 16.547 (B) OD=36 BLACK 		1-76798-018-0 01 1 9604-9604 ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY YELLO W(916) INTERIOR DELUXE<RBB> 16.547 (B) OD=36 BLACK 		1-76798-018-0 01 1 9604-9711 ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY YELLO W(916) INTERIOR DELUXE<RBB> 02.580 (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 9712-9801 ● ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY YELLO W(916) INTERIOR DELUXE<RBB> 02.580 (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 9802- ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) INTERIOR DELUXE<RBB> 02.580 (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 9802- ●
10 16.549 SEAL; ENG COVER
BODY COLOR ARC WHITE(729) 16.592 (B) OD=36 WHITE 		1-76778-007-0 01 1 9312-9604 ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR ARC WHITE(729) INTERIOR DELUXE<RBB> 16.592 (B) OD=36 WHITE 		1-76778-007-0 01 1 9604-9711 ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR ARC WHITE(729) INTERIOR DELUXE<RBB> 16.592 (B) OD=36 WHITE 		1-76778-007-0 01 1 9712- ● ● ● ●
10 16.549 SEAL; ENG COVER
(C) 		8-97853-267-4 01 1 9312-9611 ● ● ● ●
10 16.549 SEAL; ENG COVER
(C) 		8-97853-267-4 01 1 9612-9711 ● ● ● ● ●
10 16.549 SEAL; ENG COVER
(C) 		8-97853-267-4 01 1 9712- ● ● ● ● ● ●
10 16.549 SEAL; ENG COVER
(A) 		8-97857-240-0 03 1 9312-9403 ● ● ● ●
10 16.549 SEAL; ENG COVER
EXC. MANUAL TILT CAB<RWZ> (A) 		8-97857-240-0 02 1 9404-9605 ● ● ● ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR 8-97850-421-2 01 1 9312-9507 ● ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR 8-97850-679-0 01 1 9508-9611 ● ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR 8-97850-679-0 01 1 9612-9711 ● ● ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR 8-97850-679-0 01 1 9712- ● ● ● ● ● ●
37 16.549 RUBBER; BUFFER,ENG COVER
16.155 OD=30 T=10 		5-74917-001-2 02 1 9312-9611 ● ● ● ●
37 16.549 RUBBER; BUFFER,ENG COVER
16.155 OD=30 T=10 		5-74917-001-2 02 1 9612-9711 ● ● ● ● ●
37 16.549 RUBBER; BUFFER,ENG COVER
16.155 OD=30 T=10 		5-74917-001-2 02 1 9712- ● ● ● ● ● ●
38 16.549 INSULATOR; ENG COVER
(A) 		8-97856-450-3 01 1 9312-9611 ● ● ● ●
38 16.549 INSULATOR; ENG COVER
(A) 		8-97856-450-3 01 1 9612-9711 ● ● ● ● ●
38 16.549 INSULATOR; ENG COVER
(A) 		8-97856-450-3 01 1 9712- ● ● ● ● ● ●
38 16.549 INSULATOR; ENG COVER
EXC. MANUAL TILT CAB<RWZ> (B) 		8-97856-803-0 01 1 9312-9409 ● ● ● ●
38 16.549 INSULATOR; ENG COVER
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. MANUAL TILT CAB<RWZ> (B) 		8-97856-803-0 01 1 9410-9510 ● ● ● ●
38 16.549 INSULATOR; ENG COVER
4BE1 ENG(RLH),4BD2 ENG(RLW) (B) 		8-97856-803-0 01 1 9511-9708 ●
38 16.549 INSULATOR; ENG COVER
4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. MANUAL TILT CAB<RWZ> (B) 		8-97856-803-0 01 1 9709-9711 ● ● ● ●
38 16.549 INSULATOR; ENG COVER
(B) 		8-97856-803-0 01 1 9712- ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> OD=30 		8-94279-952-0 07 1 9312-9403 ● ● ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> OD=28 BLACK 		8-94279-997-0 07 1 9404-9406 ● ● ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> OD=30 		8-94279-952-0 07 1 9312-9403 ● ● ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> OD=28 BLACK 		8-94279-997-0 07 1 9404-9406 ● ● ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> OD=28 BLACK 		8-94279-997-0 09 1 9407-9611 ● ● ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> OD=28 BLACK 		8-94279-997-0 09 1 9612-9711 ● ● ●
39 16.549 CLIP; INSULATOR,COVER
OD=28 BLACK 		8-94279-997-0 09 1 9612-9711 ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> OD=28 BLACK 		8-94279-997-0 09 1 9712-9801 ● ● ●
39 16.549 CLIP; INSULATOR,COVER
OD=28 BLACK 		8-94279-997-0 09 1 9712-9801 ● ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> OD=28 BLACK 		8-94279-997-0 09 1 9802- ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
OD=30 		8-94279-952-0 06 1 9312-9403 ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
OD=28 BLACK 		8-94279-997-0 06 1 9404-9406 ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
OD=28 BLACK 		8-94279-997-0 05 1 9407-9611 ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
OD=28 BLACK 		8-94279-997-0 05 1 9612-9711 ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
OD=28 BLACK 		8-94279-997-0 05 1 9712- ● ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
EXC. MANUAL TILT CAB<RWZ> OD=30 		8-94279-952-0 02 1 9312-9403 ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
EXC. MANUAL TILT CAB<RWZ> OD=28 BLACK 		8-94279-997-0 02 1 9404-9406 ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
EXC. MANUAL TILT CAB<RWZ> OD=28 BLACK 		8-94279-997-0 06 1 9407-9801 ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
EXC. MANUAL TILT CAB<RWZ> OD=28 BLACK 		8-94279-997-0 06 1 9802- ● ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. MANUAL TILT CAB<RWZ> OD=28 BLACK 		8-94279-997-0 02 1 9410-9510 ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
4BE1 ENG(RLH),4BD2 ENG(RLW) OD=28 BLACK 		8-94279-997-0 02 1 9708-9708 ●
39 16.549 CLIP; INSULATOR,COVER
4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. MANUAL TILT CAB<RWZ> OD=28 BLACK 		8-94279-997-0 02 1 9709-9711 ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
OD=28 BLACK 		8-94279-997-0 02 1 9712- ●
46 16.549 HOOK ASM; ENG COVER 8-97853-632-2 02 1 9312-9611 ● ● ● ●
46 16.549 HOOK ASM; ENG COVER 8-97853-632-2 02 1 9612-9711 ● ● ● ● ●
46 16.549 HOOK ASM; ENG COVER 8-97853-632-2 02 1 9712- ● ● ● ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
MANUAL TILT CAB<RWZ> 		8-97850-415-6 01 1 9312-9509 ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
MANUAL TILT CAB<RWZ> 		8-97866-691-0 01 1 9510-9611 ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
MANUAL TILT CAB<RWZ> 		8-97866-691-0 01 1 9612-9706 ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR 8-97866-691-0 01 1 9612-9706 ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
MANUAL TILT CAB<RWZ> 		8-97850-888-0 01 1 9707-9711 ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR 8-97850-888-0 01 1 9707-9711 ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
MANUAL TILT CAB<RWZ> 		8-97850-888-0 01 1 9712-9801 ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR 8-97850-888-0 01 1 9712-9801 ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
MANUAL TILT CAB<RWZ> 		8-97850-888-0 01 1 9802- ● ● ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-416-5 01 1 9312-9509 ● ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97866-692-0 01 1 9510-9706 ● ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-889-0 01 1 9707-9801 ● ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-889-0 01 1 9802- ● ● ● ● ● ●
69 16.549 BOLT; TRANS COVER
MANUAL TILT CAB<RWZ> OD=30 		8-94279-952-0 07 1 9312-9403 ● ● ●
69 16.549 BOLT; TRANS COVER
MANUAL TILT CAB<RWZ> OD=28 BLACK 		8-94279-997-0 07 1 9404-9406 ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
EXC. MANUAL TILT CAB<RWZ> 03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 04 1 9408-9605 ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 05 1 9312-9407 ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
MANUAL TILT CAB<RWZ> 03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 05 1 9408-9605 ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 05 1 9408-9605 ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.664 M8X20 FLANGE 		0-28680-820-0 05 1 9606-9611 ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.664 M8X20 FLANGE 		0-28680-820-0 05 1 9612-9711 ● ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.664 M8X20 FLANGE 		0-28680-820-0 05 1 9712- ● ● ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 01 1 9312-9605 ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9606-9611 ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9612-9711 ● ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9712- ● ● ● ● ● ●
84 16.549 BOLT; ENG COVER HINGE
04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9312-9604 ● ● ● ●
84 16.549 BOLT; ENG COVER HINGE
02.664 M8X20 FLANGE 		0-28680-820-0 04 1 9604-9611 ● ● ● ●
84 16.549 BOLT; ENG COVER HINGE
02.664 M8X20 FLANGE 		0-28680-820-0 04 1 9612-9711 ● ● ● ● ●
84 16.549 BOLT; ENG COVER HINGE
02.664 M8X20 FLANGE 		0-28680-820-0 04 1 9712- ● ● ● ● ● ●
243 16.547 GROMMET; STOPPER,CHECK HOLE LID
16.549 OD=12.1 		8-94279-716-0 01 1 9410-9611 ● ● ● ●
243 16.547 GROMMET; STOPPER,CHECK HOLE LID
16.549 OD=12.1 		8-94279-716-0 01 1 9612-9711 ● ● ● ● ●
243 16.547 GROMMET; STOPPER,CHECK HOLE LID
16.549 OD=12.1 		8-94279-716-0 01 1 9712- ● ● ● ● ● ●
310 16.549 SCREW; ENG COVER HOOK
16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 9312-9611 ● ● ● ●
310 16.549 SCREW; ENG COVER HOOK
16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 9612-9711 ● ● ● ● ●
310 16.549 SCREW; ENG COVER HOOK
16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 9712- ● ● ● ● ● ●
317 16.549 BAND; ENGINE COVER
L=535 DARK BEIGE 		8-97853-607-3 01 1 9312-9611 ● ● ● ●
317 16.549 BAND; ENGINE COVER
L=535 DARK BEIGE 		8-97853-607-3 01 1 9612-9711 ● ● ● ● ●
317 16.549 BAND; ENGINE COVER
L=535 BLACK 		8-97867-201-0 01 1 9712- ● ● ● ● ● ●
318 16.549 SCREW; BAND
15.222 M5X25 TAPPING W/PL WASHER 		0-74310-525-0 02 1 9312-9401 ● ● ● ●
318 16.549 SCREW; BAND
15.222 M5X25 TAPPING W/PL WASHER 		0-74310-525-0 02 1 9402-9409 ● ● ●
318 16.549 SCREW; BAND
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9402-9409 ●
318 16.549 SCREW; BAND
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9410-9611 ● ● ● ●
318 16.549 SCREW; BAND
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9612-9711 ● ● ● ● ●
318 16.549 SCREW; BAND
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9712- ● ● ● ● ● ●
324 16.545 FINISHER; FLOOR PANEL
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) L=140 		8-97867-865-0 01 1 9608-9611 ● ● ● ●
324 16.545 FINISHER; FLOOR PANEL
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) L=140 		8-97867-865-0 01 1 9612-9707 ● ● ● ● ●
324 16.545 FINISHER; FLOOR PANEL
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) L=140 		8-97867-865-0 01 1 9708-9711 ● ● ● ● ●
324 16.545 FINISHER; FLOOR PANEL
4JG2 ENG(RJC),4BE1 ENG(RLH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW), 4HE1ENG(RLY) L=140 		8-97867-865-0 01 1 9712-9801 ● ● ● ● ● ●
324 16.545 FINISHER; FLOOR PANEL
L=140 		8-97867-865-0 01 1 9802- ● ● ● ● ● ●
330 16.545 BOLT; BRKT
BRAZIL EQUIPMENT(RWF) 08.225 (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9409-9604 ● ●
330 16.545 BOLT; BRKT
BRAZIL EQUIPMENT(RWF) 04.439 (B) M6X16 FLANGE 		0-28680-616-0 03 1 9604-9711 ● ●
330 16.545 BOLT; BRKT
BRAZIL EQUIPMENT(RWF) 04.439 (B) M6X16 FLANGE 		0-28680-616-0 03 1 9712- ● ● ●
331 16.545 NUT; BRKT
BRAZIL EQUIPMENT(RWF) 08.143 		1-09984-156-0 03 1 9409-9711 ● ●
331 16.545 NUT; BRKT
BRAZIL EQUIPMENT(RWF) 08.143 		1-09984-156-0 03 1 9712- ● ● ●
337 16.545 SEAL; CLIP HOLE
4JG2 ENG(RJC),4HF1 ENG(RLS) EXC. MANUAL TILT CAB<RWZ> 16.570 (B) OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 9410-9506 ● ● ●
337 16.545 SEAL; CLIP HOLE
4JG2 ENG(RJC),4HF1 ENG(RLS) EXC. MANUAL TILT CAB<RWZ> 16.570 (A) OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 9507-9510 ● ●
337 16.545 SEAL; CLIP HOLE
4HF1 ENG(RLS) EXC. MANUAL TILT CAB<RWZ> 16.570 (A) OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 9507-9510 ●
337 16.545 SEAL; CLIP HOLE
16.165 (A) OD=25 BLACK 		1-76798-019-0 01 1 9312-9611 ● ● ● ●
337 16.545 SEAL; CLIP HOLE
16.165 (A) OD=25 BLACK 		1-76798-019-0 01 1 9612-9711 ● ● ● ● ●
337 16.545 SEAL; CLIP HOLE
16.165 (A) OD=25 BLACK 		1-76798-019-0 01 1 9712- ● ● ● ● ● ●
337 16.545 SEAL; CLIP HOLE
4BE1 ENG(RLH),4BD2 ENG(RLW) 16.570 (B) OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 9708-9708 ●
337 16.545 SEAL; CLIP HOLE
4JG2 ENG(RJC),4HF1 ENG(RLS) EXC. MANUAL TILT CAB<RWZ> 16.570 (B) OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 9709-9711 ● ●
337 16.545 SEAL; CLIP HOLE
4HF1 ENG(RLS) EXC. MANUAL TILT CAB<RWZ> 16.570 (B) OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 9709-9711 ●
337 16.545 SEAL; CLIP HOLE
4HF1 ENG(RLS) EXC. MANUAL TILT CAB<RWZ> 16.570 (B) OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 9712- ● ● ●
338 16.545 SEAL; CHECK ARM
EXC. BRAZIL EQUIPMENT(RWF) 16.592 OD=20 T=0.4 BLACK 		1-76798-020-0 01 1 9503-9611 ● ● ●
338 16.545 SEAL; CHECK ARM
16.592 OD=20 T=0.4 BLACK 		1-76798-020-0 01 1 9612-9711 ● ●
338 16.545 SEAL; CHECK ARM
EXC. BRAZIL EQUIPMENT(RWF) 16.592 OD=20 T=0.4 BLACK 		1-76798-020-0 01 1 9612-9711 ● ●
338 16.545 SEAL; CHECK ARM
16.592 OD=20 T=0.4 BLACK 		1-76798-020-0 01 1 9712- ● ●
338 16.545 SEAL; CHECK ARM
EXC. BRAZIL EQUIPMENT(RWF) 16.592 OD=20 T=0.4 BLACK 		1-76798-020-0 01 1 9712- ● ● ●
343 16.587 BRACKET; FIRE EXTINGUISHER
BRAZIL EQUIPMENT(RWF) 		8-97859-427-1 01 1 9409-9711 ● ●
343 16.587 BRACKET; FIRE EXTINGUISHER
BRAZIL EQUIPMENT(RWF) 		8-97859-427-1 01 1 9712- ● ● ●
364 16.545 FINISHER; ENG COVER SIDE
L=1000 		8-97890-597-0 01 1 9709-9711 ● ● ● ● ●
364 16.545 FINISHER; ENG COVER SIDE
L=1000 		8-97890-597-0 01 1 9712- ● ● ● ● ● ●

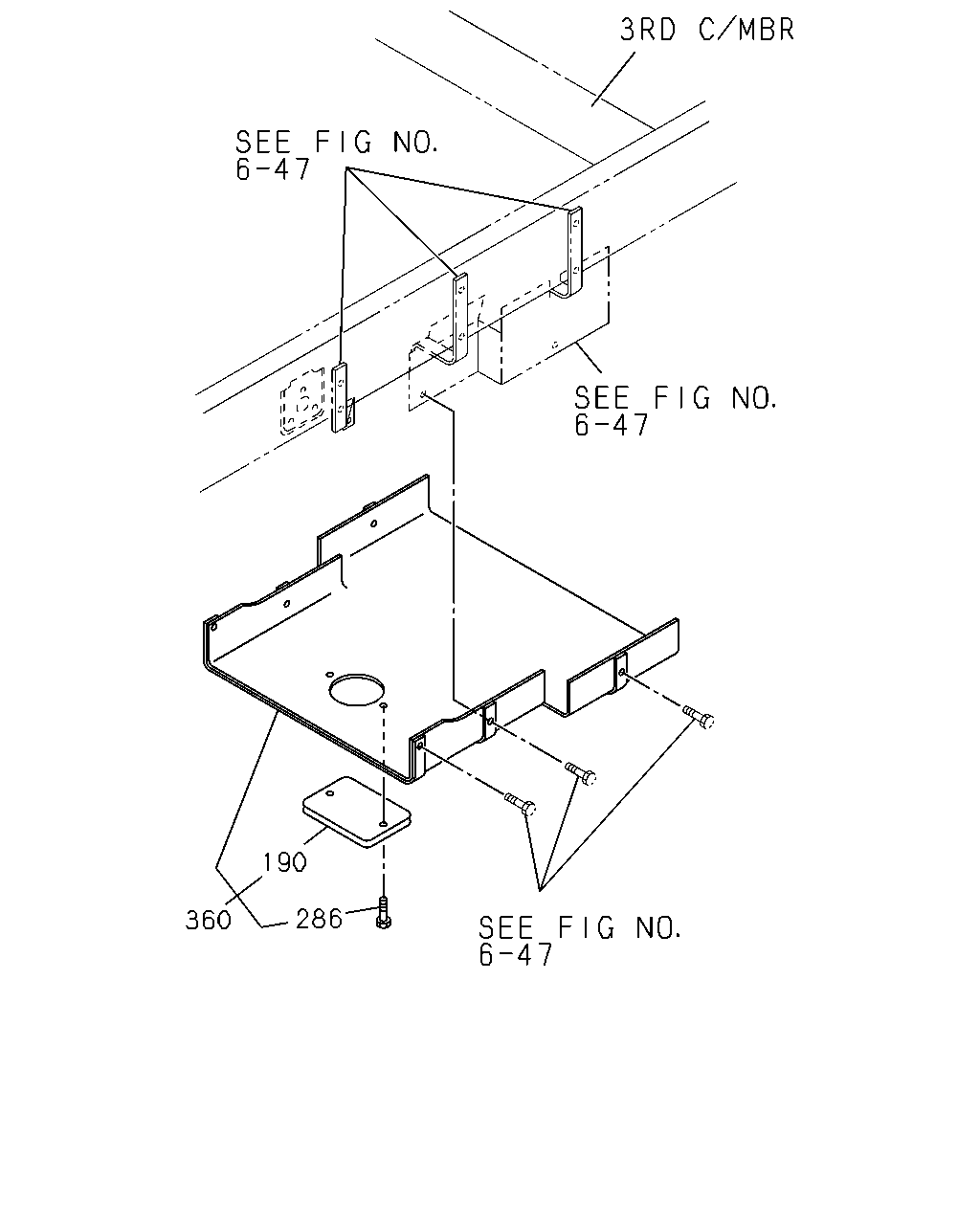

çizim 67853
190 286 360
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
190 16.549 LID
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97180-904-1 01 1 9712- ● ● ●
286 16.545 BOLT; LID
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 04.439 M6X16 FLANGE 		0-28680-616-0 02 1 9712- ● ● ●
360 16.549 COVER; LWR
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97183-607-2 01 1 9712- ● ● ●

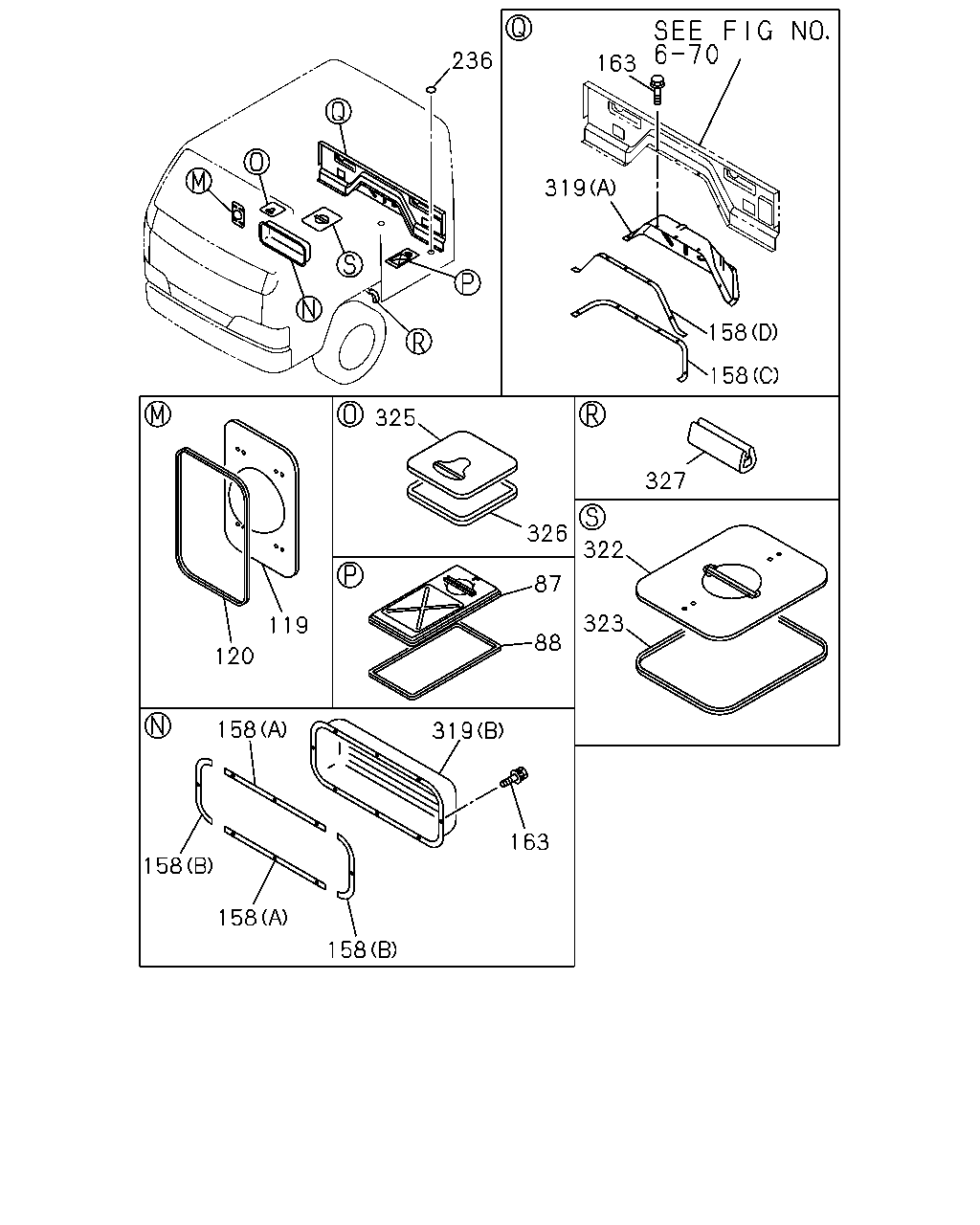

çizim 68601
236 163 319 158 158 325 327 326 322 87 323 119 88 120 158 319 163 158 158 158
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
87 16.549 COVER; BATTERY CHECK HOLE 8-97856-332-3 01 1 9312- ●
88 16.549 SEAL; BATTERY CHECK HOLE COVER 8-97853-725-1 01 1 9312- ●
119 16.090 LID; P/S OIL TANK 8-97853-440-2 02 1 9312-9410 ●
119 16.090 LID; P/S OIL TANK 8-97853-440-2 01 1 9411- ●
120 16.090 SEAL; LID,P/S 8-97853-441-1 02 1 9312-9410 ●
120 16.090 SEAL; LID,P/S 8-97853-441-1 01 1 9411- ●
158 16.549 SEAL; RR,ENG COVER,FRT
(A) 		8-97853-660-0 02 1 9312-9704 ●
158 16.549 SEAL; RR,ENG COVER,FRT
4BE1 ENG(RLH) (A) 		8-97853-660-0 02 1 9705-9711 ●
158 16.549 SEAL; RR,ENG COVER,FRT
(B) 		8-97853-661-0 02 1 9312-9704 ●
158 16.549 SEAL; RR,ENG COVER,FRT
4BE1 ENG(RLH) (B) 		8-97853-661-0 02 1 9705-9711 ●
158 16.549 SEAL; RR,ENG COVER,FRT
4BD2 ENG(RLW) (C) 		8-97890-263-0 01 1 9705-9711 ●
158 16.549 SEAL; RR,ENG COVER,FRT
(C) 		8-97890-263-0 01 1 9712- ●
158 16.549 SEAL; RR,ENG COVER,FRT
4BD2 ENG(RLW) (D) 		8-97890-269-0 01 1 9705-9711 ●
158 16.549 SEAL; RR,ENG COVER,FRT
(D) 		8-97890-269-0 01 1 9712- ●
163 16.549 BOLT; RR,ENG COVER,FRT
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9312-9405 ● ● ● ●
163 16.549 BOLT; RR,ENG COVER,FRT
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9406-9604 ●
163 16.549 BOLT; RR,ENG COVER,FRT
04.439 M6X16 FLANGE 		0-28680-616-0 08 1 9604-9704 ●
163 16.549 BOLT; RR,ENG COVER,FRT
4BE1 ENG(RLH) 04.439 M6X16 FLANGE 		0-28680-616-0 08 1 9705-9711 ●
163 16.549 BOLT; RR,ENG COVER,FRT
4BD2 ENG(RLW) 04.439 M6X16 FLANGE 		0-28680-616-0 11 1 9705-9711 ●
163 16.549 BOLT; RR,ENG COVER,FRT
04.439 M6X16 FLANGE 		0-28680-616-0 11 1 9712- ●
236 16.549 SEAL; CHECK HOLE
16.592 OD=20 T=0.4 BLACK 		1-76798-020-0 02 1 9412- ●
319 16.549 COVER; ENG RR,FLOOR
(B) 		8-97850-241-3 01 1 9312-9704 ●
319 16.549 COVER; ENG RR,FLOOR
4BE1 ENG(RLH) (B) 		8-97850-241-3 01 1 9705-9711 ●
319 16.549 COVER; ENG RR,FLOOR
4BD2 ENG(RLW) (A) 		8-97890-253-1 01 1 9705-9711 ●
319 16.549 COVER; ENG RR,FLOOR
(A) 		8-97890-253-1 01 1 9712- ●
322 16.549 COVER; A/T OIL 8-97853-442-2 01 1 9312-9404 ●
323 16.549 SEAL; COVER,A/T OIL 8-97853-443-2 01 1 9312-9404 ●
325 16.549 COVER; LLC 8-97856-974-0 01 1 9312-9404 ●
326 16.549 SEAL; COVER 8-97856-975-1 01 1 9312-9404 ●
327 16.545 FINISHER; CTR PILLAR,LWR 8-97857-257-1 02 1 9312- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
