Sayfa 6-75 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50697 - NPR/NQR-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶

6-75 — MAT AND CARPET (#48118) — 98 parça

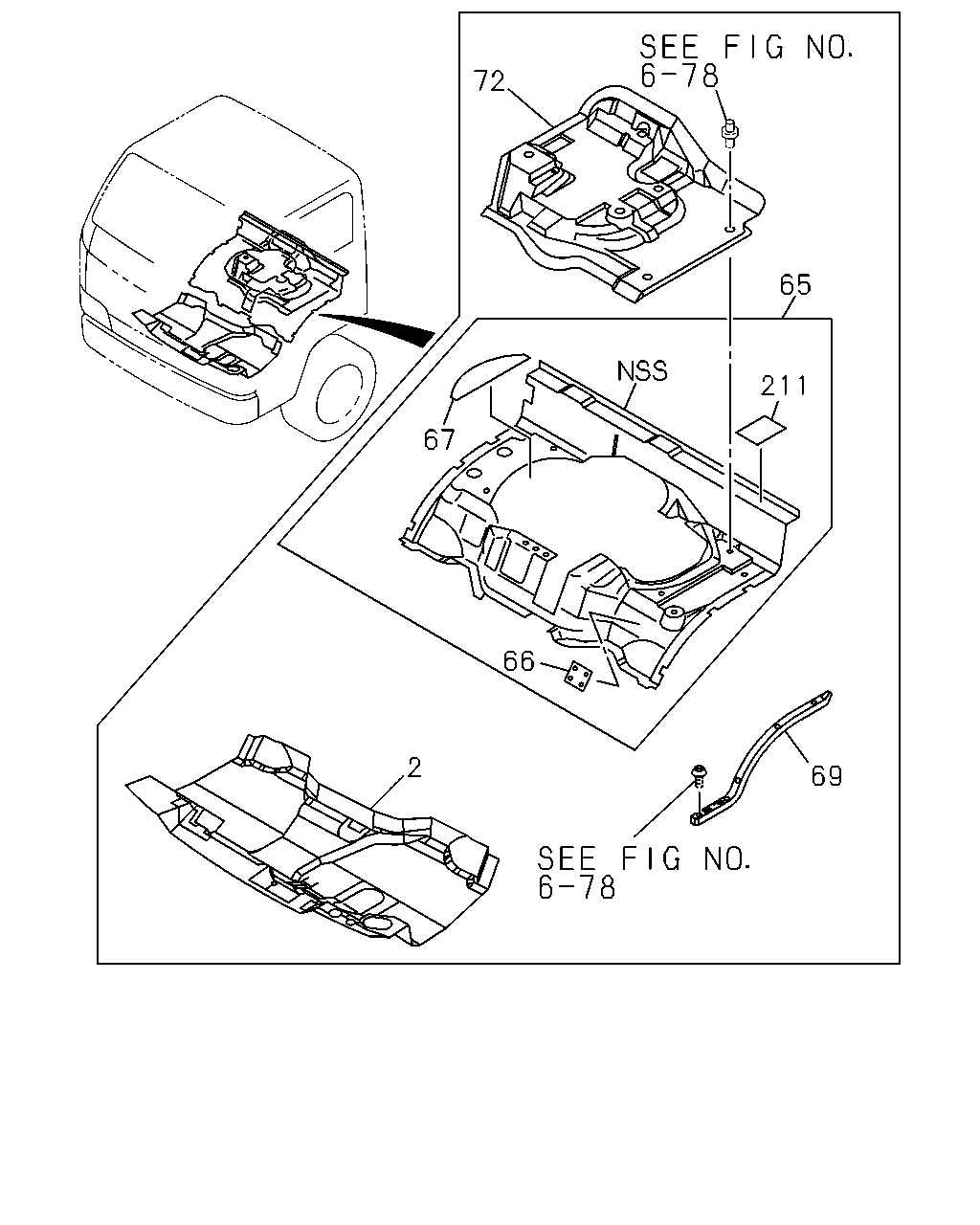

72 65 211 67 66 2 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	16.800 MAT; FLOOR AIR CONDITIONER MANUAL CONT(C60) DARK BEIGE	8-97097-209-3	01	1	9312-9611	●	●	●	●
2	16.800 MAT; FLOOR AIR CONDITIONER MANUAL CONT(C60) DARK BEIGE	8-97097-209-3	01	1	9612-9711	●	●	●	●	●
2	16.800 MAT; FLOOR AIR CONDITIONER MANUAL CONT(C60) DARK GRAY	8-97098-519-4	01	1	9712-	●	●	●	●	●	●
2	16.800 MAT; FLOOR EXC. AIR CONDITIONER MANUAL CONT(C60) DARK BEIGE	8-97097-210-3	01	1	9312-9611	●	●	●	●
2	16.800 MAT; FLOOR EXC. AIR CONDITIONER MANUAL CONT(C60) DARK BEIGE	8-97097-210-3	01	1	9612-9711	●	●	●	●	●
2	16.800 MAT; FLOOR EXC. AIR CONDITIONER MANUAL CONT(C60) DARK GRAY	8-97098-520-4	01	1	9712-	●	●	●	●	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR MANUAL TILT CAB<RWZ> DARK BEIGE	8-97856-825-5	01	1	9312-9611	●	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR MANUAL TILT CAB<RWZ> DARK BEIGE	8-97856-825-5	01	1	9612-9711	●	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK BEIGE	8-97856-825-5	01	1	9612-9711					●
65	16.802 MAT ASM; SILENCER,CAB FLOOR MANUAL TILT CAB<RWZ> DARK GRAY	8-97868-397-5	01	1	9712-9804	●	●	●		●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK GRAY	8-97868-397-5	01	1	9805-	●	●	●		●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK BEIGE	8-97856-827-5	01	1	9312-9711				●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK GRAY	8-97868-356-5	01	1	9712-				●
66	16.549 HOOK; COVER MANUAL TILT CAB<RWZ> DARK BEIGE	8-97857-192-0	02	1	9312-9611	●	●	●
66	16.549 HOOK; COVER DARK BEIGE	8-97857-192-0	02	1	9312-9611				●
66	16.549 HOOK; COVER MANUAL TILT CAB<RWZ> DARK BEIGE	8-97857-192-0	02	1	9612-9711	●	●	●
66	16.549 HOOK; COVER DARK BEIGE	8-97857-192-0	02	1	9612-9711				●	●
66	16.549 HOOK; COVER MANUAL TILT CAB<RWZ> DARK GRAY	8-97859-705-0	02	1	9712-9801	●	●	●
66	16.549 HOOK; COVER DARK GRAY	8-97859-705-0	02	1	9712-9801				●	●	●
66	16.549 HOOK; COVER MANUAL TILT CAB<RWZ> DARK GRAY	8-97859-705-0	02	1	9802-9804	●	●	●		●	●
66	16.549 HOOK; COVER DARK GRAY	8-97859-705-0	02	1	9802-9804				●
66	16.549 HOOK; COVER DARK GRAY	8-97859-705-0	02	1	9805-	●	●	●	●	●	●
67	16.549 LID; COVER MANUAL TILT CAB<RWZ> DARK BEIGE	8-97857-924-0	01	1	9312-9611	●	●	●
67	16.549 LID; COVER DARK BEIGE	8-97857-924-0	01	1	9312-9611				●
67	16.549 LID; COVER MANUAL TILT CAB<RWZ> DARK BEIGE	8-97857-924-0	01	1	9612-9711	●	●	●
67	16.549 LID; COVER DARK BEIGE	8-97857-924-0	01	1	9612-9711				●	●
67	16.549 LID; COVER MANUAL TILT CAB<RWZ> DARK GRAY	8-97868-518-0	01	1	9712-9801	●	●	●
67	16.549 LID; COVER DARK GRAY	8-97868-518-0	01	1	9712-9801				●	●	●
67	16.549 LID; COVER MANUAL TILT CAB<RWZ> DARK GRAY	8-97868-518-0	01	1	9802-9804	●	●	●		●	●
67	16.549 LID; COVER DARK GRAY	8-97868-518-0	01	1	9802-9804				●
67	16.549 LID; COVER DARK GRAY	8-97868-518-0	01	1	9805-	●	●	●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE DARK BEIGE	8-97853-958-0	01	1	9312-9611	●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE DARK BEIGE	8-97853-958-0	01	1	9612-9711	●	●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE DARK GRAY	8-97857-552-0	01	1	9712-	●	●	●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE DARK BEIGE	8-97853-957-0	01	1	9312-9611	●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE DARK BEIGE	8-97853-957-0	01	1	9612-9711	●	●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE DARK GRAY	8-97857-551-0	01	1	9712-	●	●	●	●	●	●
72	16.800 MAT; SILENCER,ENG COVER DARK BEIGE	8-97856-830-3	01	1	9312-9611	●	●	●	●
72	16.800 MAT; SILENCER,ENG COVER DARK BEIGE	8-97856-830-3	01	1	9612-9711	●	●	●	●	●
72	16.800 MAT; SILENCER,ENG COVER DARK GRAY	8-97890-496-0	01	1	9712-	●	●	●	●	●	●
211	16.800 COVER; HINGE MANUAL TILT CAB<RWZ>	8-97857-191-0	02	1	9312-9312	●	●	●
211	16.800 COVER; HINGE	8-97857-191-0	02	1	9312-9312				●
211	16.800 COVER; HINGE MANUAL TILT CAB<RWZ>	8-97857-191-1	01	1	9401-9405	●	●	●
211	16.800 COVER; HINGE	8-97857-191-1	02	1	9401-9405				●

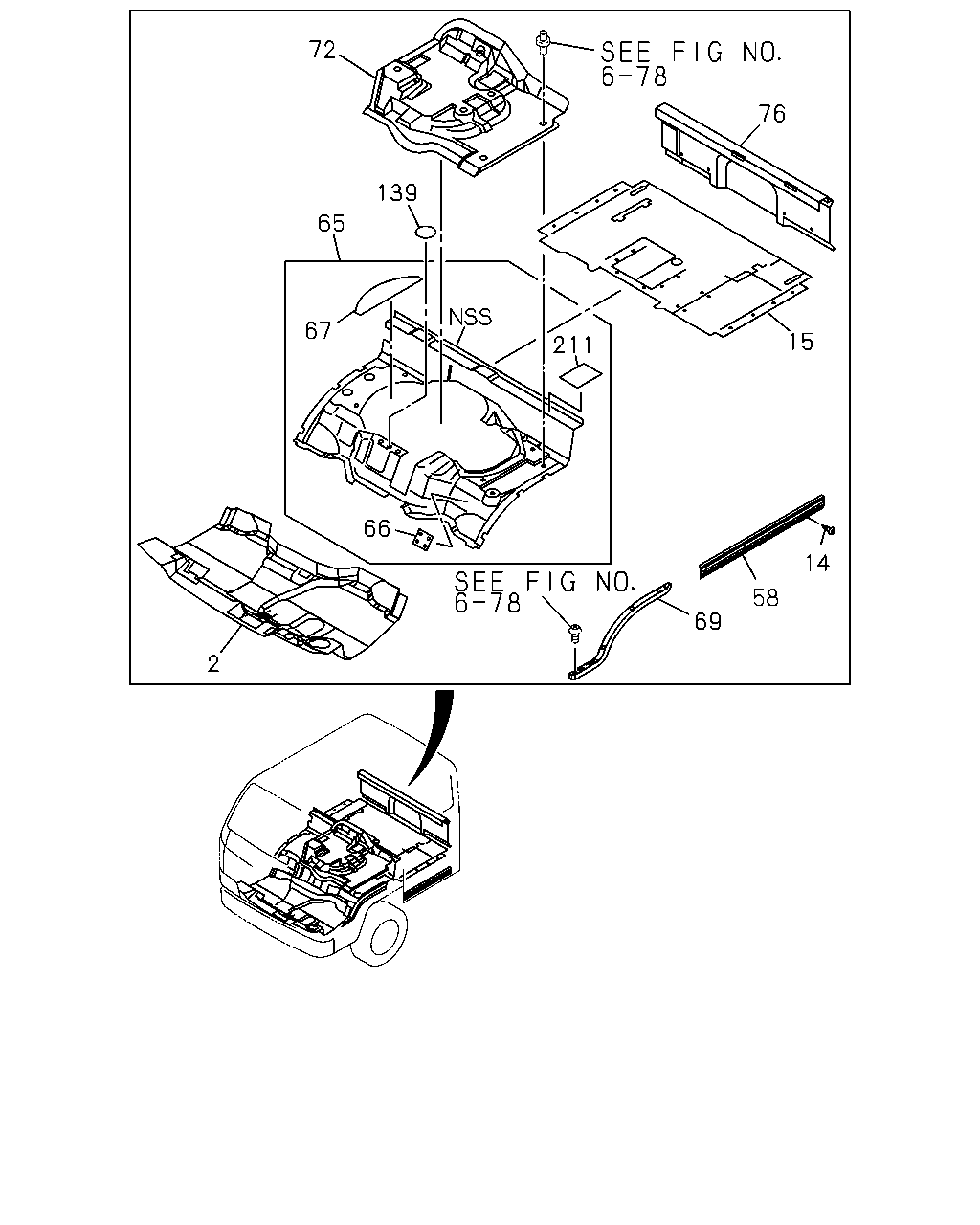

72 76 139 65 67 15 211 66 14 58 69 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	16.800 MAT; FLOOR AIR CONDITIONER MANUAL CONT(C60) DARK BEIGE	8-97097-209-3	01	1	9312-9611	●	●	●	●
2	16.800 MAT; FLOOR AIR CONDITIONER MANUAL CONT(C60) DARK BEIGE	8-97097-209-3	01	1	9612-9711	●	●	●	●	●
2	16.800 MAT; FLOOR AIR CONDITIONER MANUAL CONT(C60) DARK GRAY	8-97098-519-4	01	1	9712-	●	●	●	●	●	●
2	16.800 MAT; FLOOR EXC. AIR CONDITIONER MANUAL CONT(C60) DARK BEIGE	8-97097-210-3	01	1	9312-9611	●	●	●	●
2	16.800 MAT; FLOOR EXC. AIR CONDITIONER MANUAL CONT(C60) DARK BEIGE	8-97097-210-3	01	1	9612-9711	●	●	●	●	●
2	16.800 MAT; FLOOR EXC. AIR CONDITIONER MANUAL CONT(C60) DARK GRAY	8-97098-520-4	01	1	9712-	●	●	●	●	●	●
14	16.870 SCREW; PLATE 16.345 M5X16 W/PL WASHER TAPPING	8-94279-123-0	08	1	9312-				●
15	16.800 MAT; FLOOR REAR DARK BEIGE	8-97098-712-0	01	1	9312-9704				●
15	16.800 MAT; FLOOR REAR 4BE1 ENG(RLH) DARK BEIGE	8-97098-712-0	01	1	9705-9711				●
15	16.800 MAT; FLOOR REAR 4BD2 ENG(RLW)	8-97890-274-0	01	1	9705-9711				●
15	16.800 MAT; FLOOR REAR	8-97890-276-0	01	1	9712-				●
58	08.153 PLATE; GUARD,RR FLOOR MAT	8-97081-344-3	02	1	9312-				●
65	16.802 MAT ASM; SILENCER,CAB FLOOR MANUAL TILT CAB<RWZ> DARK BEIGE	8-97856-825-5	01	1	9312-9611	●	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR MANUAL TILT CAB<RWZ> DARK BEIGE	8-97856-825-5	01	1	9612-9711	●	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK BEIGE	8-97856-825-5	01	1	9612-9711					●
65	16.802 MAT ASM; SILENCER,CAB FLOOR MANUAL TILT CAB<RWZ> DARK GRAY	8-97868-397-5	01	1	9712-9804	●	●	●		●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK GRAY	8-97868-397-5	01	1	9805-	●	●	●		●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK BEIGE	8-97856-827-5	01	1	9312-9711				●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK GRAY	8-97868-356-5	01	1	9712-				●
66	16.549 HOOK; COVER MANUAL TILT CAB<RWZ> DARK BEIGE	8-97857-192-0	02	1	9312-9611	●	●	●
66	16.549 HOOK; COVER DARK BEIGE	8-97857-192-0	02	1	9312-9611				●
66	16.549 HOOK; COVER MANUAL TILT CAB<RWZ> DARK BEIGE	8-97857-192-0	02	1	9612-9711	●	●	●
66	16.549 HOOK; COVER DARK BEIGE	8-97857-192-0	02	1	9612-9711				●	●
66	16.549 HOOK; COVER MANUAL TILT CAB<RWZ> DARK GRAY	8-97859-705-0	02	1	9712-9801	●	●	●
66	16.549 HOOK; COVER DARK GRAY	8-97859-705-0	02	1	9712-9801				●	●	●
66	16.549 HOOK; COVER MANUAL TILT CAB<RWZ> DARK GRAY	8-97859-705-0	02	1	9802-9804	●	●	●		●	●
66	16.549 HOOK; COVER DARK GRAY	8-97859-705-0	02	1	9802-9804				●
66	16.549 HOOK; COVER DARK GRAY	8-97859-705-0	02	1	9805-	●	●	●	●	●	●
67	16.549 LID; COVER MANUAL TILT CAB<RWZ> DARK BEIGE	8-97857-924-0	01	1	9312-9611	●	●	●
67	16.549 LID; COVER DARK BEIGE	8-97857-924-0	01	1	9312-9611				●
67	16.549 LID; COVER MANUAL TILT CAB<RWZ> DARK BEIGE	8-97857-924-0	01	1	9612-9711	●	●	●
67	16.549 LID; COVER DARK BEIGE	8-97857-924-0	01	1	9612-9711				●	●
67	16.549 LID; COVER MANUAL TILT CAB<RWZ> DARK GRAY	8-97868-518-0	01	1	9712-9801	●	●	●
67	16.549 LID; COVER DARK GRAY	8-97868-518-0	01	1	9712-9801				●	●	●
67	16.549 LID; COVER MANUAL TILT CAB<RWZ> DARK GRAY	8-97868-518-0	01	1	9802-9804	●	●	●		●	●
67	16.549 LID; COVER DARK GRAY	8-97868-518-0	01	1	9802-9804				●
67	16.549 LID; COVER DARK GRAY	8-97868-518-0	01	1	9805-	●	●	●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE DARK BEIGE	8-97853-958-0	01	1	9312-9611	●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE DARK BEIGE	8-97853-958-0	01	1	9612-9711	●	●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE DARK GRAY	8-97857-552-0	01	1	9712-	●	●	●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE DARK BEIGE	8-97853-957-0	01	1	9312-9611	●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE DARK BEIGE	8-97853-957-0	01	1	9612-9711	●	●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE DARK GRAY	8-97857-551-0	01	1	9712-	●	●	●	●	●	●
72	16.800 MAT; SILENCER,ENG COVER DARK BEIGE	8-97856-830-3	01	1	9312-9611	●	●	●	●
72	16.800 MAT; SILENCER,ENG COVER DARK BEIGE	8-97856-830-3	01	1	9612-9711	●	●	●	●	●
72	16.800 MAT; SILENCER,ENG COVER DARK GRAY	8-97890-496-0	01	1	9712-	●	●	●	●	●	●
76	16.800 MAT; FLOOR,REINF,CAB RR MTG DARK BEIGE	8-97856-829-2	01	1	9312-9704				●
76	16.800 MAT; FLOOR,REINF,CAB RR MTG 4BE1 ENG(RLH) DARK BEIGE	8-97856-829-2	01	1	9705-9711				●
76	16.800 MAT; FLOOR,REINF,CAB RR MTG 4BD2 ENG(RLW)	8-97890-275-0	01	1	9705-9711				●
76	16.800 MAT; FLOOR,REINF,CAB RR MTG	8-97890-277-0	01	1	9712-				●
211	16.800 COVER; HINGE MANUAL TILT CAB<RWZ>	8-97857-191-0	02	1	9312-9312	●	●	●
211	16.800 COVER; HINGE	8-97857-191-0	02	1	9312-9312				●
211	16.800 COVER; HINGE MANUAL TILT CAB<RWZ>	8-97857-191-1	01	1	9401-9405	●	●	●
211	16.800 COVER; HINGE	8-97857-191-1	02	1	9401-9405				●
