6-70 — FLOOR PANEL (#48117) — 328 parça
çizim 20717
377 378 380 398 381 380 378
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
377 16.545 RAIL ASM; MTG,FRT 8-97850-413-7 01 1 9312-9510 ● ● ● ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-414-9 01 1 9511-9611 ● ● ● ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-414-9 01 1 9612-9708 ● ● ● ● ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-776-0 01 1 9709-9711 ● ● ● ● ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-776-0 01 1 9712-9802 ● ● ● ● ● ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-776-0 01 1 9803-9806 ● ● ● ●
377 16.545 RAIL ASM; MTG,FRT
EXC. MANUAL TILT CAB<RWZ> 		8-97850-776-0 01 1 9803-9806 ● ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 		8-97850-776-0 01 1 9803-9806 ● ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-776-0 01 1 9807- ● ● ● ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 		8-97850-776-0 01 1 9807- ● ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97850-776-0 01 1 9807- ● ●
377 16.545 RAIL ASM; MTG,FRT
EXC. MANUAL TILT CAB<RWZ> 		8-97850-776-0 01 1 9807- ● ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) 		8-97850-482-9 01 1 9803-9806 ● ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) IDENTIFICATION LABEL FOR KD<6UT> 		8-97850-482-9 01 1 9807- ● ●
378 16.545 GASSET; LWR 8-97850-355-2 01 1 9312-9403 ● ● ● ●
378 16.545 GASSET; LWR 8-97850-052-9 01 1 9404-9407 ● ● ● ●
378 16.545 GASSET; LWR 8-97850-672-1 01 1 9408-9611 ● ● ● ●
378 16.545 GASSET; LWR 8-97850-672-1 01 1 9612-9711 ● ● ● ● ●
378 16.545 GASSET; LWR 8-97850-672-1 01 1 9712- ● ● ● ● ● ●
378 16.545 GASSET; LWR 8-97850-354-2 01 1 9312-9403 ● ● ● ●
378 16.545 GASSET; LWR 8-97850-051-9 01 1 9404-9407 ● ● ● ●
378 16.545 GASSET; LWR 8-97850-671-0 01 1 9408-9611 ● ● ● ●
378 16.545 GASSET; LWR 8-97850-671-0 01 1 9612-9711 ● ● ● ● ●
378 16.545 GASSET; LWR 8-97850-671-0 01 1 9712- ● ● ● ● ● ●
380 16.545 BRACKET; HEAD LAMP 8-97850-359-1 01 1 9312-9611 ● ● ● ●
380 16.545 BRACKET; HEAD LAMP 8-97850-359-1 01 1 9612-9711 ● ● ● ● ●
380 16.545 BRACKET; HEAD LAMP 8-97850-359-1 01 1 9712- ● ● ● ● ● ●
380 16.545 BRACKET; HEAD LAMP 8-97850-358-1 01 1 9312-9501 ● ● ● ●
380 16.545 BRACKET; HEAD LAMP 8-97850-704-0 01 1 9502-9611 ● ● ● ●
380 16.545 BRACKET; HEAD LAMP 8-97850-704-0 01 1 9612-9711 ● ● ● ● ●
380 16.545 BRACKET; HEAD LAMP 8-97850-704-0 01 1 9712- ● ● ● ● ● ●
381 16.545 BRACKET; AIR INTAKE DUCT,FRT 8-97850-352-1 01 1 9312-9611 ● ● ● ●
381 16.545 BRACKET; AIR INTAKE DUCT,FRT 8-97850-352-1 01 1 9612-9711 ● ● ● ● ●
381 16.545 BRACKET; AIR INTAKE DUCT,FRT 8-97850-352-1 01 1 9712- ● ● ● ● ● ●
398 16.545 BRACKET; PIPE SUPPORT 8-97850-318-1 01 1 9312-9611 ● ● ● ●
398 16.545 BRACKET; PIPE SUPPORT 8-97850-318-1 01 1 9612-9711 ● ● ● ● ●
398 16.545 BRACKET; PIPE SUPPORT 8-97850-318-1 01 1 9712- ● ● ● ● ● ●

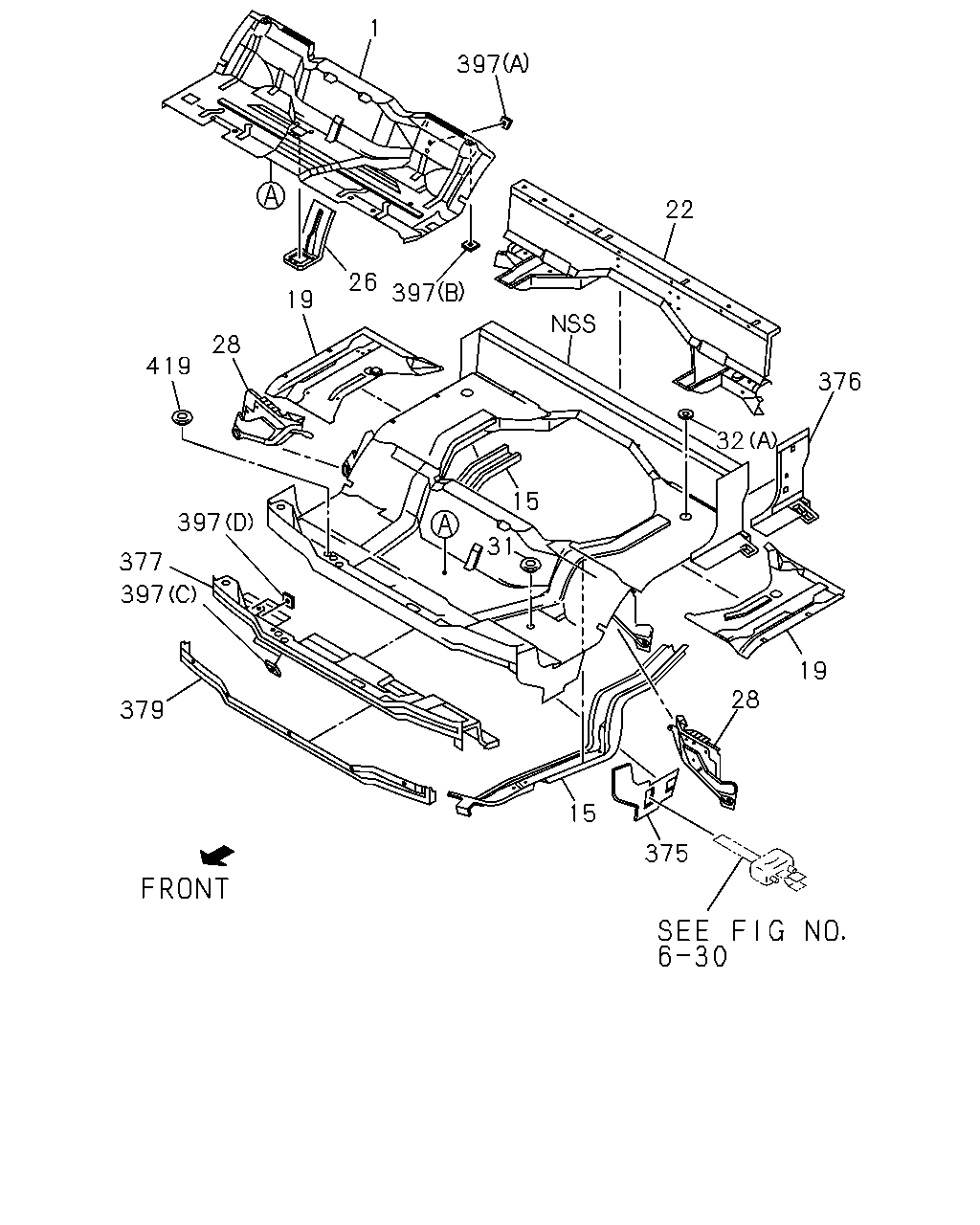

çizim 66917
1 397 22 26 397 19 28 419 376 32 15 397 31 377 397 19 28 379 15 375
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.545 PANEL; FLOOR 8-97850-402-5 01 1 9312-9611 ● ● ● ●
1 16.545 PANEL; FLOOR 8-97850-402-5 01 1 9612-9708 ● ● ● ● ●
1 16.545 PANEL; FLOOR 8-97850-402-5 01 1 9709-9711 ● ● ● ●
1 16.545 PANEL; FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-402-5 01 1 9709-9711 ●
1 16.545 PANEL; FLOOR
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 		8-97850-402-5 01 1 9709-9711 ●
1 16.545 PANEL; FLOOR 8-97850-402-5 01 1 9712-9806 ● ● ● ●
1 16.545 PANEL; FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-402-5 01 1 9712-9806 ● ●
1 16.545 PANEL; FLOOR
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 		8-97850-402-5 01 1 9712-9806 ● ●
1 16.545 PANEL; FLOOR 8-97850-402-5 01 1 9807- ● ● ● ●
1 16.545 PANEL; FLOOR
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 		8-97850-402-5 01 1 9807- ● ●
1 16.545 PANEL; FLOOR
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97850-402-5 01 1 9807- ● ●
1 16.545 PANEL; FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-402-5 01 1 9807- ● ●
1 16.545 PANEL; FLOOR
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) 		8-97850-511-4 01 1 9709-9711 ●
1 16.545 PANEL; FLOOR
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) 		8-97850-511-4 01 1 9712-9806 ● ●
1 16.545 PANEL; FLOOR
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) IDENTIFICATION LABEL FOR KD<6UT> 		8-97850-511-4 01 1 9807- ● ●
15 16.545 FRAME; UNDER 8-97850-060-9 01 1 9312-9611 ● ● ● ●
15 16.545 FRAME; UNDER 8-97850-060-9 01 1 9612-9711 ● ● ● ● ●
15 16.545 FRAME; UNDER 8-97850-060-9 01 1 9712- ● ● ● ● ● ●
15 16.545 FRAME; UNDER 8-97850-059-9 01 1 9312-9611 ● ● ● ●
15 16.545 FRAME; UNDER 8-97850-059-9 01 1 9612-9711 ● ● ● ● ●
15 16.545 FRAME; UNDER 8-97850-059-9 01 1 9712- ● ● ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-405-8 01 1 9312-9611 ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-405-8 01 1 9612-9711 ● ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-405-9 01 1 9712- ● ● ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-335-2 01 1 9312-9611 ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-335-3 01 1 9612-9711 ● ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-335-4 01 1 9712- ● ● ● ● ● ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> 		8-97850-408-8 01 1 9312-9611 ● ● ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> 		8-97850-408-8 01 1 9612-9711 ● ● ●
22 16.545 FRAME; FLOOR REAR 8-97850-408-8 01 1 9612-9711 ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> 		8-97850-408-8 01 1 9712-9801 ● ● ●
22 16.545 FRAME; FLOOR REAR 8-97850-408-8 01 1 9712-9801 ● ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> 		8-97850-408-8 01 1 9802- ● ● ● ● ●
22 16.545 FRAME; FLOOR REAR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-535-6 01 1 9312-9711 ● ● ●
22 16.545 FRAME; FLOOR REAR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-535-6 01 1 9712-9801 ● ● ●
22 16.545 FRAME; FLOOR REAR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-535-6 01 1 9802- ● ● ● ● ●
22 16.545 FRAME; FLOOR REAR 8-97850-502-6 01 1 9312-9711 ●
22 16.545 FRAME; FLOOR REAR 8-97850-502-6 01 1 9712- ●
26 16.545 PANEL; GEAR CONT REINF 8-97850-403-0 01 1 9312-9611 ● ● ● ●
26 16.545 PANEL; GEAR CONT REINF 8-97850-403-0 01 1 9612-9711 ● ● ● ● ●
26 16.545 PANEL; GEAR CONT REINF 8-97850-403-0 01 1 9712- ● ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-339-2 01 1 9312-9403 ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-017-6 01 1 9404-9611 ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-017-6 01 1 9612-9711 ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-017-7 01 1 9712- ● ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-338-4 01 1 9312-9611 ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-338-4 01 1 9612-9711 ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-338-5 01 1 9712- ● ● ● ● ● ●
31 16.547 GROMMET; LOCATION HOLE,CAB FLOOR
08.155 OD=28.5 		8-94279-711-0 02 1 9312-9611 ● ● ● ●
31 16.547 GROMMET; LOCATION HOLE,CAB FLOOR
08.155 OD=28.5 		8-94279-711-0 02 1 9612-9711 ● ● ● ● ●
31 16.547 GROMMET; LOCATION HOLE,CAB FLOOR
08.155 OD=28.5 		8-94279-711-0 02 1 9712- ● ● ● ● ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
08.131 (A) OD=53.5 		8-94356-253-0 02 1 9312-9611 ● ● ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
08.131 (A) OD=53.5 		8-94356-253-0 02 1 9612-9711 ● ● ● ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
08.131 (A) OD=53.5 		8-94356-253-0 02 1 9712- ● ● ● ● ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
15.222 (B) OD=35 		8-94122-971-0 04 1 9312- ●
375 16.545 CLOSING; PILLAR 8-97850-087-3 01 1 9312-9611 ● ● ● ●
375 16.545 CLOSING; PILLAR 8-97850-087-3 01 1 9612-9711 ● ● ● ● ●
375 16.545 CLOSING; PILLAR 8-97850-087-3 01 1 9712- ● ● ● ● ● ●
375 16.545 CLOSING; PILLAR 8-97850-086-4 01 1 9312-9611 ● ● ● ●
375 16.545 CLOSING; PILLAR 8-97850-086-4 01 1 9612-9711 ● ● ● ● ●
375 16.545 CLOSING; PILLAR 8-97850-086-4 01 1 9712- ● ● ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-320-6 01 1 9312-9611 ● ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-320-6 01 1 9612-9711 ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-320-6 01 1 9712- ● ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-024-6 01 1 9312-9611 ● ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-024-6 01 1 9612-9711 ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-024-6 01 1 9712- ● ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-187-3 01 1 9312- ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-186-3 01 1 9312- ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-413-7 01 1 9312-9510 ● ● ● ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-414-9 01 1 9511-9611 ● ● ● ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-414-9 01 1 9612-9708 ● ● ● ● ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-776-0 01 1 9709-9711 ● ● ● ● ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-776-0 01 1 9712-9802 ● ● ● ● ● ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-776-0 01 1 9803-9806 ● ● ● ●
377 16.545 RAIL ASM; MTG,FRT
EXC. MANUAL TILT CAB<RWZ> 		8-97850-776-0 01 1 9803-9806 ● ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 		8-97850-776-0 01 1 9803-9806 ● ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-776-0 01 1 9807- ● ● ● ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 		8-97850-776-0 01 1 9807- ● ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97850-776-0 01 1 9807- ● ●
377 16.545 RAIL ASM; MTG,FRT
EXC. MANUAL TILT CAB<RWZ> 		8-97850-776-0 01 1 9807- ● ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) 		8-97850-482-9 01 1 9803-9806 ● ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) IDENTIFICATION LABEL FOR KD<6UT> 		8-97850-482-9 01 1 9807- ● ●
379 16.545 PANEL 8-97850-129-2 01 1 9312-9611 ● ● ● ●
379 16.545 PANEL 8-97850-129-2 01 1 9612-9711 ● ● ● ● ●
379 16.545 PANEL 8-97850-129-2 01 1 9712- ● ● ● ● ● ●
397 16.545 NUT; PIERCE
(A) 		8-94279-531-0 04 1 9312-9510 ● ● ● ●
397 16.545 NUT; PIERCE
(A) M6 		9-09114-046-0 04 1 9511-9611 ● ● ● ●
397 16.545 NUT; PIERCE
(A) M6 		9-09114-046-0 04 1 9612-9708 ● ● ● ● ●
397 16.545 NUT; PIERCE
(A) M6 		9-09114-046-0 04 1 9709-9711 ● ● ● ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> (A) M6 		9-09114-046-0 04 1 9709-9711 ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) (A) M6 		9-09114-046-0 04 1 9709-9711 ●
397 16.545 NUT; PIERCE
(A) M6 		9-09114-046-0 04 1 9712-9806 ● ● ● ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> (A) M6 		9-09114-046-0 04 1 9712-9806 ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) (A) M6 		9-09114-046-0 04 1 9712-9806 ● ●
397 16.545 NUT; PIERCE
(A) M6 		9-09114-046-0 04 1 9807- ● ● ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) (A) M6 		9-09114-046-0 04 1 9807- ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) M6 		9-09114-046-0 04 1 9807- ● ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> (A) M6 		9-09114-046-0 04 1 9807- ● ●
397 16.545 NUT; PIERCE
(B) 		8-94279-533-0 03 1 9312-9510 ● ● ● ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 03 1 9511-9611 ● ● ● ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 03 1 9612-9708 ● ● ● ● ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 03 1 9709-9711 ● ● ● ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 03 1 9709-9711 ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 16.588 (B) M8 		9-09114-048-0 03 1 9709-9711 ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 03 1 9712-9804 ● ● ● ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 03 1 9712-9804 ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 16.588 (B) M8 		9-09114-048-0 03 1 9712-9804 ● ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 03 1 9805-9805 ● ● ● ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 03 1 9805-9805 ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 16.588 (B) M8 		9-09114-048-0 03 1 9805-9805 ● ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 03 1 9806-9806 ● ● ● ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 03 1 9806-9806 ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 16.588 (B) M8 		9-09114-048-0 03 1 9806-9806 ● ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 03 1 9807- ● ● ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 16.588 (B) M8 		9-09114-048-0 03 1 9807- ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> 16.588 (B) M8 		9-09114-048-0 03 1 9807- ● ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 03 1 9807- ● ●
397 16.545 NUT; PIERCE
(D) M10 		9-09114-030-0 03 1 9511-9611 ● ● ● ●
397 16.545 NUT; PIERCE
(D) M10 		9-09114-030-0 03 1 9612-9711 ● ● ● ● ●
397 16.545 NUT; PIERCE
(D) M10 		9-09114-030-0 03 1 9712-9802 ● ● ● ● ● ●
397 16.545 NUT; PIERCE
(D) M10 		9-09114-030-0 03 1 9803-9806 ● ● ● ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> (D) M10 		9-09114-030-0 03 1 9803-9806 ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) (D) M10 		9-09114-030-0 03 1 9803-9806 ● ●
397 16.545 NUT; PIERCE
(D) M10 		9-09114-030-0 03 1 9807- ● ● ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) (D) M10 		9-09114-030-0 03 1 9807- ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) M10 		9-09114-030-0 03 1 9807- ● ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> (D) M10 		9-09114-030-0 03 1 9807- ● ●
397 16.545 NUT; PIERCE
16.588 (C) M8 		9-09114-048-0 04 1 9511-9611 ● ● ● ●
397 16.545 NUT; PIERCE
16.588 (C) M8 		9-09114-048-0 04 1 9612-9711 ● ● ● ● ●
397 16.545 NUT; PIERCE
16.588 (C) M8 		9-09114-048-0 04 1 9712-9802 ● ● ● ● ● ●
397 16.545 NUT; PIERCE
16.588 (C) M8 		9-09114-048-0 04 1 9803-9806 ● ● ● ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> 16.588 (C) M8 		9-09114-048-0 04 1 9803-9806 ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 16.588 (C) M8 		9-09114-048-0 04 1 9803-9806 ● ●
397 16.545 NUT; PIERCE
16.588 (C) M8 		9-09114-048-0 04 1 9807- ● ● ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 16.588 (C) M8 		9-09114-048-0 04 1 9807- ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> 16.588 (C) M8 		9-09114-048-0 04 1 9807- ● ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> 16.588 (C) M8 		9-09114-048-0 04 1 9807- ● ●
419 04.012 GROMMET; CONT SHAFT,FLOOR PANEL
16.802 OD=36 		1-09983-092-0 01 1 9312-9412 ● ● ● ●
419 04.012 GROMMET; CONT SHAFT,FLOOR PANEL
EXC. PTO TRANSMISSION SIDE(V66) 16.802 OD=36 		1-09983-092-0 01 1 9501-9611 ● ● ● ●
419 04.012 GROMMET; CONT SHAFT,FLOOR PANEL
EXC. PTO TRANSMISSION SIDE(V66) 16.802 OD=36 		1-09983-092-0 01 1 9612-9711 ● ● ● ● ●
419 04.012 GROMMET; CONT SHAFT,FLOOR PANEL
EXC. PTO TRANSMISSION SIDE(V66) 16.802 OD=36 		1-09983-092-0 01 1 9712- ● ● ● ● ● ●

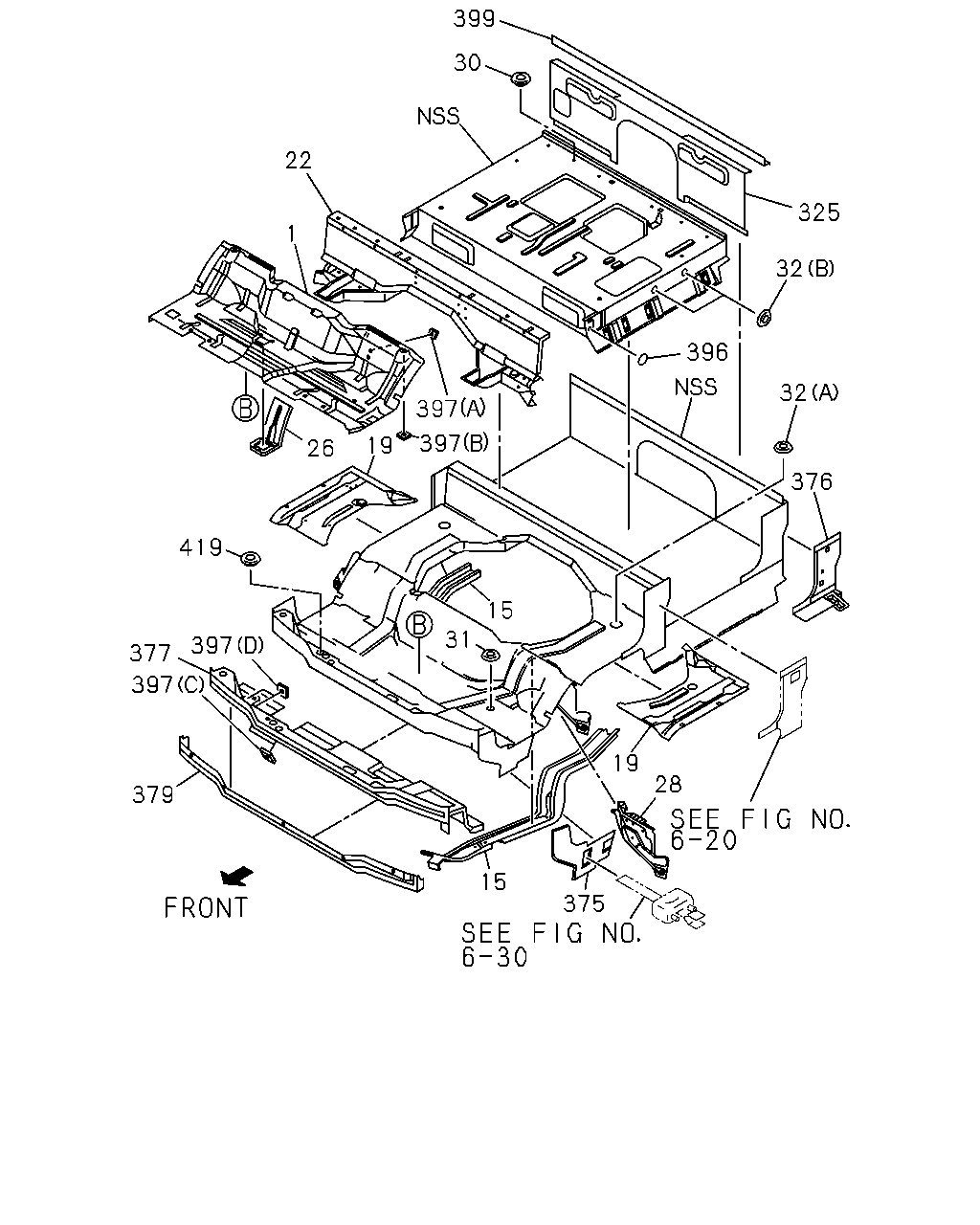

çizim 70761
399 30 22 325 1 32 396 32 397 397 19 26 376 419 15 31 397 377 397 19 28 379 15 375
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.545 PANEL; FLOOR 8-97850-402-5 01 1 9312-9611 ● ● ● ●
1 16.545 PANEL; FLOOR 8-97850-402-5 01 1 9612-9708 ● ● ● ● ●
1 16.545 PANEL; FLOOR 8-97850-402-5 01 1 9709-9711 ● ● ● ●
1 16.545 PANEL; FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-402-5 01 1 9709-9711 ●
1 16.545 PANEL; FLOOR
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 		8-97850-402-5 01 1 9709-9711 ●
1 16.545 PANEL; FLOOR 8-97850-402-5 01 1 9712-9806 ● ● ● ●
1 16.545 PANEL; FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-402-5 01 1 9712-9806 ● ●
1 16.545 PANEL; FLOOR
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 		8-97850-402-5 01 1 9712-9806 ● ●
1 16.545 PANEL; FLOOR 8-97850-402-5 01 1 9807- ● ● ● ●
1 16.545 PANEL; FLOOR
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 		8-97850-402-5 01 1 9807- ● ●
1 16.545 PANEL; FLOOR
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97850-402-5 01 1 9807- ● ●
1 16.545 PANEL; FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-402-5 01 1 9807- ● ●
1 16.545 PANEL; FLOOR
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) 		8-97850-511-4 01 1 9709-9711 ●
1 16.545 PANEL; FLOOR
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) 		8-97850-511-4 01 1 9712-9806 ● ●
1 16.545 PANEL; FLOOR
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) IDENTIFICATION LABEL FOR KD<6UT> 		8-97850-511-4 01 1 9807- ● ●
15 16.545 FRAME; UNDER 8-97850-060-9 01 1 9312-9611 ● ● ● ●
15 16.545 FRAME; UNDER 8-97850-060-9 01 1 9612-9711 ● ● ● ● ●
15 16.545 FRAME; UNDER 8-97850-060-9 01 1 9712- ● ● ● ● ● ●
15 16.545 FRAME; UNDER 8-97850-059-9 01 1 9312-9611 ● ● ● ●
15 16.545 FRAME; UNDER 8-97850-059-9 01 1 9612-9711 ● ● ● ● ●
15 16.545 FRAME; UNDER 8-97850-059-9 01 1 9712- ● ● ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-405-8 01 1 9312-9611 ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-405-8 01 1 9612-9711 ● ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-405-9 01 1 9712- ● ● ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-335-2 01 1 9312-9611 ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-335-3 01 1 9612-9711 ● ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-335-4 01 1 9712- ● ● ● ● ● ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> 		8-97850-408-8 01 1 9312-9611 ● ● ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> 		8-97850-408-8 01 1 9612-9711 ● ● ●
22 16.545 FRAME; FLOOR REAR 8-97850-408-8 01 1 9612-9711 ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> 		8-97850-408-8 01 1 9712-9801 ● ● ●
22 16.545 FRAME; FLOOR REAR 8-97850-408-8 01 1 9712-9801 ● ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> 		8-97850-408-8 01 1 9802- ● ● ● ● ●
22 16.545 FRAME; FLOOR REAR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-535-6 01 1 9312-9711 ● ● ●
22 16.545 FRAME; FLOOR REAR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-535-6 01 1 9712-9801 ● ● ●
22 16.545 FRAME; FLOOR REAR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-535-6 01 1 9802- ● ● ● ● ●
22 16.545 FRAME; FLOOR REAR 8-97850-502-6 01 1 9312-9711 ●
22 16.545 FRAME; FLOOR REAR 8-97850-502-6 01 1 9712- ●
26 16.545 PANEL; GEAR CONT REINF 8-97850-403-0 01 1 9312-9611 ● ● ● ●
26 16.545 PANEL; GEAR CONT REINF 8-97850-403-0 01 1 9612-9711 ● ● ● ● ●
26 16.545 PANEL; GEAR CONT REINF 8-97850-403-0 01 1 9712- ● ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-339-2 01 1 9312-9403 ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-017-6 01 1 9404-9611 ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-017-6 01 1 9612-9711 ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-017-7 01 1 9712- ● ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-338-4 01 1 9312-9611 ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-338-4 01 1 9612-9711 ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-338-5 01 1 9712- ● ● ● ● ● ●
30 16.547 GROMMET; CAB MTG RAIL
OD=74 		8-94279-731-0 02 1 9312- ●
31 16.547 GROMMET; LOCATION HOLE,CAB FLOOR
08.155 OD=28.5 		8-94279-711-0 02 1 9312-9611 ● ● ● ●
31 16.547 GROMMET; LOCATION HOLE,CAB FLOOR
08.155 OD=28.5 		8-94279-711-0 02 1 9612-9711 ● ● ● ● ●
31 16.547 GROMMET; LOCATION HOLE,CAB FLOOR
08.155 OD=28.5 		8-94279-711-0 02 1 9712- ● ● ● ● ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
08.131 (A) OD=53.5 		8-94356-253-0 02 1 9312-9611 ● ● ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
08.131 (A) OD=53.5 		8-94356-253-0 02 1 9612-9711 ● ● ● ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
08.131 (A) OD=53.5 		8-94356-253-0 02 1 9712- ● ● ● ● ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
15.222 (B) OD=35 		8-94122-971-0 04 1 9312- ●
325 16.545 REINFORCEMENT ASM; RR MTG 8-97850-242-7 01 1 9312-9704 ●
325 16.545 REINFORCEMENT ASM; RR MTG
4BE1 ENG(RLH) 		8-97850-242-7 01 1 9705-9711 ●
325 16.545 REINFORCEMENT ASM; RR MTG
4BD2 ENG(RLW) 		8-97890-252-2 01 1 9705-9711 ●
325 16.545 REINFORCEMENT ASM; RR MTG 8-97890-252-2 01 1 9712- ●
375 16.545 CLOSING; PILLAR 8-97850-087-3 01 1 9312-9611 ● ● ● ●
375 16.545 CLOSING; PILLAR 8-97850-087-3 01 1 9612-9711 ● ● ● ● ●
375 16.545 CLOSING; PILLAR 8-97850-087-3 01 1 9712- ● ● ● ● ● ●
375 16.545 CLOSING; PILLAR 8-97850-086-4 01 1 9312-9611 ● ● ● ●
375 16.545 CLOSING; PILLAR 8-97850-086-4 01 1 9612-9711 ● ● ● ● ●
375 16.545 CLOSING; PILLAR 8-97850-086-4 01 1 9712- ● ● ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-320-6 01 1 9312-9611 ● ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-320-6 01 1 9612-9711 ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-320-6 01 1 9712- ● ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-024-6 01 1 9312-9611 ● ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-024-6 01 1 9612-9711 ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-024-6 01 1 9712- ● ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-187-3 01 1 9312- ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-186-3 01 1 9312- ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-413-7 01 1 9312-9510 ● ● ● ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-414-9 01 1 9511-9611 ● ● ● ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-414-9 01 1 9612-9708 ● ● ● ● ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-776-0 01 1 9709-9711 ● ● ● ● ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-776-0 01 1 9712-9802 ● ● ● ● ● ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-776-0 01 1 9803-9806 ● ● ● ●
377 16.545 RAIL ASM; MTG,FRT
EXC. MANUAL TILT CAB<RWZ> 		8-97850-776-0 01 1 9803-9806 ● ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 		8-97850-776-0 01 1 9803-9806 ● ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-776-0 01 1 9807- ● ● ● ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 		8-97850-776-0 01 1 9807- ● ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97850-776-0 01 1 9807- ● ●
377 16.545 RAIL ASM; MTG,FRT
EXC. MANUAL TILT CAB<RWZ> 		8-97850-776-0 01 1 9807- ● ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) 		8-97850-482-9 01 1 9803-9806 ● ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) IDENTIFICATION LABEL FOR KD<6UT> 		8-97850-482-9 01 1 9807- ● ●
379 16.545 PANEL 8-97850-129-2 01 1 9312-9611 ● ● ● ●
379 16.545 PANEL 8-97850-129-2 01 1 9612-9711 ● ● ● ● ●
379 16.545 PANEL 8-97850-129-2 01 1 9712- ● ● ● ● ● ●
396 16.547 GROMMET; LOCATION HOLE 1-09983-049-0 02 1 9312- ●
397 16.545 NUT; PIERCE
(A) 		8-94279-531-0 04 1 9312-9510 ● ● ● ●
397 16.545 NUT; PIERCE
(A) M6 		9-09114-046-0 04 1 9511-9611 ● ● ● ●
397 16.545 NUT; PIERCE
(A) M6 		9-09114-046-0 04 1 9612-9708 ● ● ● ● ●
397 16.545 NUT; PIERCE
(A) M6 		9-09114-046-0 04 1 9709-9711 ● ● ● ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> (A) M6 		9-09114-046-0 04 1 9709-9711 ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) (A) M6 		9-09114-046-0 04 1 9709-9711 ●
397 16.545 NUT; PIERCE
(A) M6 		9-09114-046-0 04 1 9712-9806 ● ● ● ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> (A) M6 		9-09114-046-0 04 1 9712-9806 ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) (A) M6 		9-09114-046-0 04 1 9712-9806 ● ●
397 16.545 NUT; PIERCE
(A) M6 		9-09114-046-0 04 1 9807- ● ● ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) (A) M6 		9-09114-046-0 04 1 9807- ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) M6 		9-09114-046-0 04 1 9807- ● ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> (A) M6 		9-09114-046-0 04 1 9807- ● ●
397 16.545 NUT; PIERCE
(B) 		8-94279-533-0 03 1 9312-9510 ● ● ● ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 03 1 9511-9611 ● ● ● ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 03 1 9612-9708 ● ● ● ● ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 03 1 9709-9711 ● ● ● ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 03 1 9709-9711 ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 16.588 (B) M8 		9-09114-048-0 03 1 9709-9711 ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 03 1 9712-9804 ● ● ● ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 03 1 9712-9804 ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 16.588 (B) M8 		9-09114-048-0 03 1 9712-9804 ● ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 03 1 9805-9805 ● ● ● ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 03 1 9805-9805 ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 16.588 (B) M8 		9-09114-048-0 03 1 9805-9805 ● ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 03 1 9806-9806 ● ● ● ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 03 1 9806-9806 ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 16.588 (B) M8 		9-09114-048-0 03 1 9806-9806 ● ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 03 1 9807- ● ● ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 16.588 (B) M8 		9-09114-048-0 03 1 9807- ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> 16.588 (B) M8 		9-09114-048-0 03 1 9807- ● ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 03 1 9807- ● ●
397 16.545 NUT; PIERCE
(D) M10 		9-09114-030-0 03 1 9511-9611 ● ● ● ●
397 16.545 NUT; PIERCE
(D) M10 		9-09114-030-0 03 1 9612-9711 ● ● ● ● ●
397 16.545 NUT; PIERCE
(D) M10 		9-09114-030-0 03 1 9712-9802 ● ● ● ● ● ●
397 16.545 NUT; PIERCE
(D) M10 		9-09114-030-0 03 1 9803-9806 ● ● ● ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> (D) M10 		9-09114-030-0 03 1 9803-9806 ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) (D) M10 		9-09114-030-0 03 1 9803-9806 ● ●
397 16.545 NUT; PIERCE
(D) M10 		9-09114-030-0 03 1 9807- ● ● ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) (D) M10 		9-09114-030-0 03 1 9807- ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) M10 		9-09114-030-0 03 1 9807- ● ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> (D) M10 		9-09114-030-0 03 1 9807- ● ●
397 16.545 NUT; PIERCE
16.588 (C) M8 		9-09114-048-0 04 1 9511-9611 ● ● ● ●
397 16.545 NUT; PIERCE
16.588 (C) M8 		9-09114-048-0 04 1 9612-9711 ● ● ● ● ●
397 16.545 NUT; PIERCE
16.588 (C) M8 		9-09114-048-0 04 1 9712-9802 ● ● ● ● ● ●
397 16.545 NUT; PIERCE
16.588 (C) M8 		9-09114-048-0 04 1 9803-9806 ● ● ● ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> 16.588 (C) M8 		9-09114-048-0 04 1 9803-9806 ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 16.588 (C) M8 		9-09114-048-0 04 1 9803-9806 ● ●
397 16.545 NUT; PIERCE
16.588 (C) M8 		9-09114-048-0 04 1 9807- ● ● ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 16.588 (C) M8 		9-09114-048-0 04 1 9807- ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> 16.588 (C) M8 		9-09114-048-0 04 1 9807- ● ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> 16.588 (C) M8 		9-09114-048-0 04 1 9807- ● ●
399 16.545 PANEL; EXTENSION,RR MTG RAIL 8-97850-224-1 01 1 9312- ●
419 04.012 GROMMET; CONT SHAFT,FLOOR PANEL
16.802 OD=36 		1-09983-092-0 01 1 9312-9412 ● ● ● ●
419 04.012 GROMMET; CONT SHAFT,FLOOR PANEL
EXC. PTO TRANSMISSION SIDE(V66) 16.802 OD=36 		1-09983-092-0 01 1 9501-9611 ● ● ● ●
419 04.012 GROMMET; CONT SHAFT,FLOOR PANEL
EXC. PTO TRANSMISSION SIDE(V66) 16.802 OD=36 		1-09983-092-0 01 1 9612-9711 ● ● ● ● ●
419 04.012 GROMMET; CONT SHAFT,FLOOR PANEL
EXC. PTO TRANSMISSION SIDE(V66) 16.802 OD=36 		1-09983-092-0 01 1 9712- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
