◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50697 - NPR/NQR-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-60 - ROOF PANEL ▶
6-60 — ROOF PANEL (#48114) — 56 parça

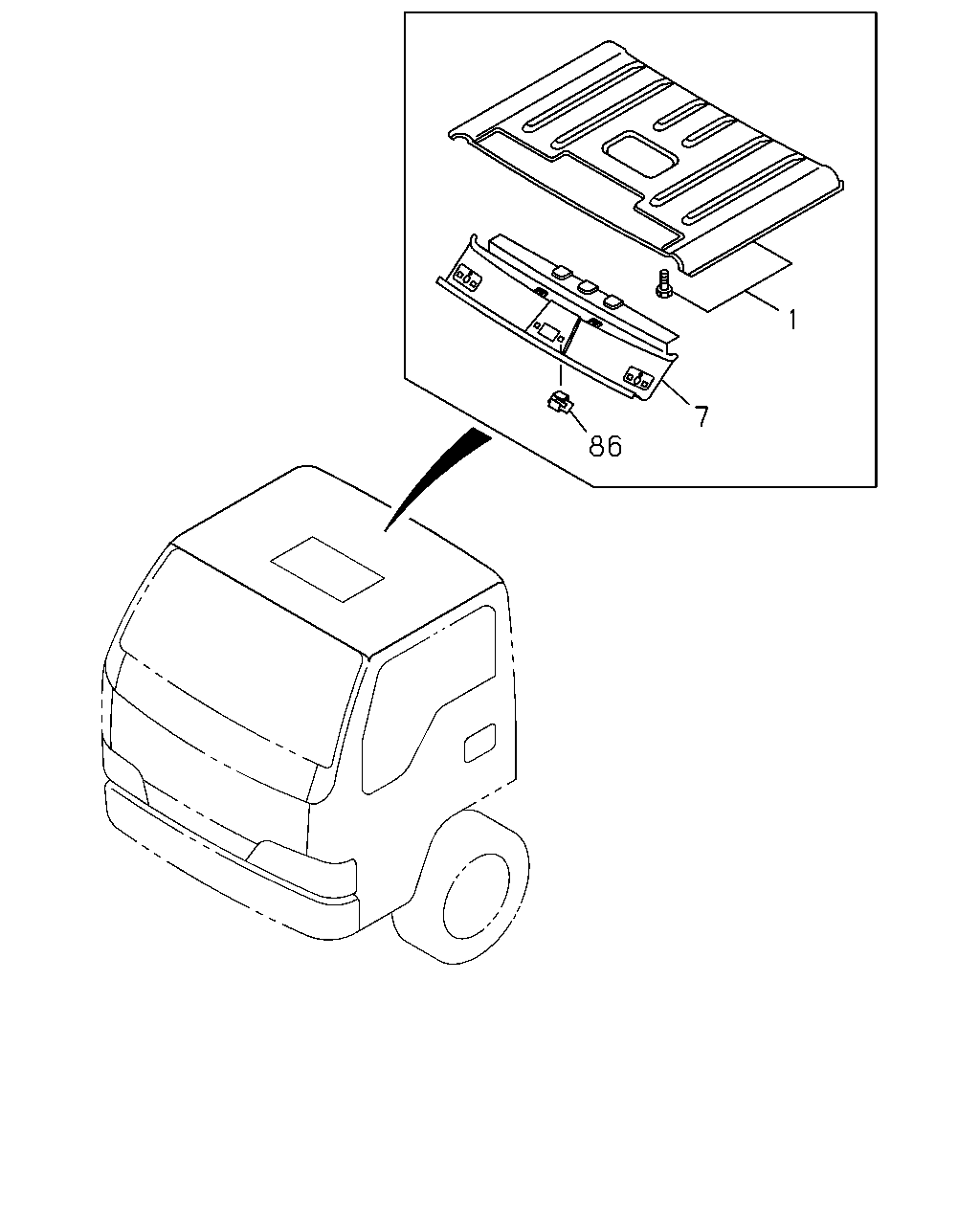

çizim 20715
1 7 86
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> 		8-97851-098-0 01 1 9312-9404 ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> EXC. BRAZIL EQUIPMENT(RWF) 		8-97851-098-0 01 1 9405-9611 ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> EXC. BRAZIL EQUIPMENT(RWF) 		8-97851-098-0 01 1 9612-9711 ● ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> TRAY ROOF HEAD<7EJ> EXC. BRAZIL EQUIPMENT(RWF) 		8-97851-098-0 01 1 9612-9711 ● ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> EXC. BRAZIL EQUIPMENT(RWF) 		8-97851-098-0 01 1 9712- ● ● ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> TRAY ROOF HEAD<7EJ> EXC. BRAZIL EQUIPMENT(RWF) 		8-97851-098-0 01 1 9712- ● ● ● ● ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97851-402-0 01 1 9312-9404 ● ● ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,BRAZIL EQUIPMENT(RWF),TRAY ROOF HEAD<7EJ> 		8-97851-402-0 01 1 9405-9611 ● ● ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,BRAZIL EQUIPMENT(RWF),TRAY ROOF HEAD<7EJ> 		8-97851-402-0 01 1 9612-9711 ● ● ● ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,BRAZIL EQUIPMENT(RWF),TRAY ROOF HEAD<7EJ> 		8-97851-402-0 01 1 9712- ● ● ● ● ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97851-488-0 01 1 9312-9404 ● ● ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>,BRAZIL EQUIPMENT(RWF) 		8-97851-488-0 01 1 9405-9611 ● ● ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>,BRAZIL EQUIPMENT(RWF) 		8-97851-488-0 01 1 9612-9711 ● ● ● ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>,BRAZIL EQUIPMENT(RWF) 		8-97851-488-0 01 1 9712- ● ● ● ● ●
1 16.585 PANEL; ROOF
BRAZIL EQUIPMENT(RWF) 		8-97851-418-1 01 1 9405-9711 ● ●
1 16.585 PANEL; ROOF
BRAZIL EQUIPMENT(RWF) 		8-97851-418-1 01 1 9712- ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> 		8-97851-258-7 01 1 9312- ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97851-403-5 01 1 9312- ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97851-489-5 01 1 9312- ●
7 16.585 PANEL; FRT WINDSHIELD UPR 8-97851-276-4 01 1 9312-9604 ● ● ● ●
7 16.585 PANEL; FRT WINDSHIELD UPR 8-97859-768-0 01 1 9605-9611 ● ● ● ●
7 16.585 PANEL; FRT WINDSHIELD UPR 8-97859-768-0 01 1 9612-9711 ● ● ● ● ●
7 16.585 PANEL; FRT WINDSHIELD UPR 8-97859-768-0 01 1 9712- ● ● ● ● ● ●
86 16.585 NUT; ROOF
16.069 M5 		8-94279-075-1 01 1 9312-9611 ● ● ● ●
86 16.585 NUT; ROOF
16.069 M5 		8-94279-075-1 01 1 9612-9711 ● ● ● ● ●
86 16.585 NUT; ROOF
16.069 M5 		8-94279-075-1 01 1 9712- ● ● ● ● ● ●

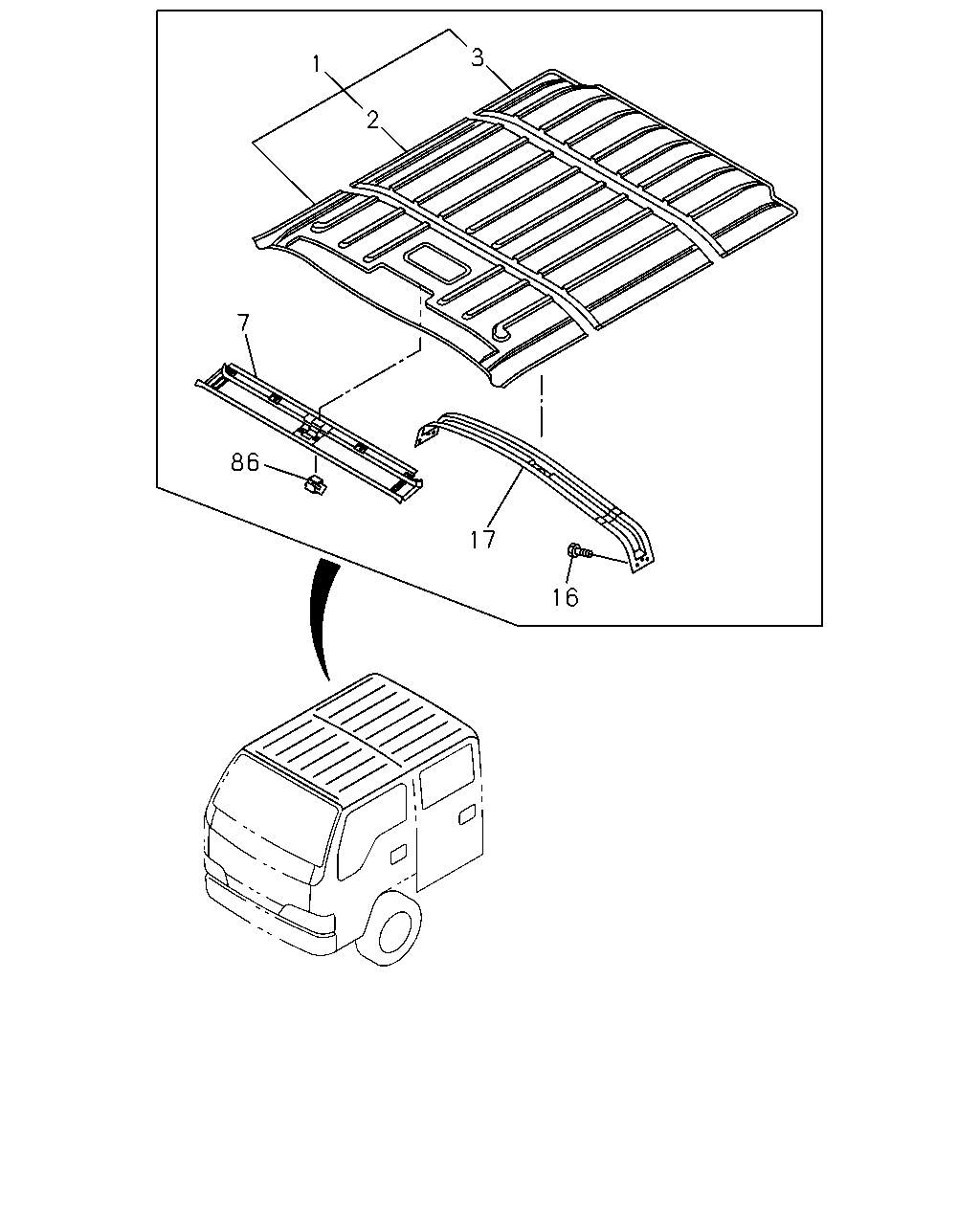

çizim 66802
3 1 2 7 86 17 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> 		8-97851-098-0 01 1 9312-9404 ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> EXC. BRAZIL EQUIPMENT(RWF) 		8-97851-098-0 01 1 9405-9611 ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> EXC. BRAZIL EQUIPMENT(RWF) 		8-97851-098-0 01 1 9612-9711 ● ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> TRAY ROOF HEAD<7EJ> EXC. BRAZIL EQUIPMENT(RWF) 		8-97851-098-0 01 1 9612-9711 ● ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> EXC. BRAZIL EQUIPMENT(RWF) 		8-97851-098-0 01 1 9712- ● ● ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> TRAY ROOF HEAD<7EJ> EXC. BRAZIL EQUIPMENT(RWF) 		8-97851-098-0 01 1 9712- ● ● ● ● ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97851-402-0 01 1 9312-9404 ● ● ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,BRAZIL EQUIPMENT(RWF),TRAY ROOF HEAD<7EJ> 		8-97851-402-0 01 1 9405-9611 ● ● ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,BRAZIL EQUIPMENT(RWF),TRAY ROOF HEAD<7EJ> 		8-97851-402-0 01 1 9612-9711 ● ● ● ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,BRAZIL EQUIPMENT(RWF),TRAY ROOF HEAD<7EJ> 		8-97851-402-0 01 1 9712- ● ● ● ● ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97851-488-0 01 1 9312-9404 ● ● ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>,BRAZIL EQUIPMENT(RWF) 		8-97851-488-0 01 1 9405-9611 ● ● ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>,BRAZIL EQUIPMENT(RWF) 		8-97851-488-0 01 1 9612-9711 ● ● ● ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>,BRAZIL EQUIPMENT(RWF) 		8-97851-488-0 01 1 9712- ● ● ● ● ●
1 16.585 PANEL; ROOF
BRAZIL EQUIPMENT(RWF) 		8-97851-418-1 01 1 9405-9711 ● ●
1 16.585 PANEL; ROOF
BRAZIL EQUIPMENT(RWF) 		8-97851-418-1 01 1 9712- ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> 		8-97851-258-7 01 1 9312- ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97851-403-5 01 1 9312- ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97851-489-5 01 1 9312- ●
2 16.585 PANEL; ROOF,CENTER 8-97851-256-1 01 1 9312- ●
3 16.585 PANEL; ROOF,RR 8-97851-257-4 01 1 9606- ●
7 16.585 PANEL; FRT WINDSHIELD UPR 8-97851-276-4 01 1 9312-9604 ● ● ● ●
7 16.585 PANEL; FRT WINDSHIELD UPR 8-97859-768-0 01 1 9605-9611 ● ● ● ●
7 16.585 PANEL; FRT WINDSHIELD UPR 8-97859-768-0 01 1 9612-9711 ● ● ● ● ●
7 16.585 PANEL; FRT WINDSHIELD UPR 8-97859-768-0 01 1 9712- ● ● ● ● ● ●
16 16.585 SCREW; ROOF SUPPORT
16.085 M6X16 W/LK&PL WASHER 		1-09981-141-0 04 1 9312- ●
17 16.570 REINFORCEMENT; ROOF PNL CENTER 8-97853-626-3 01 1 9312- ●
86 16.585 NUT; ROOF
16.069 M5 		8-94279-075-1 01 1 9312-9611 ● ● ● ●
86 16.585 NUT; ROOF
16.069 M5 		8-94279-075-1 01 1 9612-9711 ● ● ● ● ●
86 16.585 NUT; ROOF
16.069 M5 		8-94279-075-1 01 1 9712- ● ● ● ● ● ●
