Isuzu WW
▶
TRUCKS
▶
NPR
▶
50697 - NPR/NQR-LHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-51 - REAR DOOR GLASS AND REGULATOR
▶

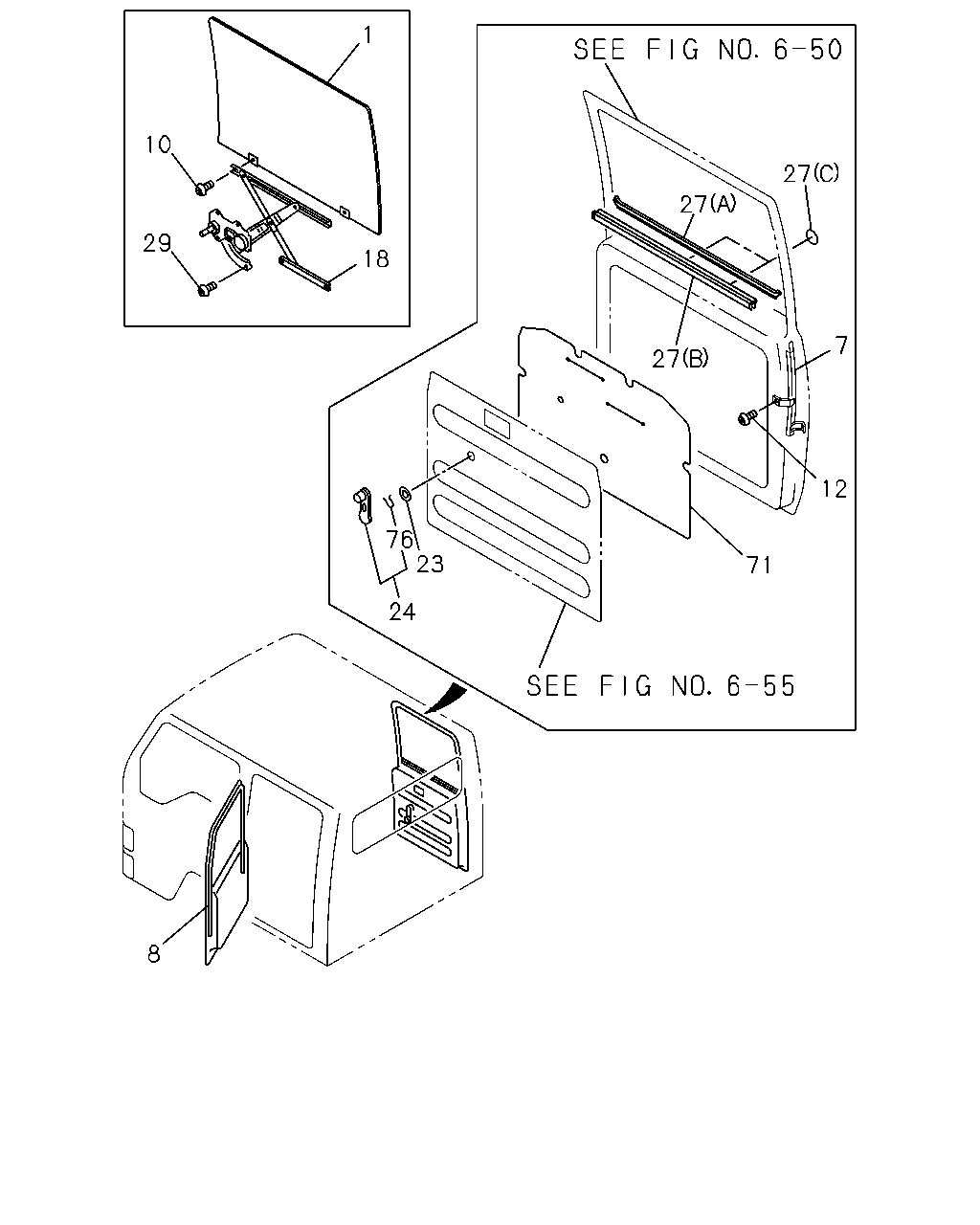

6-51 — REAR DOOR GLASS AND REGULATOR
(#48111) — 27 parça
1
10
27
27
29
18
7
27
12
76
23
71
24
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
16.180 GLASS; RR DOOR
8-97852-559-2
01
1
9312-9501
1
16.180 GLASS; RR DOOR
8-97859-971-0
01
1
9502-9708
1
16.180 GLASS; RR DOOR
8-97867-410-0
01
1
9709-
1
16.180 GLASS; RR DOOR
8-97852-558-2
01
1
9312-9501
1
16.180 GLASS; RR DOOR
8-97859-970-0
01
1
9502-9708
1
16.180 GLASS; RR DOOR
8-97867-409-0
01
1
9709-
7
16.190 CHANNEL; GLASS RUN,RR DOOR
8-97852-207-6
01
1
9312-
7
16.190 CHANNEL; GLASS RUN,RR DOOR
8-97852-206-6
01
1
9312-
8
16.190 RUN; GLASS,RR DOOR
8-97852-363-4
02
1
9312-
10
16.183 SCREW; GLASS
16.445
1-09981-378-1
04
1
9312-9408
10
16.183 SCREW; GLASS
16.445 M6X16 TAPPING W/PL WASHER
1-09981-452-0
04
1
9409-
12
16.181 SCREW; CHANNEL,GLASS RUN
16.183 M6X16 W/LK&PL WASHER
8-94279-402-0
02
1
9312-9412
12
16.181 SCREW; CHANNEL,GLASS RUN
16.183 M6X16 W/LK&PL WASHER
8-94279-402-0
04
1
9501-
18
16.260 REGULATOR; WINDOW,RR DOOR
8-97852-196-2
01
1
9312-
18
16.260 REGULATOR; WINDOW,RR DOOR
8-97852-195-2
01
1
9312-
23
16.270 ESCUTCHEON; HANDLE,WINDOW REG
10.805
8-94220-668-1
02
1
9312-
24
16.270 HANDLE; WINDOW REG,RR DOOR
8-97852-452-0
02
1
9312-9711
24
16.270 HANDLE; WINDOW REG,RR DOOR
DARK GRAY
8-97098-453-0
02
1
9712-
27
16.183 SEAL; WAIST,RR DOOR
16.592 (C) OD=36 BLACK
1-76778-007-0
04
1
9312-9603
27
16.183 SEAL; WAIST,RR DOOR
16.547 (C) OD=36 BLACK
1-76798-018-0
04
1
9604-9711
27
16.183 SEAL; WAIST,RR DOOR
02.580 (C) OD=36 BLACK OD=36 T=0.05 BLACK
5-76777-035-0
04
1
9712-
27
16.183 SEAL; WAIST,RR DOOR
(A)
8-97852-230-2
02
1
9312-
27
16.183 SEAL; WAIST,RR DOOR
(B)
8-97852-231-3
02
1
9312-
29
16.270 SCREW; WINDOW REG
16.263 M6X8 W/LK WASHER
1-09981-040-0
10
1
9312-
71
16.183 SEAL; WATER,RR DOOR
8-97852-232-2
02
1
9312-
76
16.260 PIN
16.270
8-94220-591-0
02
1
9502-9510
76
16.260 PIN
16.270
8-94220-591-0
02
1
9511-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
