6-20 — SIDE PANEL AND STEP (#48103) — 615 parça

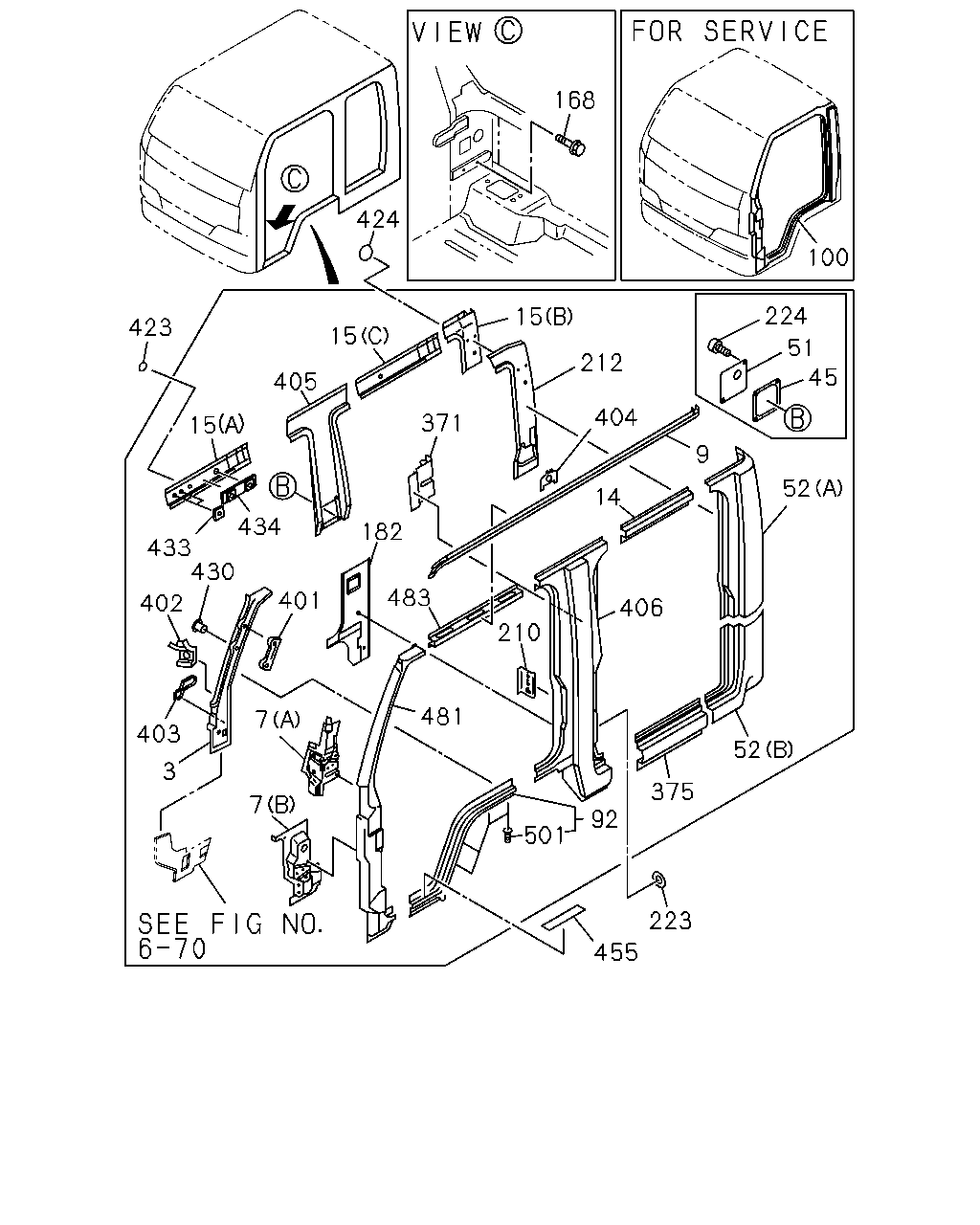

çizim 18740
168 424 100 224 15 423 15 51 212 45 405 404 371 15 9 52 14 434 182 433 430 483 401 402 406 210 481 7 403 52 3 375 7 92 501 223 455
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
3 16.592 PANEL; CLOSING,FRT PILLAR 8-97851-358-4 01 1 9312-9611 ● ● ● ●
3 16.592 PANEL; CLOSING,FRT PILLAR 8-97851-358-4 01 1 9612-9711 ● ● ● ● ●
3 16.592 PANEL; CLOSING,FRT PILLAR 8-97851-358-4 01 1 9712- ● ● ● ● ● ●
3 16.592 PANEL; CLOSING,FRT PILLAR 8-97851-357-4 01 1 9312-9611 ● ● ● ●
3 16.592 PANEL; CLOSING,FRT PILLAR 8-97851-357-4 01 1 9612-9711 ● ● ● ● ●
3 16.592 PANEL; CLOSING,FRT PILLAR 8-97851-357-4 01 1 9712- ● ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE
(B) LOWER 		8-97851-074-4 01 1 9312-9611 ● ● ● ●
7 16.570 REINFORCEMENT; HINGE
(B) LOWER 		8-97851-074-4 01 1 9612-9711 ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE
(B) LOWER 		8-97851-074-5 01 1 9712- ● ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE
(A) UPPER 		8-97851-354-0 01 1 9312-9611 ● ● ● ●
7 16.570 REINFORCEMENT; HINGE
(A) UPPER 		8-97851-354-0 01 1 9612-9711 ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE
(A) UPPER 		8-97851-354-1 01 1 9712- ● ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE
(B) LOWER 		8-97851-073-4 01 1 9312-9611 ● ● ● ●
7 16.570 REINFORCEMENT; HINGE
(B) LOWER 		8-97851-073-4 01 1 9612-9711 ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE
(B) LOWER 		8-97851-073-4 01 1 9712- ● ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE
(A) UPPER 		8-97851-353-0 01 1 9312-9611 ● ● ● ●
7 16.570 REINFORCEMENT; HINGE
(A) UPPER 		8-97851-353-0 01 1 9612-9711 ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE
(A) UPPER 		8-97851-353-0 01 1 9712- ● ● ● ● ● ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-97851-020-7 01 1 9312-9611 ● ● ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-97851-020-7 01 1 9612-9711 ● ● ● ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-97851-020-8 01 1 9712- ● ● ● ● ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-97851-019-7 01 1 9312-9611 ● ● ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-97851-019-7 01 1 9612-9711 ● ● ● ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-97851-019-7 01 1 9712- ● ● ● ● ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-97851-208-8 01 1 9312- ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-97851-207-8 01 1 9312- ●
14 16.592 PANEL; REINF,SIDE DRIP 8-97851-223-1 01 1 9312- ●
14 16.592 PANEL; REINF,SIDE DRIP 8-97851-222-1 01 1 9312- ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97851-335-3 01 1 9312-9611 ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97851-335-3 01 1 9612-9711 ● ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97851-335-4 01 1 9712- ● ● ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97851-334-3 01 1 9312-9611 ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97851-334-3 01 1 9612-9711 ● ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97851-334-4 01 1 9712- ● ● ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97851-337-4 01 1 9312-9611 ● ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97851-337-4 01 1 9612-9711 ● ● ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97851-337-5 01 1 9712- ● ● ● ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97851-336-4 01 1 9312-9611 ● ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97851-336-4 01 1 9612-9711 ● ● ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97851-336-5 01 1 9712- ● ● ● ● ● ●
15 16.592 PANEL; CANT RAIL SIDE 8-97851-504-0 02 1 9312- ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97851-229-4 01 1 9312- ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97851-228-4 01 1 9312- ●
45 16.570 SEAL; B-C POST 8-97853-731-1 02 1 9312- ●
51 16.570 COVER; HOLE,B-C POST
AUTO DOOR LOCK<AU4> 		8-94262-078-0 02 1 9312-9312 ●
51 16.570 COVER; HOLE,B-C POST 8-94262-078-0 02 1 9312- ●
51 16.570 COVER; HOLE,B-C POST
EXC. AUTO DOOR LOCK<AU4> 		8-94273-658-0 02 1 9312-9312 ●
52 16.588 PANEL; D-POST UPR
(B) LOWER 		8-97851-174-7 01 1 9312- ●
52 16.588 PANEL; D-POST UPR
(A) UPPER 		8-97851-227-6 01 1 9312- ●
52 16.588 PANEL; D-POST UPR
(B) LOWER 		8-97851-173-7 01 1 9312- ●
52 16.588 PANEL; D-POST UPR
(A) UPPER 		8-97851-226-6 01 1 9312- ●
92 16.570 PANEL; SIDE SILL,CAB 8-97851-531-0 01 1 9312- ● ● ● ● ● ●
92 16.570 PANEL; SIDE SILL,CAB 8-97851-530-0 01 1 9312- ● ● ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) AIR INTAKE REAR VERTICAL<KJ3> EXC. EUROPEAN BASIC EQUIPMENT(EK4), CHINA EQUIPMENT(YT2) 		8-97851-467-0 01 1 9312-9504 ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) AIR INTAKE REAR VERTICAL<KJ3> EXC. EUROPEAN BASIC EQUIPMENT(EK4), CHINA EQUIPMENT(YT2),ISRAEL EQUIPMENT(7LX) 		8-97851-467-0 01 1 9505-9510 ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4BE1 ENG(RLH),4BD2 ENG(RLW) AIR INTAKE REAR VERTICAL<KJ3> EXC. EUROPEAN BASIC EQUIPMENT(EK4), CHINA EQUIPMENT(YT2),ISRAEL EQUIPMENT(7LX) 		8-97851-467-0 01 1 9511-9711 ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4BE1 ENG(RLH),4BD2 ENG(RLW) AIR INTAKE REAR VERTICAL<KJ3> EXC. EUROPEAN BASIC EQUIPMENT(EK4), CHINA EQUIPMENT(YT2),ISRAEL EQUIPMENT(7LX) 		8-97890-399-0 01 1 9712- ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97851-343-0 01 1 9312-9506 ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HF1 ENG(RLS) EXC. AIR INTAKE REAR VERTICAL<KJ3> 		8-97851-343-0 01 1 9312-9506 ●
100 16.570 PANEL ASM; BODY SIDE
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97851-343-0 01 1 9507-9510 ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HF1 ENG(RLS) EXC. AIR INTAKE REAR VERTICAL<KJ3> 		8-97851-343-0 01 1 9507-9510 ● ●
100 16.570 PANEL ASM; BODY SIDE
4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97851-343-0 01 1 9511-9711 ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HF1 ENG(RLS) EXC. AIR INTAKE REAR VERTICAL<KJ3> 		8-97851-343-0 01 1 9511-9711 ● ●
100 16.570 PANEL ASM; BODY SIDE
4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97890-396-0 01 1 9712-9801 ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 		8-97890-396-0 01 1 9712-9801 ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97890-396-0 01 1 9712-9801 ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 		8-97890-396-0 01 1 9802- ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97890-396-0 01 1 9802- ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97890-396-0 01 1 9802- ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4BE1 ENG(RLH) SAUDI ARABIA EQUIPMENT(EU2) 		8-97857-584-0 01 1 9312-9510 ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4BE1 ENG(RLH) SAUDI ARABIA EQUIPMENT(EU2) 		8-97857-584-0 01 1 9511-9711 ● ●
100 16.570 PANEL ASM; BODY SIDE
4BE1 ENG(RLH) SAUDI ARABIA EQUIPMENT(EU2) 		8-97890-405-0 01 1 9712-9801 ● ●
100 16.570 PANEL ASM; BODY SIDE
4BE1 ENG(RLH) SAUDI ARABIA EQUIPMENT(EU2) 		8-97890-405-0 01 1 9802- ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 		8-97857-586-0 01 1 9312-9404 ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HF1 ENG(RLS) SAUDI ARABIA EQUIPMENT(EU2),BRAZIL EQUIPMENT(RWF) AIR INTAKE REAR VERTICAL<KJ3> 		8-97857-586-0 01 1 9405-9510 ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HF1 ENG(RLS) SAUDI ARABIA EQUIPMENT(EU2),BRAZIL EQUIPMENT(RWF) AIR INTAKE REAR VERTICAL<KJ3> 		8-97857-586-0 01 1 9511-9711 ● ●
100 16.570 PANEL ASM; BODY SIDE
4HF1 ENG(RLS),4HE1 ENG(RLY) SAUDI ARABIA EQUIPMENT(EU2),BRAZIL EQUIPMENT(RWF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97890-407-0 01 1 9712-9801 ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HF1 ENG(RLS),4HE1 ENG(RLY) SAUDI ARABIA EQUIPMENT(EU2),BRAZIL EQUIPMENT(RWF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97890-407-0 01 1 9802-9805 ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HG1 ENG(RJH),4HF1 ENG(RLS) SAUDI ARABIA EQUIPMENT(EU2) AIR INTAKE REAR VERTICAL<KJ3> 		8-97890-407-0 01 1 9806- ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HE1 ENG(RLY) BRAZIL EQUIPMENT(RWF) EXC. CHARGE AIR COOLER<6PL> 		8-97890-407-0 01 1 9806- ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> BRAZIL EQUIPMENT(RWF) 		8-97890-407-0 01 1 9806- ● ●
100 16.570 PANEL ASM; BODY SIDE
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97851-468-0 01 1 9312-9405 ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. SAUDI ARABIA EQUIPMENT(EU2), BRAZIL EQUIPMENT(RWF) 		8-97851-468-0 01 1 9406-9611 ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. SAUDI ARABIA EQUIPMENT(EU2), BRAZIL EQUIPMENT(RWF) 		8-97851-468-0 01 1 9612-9711 ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. SAUDI ARABIA EQUIPMENT(EU2), BRAZIL EQUIPMENT(RWF),CHARGE AIR COOLER<6PL> 		8-97890-400-0 01 1 9712-9807 ● ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. SAUDI ARABIA EQUIPMENT(EU2), BRAZIL EQUIPMENT(RWF) 		8-97890-400-0 01 1 9808- ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HE1 ENG(RLY) EXC. BRAZIL EQUIPMENT(RWF),CHARGE AIRCOOLER<6PL> 		8-97890-400-0 01 1 9808- ● ●
100 16.570 PANEL ASM; BODY SIDE
4JG2 ENG(RJC),4HF1 ENG(RLS) EXC. EUROPEAN BASIC EQUIPMENT(EK4), CHINA EQUIPMENT(YT2) 		8-97851-342-0 01 1 9312-9504 ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. AIR INTAKE REAR VERTICAL<KJ3>, CHINA EQUIPMENT(YT2) 		8-97851-342-0 01 1 9312-9504 ●
100 16.570 PANEL ASM; BODY SIDE
4JG2 ENG(RJC),4HF1 ENG(RLS) EXC. EUROPEAN BASIC EQUIPMENT(EK4), CHINA EQUIPMENT(YT2),ISRAEL EQUIPMENT(7LX) 		8-97851-342-0 01 1 9505-9506 ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. AIR INTAKE REAR VERTICAL<KJ3>, CHINA EQUIPMENT(YT2) 		8-97851-342-0 01 1 9505-9506 ●
100 16.570 PANEL ASM; BODY SIDE
4JG2 ENG(RJC),4HF1 ENG(RLS) EXC. EUROPEAN BASIC EQUIPMENT(EK4), CHINA EQUIPMENT(YT2),ISRAEL EQUIPMENT(7LX) 		8-97851-342-0 01 1 9507-9510 ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. AIR INTAKE REAR VERTICAL<KJ3>, CHINA EQUIPMENT(YT2) 		8-97851-342-0 01 1 9507-9510 ● ●
100 16.570 PANEL ASM; BODY SIDE
4JG2 ENG(RJC),4HF1 ENG(RLS) EXC. EUROPEAN BASIC EQUIPMENT(EK4), CHINA EQUIPMENT(YT2),ISRAEL EQUIPMENT(7LX) 		8-97851-342-0 01 1 9511-9601 ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. AIR INTAKE REAR VERTICAL<KJ3>, CHINA EQUIPMENT(YT2) 		8-97851-342-0 01 1 9511-9601 ● ●
100 16.570 PANEL ASM; BODY SIDE
4JG2 ENG(RJC),4HF1 ENG(RLS) EXC. EUROPEAN BASIC EQUIPMENT(EK4), CHINA EQUIPMENT(YT2),ISRAEL EQUIPMENT(7LX) 		8-97851-342-0 01 1 9602-9611 ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. AIR INTAKE REAR VERTICAL<KJ3>, CHINA EQUIPMENT(YT2) 		8-97851-342-0 01 1 9602-9611 ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HF1 ENG(RLS) EXC. EUROPEAN BASIC EQUIPMENT(EK4), CHINA EQUIPMENT(YT2),ISRAEL EQUIPMENT(7LX) 		8-97851-342-0 01 1 9612-9711 ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. AIR INTAKE REAR VERTICAL<KJ3>, CHINA EQUIPMENT(YT2) 		8-97851-342-0 01 1 9612-9711 ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. EUROPEAN BASIC EQUIPMENT(EK4), CHINA EQUIPMENT(YT2),ISRAEL EQUIPMENT(7LX) 		8-97890-395-0 01 1 9712- ● ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4BE1 ENG(RLH),4BD2 ENG(RLW) AIR INTAKE SYSTEM FRONT<6PC> EXC. CHINA EQUIPMENT(YT2) 		8-97890-395-0 01 1 9712- ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4JG2 ENG(RJC) EUROPEAN BASIC EQUIPMENT(EK4) 		8-97857-587-0 01 1 9312-9504 ●
100 16.570 PANEL ASM; BODY SIDE
4JG2 ENG(RJC) EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) 		8-97857-587-0 01 1 9505-9506 ●
100 16.570 PANEL ASM; BODY SIDE
4JG2 ENG(RJC) EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) 		8-97857-587-0 01 1 9507-9711 ● ●
100 16.570 PANEL ASM; BODY SIDE
4JG2 ENG(RJC),4HE1 ENG(RLY) EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) 		8-97890-408-0 01 1 9712- ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4BD2 ENG(RLW) EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) AIR INTAKE SYSTEM FRONT<6PC> 		8-97890-408-0 01 1 9712- ● ●
100 16.570 PANEL ASM; BODY SIDE
4BD2 ENG(RLW) EUROPEAN BASIC EQUIPMENT(EK4) AIR INTAKE REAR VERTICAL<KJ3> 		8-97857-585-0 01 1 9312-9504 ● ●
100 16.570 PANEL ASM; BODY SIDE
4BD2 ENG(RLW) EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) AIR INTAKE REAR VERTICAL<KJ3> 		8-97857-585-0 01 1 9505-9711 ● ●
100 16.570 PANEL ASM; BODY SIDE
4BD2 ENG(RLW) EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) AIR INTAKE REAR VERTICAL<KJ3> 		8-97890-406-0 01 1 9712- ● ●
100 16.570 PANEL ASM; BODY SIDE
4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> CHINA EQUIPMENT(YT2) 		8-97857-861-0 01 1 9312-9711 ● ●
100 16.570 PANEL ASM; BODY SIDE
4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> CHINA EQUIPMENT(YT2) 		8-97890-414-0 01 1 9802- ● ●
100 16.570 PANEL ASM; BODY SIDE
4BE1 ENG(RLH) CHINA EQUIPMENT(YT2) AIR INTAKE SYSTEM FRONT<6PC> 		8-97890-413-0 01 1 9802- ● ●
100 16.570 PANEL ASM; BODY SIDE
4HF1 ENG(RLS),4HE1 ENG(RLY) CHINA EQUIPMENT(YT2) 		8-97890-413-0 01 1 9802- ● ●
100 16.570 PANEL ASM; BODY SIDE
4HF1 ENG(RLS) CHINA EQUIPMENT(YT2) 		8-97857-860-0 01 1 9312-9601 ● ●
100 16.570 PANEL ASM; BODY SIDE
4BE1 ENG(RLH) CHINA EQUIPMENT(YT2) EXC. AIR INTAKE REAR VERTICAL<KJ3> 		8-97857-860-0 01 1 9312-9601 ●
100 16.570 PANEL ASM; BODY SIDE
4BE1 ENG(RLH) CHINA EQUIPMENT(YT2) EXC. AIR INTAKE REAR VERTICAL<KJ3> 		8-97857-860-0 01 1 9602-9711 ● ●
100 16.570 PANEL ASM; BODY SIDE
4HF1 ENG(RLS) CHINA EQUIPMENT(YT2) 		8-97857-860-0 01 1 9602-9711 ● ●
100 16.570 PANEL ASM; BODY SIDE 8-97851-343-0 01 1 9312-9711 ●
100 16.570 PANEL ASM; BODY SIDE 8-97890-396-0 01 1 9712- ●
100 16.570 PANEL ASM; BODY SIDE 8-97857-860-0 01 1 9312-9704 ●
100 16.570 PANEL ASM; BODY SIDE
CHINA EQUIPMENT(YT2) 		8-97857-860-0 01 1 9705-9711 ●
100 16.570 PANEL ASM; BODY SIDE
EXC. CHINA EQUIPMENT(YT2),ISRAEL EQUIPMENT(7LX) 		8-97851-342-0 01 1 9705-9711 ●
100 16.570 PANEL ASM; BODY SIDE
ISRAEL EQUIPMENT(7LX) 		8-97857-860-0 01 1 9705-9711 ●
100 16.570 PANEL ASM; BODY SIDE 8-97890-408-0 01 1 9712- ●

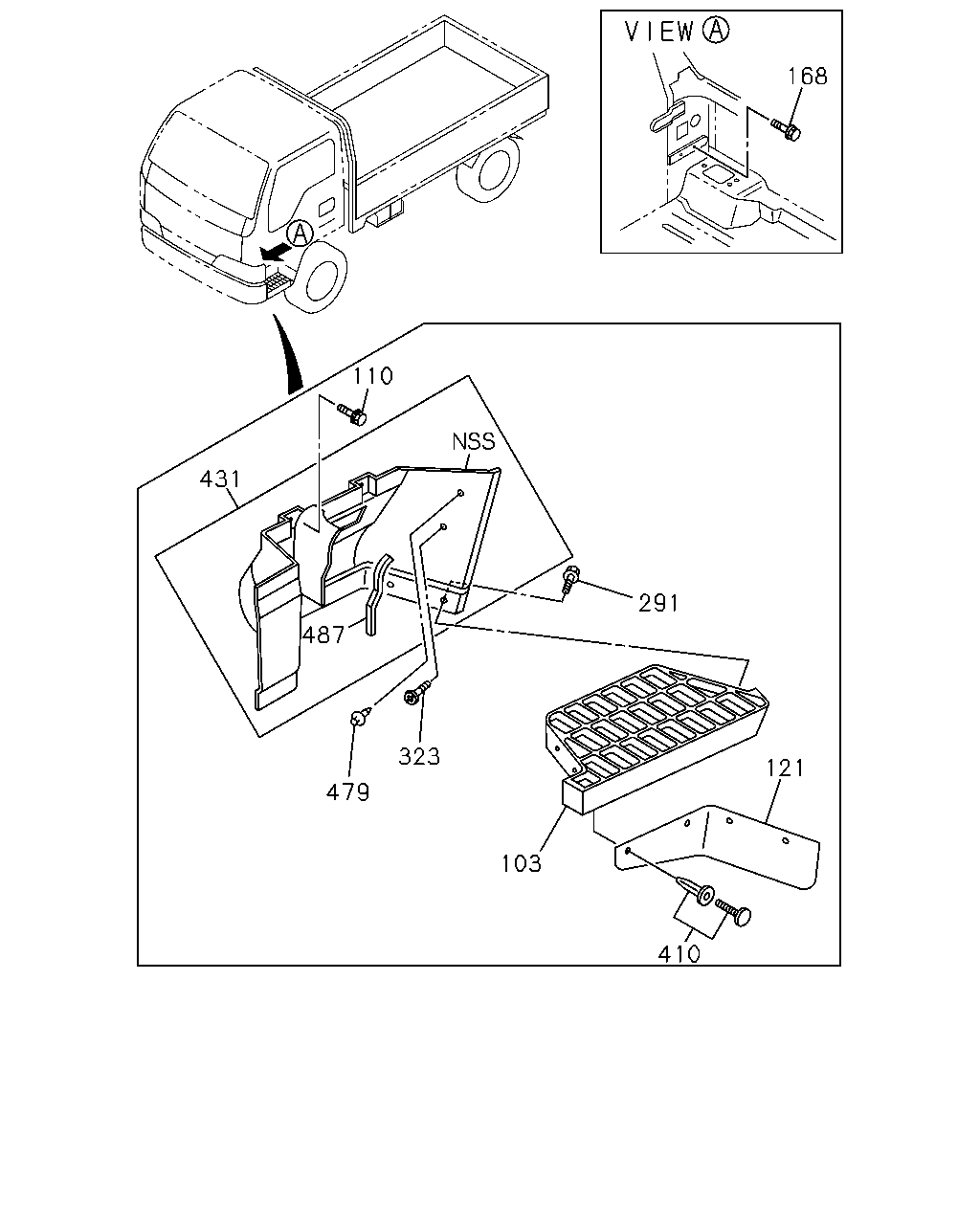

168 16.570 BOLT; BODY SIDE PANEL
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9312-9604 ● ● ● ●
168 16.570 BOLT; BODY SIDE PANEL
10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 9604-9611 ● ● ● ●
168 16.570 BOLT; BODY SIDE PANEL
10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 9612-9711 ● ● ● ● ●
168 16.570 BOLT; BODY SIDE PANEL
10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 9712- ● ● ● ● ● ●

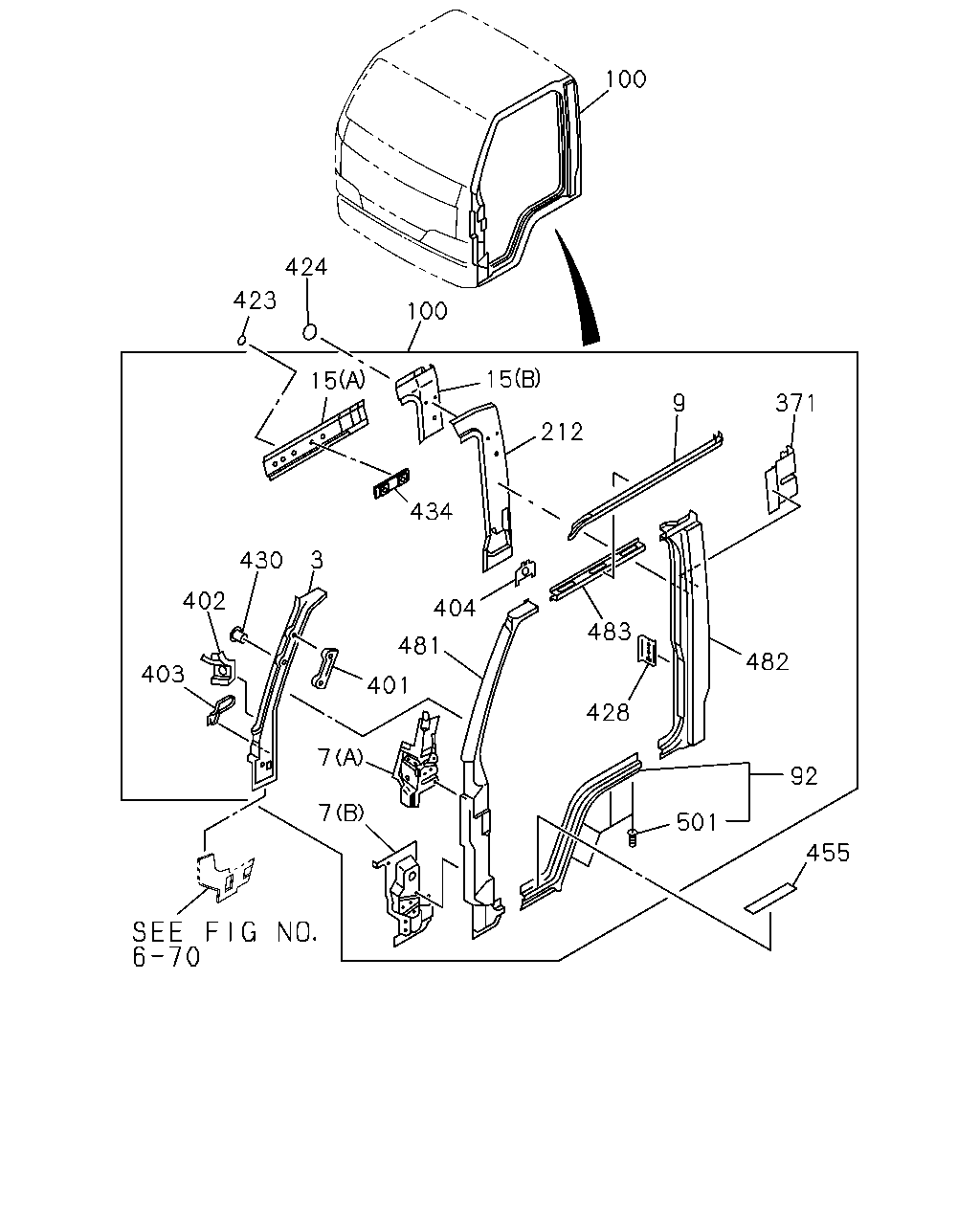

182 16.570 PANEL; CLOSING,CTR PILLAR LWR 8-97850-177-5 01 1 9312- ●
182 16.570 PANEL; CLOSING,CTR PILLAR LWR 8-97850-176-5 01 1 9312- ●
210 16.588 PANEL; DOOR STRIKER REINF 8-97851-446-1 02 1 9312- ●
210 16.588 PANEL; DOOR STRIKER REINF 8-97851-445-1 02 1 9312- ●
212 16.588 CLOSING; PILLAR
EXC. EUROPEAN BASIC EQUIPMENT(EK4), CHINA EQUIPMENT(YT2) 		8-97851-031-7 01 1 9312-9504 ● ● ●
212 16.588 CLOSING; PILLAR
EXC. EUROPEAN BASIC EQUIPMENT(EK4), CHINA EQUIPMENT(YT2),ISRAEL EQUIPMENT(7LX) 		8-97851-031-8 01 1 9505-9611 ● ● ●
212 16.588 CLOSING; PILLAR
EXC. EUROPEAN BASIC EQUIPMENT(EK4), CHINA EQUIPMENT(YT2),ISRAEL EQUIPMENT(7LX) 		8-97851-031-8 01 1 9612-9704 ● ● ● ●
212 16.588 CLOSING; PILLAR
EXC. EUROPEAN BASIC EQUIPMENT(EK4), CHINA EQUIPMENT(YT2),ISRAEL EQUIPMENT(7LX) 		8-97851-031-8 01 1 9705-9709 ● ● ● ● ●
212 16.588 CLOSING; PILLAR
EXC. EUROPEAN BASIC EQUIPMENT(EK4), CHINA EQUIPMENT(YT2),ISRAEL EQUIPMENT(7LX) 		8-97890-452-1 01 1 9710-9711 ● ● ● ● ●
212 16.588 CLOSING; PILLAR
EXC. EUROPEAN BASIC EQUIPMENT(EK4), CHINA EQUIPMENT(YT2),ISRAEL EQUIPMENT(7LX) 		8-97890-452-2 01 1 9712- ● ● ● ● ● ●
212 16.588 CLOSING; PILLAR 8-97851-032-7 01 1 9312-9611 ● ● ● ●
212 16.588 CLOSING; PILLAR 8-97851-032-7 01 1 9612-9709 ● ● ● ● ●
212 16.588 CLOSING; PILLAR 8-97890-453-1 01 1 9710-9711 ● ● ● ● ●
212 16.588 CLOSING; PILLAR 8-97890-453-2 01 1 9712- ● ● ● ● ● ●
212 16.588 CLOSING; PILLAR
CHINA EQUIPMENT(YT2) 		8-97890-460-2 01 1 9802- ● ●
212 16.588 CLOSING; PILLAR
EUROPEAN BASIC EQUIPMENT(EK4) 		8-97857-594-3 01 1 9312-9504 ● ●
212 16.588 CLOSING; PILLAR
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) 		8-97857-594-3 01 1 9505-9506 ● ●
212 16.588 CLOSING; PILLAR
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) 		8-97857-594-4 01 1 9507-9704 ● ● ●
212 16.588 CLOSING; PILLAR
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) 		8-97857-594-4 01 1 9705-9709 ● ● ● ●
212 16.588 CLOSING; PILLAR
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) 		8-97890-458-1 01 1 9710-9711 ● ● ● ●
212 16.588 CLOSING; PILLAR
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) 		8-97890-458-2 01 1 9712- ● ● ● ● ●
212 16.588 CLOSING; PILLAR
CHINA EQUIPMENT(YT2) 		8-97857-794-4 01 1 9312-9709 ● ● ●
212 16.588 CLOSING; PILLAR
CHINA EQUIPMENT(YT2) 		8-97890-460-1 01 1 9710-9711 ● ● ●
223 16.570 GROMMET; LOCATION HOLE
EXC. AUTO DOOR LOCK<AU4> 		8-94279-724-0 02 1 9312- ●
224 16.570 SCREW; COVER
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 9312- ●
371 16.570 PATCH; SEAT BELT 8-97851-049-1 01 1 9312-9611 ● ● ● ●
371 16.570 PATCH; SEAT BELT 8-97851-049-1 01 1 9612-9711 ● ● ● ● ●
371 16.570 PATCH; SEAT BELT 8-97851-049-1 01 1 9712- ● ● ● ● ● ●
371 16.570 PATCH; SEAT BELT 8-97851-048-1 01 1 9312-9611 ● ● ● ●
371 16.570 PATCH; SEAT BELT 8-97851-048-1 01 1 9612-9711 ● ● ● ● ●
371 16.570 PATCH; SEAT BELT 8-97851-048-1 01 1 9712- ● ● ● ● ● ●
375 16.507 PANEL; SIDE SILL RR,CAB 8-97851-159-5 02 1 9312-9603 ●
375 16.507 PANEL; SIDE SILL RR,CAB 8-97851-159-6 01 1 9604- ●
401 16.592 PATCH; CLOSING,FRT PILLAR 8-97851-301-1 01 1 9312-9510 ● ● ● ●
401 16.592 PATCH; CLOSING,FRT PILLAR 8-97851-301-1 01 1 9511-9611 ● ● ● ●
401 16.592 PATCH; CLOSING,FRT PILLAR 8-97851-301-1 01 1 9511-9611 ● ● ● ●
401 16.592 PATCH; CLOSING,FRT PILLAR 8-97851-301-1 01 1 9612-9711 ● ● ● ● ●
401 16.592 PATCH; CLOSING,FRT PILLAR 8-97851-301-1 01 1 9612-9711 ● ● ● ● ●
401 16.592 PATCH; CLOSING,FRT PILLAR 8-97851-301-1 01 1 9712-9805 ● ● ● ● ● ●
401 16.592 PATCH; CLOSING,FRT PILLAR 8-97851-301-1 01 1 9712-9805 ● ● ● ● ● ●
401 16.592 PATCH; CLOSING,FRT PILLAR 8-97851-301-1 01 1 9806- ● ● ● ● ● ●
401 16.592 PATCH; CLOSING,FRT PILLAR 8-97851-301-1 01 1 9806- ● ● ● ● ●
402 16.085 BRACKET; SUPPORT 8-97851-086-1 01 1 9312-9611 ● ● ● ●
402 16.085 BRACKET; SUPPORT 8-97851-086-1 01 1 9612-9711 ● ● ● ● ●
402 16.085 BRACKET; SUPPORT 8-97851-086-1 01 1 9712- ● ● ● ● ● ●
402 16.085 BRACKET; SUPPORT 8-97851-085-1 01 1 9312-9611 ● ● ● ●
402 16.085 BRACKET; SUPPORT 8-97851-085-1 01 1 9612-9711 ● ● ● ● ●
402 16.085 BRACKET; SUPPORT 8-97851-085-1 01 1 9712- ● ● ● ● ● ●
403 16.570 BRACKET; REINFORCEMENT,FRT PANEL 8-97851-070-0 01 1 9312-9611 ● ● ● ●
403 16.570 BRACKET; REINFORCEMENT,FRT PANEL 8-97851-070-0 01 1 9612-9711 ● ● ● ● ●
403 16.570 BRACKET; REINFORCEMENT,FRT PANEL 8-97851-070-0 01 1 9712- ● ● ● ● ● ●
403 16.570 BRACKET; REINFORCEMENT,FRT PANEL 8-97851-069-0 01 1 9312-9611 ● ● ● ●
403 16.570 BRACKET; REINFORCEMENT,FRT PANEL 8-97851-069-0 01 1 9612-9711 ● ● ● ● ●
403 16.570 BRACKET; REINFORCEMENT,FRT PANEL 8-97851-069-0 01 1 9712- ● ● ● ● ● ●
404 16.570 BRACKET 8-94265-098-2 02 1 9312-9601 ● ● ● ●
404 16.570 BRACKET 8-94265-098-2 02 1 9312-9601 ● ● ● ●
404 16.570 BRACKET 8-94265-098-2 01 1 9602-9611 ● ● ● ●
404 16.570 BRACKET 8-94265-098-2 01 1 9602-9611 ● ● ● ●
404 16.570 BRACKET 8-94265-098-2 01 1 9612-9709 ● ● ● ● ●
404 16.570 BRACKET 8-94265-098-2 01 1 9612-9709 ● ● ● ● ●
404 16.570 BRACKET 8-97890-317-1 01 1 9710-9711 ● ● ● ● ●
404 16.570 BRACKET 8-97890-317-1 01 1 9710-9711 ● ● ● ● ●
404 16.570 BRACKET 8-97890-317-1 01 1 9712-9805 ● ● ● ● ● ●
404 16.570 BRACKET 8-97890-317-1 01 1 9712-9805 ● ● ● ● ● ●
404 16.570 BRACKET
4JG2 ENG(RJC),4HE1 ENG(RLY) EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) 		8-97890-317-1 01 1 9806- ● ● ● ●
404 16.570 BRACKET
4BE1 ENG(RLH),4BD2 ENG(RLW) AIR INTAKE REAR VERTICAL<KJ3> EXC. EUROPEAN BASIC EQUIPMENT(EK4), CHINA EQUIPMENT(YT2),ISRAEL EQUIPMENT(7LX) 		8-97890-317-1 01 1 9806- ● ● ●
404 16.570 BRACKET
4JG2 ENG(RJC) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97890-317-1 01 1 9806- ● ●
404 16.570 BRACKET
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> 		8-97890-317-1 01 1 9806- ●
404 16.570 BRACKET
4HE1 ENG(RLY) 		8-97890-317-1 01 1 9806- ● ● ● ●
404 16.570 BRACKET
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 		8-97890-317-1 01 1 9806- ● ● ●
404 16.570 BRACKET
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> EXC. BRAZIL EQUIPMENT(RWF) 		8-97890-317-1 01 1 9806- ● ● ●
404 16.570 BRACKET
4HF1 ENG(RLS),4HE1 ENG(RLY) CHINA EQUIPMENT(YT2) 		8-97890-317-1 01 1 9806- ● ●
404 16.570 BRACKET
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 		8-97890-317-1 01 1 9806- ● ●
404 16.570 BRACKET
4BE1 ENG(RLH) CHINA EQUIPMENT(YT2) AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> 		8-97890-317-1 01 1 9806- ● ●
404 16.570 BRACKET
4BD2 ENG(RLW) EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> 		8-97890-317-1 01 1 9806- ● ●
404 16.570 BRACKET
4JG2 ENG(RJC),4BD2 ENG(RLW) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97890-317-1 01 1 9806- ● ●
404 16.570 BRACKET 8-97890-317-1 01 1 9806- ●
404 16.570 BRACKET 8-97890-317-1 01 1 9806- ●
404 16.570 BRACKET
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. EUROPEAN BASIC EQUIPMENT(EK4), CHINA EQUIPMENT(YT2),ISRAEL EQUIPMENT(7LX) 		8-97890-318-1 01 1 9712- ● ● ● ● ●
404 16.570 BRACKET
4BE1 ENG(RLH),4BD2 ENG(RLW) AIR INTAKE SYSTEM FRONT<6PC> EXC. CHINA EQUIPMENT(YT2) 		8-97890-318-1 01 1 9712- ● ● ●
405 16.570 PANEL; CLOSING,CTR PILLAR 8-97851-242-3 01 1 9312-9709 ●
405 16.570 PANEL; CLOSING,CTR PILLAR 8-97890-314-2 01 1 9710- ●
405 16.570 PANEL; CLOSING,CTR PILLAR 8-97851-241-3 01 1 9312-9709 ●
405 16.570 PANEL; CLOSING,CTR PILLAR 8-97890-420-2 01 1 9710- ●
406 16.570 PILLAR; CENTER 8-97851-240-6 01 1 9312- ●
406 16.570 PILLAR; CENTER 8-97851-239-6 01 1 9312- ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY YELLO W(916) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 9312-9506 ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY YELLO W(916) EXC. INTERIOR DELUXE<RBB> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 9507-9611 ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY YELLO W(916) EXC. INTERIOR DELUXE<RBB> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 9612-9711 ● ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY YELLO W(916) EXC. INTERIOR DELUXE<RBB> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 9712- ● ● ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) 16.081 WHITE 		1-76777-076-0 06 1 9312-9402 ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-97856-832-1 06 1 9403-9506 ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) EXC. INTERIOR DELUXE<RBB> OD=20 T=0.05 WHITE 		8-97856-832-1 06 1 9507-9611 ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) EXC. INTERIOR DELUXE<RBB> OD=20 T=0.05 WHITE 		8-97856-832-1 06 1 9612-9711 ● ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) EXC. INTERIOR DELUXE<RBB> OD=20 T=0.05 WHITE 		8-97856-832-1 06 1 9712- ● ● ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 9312- ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) 16.081 WHITE 		1-76777-076-0 04 1 9312-9402 ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-97856-832-1 04 1 9403- ●
424 16.570 SEAL; CLOSING
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 9312-9403 ● ● ● ●
424 16.570 SEAL; CLOSING
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY YELLO W(916) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 9404-9506 ● ● ● ●
424 16.570 SEAL; CLOSING
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY YELLO W(916) EXC. INTERIOR DELUXE<RBB> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 9507-9611 ● ● ● ●
424 16.570 SEAL; CLOSING
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY YELLO W(916) EXC. INTERIOR DELUXE<RBB> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 9612-9711 ● ● ● ● ●
424 16.570 SEAL; CLOSING
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY YELLO W(916) EXC. INTERIOR DELUXE<RBB> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 9712- ● ● ● ● ● ●
424 16.570 SEAL; CLOSING
BODY COLOR ARC WHITE(729) 16.081 WHITE 		1-76777-076-0 04 1 9312-9402 ● ● ● ●
424 16.570 SEAL; CLOSING
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-97856-832-1 04 1 9403-9506 ● ● ● ●
424 16.570 SEAL; CLOSING
BODY COLOR ARC WHITE(729) EXC. INTERIOR DELUXE<RBB> OD=20 T=0.05 WHITE 		8-97856-832-1 04 1 9507-9611 ● ● ● ●
424 16.570 SEAL; CLOSING
BODY COLOR ARC WHITE(729) EXC. INTERIOR DELUXE<RBB> OD=20 T=0.05 WHITE 		8-97856-832-1 04 1 9612-9711 ● ● ● ● ●
424 16.570 SEAL; CLOSING
BODY COLOR ARC WHITE(729) EXC. INTERIOR DELUXE<RBB> OD=20 T=0.05 WHITE 		8-97856-832-1 04 1 9712- ● ● ● ● ● ●
430 16.570 NUT; PANEL
AIR INTAKE REAR VERTICAL<KJ3> M8 POP NUT 		8-94279-538-0 02 1 9312-9611 ● ● ●
430 16.570 NUT; PANEL
AIR INTAKE REAR VERTICAL<KJ3> M8 POP NUT 		8-94279-538-0 02 1 9612-9711 ● ● ● ●
430 16.570 NUT; PANEL
AIR INTAKE REAR VERTICAL<KJ3> M8 POP NUT 		8-94279-538-0 02 1 9712-9805 ● ● ● ● ●
430 16.570 NUT; PANEL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. BRAZIL EQUIPMENT(RWF) M8 POP NUT 		8-94279-538-0 02 1 9806- ● ● ● ●
430 16.570 NUT; PANEL
4BE1 ENG(RLH),4BD2 ENG(RLW) AIR INTAKE REAR VERTICAL<KJ3> EXC. EUROPEAN BASIC EQUIPMENT(EK4), CHINA EQUIPMENT(YT2),ISRAEL EQUIPMENT(7LX) M8 POP NUT 		8-94279-538-0 02 1 9806- ● ● ●
430 16.570 NUT; PANEL
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> M8 POP NUT 		8-94279-538-0 02 1 9806- ● ● ● ●
430 16.570 NUT; PANEL
4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> CHINA EQUIPMENT(YT2) M8 POP NUT 		8-94279-538-0 02 1 9806- ● ●
430 16.570 NUT; PANEL
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> BRAZIL EQUIPMENT(RWF) M8 POP NUT 		8-94279-538-0 02 1 9806- ● ●
430 16.570 NUT; PANEL
4BD2 ENG(RLW) EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) AIR INTAKE REAR VERTICAL<KJ3> M8 POP NUT 		8-94279-538-0 02 1 9806- ● ●
430 16.570 NUT; PANEL
M6 POP NUT 		8-94279-537-0 01 1 9312-9611 ● ● ● ●
430 16.570 NUT; PANEL
M6 POP NUT 		8-94279-537-0 01 1 9612-9711 ● ● ● ● ●
430 16.570 NUT; PANEL
M6 POP NUT 		8-94279-537-0 01 1 9712- ● ● ● ● ● ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 9312- ●
434 16.592 PATCH; ASSIST GRIP 8-94267-191-1 01 1 9312-9611 ● ● ● ●
434 16.592 PATCH; ASSIST GRIP 8-94267-191-1 01 1 9612-9711 ● ● ● ● ●
434 16.592 PATCH; ASSIST GRIP 8-94267-191-1 01 1 9712- ● ● ● ● ● ●
455 08.228 PROTECTOR; STEP 8-97852-863-0 02 1 9312-9611 ● ● ● ●
455 08.228 PROTECTOR; STEP 8-97852-863-0 02 1 9612-9711 ● ● ● ● ●
455 08.228 PROTECTOR; STEP 8-97852-863-0 02 1 9612-9711 ●
455 08.228 PROTECTOR; STEP 8-97852-863-0 02 1 9712- ● ● ● ● ● ●
455 08.228 PROTECTOR; STEP 8-97852-863-0 02 1 9712- ●
481 16.570 PANEL; SIDE FRT PILLAR 8-97851-520-3 01 1 9312- ● ● ● ● ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-97851-519-1 01 1 9312- ● ● ● ● ● ●
483 16.570 PANEL; SIDE CANTRAIL 8-97851-525-0 01 1 9312- ● ● ● ● ● ●
483 16.570 PANEL; SIDE CANTRAIL 8-97851-524-0 01 1 9312- ● ● ● ● ● ●
501 16.570 PIN; STUD
M8X15 SPECIAL STUD 		8-94279-167-0 04 1 9407-9611 ● ● ● ●
501 16.570 PIN; STUD
M8X15 SPECIAL STUD 		8-94279-167-0 04 1 9407-9611 ● ● ● ●
501 16.570 PIN; STUD
M8X15 SPECIAL STUD 		8-94279-167-0 04 1 9612-9711 ● ● ● ● ●
501 16.570 PIN; STUD
M8X15 SPECIAL STUD 		8-94279-167-0 04 1 9612-9711 ● ● ● ● ●
501 16.570 PIN; STUD
M8X15 SPECIAL STUD 		8-94279-167-0 04 1 9712-9805 ● ● ● ● ● ●
501 16.570 PIN; STUD
M8X15 SPECIAL STUD 		8-94279-167-0 04 1 9712-9805 ● ● ● ● ● ●
501 16.570 PIN; STUD
M8X15 SPECIAL STUD 		8-94279-167-0 04 1 9806- ● ● ● ● ● ●
501 16.570 PIN; STUD
M8X15 SPECIAL STUD 		8-94279-167-0 04 1 9806- ● ● ● ● ●
çizim 66958
100 424 423 100 15 15 9 371 212 434 3 430 402 404 483 481 482 403 401 428 7 92 7 501 455
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
3 16.592 PANEL; CLOSING,FRT PILLAR 8-97851-358-4 01 1 9312-9611 ● ● ● ●
3 16.592 PANEL; CLOSING,FRT PILLAR 8-97851-358-4 01 1 9612-9711 ● ● ● ● ●
3 16.592 PANEL; CLOSING,FRT PILLAR 8-97851-358-4 01 1 9712- ● ● ● ● ● ●
3 16.592 PANEL; CLOSING,FRT PILLAR 8-97851-357-4 01 1 9312-9611 ● ● ● ●
3 16.592 PANEL; CLOSING,FRT PILLAR 8-97851-357-4 01 1 9612-9711 ● ● ● ● ●
3 16.592 PANEL; CLOSING,FRT PILLAR 8-97851-357-4 01 1 9712- ● ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE
(B) LOWER 		8-97851-074-4 01 1 9312-9611 ● ● ● ●
7 16.570 REINFORCEMENT; HINGE
(B) LOWER 		8-97851-074-4 01 1 9612-9711 ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE
(B) LOWER 		8-97851-074-5 01 1 9712- ● ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE
(A) UPPER 		8-97851-354-0 01 1 9312-9611 ● ● ● ●
7 16.570 REINFORCEMENT; HINGE
(A) UPPER 		8-97851-354-0 01 1 9612-9711 ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE
(A) UPPER 		8-97851-354-1 01 1 9712- ● ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE
(B) LOWER 		8-97851-073-4 01 1 9312-9611 ● ● ● ●
7 16.570 REINFORCEMENT; HINGE
(B) LOWER 		8-97851-073-4 01 1 9612-9711 ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE
(B) LOWER 		8-97851-073-4 01 1 9712- ● ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE
(A) UPPER 		8-97851-353-0 01 1 9312-9611 ● ● ● ●
7 16.570 REINFORCEMENT; HINGE
(A) UPPER 		8-97851-353-0 01 1 9612-9711 ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE
(A) UPPER 		8-97851-353-0 01 1 9712- ● ● ● ● ● ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-97851-020-7 01 1 9312-9611 ● ● ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-97851-020-7 01 1 9612-9711 ● ● ● ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-97851-020-8 01 1 9712- ● ● ● ● ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-97851-019-7 01 1 9312-9611 ● ● ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-97851-019-7 01 1 9612-9711 ● ● ● ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-97851-019-7 01 1 9712- ● ● ● ● ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-97851-208-8 01 1 9312- ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-97851-207-8 01 1 9312- ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97851-335-3 01 1 9312-9611 ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97851-335-3 01 1 9612-9711 ● ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97851-335-4 01 1 9712- ● ● ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97851-334-3 01 1 9312-9611 ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97851-334-3 01 1 9612-9711 ● ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97851-334-4 01 1 9712- ● ● ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97851-337-4 01 1 9312-9611 ● ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97851-337-4 01 1 9612-9711 ● ● ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97851-337-5 01 1 9712- ● ● ● ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97851-336-4 01 1 9312-9611 ● ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97851-336-4 01 1 9612-9711 ● ● ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97851-336-5 01 1 9712- ● ● ● ● ● ●
15 16.592 PANEL; CANT RAIL SIDE 8-97851-504-0 02 1 9312- ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97851-229-4 01 1 9312- ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97851-228-4 01 1 9312- ●
92 16.570 PANEL; SIDE SILL,CAB 8-97851-531-0 01 1 9312- ● ● ● ● ● ●
92 16.570 PANEL; SIDE SILL,CAB 8-97851-530-0 01 1 9312- ● ● ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) AIR INTAKE REAR VERTICAL<KJ3> EXC. EUROPEAN BASIC EQUIPMENT(EK4), CHINA EQUIPMENT(YT2) 		8-97851-467-0 01 1 9312-9504 ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) AIR INTAKE REAR VERTICAL<KJ3> EXC. EUROPEAN BASIC EQUIPMENT(EK4), CHINA EQUIPMENT(YT2),ISRAEL EQUIPMENT(7LX) 		8-97851-467-0 01 1 9505-9510 ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4BE1 ENG(RLH),4BD2 ENG(RLW) AIR INTAKE REAR VERTICAL<KJ3> EXC. EUROPEAN BASIC EQUIPMENT(EK4), CHINA EQUIPMENT(YT2),ISRAEL EQUIPMENT(7LX) 		8-97851-467-0 01 1 9511-9711 ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4BE1 ENG(RLH),4BD2 ENG(RLW) AIR INTAKE REAR VERTICAL<KJ3> EXC. EUROPEAN BASIC EQUIPMENT(EK4), CHINA EQUIPMENT(YT2),ISRAEL EQUIPMENT(7LX) 		8-97890-399-0 01 1 9712- ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97851-343-0 01 1 9312-9506 ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HF1 ENG(RLS) EXC. AIR INTAKE REAR VERTICAL<KJ3> 		8-97851-343-0 01 1 9312-9506 ●
100 16.570 PANEL ASM; BODY SIDE
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97851-343-0 01 1 9507-9510 ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HF1 ENG(RLS) EXC. AIR INTAKE REAR VERTICAL<KJ3> 		8-97851-343-0 01 1 9507-9510 ● ●
100 16.570 PANEL ASM; BODY SIDE
4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97851-343-0 01 1 9511-9711 ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HF1 ENG(RLS) EXC. AIR INTAKE REAR VERTICAL<KJ3> 		8-97851-343-0 01 1 9511-9711 ● ●
100 16.570 PANEL ASM; BODY SIDE
4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97890-396-0 01 1 9712-9801 ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 		8-97890-396-0 01 1 9712-9801 ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97890-396-0 01 1 9712-9801 ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 		8-97890-396-0 01 1 9802- ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97890-396-0 01 1 9802- ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97890-396-0 01 1 9802- ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4BE1 ENG(RLH) SAUDI ARABIA EQUIPMENT(EU2) 		8-97857-584-0 01 1 9312-9510 ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4BE1 ENG(RLH) SAUDI ARABIA EQUIPMENT(EU2) 		8-97857-584-0 01 1 9511-9711 ● ●
100 16.570 PANEL ASM; BODY SIDE
4BE1 ENG(RLH) SAUDI ARABIA EQUIPMENT(EU2) 		8-97890-405-0 01 1 9712-9801 ● ●
100 16.570 PANEL ASM; BODY SIDE
4BE1 ENG(RLH) SAUDI ARABIA EQUIPMENT(EU2) 		8-97890-405-0 01 1 9802- ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 		8-97857-586-0 01 1 9312-9404 ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HF1 ENG(RLS) SAUDI ARABIA EQUIPMENT(EU2),BRAZIL EQUIPMENT(RWF) AIR INTAKE REAR VERTICAL<KJ3> 		8-97857-586-0 01 1 9405-9510 ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HF1 ENG(RLS) SAUDI ARABIA EQUIPMENT(EU2),BRAZIL EQUIPMENT(RWF) AIR INTAKE REAR VERTICAL<KJ3> 		8-97857-586-0 01 1 9511-9711 ● ●
100 16.570 PANEL ASM; BODY SIDE
4HF1 ENG(RLS),4HE1 ENG(RLY) SAUDI ARABIA EQUIPMENT(EU2),BRAZIL EQUIPMENT(RWF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97890-407-0 01 1 9712-9801 ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HF1 ENG(RLS),4HE1 ENG(RLY) SAUDI ARABIA EQUIPMENT(EU2),BRAZIL EQUIPMENT(RWF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97890-407-0 01 1 9802-9805 ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HG1 ENG(RJH),4HF1 ENG(RLS) SAUDI ARABIA EQUIPMENT(EU2) AIR INTAKE REAR VERTICAL<KJ3> 		8-97890-407-0 01 1 9806- ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HE1 ENG(RLY) BRAZIL EQUIPMENT(RWF) EXC. CHARGE AIR COOLER<6PL> 		8-97890-407-0 01 1 9806- ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> BRAZIL EQUIPMENT(RWF) 		8-97890-407-0 01 1 9806- ● ●
100 16.570 PANEL ASM; BODY SIDE
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97851-468-0 01 1 9312-9405 ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. SAUDI ARABIA EQUIPMENT(EU2), BRAZIL EQUIPMENT(RWF) 		8-97851-468-0 01 1 9406-9611 ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. SAUDI ARABIA EQUIPMENT(EU2), BRAZIL EQUIPMENT(RWF) 		8-97851-468-0 01 1 9612-9711 ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. SAUDI ARABIA EQUIPMENT(EU2), BRAZIL EQUIPMENT(RWF),CHARGE AIR COOLER<6PL> 		8-97890-400-0 01 1 9712-9807 ● ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. SAUDI ARABIA EQUIPMENT(EU2), BRAZIL EQUIPMENT(RWF) 		8-97890-400-0 01 1 9808- ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HE1 ENG(RLY) EXC. BRAZIL EQUIPMENT(RWF),CHARGE AIRCOOLER<6PL> 		8-97890-400-0 01 1 9808- ● ●
100 16.570 PANEL ASM; BODY SIDE
4JG2 ENG(RJC),4HF1 ENG(RLS) EXC. EUROPEAN BASIC EQUIPMENT(EK4), CHINA EQUIPMENT(YT2) 		8-97851-342-0 01 1 9312-9504 ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. AIR INTAKE REAR VERTICAL<KJ3>, CHINA EQUIPMENT(YT2) 		8-97851-342-0 01 1 9312-9504 ●
100 16.570 PANEL ASM; BODY SIDE
4JG2 ENG(RJC),4HF1 ENG(RLS) EXC. EUROPEAN BASIC EQUIPMENT(EK4), CHINA EQUIPMENT(YT2),ISRAEL EQUIPMENT(7LX) 		8-97851-342-0 01 1 9505-9506 ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. AIR INTAKE REAR VERTICAL<KJ3>, CHINA EQUIPMENT(YT2) 		8-97851-342-0 01 1 9505-9506 ●
100 16.570 PANEL ASM; BODY SIDE
4JG2 ENG(RJC),4HF1 ENG(RLS) EXC. EUROPEAN BASIC EQUIPMENT(EK4), CHINA EQUIPMENT(YT2),ISRAEL EQUIPMENT(7LX) 		8-97851-342-0 01 1 9507-9510 ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. AIR INTAKE REAR VERTICAL<KJ3>, CHINA EQUIPMENT(YT2) 		8-97851-342-0 01 1 9507-9510 ● ●
100 16.570 PANEL ASM; BODY SIDE
4JG2 ENG(RJC),4HF1 ENG(RLS) EXC. EUROPEAN BASIC EQUIPMENT(EK4), CHINA EQUIPMENT(YT2),ISRAEL EQUIPMENT(7LX) 		8-97851-342-0 01 1 9511-9601 ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. AIR INTAKE REAR VERTICAL<KJ3>, CHINA EQUIPMENT(YT2) 		8-97851-342-0 01 1 9511-9601 ● ●
100 16.570 PANEL ASM; BODY SIDE
4JG2 ENG(RJC),4HF1 ENG(RLS) EXC. EUROPEAN BASIC EQUIPMENT(EK4), CHINA EQUIPMENT(YT2),ISRAEL EQUIPMENT(7LX) 		8-97851-342-0 01 1 9602-9611 ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. AIR INTAKE REAR VERTICAL<KJ3>, CHINA EQUIPMENT(YT2) 		8-97851-342-0 01 1 9602-9611 ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HF1 ENG(RLS) EXC. EUROPEAN BASIC EQUIPMENT(EK4), CHINA EQUIPMENT(YT2),ISRAEL EQUIPMENT(7LX) 		8-97851-342-0 01 1 9612-9711 ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. AIR INTAKE REAR VERTICAL<KJ3>, CHINA EQUIPMENT(YT2) 		8-97851-342-0 01 1 9612-9711 ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. EUROPEAN BASIC EQUIPMENT(EK4), CHINA EQUIPMENT(YT2),ISRAEL EQUIPMENT(7LX) 		8-97890-395-0 01 1 9712- ● ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4BE1 ENG(RLH),4BD2 ENG(RLW) AIR INTAKE SYSTEM FRONT<6PC> EXC. CHINA EQUIPMENT(YT2) 		8-97890-395-0 01 1 9712- ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4JG2 ENG(RJC) EUROPEAN BASIC EQUIPMENT(EK4) 		8-97857-587-0 01 1 9312-9504 ●
100 16.570 PANEL ASM; BODY SIDE
4JG2 ENG(RJC) EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) 		8-97857-587-0 01 1 9505-9506 ●
100 16.570 PANEL ASM; BODY SIDE
4JG2 ENG(RJC) EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) 		8-97857-587-0 01 1 9507-9711 ● ●
100 16.570 PANEL ASM; BODY SIDE
4JG2 ENG(RJC),4HE1 ENG(RLY) EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) 		8-97890-408-0 01 1 9712- ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4BD2 ENG(RLW) EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) AIR INTAKE SYSTEM FRONT<6PC> 		8-97890-408-0 01 1 9712- ● ●
100 16.570 PANEL ASM; BODY SIDE
4BD2 ENG(RLW) EUROPEAN BASIC EQUIPMENT(EK4) AIR INTAKE REAR VERTICAL<KJ3> 		8-97857-585-0 01 1 9312-9504 ● ●
100 16.570 PANEL ASM; BODY SIDE
4BD2 ENG(RLW) EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) AIR INTAKE REAR VERTICAL<KJ3> 		8-97857-585-0 01 1 9505-9711 ● ●
100 16.570 PANEL ASM; BODY SIDE
4BD2 ENG(RLW) EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) AIR INTAKE REAR VERTICAL<KJ3> 		8-97890-406-0 01 1 9712- ● ●
100 16.570 PANEL ASM; BODY SIDE
4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> CHINA EQUIPMENT(YT2) 		8-97857-861-0 01 1 9312-9711 ● ●
100 16.570 PANEL ASM; BODY SIDE
4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> CHINA EQUIPMENT(YT2) 		8-97890-414-0 01 1 9802- ● ●
100 16.570 PANEL ASM; BODY SIDE
4BE1 ENG(RLH) CHINA EQUIPMENT(YT2) AIR INTAKE SYSTEM FRONT<6PC> 		8-97890-413-0 01 1 9802- ● ●
100 16.570 PANEL ASM; BODY SIDE
4HF1 ENG(RLS),4HE1 ENG(RLY) CHINA EQUIPMENT(YT2) 		8-97890-413-0 01 1 9802- ● ●
100 16.570 PANEL ASM; BODY SIDE
4HF1 ENG(RLS) CHINA EQUIPMENT(YT2) 		8-97857-860-0 01 1 9312-9601 ● ●
100 16.570 PANEL ASM; BODY SIDE
4BE1 ENG(RLH) CHINA EQUIPMENT(YT2) EXC. AIR INTAKE REAR VERTICAL<KJ3> 		8-97857-860-0 01 1 9312-9601 ●
100 16.570 PANEL ASM; BODY SIDE
4BE1 ENG(RLH) CHINA EQUIPMENT(YT2) EXC. AIR INTAKE REAR VERTICAL<KJ3> 		8-97857-860-0 01 1 9602-9711 ● ●
100 16.570 PANEL ASM; BODY SIDE
4HF1 ENG(RLS) CHINA EQUIPMENT(YT2) 		8-97857-860-0 01 1 9602-9711 ● ●
100 16.570 PANEL ASM; BODY SIDE 8-97851-343-0 01 1 9312-9711 ●
100 16.570 PANEL ASM; BODY SIDE 8-97890-396-0 01 1 9712- ●
100 16.570 PANEL ASM; BODY SIDE 8-97857-860-0 01 1 9312-9704 ●
100 16.570 PANEL ASM; BODY SIDE
CHINA EQUIPMENT(YT2) 		8-97857-860-0 01 1 9705-9711 ●
100 16.570 PANEL ASM; BODY SIDE
EXC. CHINA EQUIPMENT(YT2),ISRAEL EQUIPMENT(7LX) 		8-97851-342-0 01 1 9705-9711 ●
100 16.570 PANEL ASM; BODY SIDE
ISRAEL EQUIPMENT(7LX) 		8-97857-860-0 01 1 9705-9711 ●
100 16.570 PANEL ASM; BODY SIDE 8-97890-408-0 01 1 9712- ●
212 16.588 CLOSING; PILLAR
EXC. EUROPEAN BASIC EQUIPMENT(EK4), CHINA EQUIPMENT(YT2) 		8-97851-031-7 01 1 9312-9504 ● ● ●
212 16.588 CLOSING; PILLAR
EXC. EUROPEAN BASIC EQUIPMENT(EK4), CHINA EQUIPMENT(YT2),ISRAEL EQUIPMENT(7LX) 		8-97851-031-8 01 1 9505-9611 ● ● ●
212 16.588 CLOSING; PILLAR
EXC. EUROPEAN BASIC EQUIPMENT(EK4), CHINA EQUIPMENT(YT2),ISRAEL EQUIPMENT(7LX) 		8-97851-031-8 01 1 9612-9704 ● ● ● ●
212 16.588 CLOSING; PILLAR
EXC. EUROPEAN BASIC EQUIPMENT(EK4), CHINA EQUIPMENT(YT2),ISRAEL EQUIPMENT(7LX) 		8-97851-031-8 01 1 9705-9709 ● ● ● ● ●
212 16.588 CLOSING; PILLAR
EXC. EUROPEAN BASIC EQUIPMENT(EK4), CHINA EQUIPMENT(YT2),ISRAEL EQUIPMENT(7LX) 		8-97890-452-1 01 1 9710-9711 ● ● ● ● ●
212 16.588 CLOSING; PILLAR
EXC. EUROPEAN BASIC EQUIPMENT(EK4), CHINA EQUIPMENT(YT2),ISRAEL EQUIPMENT(7LX) 		8-97890-452-2 01 1 9712- ● ● ● ● ● ●
212 16.588 CLOSING; PILLAR 8-97851-032-7 01 1 9312-9611 ● ● ● ●
212 16.588 CLOSING; PILLAR 8-97851-032-7 01 1 9612-9709 ● ● ● ● ●
212 16.588 CLOSING; PILLAR 8-97890-453-1 01 1 9710-9711 ● ● ● ● ●
212 16.588 CLOSING; PILLAR 8-97890-453-2 01 1 9712- ● ● ● ● ● ●
212 16.588 CLOSING; PILLAR
CHINA EQUIPMENT(YT2) 		8-97890-460-2 01 1 9802- ● ●
212 16.588 CLOSING; PILLAR
EUROPEAN BASIC EQUIPMENT(EK4) 		8-97857-594-3 01 1 9312-9504 ● ●
212 16.588 CLOSING; PILLAR
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) 		8-97857-594-3 01 1 9505-9506 ● ●
212 16.588 CLOSING; PILLAR
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) 		8-97857-594-4 01 1 9507-9704 ● ● ●
212 16.588 CLOSING; PILLAR
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) 		8-97857-594-4 01 1 9705-9709 ● ● ● ●
212 16.588 CLOSING; PILLAR
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) 		8-97890-458-1 01 1 9710-9711 ● ● ● ●
212 16.588 CLOSING; PILLAR
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) 		8-97890-458-2 01 1 9712- ● ● ● ● ●
212 16.588 CLOSING; PILLAR
CHINA EQUIPMENT(YT2) 		8-97857-794-4 01 1 9312-9709 ● ● ●
212 16.588 CLOSING; PILLAR
CHINA EQUIPMENT(YT2) 		8-97890-460-1 01 1 9710-9711 ● ● ●
371 16.570 PATCH; SEAT BELT 8-97851-049-1 01 1 9312-9611 ● ● ● ●
371 16.570 PATCH; SEAT BELT 8-97851-049-1 01 1 9612-9711 ● ● ● ● ●
371 16.570 PATCH; SEAT BELT 8-97851-049-1 01 1 9712- ● ● ● ● ● ●
371 16.570 PATCH; SEAT BELT 8-97851-048-1 01 1 9312-9611 ● ● ● ●
371 16.570 PATCH; SEAT BELT 8-97851-048-1 01 1 9612-9711 ● ● ● ● ●
371 16.570 PATCH; SEAT BELT 8-97851-048-1 01 1 9712- ● ● ● ● ● ●
401 16.592 PATCH; CLOSING,FRT PILLAR 8-97851-301-1 01 1 9312-9510 ● ● ● ●
401 16.592 PATCH; CLOSING,FRT PILLAR 8-97851-301-1 01 1 9511-9611 ● ● ● ●
401 16.592 PATCH; CLOSING,FRT PILLAR 8-97851-301-1 01 1 9511-9611 ● ● ● ●
401 16.592 PATCH; CLOSING,FRT PILLAR 8-97851-301-1 01 1 9612-9711 ● ● ● ● ●
401 16.592 PATCH; CLOSING,FRT PILLAR 8-97851-301-1 01 1 9612-9711 ● ● ● ● ●
401 16.592 PATCH; CLOSING,FRT PILLAR 8-97851-301-1 01 1 9712-9805 ● ● ● ● ● ●
401 16.592 PATCH; CLOSING,FRT PILLAR 8-97851-301-1 01 1 9712-9805 ● ● ● ● ● ●
401 16.592 PATCH; CLOSING,FRT PILLAR 8-97851-301-1 01 1 9806- ● ● ● ● ● ●
401 16.592 PATCH; CLOSING,FRT PILLAR 8-97851-301-1 01 1 9806- ● ● ● ● ●
402 16.085 BRACKET; SUPPORT 8-97851-086-1 01 1 9312-9611 ● ● ● ●
402 16.085 BRACKET; SUPPORT 8-97851-086-1 01 1 9612-9711 ● ● ● ● ●
402 16.085 BRACKET; SUPPORT 8-97851-086-1 01 1 9712- ● ● ● ● ● ●
402 16.085 BRACKET; SUPPORT 8-97851-085-1 01 1 9312-9611 ● ● ● ●
402 16.085 BRACKET; SUPPORT 8-97851-085-1 01 1 9612-9711 ● ● ● ● ●
402 16.085 BRACKET; SUPPORT 8-97851-085-1 01 1 9712- ● ● ● ● ● ●
403 16.570 BRACKET; REINFORCEMENT,FRT PANEL 8-97851-070-0 01 1 9312-9611 ● ● ● ●
403 16.570 BRACKET; REINFORCEMENT,FRT PANEL 8-97851-070-0 01 1 9612-9711 ● ● ● ● ●
403 16.570 BRACKET; REINFORCEMENT,FRT PANEL 8-97851-070-0 01 1 9712- ● ● ● ● ● ●
403 16.570 BRACKET; REINFORCEMENT,FRT PANEL 8-97851-069-0 01 1 9312-9611 ● ● ● ●
403 16.570 BRACKET; REINFORCEMENT,FRT PANEL 8-97851-069-0 01 1 9612-9711 ● ● ● ● ●
403 16.570 BRACKET; REINFORCEMENT,FRT PANEL 8-97851-069-0 01 1 9712- ● ● ● ● ● ●
404 16.570 BRACKET 8-94265-098-2 02 1 9312-9601 ● ● ● ●
404 16.570 BRACKET 8-94265-098-2 02 1 9312-9601 ● ● ● ●
404 16.570 BRACKET 8-94265-098-2 01 1 9602-9611 ● ● ● ●
404 16.570 BRACKET 8-94265-098-2 01 1 9602-9611 ● ● ● ●
404 16.570 BRACKET 8-94265-098-2 01 1 9612-9709 ● ● ● ● ●
404 16.570 BRACKET 8-94265-098-2 01 1 9612-9709 ● ● ● ● ●
404 16.570 BRACKET 8-97890-317-1 01 1 9710-9711 ● ● ● ● ●
404 16.570 BRACKET 8-97890-317-1 01 1 9710-9711 ● ● ● ● ●
404 16.570 BRACKET 8-97890-317-1 01 1 9712-9805 ● ● ● ● ● ●
404 16.570 BRACKET 8-97890-317-1 01 1 9712-9805 ● ● ● ● ● ●
404 16.570 BRACKET
4JG2 ENG(RJC),4HE1 ENG(RLY) EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) 		8-97890-317-1 01 1 9806- ● ● ● ●
404 16.570 BRACKET
4BE1 ENG(RLH),4BD2 ENG(RLW) AIR INTAKE REAR VERTICAL<KJ3> EXC. EUROPEAN BASIC EQUIPMENT(EK4), CHINA EQUIPMENT(YT2),ISRAEL EQUIPMENT(7LX) 		8-97890-317-1 01 1 9806- ● ● ●
404 16.570 BRACKET
4JG2 ENG(RJC) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97890-317-1 01 1 9806- ● ●
404 16.570 BRACKET
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> 		8-97890-317-1 01 1 9806- ●
404 16.570 BRACKET
4HE1 ENG(RLY) 		8-97890-317-1 01 1 9806- ● ● ● ●
404 16.570 BRACKET
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 		8-97890-317-1 01 1 9806- ● ● ●
404 16.570 BRACKET
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> EXC. BRAZIL EQUIPMENT(RWF) 		8-97890-317-1 01 1 9806- ● ● ●
404 16.570 BRACKET
4HF1 ENG(RLS),4HE1 ENG(RLY) CHINA EQUIPMENT(YT2) 		8-97890-317-1 01 1 9806- ● ●
404 16.570 BRACKET
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 		8-97890-317-1 01 1 9806- ● ●
404 16.570 BRACKET
4BE1 ENG(RLH) CHINA EQUIPMENT(YT2) AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> 		8-97890-317-1 01 1 9806- ● ●
404 16.570 BRACKET
4BD2 ENG(RLW) EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> 		8-97890-317-1 01 1 9806- ● ●
404 16.570 BRACKET
4JG2 ENG(RJC),4BD2 ENG(RLW) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97890-317-1 01 1 9806- ● ●
404 16.570 BRACKET 8-97890-317-1 01 1 9806- ●
404 16.570 BRACKET 8-97890-317-1 01 1 9806- ●
404 16.570 BRACKET
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. EUROPEAN BASIC EQUIPMENT(EK4), CHINA EQUIPMENT(YT2),ISRAEL EQUIPMENT(7LX) 		8-97890-318-1 01 1 9712- ● ● ● ● ●
404 16.570 BRACKET
4BE1 ENG(RLH),4BD2 ENG(RLW) AIR INTAKE SYSTEM FRONT<6PC> EXC. CHINA EQUIPMENT(YT2) 		8-97890-318-1 01 1 9712- ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY YELLO W(916) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 9312-9506 ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY YELLO W(916) EXC. INTERIOR DELUXE<RBB> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 9507-9611 ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY YELLO W(916) EXC. INTERIOR DELUXE<RBB> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 9612-9711 ● ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY YELLO W(916) EXC. INTERIOR DELUXE<RBB> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 9712- ● ● ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) 16.081 WHITE 		1-76777-076-0 06 1 9312-9402 ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-97856-832-1 06 1 9403-9506 ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) EXC. INTERIOR DELUXE<RBB> OD=20 T=0.05 WHITE 		8-97856-832-1 06 1 9507-9611 ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) EXC. INTERIOR DELUXE<RBB> OD=20 T=0.05 WHITE 		8-97856-832-1 06 1 9612-9711 ● ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) EXC. INTERIOR DELUXE<RBB> OD=20 T=0.05 WHITE 		8-97856-832-1 06 1 9712- ● ● ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 9312- ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) 16.081 WHITE 		1-76777-076-0 04 1 9312-9402 ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-97856-832-1 04 1 9403- ●
424 16.570 SEAL; CLOSING
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 9312-9403 ● ● ● ●
424 16.570 SEAL; CLOSING
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY YELLO W(916) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 9404-9506 ● ● ● ●
424 16.570 SEAL; CLOSING
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY YELLO W(916) EXC. INTERIOR DELUXE<RBB> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 9507-9611 ● ● ● ●
424 16.570 SEAL; CLOSING
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY YELLO W(916) EXC. INTERIOR DELUXE<RBB> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 9612-9711 ● ● ● ● ●
424 16.570 SEAL; CLOSING
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY YELLO W(916) EXC. INTERIOR DELUXE<RBB> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 9712- ● ● ● ● ● ●
424 16.570 SEAL; CLOSING
BODY COLOR ARC WHITE(729) 16.081 WHITE 		1-76777-076-0 04 1 9312-9402 ● ● ● ●
424 16.570 SEAL; CLOSING
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-97856-832-1 04 1 9403-9506 ● ● ● ●
424 16.570 SEAL; CLOSING
BODY COLOR ARC WHITE(729) EXC. INTERIOR DELUXE<RBB> OD=20 T=0.05 WHITE 		8-97856-832-1 04 1 9507-9611 ● ● ● ●
424 16.570 SEAL; CLOSING
BODY COLOR ARC WHITE(729) EXC. INTERIOR DELUXE<RBB> OD=20 T=0.05 WHITE 		8-97856-832-1 04 1 9612-9711 ● ● ● ● ●
424 16.570 SEAL; CLOSING
BODY COLOR ARC WHITE(729) EXC. INTERIOR DELUXE<RBB> OD=20 T=0.05 WHITE 		8-97856-832-1 04 1 9712- ● ● ● ● ● ●
428 06.642 REINFORCEMENT; DOOR STRIKER
16.588 		8-97851-446-1 01 1 9312-9611 ● ● ●
428 06.642 REINFORCEMENT; DOOR STRIKER
16.588 		8-97851-446-1 01 1 9612-9711 ● ● ● ●
428 06.642 REINFORCEMENT; DOOR STRIKER
16.588 		8-97851-446-1 01 1 9712- ● ● ● ● ●
428 06.642 REINFORCEMENT; DOOR STRIKER
16.588 		8-97851-445-1 01 1 9312-9611 ● ● ●
428 06.642 REINFORCEMENT; DOOR STRIKER
16.588 		8-97851-445-1 01 1 9612-9711 ● ● ● ●
428 06.642 REINFORCEMENT; DOOR STRIKER
16.588 		8-97851-445-1 01 1 9712- ● ● ● ● ●
430 16.570 NUT; PANEL
AIR INTAKE REAR VERTICAL<KJ3> M8 POP NUT 		8-94279-538-0 02 1 9312-9611 ● ● ●
430 16.570 NUT; PANEL
AIR INTAKE REAR VERTICAL<KJ3> M8 POP NUT 		8-94279-538-0 02 1 9612-9711 ● ● ● ●
430 16.570 NUT; PANEL
AIR INTAKE REAR VERTICAL<KJ3> M8 POP NUT 		8-94279-538-0 02 1 9712-9805 ● ● ● ● ●
430 16.570 NUT; PANEL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. BRAZIL EQUIPMENT(RWF) M8 POP NUT 		8-94279-538-0 02 1 9806- ● ● ● ●
430 16.570 NUT; PANEL
4BE1 ENG(RLH),4BD2 ENG(RLW) AIR INTAKE REAR VERTICAL<KJ3> EXC. EUROPEAN BASIC EQUIPMENT(EK4), CHINA EQUIPMENT(YT2),ISRAEL EQUIPMENT(7LX) M8 POP NUT 		8-94279-538-0 02 1 9806- ● ● ●
430 16.570 NUT; PANEL
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> M8 POP NUT 		8-94279-538-0 02 1 9806- ● ● ● ●
430 16.570 NUT; PANEL
4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> CHINA EQUIPMENT(YT2) M8 POP NUT 		8-94279-538-0 02 1 9806- ● ●
430 16.570 NUT; PANEL
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> BRAZIL EQUIPMENT(RWF) M8 POP NUT 		8-94279-538-0 02 1 9806- ● ●
430 16.570 NUT; PANEL
4BD2 ENG(RLW) EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) AIR INTAKE REAR VERTICAL<KJ3> M8 POP NUT 		8-94279-538-0 02 1 9806- ● ●
430 16.570 NUT; PANEL
M6 POP NUT 		8-94279-537-0 01 1 9312-9611 ● ● ● ●
430 16.570 NUT; PANEL
M6 POP NUT 		8-94279-537-0 01 1 9612-9711 ● ● ● ● ●
430 16.570 NUT; PANEL
M6 POP NUT 		8-94279-537-0 01 1 9712- ● ● ● ● ● ●
434 16.592 PATCH; ASSIST GRIP 8-94267-191-1 01 1 9312-9611 ● ● ● ●
434 16.592 PATCH; ASSIST GRIP 8-94267-191-1 01 1 9612-9711 ● ● ● ● ●
434 16.592 PATCH; ASSIST GRIP 8-94267-191-1 01 1 9712- ● ● ● ● ● ●
455 08.228 PROTECTOR; STEP 8-97852-863-0 02 1 9312-9611 ● ● ● ●
455 08.228 PROTECTOR; STEP 8-97852-863-0 02 1 9612-9711 ● ● ● ● ●
455 08.228 PROTECTOR; STEP 8-97852-863-0 02 1 9612-9711 ●
455 08.228 PROTECTOR; STEP 8-97852-863-0 02 1 9712- ● ● ● ● ● ●
455 08.228 PROTECTOR; STEP 8-97852-863-0 02 1 9712- ●
481 16.570 PANEL; SIDE FRT PILLAR 8-97851-520-3 01 1 9312- ● ● ● ● ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-97851-519-1 01 1 9312- ● ● ● ● ● ●
482 16.570 PANEL; SIDE RR PILLAR 8-97851-521-2 01 1 9312- ● ● ● ● ●
482 16.570 PANEL; SIDE RR PILLAR
AIR INTAKE REAR VERTICAL<KJ3> 		8-97859-052-2 01 1 9312- ● ● ● ● ●
482 16.570 PANEL; SIDE RR PILLAR
EXC. AIR INTAKE REAR VERTICAL<KJ3> 		8-97851-522-2 01 1 9312- ● ● ● ● ●
483 16.570 PANEL; SIDE CANTRAIL 8-97851-525-0 01 1 9312- ● ● ● ● ● ●
483 16.570 PANEL; SIDE CANTRAIL 8-97851-524-0 01 1 9312- ● ● ● ● ● ●
501 16.570 PIN; STUD
M8X15 SPECIAL STUD 		8-94279-167-0 04 1 9407-9611 ● ● ● ●
501 16.570 PIN; STUD
M8X15 SPECIAL STUD 		8-94279-167-0 04 1 9407-9611 ● ● ● ●
501 16.570 PIN; STUD
M8X15 SPECIAL STUD 		8-94279-167-0 04 1 9612-9711 ● ● ● ● ●
501 16.570 PIN; STUD
M8X15 SPECIAL STUD 		8-94279-167-0 04 1 9612-9711 ● ● ● ● ●
501 16.570 PIN; STUD
M8X15 SPECIAL STUD 		8-94279-167-0 04 1 9712-9805 ● ● ● ● ● ●
501 16.570 PIN; STUD
M8X15 SPECIAL STUD 		8-94279-167-0 04 1 9712-9805 ● ● ● ● ● ●
501 16.570 PIN; STUD
M8X15 SPECIAL STUD 		8-94279-167-0 04 1 9806- ● ● ● ● ● ●
501 16.570 PIN; STUD
M8X15 SPECIAL STUD 		8-94279-167-0 04 1 9806- ● ● ● ● ●

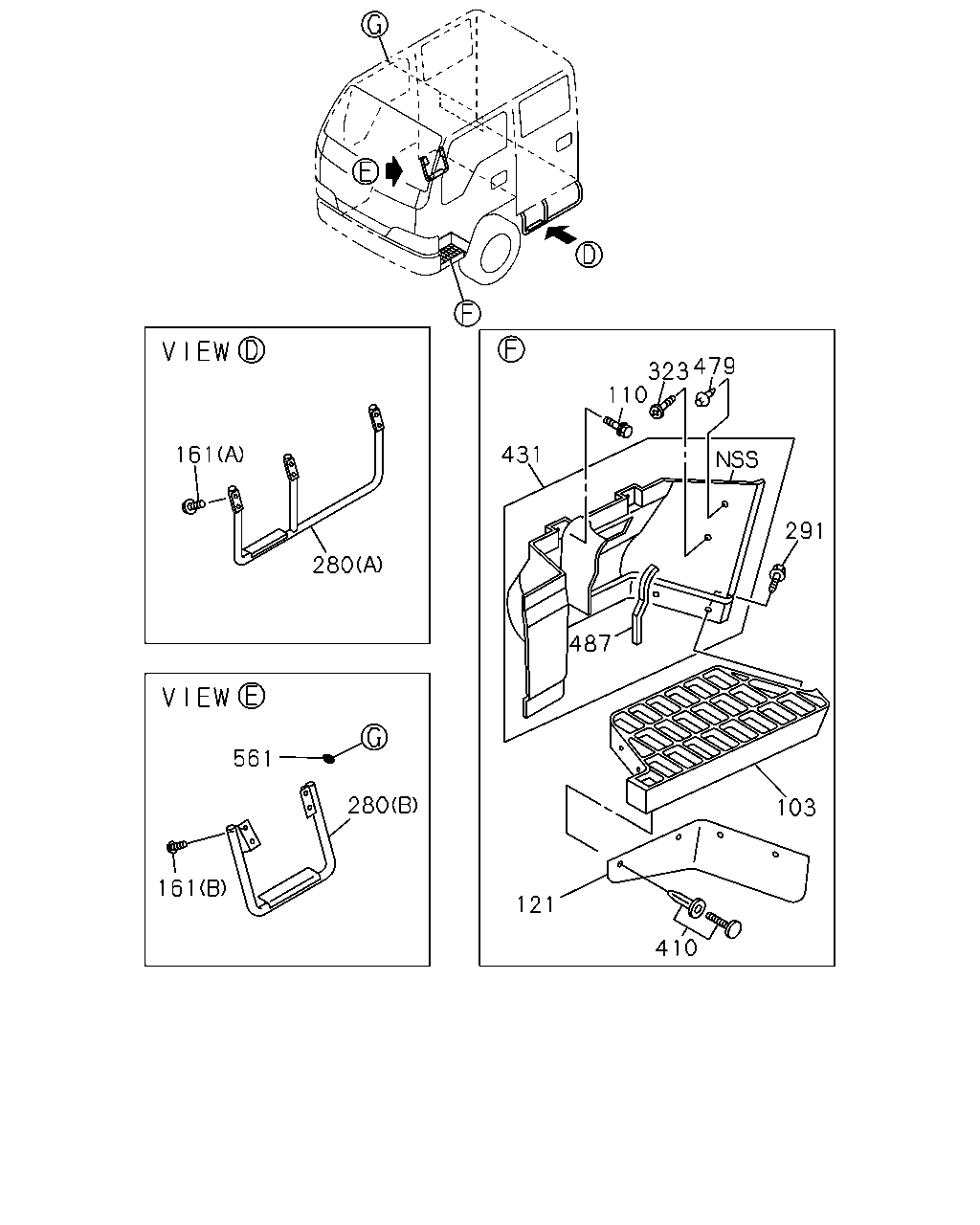

çizim 67453
479 323 110 431 161 291 280 487 561 280 103 161 121 410
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
103 08.228 PLATE; STEP 8-97853-586-1 01 1 9312-9502 ● ● ● ●
103 08.228 PLATE; STEP 8-97859-997-0 01 1 9503-9607 ● ● ● ●
103 08.228 PLATE; STEP 8-97867-969-0 01 1 9608-9611 ● ● ● ●
103 08.228 PLATE; STEP 8-97867-969-0 01 1 9612-9711 ● ● ● ● ●
103 08.228 PLATE; STEP
EXC. EUROPEAN BASIC EQUIPMENT(EK4) 		8-97867-969-0 01 1 9712- ● ● ● ●
103 08.228 PLATE; STEP 8-97867-969-0 01 1 9712- ● ●
103 08.228 PLATE; STEP 8-97853-585-1 01 1 9312-9502 ● ● ● ●
103 08.228 PLATE; STEP 8-97859-996-0 01 1 9503-9607 ● ● ● ●
103 08.228 PLATE; STEP 8-97867-968-0 01 1 9608-9611 ● ● ● ●
103 08.228 PLATE; STEP 8-97867-968-0 01 1 9612-9711 ● ● ● ● ●
103 08.228 PLATE; STEP
EXC. EUROPEAN BASIC EQUIPMENT(EK4) 		8-97867-968-0 01 1 9712- ● ● ● ●
103 08.228 PLATE; STEP 8-97867-968-0 01 1 9712- ● ●
103 08.228 PLATE; STEP
EUROPEAN BASIC EQUIPMENT(EK4) 		8-97892-072-0 01 1 9712- ● ● ● ●
103 08.228 PLATE; STEP
EUROPEAN BASIC EQUIPMENT(EK4) 		8-97892-071-0 01 1 9712- ● ● ● ●
110 08.309 BOLT; 1ST STEP PLATE
04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 9312-9611 ● ● ● ●
110 08.309 BOLT; 1ST STEP PLATE
04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 9612-9711 ● ● ● ● ●
110 08.309 BOLT; 1ST STEP PLATE
04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 9712- ● ● ● ● ● ●
121 08.228 COVER; STEP PLATE 8-97853-781-2 02 1 9312-9412 ● ● ● ●
121 08.228 COVER; STEP PLATE 8-97859-596-0 02 1 9501-9502 ● ● ● ●
121 08.228 COVER; STEP PLATE 8-97859-998-0 02 1 9503-9605 ● ● ● ●
121 08.228 COVER; STEP PLATE
EUROPEAN BASIC EQUIPMENT(EK4),CHINA EQUIPMENT(YT2),ISRAEL EQUIPMENT(7LX) 		8-97859-998-0 02 1 9606-9607 ● ● ● ●
161 08.225 BOLT; FIX
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 12 1 9312-9705 ●
161 08.225 BOLT; FIX
4BE1 ENG(RLH) (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 12 1 9706-9711 ●
161 08.225 BOLT; FIX
4BD2 ENG(RLW) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 10 1 9706-9711 ●
161 08.225 BOLT; FIX
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 10 1 9712- ●
280 08.225 STEP ASM; RR
(A) 		8-97853-659-4 01 1 9312- ●
280 08.225 STEP ASM; RR
(A) 		8-97853-658-3 01 1 9312-9705 ●
280 08.225 STEP ASM; RR
4BE1 ENG(RLH) (A) 		8-97853-658-3 01 1 9706-9711 ●
280 08.225 STEP ASM; RR
4BD2 ENG(RLW) (B) 		8-97890-440-0 01 1 9706-9711 ●
280 08.225 STEP ASM; RR
(B) 		8-97890-440-1 01 1 9712- ●
291 08.225 BOLT; STEP PLATE
04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 9312-9611 ● ● ● ●
291 08.225 BOLT; STEP PLATE
04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 9612-9711 ● ● ● ● ●
291 08.225 BOLT; STEP PLATE
04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 9712- ● ● ● ● ● ●
323 08.155 SCREW; SET
M8X14 		8-94279-386-1 04 1 9312-9611 ● ● ● ●
323 08.155 SCREW; SET
M8X14 		8-94279-386-1 04 1 9612-9711 ● ● ● ● ●
323 08.155 SCREW; SET
M8X14 		8-94279-386-1 04 1 9712- ● ● ● ● ● ●
410 16.547 CLIP; COVER,STEP PLATE 8-94350-829-0 08 1 9312-9502 ● ● ● ●
410 16.547 CLIP; COVER,STEP PLATE
D5.8X19.5 		8-94350-829-0 06 1 9503-9605 ● ● ● ●
410 16.547 CLIP; COVER,STEP PLATE
EUROPEAN BASIC EQUIPMENT(EK4),CHINA EQUIPMENT(YT2),ISRAEL EQUIPMENT(7LX) D5.8X13.5 PUSH RIVET 		8-97105-913-0 06 1 9606-9607 ● ● ● ●
431 08.228 SUPPORT ASM; STEP 8-97853-584-7 01 1 9312-9611 ● ● ● ●
431 08.228 SUPPORT ASM; STEP 8-97853-584-7 01 1 9612-9711 ● ● ● ● ●
431 08.228 SUPPORT ASM; STEP 8-97853-584-7 01 1 9712- ● ● ● ● ● ●
431 08.228 SUPPORT ASM; STEP 8-97853-583-7 01 1 9312-9611 ● ● ● ●
431 08.228 SUPPORT ASM; STEP 8-97853-583-7 01 1 9612-9711 ● ● ● ● ●
431 08.228 SUPPORT ASM; STEP 8-97853-583-7 01 1 9712- ● ● ● ● ● ●
479 08.131 RIVET; STEP PLATE
08.155 OD=8 		1-09983-125-0 02 1 9312-9611 ● ● ● ●
479 08.131 RIVET; STEP PLATE
08.155 OD=8 		1-09983-125-0 02 1 9612-9711 ● ● ● ● ●
479 08.131 RIVET; STEP PLATE
08.155 OD=8 		1-09983-125-0 02 1 9712- ● ● ● ● ● ●
487 16.570 SEAL; SUPPORT 8-97857-355-1 01 1 9405-9601 ● ● ● ●
487 16.570 SEAL; SUPPORT 8-97857-354-1 01 1 9405-9601 ● ● ● ●
561 08.154 SEAL; HOLE,STEP
4BD2 ENG(RLW) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 9708-9711 ●
561 08.154 SEAL; HOLE,STEP
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 9712- ●
çizim 67454
168 110 431 291 487 323 121 479 103 410
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
103 08.228 PLATE; STEP 8-97853-586-1 01 1 9312-9502 ● ● ● ●
103 08.228 PLATE; STEP 8-97859-997-0 01 1 9503-9607 ● ● ● ●
103 08.228 PLATE; STEP 8-97867-969-0 01 1 9608-9611 ● ● ● ●
103 08.228 PLATE; STEP 8-97867-969-0 01 1 9612-9711 ● ● ● ● ●
103 08.228 PLATE; STEP
EXC. EUROPEAN BASIC EQUIPMENT(EK4) 		8-97867-969-0 01 1 9712- ● ● ● ●
103 08.228 PLATE; STEP 8-97867-969-0 01 1 9712- ● ●
103 08.228 PLATE; STEP 8-97853-585-1 01 1 9312-9502 ● ● ● ●
103 08.228 PLATE; STEP 8-97859-996-0 01 1 9503-9607 ● ● ● ●
103 08.228 PLATE; STEP 8-97867-968-0 01 1 9608-9611 ● ● ● ●
103 08.228 PLATE; STEP 8-97867-968-0 01 1 9612-9711 ● ● ● ● ●
103 08.228 PLATE; STEP
EXC. EUROPEAN BASIC EQUIPMENT(EK4) 		8-97867-968-0 01 1 9712- ● ● ● ●
103 08.228 PLATE; STEP 8-97867-968-0 01 1 9712- ● ●
103 08.228 PLATE; STEP
EUROPEAN BASIC EQUIPMENT(EK4) 		8-97892-072-0 01 1 9712- ● ● ● ●
103 08.228 PLATE; STEP
EUROPEAN BASIC EQUIPMENT(EK4) 		8-97892-071-0 01 1 9712- ● ● ● ●
110 08.309 BOLT; 1ST STEP PLATE
04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 9312-9611 ● ● ● ●
110 08.309 BOLT; 1ST STEP PLATE
04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 9612-9711 ● ● ● ● ●
110 08.309 BOLT; 1ST STEP PLATE
04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 9712- ● ● ● ● ● ●
121 08.228 COVER; STEP PLATE 8-97853-781-2 02 1 9312-9412 ● ● ● ●
121 08.228 COVER; STEP PLATE 8-97859-596-0 02 1 9501-9502 ● ● ● ●
121 08.228 COVER; STEP PLATE 8-97859-998-0 02 1 9503-9605 ● ● ● ●
121 08.228 COVER; STEP PLATE
EUROPEAN BASIC EQUIPMENT(EK4),CHINA EQUIPMENT(YT2),ISRAEL EQUIPMENT(7LX) 		8-97859-998-0 02 1 9606-9607 ● ● ● ●
168 16.570 BOLT; BODY SIDE PANEL
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9312-9604 ● ● ● ●
168 16.570 BOLT; BODY SIDE PANEL
10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 9604-9611 ● ● ● ●
168 16.570 BOLT; BODY SIDE PANEL
10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 9612-9711 ● ● ● ● ●
168 16.570 BOLT; BODY SIDE PANEL
10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 9712- ● ● ● ● ● ●
291 08.225 BOLT; STEP PLATE
04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 9312-9611 ● ● ● ●
291 08.225 BOLT; STEP PLATE
04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 9612-9711 ● ● ● ● ●
291 08.225 BOLT; STEP PLATE
04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 9712- ● ● ● ● ● ●
323 08.155 SCREW; SET
M8X14 		8-94279-386-1 04 1 9312-9611 ● ● ● ●
323 08.155 SCREW; SET
M8X14 		8-94279-386-1 04 1 9612-9711 ● ● ● ● ●
323 08.155 SCREW; SET
M8X14 		8-94279-386-1 04 1 9712- ● ● ● ● ● ●
410 16.547 CLIP; COVER,STEP PLATE 8-94350-829-0 08 1 9312-9502 ● ● ● ●
410 16.547 CLIP; COVER,STEP PLATE
D5.8X19.5 		8-94350-829-0 06 1 9503-9605 ● ● ● ●
410 16.547 CLIP; COVER,STEP PLATE
EUROPEAN BASIC EQUIPMENT(EK4),CHINA EQUIPMENT(YT2),ISRAEL EQUIPMENT(7LX) D5.8X13.5 PUSH RIVET 		8-97105-913-0 06 1 9606-9607 ● ● ● ●
431 08.228 SUPPORT ASM; STEP 8-97853-584-7 01 1 9312-9611 ● ● ● ●
431 08.228 SUPPORT ASM; STEP 8-97853-584-7 01 1 9612-9711 ● ● ● ● ●
431 08.228 SUPPORT ASM; STEP 8-97853-584-7 01 1 9712- ● ● ● ● ● ●
431 08.228 SUPPORT ASM; STEP 8-97853-583-7 01 1 9312-9611 ● ● ● ●
431 08.228 SUPPORT ASM; STEP 8-97853-583-7 01 1 9612-9711 ● ● ● ● ●
431 08.228 SUPPORT ASM; STEP 8-97853-583-7 01 1 9712- ● ● ● ● ● ●
479 08.131 RIVET; STEP PLATE
08.155 OD=8 		1-09983-125-0 02 1 9312-9611 ● ● ● ●
479 08.131 RIVET; STEP PLATE
08.155 OD=8 		1-09983-125-0 02 1 9612-9711 ● ● ● ● ●
479 08.131 RIVET; STEP PLATE
08.155 OD=8 		1-09983-125-0 02 1 9712- ● ● ● ● ● ●
487 16.570 SEAL; SUPPORT 8-97857-355-1 01 1 9405-9601 ● ● ● ●
487 16.570 SEAL; SUPPORT 8-97857-354-1 01 1 9405-9601 ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
