◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50697 - NPR/NQR-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-07 - FRONT WINDOW GLASS AND WEATHERSTRIP ▶
6-07 — FRONT WINDOW GLASS AND WEATHERSTRIP (#48102) — 62 parça

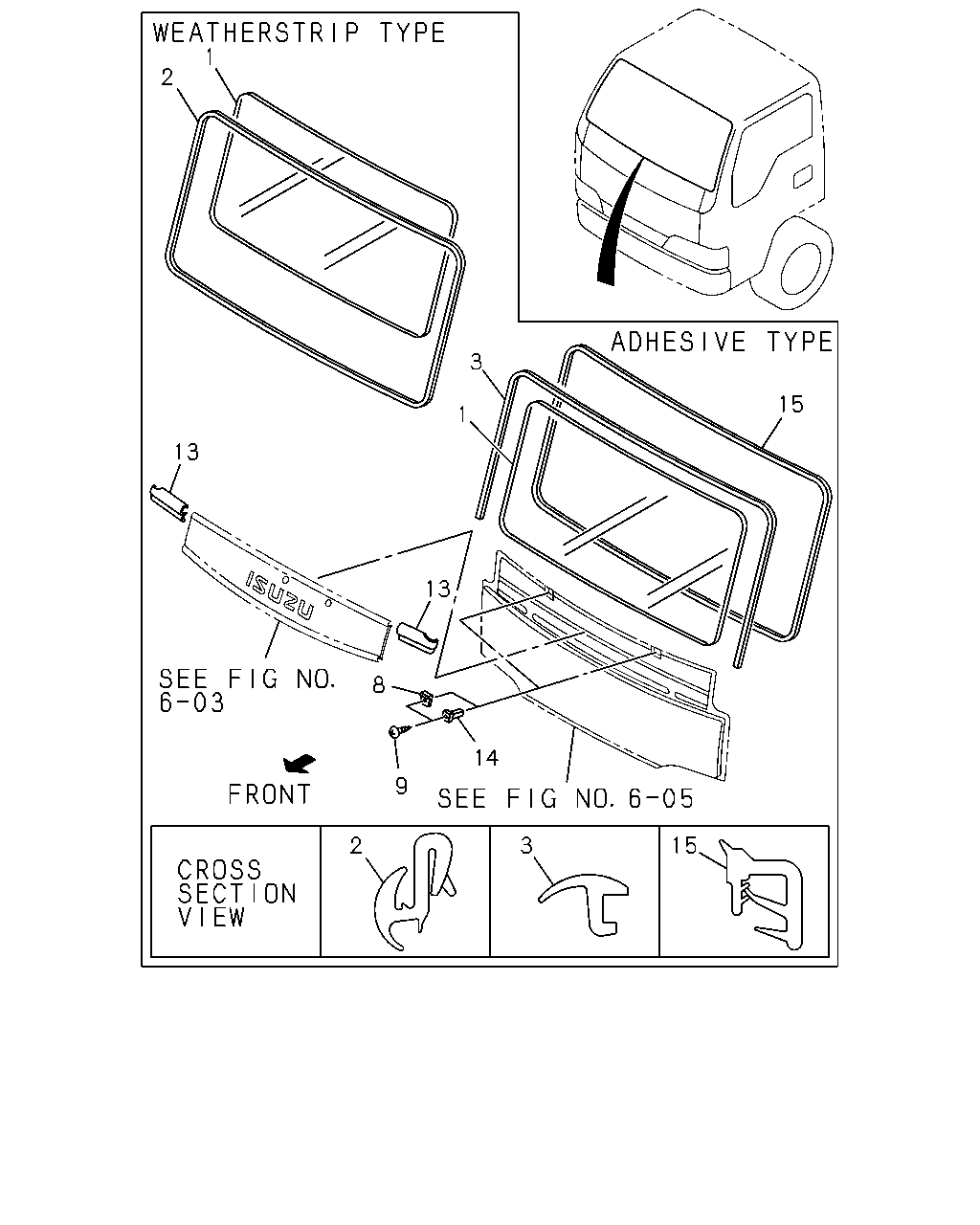

çizim 69191
1 2 3 15 1 13 13 8 14 9 2 3 15
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.005 GLASS; WINDSHIELD
EUROPEAN BASIC EQUIPMENT(EK4) 		8-97084-090-1 01 1 9312-9501 ● ● ● ●
1 16.005 GLASS; WINDSHIELD
EUROPEAN BASIC EQUIPMENT(EK4) 		8-97123-528-0 01 1 9502-9504 ● ● ● ●
1 16.005 GLASS; WINDSHIELD
EUROPEAN BASIC EQUIPMENT(EK4),BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) 		8-97123-528-0 01 1 9505-9506 ● ● ●
1 16.005 GLASS; WINDSHIELD
EUROPEAN BASIC EQUIPMENT(EK4),BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) 		8-97123-528-0 01 1 9507-9706 ● ● ● ●
1 16.005 GLASS; WINDSHIELD
EXC. EUROPEAN BASIC EQUIPMENT(EK4) T=5.8 		8-97040-274-2 01 1 9312-9501 ● ● ● ●
1 16.005 GLASS; WINDSHIELD
EXC. EUROPEAN BASIC EQUIPMENT(EK4) T=5.8 		8-97123-527-0 01 1 9502-9504 ● ● ● ●
1 16.005 GLASS; WINDSHIELD
EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) T=5.8 		8-97123-527-0 01 1 9505-9608 ● ● ● ●
1 16.005 GLASS; WINDSHIELD
EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) T=5.8 		8-97114-297-0 01 1 9609-9611 ● ● ● ●
1 16.005 GLASS; WINDSHIELD
EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) T=5.8 		8-97114-297-0 01 1 9612-9708 ● ● ● ● ●
1 16.005 GLASS; WINDSHIELD
EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF),CHINA EQUIPMENT(YT2),ISRAEL EQUIPMENT(7LX) T=5.8 		8-97114-297-0 01 1 9709-9711 ● ● ● ● ●
1 16.005 GLASS; WINDSHIELD
EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF),CHINA EQUIPMENT(YT2),ISRAEL EQUIPMENT(7LX) T=5.8 		8-97114-297-0 01 1 9712-9802 ● ● ● ● ●
1 16.005 GLASS; WINDSHIELD
EXC. EUROPEAN BASIC EQUIPMENT(EK4), SAUDI ARABIA EQUIPMENT(EU2),BRAZIL EQUIPMENT(RWF),TURKISH EQUIPMENT(S6S),ISR AEL EQUIPMENT(7LX) T=6.3 		8-97869-126-0 01 1 9803- ● ● ● ● ●
1 16.005 GLASS; WINDSHIELD
EUROPEAN BASIC EQUIPMENT(EK4),BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) 		8-97123-528-0 01 1 9707-9708 ● ● ● ●
1 16.005 GLASS; WINDSHIELD
EUROPEAN BASIC EQUIPMENT(EK4),BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) 		8-97867-742-0 01 1 9709-9711 ● ● ● ●
1 16.005 GLASS; WINDSHIELD
EUROPEAN BASIC EQUIPMENT(EK4),BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) 		8-97867-742-0 01 1 9712-9802 ● ● ● ● ●
1 16.005 GLASS; WINDSHIELD
EUROPEAN BASIC EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),BRAZIL EQUIPMENT(RWF),TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) T=6.3 		8-97869-127-0 01 1 9803- ● ● ● ● ●
1 16.005 GLASS; WINDSHIELD
T=6.3 		8-97869-127-0 01 1 9803- ●
1 16.005 GLASS; WINDSHIELD
CHINA EQUIPMENT(YT2) T=5.8 		8-97123-527-0 01 1 9709-9711 ● ● ●
1 16.005 GLASS; WINDSHIELD
CHINA EQUIPMENT(YT2) T=5.8 		8-97123-527-0 01 1 9712-9802 ● ●
2 16.040 WEATHERSTRIP; WINDSHIELD GLASS
DEALER INSTALLED OPTION<6JJ> WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97856-350-3 01 1 9312-9401 ● ● ● ●
2 16.040 WEATHERSTRIP; WINDSHIELD GLASS
WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97856-350-3 01 1 9402-9611 ● ● ● ●
2 16.040 WEATHERSTRIP; WINDSHIELD GLASS
WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97856-350-3 01 1 9612-9711 ● ● ● ● ●
2 16.040 WEATHERSTRIP; WINDSHIELD GLASS
WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97856-350-3 01 1 9712- ● ● ● ● ● ●
3 16.470 MOLDING; WINDSHIELD 8-97853-092-3 01 1 9312-9312 ● ● ● ●
3 16.470 MOLDING; WINDSHIELD 8-97857-908-0 01 1 9401-9401 ● ● ● ●
3 16.470 MOLDING; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97857-908-1 01 1 9402-9611 ● ● ● ●
3 16.470 MOLDING; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97857-908-1 01 1 9612-9711 ● ● ● ● ●
3 16.470 MOLDING; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97857-908-1 01 1 9712-9802 ● ● ● ● ● ●
3 16.470 MOLDING; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97890-215-1 01 1 9803- ● ● ● ● ● ●
8 16.041 STOPPER; WINDSHIELD GLASS
EXC. DEALER INSTALLED OPTION<6JJ>, WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97853-733-0 02 1 9312-9401 ● ● ●
8 16.041 STOPPER; WINDSHIELD GLASS
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97853-733-0 02 1 9402-9404 ● ● ●
8 16.041 STOPPER; WINDSHIELD GLASS
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97853-733-0 02 1 9405-9406 ● ● ● ●
8 16.041 STOPPER; WINDSHIELD GLASS
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97853-733-0 02 1 9407- ●
8 16.041 STOPPER; WINDSHIELD GLASS
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97859-215-0 02 1 9407-9611 ● ● ●
8 16.041 STOPPER; WINDSHIELD GLASS
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97859-215-0 02 1 9612-9711 ● ● ● ●
8 16.041 STOPPER; WINDSHIELD GLASS
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97859-215-0 02 1 9712- ● ● ● ● ●
8 16.041 STOPPER; WINDSHIELD GLASS
EXC. DEALER INSTALLED OPTION<6JJ>, WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97857-143-0 02 1 9312-9401 ●
8 16.041 STOPPER; WINDSHIELD GLASS
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97857-143-0 02 1 9402-9404 ●
9 16.041 SCREW; STOPPER
16.067 M5X14 		8-94279-325-0 02 1 9312-9401 ● ● ● ●
9 16.041 SCREW; STOPPER
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.067 M5X14 		8-94279-325-0 02 1 9402-9611 ● ● ● ●
9 16.041 SCREW; STOPPER
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.067 M5X14 		8-94279-325-0 02 1 9612-9711 ● ● ● ● ●
9 16.041 SCREW; STOPPER
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.067 M5X14 		8-94279-325-0 02 1 9712- ● ● ● ● ● ●
13 16.041 MOLDING; BRKT,OUTSIDE MIRROR 8-97853-787-4 01 1 9312-9401 ● ● ● ●
13 16.041 MOLDING; BRKT,OUTSIDE MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97853-787-4 01 1 9402-9611 ● ● ● ●
13 16.041 MOLDING; BRKT,OUTSIDE MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97853-787-4 01 1 9612-9711 ● ● ● ● ●
13 16.041 MOLDING; BRKT,OUTSIDE MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97853-787-4 01 1 9712- ● ● ● ● ● ●
13 16.041 MOLDING; BRKT,OUTSIDE MIRROR 8-97853-786-3 01 1 9312-9401 ● ● ● ●
13 16.041 MOLDING; BRKT,OUTSIDE MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97853-786-3 01 1 9402-9611 ● ● ● ●
13 16.041 MOLDING; BRKT,OUTSIDE MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97853-786-3 01 1 9612-9711 ● ● ● ● ●
13 16.041 MOLDING; BRKT,OUTSIDE MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97853-786-3 01 1 9712- ● ● ● ● ● ●
14 16.041 GROMMET; SCREW,STOPPER
DEALER INSTALLED OPTION<6JJ> WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.547 14.5X14.5 BLACK 		8-94279-714-0 02 1 9312-9401 ● ● ● ●
14 16.041 GROMMET; SCREW,STOPPER
WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.547 14.5X14.5 BLACK 		8-94279-714-0 02 1 9402-9408 ● ● ● ●
14 16.041 GROMMET; SCREW,STOPPER
WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.547 14.5X14.5 BLACK 		8-94279-714-0 04 1 9409-9611 ● ● ● ●
14 16.041 GROMMET; SCREW,STOPPER
WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.547 14.5X14.5 BLACK 		8-94279-714-0 04 1 9612-9711 ● ● ● ● ●
14 16.041 GROMMET; SCREW,STOPPER
WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.547 14.5X14.5 BLACK 		8-94279-714-0 04 1 9712- ● ● ● ● ● ●
14 16.041 GROMMET; SCREW,STOPPER
EXC. DEALER INSTALLED OPTION<6JJ>, WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.802 D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 9312-9401 ● ● ● ●
14 16.041 GROMMET; SCREW,STOPPER
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.802 D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 9402-9406 ● ● ● ●
14 16.041 GROMMET; SCREW,STOPPER
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.802 D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 9407- ●
15 16.041 FINISHER; WINDSHIELD
EXC. DEALER INSTALLED OPTION<6JJ>, WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97856-152-4 01 1 9312-9401 ● ● ● ●
15 16.041 FINISHER; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> DARK BEIGE 		8-97856-152-4 01 1 9402-9611 ● ● ● ●
15 16.041 FINISHER; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> DARK BEIGE 		8-97856-152-4 01 1 9612-9711 ● ● ● ● ●
15 16.041 FINISHER; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> DARK GRAY 		8-97857-048-4 01 1 9712- ● ● ● ● ● ●
