2-05C — CLUTCH PIPING (#4810) — 129 parça

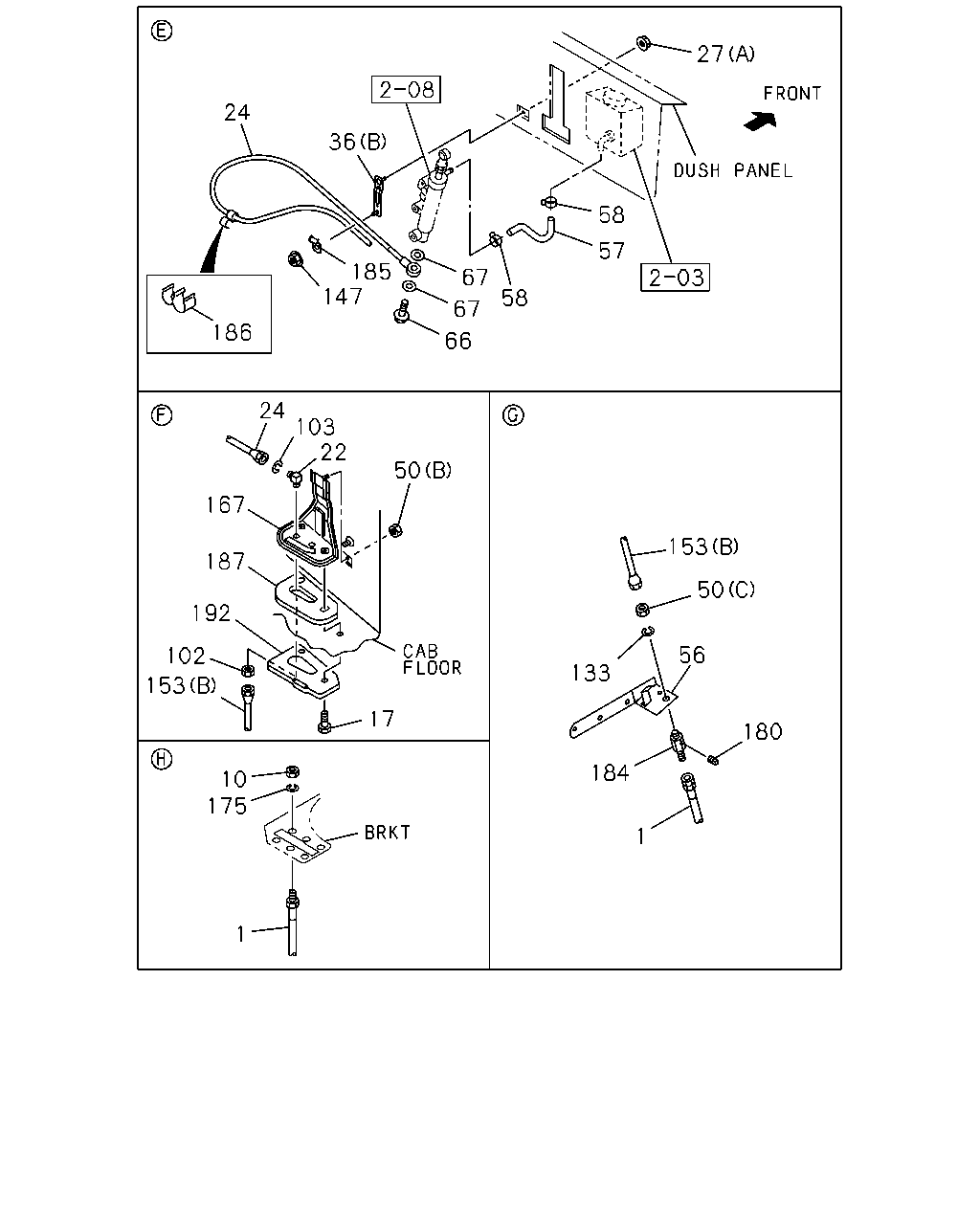

27 24 36 58 57 185 147 67 58 67 186 66 24 103 22 50 167 153 187 50 192 56 102 133 153 17 180 184 10 175 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,CLU CONT L=430	1-09364-859-1	01	1	9905-	●
1	HOSE; FLEX,CLU CONT L=430	1-09364-859-0	01	1	9611-9904		●
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9905-	●
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9611-9904		●
17	BOLT; BRKT M8X20 W/LK&PL WASHER	8-94279-216-0	02	1	9905-	●
17	BOLT; BRKT M8X20 W/LK&PL WASHER	8-94279-216-0	02	1	9611-9904		●
22	UNION; CLU PIPE M14	9-09225-208-1	01	1	9905-	●
24	PIPE ASM; CLU,M/CYL TO UNION L=643	1-47424-529-2	01	1	9905-	●
24	PIPE ASM; CLU,M/CYL TO UNION L=642.7	1-47424-529-2	01	1	9611-9904		●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9611-9904		●
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	9905-	●
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9905-	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9905-	●
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9611-9904		●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9611-9904		●
36	BRACKET; CLIP (B)	1-71117-191-1	01	1	9905-	●
36	BRACKET; CLIP (B)	1-71117-191-1	01	1	9611-9904		●
50	NUT; UNION (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9905-	●
50	NUT; UNION (C) M14	9-99111-414-0	01	1	9905-	●
50	NUT; UNION (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9611-9904		●
50	NUT; UNION (C) M14	9-99111-414-0	01	1	9611-9904		●
56	BRACKET; FLEX HOSE	1-47477-602-1	01	1	9905-	●	●
56	BRACKET; FLEX HOSE	1-47477-602-1	01	1	9611-9904		●
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	9905-	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	9611-9904		●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	9905-	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	9611-9904		●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	9905-	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	9611-9904		●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	9905-	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	9611-9904		●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9905-	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9905-	●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	9905-	●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	9611-9904		●
147	NUT; CLIP FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	9611-9904		●
147	NUT; CLIP FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	9905-	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	9601-	●	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=1523 SERVICED BY L=1550	1-47426-390-0	01	1	9611-9904		●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=1523 SERVICED BY L=1550	1-47426-390-0	01	1	9905-	●
167	BRACKET; UNION	1-71117-183-3	01	1	9905-	●
167	BRACKET; UNION	1-71117-183-3	01	1	9611-9904		●
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9905-	●
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9611-9904		●
180	PLUG; PIPE	9-09204-510-0	01	1	9905-	●
180	PLUG; PIPE	9-09204-510-0	01	1	9611-9904		●
184	UNION; FLEX HOSE 3WAY	1-09656-679-0	01	1	9905-	●
184	UNION; FLEX HOSE 3WAY	1-09656-679-0	01	1	9611-9904		●
185	CLIP; BRKT ID=9 L=20	9-09545-108-0	01	1	9905-	●
185	CLIP; BRKT ID=9 L=20	9-09545-108-0	01	1	9611-9904		●
186	HOLDER; CLIP ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-94107-710-0	02	1	9905-	●
186	HOLDER; CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-94107-710-0	02	1	9611-9904		●
187	SEAL; BRKT	1-71117-222-0	01	1	9905-	●
187	SEAL; BRKT	1-71117-222-0	01	1	9611-9904		●
192	PLATE	1-71117-221-0	01	1	9905-	●
192	PLATE	1-71117-221-0	01	1	9611-9904		●

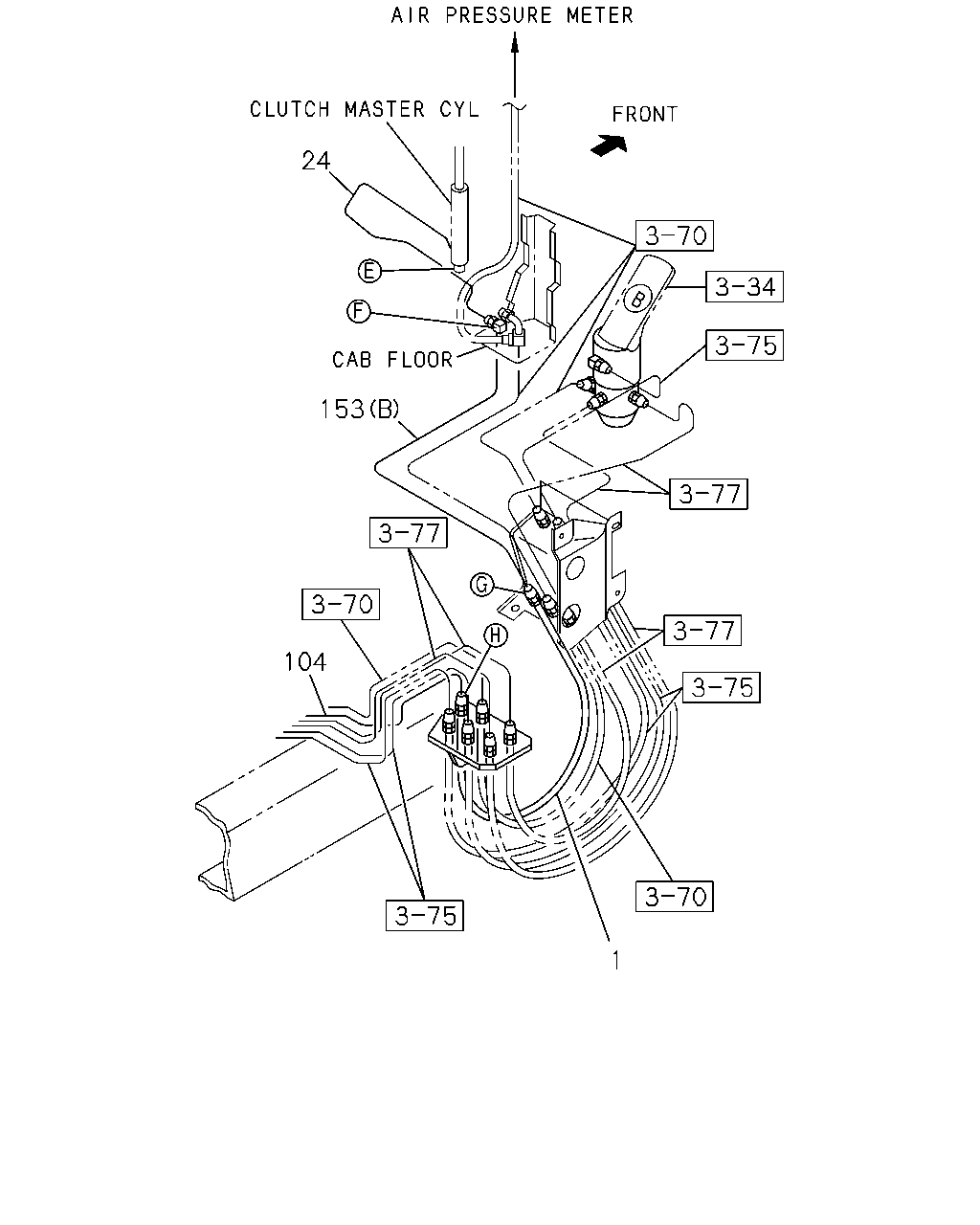

24 153 104 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,CLU CONT L=430	1-09364-859-1	01	1	9905-	●
1	HOSE; FLEX,CLU CONT L=430	1-09364-859-0	01	1	9611-9904		●
24	PIPE ASM; CLU,M/CYL TO UNION L=643	1-47424-529-2	01	1	9905-	●
24	PIPE ASM; CLU,M/CYL TO UNION L=642.7	1-47424-529-2	01	1	9611-9904		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L TYPE ENG<90L> L=1539 SERVICED BY L=1550	1-47426-390-0	01	1	9703-9711		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L TYPE ENG<90L> L=1536 SERVICED BY L=1550	1-47426-390-0	01	1	9712-9904		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L TYPE ENG<90L> L=1589	1-49164-423-0	01	1	9905-	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	9601-	●	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=1523 SERVICED BY L=1550	1-47426-390-0	01	1	9611-9904		●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=1523 SERVICED BY L=1550	1-47426-390-0	01	1	9905-	●

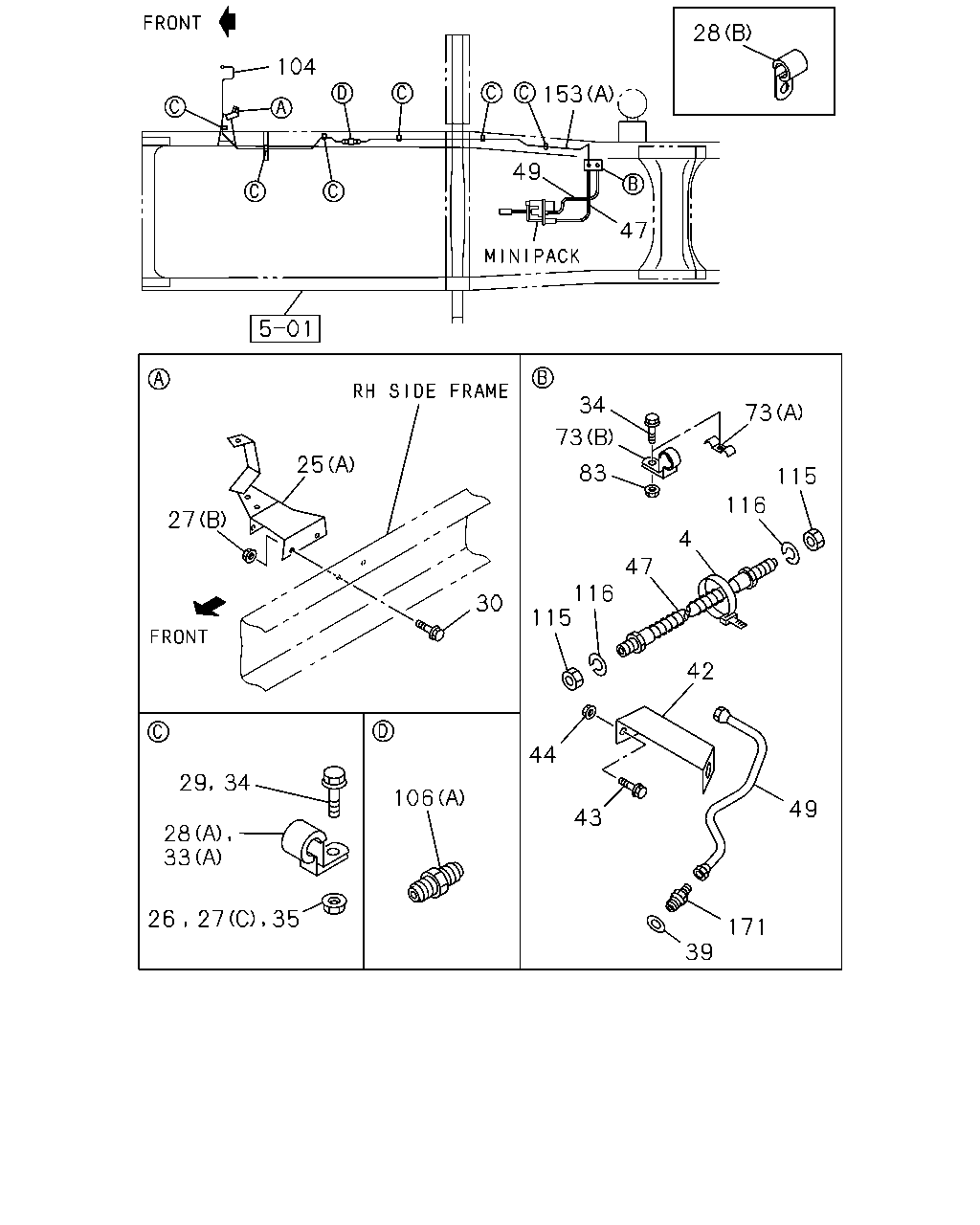

28 104 153 49 47 34 73 73 25 83 115 116 27 4 47 116 115 30 42 44 29 34 106 49 43 28 33 171 39 26 27 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	CLIP; FLEX HOSE,CLU CONT L=140	5-09707-031-0	01	1	9601-9605		●
25	BRACKET; OIL PIPE (A)	1-47477-604-2	01	1	9905-	●	●
25	BRACKET; OIL PIPE (A)	1-47477-604-1	01	1	9611-9904		●
26	NUT; CLIP,OIL PIPE M8	9-09110-508-0	01	1	9611-9904		●
26	NUT; CLIP,OIL PIPE L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	02	1	9905-0002	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	9905-0002	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9611-9904		●
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	9905-	●
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9905-	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9905-	●
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9611-9904		●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9611-9904		●
28	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9905-0002	●	●
28	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	03	1	0003-	●
28	CLIP; OIL PIPE (B) ID=9	9-09524-845-0	01	1	9906-0002	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	03	1	9905-0002	●	●
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	9905-	●
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	9611-9904		●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9908-	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9611-9904		●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9905-9907	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9908-	●	●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	01	1	9905-9907	●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	02	1	9908-	●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28080-820-0	01	1	9611-9904		●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28080-820-0	01	1	9905-	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	02	1	9905-	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	9905-9907	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	9908-	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	03	1	9611-9904		●
39	GASKET; CONNECTOR ID=10.2 OD=16.0	9-09571-410-0	01	1	9611-9904		●
39	GASKET; CONNECTOR ID=10.2 OD=16.0	9-09571-410-0	01	1	9905-	●
42	BRACKET; FLEX HOSE,CLU CONT	1-47477-724-0	01	1	9611-9904		●
42	BRACKET; FLEX HOSE,CLU CONT	1-47477-724-0	01	1	9905-	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	9611-9904		●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	9905-0102	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9611-9904		●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9905-0102	●
47	HOSE; FLEX,CLU CONT L=420	1-09364-615-0	01	1	9611-9904		●
47	HOSE; FLEX,CLU CONT L=420	1-09364-615-0	01	1	9905-	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER	1-49161-120-0	01	1	9611-9904		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER	1-49161-120-0	01	1	9905-	●
73	CLIP; OIL PIPE (A) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9611-9904		●
73	CLIP; OIL PIPE (A) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9905-	●
73	CLIP; OIL PIPE (B) ID=35 H=45 L=33	1-09700-947-0	01	1	9611-9904		●
83	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9611-9904		●
83	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9905-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L TYPE ENG<90L> L=1539 SERVICED BY L=1550	1-47426-390-0	01	1	9703-9711		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L TYPE ENG<90L> L=1536 SERVICED BY L=1550	1-47426-390-0	01	1	9712-9904		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L TYPE ENG<90L> L=1589	1-49164-423-0	01	1	9905-	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	9601-9904		●
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	9905-9905	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	9906-0002	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	0003-	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	02	1	9611-9904		●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	02	1	9905-	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	02	1	9611-9904		●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	02	1	9905-	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	9601-	●	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=1523 SERVICED BY L=1550	1-47426-390-0	01	1	9611-9904		●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=1523 SERVICED BY L=1550	1-47426-390-0	01	1	9905-	●
171	CONNECTOR; CLU BOOSTER	1-09650-256-1	01	1	9611-9904		●
171	CONNECTOR; CLU BOOSTER	1-09650-256-1	01	1	9905-	●
